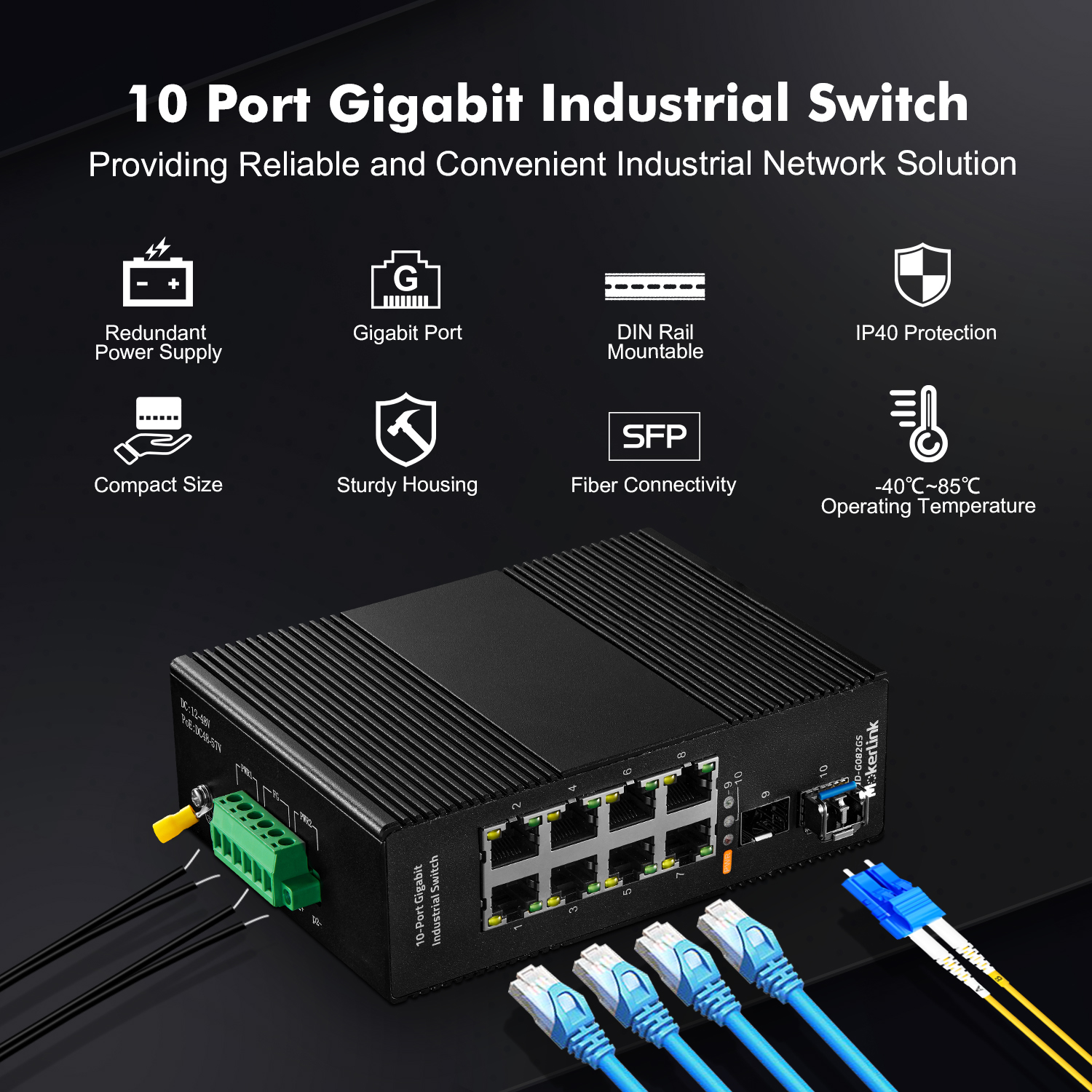

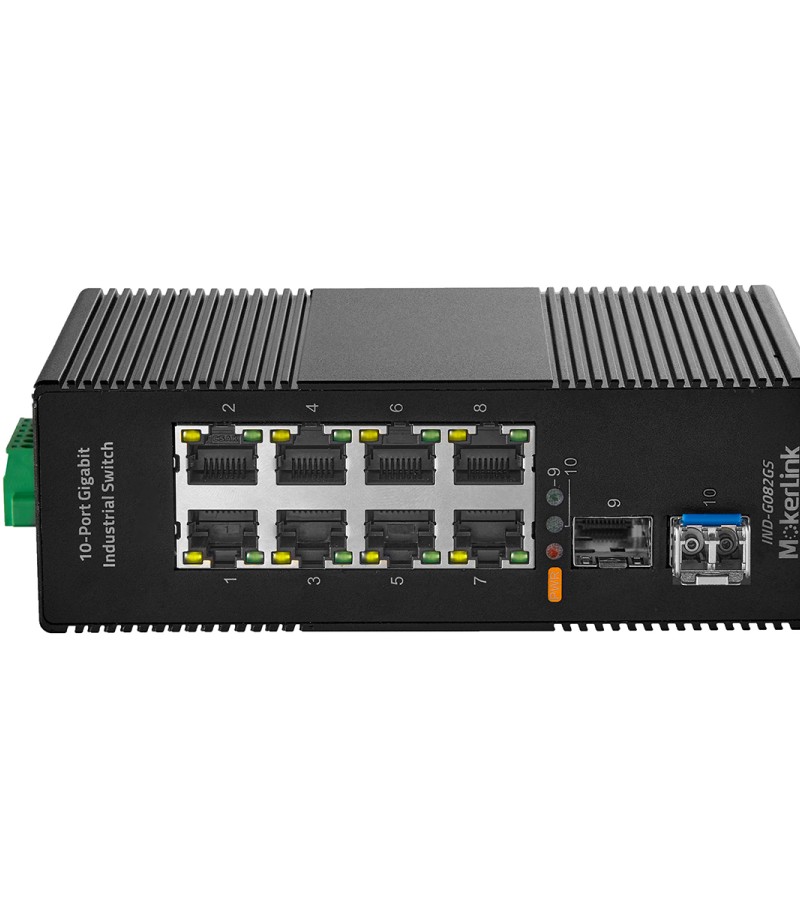

Full Gigabit Port
The industrial ethernet switch is available with 8x 1000Base TX RJ45 ports + 2x 1000Base-X optical ports and 20Gbps exchange capacity, provide enough bandwidth to prevent network bottlenecks.

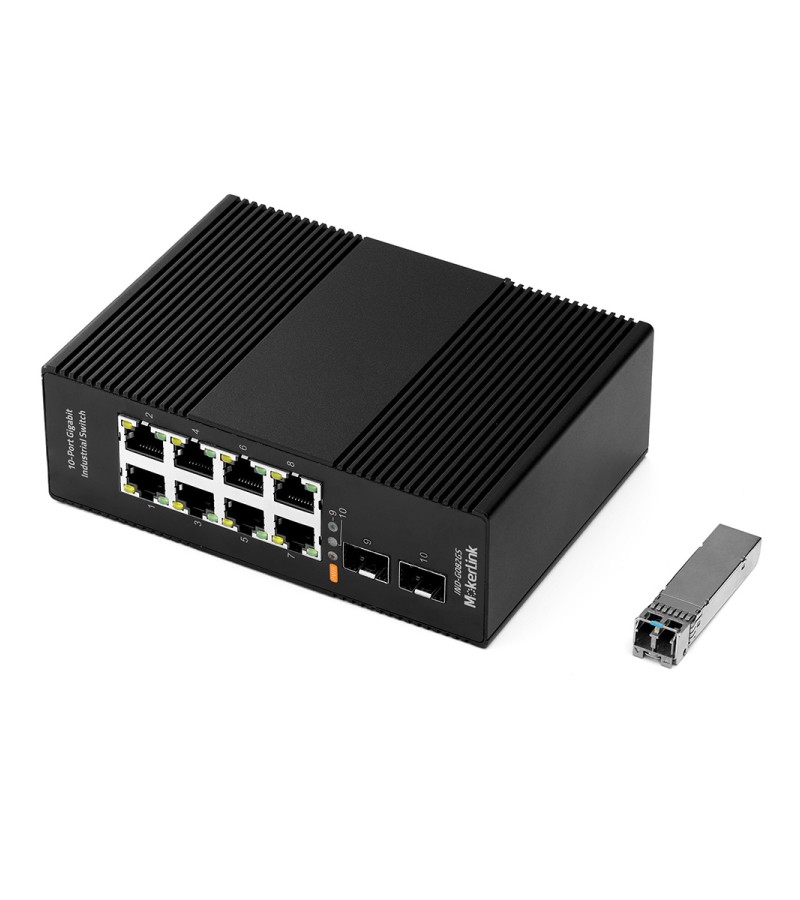

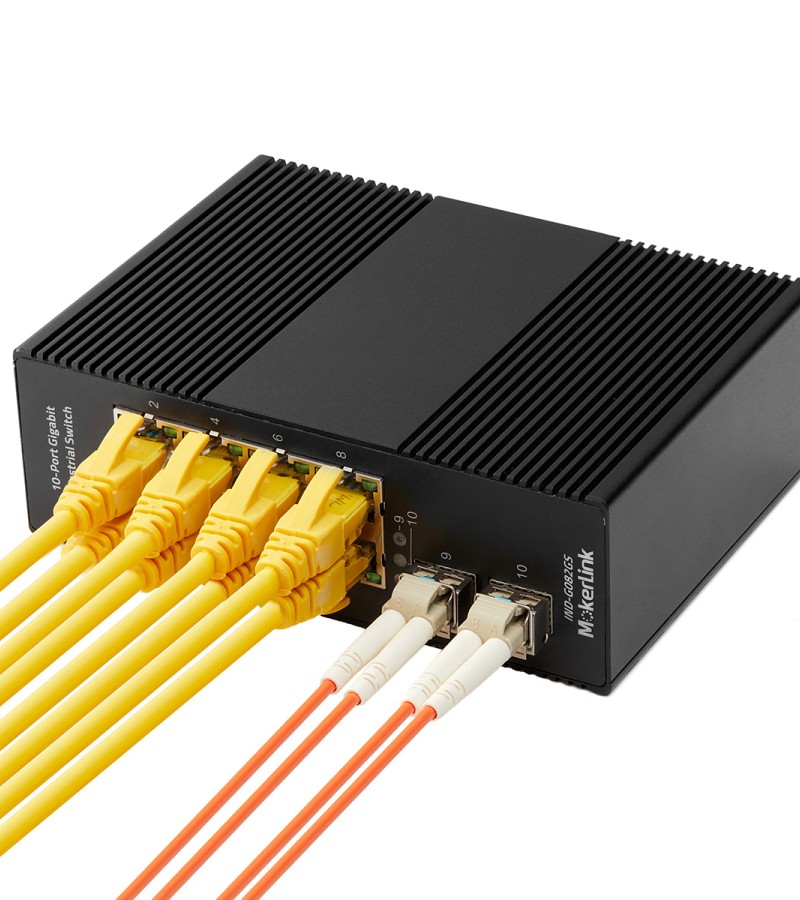

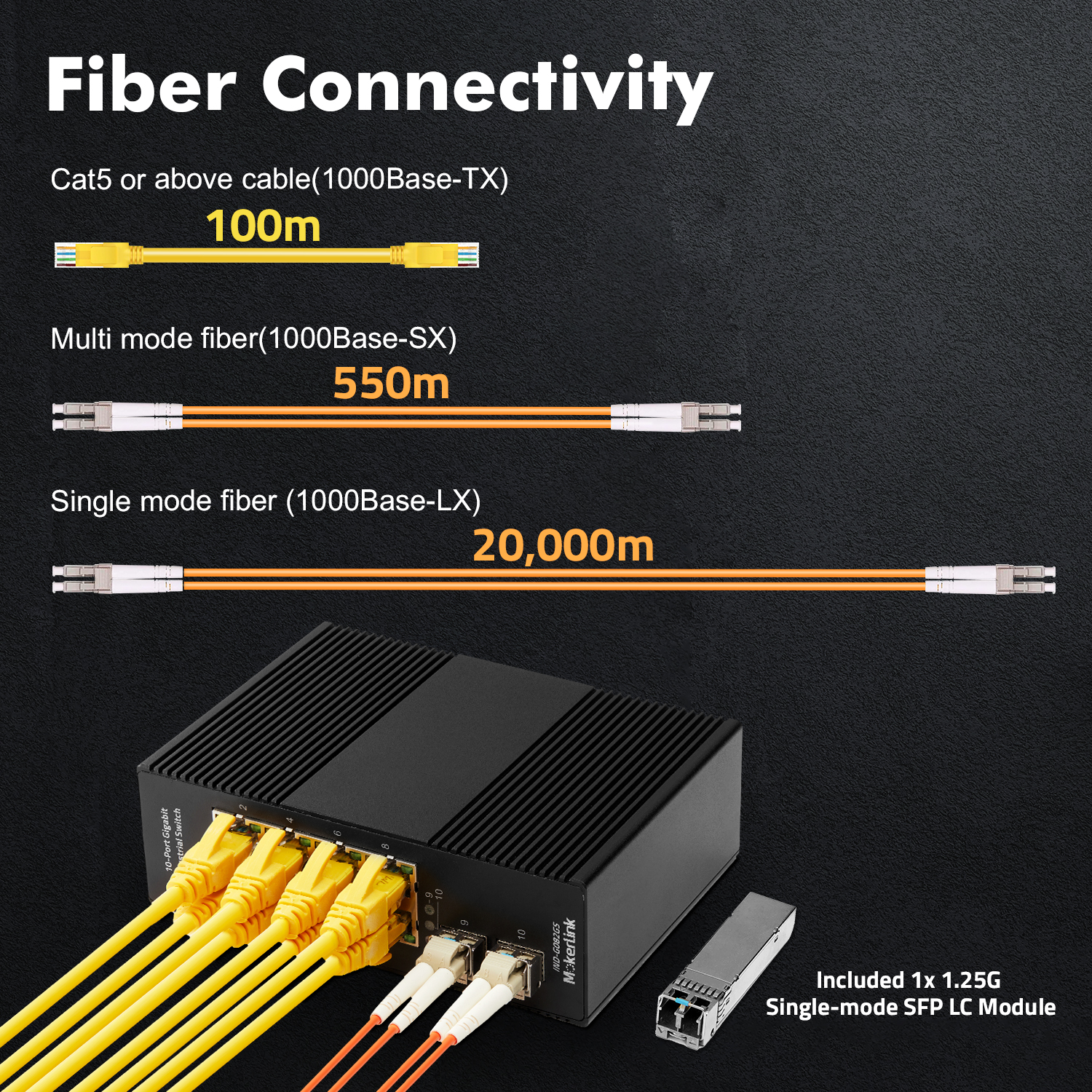

Fiber Connectivity
The switch support 2 up-link 1G fiber ports, The switch's port 9-10 use fiber cable to connect wired network segments throughout buildings or across campuses extending beyond the limitations of Ethernet cabling.
IP40 Protection
10-Port unmanaged industrial ethernet switch adopt with high strength IP40 protective housing, industrial EMC design to increase the reliability of communication network.

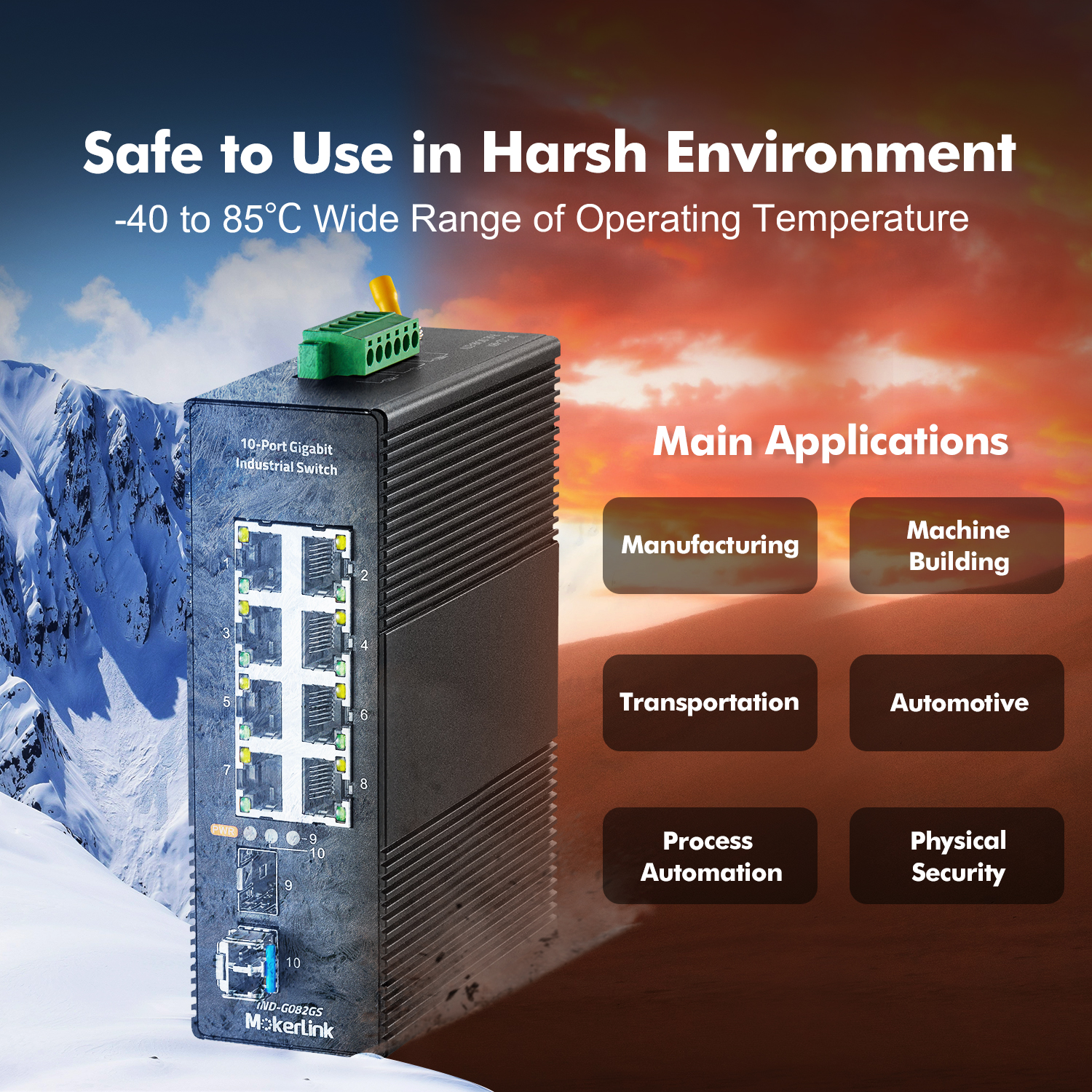

Wide Temperature Operation
MokerLink industrial ethernet switches are designed with wide temperature support to ensure operation reliability in extreme temperatures ranging from -40ºC to 85ºC.

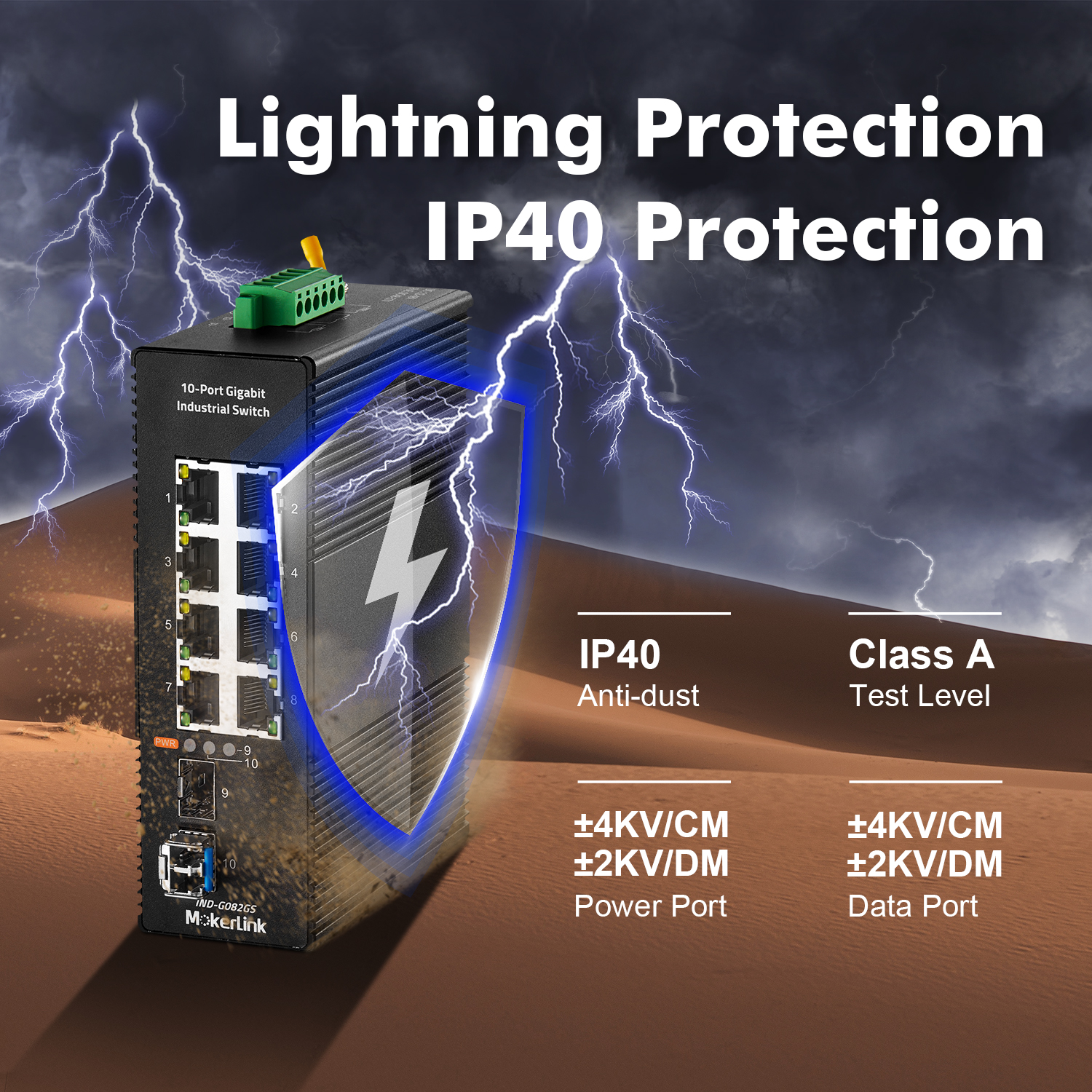

Lightning Protection
The industrial switch's 4KV power port surge protection and 2KV network port surge protection can adapt to harsh outdoor environment and ensure the reliability of the uninterrupted network system.

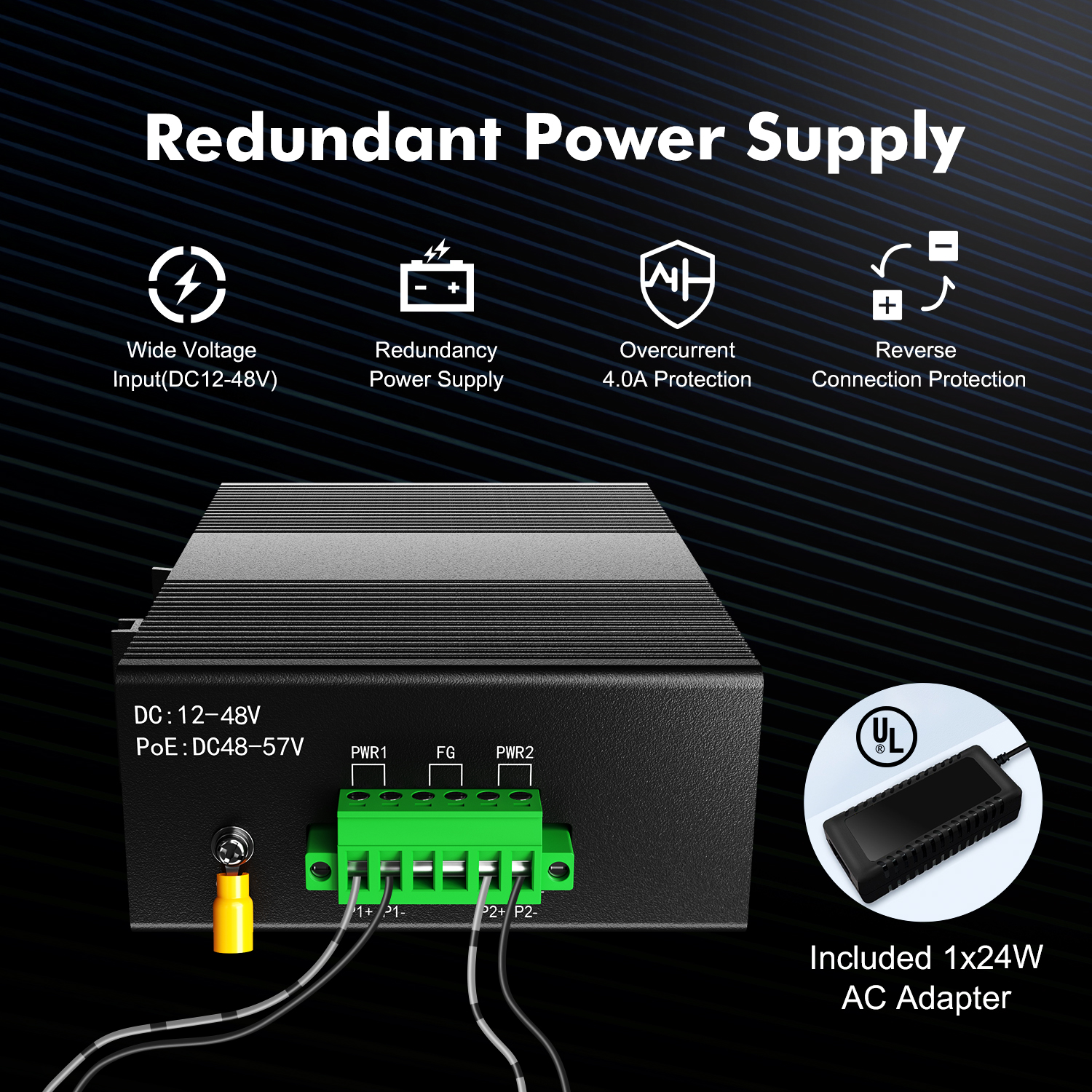

Redundant Power Supply
This industrial ethernet switch support dual redundant power supply(included 1x24W AC adapter).Each of the power supplies will have the capacity to run the device on its own. This makes sure that the switch could operate normally even if one power supply fails.

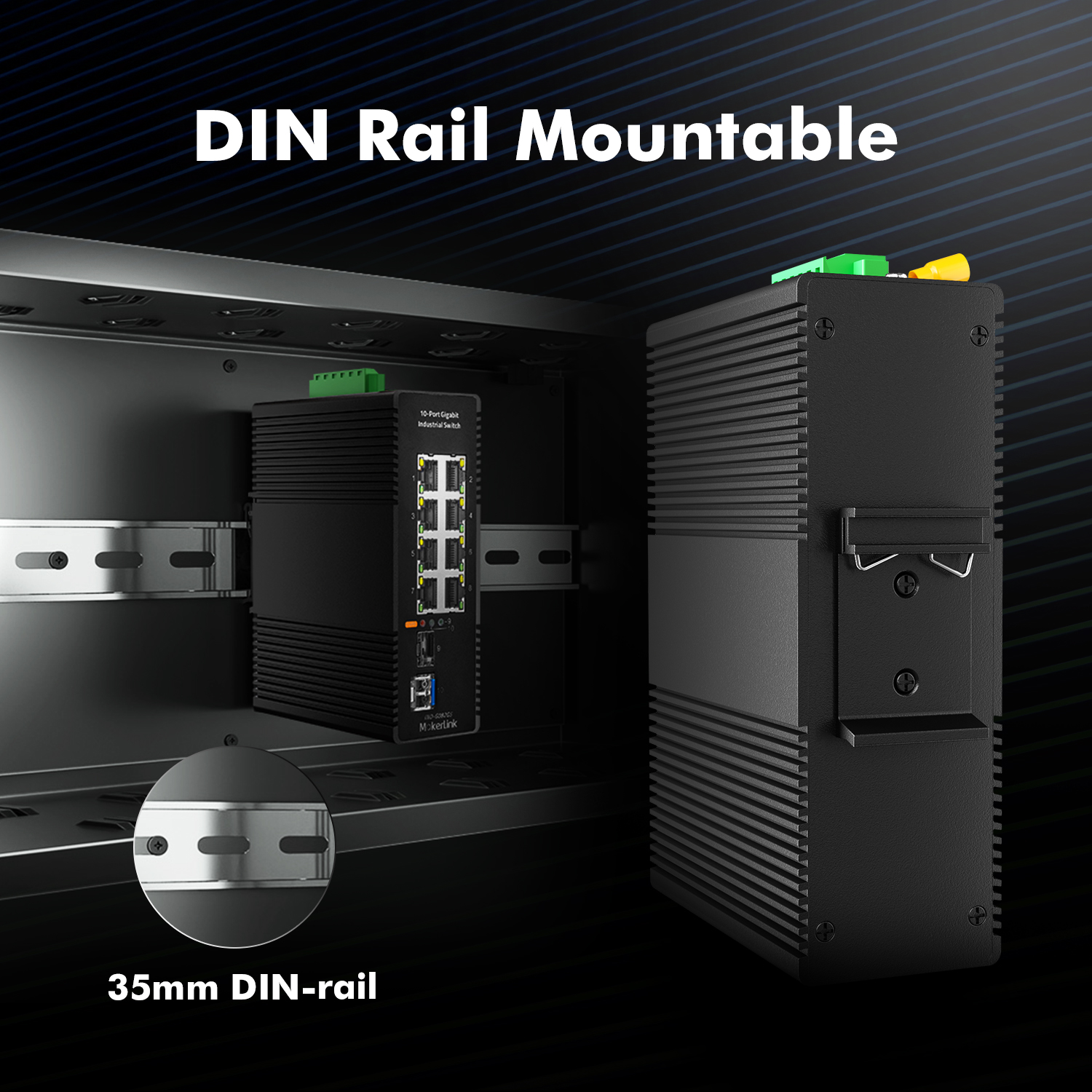

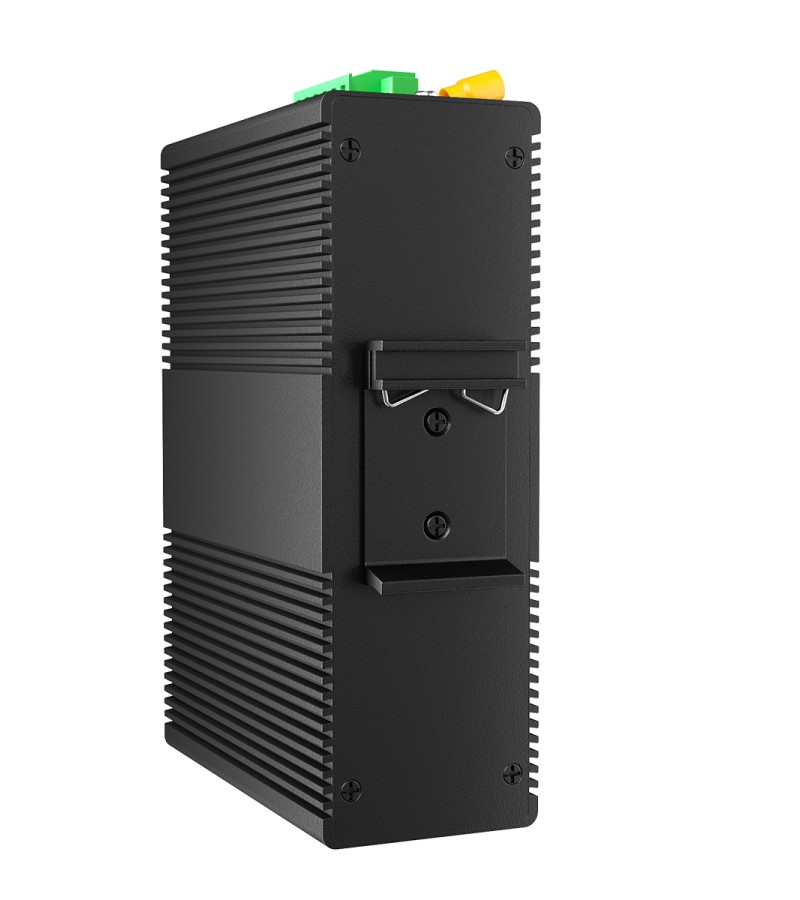

DIN Rail Mountable
Ultra Compact industrial Ethernet switche can be mounted on a 35mm din rail.Save time and space.

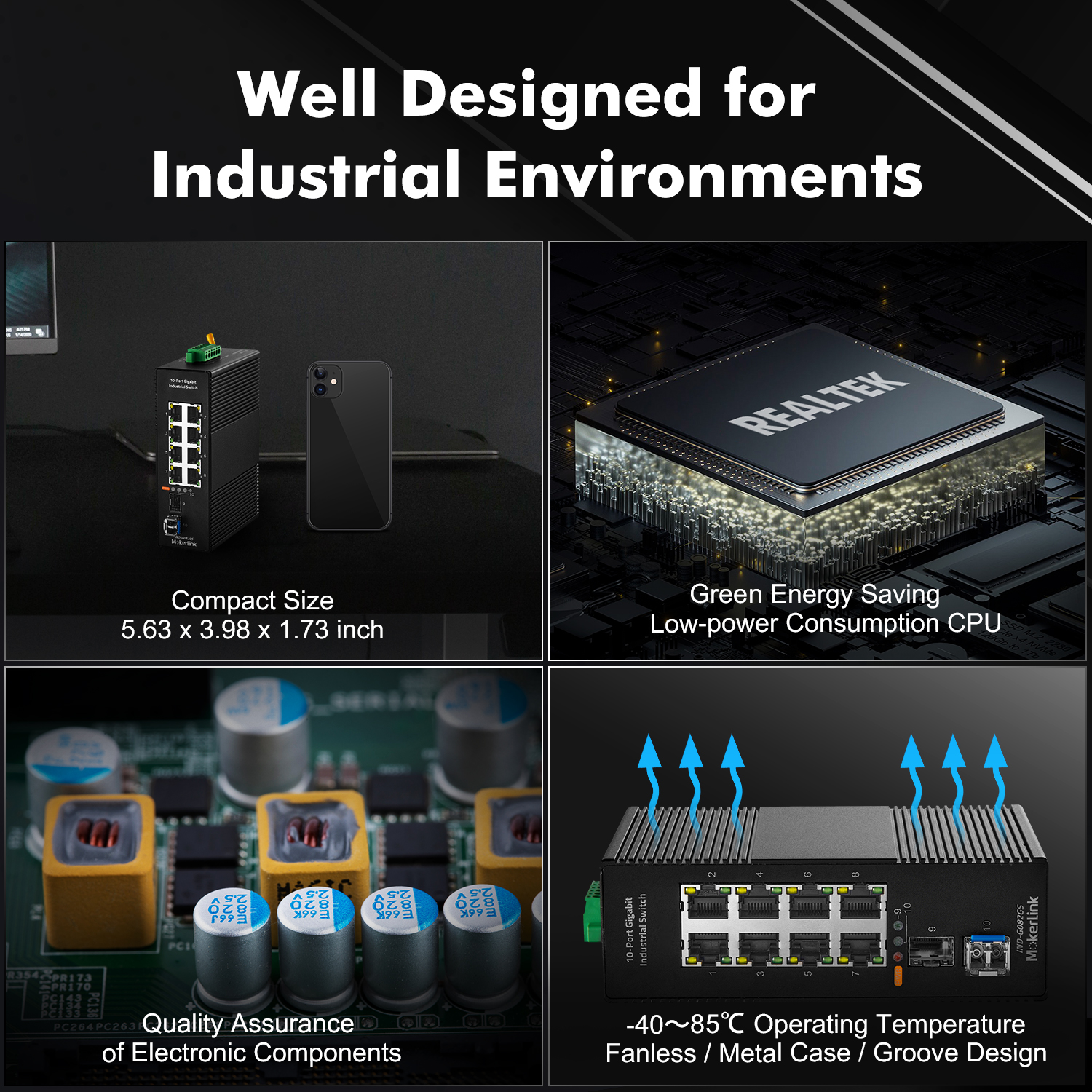

Compact Size
MokerLink industrial ethernet switches are housed in a compact sturdy metal case.you can mount it on the desktop or cabinet.
Metal Case & Fanless
The industrial ethernet switch features with aluminum case and fanless design that ensures noiseless operation and greater reliability over time.
Industrial-grade Electronic Components
The industrial ethernet switch adopt with high quality of electronic components.Make sure it can be widely used in various industrial scenarios.
Ask Question About Product
Industrial Ethernet | |
Model | IND-G082GS |

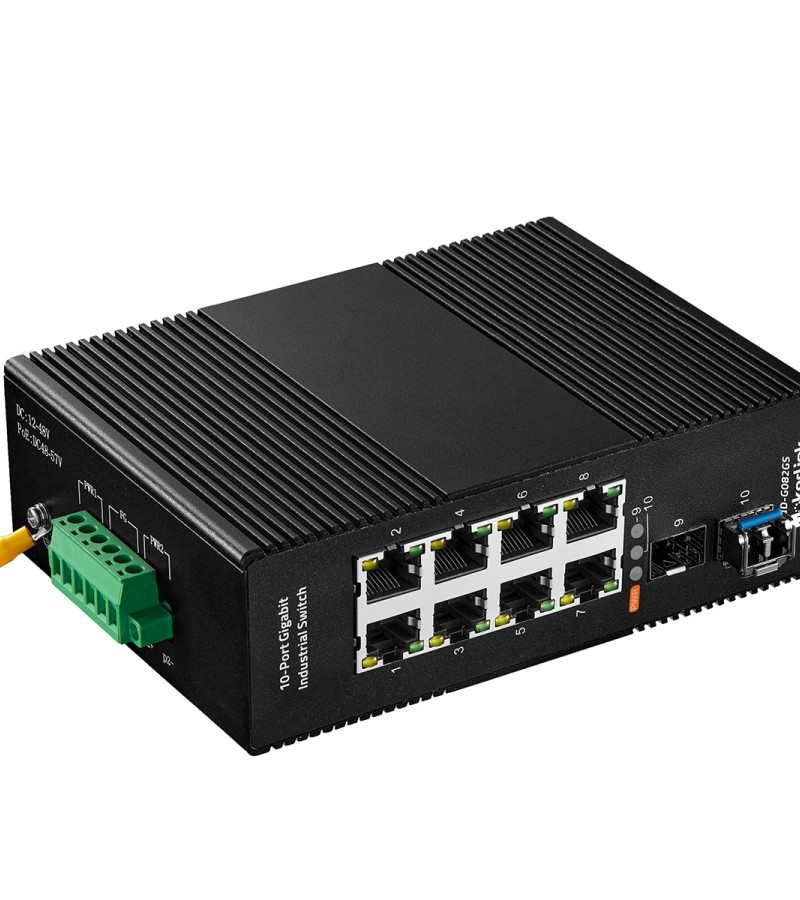

Product Name | 10 Port Gigabit Industrial Ethernet Switch with 2 SFP Port |
Product Description | 8-way Gigabit RJ45 port + 2-way gigabit optical port industrial Ethernet Switch |
RJ45 port | 10/100/1000BaseT(X)Automatic detection Full / half duplexMDI/MDI-Xself-adaption |
Port Description | 8 RJ45 ports + 2 optical interfaces |
Network Protocol | IEEE802.3 - CSMA/CD; IEEE802.3i - 10Base-T; IEEE802.3u - 100Base-TX/FX; IEEE802.3x - Flow control; IEEE802.3z - 1000Base-X; IEEE802.3ab - 1000Base-T; |
Work environment | Operating temperature: - 40℃ ~+ 85℃ (- 40 ~ 185 ° f) Storage temperature: - 40℃~ +85℃ (- 40 ~ 185 ° f) Relative humidity: 5% ~ 95% (no condensation) |
Power Supply | Input voltage: DC12V-52V (dual power supply redundant backup) Access terminal: Phoenix terminal Support dual power redundancy Support built-in overcurrent 4.0A protection Support reverse grounding protection |
Switch Properties | Switching capacity :20Gbps Application level: Level 2 verall packet forwarding rate :14.88Mpps MAC Table :16K Packet buffer :2M Switching mode: store forward power consumption: < 3W |
LED Indicators | Power indicator: PWR interface indicator: electric port and optical port (link / act) |
Degreeof Protection | IP40 |
Authentication | Passed certification: CE, FCC, ROHS, ISO9001:2015 Ministry of Public Security Test Report |
Mean Time Between Failures | 300,000 Hour |
Warranty | 1 Year |
Mechanical Properties | Enclosure: IP40 protection grade, metal enclosure Installation: DIN rail type, wall mounted Heat dissipation mode: natural cooling without fan Weight: 0.64kg Dimensions: 143 x 101 x 44mm (L x W x H) |
Industry Standard | EMI FCC Part 15 Subpart B Class A,EN 55022 Class A EMS IEC(EN)61000-4-2(ESD): ±8kV(contact), ±15kV(air) IEC(EN)61000-4-3(RS): 10V/m(80~1000MHz) IEC(EN)61000-4-4(EFT):PowerPort:±4kV; Data Port: ±2kV IEC(EN)61000-4-5(Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV IEC61000-4-6(CS): 10V(150kHz~80MHz)/IEC(EN)61000-4-16(CM EMI) : 30V cont. 300V,1s IEC 60068-2-27 (Shock)/EC 60068-2-32 (Freefall) IEC 60068-2-6 (Vibration) |
