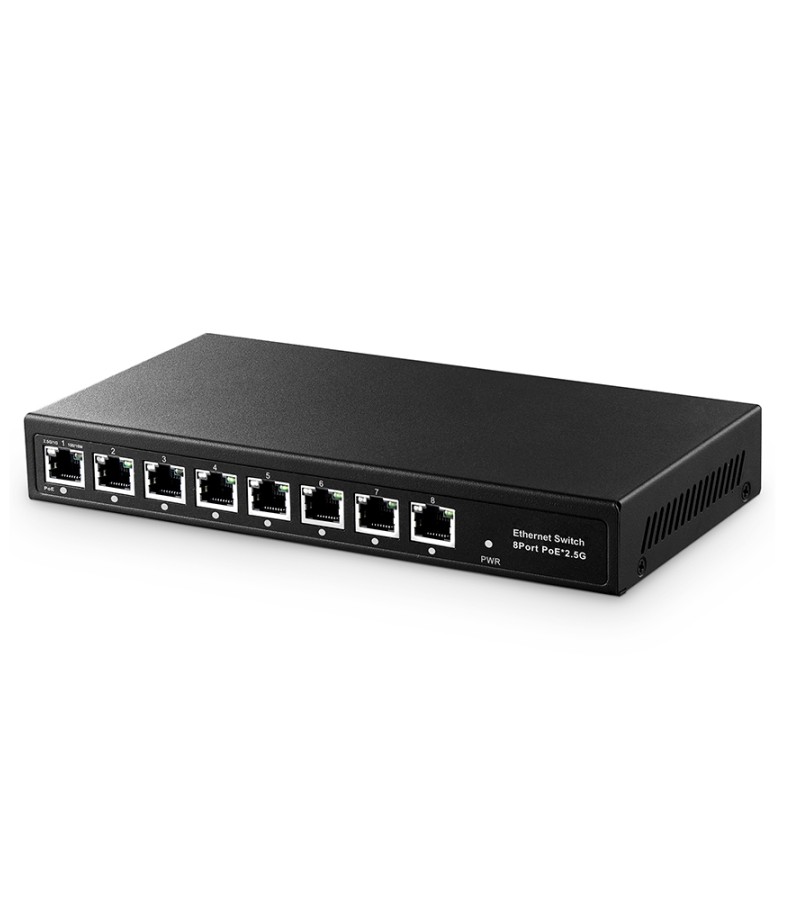

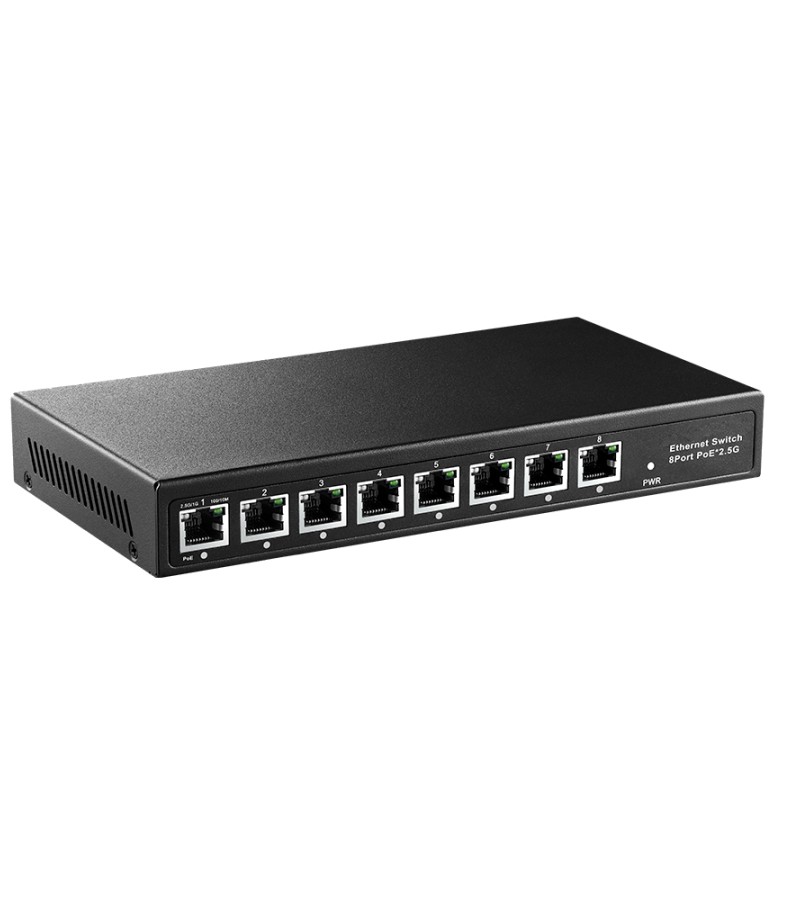

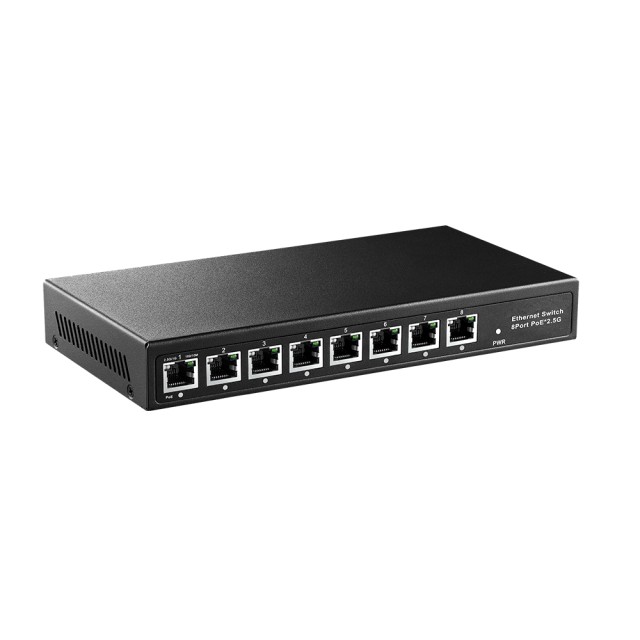

MokerLink 8 Port 2.5G PoE Switch, 8 x 2.5 Gigabit RJ-45 Base-T Ports, IEEE802.3af/at, 120W Power Supply, Unmanaged Multi-Gigabit Desktop Ethernet Switch
8 x 2.5Gigabit PoE Ports, support IEEE802.3af/at PoE max 30W, port 1 support IEEE802.3bt max 90W, the total power supply is 120W, Unmanaged no need configure, Double side cooling holes, fanless design, Widely used
- Brand: MokerLink
- Product Code: POE-2G080G
- Availability: In Stock
8 port 2.5G PoE unmanaged switch with line speed forwarding capability per port. It has good network adaptability for applications such as security monitoring, diskless startup and wireless networking.
- 8*10M/100M/1G/2.5Gbps PoE ports for high-speed transmission.
- SupportIEEE 802.3af/at (Max. 30W for per port)
- Up to 80G backplane bandwidth, 12M cache, 28.8M packet forwarding rate, and support 12K jumbo frame transmission.
- Energy saving technology is adopted to automatically adjust the signal strength by detecting the length of network cable and workload, so as to effectively reduce energy consumption.
- Plug and play, no management required.
- Dynamic LED indicator provides simple working status prompt and troubleshooting.

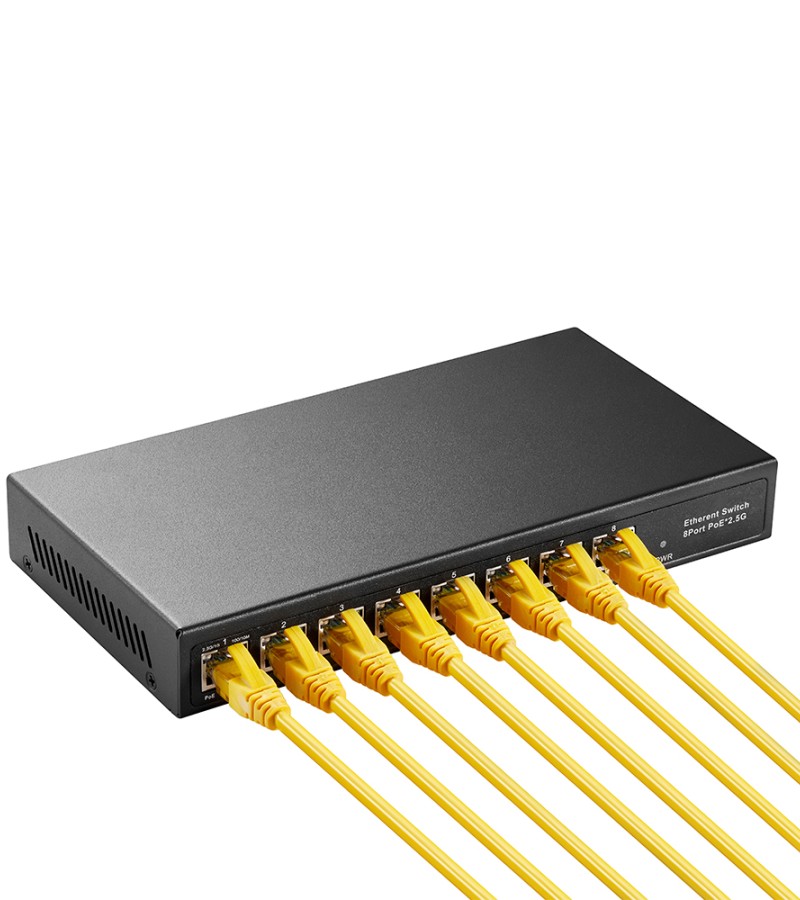

Full 2.5G Ports Configuration
8 port 2.5G PoE switch supports speeds ranging from 10Mbps to 2.5Gbps. your network devices can run at their designated speeds without any limitations. It is also backward compatible. If you already have the traditional Cat5E and Cat6 cables, you won't need to buy new ones.
IEEE 802.3af/at(PoE+) Support
8 port 2.5g PoE switch support IEEE 802.3at (PoE+) standard which supports up to 30W of power on the ports, allowing devices that require more than 15.4W to power on when connected to the PoE+ ports.
Support Jumbo Frame
2.5G PoE switch support jumbo frame. Jumbo Frames can reduce your bandwidth usage. It load more data into fewer ethernet frames. By using fewer frames, you reduce the overall number of transactions on the network. It also reduces stress on you networking equipment.
Fanless and Noiseless
This is a silent and perfectly noiseless 2.5g ethernet switch. All the internal hardware is passively cooled which is very beneficial for home and office applications that require a silent or noiseless environment.
Plug and Play
Unmanaged 2.5g PoE switch, no configuration required. Simply plug a device into the network. It automation begins.

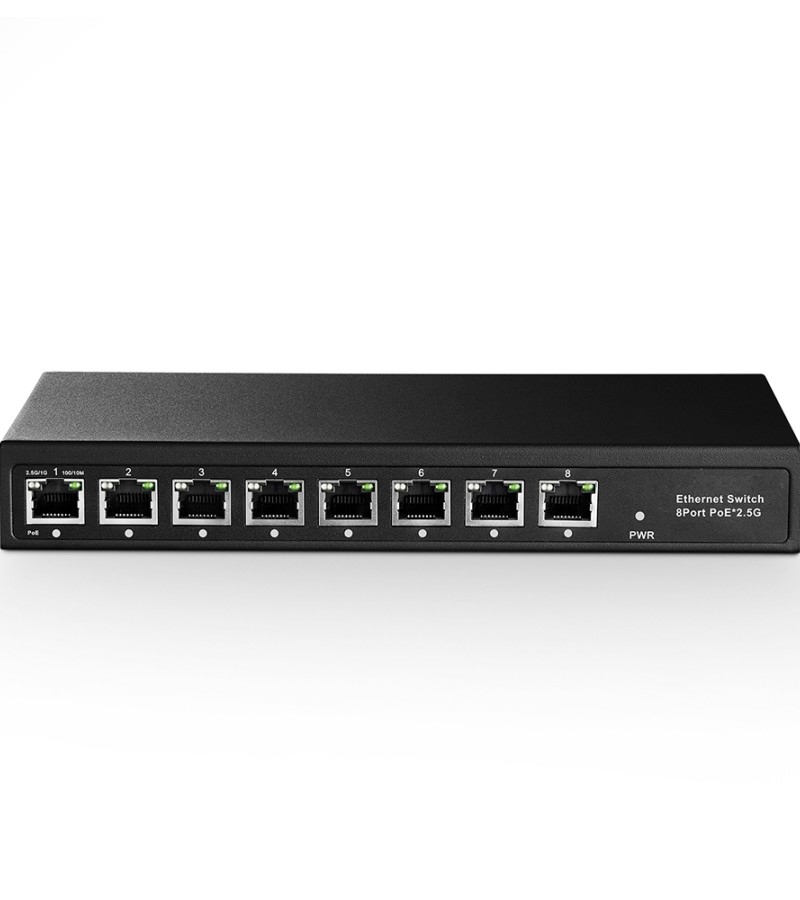

LED Indicator
System status and speed can be determined through the activity of the LEDs on the switch. There are three possible LED states on each port. Orange(Left): the transmission rate is 2.5Gbp. Green(Left): the transmission rate is 1Gbps. Green(Right): the transmission rate is 10 / 100M.
Ask Question About Product
| Ethernet Switch Hardware Specifications | |
| Product Model | POE-2G080G |
| Product Name | 8 Port 2.5G PoE Switch |
| Ethernet Port | 8*10M/100M/1000M/2.5G PoE Port |
| Switching Capacity | 80Gbps |
| Throughput | 28.8Mpps |
| Packet Buffer | 12M |
| CPU | MIPS-34Kc UP to 800MHZ CPU |
| MAC Address | 16K |
| Jumbo Frame | 12Kb |
| Transfer Mode | Store and forward |
| Network protocol | IEEE 802.3/U、IEEE 802.3ab、IEEE 802.3bz、IEEE 802.3x |
| PoE Protocol | Port 1 supports IEEE802at/at/poe++/BT(MAX_90W), port 2-8 supports IEE802.3at/at(MAX_30W) |
| PoE Pin | 1/2(+)，3/6(-) |
| PoE Power Budget | 120W |
| Network Medium | 10BASE-T ： Cat3,4,5 UTP(≤250 meter) 100BASE-TX ： Cat5 or later UTP(150 meter) 2500/1000BASE-TX ：Cat6 or later UTP(150 meter) |
| Transmission Distance | 10BASE-T: Cat5 or later UTP(150 meter)100BASE-TX: Cat5 or later UTP(150 meter)2500/1000BASE-TX: Cat6 or later UTP(150 meter) |
| Lighting Protection | 6KV 8/20us;IP30 |
| Working Environment | Working Temperature: -10~55°CStorage Temperature: -40~75°CWorking Humidity: 10%~90%，non-condensingStorage Temperature: 5%~90%，non-condensingWorking Height: Maximum10,000 feetStorage heigh: Maximum 10,000 feet |
| LED Indicator | PWR: Power LED Port: 10M/100M LED; 1G LED; 2.5G LED, PoE LED |
| Structure Size | Product Dimension (L*W*H): 223mm*103mm*28mmPackage Dimension (L*W*H): 305mm*205mm*55mmN.W: 0.8kgG.W: 1.2kg |
| Installation | Desktop and Wall Mount |
| Shell | Black Color, Metal Shell |
| Power Voltage | Adatpor: MAX 120W (AC 100-240V 50/60HZ) |

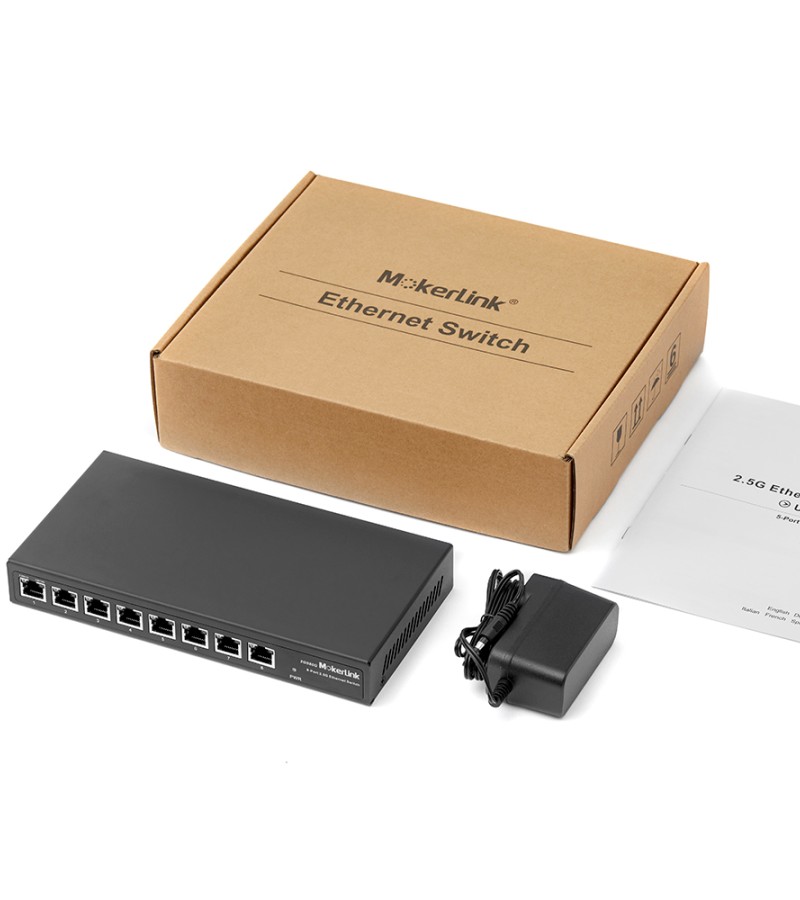

| Package List | Switch 1 pcs, Power adapter 1 pcs, User manual 1 pc |
