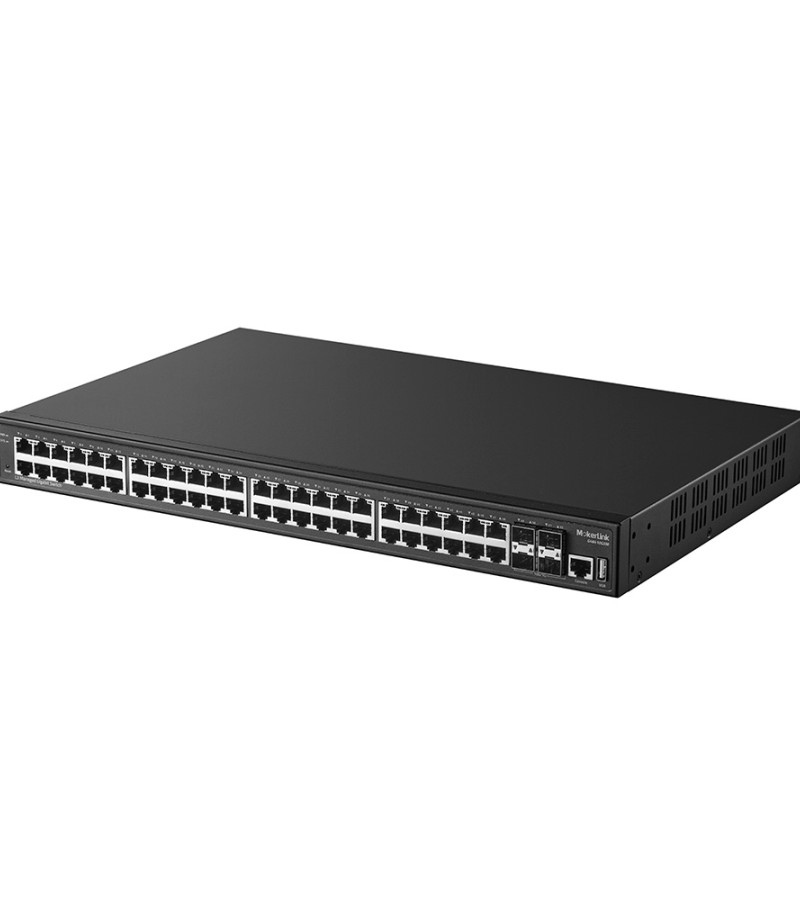

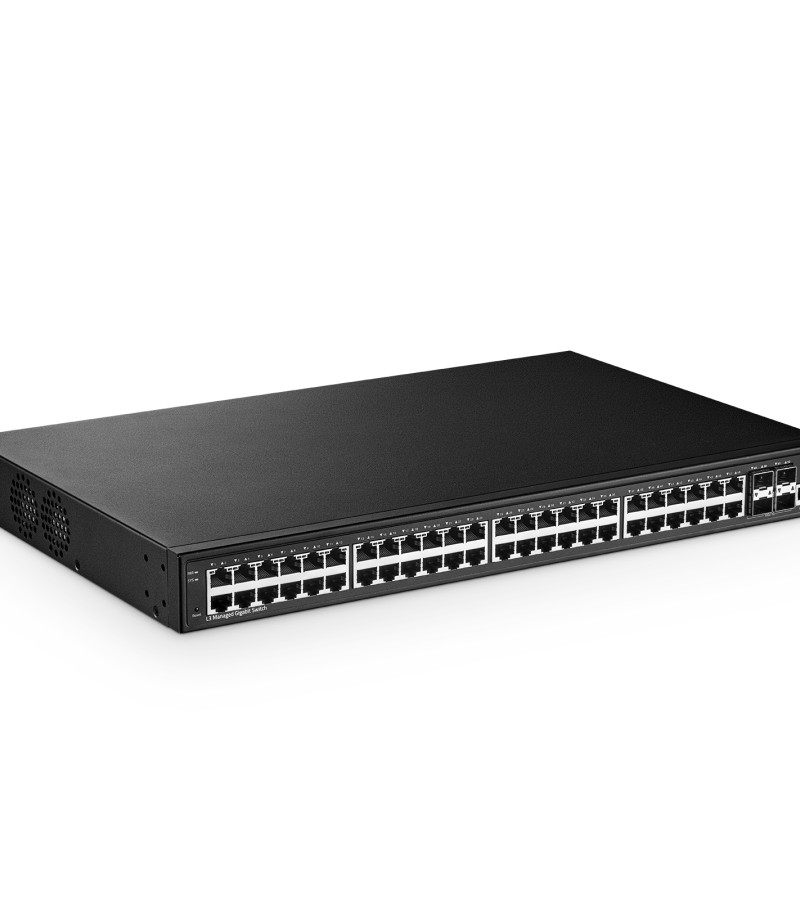

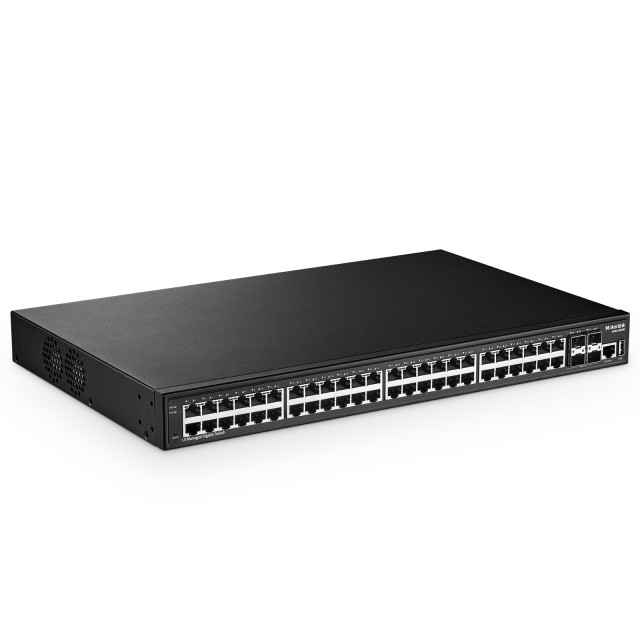

MokerLink 48 Port Gigabit Managed Switch, 48 Port GE, 4x10G SFP+, 1 Console Port, 1 USB Port, L3 Smart Managed, Rackmount , DHCP QoS Vlan IGMP and Static Routing
48 x 1 Gigabit ethernet ports, 4 x 10 Gigabit SFP+ UpLink. Switching capacity is 336Gbps, Support L3 Management - automatic DoS attack defense and SNMP, IEEE 802.1, STP, RSTP, Link aggregation, and other function, is an ideal choice for various business network applications
- Brand: MokerLink
- Product Code: G48410GSM
- Availability: In Stock
MokerLink 48-port 10G uplink 48-port gigabit managed ethernet switch. Support 48 * 10/100/1000 adaptive electrical ports, 4 * 10 Gb SFP+ ports, 1 console port, and 1 USB serial port. Perfect security control strategy and CPU protect policy improve fault tolerance and ensure stable operation of the network and load balancing of the interconnection. The device supports automatic DoS attack defense and SNMP, IEEE 802.1, STP, RSTP, Link aggregation, and other functions. Advanced security functions and advanced quality of service (QoS), can be used as core layer, distribution layer or access layer switch with high density port, switch stacking and easy management, are ideal for various commercial network applications.
Key Feature
- High Performance: Includes 48 x 1 Gigabit ethernet ports, 4 x 10 Gigabit SFP+ UpLink. Switching capacity is 336 Gbps, 4G DDR, 256MB Flash, 10Gbps UpLink, provides higher data transfer rates
- L3 Managed: Support L3 interface, IPv4/IPv6, ARP config; Static Routing, DHCP server/relay/snooping. Layer 3 management functions implemented at lower cost than routers.
- L2 Features: 4K 802.1Q Vlan, 16K mac table, L2-L4 packet filter, port security, port mirroring, flow rate limiting; QoS; STP/RSTP/MSTP spanning tree; IGMP V1/V2/V3 multicast; storm suppression; ring network protection; link aggregation, etc.
- Easy to Management: Support various management methods such as Web, CLI (console port, telnet, SSH), SNMP, RMON. The WEB interface has been professionally designed, beautiful, concise and easy to use, with rich CLI commands, suitable for general and professional network management.
- Widely Used: Support status query, port statistics, fault detection and reporting, easy to maintenance. Durable Metal housing, fanless silent, LED indicator light
Ask Question About Product
Ethernet Switch Hardware Specifications | |
Product Model | G48410GSM |
Product Name | MokerLink 48 Port Gigabit Managed Switch with 4 Port 10G SFP+ |

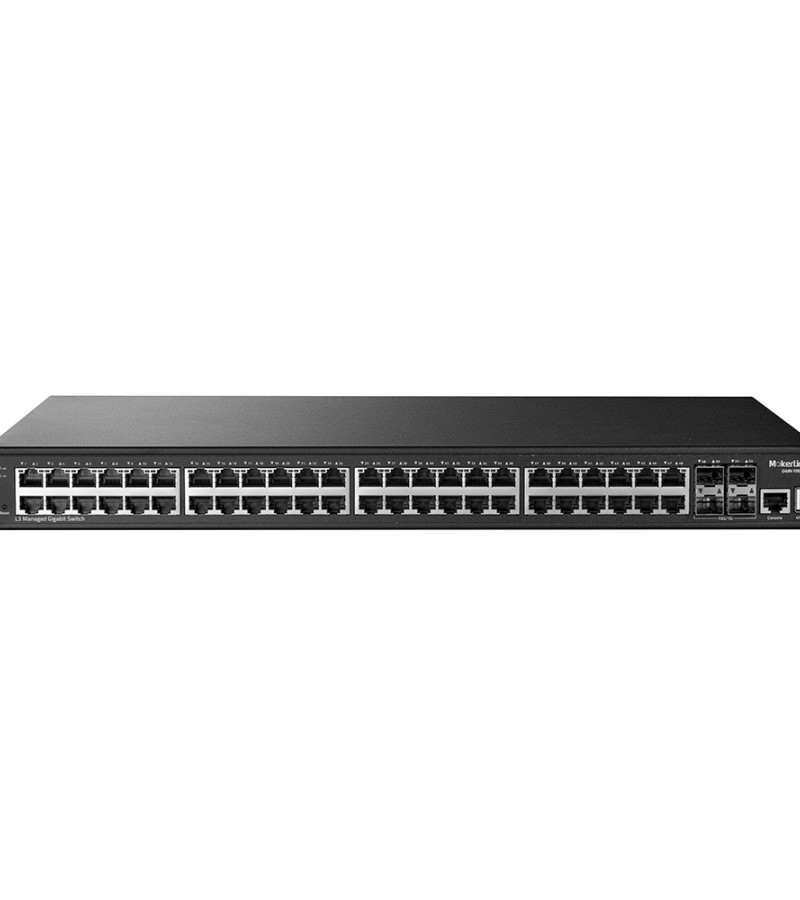

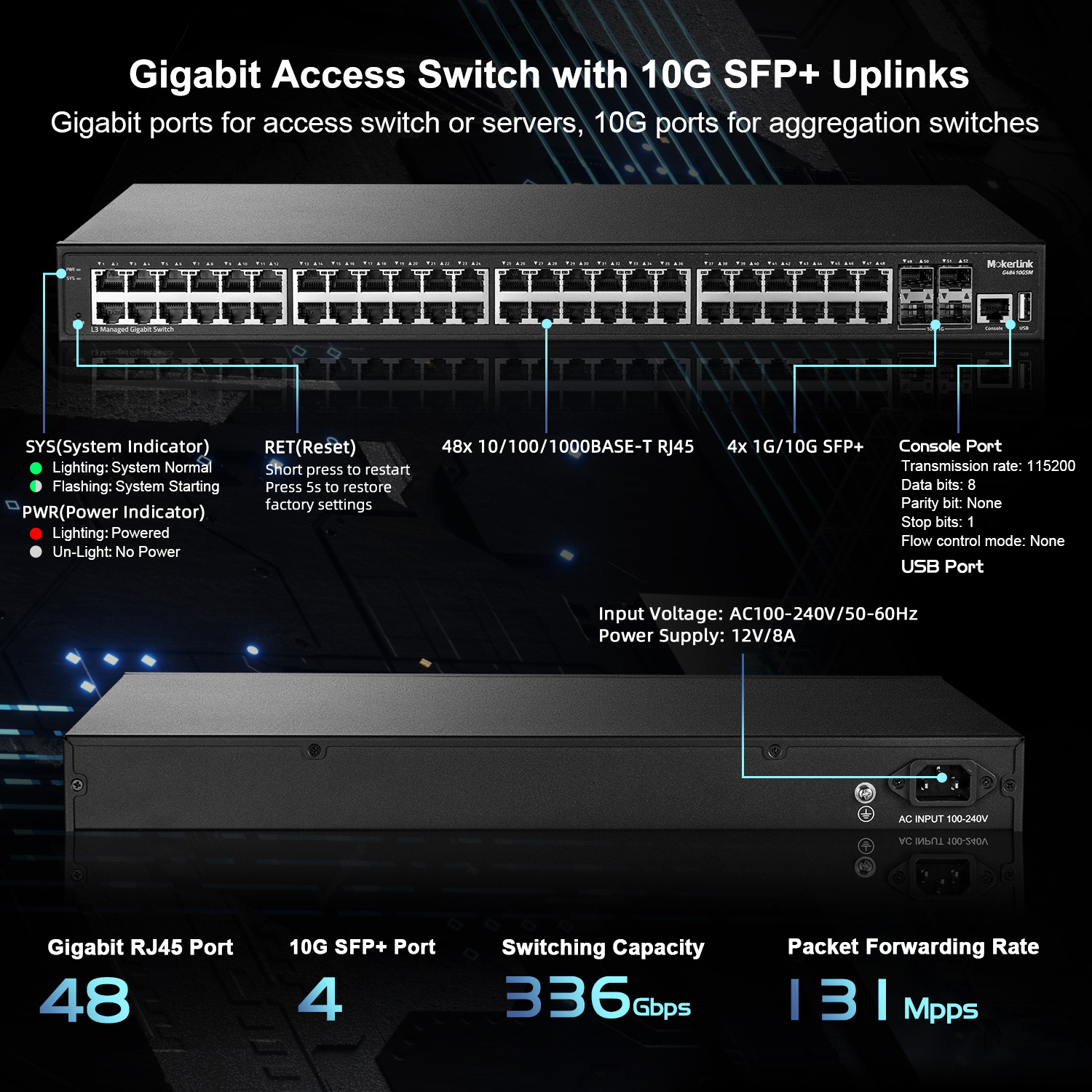

Ethernet Port | 48 * 10/100/1000Mbps RJ45 Port 4 * 10G SFP Port 1 * RJ45 Console Port 1 * USB Port |
Switching Capacity | 336Gbps |
Throughput | 131Mpps |
Packet Buffer | 16Mbit |
Flash Memory | 256MB |
DDR SDRAM | 4G |
MAC Address | 32K |
Jumbo Frame | 12Kbytes |
Transfer Mode | Store and forward |
Mean Time Between Failure | 100000 hour |
VLANs | 4096 |
Network protocol | IEEE 802.3:Ethernet MAC Protocol IEEE 802.3i:10BASE-T Ethernet IEEE 802.3u:100BASE-TX Fast Ethernet IEEE 802.3ab:1000BASE-T Gigabit Ethernet IEEE 802.3z:1000BASE-X Gigabit Ethernet (optical fiber) IEEE 802.3ae:10G Ethernet (optical fiber) IEEE 802.3az:Energy Efficient Ethernet IEEE 802.3ad:Standard method for performing link aggregation IEEE 802.3x:Flow control IEEE 802.1ab: LLDP/LLDP-MED (Link Layer Discovery Protocol) IEEE 802.1p:LAN Layer QoS/CoS Protocol Traffic Prioritization(Multicast filtering function) IEEE 802.1q:VLAN Bridge Operation IEEE 802.1x:Client/Server Access Control and Authentication Protocol IEEE 802.1d:STP IEEE 802.1s:MSTP IEEE 802.1w:RSTP |
Industry Standard | EMI: FCC Part 15 CISPR (EN55032) class A EMS: EN61000-4-2 (ESD)、EN61000-4-4 (EFT)、EN61000-4-5 (Surge) |
Network Medium | 10BASE-T: Cat3、4、5 or above UTP(≤100 M) 100BASE-TX: Cat5 or above UTP(≤100 M) 1000BASE-TX: Cat5 or above UTP(≤100 M) Multi-mode Fiber: 50/125、62.5/125、100/140um Single-mode Fiber: 8/125、8.7/125、9/125、10/125um |
Fiber Medium | Multi-mode Fiber: 50/125、62.5/125、100/140um Single-mode Fiber: 8/125、8.7/125、9/125、10/125um |
Lighting Protection | General Mode 6KV, Differential Mode 2KV ;ESD contact 8KV, air 15KV |
Security Certificate | CE、FCC、RoHS |
Working Environment | Operating temperature: -10~50°C Storage temperature: -40~85°C Operating Humidity: 10%~90%, No condensation Storage Humidity: 5%~90%, No condensation Working height: Up to 10,000 feet Storage height: Up to 10,000 feet |
LED Indicator | PWR(Power indicator): Lighting:Powered , Un-Light:No Power; SYS(System lights): Lighting: System is normal , Flashing:system startup; Link(Link light) Lighting:Connecting , Flashing:Data Transmit , Un-Light:Disconnect; Act(data light) Lighting:Connecting , Flashing:Data Transmit , Un-Light:Disconnect |
Structure Size | Product Dimensions: 440*280*44mm Package Dimensions: 500*365*85mm Product N.W: 3.8KG Product G.W: 4.5KG |
Installation | 1U Rack Mount |

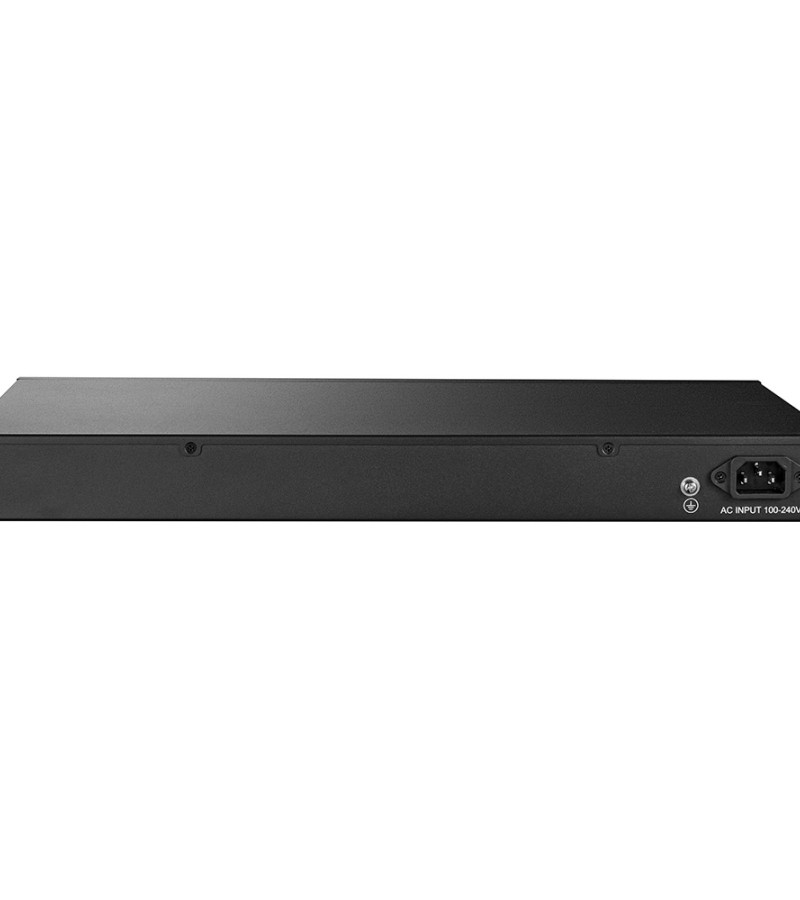

Power Voltage | Input Voltage: AC100-240V/50-60Hz Power supply: 12V6A |

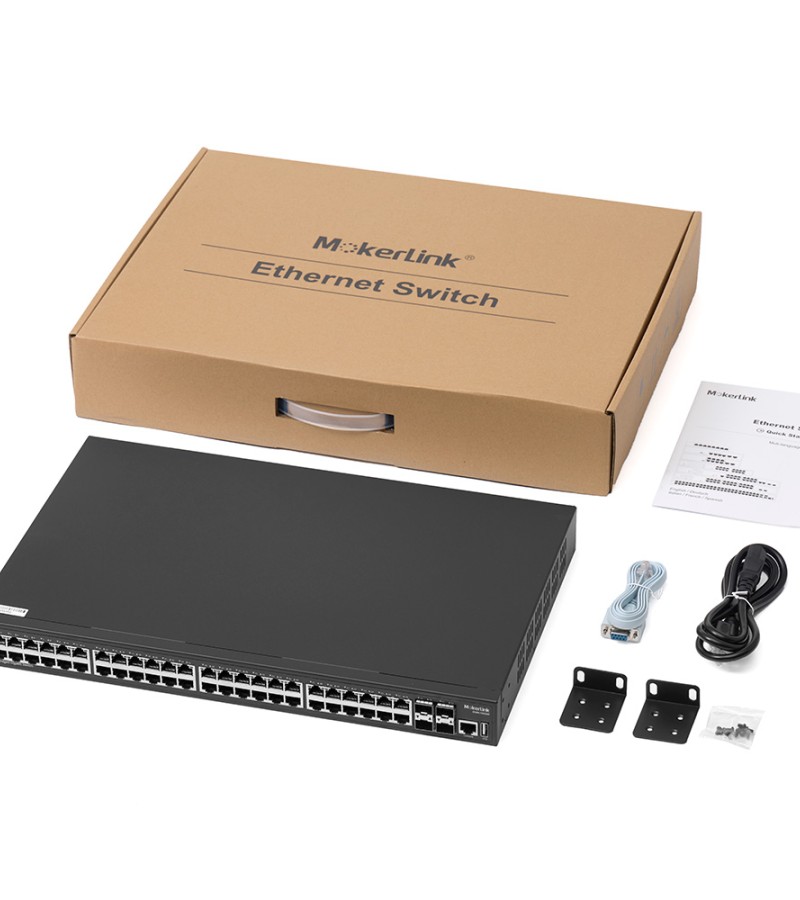

Package List | Ethernet switch 1 Set , Instruction manual 1 PCS , Power cord 1PCS Serial cable 1PCS , Rack ear: 1 Pairs |
Software Function | L3 and L2 Software function |
