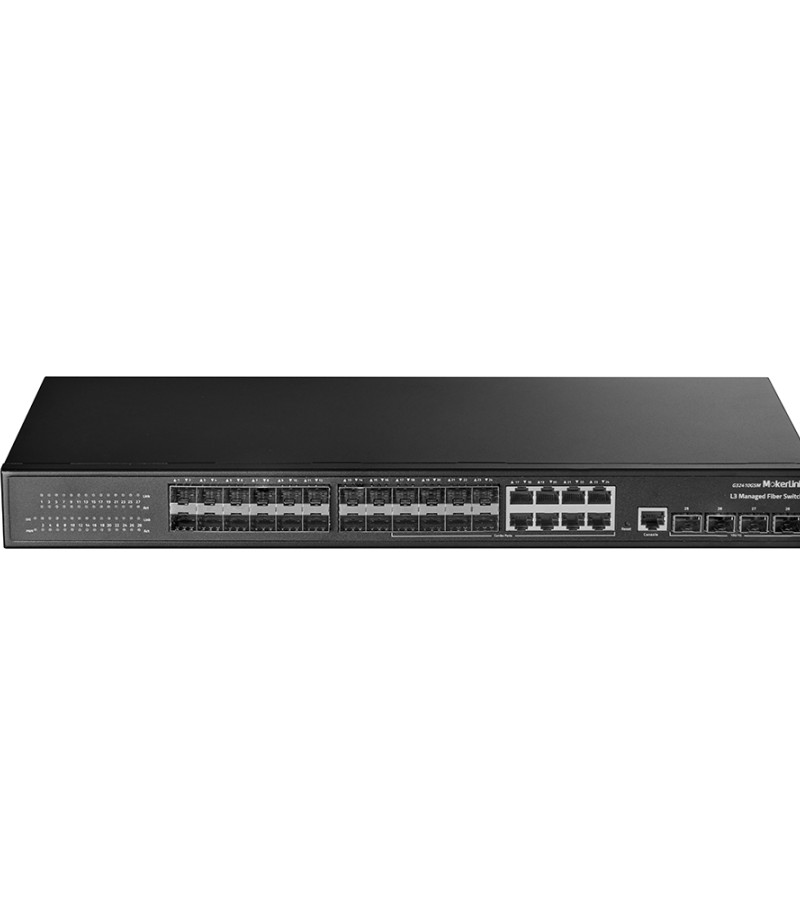

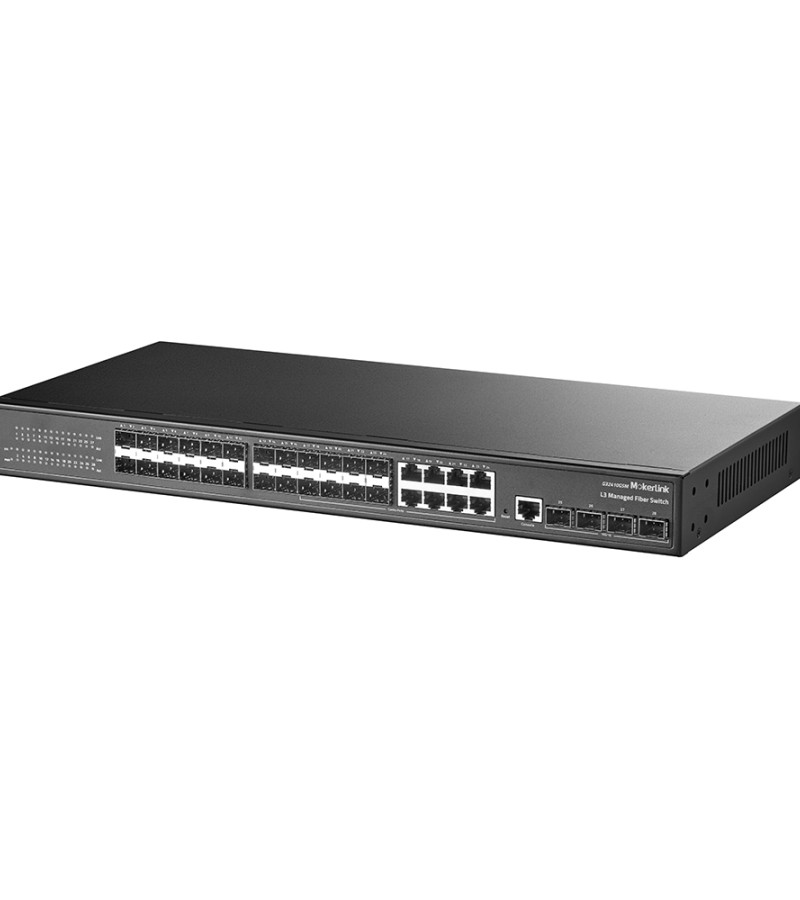

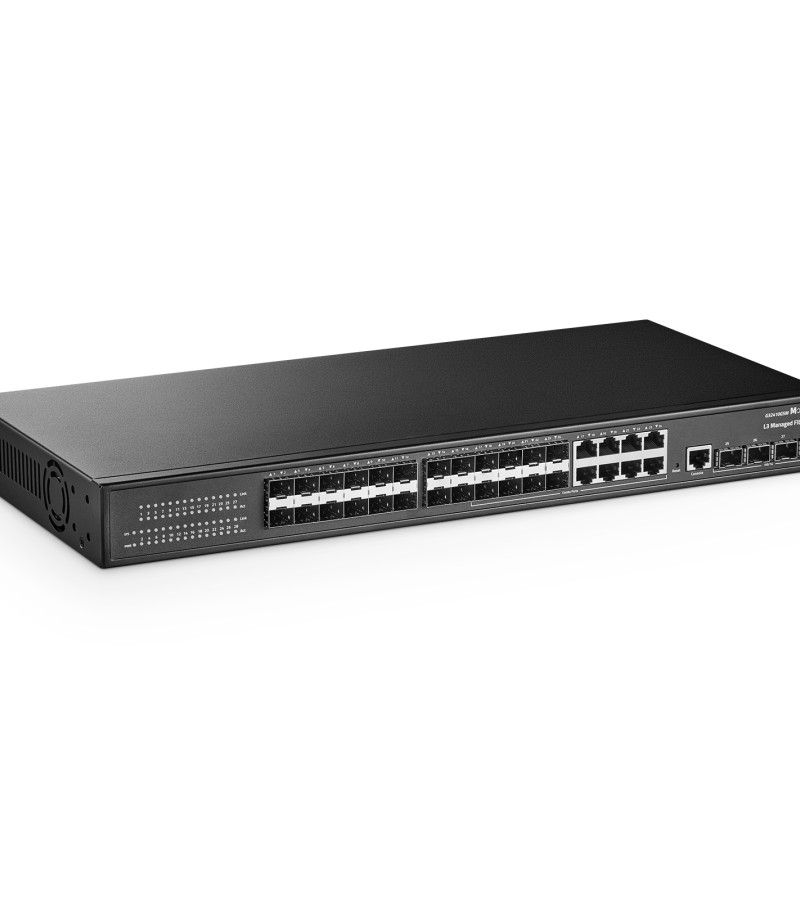

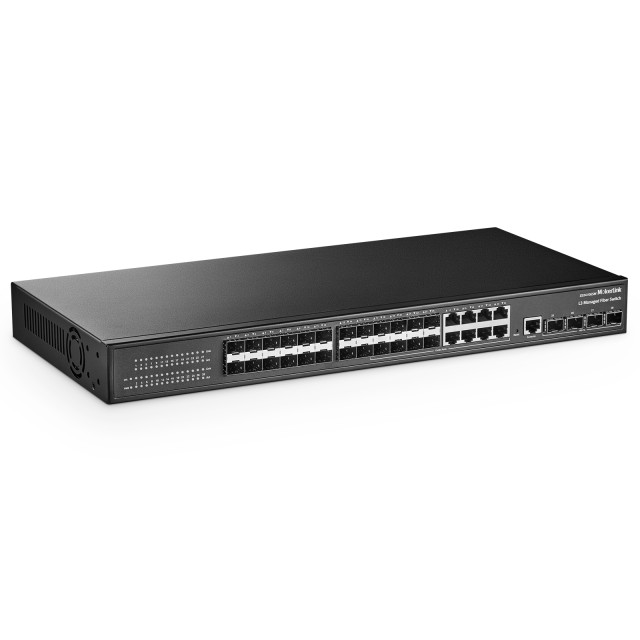

MokerLink 28 Port Gigabit Managed Fiber Switch, 24 Gigabit SFP, 8 GE Combo, 4x10G SFP+, 1 Console Port, L3 Smart Managed Rackmount, DHCP QoS Vlan IGMP and Static Routing
24 x 1 Gigabit SFP ports, 8 Gigabit Ethernet Combo Ports, 4 x 10 Gigabit SFP+ UpLink. Switching capacity is 128Gbps, 10Gbps UpLink, provides higher data transfer rates, Support L3 interface, IPv4/IPv6, ARP config; Static Routing, DHCP server/relay/snooping. Layer 3 management functions implemented at lower cost than routers.
$469.99
Price drop reminder
- Brand: MokerLink
- Product Code: G32410GSM
- Availability: In Stock
MokerLink 28 Port 10G Uplink 24* SFP Port Gigabit L3 Managed Ethernet Switch, support 24* 1000M SFP Ports, 8* 10/100/1000M adaptive Ethernet Ports(Combo), 4* 10G SFP Ports, 1* Console Port. Perfect security control strategy and CPU protect policy improve fault tolerance and ensure stable operation of the network and load balancing of the interconnection；

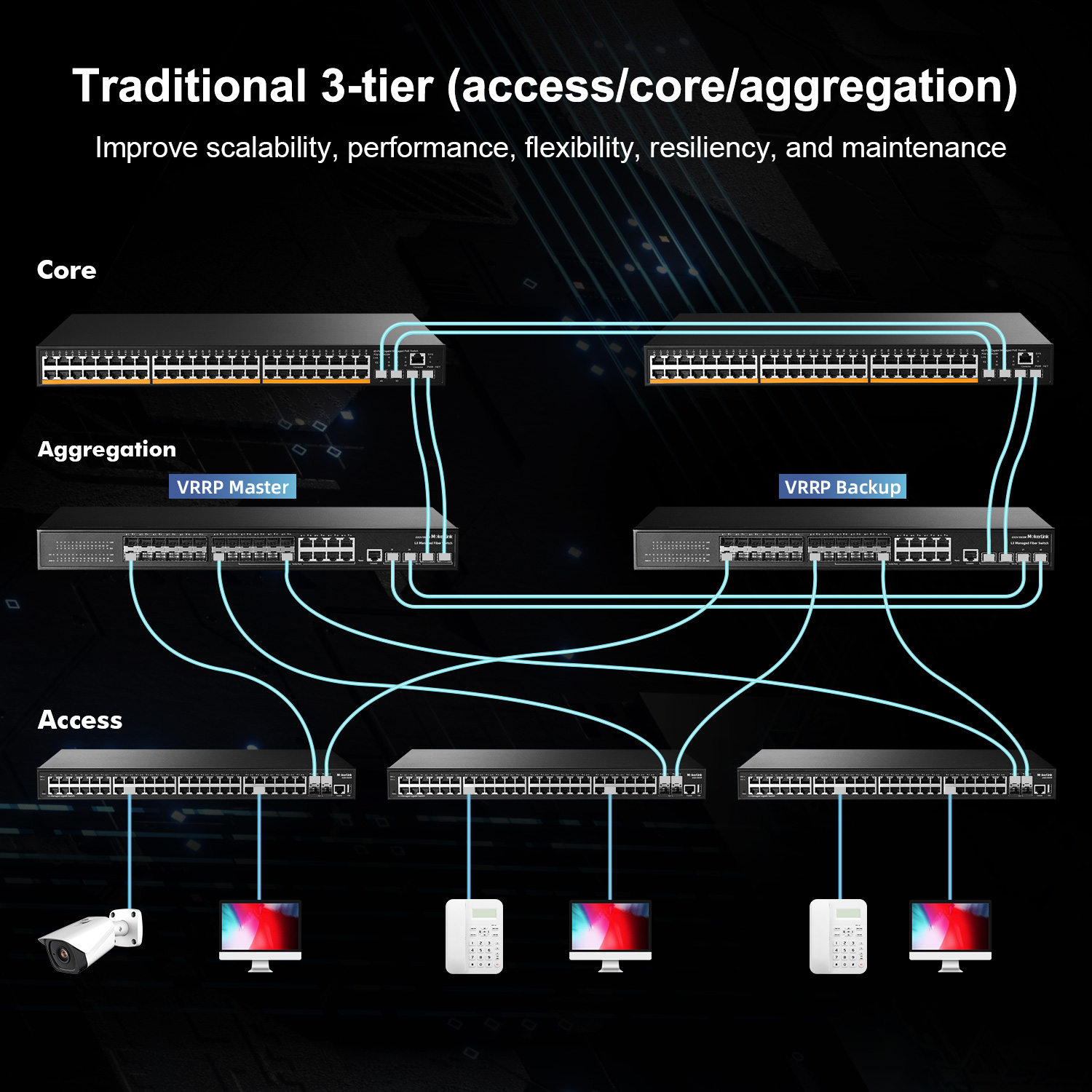

The device supports automatic DoS attack defense and SNMP, IEEE 802.1, STP, RSTP, Link aggregation, and other functions. With advanced security functions and quality of service (QoS), it can be used as core layer, distribution layer ,and access layer switch with high density port and easy management, is an ideal choice for various business network applications.
Key Feature
- Support 24* 10/100/1000M adaptive SFP Ports, 8* 10/100/1000M adaptive Ethernet Ports(Combo), 4* 10G SFP +Ports, 1* Console Port;
- Support IEEE 802.1d, IEEE 802.1w, IEEE 802.1s, IEEE 802.1p, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3ae standard;
- L3 Management, support DHCP Server, QoS, ACL control, support SNMP V1/V2/V3, IGMP Snooping v1/v2；
- Support STP/RSTP/MSTP(ERPS), support loop detection and self-healing, support remote loopback monitoring and control (802.3ah OAM);
- Support multiple VLAN division, MAC VLAN, Protocol VLAN, Private VLAN；
- Support IP address + MAC address + VLAN + Port binding, DHCP Snooping, support IP source and DAI protection;
- Support IPV4/IPV6, RIP, OSPF.

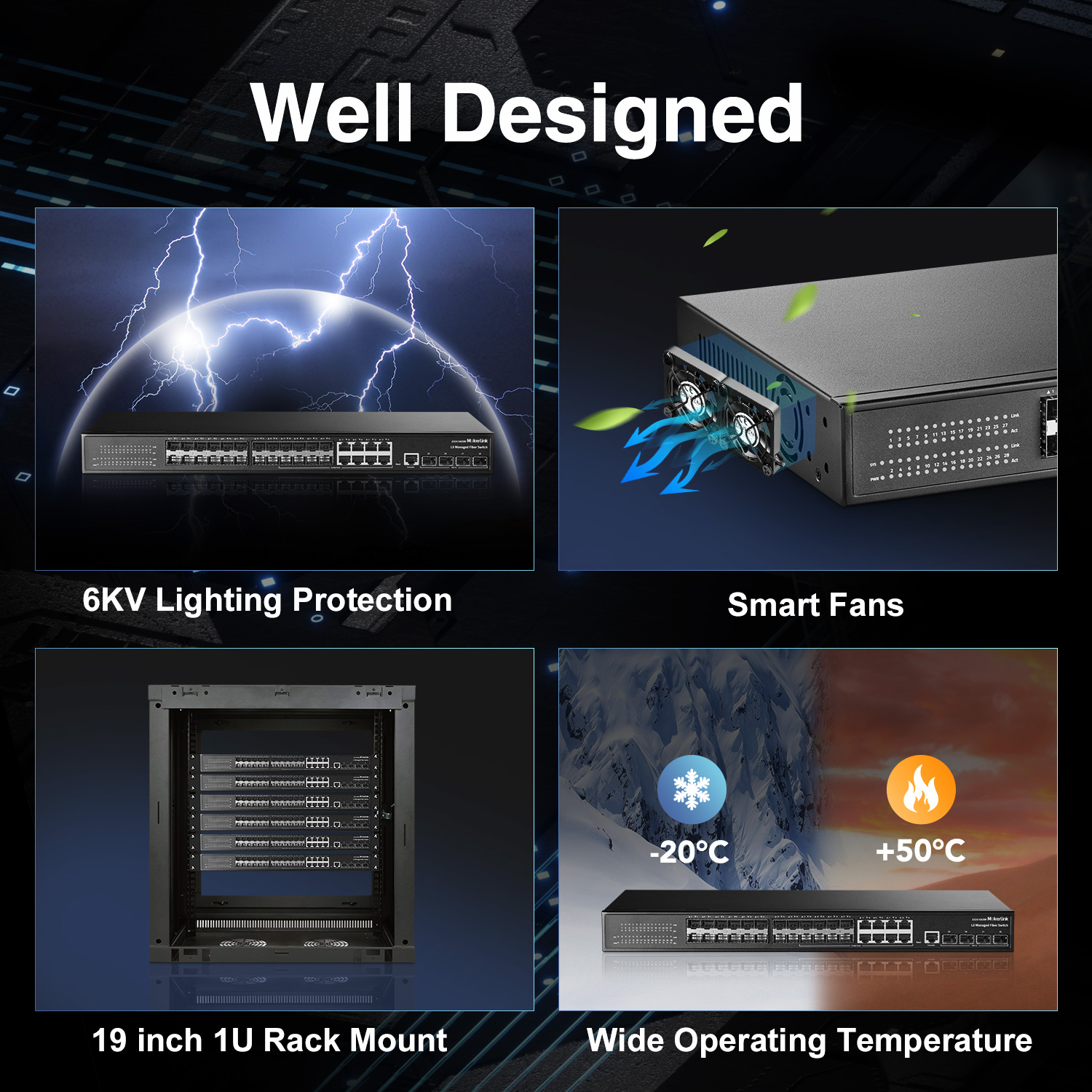

- Lightning protection: common mode 4KV, differential mode 2KV
Ask Question About Product
Note: HTML is not translated!
| Ethernet Switch Hardware Specifications | |
| Product Model | G32410GSM |
| Product Name | MokerLink 28 Port 10G Uplink 24* SFP Port Gigabit L3 Managed Ethernet Switch |

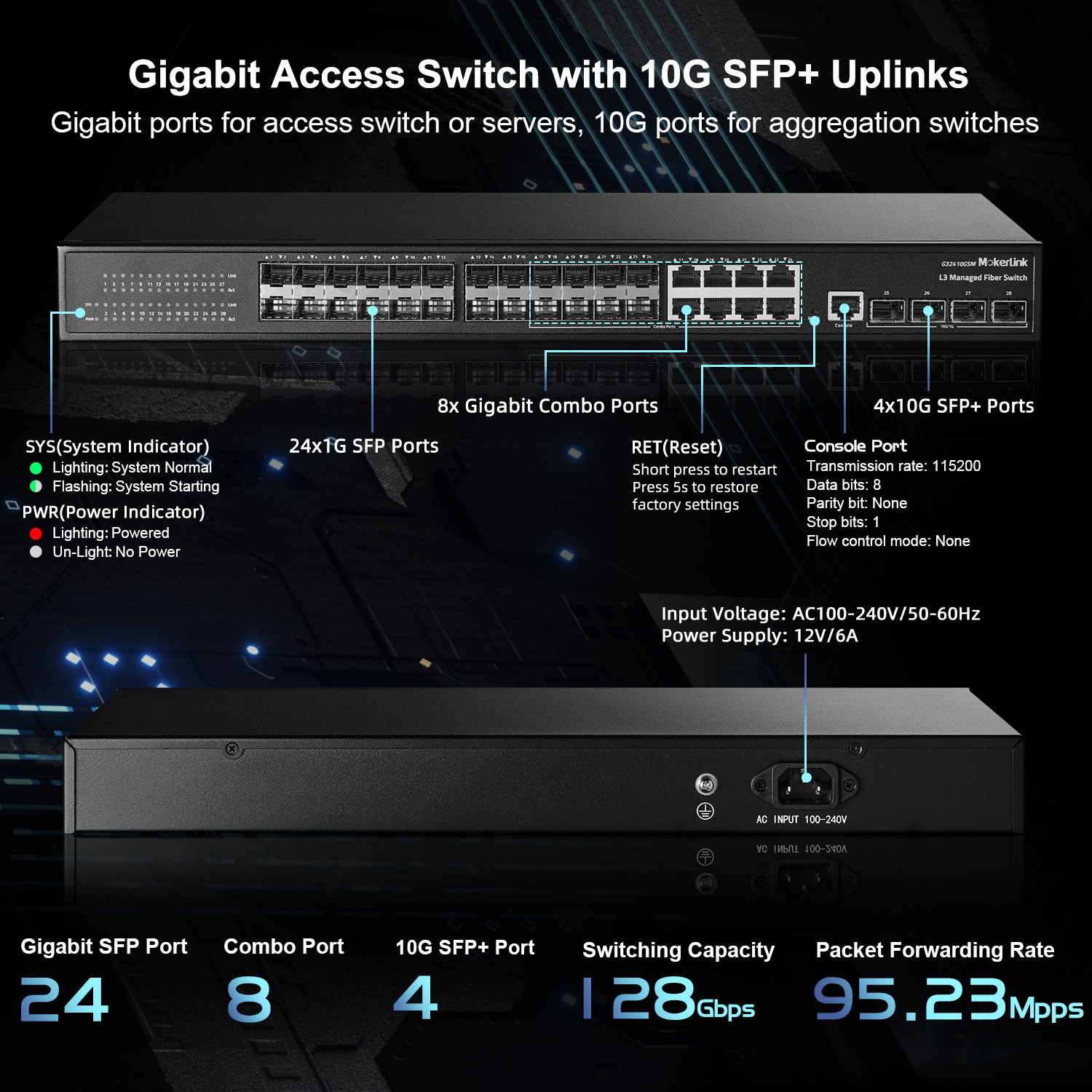

| Ethernet Port | 24* Gigabit SFP Ports 8* Gigabit Ethernet Ports(Combo) 4* 10G SFP+ Ports 1* Console Port The default 10G optical port does not support 2.5G rate, but only supports 10G/1G rate |
| Switching Capacity | 128Gbps |
| Throughput | 95.23Mpps |
| Packet Buffer | 12Mbit |
| Flash Memory | 128MB |
| DDR SDRAM | 128MB |
| MAC Address | 16K |
| Jumbo Frame | 12Kbytes |
| Transfer Mode | Store and forward |
| Mean Time Between Failure | 100000 hour |
| VLANs | 4096 |
| Network protocol | IEEE 802.3：Ethernet MAC Protocol IEEE 802.3i：10BASE-T Ethernet IEEE 802.3u：100BASE-TX Fast Ethernet IEEE 802.3ab：1000BASE-T Gigabit Ethernet IEEE 802.3z：1000BASE-X Gigabit Ethernet (optical fiber) IEEE 802.3ae：10G Ethernet (optical fiber) IEEE 802.3az：Energy Efficient Ethernet IEEE 802.3ad：Standard method for performing link aggregation IEEE 802.3x：Flow control IEEE 802.1ab： LLDP/LLDP-MED (Link Layer Discovery Protocol) IEEE 802.1p：LAN Layer QoS/CoS Protocol Traffic Prioritization(Multicast filtering function) IEEE 802.1q：VLAN Bridge Operation IEEE 802.1x：Client/Server Access Control and Authentication Protocol IEEE 802.1d：STP IEEE 802.1s：MSTP IEEE 802.1w：RSTP |
| Industry Standard | EMI: FCC Part 15 CISPR (EN55032) class A EMS: EN61000-4-2 (ESD)、EN61000-4-4 (EFT)、EN61000-4-5 (Surge) |
| Network Medium | 10BASE-T: Cat3、4、5 or above UTP(≤100 M) 100BASE-TX: Cat5 or above UTP(≤100 M) 1000BASE-TX: Cat5 or above UTP(≤100 M) Multi-mode Fiber: 50/125、62.5/125、100/140um Single-mode Fiber: 8/125、8.7/125、9/125、10/125um |
| Fiber Medium | Multi-mode Fiber: 850nm, 1310nm Transmission Distance: 550m/2Km Single-mode Fiber: 1310nm, 1550nm Transmission Distance: 20/40/60/80/100/120Km |
| Lighting Protection | common mode 4KV, differential mode 2KV |
| Security Certificate | CE、FCC、RoHS |
| Working Environment | Working Temperature：-10~50°C Storage Temperature：-40~70°C Working Humidity ：10%~90%，non-condensing Storage Temperature：5%~90%，non-condensing |
| LED Indicator | PWR, SYS, SW, PoE/ACT, Link/ACT, PWR (Power Light) On: Powered on, Off: Powered off, SYS (System Light) On: System Normal, Flashing: System Starting or Failed, Link/ACT (Link & Data) On: Link Connecting, Flashing：Data Transmitting， Off: Link disconnect |
| Structure Size | Product Dimensions: 440*205*44mm Package Dimensions: 500*290*85mm Product N.W: 3.06KG Product G.W: 3.63KG |
| Installation | 1U Rack Mount |

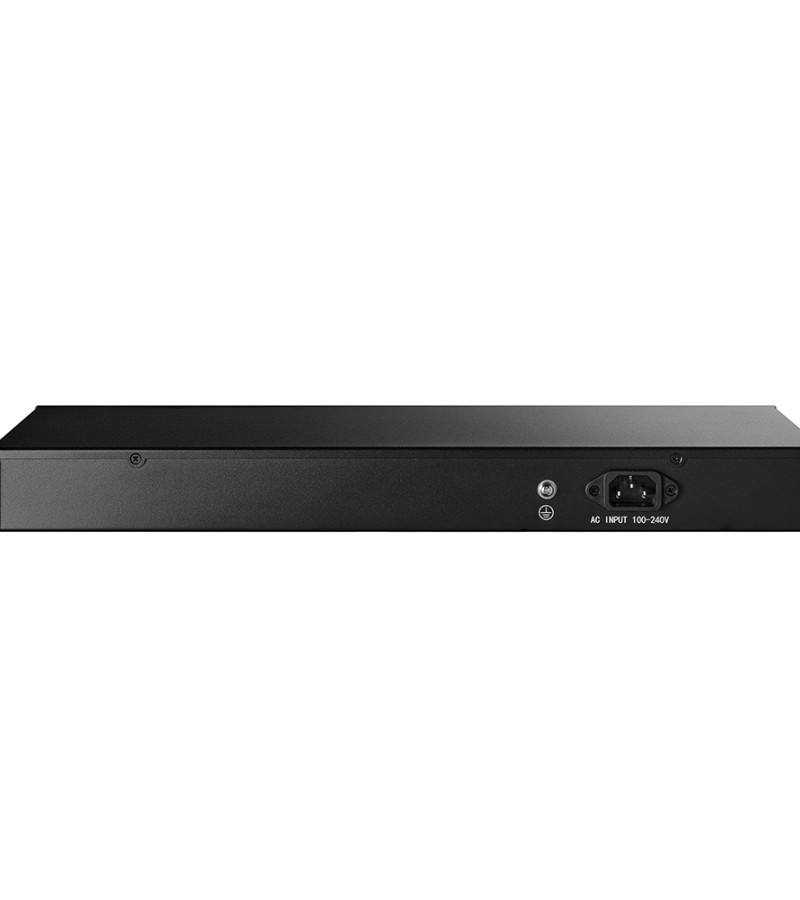

| Power Voltage | Voltage: AC 100-240V/50-60Hz, Power: 12V8A |

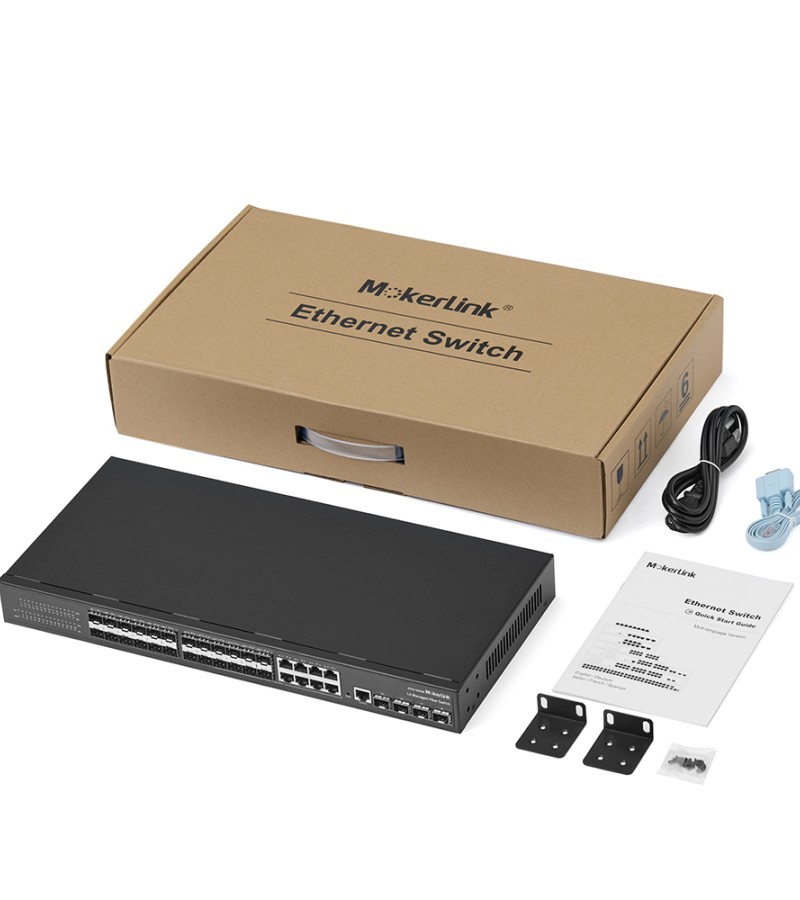

| Package List | Carton Dimensions: 520*445*310mm Packing Quantity: 5 PCS Packing Weight: 19.15KG |
| Software Function | L3 and L2 Software function |
