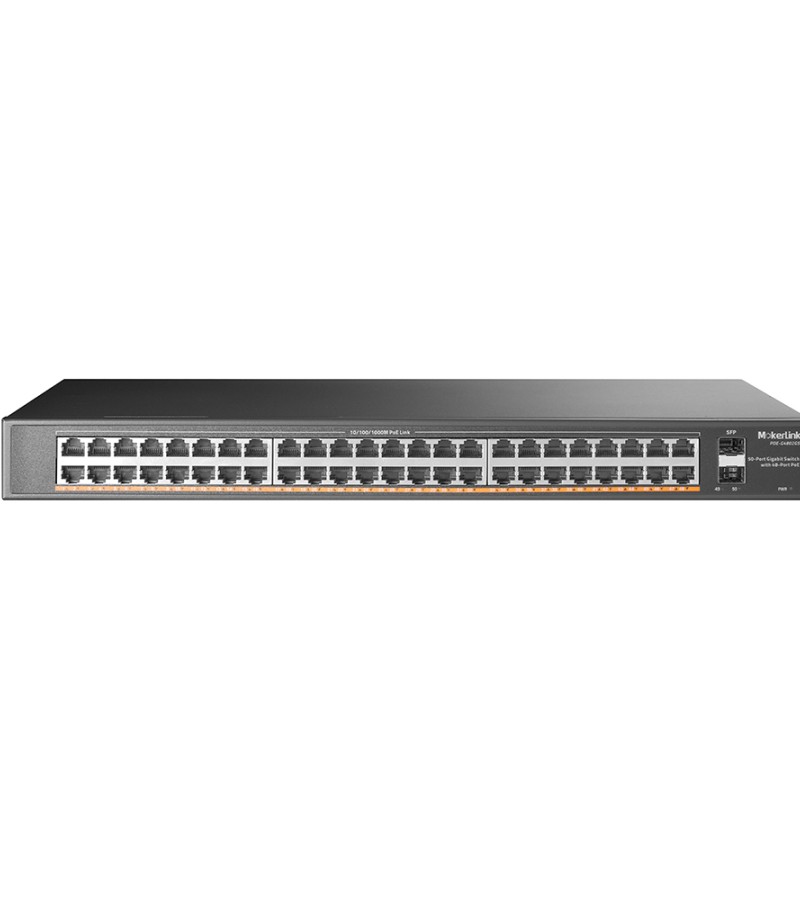

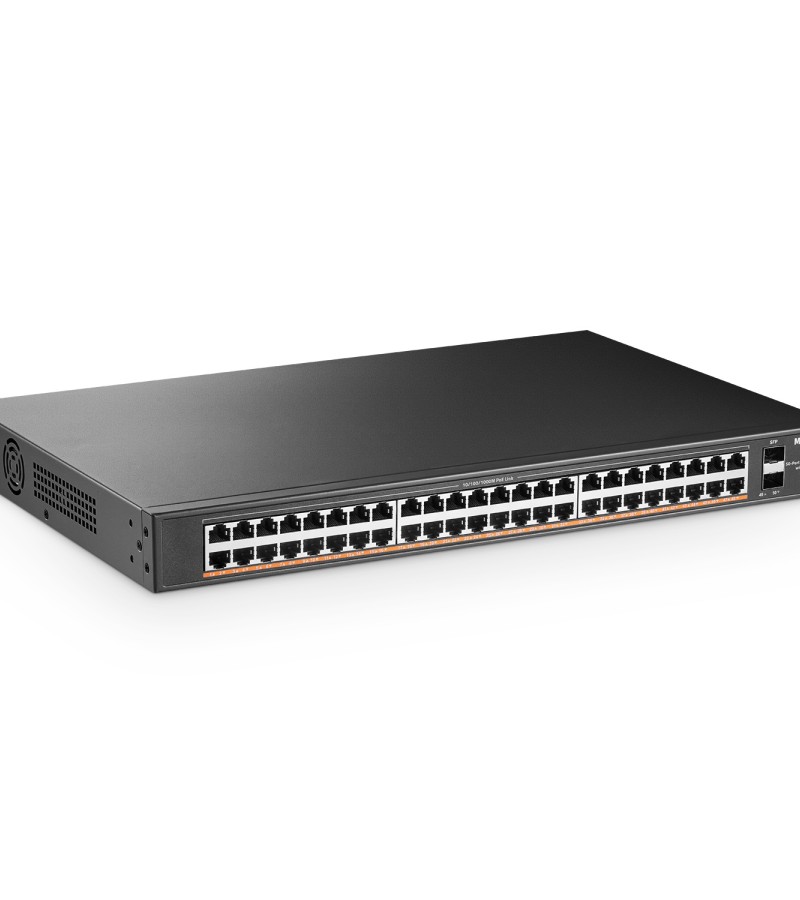

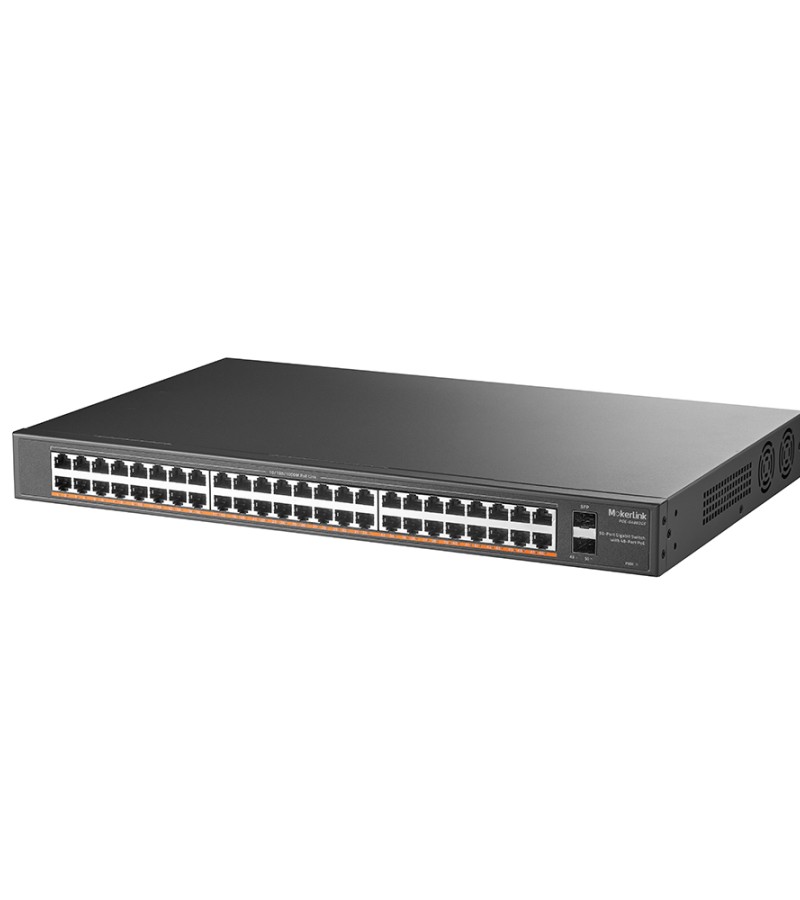

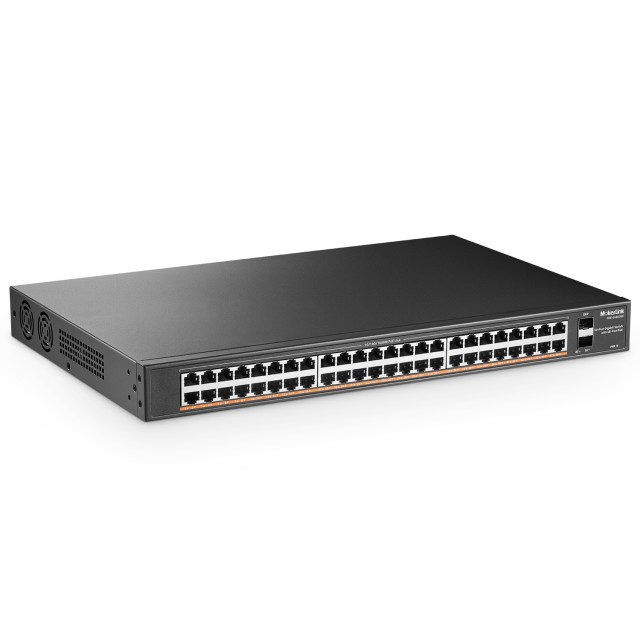

MokerLink 48 Port PoE Gigabit Switch with 2 Gigabit SFP, 800W IEEE802.3af/at AI Detection, Metal Rackmount Unmanaged Plug and Play Ethernet Switch

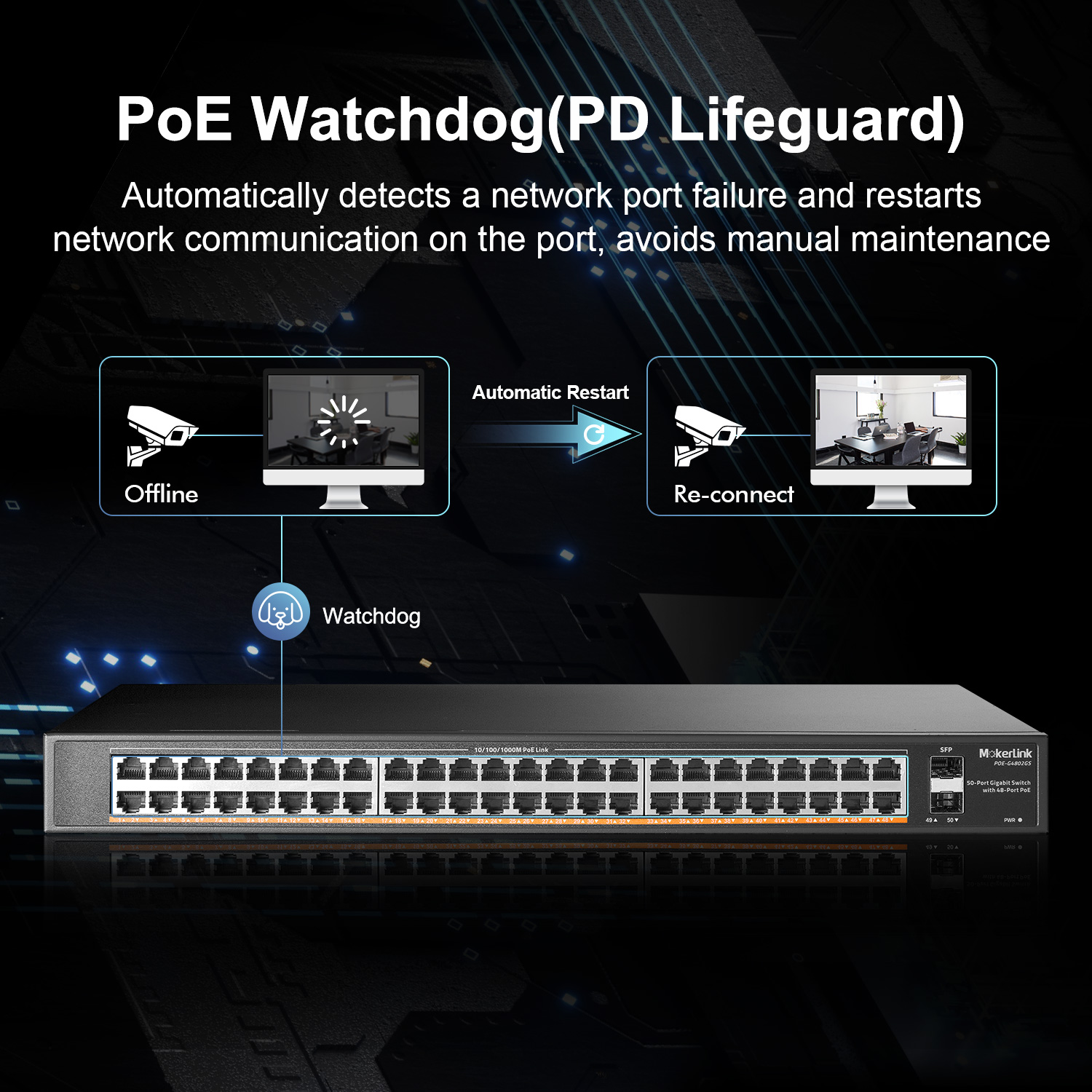

48 Gigabit POE+ ports, 2 Gigabit SFP UpLink, Maximum support 800W high output power, Unmanaged Plug & Play, Support Port-based VLAN & PoE WatchDog function, Widely Used
- Brand: MokerLink
- Product Code: POE-G4802GS
- Availability: In Stock
50 port gigabit PoE switches use high-quality network IC and the most stable POE chips, POE switches provide seamless connection to 10/100/1000M ethernet, and the POE supply port can automatically detect and supply receiving devices meeting IEEE802.3af or IEEE802.3at standards, non-POE devices intelligently detect no power and only transmit data.
POE technology (Power over Ethernet), Ethernet power supply technology, while also providing DC power supply technology for some IP-based terminals, such as IP phones, wireless access AP, network cameras, etc., DC receiving devices called powered devices.
With simple and convenient installation and maintenance means and rich business characteristics, we can help users to build a safe and reliable high-performance network. It is mainly located in the core or convergence layer of user networks of industrial parks, buildings, factories and mines, government organs, community broadband; and can be widely used in small and medium-sized enterprises, Internet cafes, hotels, schools and other Ethernet access scenarios.
Main Features

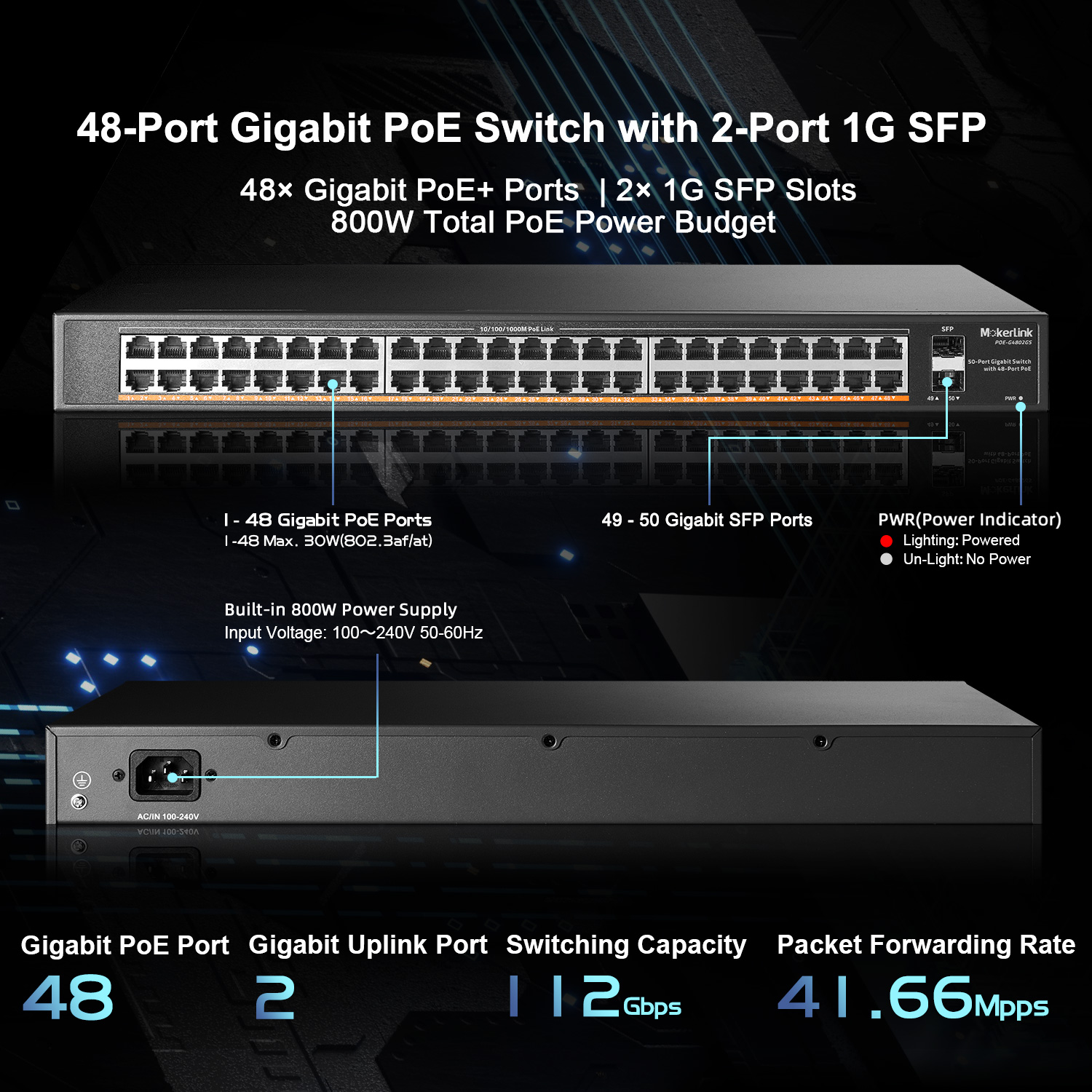

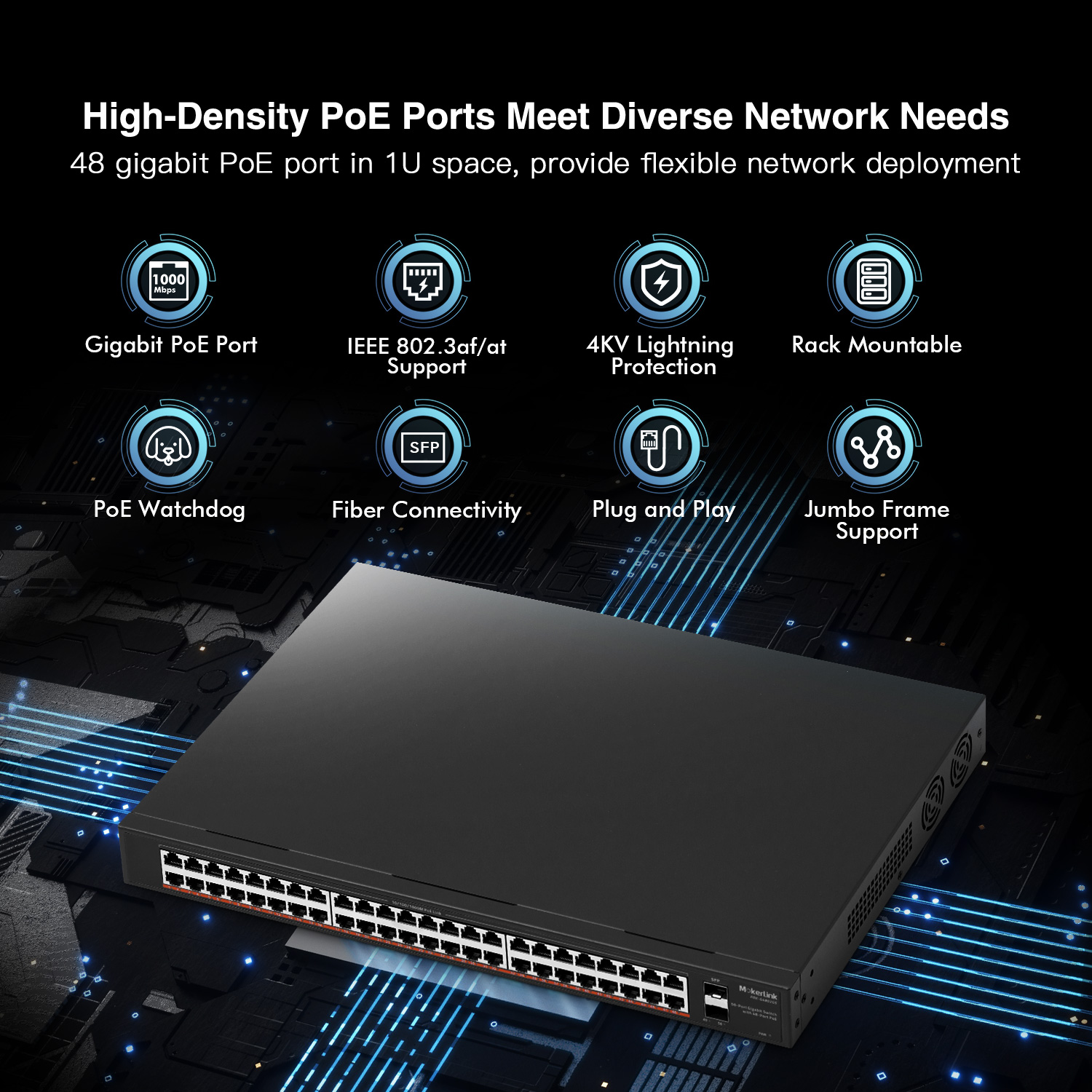

- Support for 48 Gigabit POE ports + 2 Gigabit SFP optical ports
- Support for IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab, IEEE802.3z

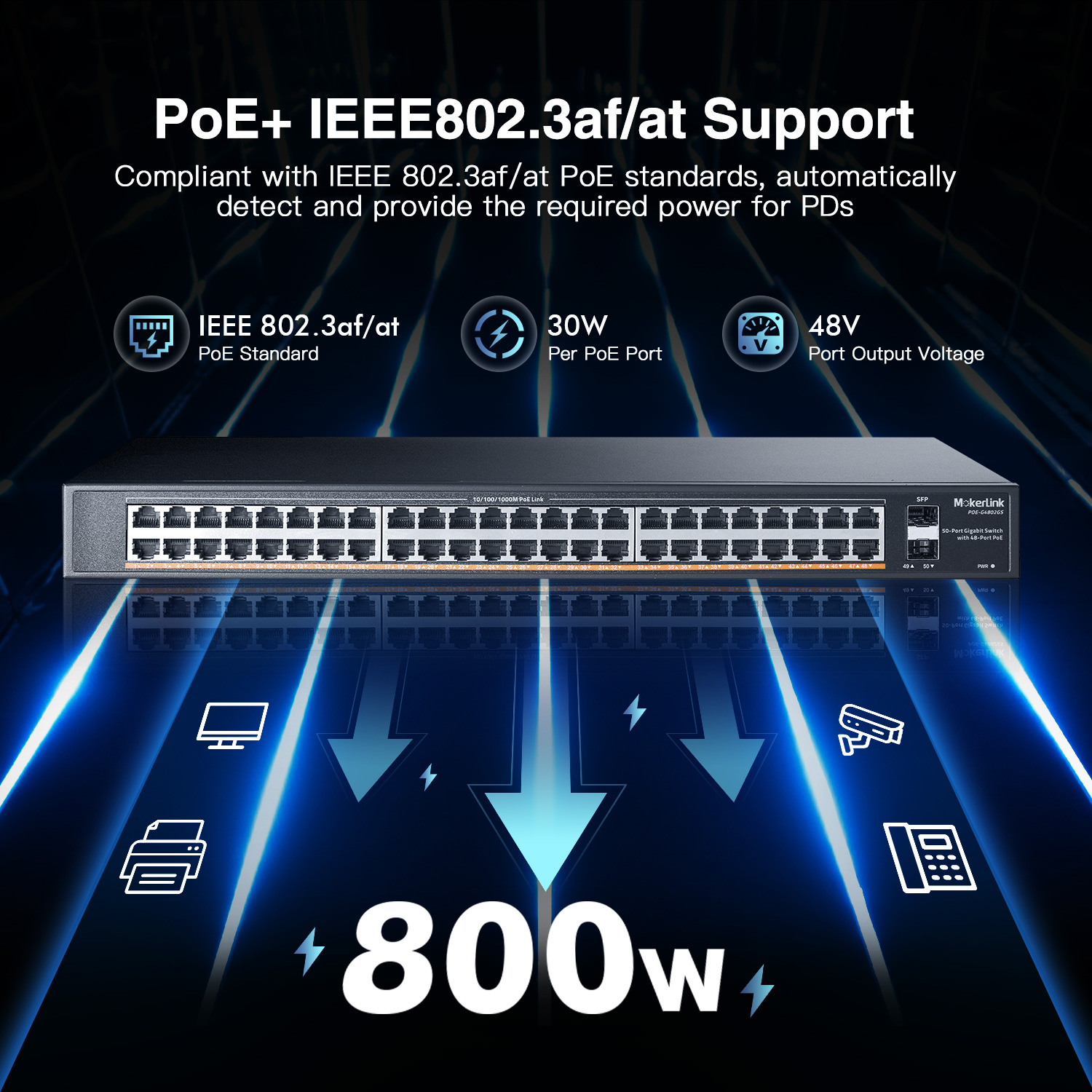

- Compatible with IEEE802.3at (30W) and IEEE802.3af(15.4w)
- Ethernet ports support 10/100/1000M adaptive and POE features
- Support for port automatic flip (Auto MDI/MDIX)
- Exchange mechanism using storage and forwarding
- All ports support line-speed switching

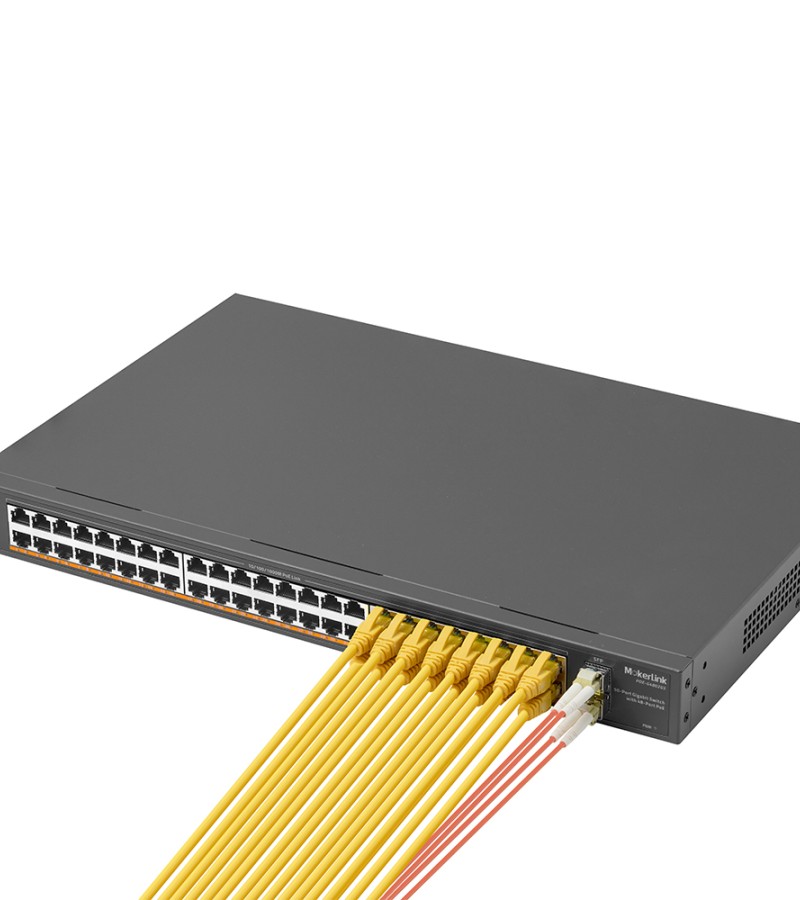

- Zero configuration feature, automatically supplied to adaptive equipment
- Panel indicators monitor operating status and help with fault analysis

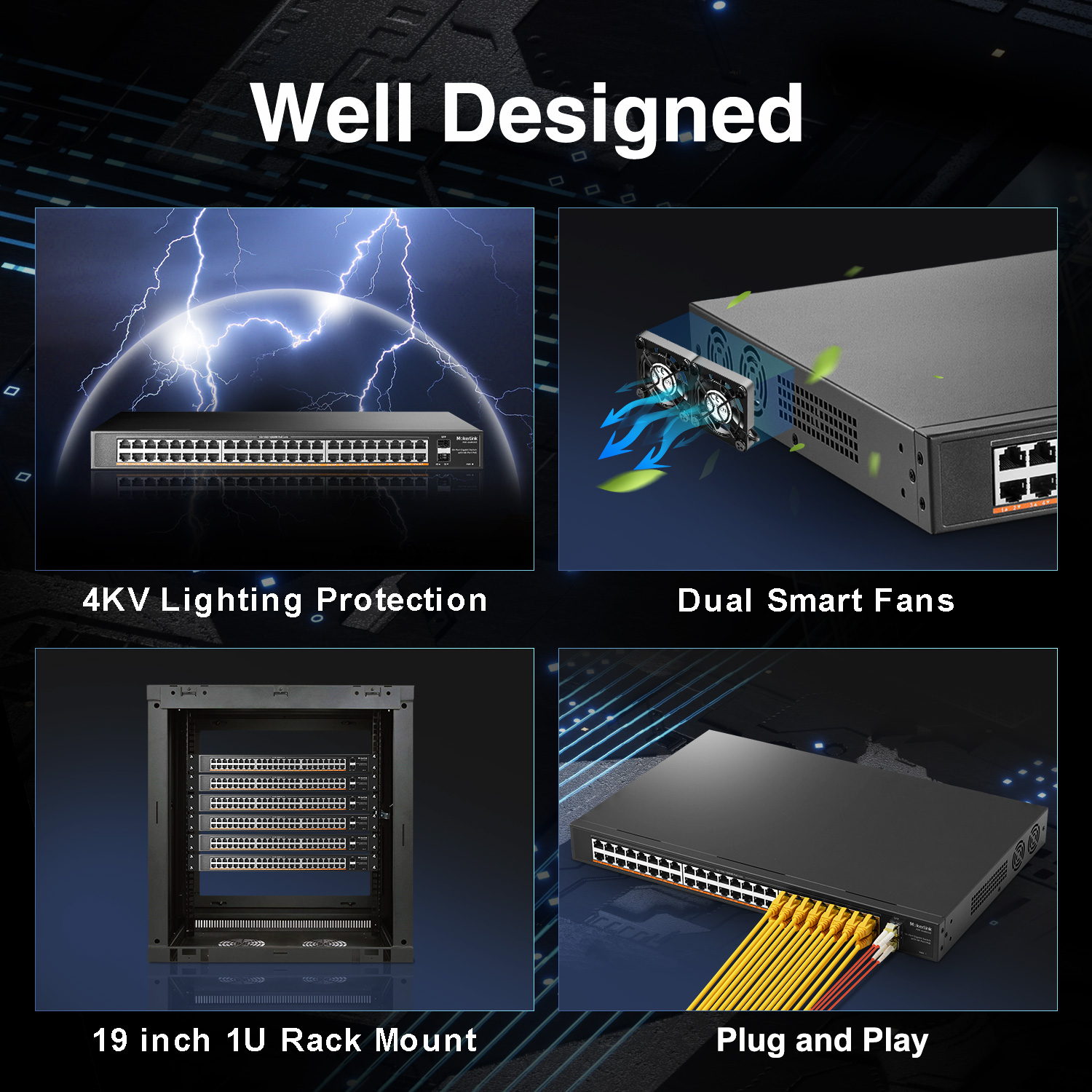

- Support port lightning protection Surge: common mode 2KV, differential mode 1KV; static ESD: air 15KV, contact 8KV
Application Environment
- Urban optical fiber broadband network: telecommunications, cable TV, network system integration, according to network operators
- Broadband special network: suitable for finance, government, oil, electricity, public security, education and other industries
- Multimedia transmission: image, voice, data comprehensive transmission, suitable for remote teaching, conference television, video telephone and other applications
- Real-time monitoring: real-time control of signal, image and data for simultaneous transmission
Ask Question About Product
| Ethernet Switch Hardware Specifications | |
| Product Model | POE-G4802GS |
| Product Name | 50-Port Gigabit Ethernet Switch with 48-Port PoE |
| Ethernet Port | 48*10/100/1000Base-TX PoE port + 2*1G SFP |
| Switching Capacity | 112Gbps |
| Throughput | 80.64Mpps |
| Packet Buffer | 4.1M |
| MAC Address | 8K |
| Jumbo Frame | 9216bytes |
| Transfer Mode | Store and forward |
| Mean Time Between Failure | 100000 hour |
| Network protocol | IEEE 802.3 IEEE 802.3i 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T IEEE 802.3x IEEE 802.3z 1000BASE-X IEEE 802.3af/at/PoE++/BT |
| PoE Protocol | IEEE802.3af (15.4W) IEEE802.3at (30W) |
| PoE Pin | 1/2 (+), 3/6(-) |
| PoE Power Budget | ≤800W |
| Network Medium | 10BASE-T ： Cat3,4,5 UTP(≤250 meter) 100BASE-TX ： Cat5 or later UTP(≤100 meter) 1000BASE-TX ： Cat6 or later UTP(≤1000 meter) 1000BASE-SX:62.5μm/50μm MMF(2m~550m) 1000BASE-LX:62.5μm/50μm MM(2m~550m) or 10μm SMF(2m~5000m) |
| Transmission Distance | 10BASE-T ： Cat3,4,5 UTP(≤250 meter) 100BASE-TX ： Cat5 or later UTP(≤100 meter) 1000BASE-TX ： Cat6 or later UTP(≤1000 meter)1000BASE-SX:62.5μm/50μm MMF(2m~550m)1000BASE-LX:62.5μm/50μm MM(2m~550m) or 10μm SMF(2m~5000m) |
| Lighting Protection | 3KV 8/20us, IP30 |
| Working Environment | Operating Temperature/Humidity: -10～+55°C；5%～90% RH Non coagulation, Storage Temperature/Humidity -40～+75°C；5%～95% RH Non coagulation |
| LED Indicator | PWR:Power LED 1-50:(Link LED=10/100M Link、1000M=Gigabit Link) |
| Structure Size | Product size/Packing size(L*W*H): 440mm*284mm*45mm / 570mm*360mm*90mm, N.W/G.W(kg): 4.1kg/4.4kg |
| Installation | Rack-mount |

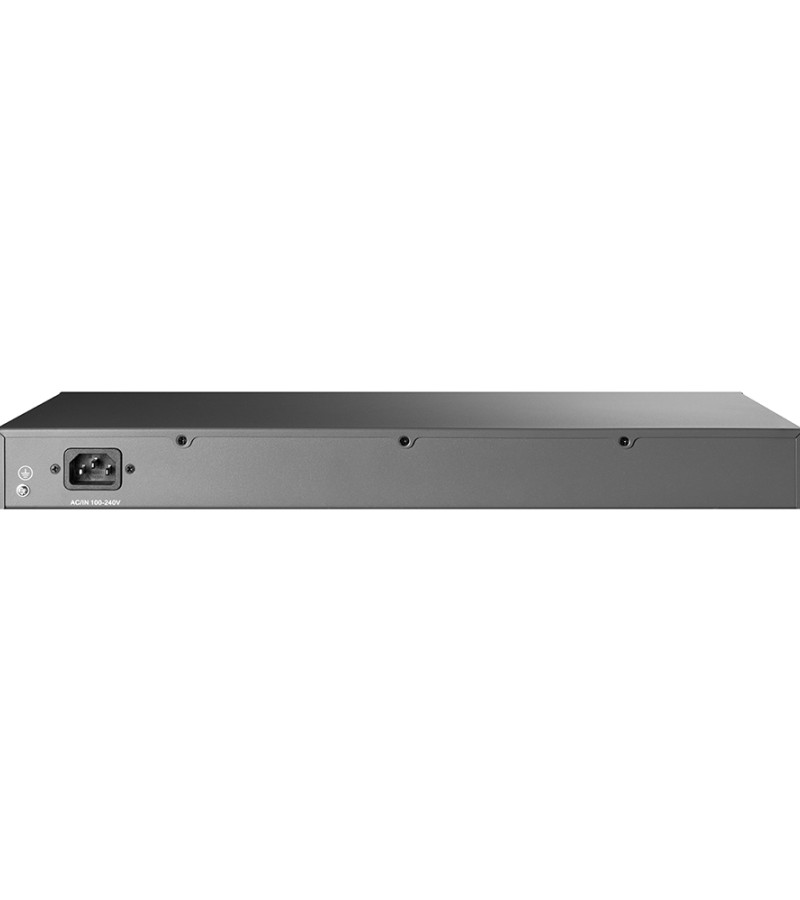

| Power Voltage | Built-in power AC：100～240V 50-60Hz 800W |

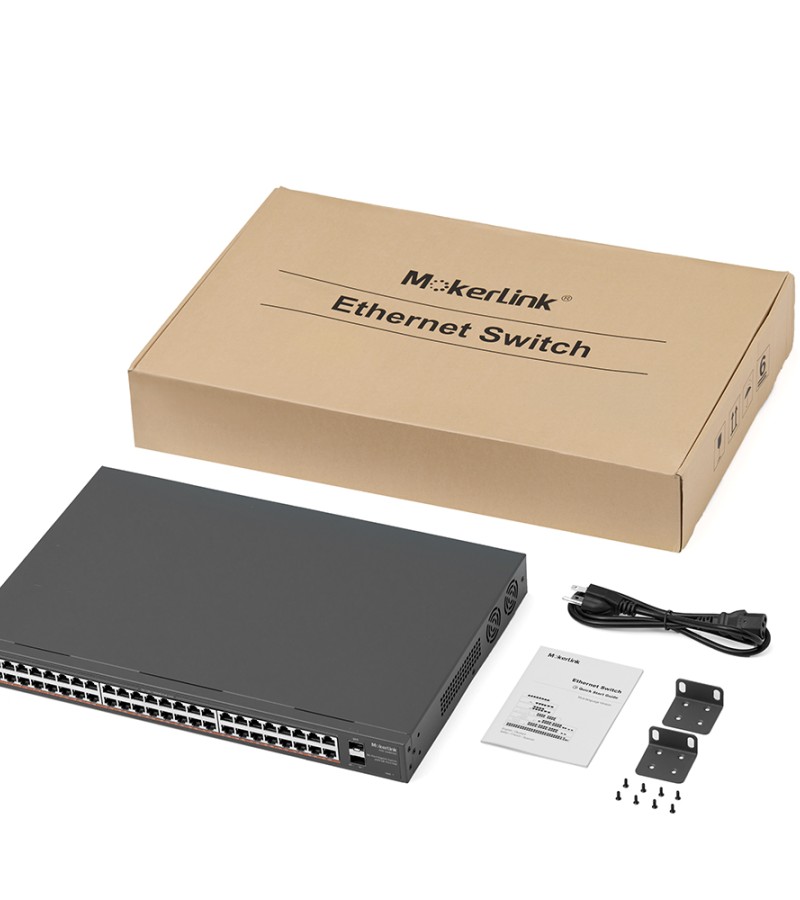

| Package List | Switch 1 pcs,Power cord 1 pcs User manual 1 pc Brackets 1 pair |
