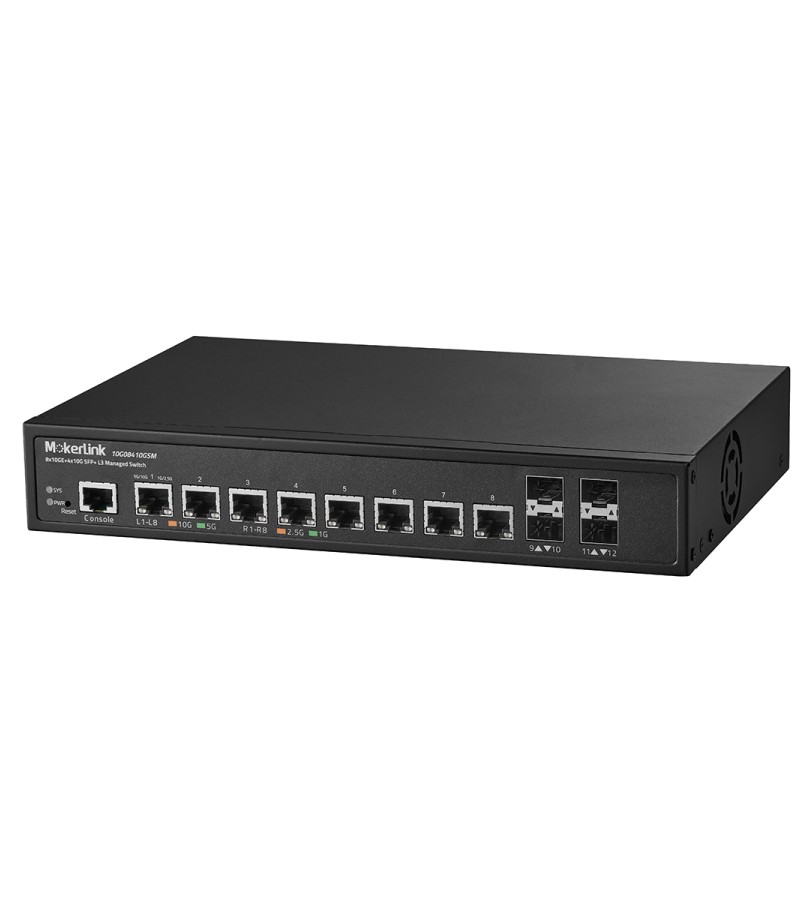

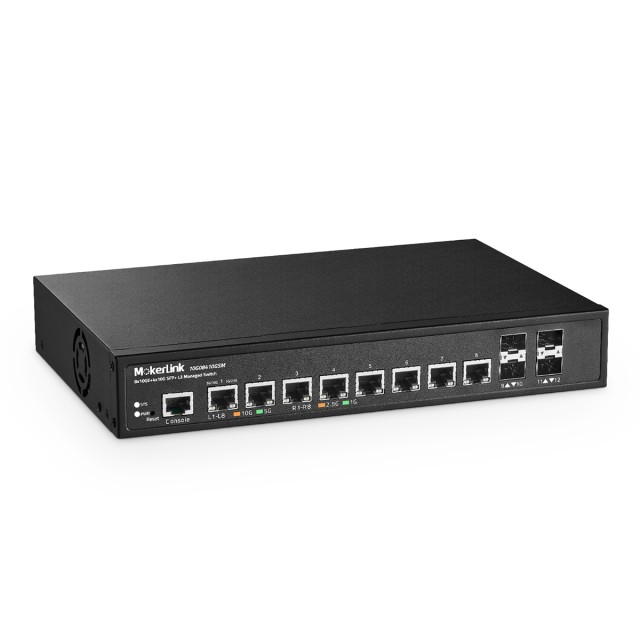

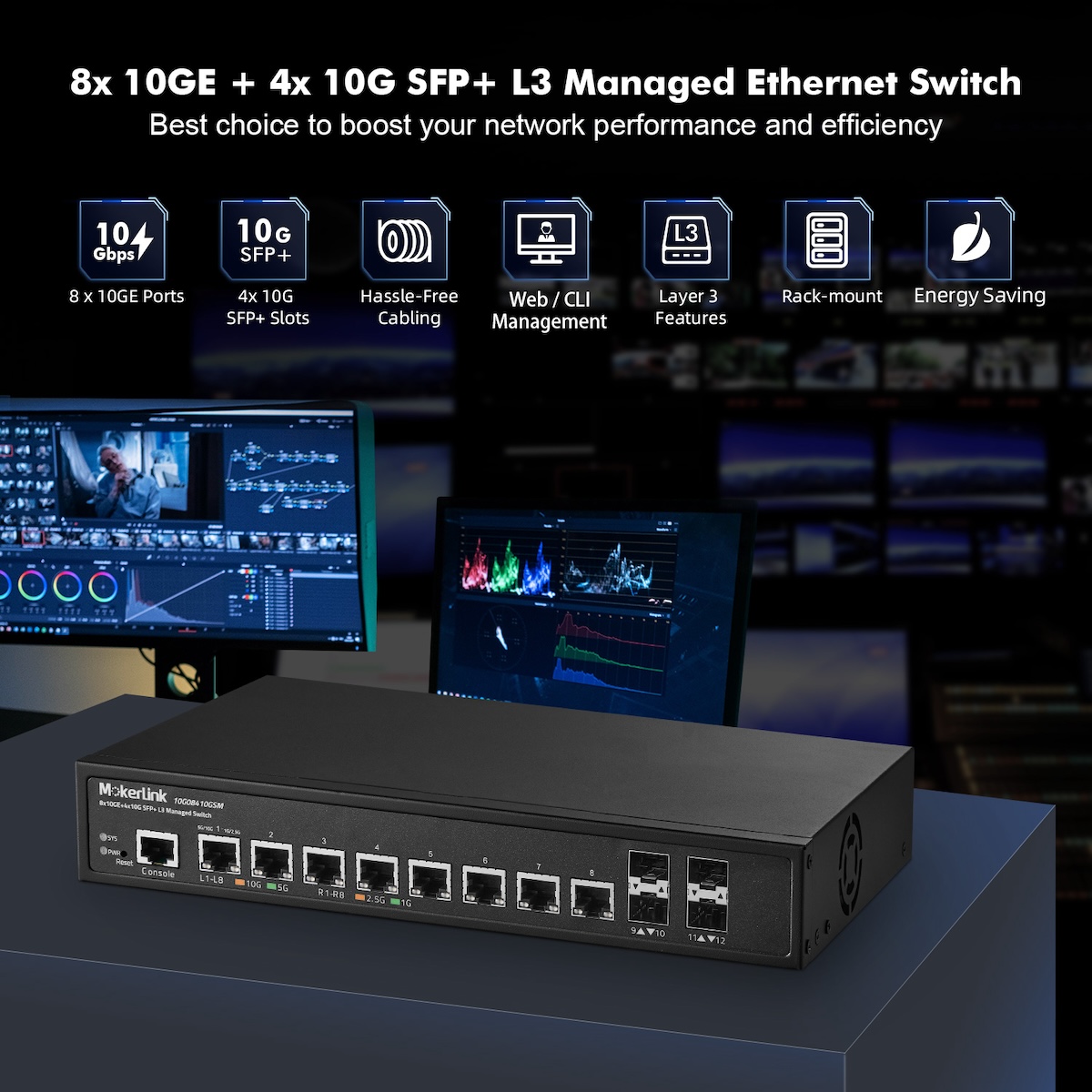

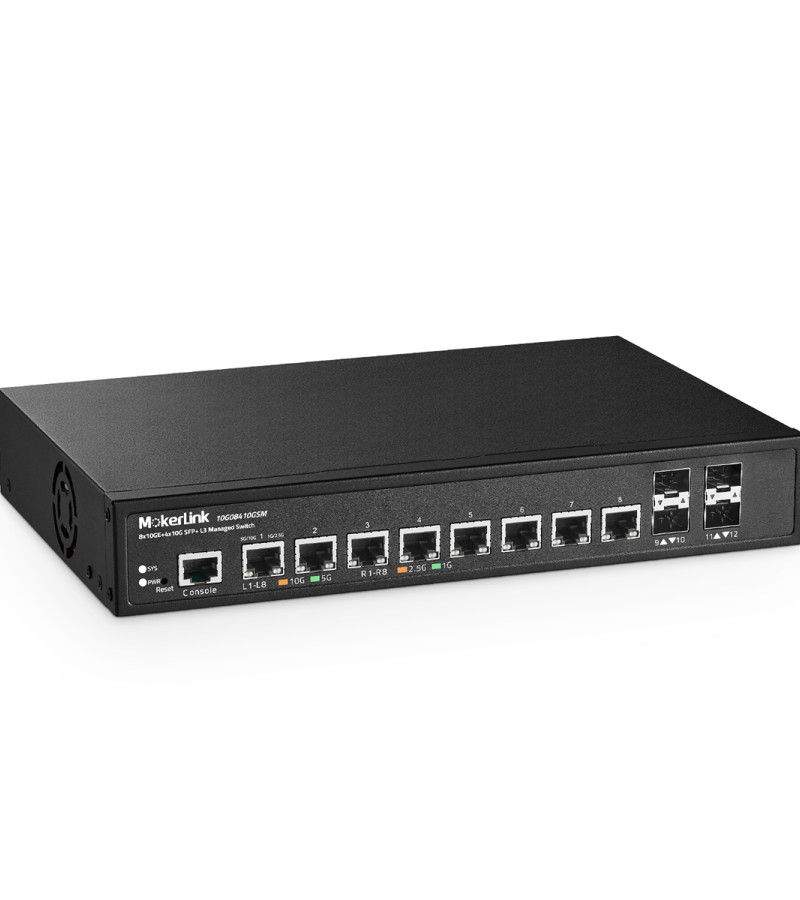

MokerLink 12 Port 10G Managed Switch, 8x10G Ethernet Ports, 10G/5G/2.5G/1G Auto-Adaptive, 4x10G SFP+ Port, L3 Web/CLI Managed, Metal Desktop|Rackmount Network Switch
The 10G08410GSM is a Layer3 Managed switch with 8x2.5GbE and 4x10GbE SFP+ ports. 8 ethernet ports provide either 100M, 1G, 2.5G, 5G and 10G connectivity, as well as 2 SFP+ Fiber port with 1G or 10Gt connectivity. Each port automatically detects which speed is needed.
$399.99
Price drop reminder
- Brand: MokerLink
- Product Code: 10G08410GSM
- Availability: In Stock
The 10G08410GSM is a Layer3 Managed switch with 8x2.5GbE and 4x10GbE SFP+ ports. 8 ethernet ports provide either 100M, 1G, 2.5G, 5G and 10G connectivity, as well as 2 SFP+ Fiber port with 1G or 10Gt connectivity. Each port automatically detects which speed is needed.
[Main Features]

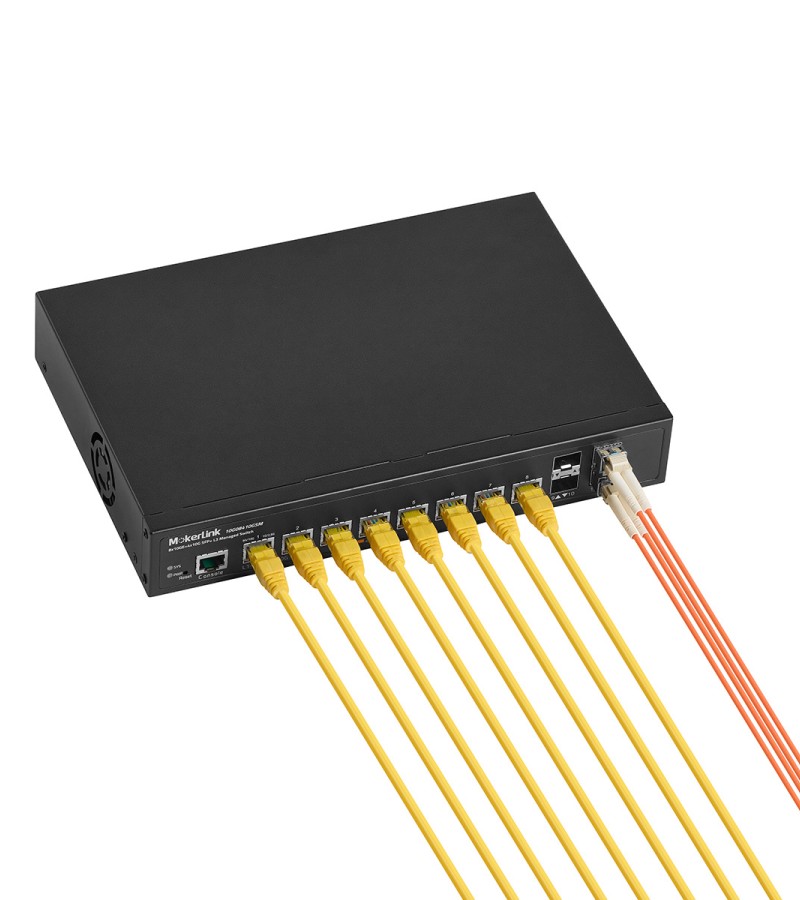

- 10G Ethernet: 8 x 10Gbps ethernet ports, enable high-bandwidth connected, every port auto-adaptive 10G/5G/2.5G/1000M/100M, support wider rate range. 4 x 10Gbps SFP+ Slot, Compatible with 1G/10G rate optical modules, support longer distance transmission through optical fiber.

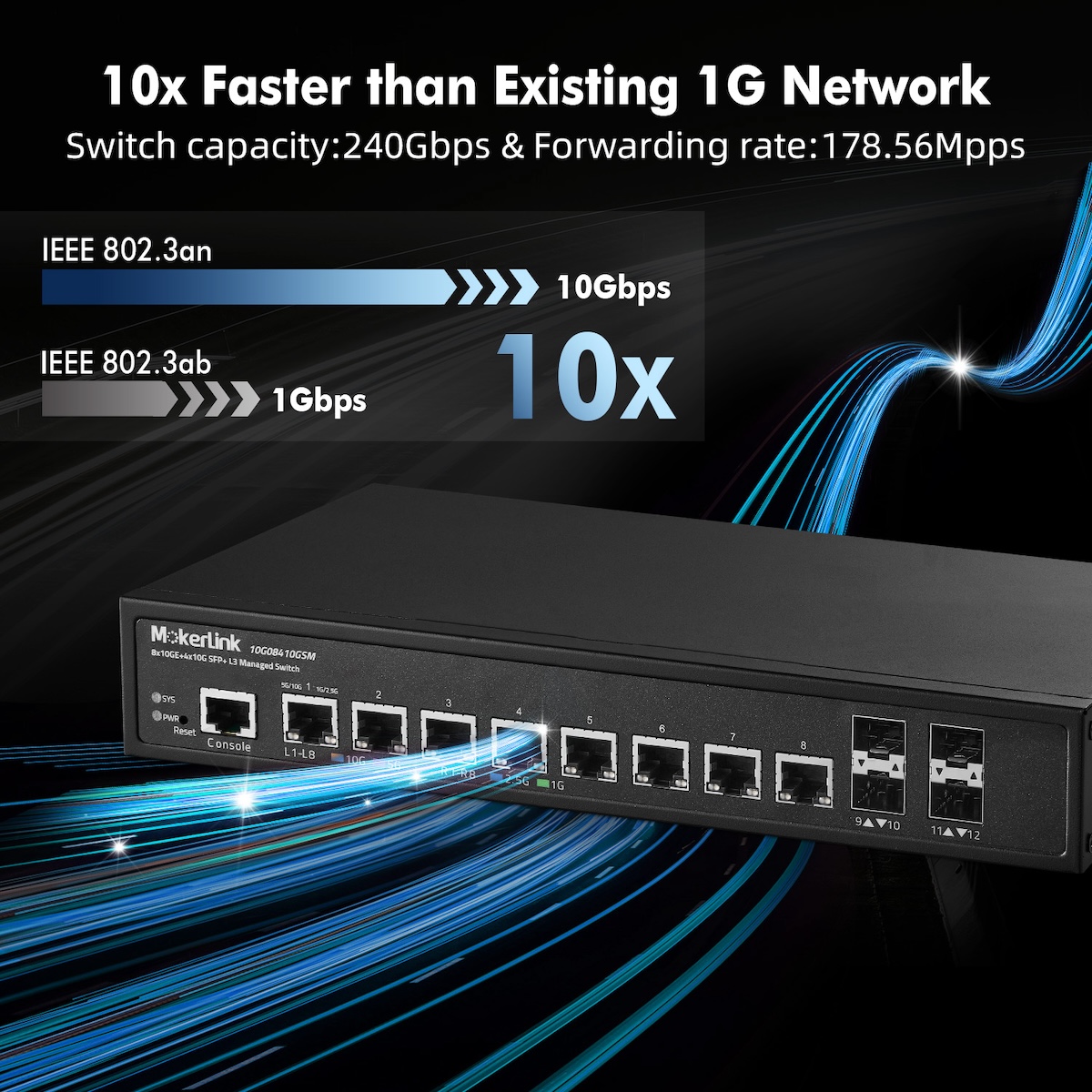

- 240G Bandwidth: switching capacity is 240Gbps, 16K MAC address table, store and forward, MAC Auto-Learning and Aging, IEEE802.3X full-duplex flow control, Packet Forwarding Rate 119.04Mpps, all ports can achieve non-blocking 10G line speed forwarding, with excellent data performance.
- Web/CLI L3 Managed: Support device/port config and query. Layer 3 Route: IPV4/IPV6 Management, IPV4/IPv6 Routes,ARP,Loopback Interface. Layer 2 Switching: such as VLAN, ACL, QoS, Jumbo frame,DHCP,security, multicast, MAC address table, diagnosis, Statistics, MSTP/ RSTP/STPetc. More powerful than unmanaged switch
- Security/Diagnosis Management: AAA/802.1X/MAC-Based authentication, DoS anti-attack, dynamic ARP inspection, DHCP Snooping, IP Source Guard, Port Security, Protected Ports, storm control. Console/ RAM/Flash Logs, Port Mirroring, Ping, Traceroute, Port Tests, UDLD Protocol. Better protection of your equipment and fault localization
- Widely Used: Metal case, desktop/wall-mounting design, support Telnet/SSH/SNMP,Firmware Upgrade,ConfigurationFile Download/Upload, installation and maintenance are very simple, industrial grade fan for good heat dissipation, well-suited for various high performance environments, such as Access, core, and aggregation networks, home HD entertainment, enterprise transport, etc.
Ask Question About Product
Note: HTML is not translated!
Ethernet Switch Hardware Specifications | |
Product Model | 10G08410GSM |
Product Name | 12-Port 10G L3 Managed Ethernet Switch wirh 4-Port 10G SFP+ |
Ethernet Port | 4*10G Base-X + 8*1000/2500/5000/10000 Base-T |
Switching Capacity | 240G |
Throughput | 178.56Mpps |
Packet Buffer | 16M bit |
MAC Address | 32K |
Jumbo Frame | 12Kbyte |
Transfer Mode | Store and forward |
Network protocol | IEEE802.3 (Ethernet), IEEE802.3u (Fast Ethernet), IEEE802.3ab(Gigabit Ethernet), IEEE 802.3bz(5G Ethernet), IEEE 802.3z(Gigabit Ethernet), IEEE 802.3ae(10G Ethernet), IEEE802.3x (Flow control) |
Lighting Protection | Common mode 6KV;Differential mode 2KV;ESD: Air 8KV, Contact 6KV |
Working Environment | Operating temperature: -10~+55°C;5%~90% RH Non coagulation, Storage temperature: -40~+75°C;5%~95% RH Non coagulation |

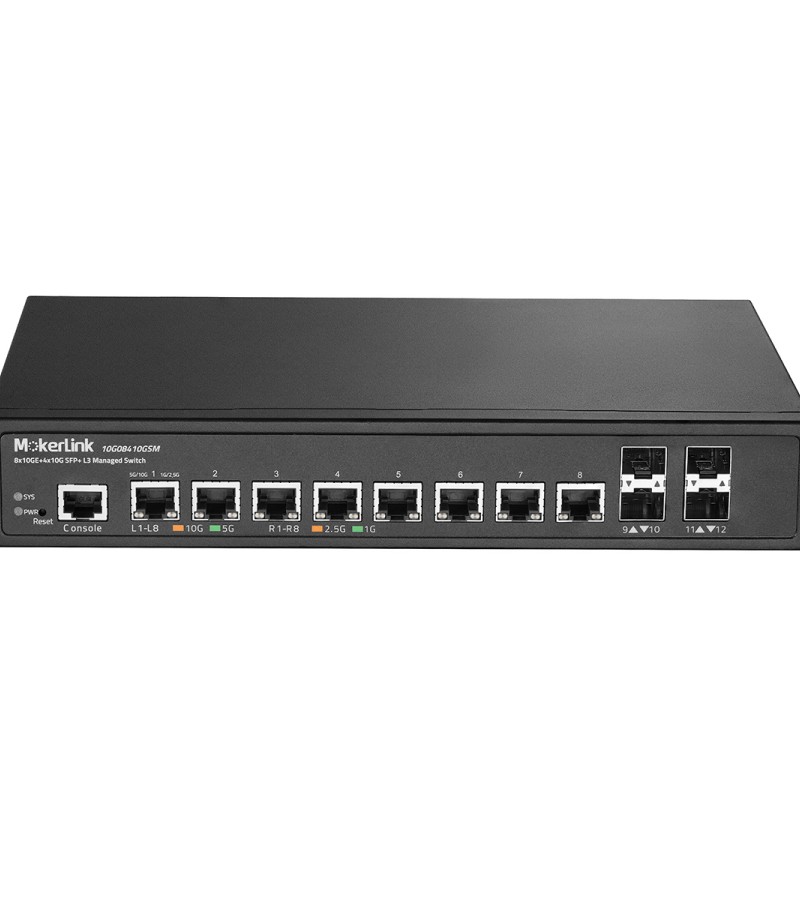

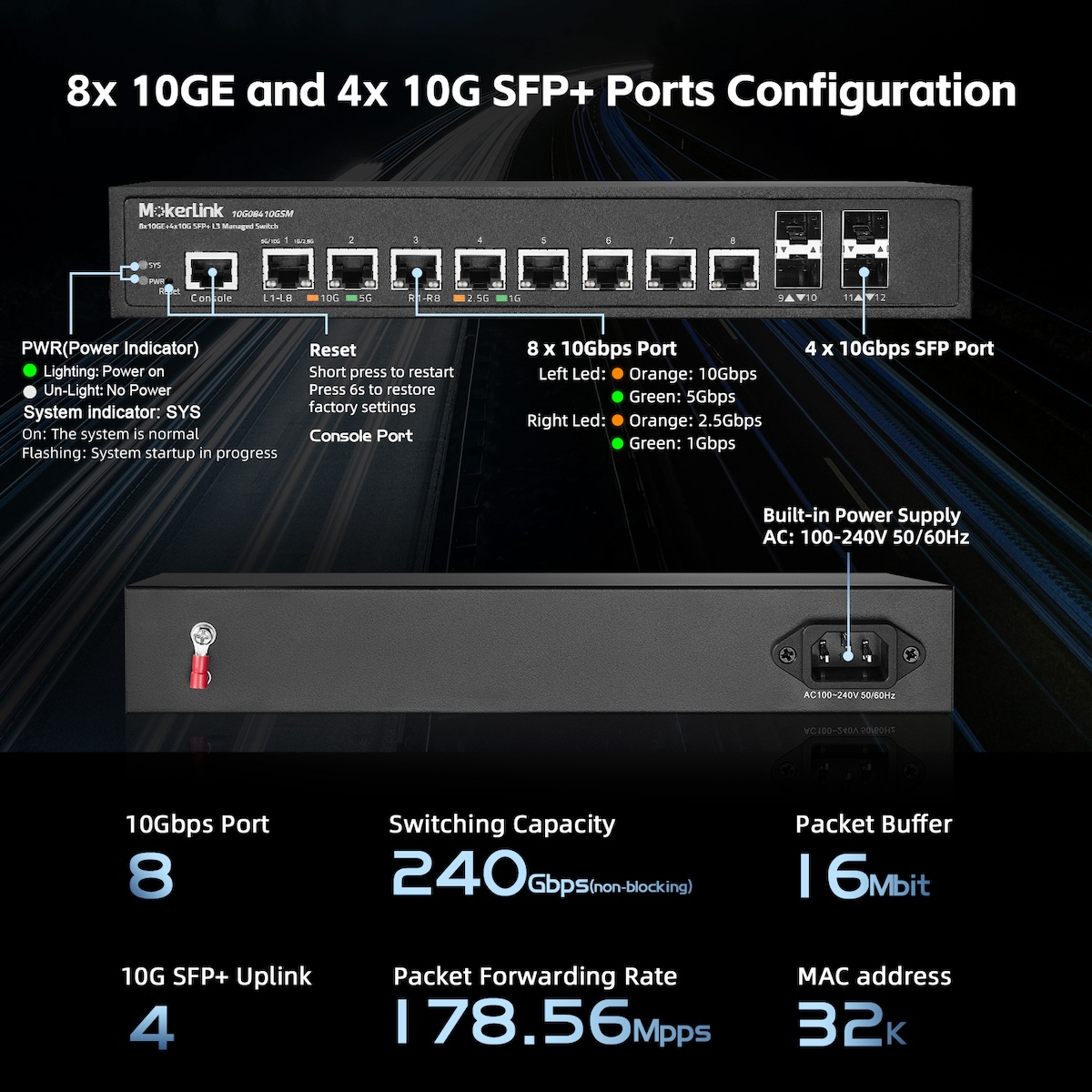

LED Indicator | PWR,SYS,Link/ACT LED,seep LED |
Structure Size | Product size: 270*181*44mm Product weight: 1.37kg |
Installation | Desktop/Rack Mount |
Shell | Black Color, Metal Shell |

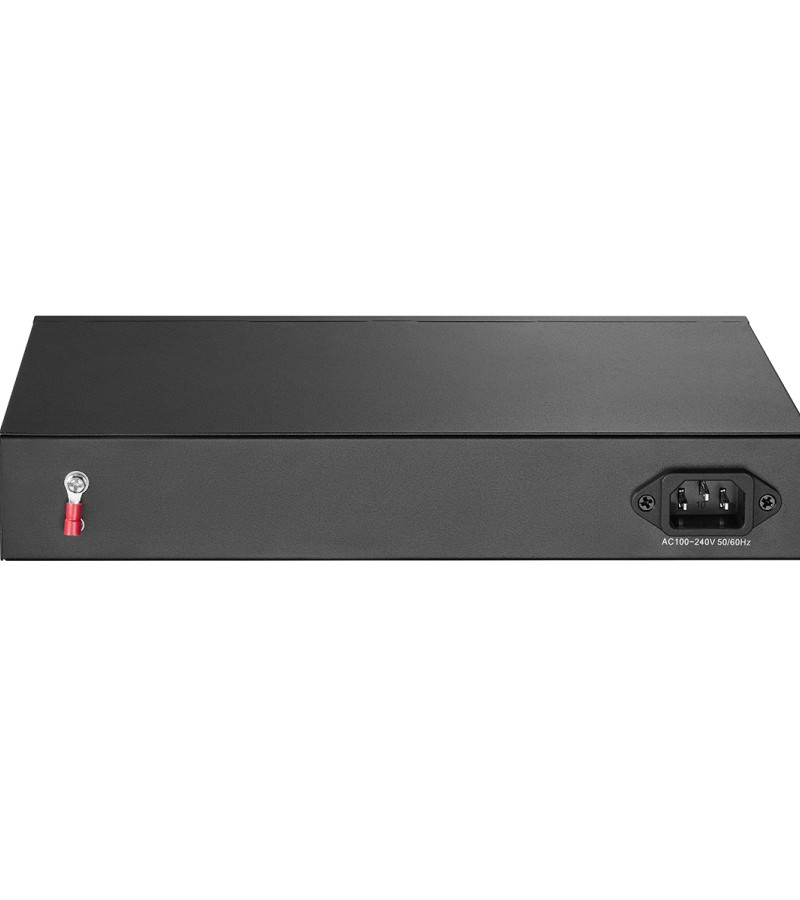

Power Voltage | AC 100-240V 50/60Hz, Total Power consumption ≤60W |
Package List | Switch 1pcs, Specification 1pcs, Power code 1pcs |
Software Function | Layer 3 Management Features, VLAN, QoS, STP, IGMP, Route |
