MokerLink Outdoor 6 Port Gigabit PoE Switch, 4 Gigabit PoE, 2 Gigabit SFP, 65W IEEE802.3af/at, IP65 Weatherproof Plug & Play Network Switch

4 Gigabit POE ports, 2 Gigabit SFP, Built-in power supply max 65W, support IEEE802.3af/at, Unmanaged, Plug and Play, Including power cord with wiring terminal, IP65 Weatherproof, LED indicator, Widely used in IP cameras, wireless AP, industrial networks etc.

$99.99 Price drop reminder
  • Brand: MokerLink
  • Product Code: POE-G042GSO
  • Availability: In Stock

Total $99.99

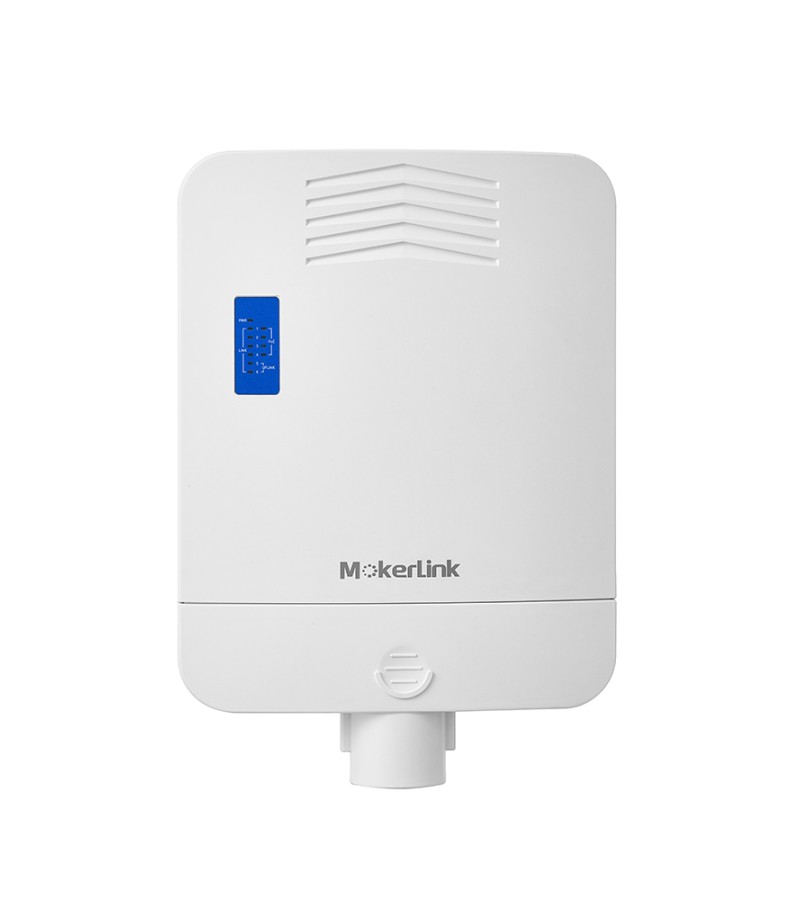

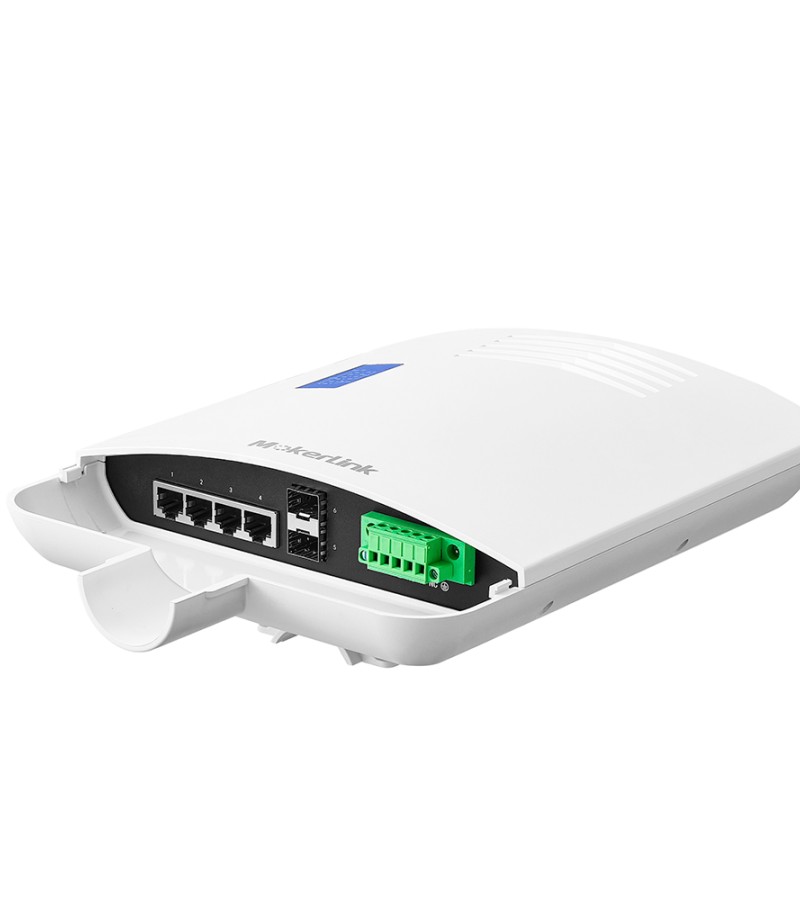

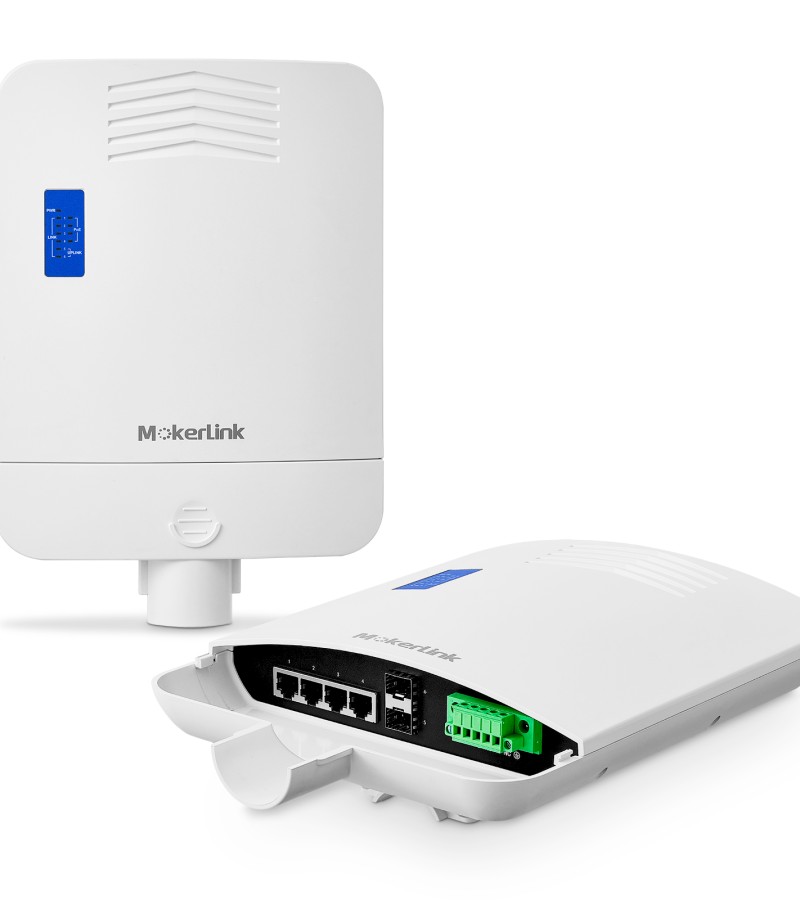

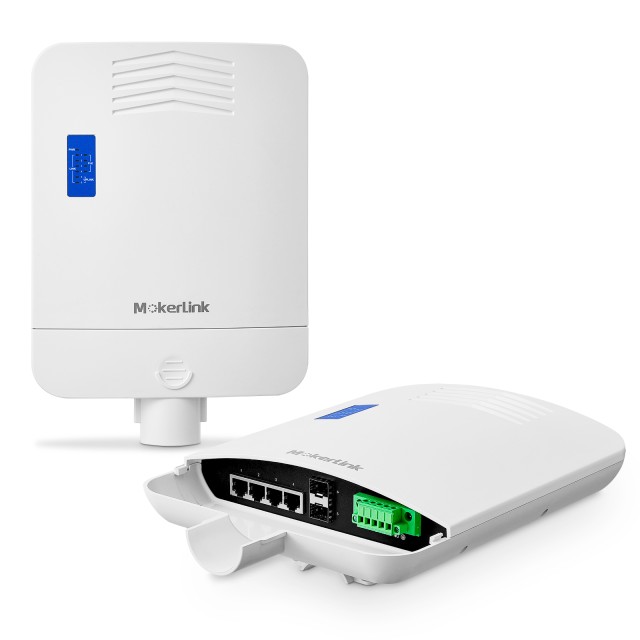

POE-G042GSO is an outdoor rainproof Gigabit PoE switch. Equipped with 4 10/100/1000Mbps RJ45 PoE ports and 2 Gigabit SFP ports, It adopts ABS plastic outdoor rainproof shell for holding pole installation. Excellent performance can help you widely used in wireless, surveillance and other fields.

Main Features
  •
  • Support IEEE802.3, IEEE 802.3u, IEEE802.3af, IEEE802.3at
  • Provides 4*10/100/1000M PoE ports
  • Provides 2*1000M SFP ports
  • 100-240VAC Input
  • High back-plane bandwidth 12Gbps
  • Outdoor rain proof case

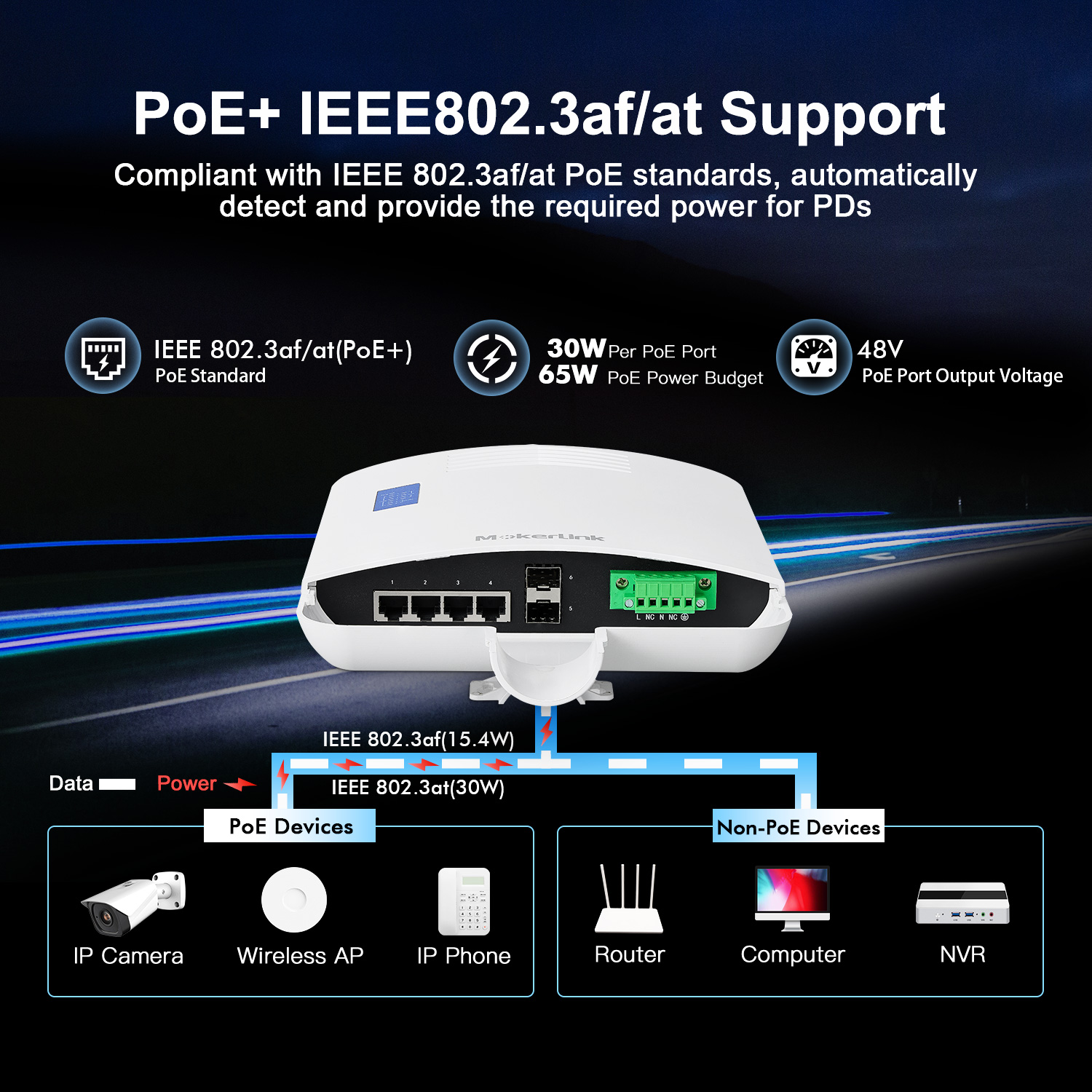

Smart PoE+
Compatible with IEEE802.3af/at standard, PoE switch determines and delivers the exact power supply to PoE devices.
gigabit outdoor PoE Switch

Full Gigabit Port
The outdoor PoE switch features non-blocking wire-speed architecture with 12Gbps switching capacity for maximum data throughput.
gigabit outdoor PoE Switch

Fiber Connectivity
Accept universal SFP transceiver with single mode or multi-mode fiber optical module. extending beyond the limitations of ethernet cabling.

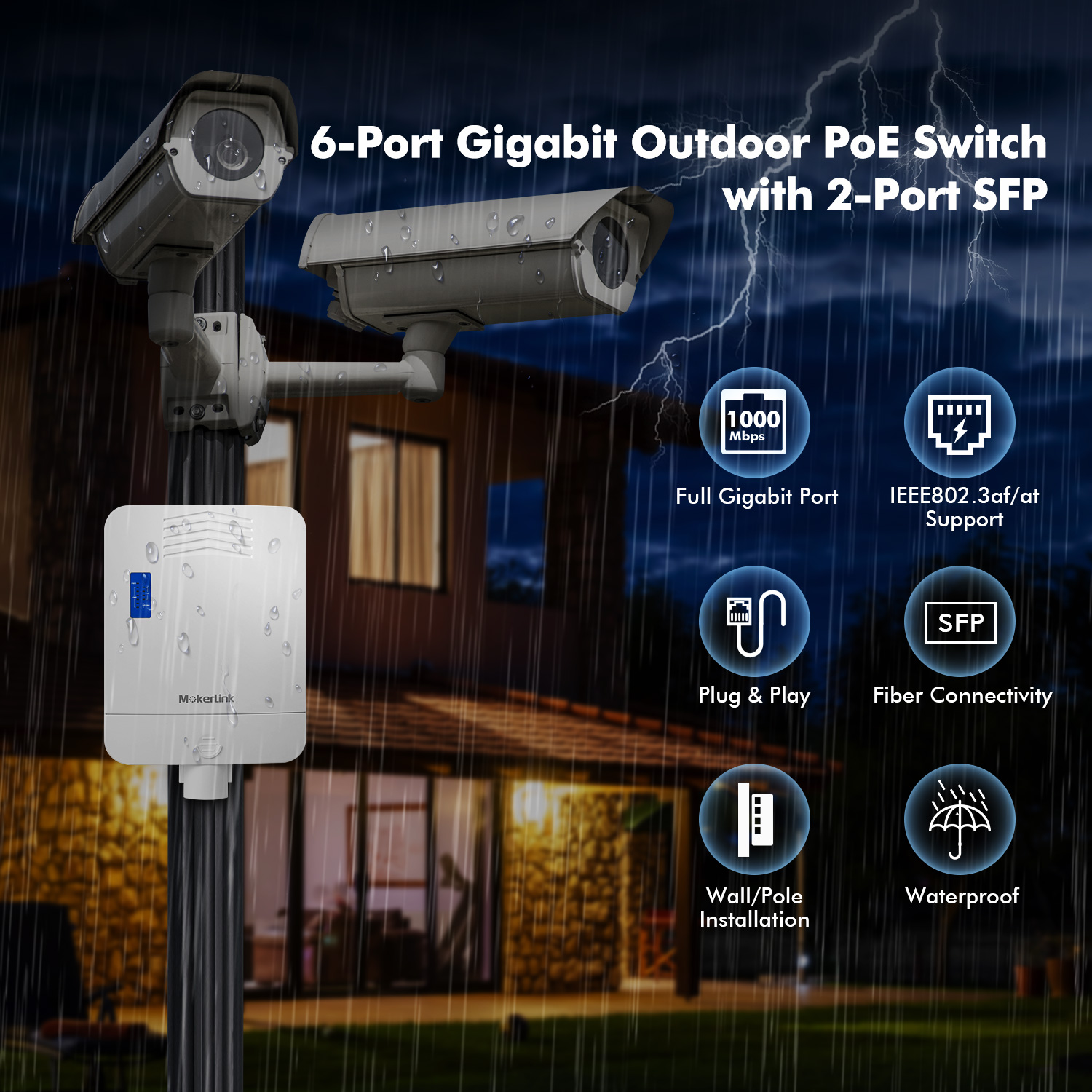

IP65 Weatherproof
With an outdoor waterproof and dustproof enclosure,buidling in lighting protection IC, It can be used in various conditions for stable performance.

Plug and Play
plug and play, No configuring is required. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables or uplink ports.

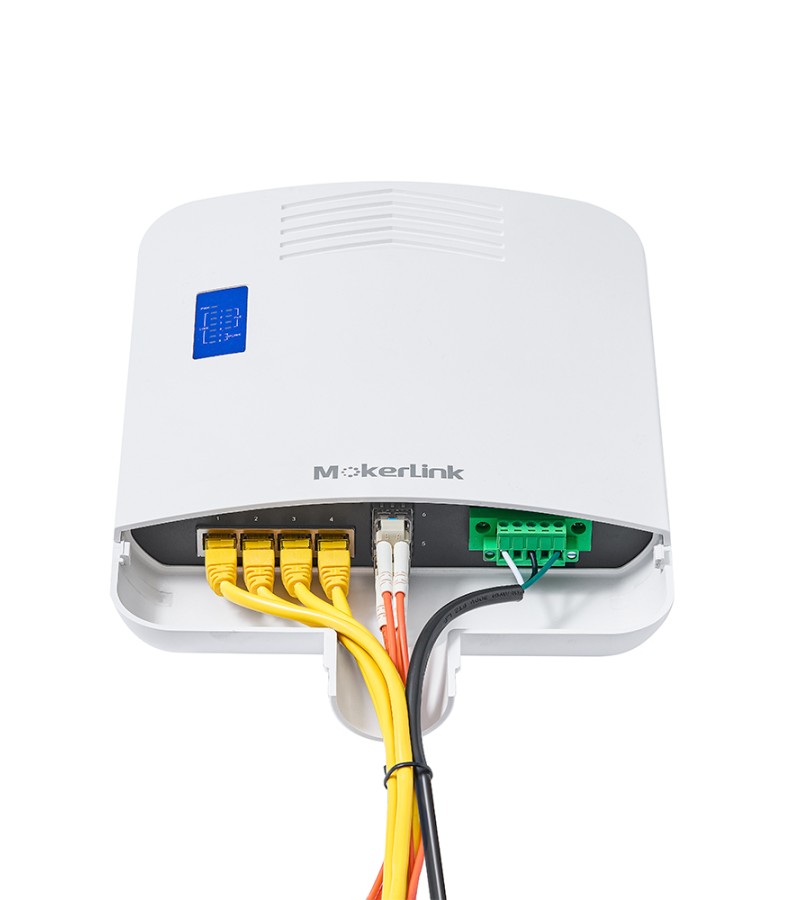

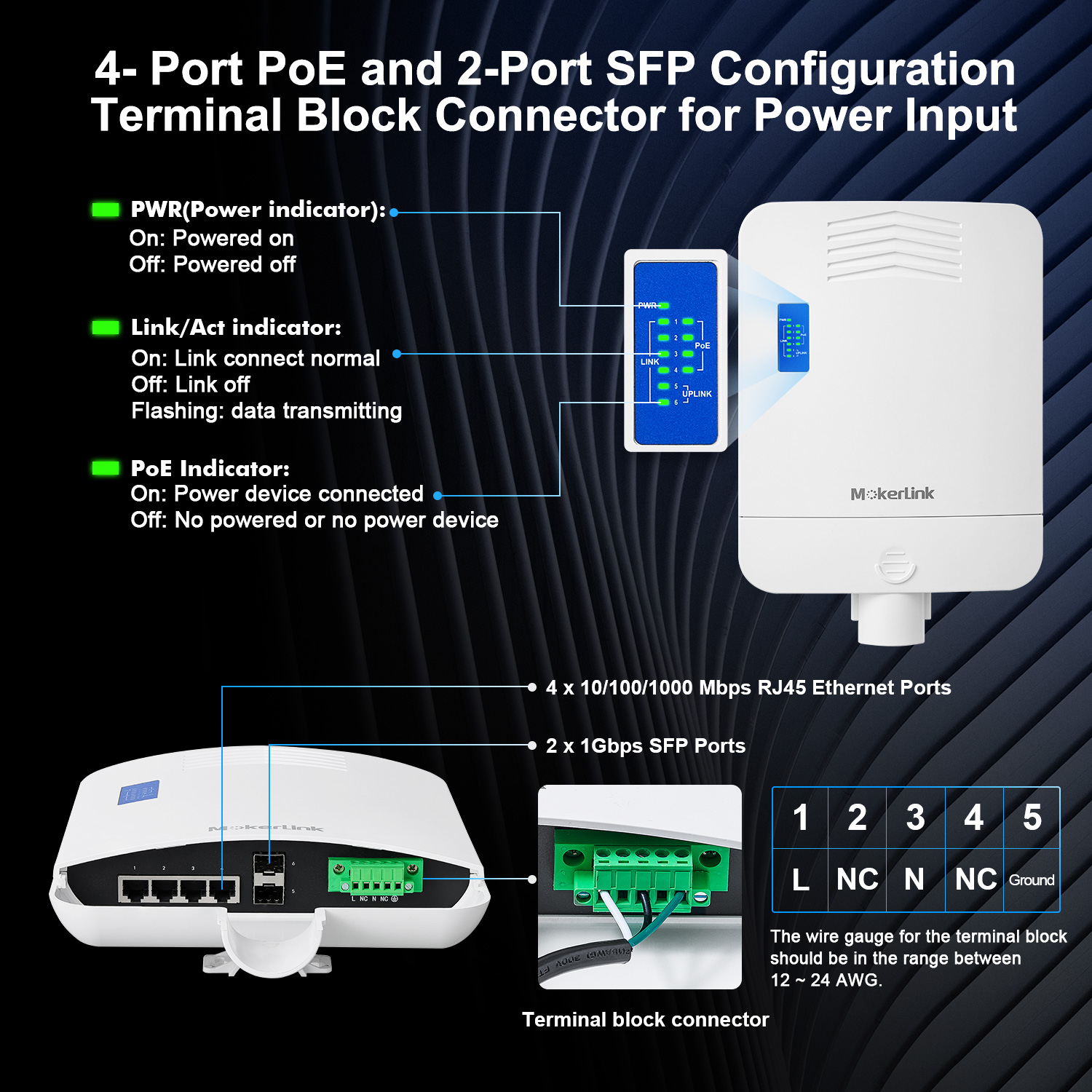

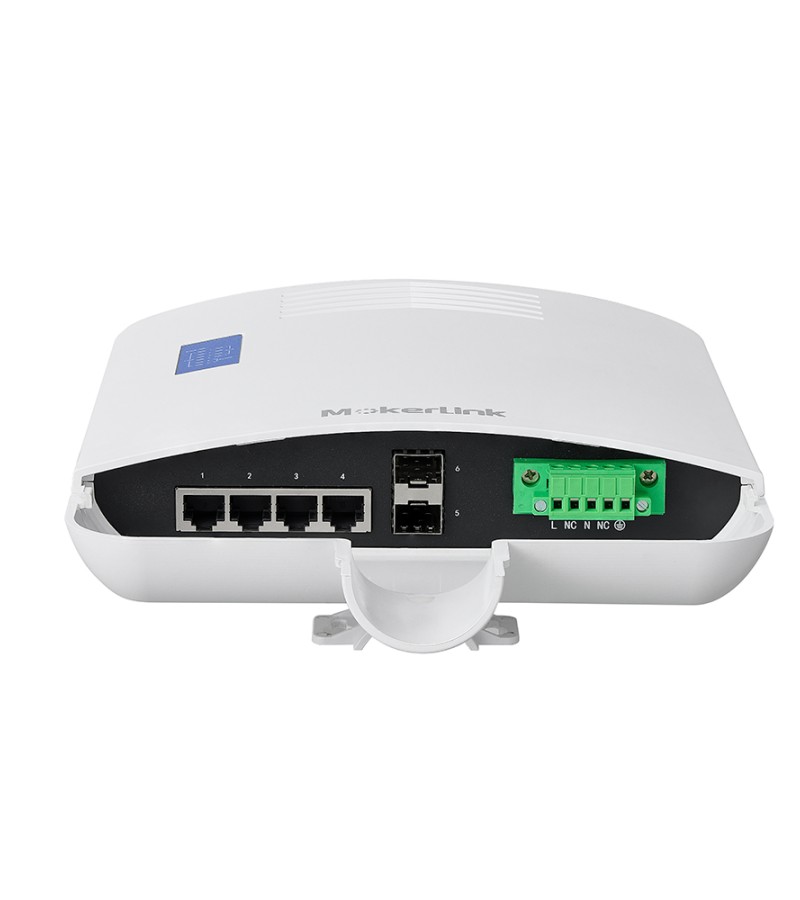

Dedicated Terminal Connector
The power connection uses a quick-plug terminal block connector. It is recommended that the user use a cable with a current capacity of more than 6A.

LED Indicators
The led indicators on the front paneal display the current status of the device intuitively, give convenience to quick diagnose.
gigabit outdoor PoE Switch

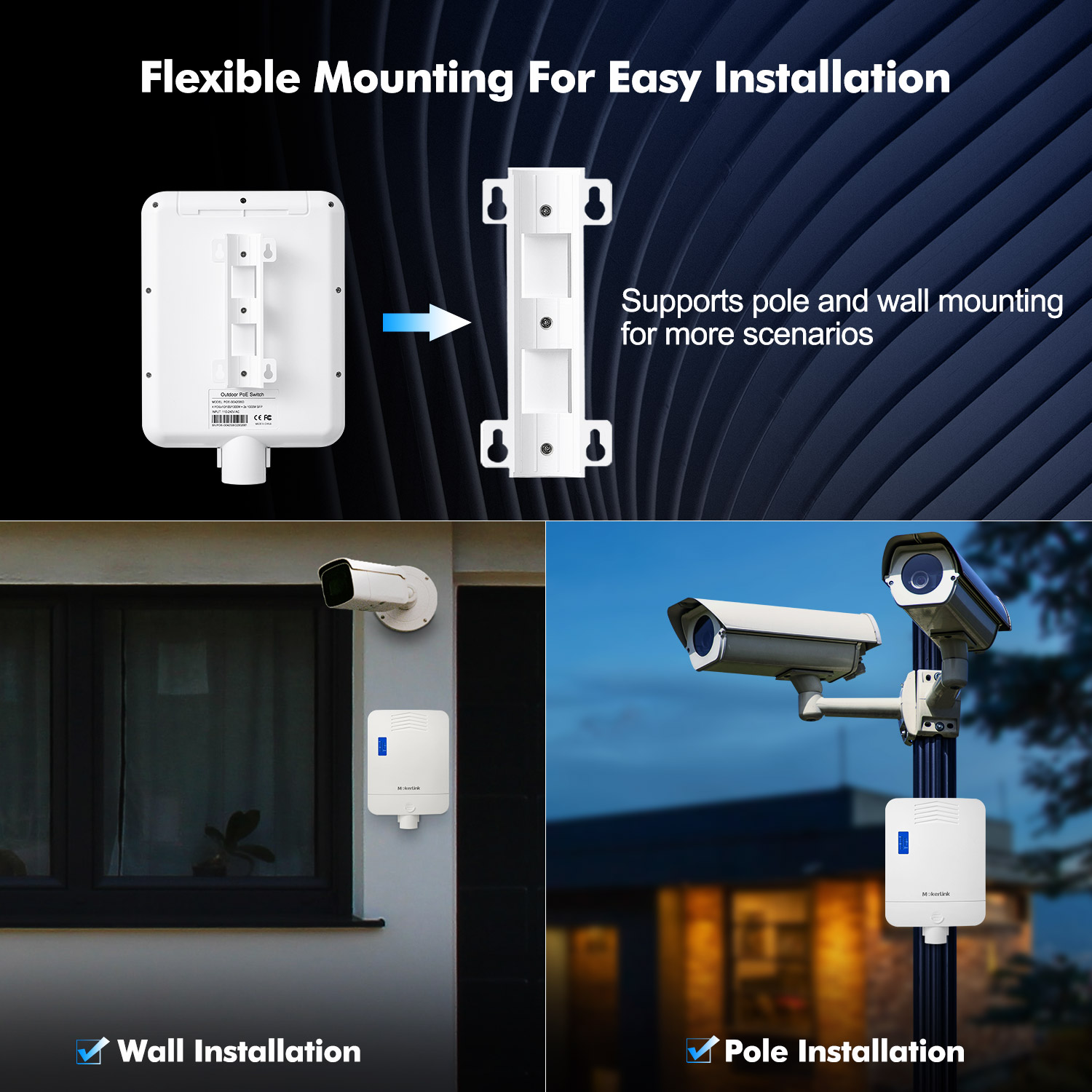

Easy installation

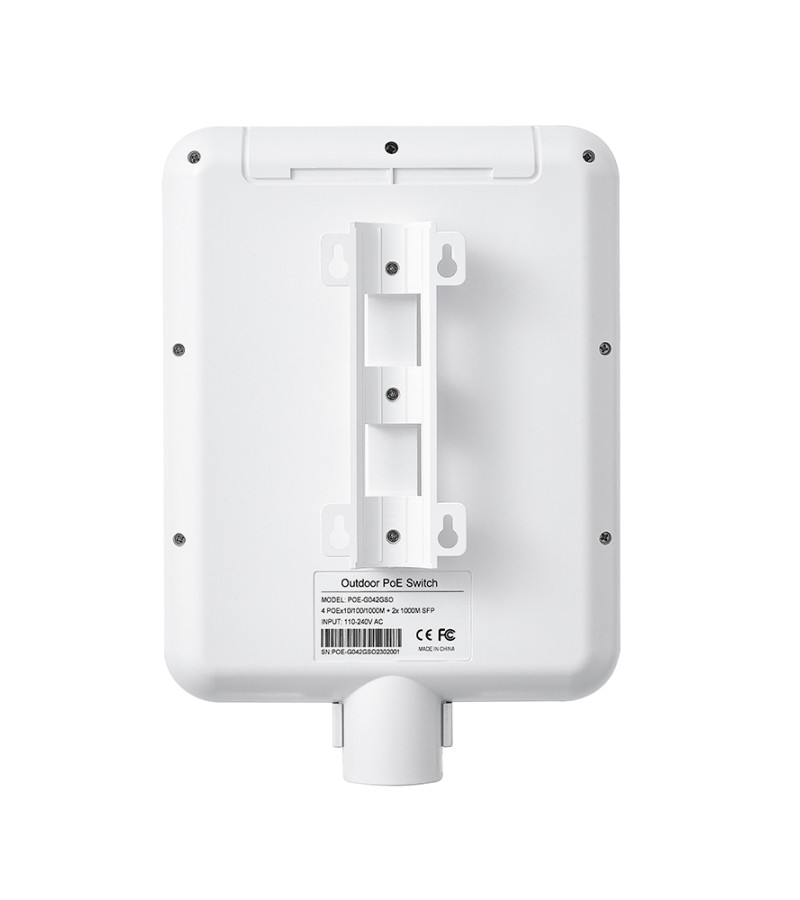

The outdoor PoE Switch is easy to install using included tools. Support holding pole installation and wall installation.



Ask Question About Product

Note: HTML is not translated!
Ethernet Switch Hardware Specifications
Product ModelPOE-G042GSO
Product Name6-Port Gigabit Outdoor PoE Switch with 2-Port SFP
Ethernet Port4 Port 10/100/1000M PoE + 2 Port 1000M SFP Uplink
Switching Capacity12Gbps
Packet Buffer8.936Mpps
MAC Address2K
Jumbo Frame9216bytes
Transfer ModeStore and forward
Mean Time Between Failure100000 hour
Network protocol IEEE802.3 (10Base-T) IEEE802.3u (100Base-TX) IEEE802.3ab(1000Base-TX) IEEE802.3z(1000Base-FX) IEEE802.3x (Flow control)
PoE ProtocolIEEE802.3af (15.4W) IEEE802.3at (30W)
PoE PinV- (RJ45 Pin1,2), V+ (RJ45 Pin 3,6)
PoE Power Budget65W
Industry StandardEMI: FCC Part 15 CISPR (EN55032) class A EMS: EN61000-4-2 (ESD), EN61000-4-4 (EFT), EN61000-4-5 (Surge)
Network Medium10Base-T : Cat3、4、5 or above UTP(≤100m) 100Base-TX : Cat5 or above UTP(≤100m) 1000Base-TX : Cat5 or above UTP(≤100m)
Lighting Protection4KV Lighting Protection
Security CertificateCE、FCC、RoHS
Working EnvironmentWorking Temperature:-10~50°C Storage Temperature:-20~85°C Working Humidity :10%~90%,non-condensing Storage Temperature:5%~90%,non-condensing Working Height:Maximum10,000 feet Storage heigh:Maximum 10,000 feet
LED IndicatorPWR (Power), 1-6 Green Light (Link&Data), PWR On: Powered on, Off: Powered off. 1-6 Green Light (Link&Data) On: Link normal, Off: Link blocked, Flashing: Data transmitting
Structure SizeProduct Dimensions: 300*220*44mm, Package Dimensions: 500*280*100mm, Product N.W: 0.8kg, Product G.W: 1.36kg
InstallationWall/Pole Mountable
ShellWhite, ABS+PC
Power VoltageInput Voltage :AC 100-240 V Power supply:52V/1.25A

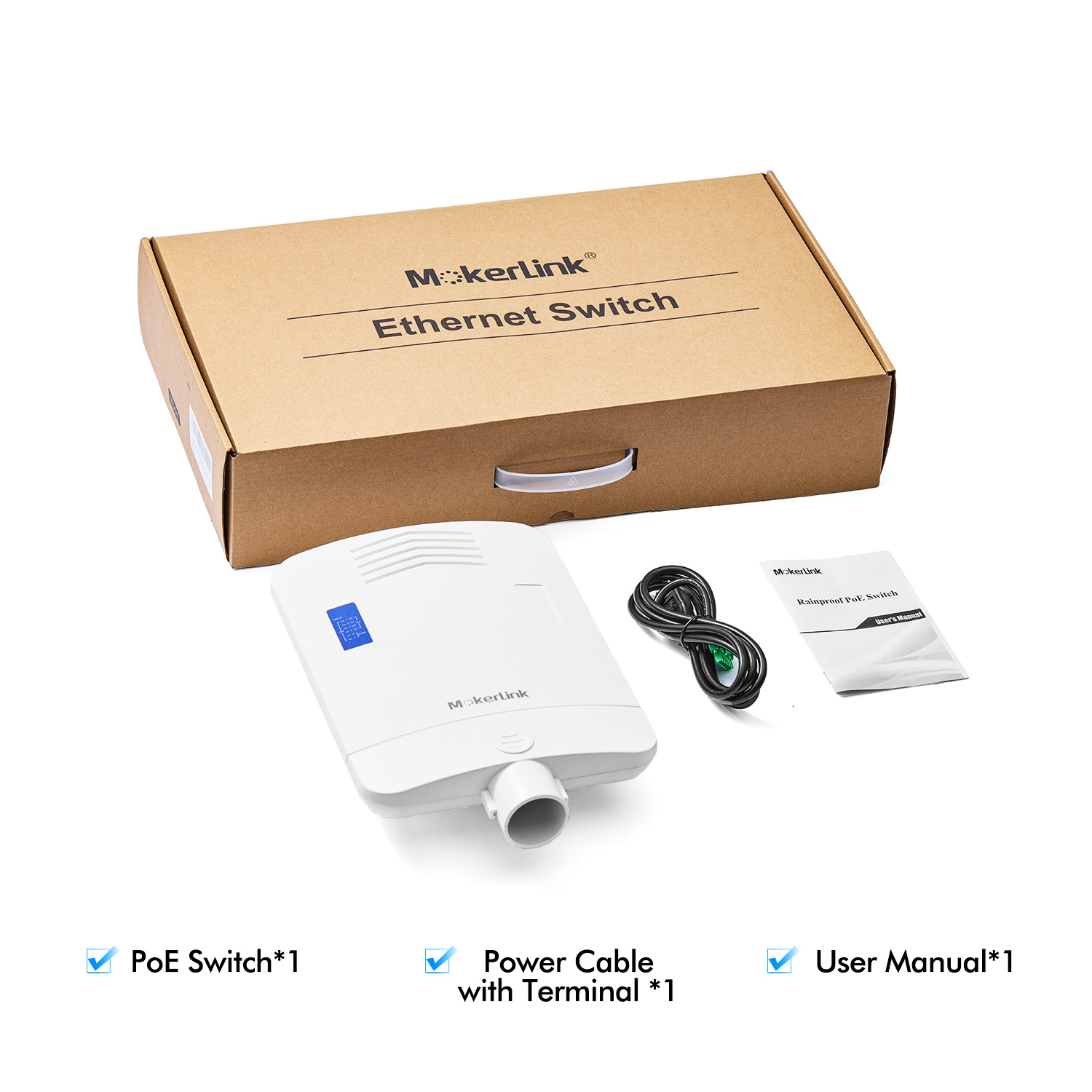

Package ListSwitch 1 PC, Power cord 1 PC, User manual 1 PC
