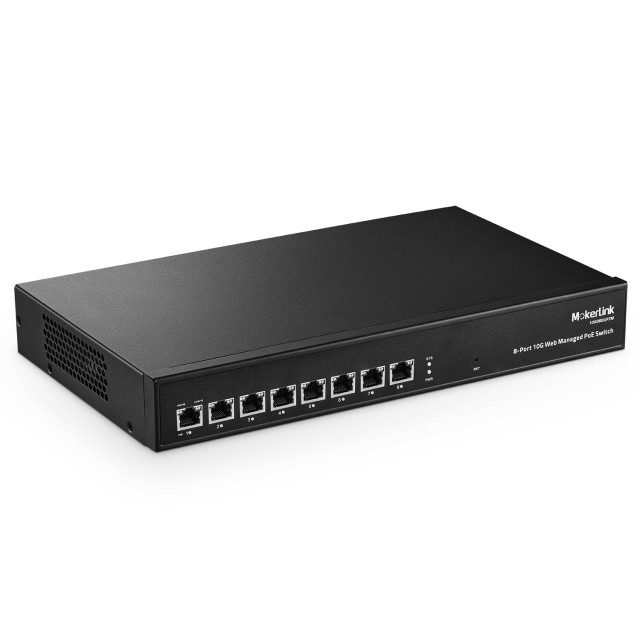

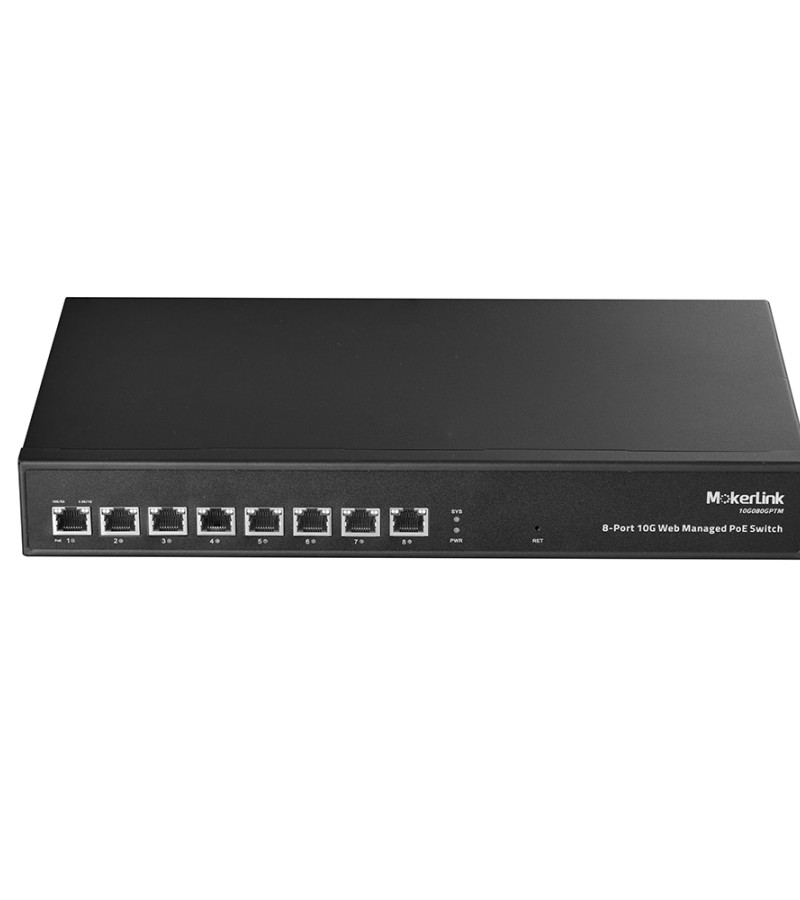

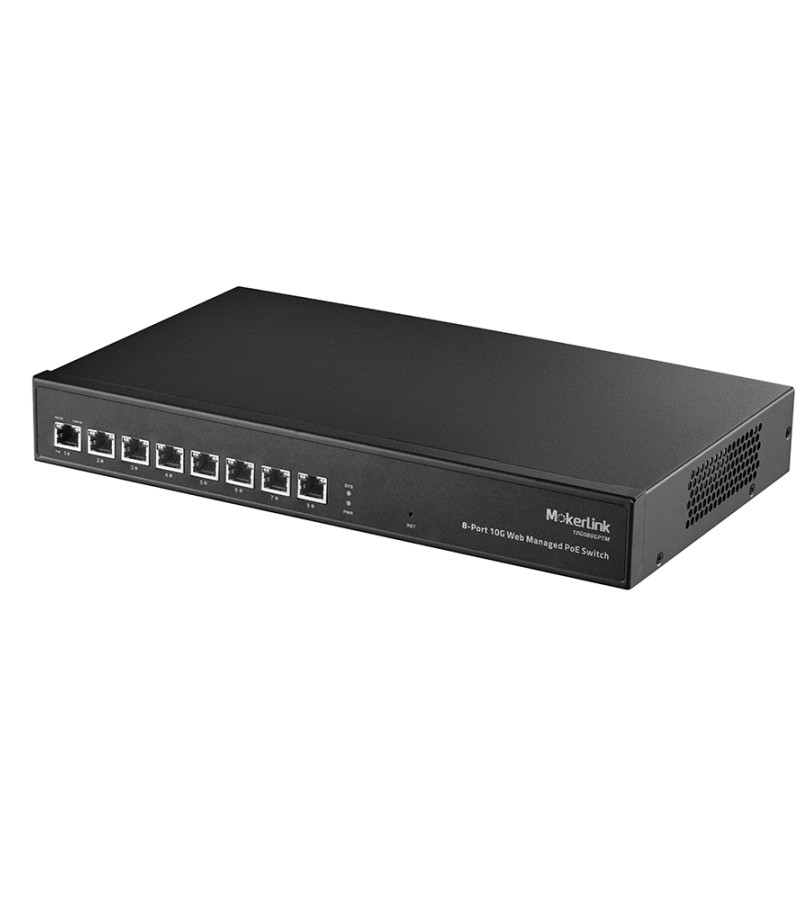

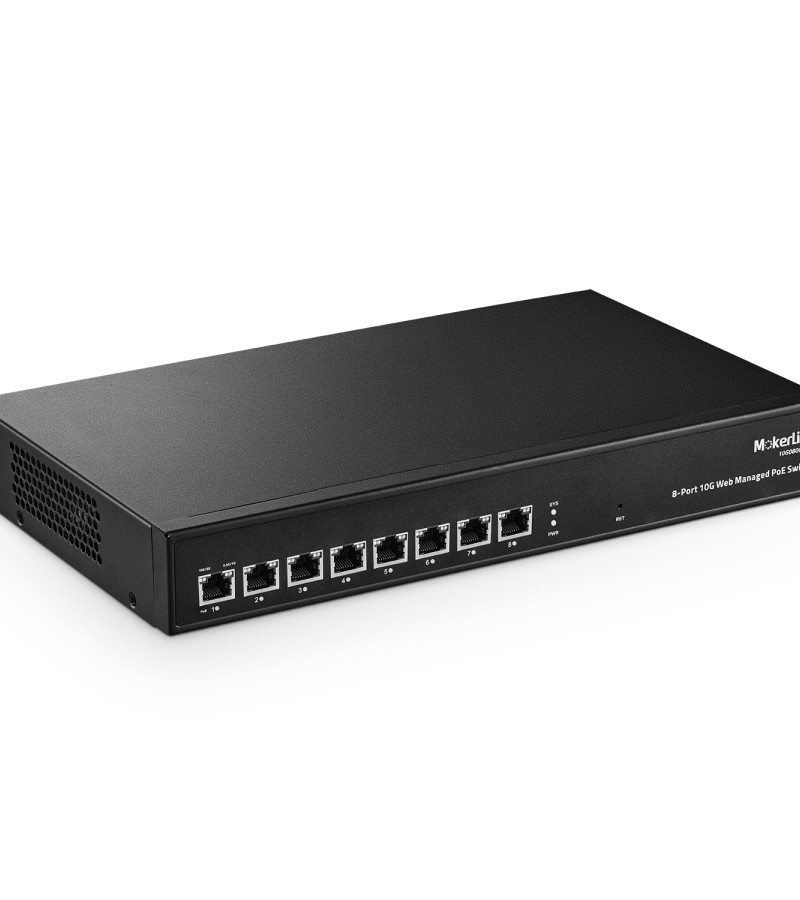

MokerLink 8 Port 10 Gigabit PoE Managed Ethernet Switch, 120W IEEE802.3af/at, Support 10G/5G/2.5G/1000M/100M Auto-Negotiation, 160Gbps Bandwidth Smart Web Managed Network Switch

8x 10Gbps PoE ports, auto-adaptive 10G/5G/2.5G/1000M/100M, Support IEEE802.3af/at, 160Gbps Bandwidth, Web Managed Switch, support L2 features, such as VLAN, QoS, security, multicast, MAC address table, diagnosis, etc. Widely Used in WiFi6 AP, NAS, PCIe Adapter/NIC, Server, 8K video, and more.

$429.99 Price drop reminder
  • Brand: MokerLink
  • Product Code: 10G080GPTM
  • Availability: In Stock

Total $429.99

Product Description

The switch adopts a high-quality and high-speed network chip solution with a full 10G network interface and smooth line speed forwarding. It is configured with 8* 10G PoE ports, which supports 100/1000M/2.5G/5G/10G adaptive rates and IEEE802.3af/at. It adopts a storage and forwarding mechanism, and internally integrates a high capacity cache to ensure that all ports can achieve 10G non-blocking line speed forwarding, and adopt to more emergency situations. the switche provide advanced L2 network management functions: redundant ring network, VLAN, QoS, speed control, port image, fault alarm and firmware online upgrade.  With a sturdy and durable and high strength fan steel shell design, the efficient heat dissipation ensures stable operation of the product. The switch can be widely used in security network video monitoring, hotels, campuses, large and medium-sized. enterprise network engineering, and other fields.



Main Feature

  • 8* 10G PoE ports.
  • Support IEEE802.3af/at, Max 120W Power budget.
  • Supports IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3 bz, IEEE 802.3 ae, IEEE 802.3. x, IEEE 802.3az.
  • Ethernet ports support 100/1000M/2.5G/5G/10G self-adaptive.
  • Support port automatic MDI/MDIX.
  • Panel indicators monitor operating conditions and assist in fault analysis.
  • Flow control mode, IEEE802.3x standard for full duplex, and back pressure standard for half duplex.
  • Web Managed.

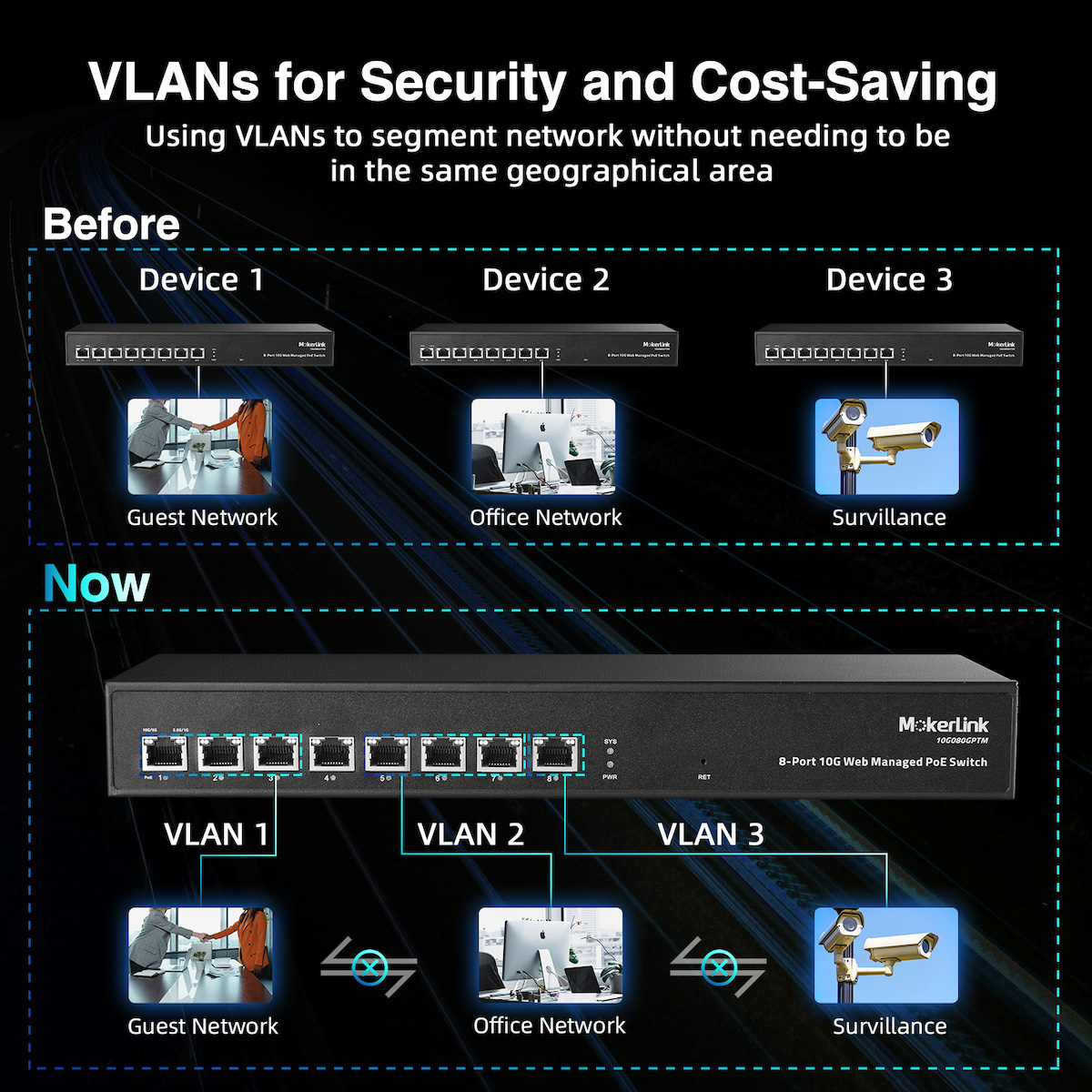

  • L2 Feature, Such as STP, VLAN, QoS.
  • Support surge protection: Common mode 6KV, class C; ESD: air 8KV, contact 6KV, class C.



Application Environment

  • Metropolitan fiber broadband network: Telecommunications, cable TV, network system integration, etc., according to network operators.
  • Broadband private network: Suitable for special networks in industries such as finance, government, petroleum, railway, electric power, public security, transportation, education, etc.
  • Multimedia transmission: Integrated transmission of images, voice, and data, suitable for applications such as distance education, conference television, and videophone.
  • Real time monitoring: Simultaneous transmission of real-time control signals, images, and data.



Ask Question About Product

Note: HTML is not translated!
Ethernet Switch Hardware Specifications
Product Model10G080GPTM
Product Name8-Port Full 10G Web Managed PoE Switch
Ethernet Port8* 10G PoE ports
Switching Capacity160Gbps
Throughput115.84Mpps
Packet Buffer12MBit
Flash Memory 16MB
DDR SDRAM128MB
CPUMIPS-34Kc Up to 800MHz CPU
MAC Address16K
Jumbo Frame12Kb
Transfer ModeStore and forward
VLANs4096
Network protocol IEEE802.3 (Ethernet) IEEE802.3u (Fast Ethernet) IEEE 802.3ab (Gigabit Ethernet) IEEE 802.3az (Efficient and energy-saving Ethernet) IEEE 802.3ae (10G Ethernet) IEEE802.3x (Flow control) IEEE802.3 bz (2.5G/5G Ethernet standard)

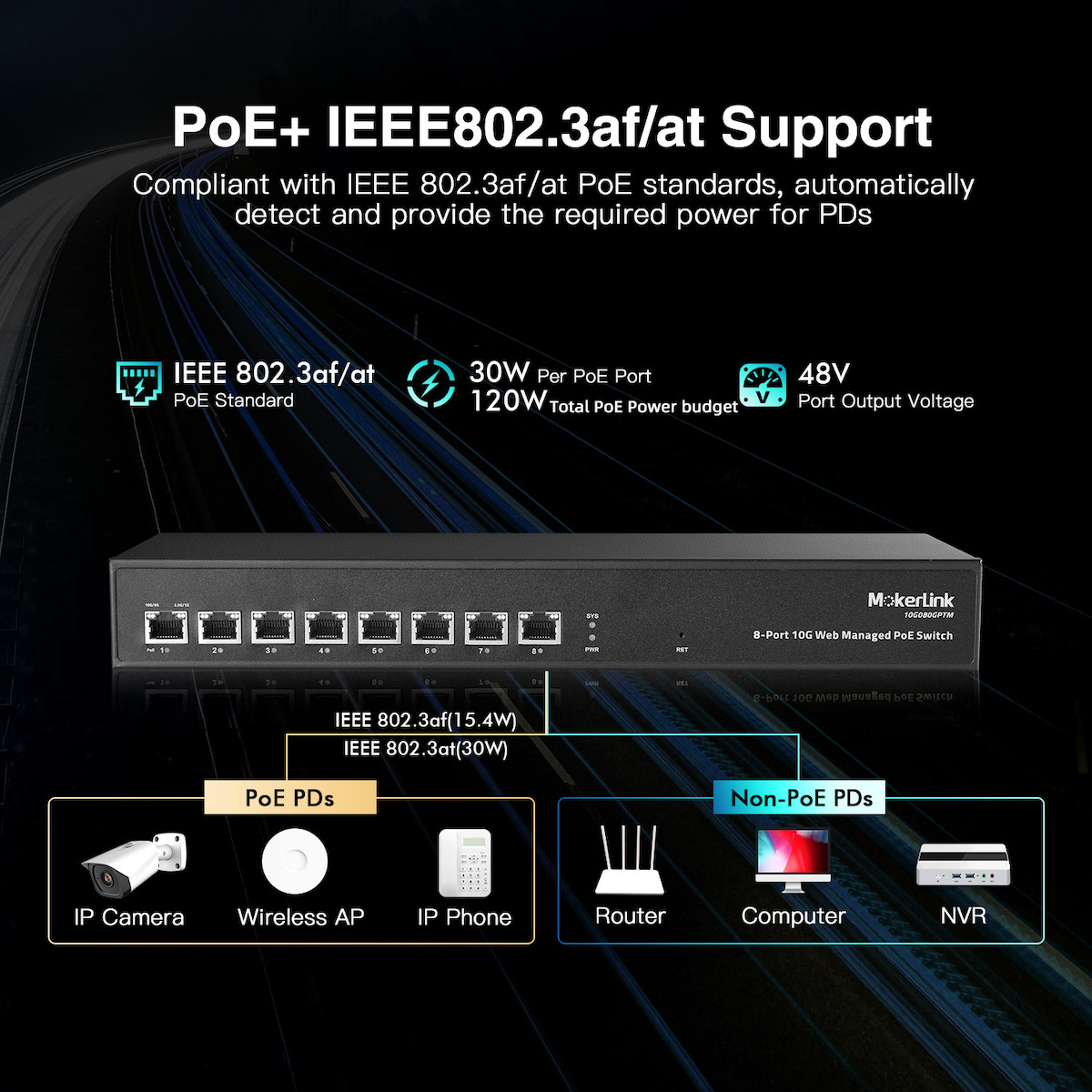

PoE ProtocolIEEE802.3af(15.4W), IEEE802.3at(30W)
PoE Pin1/2(+), 3/6(-)
PoE Power BudgetToal 120W Power budget
Industry StandardEMI: FCC 47 CFR Part 15 Subpart B (Class A) EMS: EN61000-4-2 (ESD), EN61000-4-5 (Surge)
Network Medium100Base-TX : Cat5 or above UTP(≤100m) 1000Base-TX : Cat5 or above UTP(≤100m) 10000Base-TX : Cat7 or above UTP(≤100m)

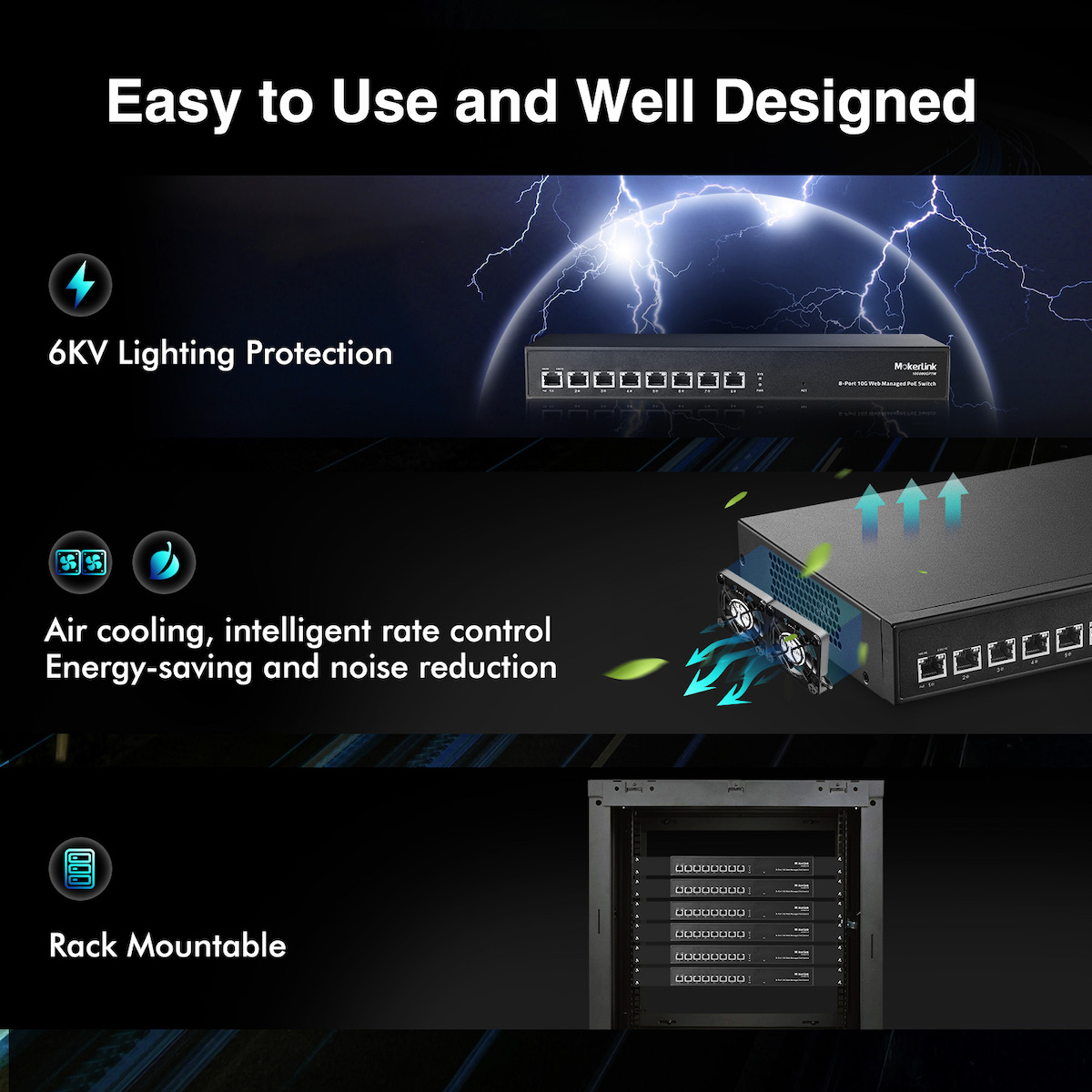

Lighting Protection6KV 8/20us;IP30
Working EnvironmentWorking temperature: - 10~50 ° C Storage temperature: - 40~70 ° C Working humidity: 10%~90%, non condensing Storage humidity: 5%~95%, non condensing

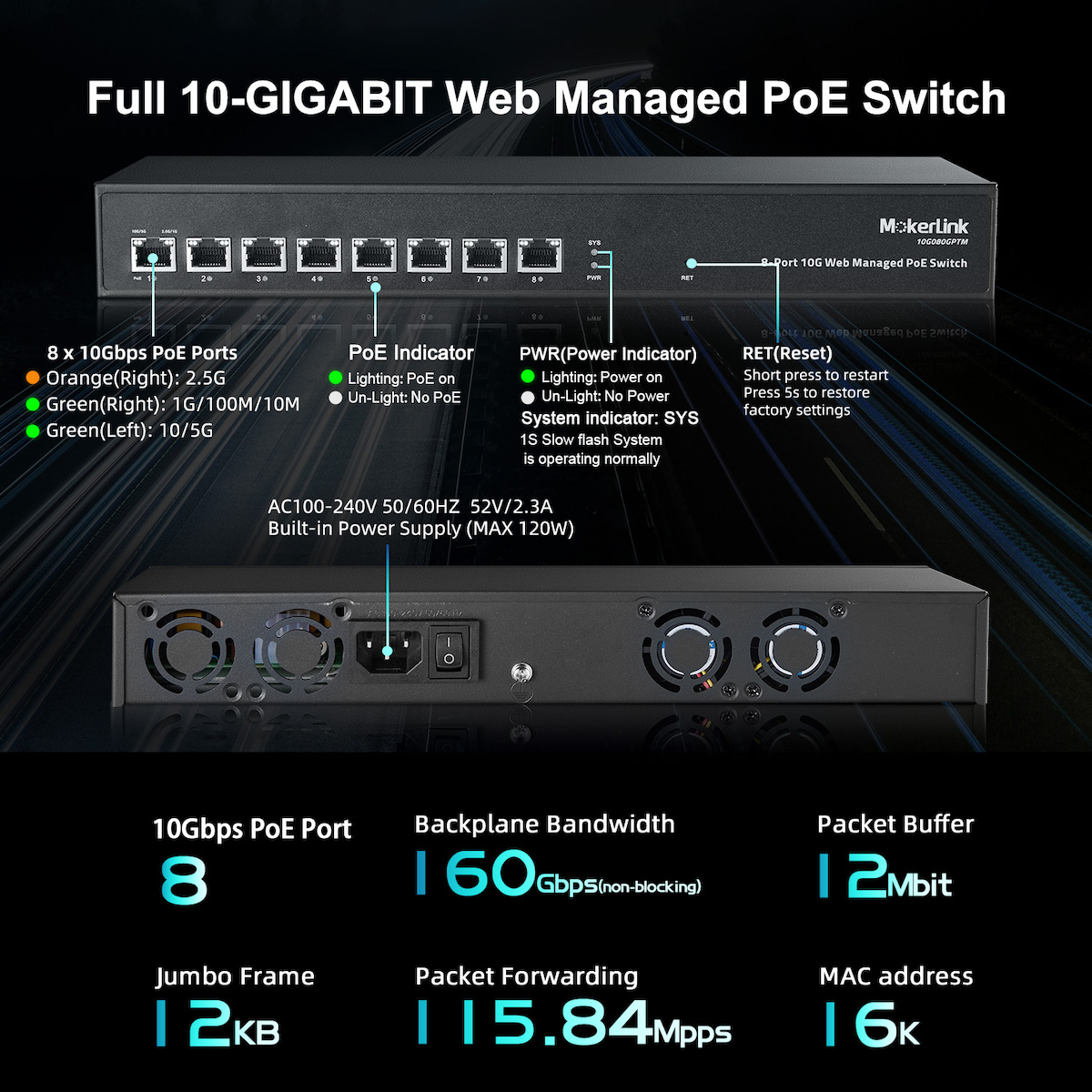

LED IndicatorPWR:Power LED Port:10M//100M LED; 1G LED; 2.5G LED 5G/10G LED, PoE LED
Structure SizeProduct size/Packing size(L*W*H): 333mm*195mm*45m / 410mm*278mm*95mm, N.W/G.W(kg): 1.76kg/2.4kg
InstallationRack Mount
ShellBlack Color, Metal Shell
Power VoltageBuilt-in Power Supply, MAX 120W (AC100-240V 50/60HZ 2.3A)

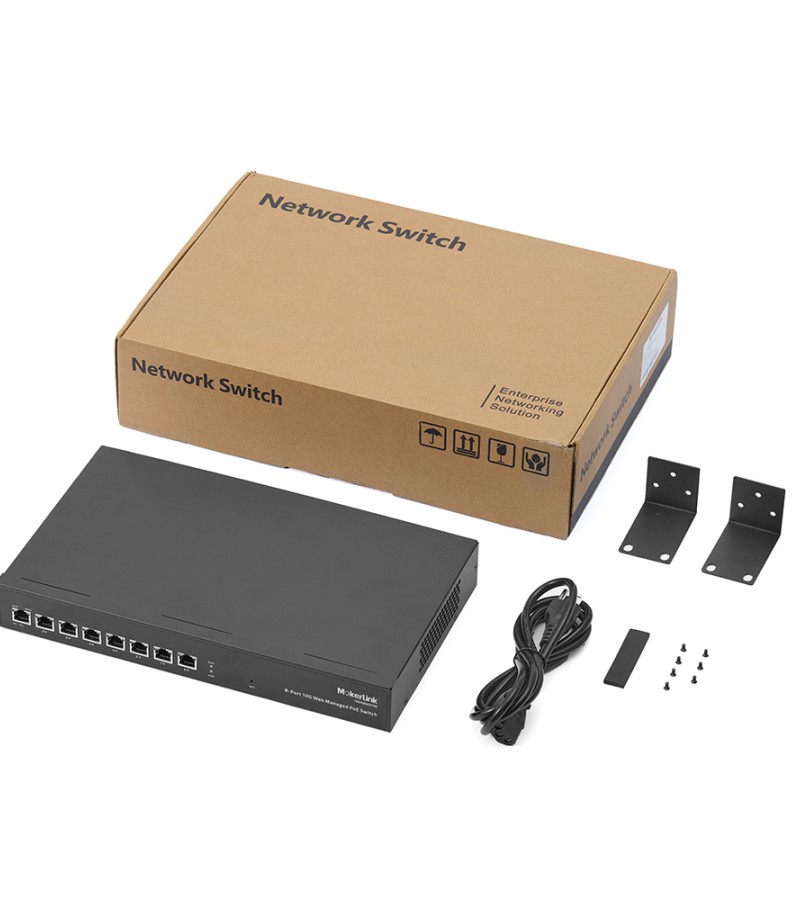

Package List1 switch, 1 manual, 1 power cord, 1 pair of rack ear
Software FunctionL2 Software Feature
