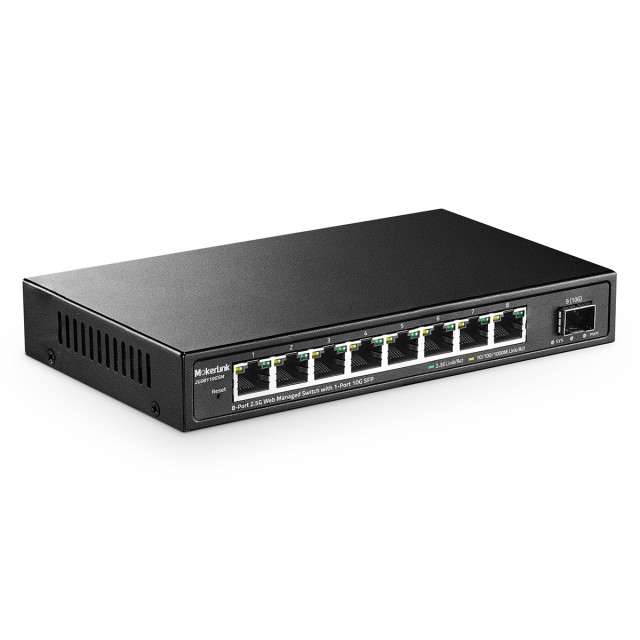

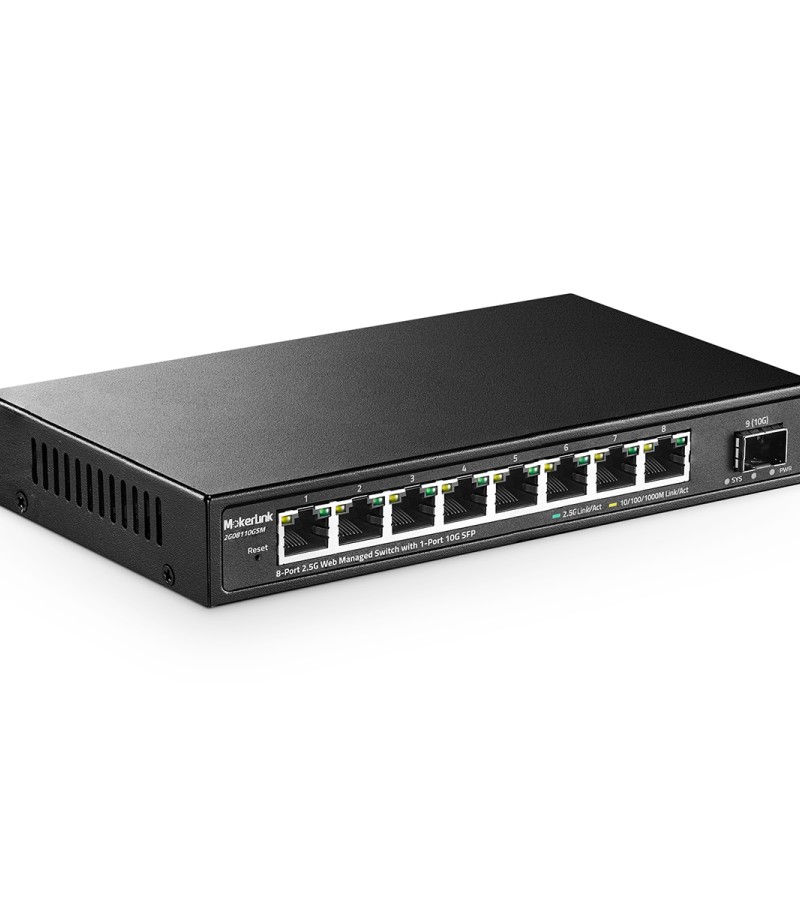

MokerLink 8 Port 2.5G Managed Ethernet Switch with 10G SFP+, 8 x 2.5G Base-T Ports Compatible with 10/100/1000Mbps, Metal Web Managed Fanless Network Switch

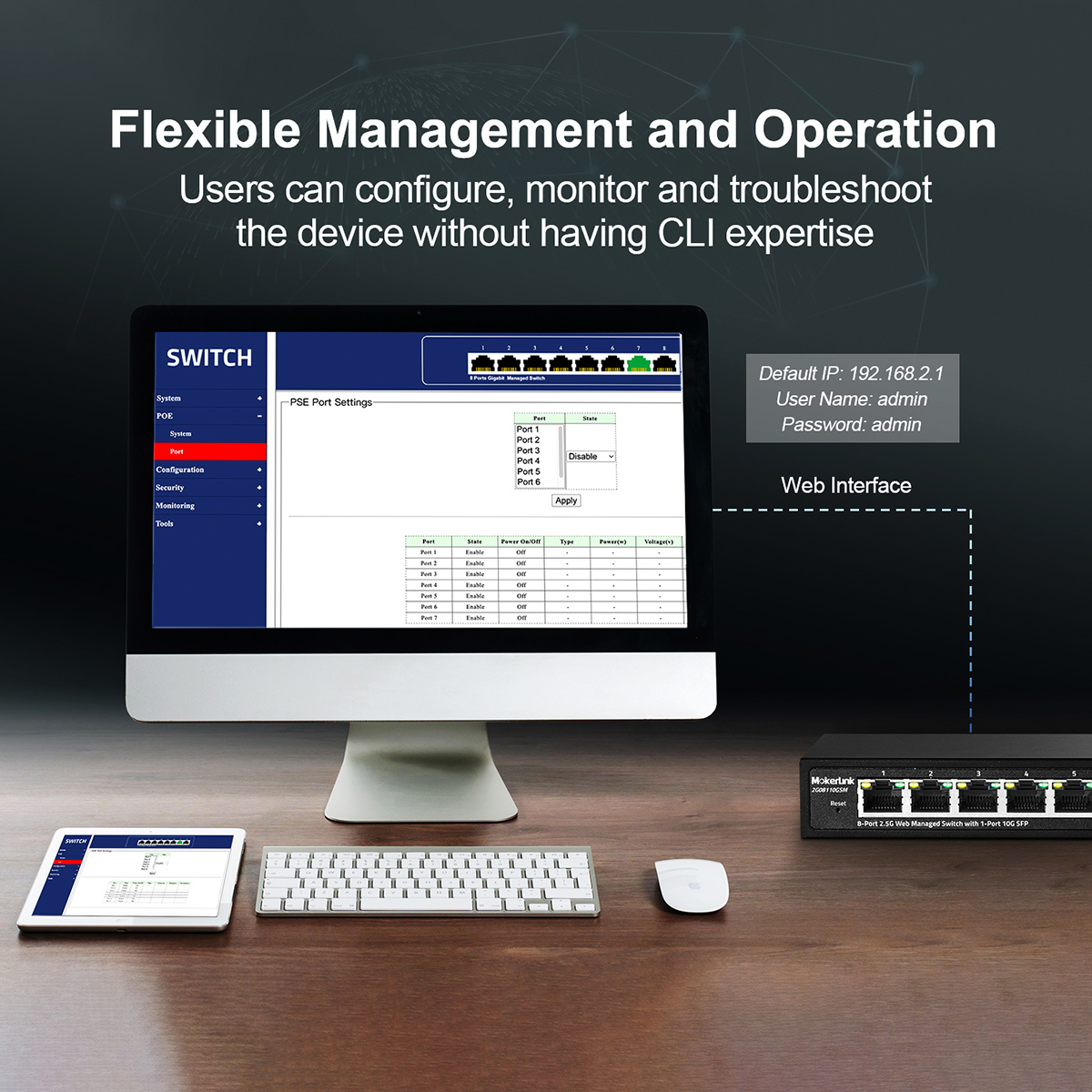

8x 2.5G ethernet ports, compliant IEEE802.3bz (2.5G) standard, support 10/100/1000M/2.5G adaptive. 1x 10G SFP port(compatible 1G/2.5G module, not include SFP Module). 60Gbps backplane bandwidth, excellent data forwarding performance, Web GUI Managed, Support device/port status query and various L2 configurations: such as VLAN, QoS, security, multicast, MAC address table, diagnosis, etc. Durable metal casing, fanless design lowers energy consumption, quiet no noise and stable operation, Widely Used in home e
$139.99
Price drop reminder
- Brand: MokerLink
- Product Code: 2G08110GSM
- Availability: In Stock
Product Overview

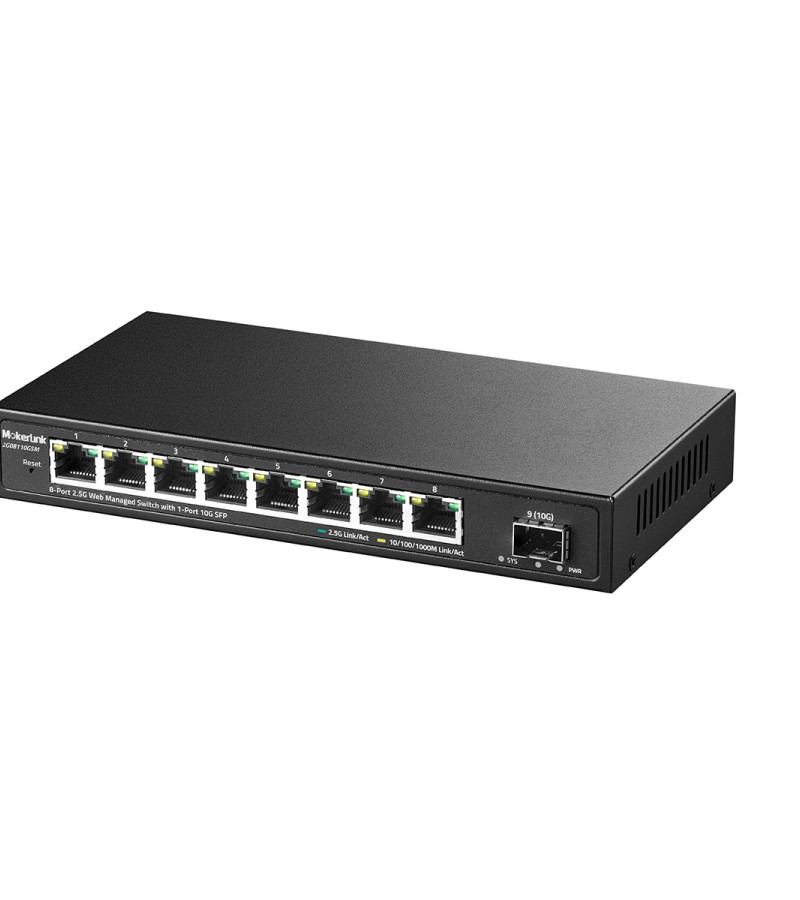

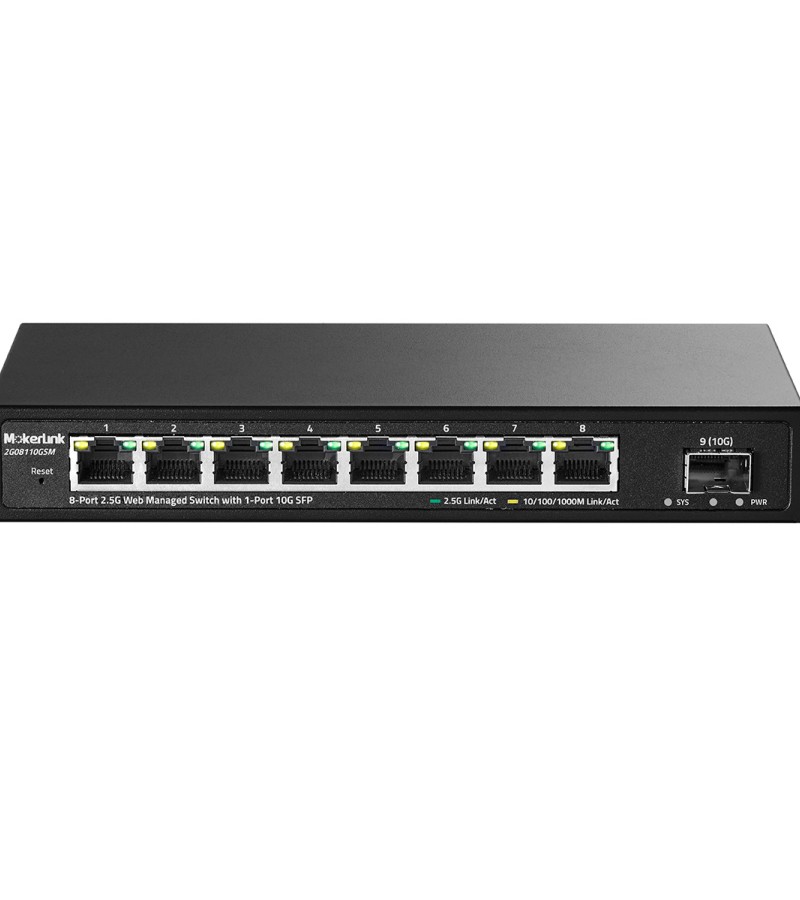

The 8-port 2.5G with 1-port 10G SFP+ web managed ethernet switch, adopts the network chip solution of high quality and high speed. The product is designed to be fan-free and quiet, which completely solves the problem of loud noise of small switches deployed in the office environment. The switch has 8* 100/1000/2500M RJ45 ports and 1* 10G SFP+ port, providing seamless connection to 100/1000/2500M Ethernet for easy management and maintenance. The switch can be widely used in security network video surveillance, hotels, campuses, and network engineering of small and medium-sized enterprises.
Main Feature

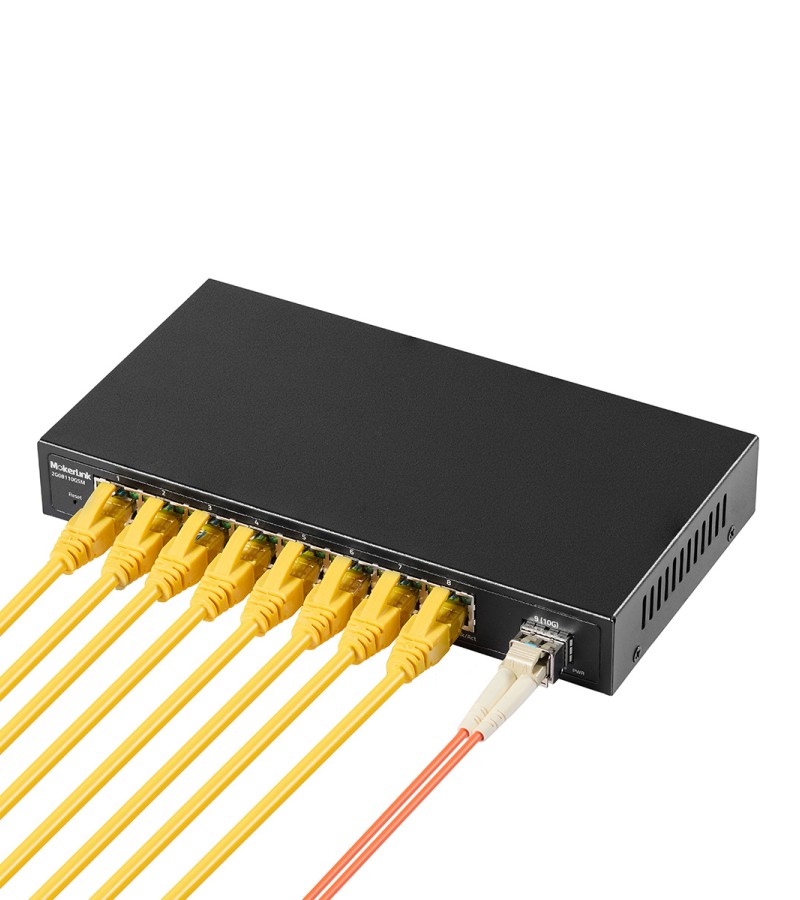

- 8* 100/1000/2500M RJ45 port +1*10G SFP+ ports.
- Support IEEE 802.3, IEEE802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3ae, IEEE 802.3x.
- Ethernet port support 100/1000/2500M self-adaptive.
- Supports automatic port rollover(Auto MDI/MDIX).
- Panel indicators monitor working status and assist in fault analysis.
- Support QoS data priority.
- Flow control mode, full duplex adopts IEEE802.3x standard, half duplex adopts Back pressure standard.
- Support Surge protection: Common mode 6KV;Differential mode 2KV;ESD: Air 8KV, Contact 6KV.
Application Environment
- Metropolitan area optical fiber broadband network: Telecom, cable TV, network system integration, such as number, according to network operators.
- Broadband private network: applicable to financial, government, oil, electric power, public security, education and other industries private network.
- Multimedia transmission, image, voice and data integrated transmission, for remote teaching, meeting TV, video phone and other applications.
- Real-time monitoring: real-time control signal, image and data transmission.
Ask Question About Product
Note: HTML is not translated!
| Ethernet Switch Hardware Specifications | |
| Product Model | 2G08110GSM |
| Product Name | 8-Port 2.5G Web Managed Ethernet Switch with 1-Port 10G SFP+ |
| Ethernet Port | 8*100/1000/2500M RJ45 ports + 1*10G SFP+ port |
| Switching Capacity | 60Gbps |
| Throughput | 44.64Mpps |
| Packet Buffer | 8Mbit |
| MAC Address | 4K |
| Jumbo Frame | 16Kbytes |
| Transfer Mode | Store and forward |
| VLANs | 4096 |
| Network protocol | IEEE802.3 (Ethernet), IEEE802.3u (Fast Ethernet), IEEE802.3ab(Gigabit Ethernet), IEEE 802.3bz(5G Ethernet), IEEE 802.3z(Gigabit Ethernet), IEEE 802.3ae(10G Ethernet), IEEE802.3x (Flow control) |
| Industry Standard | EMI: FCC Part 15 CISPR (EN55032) class A EMS: EN61000-4-2 (ESD), EN61000-4-5 (Surge) |
| Network Medium | Multi-mode Fiber: 50/125, 62.5/125, 100/140um Single-mode Fiber: 8/125, 8.7/125, 9/125, 10/125um |
| Fiber Medium | Multimode optical fiber: 50/125, 62.5/125, 100/140um Single-mode optical fiber: 8/125, 8.7/125, 9/125, 10/125um |
| Lighting Protection | Common mode 6KV;Differential mode 2KV;ESD: Air 8KV, Contact 6KV |
| Working Environment | Operating temperature: -10~50°C, Storage temperature: -40~70°C, Operating humidity: 10%~90%, no condensation, Storage humidity: 5%~95%, no condensation |

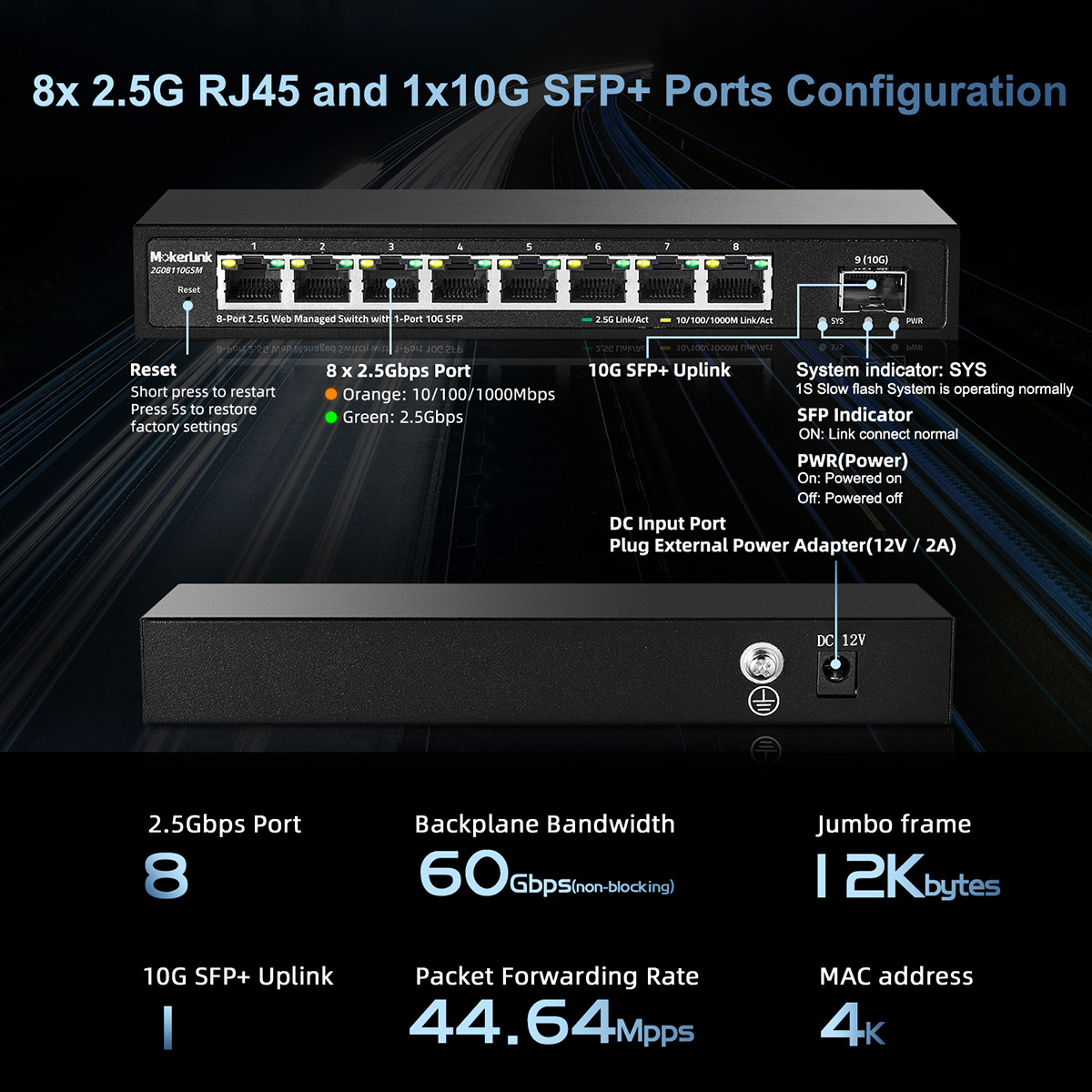

| LED Indicator | PWR(Power indicator) On: Powered on, Off: Powered off. 1-8 Network port yellow indicator On: 2.5G Link connect normal, Off: Link off, Flashing: data transmitting. 1-8 Network port green indicator Lighting：Connecting, Flashing: Data Transmit, Un-Light: Disconnect, Flashing: data transmitting. SYS Flashing: System startup, Lighting: System Running. Reset: Long press for 6 seconds to Factory reset |
| Structure Size | Product size: 190*100*28mm, Package size: 245*190*60mm, Product weight: 0.49KG, Packing weight: 0.71KG |
| Installation | Desktop/Wall Mount |
| Shell | Black Color, Metal Shell |
| Power Voltage | input voltage: DC 12V/2A, Maximum 24W |
| Package List | Switch 1pcs, Specification 1pcs, Power adapter 1pcs |
| Software Function | L2 Software Function |
