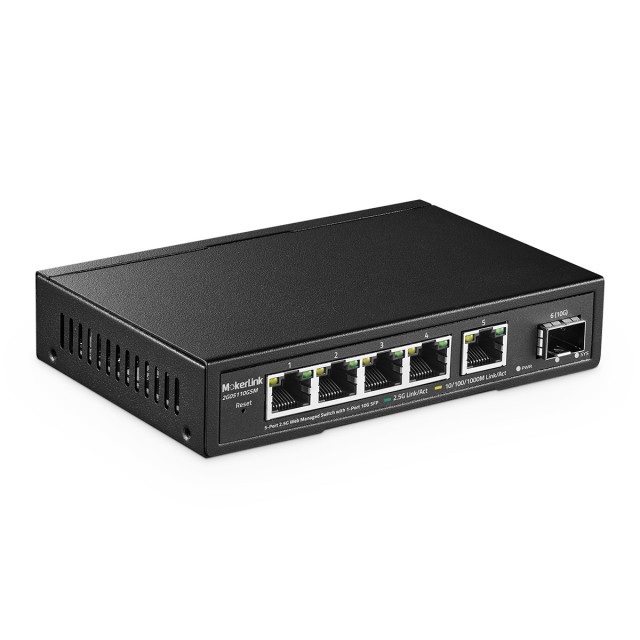

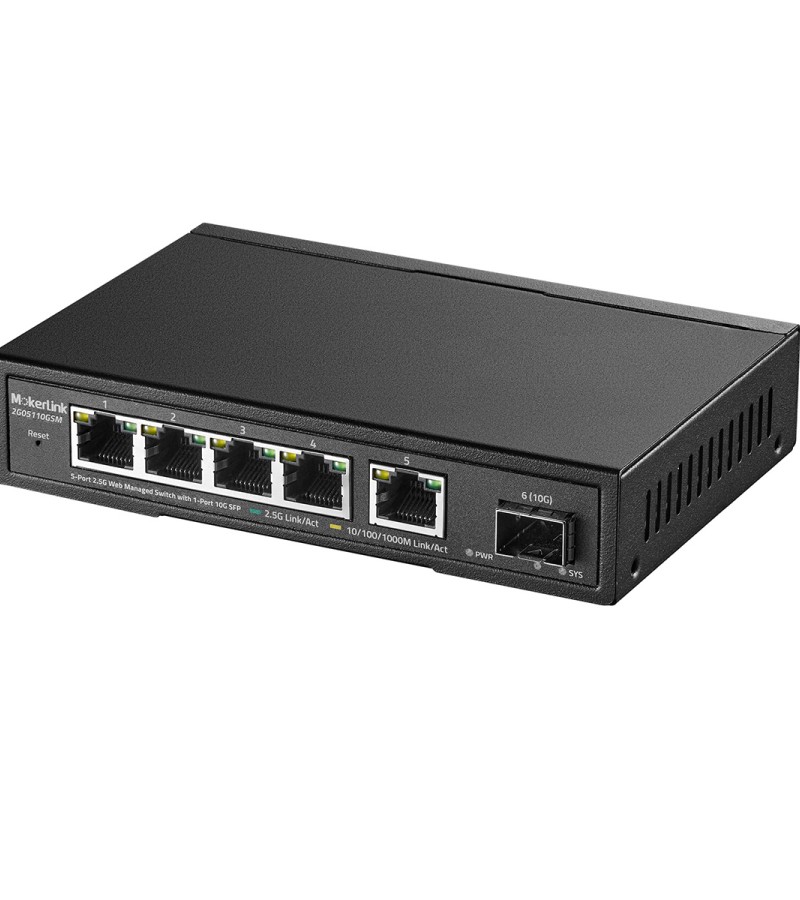

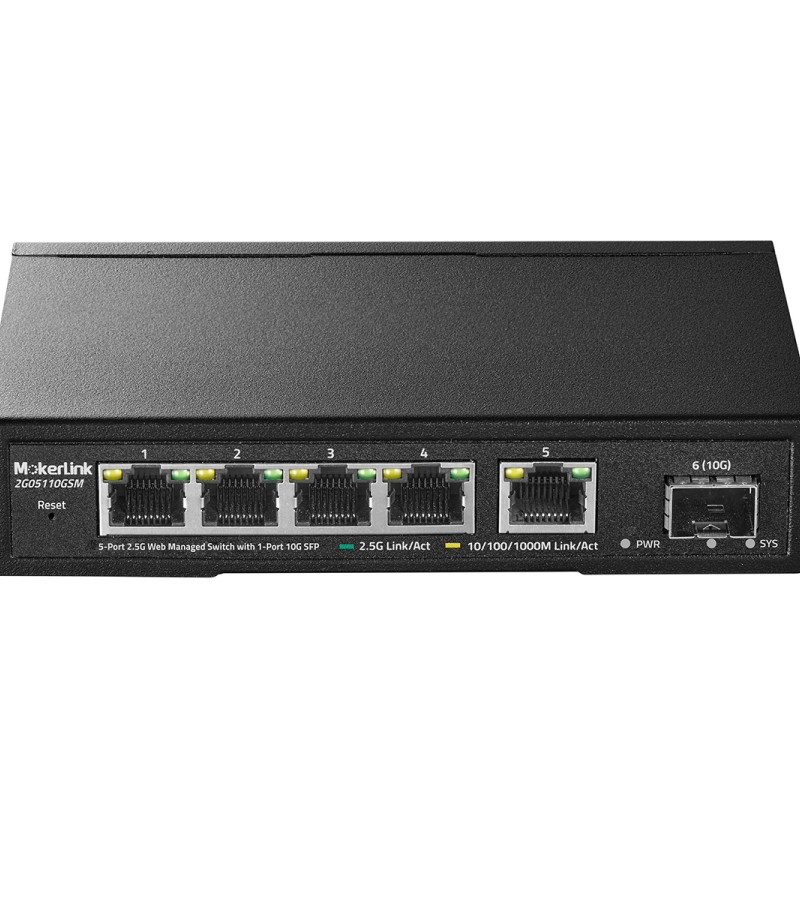

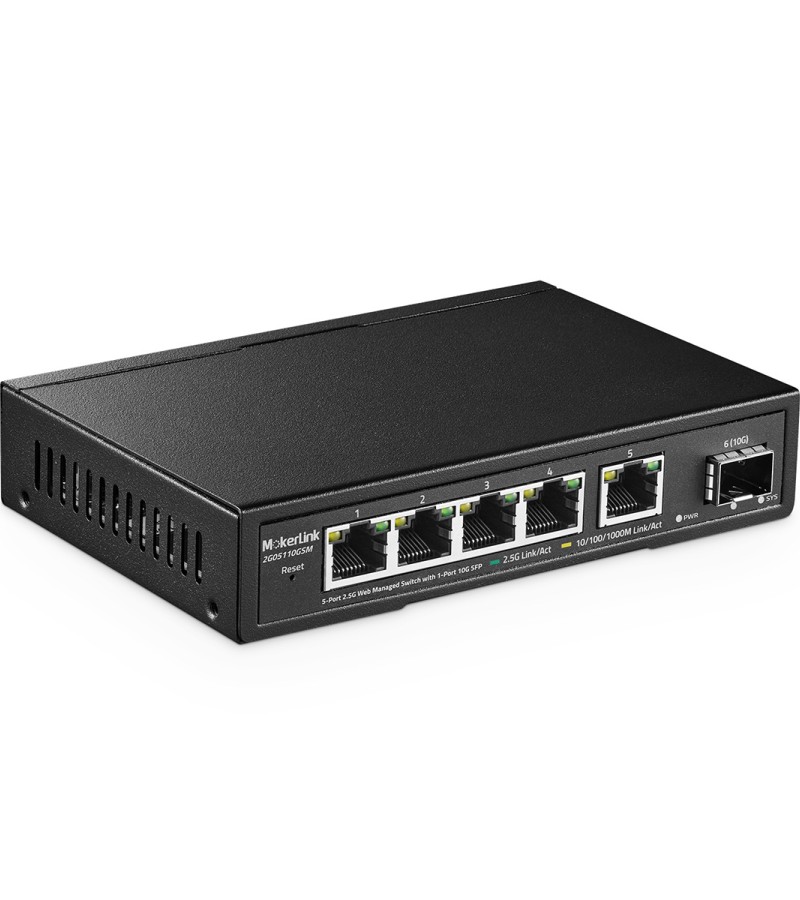

MokerLink 5 Port 2.5G Managed Ethernet Switch with 10G SFP, 5 x 2.5G Base-T Ports Compatible with 10/100/1000Mbps, Metal Web Managed Fanless Network Switch
5 x 2.5G ethernet ports, compliant IEEE802.3bz (2.5G) standard, support 10/100/1000M/2.5G adaptive. 1 x 10G SFP Port(compatible 1G/2.5G Module, not include SFP Module). 45Gbps backplane bandwidth, excellent data forwarding performance, Support web GUI managed, support device/port status query and various L2 configurations: such as VLAN, QoS, security, multicast, MAC address table, diagnosis, etc. With durable metal casing, fanless design lowers energy consumption, quiet no noise and stable operation Widely
$99.99
Price drop reminder
- Brand: MokerLink
- Product Code: 2G05110GSM
- Availability: In Stock
Product Description

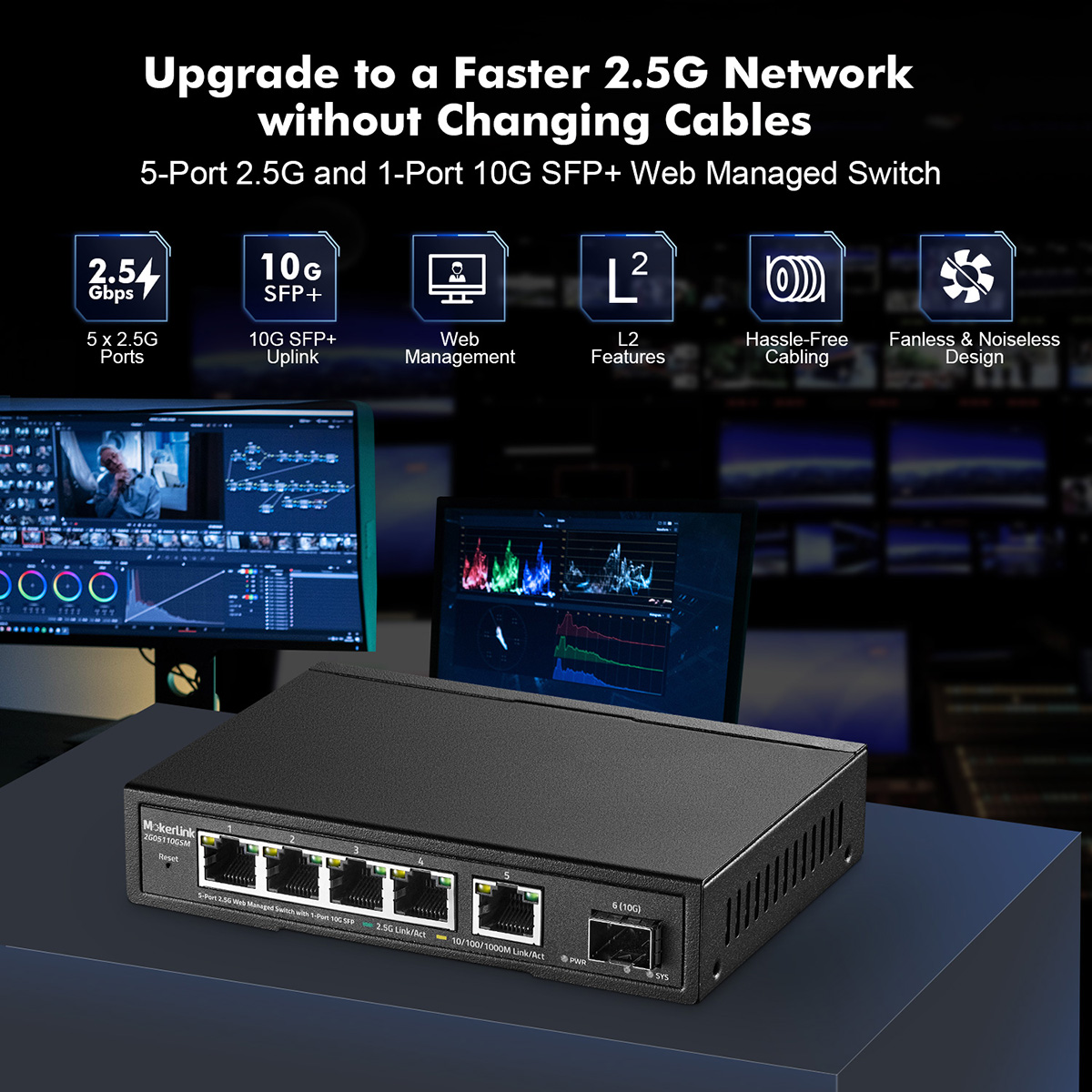

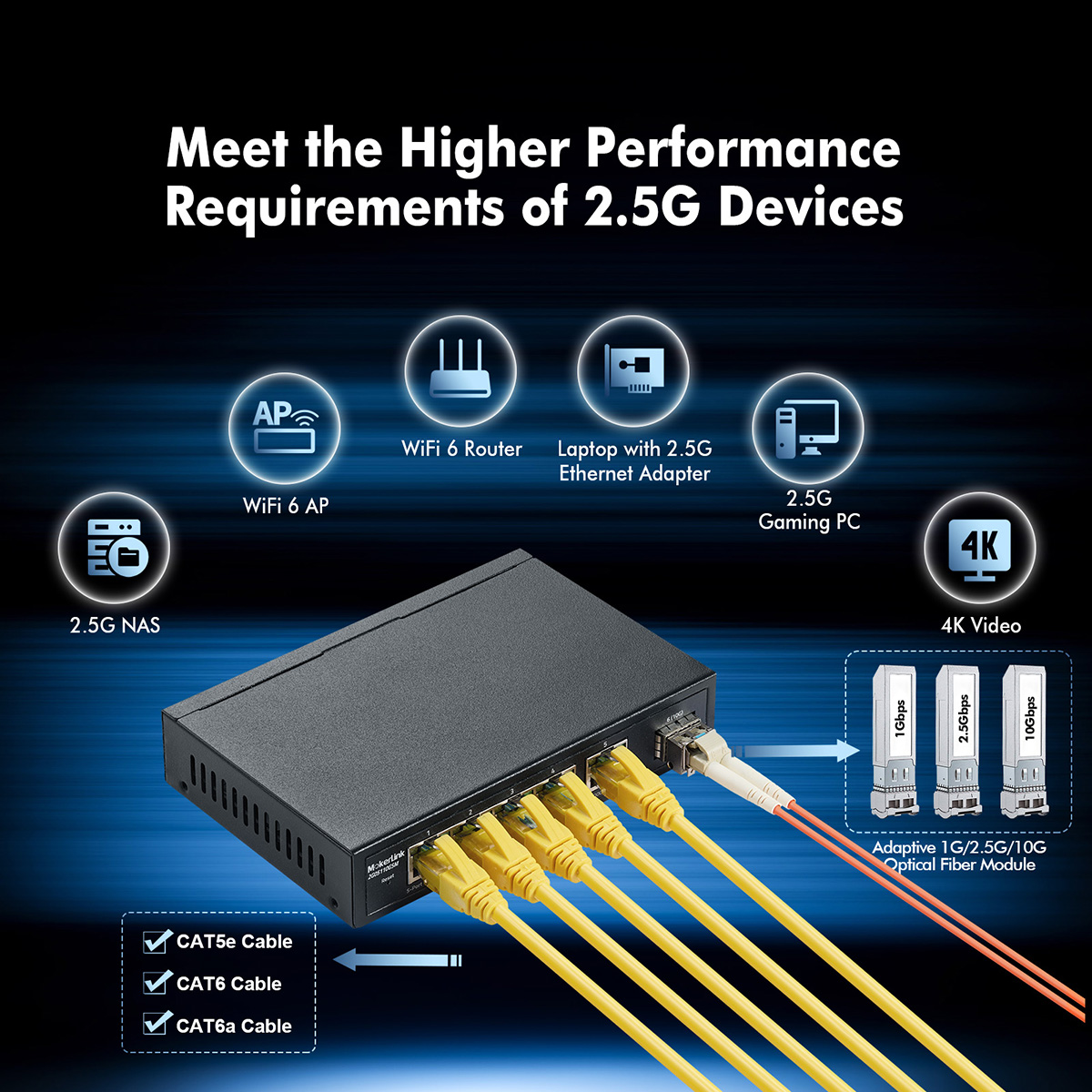

5-Port 2.5G web managed Ethernet Switch with 1-Port 10G SFP+, using high quality and high speed network chip solution, this product completely solves the problem of loud noise of small switches deployed in the office environment through the fanless silent design. This switch has 5* 100/1000/2500M RJ45 ports and 1* 10G SFP+ port, providing seamless connection to 100/1000/2500M Ethernet for easy management and maintenance. This switch can be widely used in security network video surveillance, hotels, campuses, and network engineering of small and medium-sized enterprises.
Main Features
- 5* 100/1000/2500M RJ45 ports+1* 10G SFP+ port.
- Comply with IEEE 802.3, IEEE802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3ae, IEEE 802.3x.

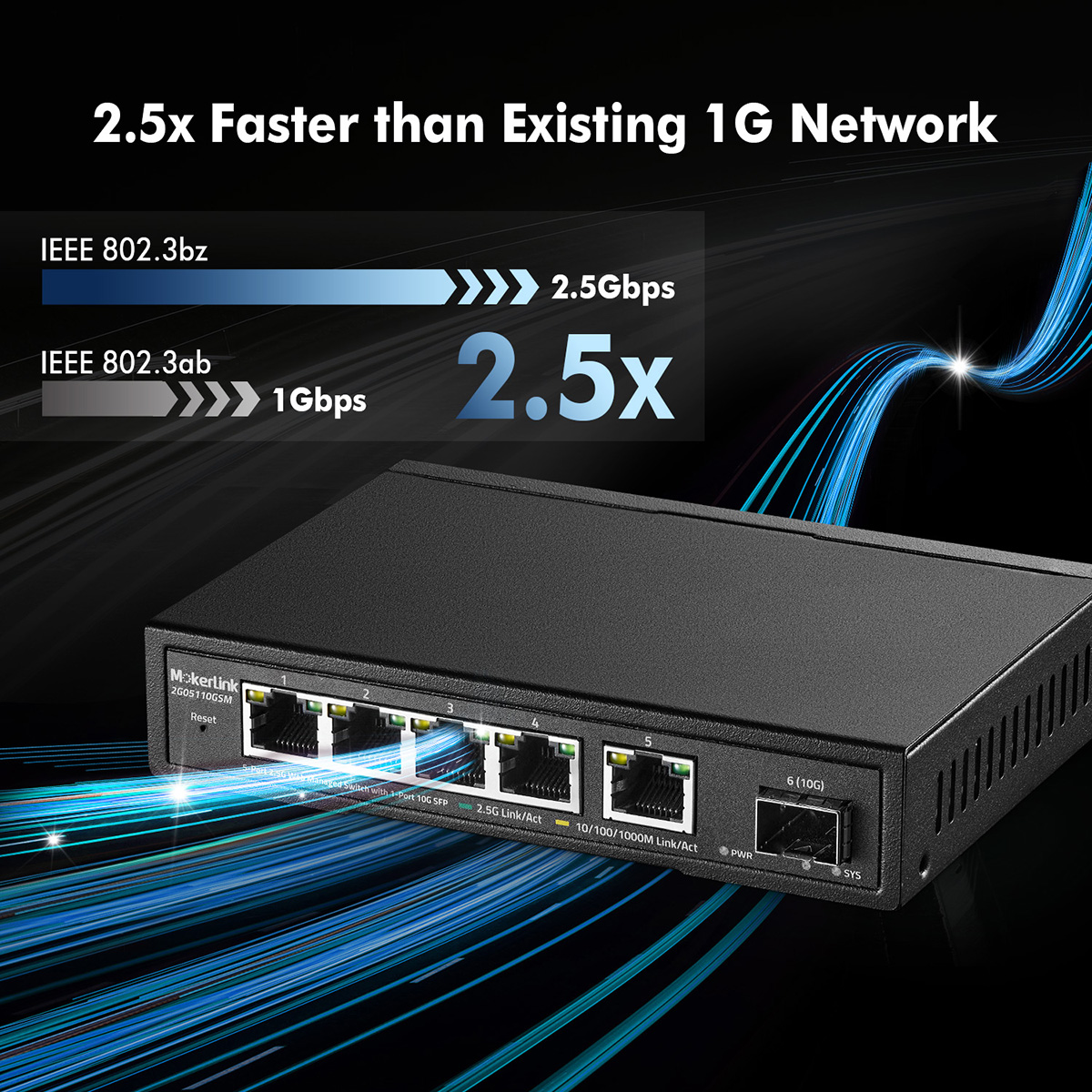

- Ethernet ports support 100/1000/2500M self-adaptive.
- Support port Auto MDI/MDIX.
- Panel indicator lights monitor working status and help failure analysis.
- Support QoS data priority.
- Flow control mode, full duplex adopts IEEE802.3x standard, half duplex adopts Back-pressure standard.
- Support surge protection: common mode 6KV; differential mode 2KV; ESD Air 8KV, contact 6KV.
Application Environment
- Metro Optical Broadband Network: Data network operators such as telecommunications, cable TV, and network system integration, etc.
- Broadband private network: Suitable for financial, government, oil, railway, electric power, public security, transportation, education and other industries.
- Multimedia transmission: Integrated transmission of images, voice and data, suitable for remote teaching, conference TV, videophone and other applications.
- Real-time monitoring: Simultaneous transmission of real-time control signals, images and data.
Ask Question About Product
Note: HTML is not translated!
| Ethernet Switch Hardware Specifications | |
| Product Model | 2G05110GSM |
| Product Name | 5-Port 2.5G Web Managed Ethernet Switch with 1-Port 10G SFP+ |
| Ethernet Port | 5*100/1000/2500M RJ45 ports + 1*10G SFP+ port |
| Switching Capacity | 45Gbps |
| Throughput | 33.48Mpps |
| Packet Buffer | 8Mbit |
| MAC Address | 4K |
| Jumbo Frame | 16Kbytes |
| Transfer Mode | Store and forward |
| VLANs | 4096 |
| Network protocol | IEEE802.3 (Ethernet), IEEE802.3u (Fast Ethernet), IEEE802.3ab(Gigabit Ethernet), IEEE 802.3bz(5G Ethernet), IEEE 802.3z(Gigabit Ethernet), IEEE 802.3ae(10G Ethernet), IEEE802.3x (Flow control) |
| Industry Standard | EMI: FCC Part 15 CISPR (EN55032) class A EMS: EN61000-4-2 (ESD), EN61000-4-5 (Surge) |
| Network Medium | Multi-mode Fiber: 50/125, 62.5/125, 100/140um Single-mode Fiber: 8/125, 8.7/125, 9/125, 10/125um |
| Fiber Medium | Multimode optical fiber: 50/125, 62.5/125, 100/140um Single-mode optical fiber: 8/125, 8.7/125, 9/125, 10/125um |
| Lighting Protection | Common mode 6KV;Differential mode 2KV;ESD: Air 8KV, Contact 6KV |
| Working Environment | Operating temperature: -10~50°C, Storage temperature: -40~70°C, Operating humidity: 10%~90%, no condensation, Storage humidity: 5%~95%, no condensation |

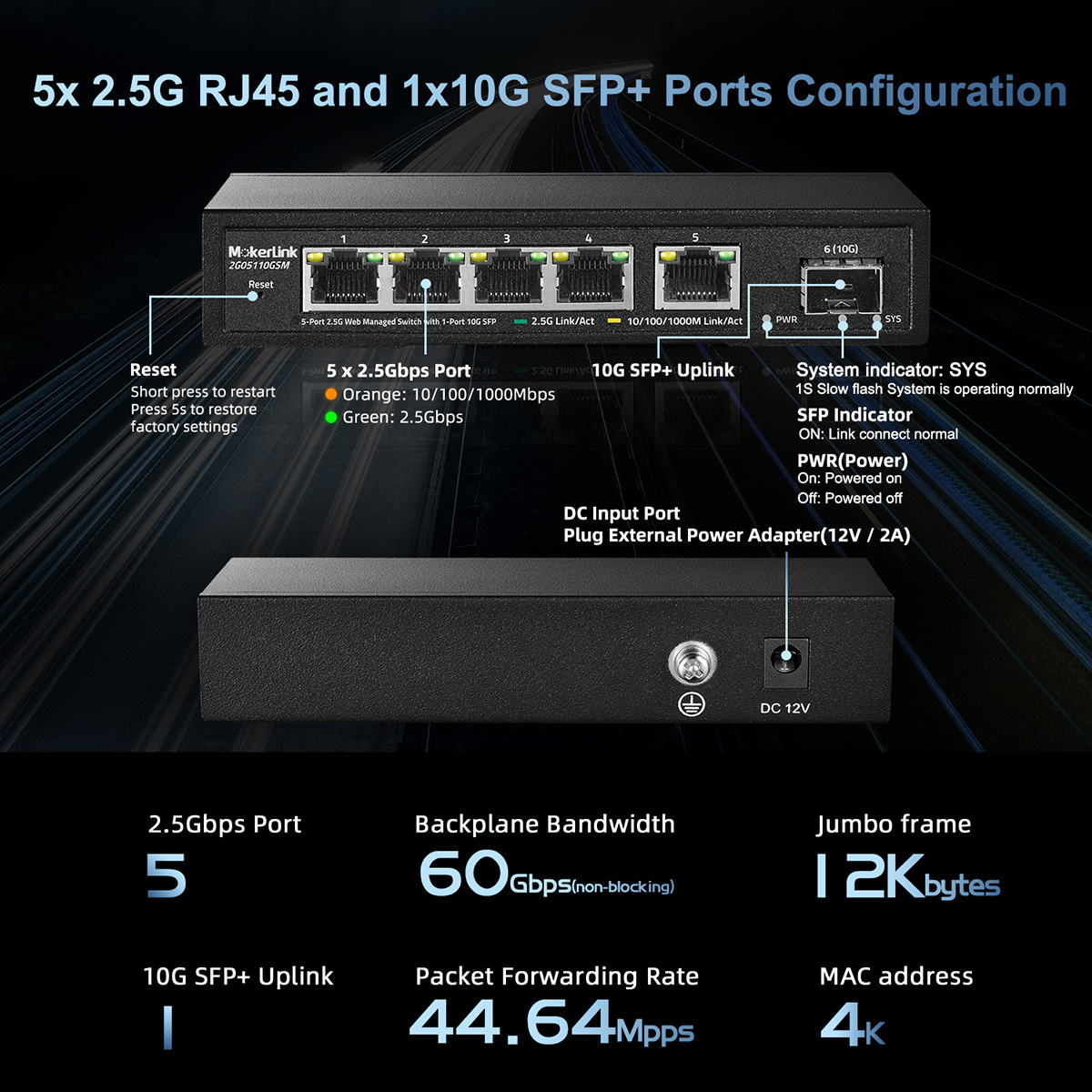

| LED Indicator | PWR(Power indicator) On: Powered on, Off: Powered off. 1-5 Network port yellow indicator On: 2.5G Link connect normal, Off: Link off, Flashing: data transmitting. 1-5 Network port green indicator Lighting：Connecting, Flashing: Data Transmit, Un-Light: Disconnect, Flashing: data transmitting. SYS Flashing: System startup, Lighting: System Running. Reset: Long press for 6 seconds to Factory reset |
| Structure Size | Product size: 140*93*28mm Package size: 203*160*55mm Product weight: 0.33KG Packing weight: 0.46KG |
| Installation | Desktop/Wall Mount |
| Shell | Black Color, Metal Shell |
| Power Voltage | input voltage: DC 12V/1A, Maximum 12W |
| Package List | Switch 1pcs, Specification 1pcs, Power adapter 1pcs |
| Software Function | L2 Software Function |
