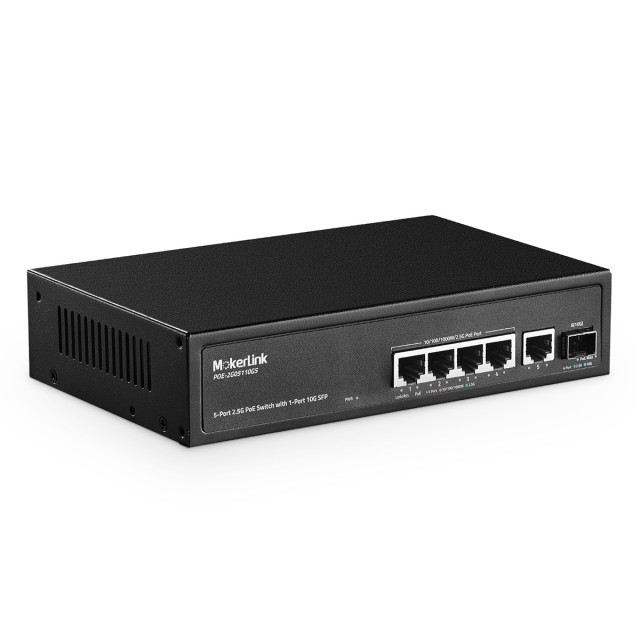

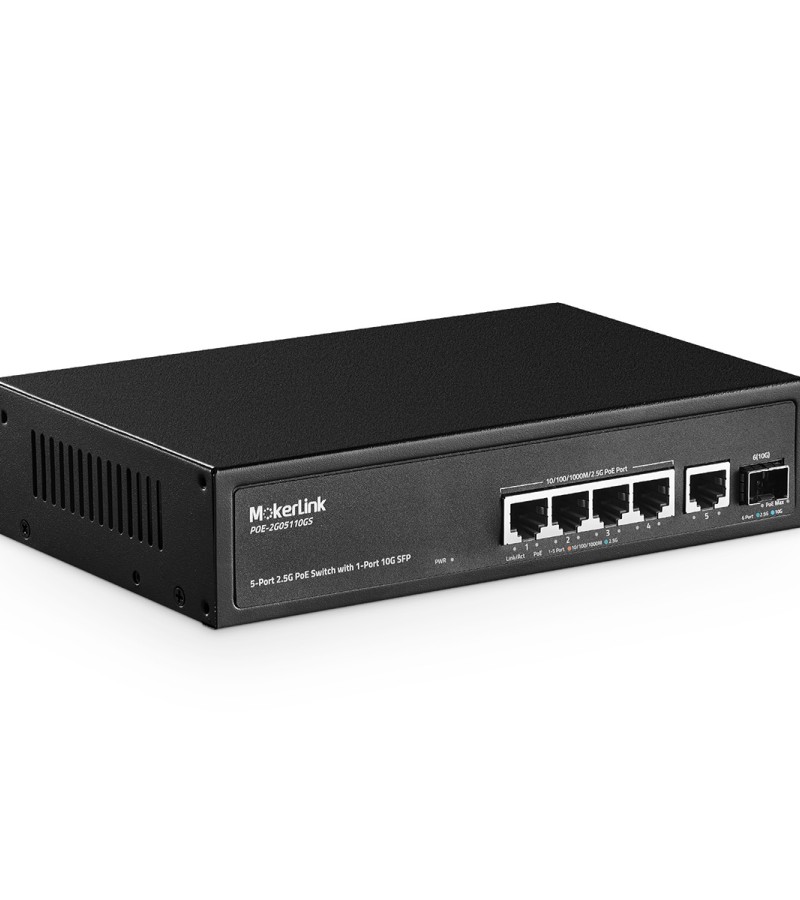

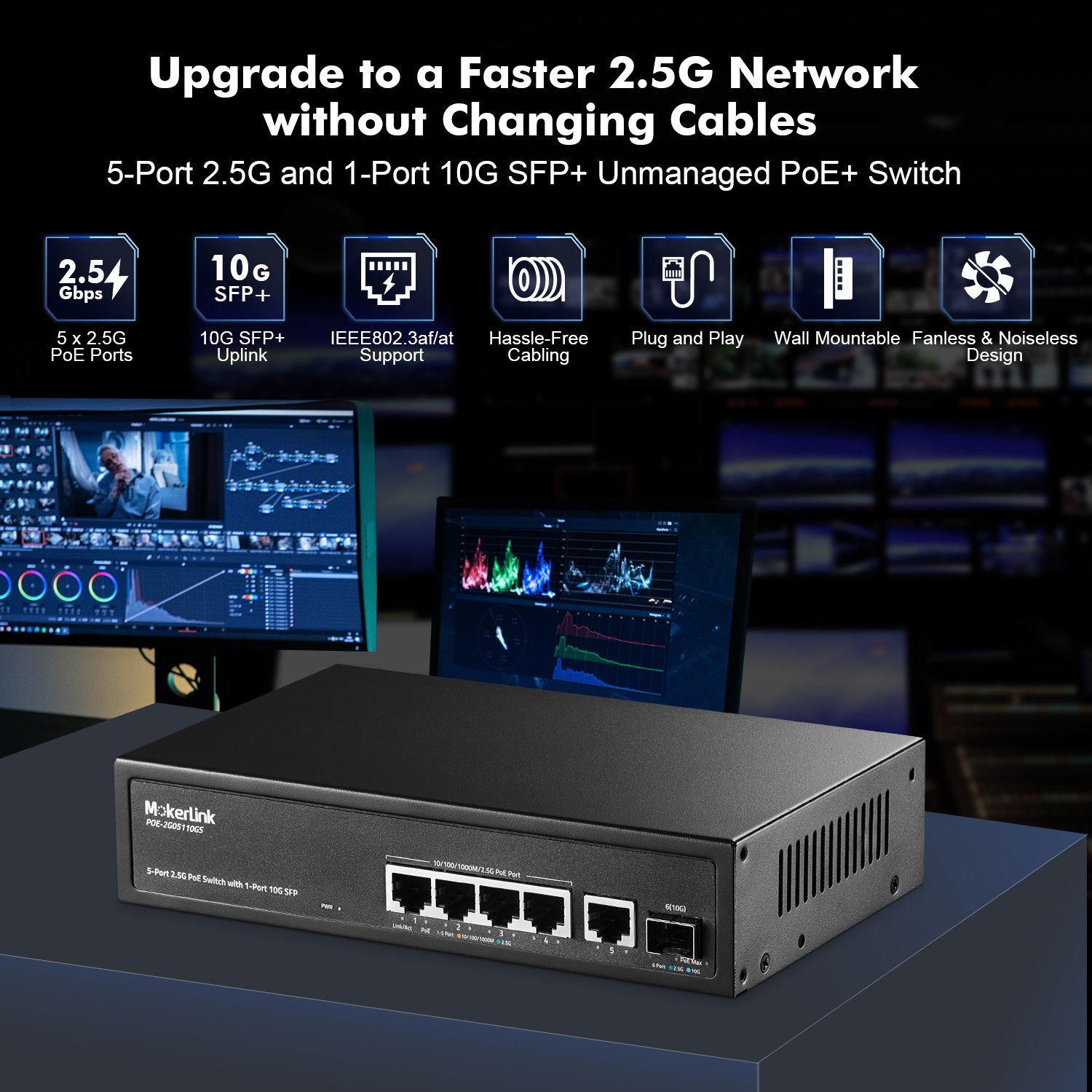

MokerLink 5 Port 2.5 Gigabit PoE Switch with 10G SFP, 5 x 2.5G Ethernet Ports, 4 Port PoE IEEE802.3af/at, 65W, Compatible with 10/100/1000Mbps, Unmanaged Fanless Wall Mountable Network Switch

5 x 2.5Gigabit Ethernet Ports, support 10/100/1000M/2.5G adaptive. 1 x 10G SFP Port(compatible 1G/2.5G Module, not include SFP Module). 45Gbps backplane bandwidth, excellent data forwarding performance, Maximum support 65W high output power, built-in power supply makes installation easier. Support IEEE 802.3af/at PoE, each port max power supply reached 30W. *Please note: not support passive 24V PoE.*, Easy to Use, Unmanaged Plug and Play, With durable metal casing, fanless design lowers energy consumption,

$119.99 Price drop reminder
  • Brand: MokerLink
  • Product Code: POE-2G05110GS
  • Availability: In Stock

Total $119.99

Product overview



5-Port 2.5G Unmanaged PE switch with 1-Port 10G SFP+, adopting a high-quality and high-speed network chip solution, this product thoroughly solves the problem of high noise when deploying small switches in office environments through a fanless and silent design. This switch has 5 *100/1000/2500M POE ports and 1 10G SFP+ port, providing seamless connection for 100/1000/2500M Ethernet, making it easy to manage and maintain. This product can be widely used in security network video monitoring, hotels, campuses, small and medium-sized enterprise network engineering, and other occasions.



Main Features



  • 5*100/1000/2500M POE Port+1*10G SFP+ Port.
  • Support 802.3, IEEE802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3ae, IEEE 802.3x standard.

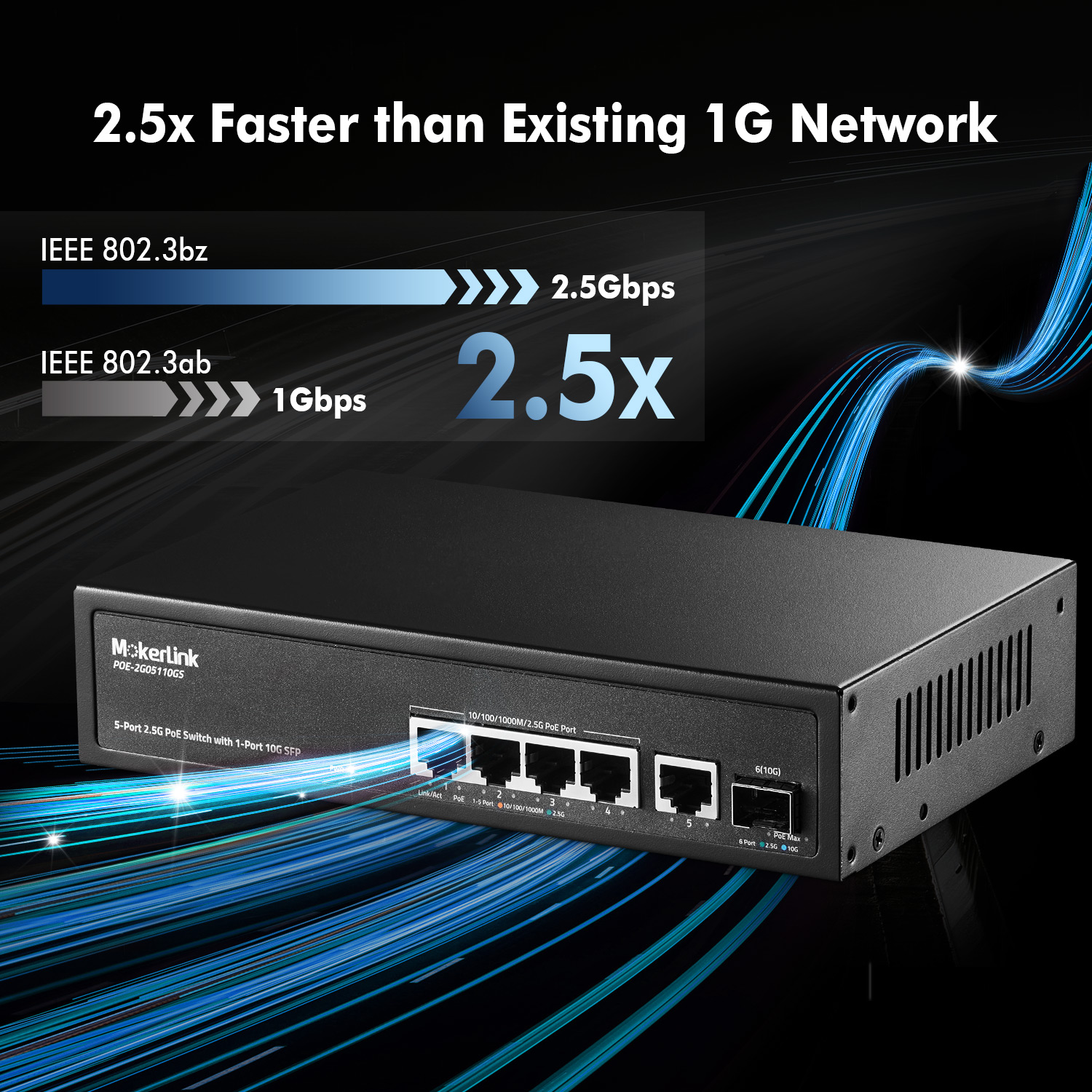

  • Ethernet Ports support10/100/1000/2500M self- adaptive.
  • Support PoE QoS Priority, priority ranges from 1 to 4, enabled by default.
  • Supports automatic port flipping (Auto MDI/MDIX).
  • Panel indicator monitoring status help failure analysis.
  • Flow control mode: IEEE 802.3X standard for full duplex, and Back Pressure standard for half duplex.
  • Support Surge protection: Common mode 4KV; Differential mode 2KV(level B);ESD: Air 12KV, Contact 6KV(level B).



Application Environment



  • Subway optical broadband network: telecommunication, cable TV, network system integration, etc.
  • special broadband network: applicable to financial, government, oil, railways, electricity, public security, transportation, education and other industries.
  • Multimedia transmission: integrated transmission of image, voice and data, suitable for remote teaching,conference TV, video telephone and other applications.
  • Real-time monitoring: real-time control signal, image, data synchronous transmission.



Ask Question About Product

Note: HTML is not translated!
Ethernet Switch Hardware Specifications
Product ModelPOE-2G05110GS
Product Name5-Port 2.5G Unmanaged PoE Switch with 1-Port 10G SFP+

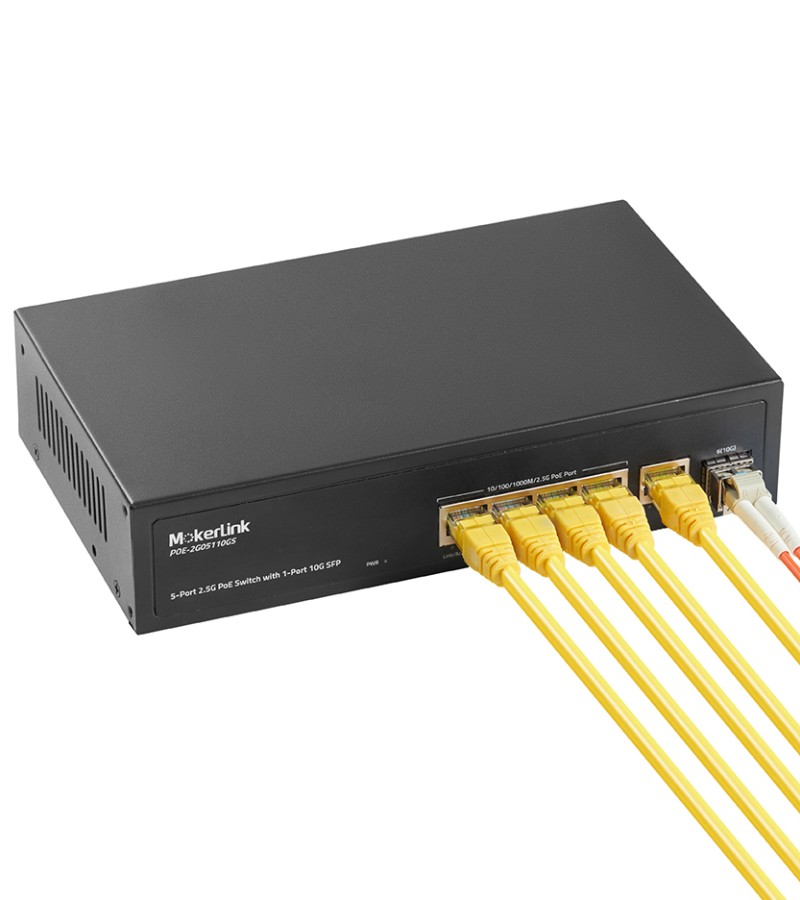

Ethernet Port5*100/1000/2500M PoE ports + 1*10G SFP+ port
Switching Capacity45Gbps
Throughput33.48Mpps
Packet Buffer8Mbit
MAC Address4K
Transfer ModeStore and forward
Network protocol IEEE802.3 (Ethernet) IEEE802.3u (Fast Ethernet) IEEE802.3ab(Gigabit Ethernet) IEEE 802.3bz (5G Ethernet) IEEE 802.3z (Gigabit Ethernet) IEEE 802.3ae (10G Gigabit Ethernet) IEEE802.3x (Flow Control)
PoE ProtocolIEEE802.3af (15.4W), IEEE802.3at (30W), PoE port output voltage: DC 44-57V
PoE Pin1/2+; 3/6-
Industry StandardEMI: FCC Part 15 CISPR (EN55032) class A EMS: EN61000-4-2 (ESD), EN61000-4-5 (Surge)
Network MediumMulti-mode Fiber: 50/125, 62.5/125, 100/140um Single-mode Fiber: 8/125, 8.7/125, 9/125, 10/125um
Fiber MediumMultimode optical fiber: 50/125, 62.5/125, 100/140um Single-mode optical fiber: 8/125, 8.7/125, 9/125, 10/125um
Lighting ProtectionCommon mode 6KV;Differential mode 2KV;ESD: Air 8KV, Contact 6KV
Working EnvironmentOperating temperature: -10~50°C, Storage temperature: -40~70°C, Operating humidity: 10%~90%, no condensation, Storage humidity: 5%~95%, no condensation

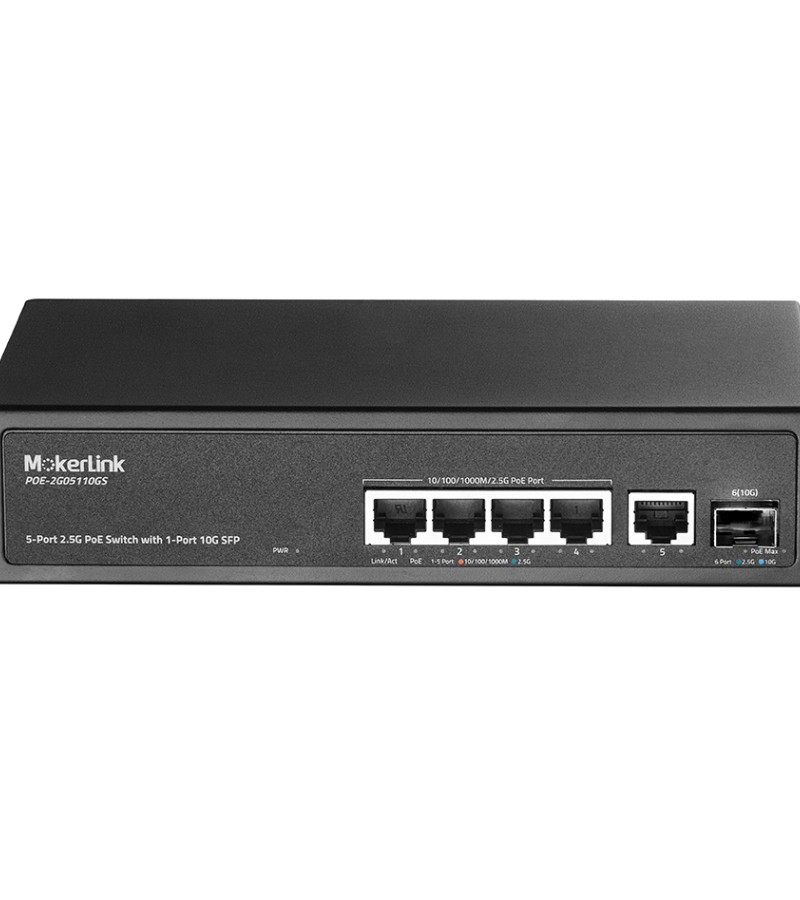

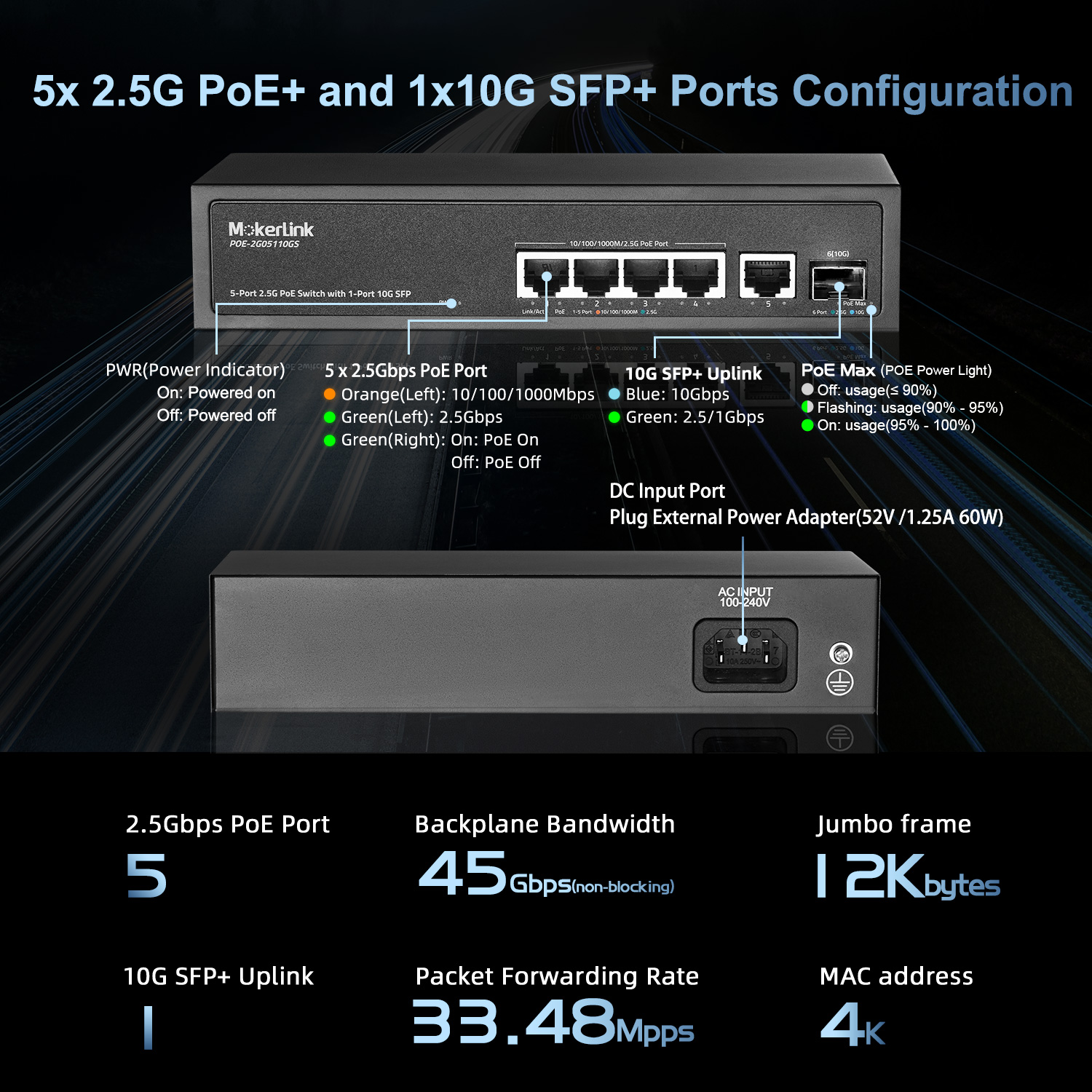

LED IndicatorPWR(Power) On: Powered on, Off: Powered off; 1-5 Port Green Light On: 2.5G Link normal, Off: Link blocked, Flashing: Data transmitting; 1-5 Port Yellow Light On: 10/100/1000M Link normal, Off: Link blocked, Flashing: Data transmitting; 9 Port Green Light Blue Light Blue on: 10G link, Green on:1000/2500M link Off: Link blocked, Flashing: Data transmitting; 1-5 PoE Light On:PoE power supply Off:PoE not powered; POE Max Power light Off: ≤ 90%, Flashing: 90% - 95%, On: 95% - 100%
Structure SizeProduct Dimensions: 200*118*44mm Package Dimensions: 245*190*60mm Product N.W: 0.63KG Product G.W: 0.93KG

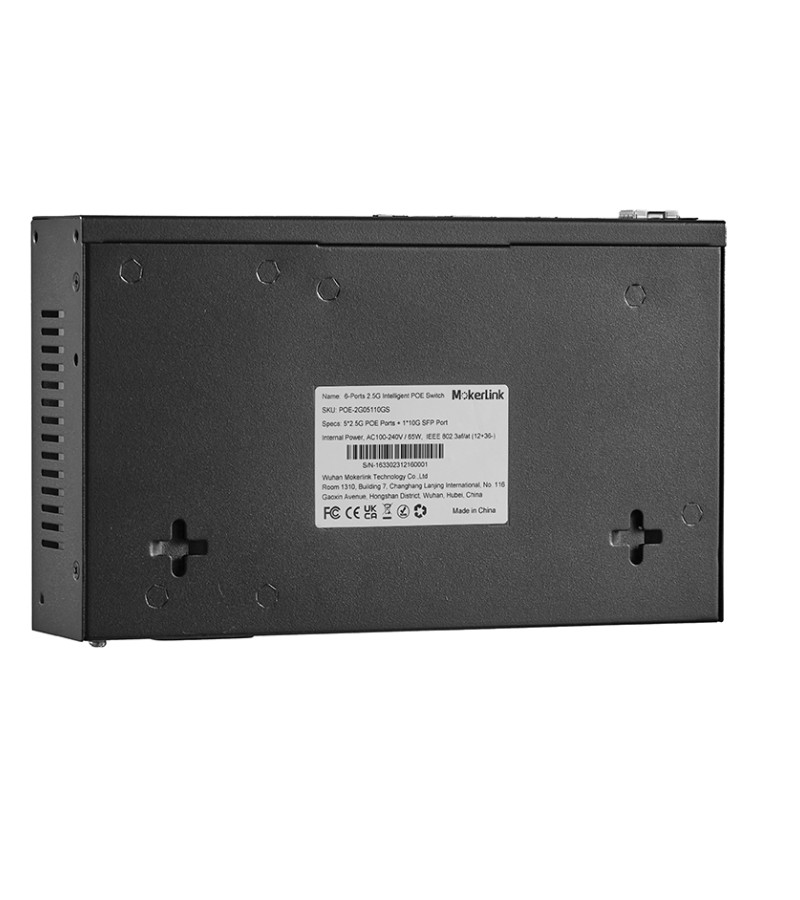

InstallationDesktop/Wall Mount
ShellBlack Color, Metal Shell

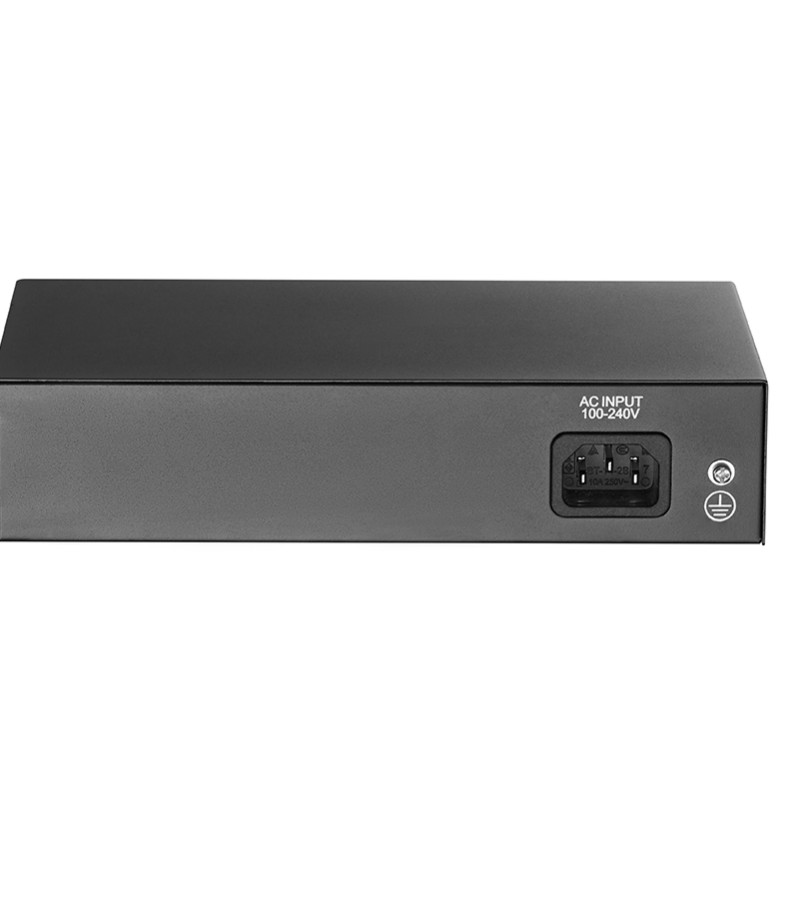

Power VoltageInput voltage: AC 100-240 V 50/60HZ, Supply power:DC 52V 1.25A, Product power: maximum 5W, PoE power: maximum 60W
Package ListSwitch 1pcs, Specification 1pcs, Power adapter 1pcs
