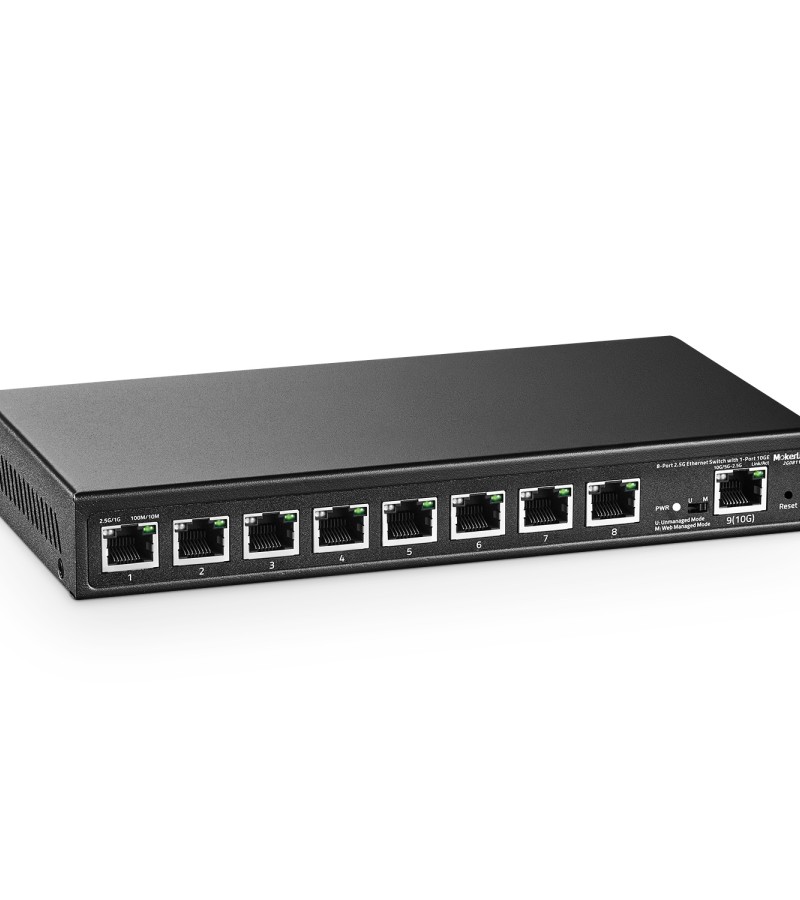

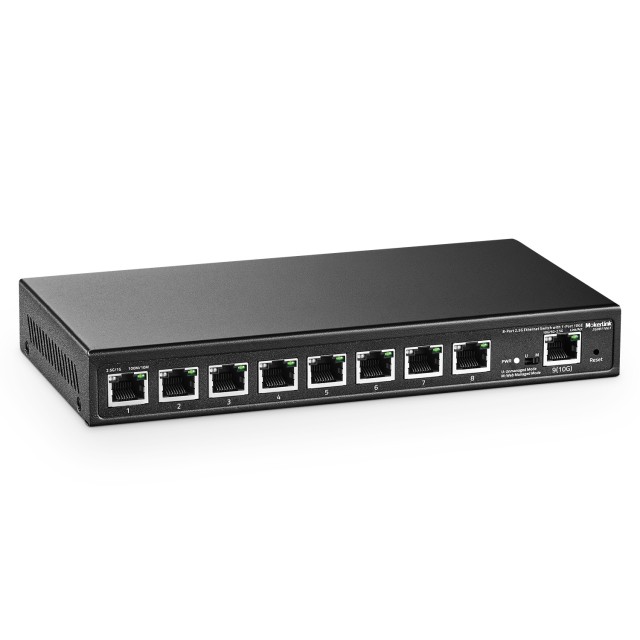

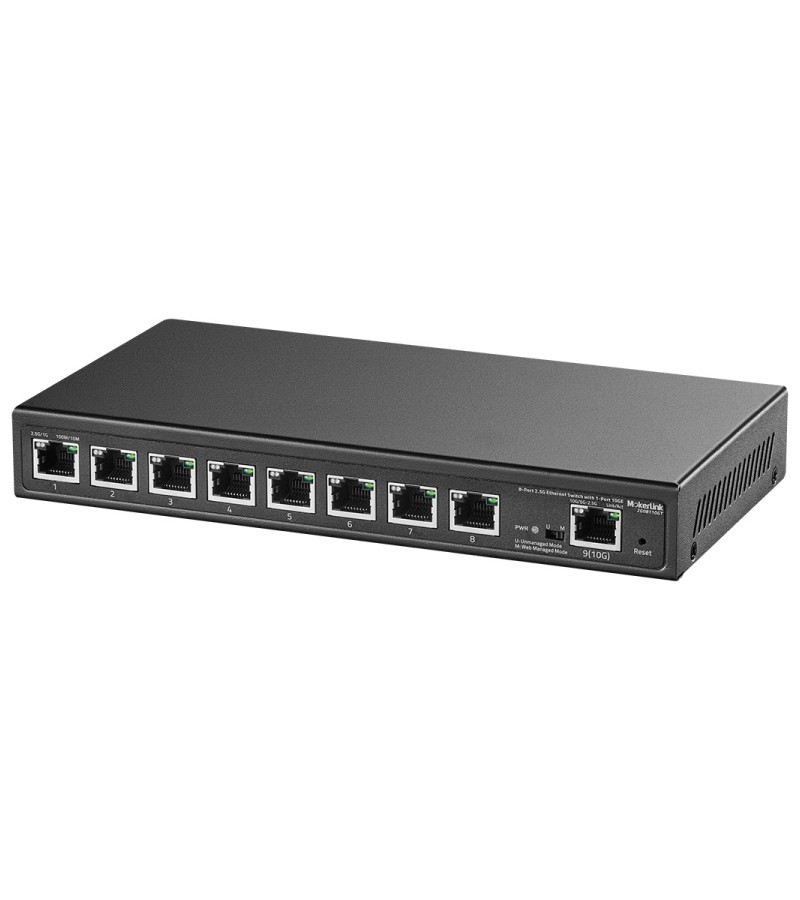

MokerLink 8 Port 2.5G Ethernet Managed Switch with 1 Port 10G Ethernet Uplink, 8 x 2.5G Base-T Ports Compatible with 10/100/1000Mbps, Metal Web Managed Fanless Network Switch

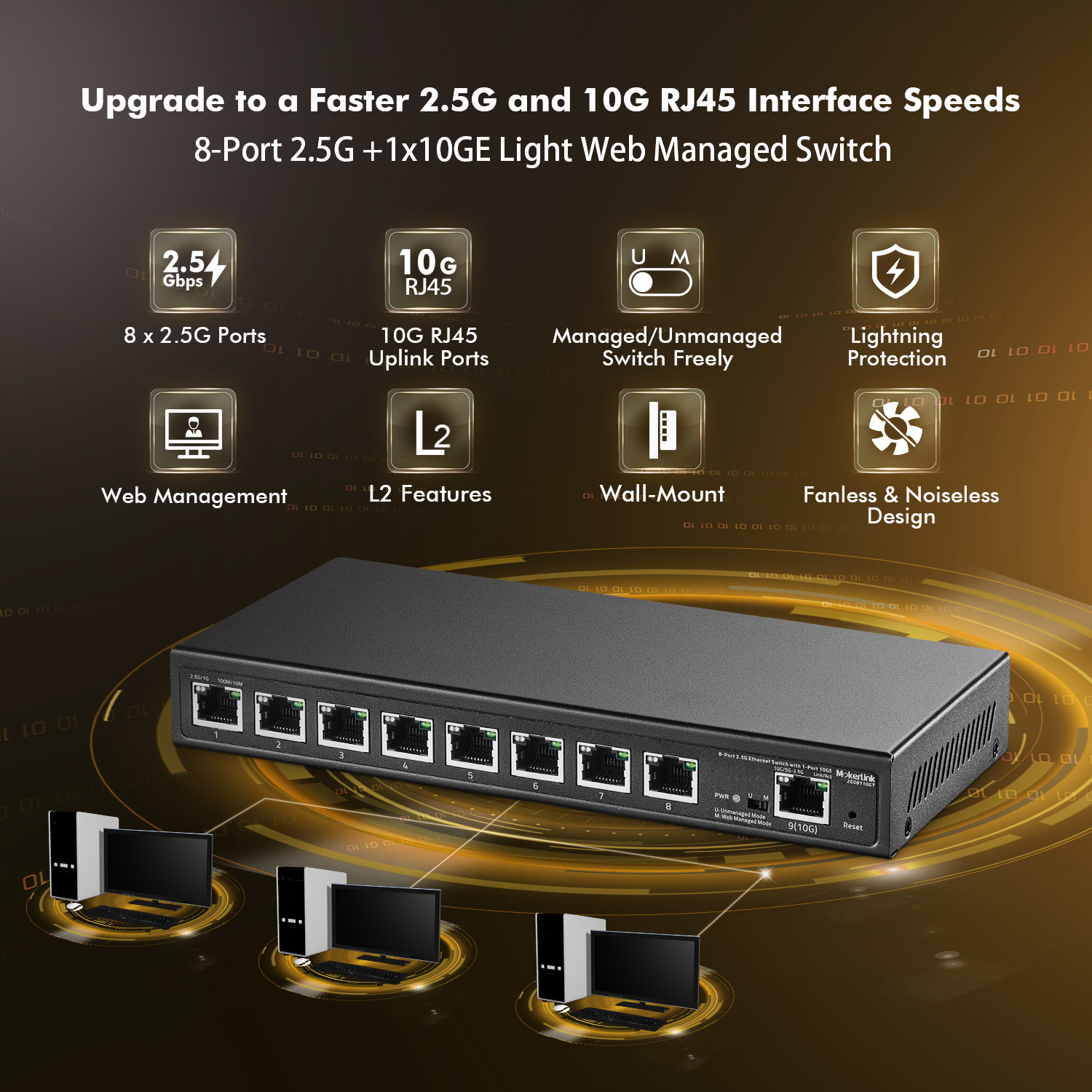

8 x 2.5G Ethernet Ports + 1x 10G Ethernet Uplink Ports, 60Gbps backplane bandwidth, Support web managed and unmanaged model. L2 configurations, such as VLAN, QoS, security, multicast, etc. durable metal casing, fanless design, Easy to Maintain and widely used.
$159.99
Price drop reminder
- Brand: MokerLink
- Product Code: 2G08110GT
- Availability: In Stock

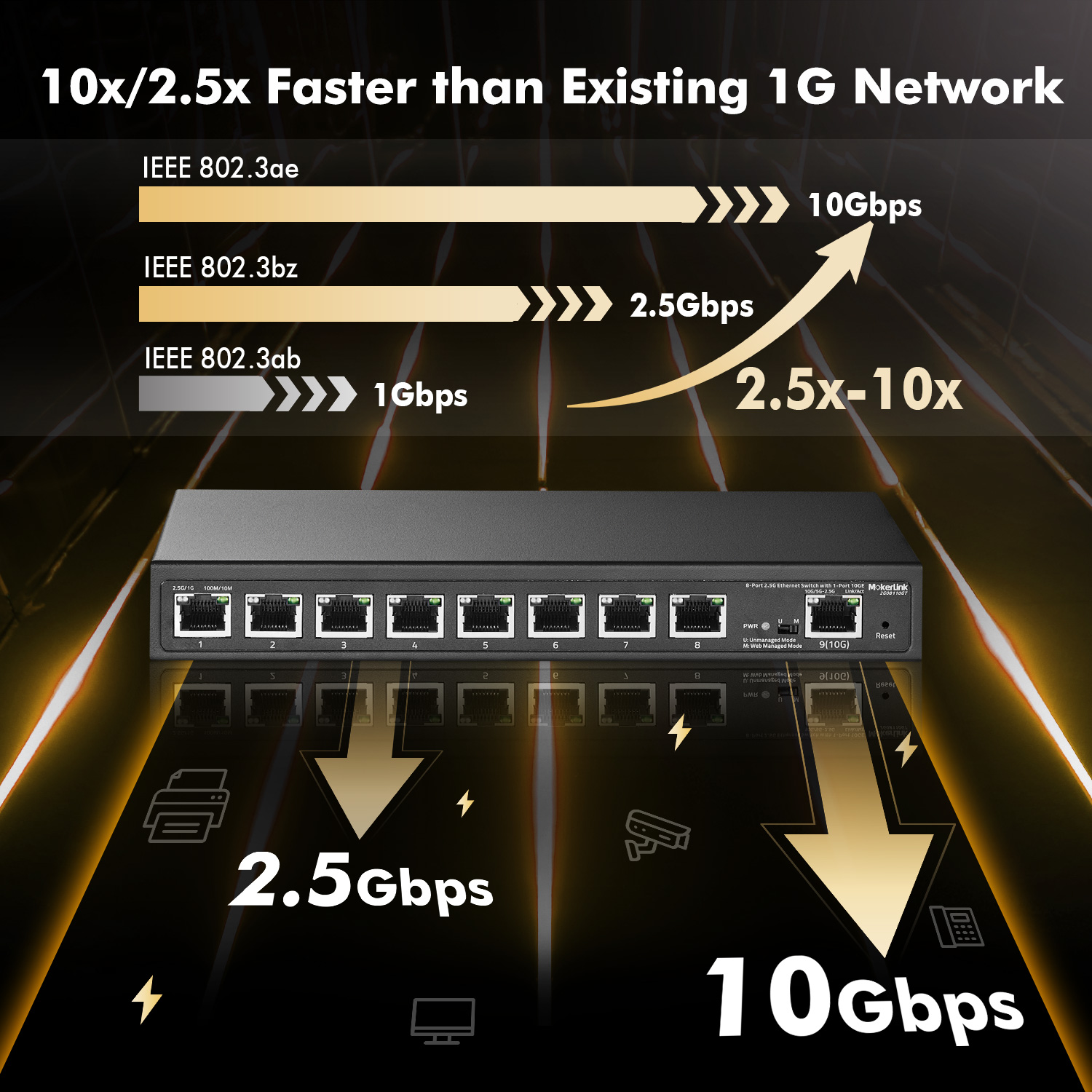

- 2.5G/10G Ports: The network switch has 8 x 2.5Gigabit Ethernet Ports, compliant IEEE802.3bz (2.5G) standard, support 10/100/1000M/2.5G adaptive. 1x 10G Ethernet Uplink Ports(Compliant 1G/2.5G/5G/10G), support higher uplink rate. 60Gbps backplane bandwidth, excellent data forwarding performance

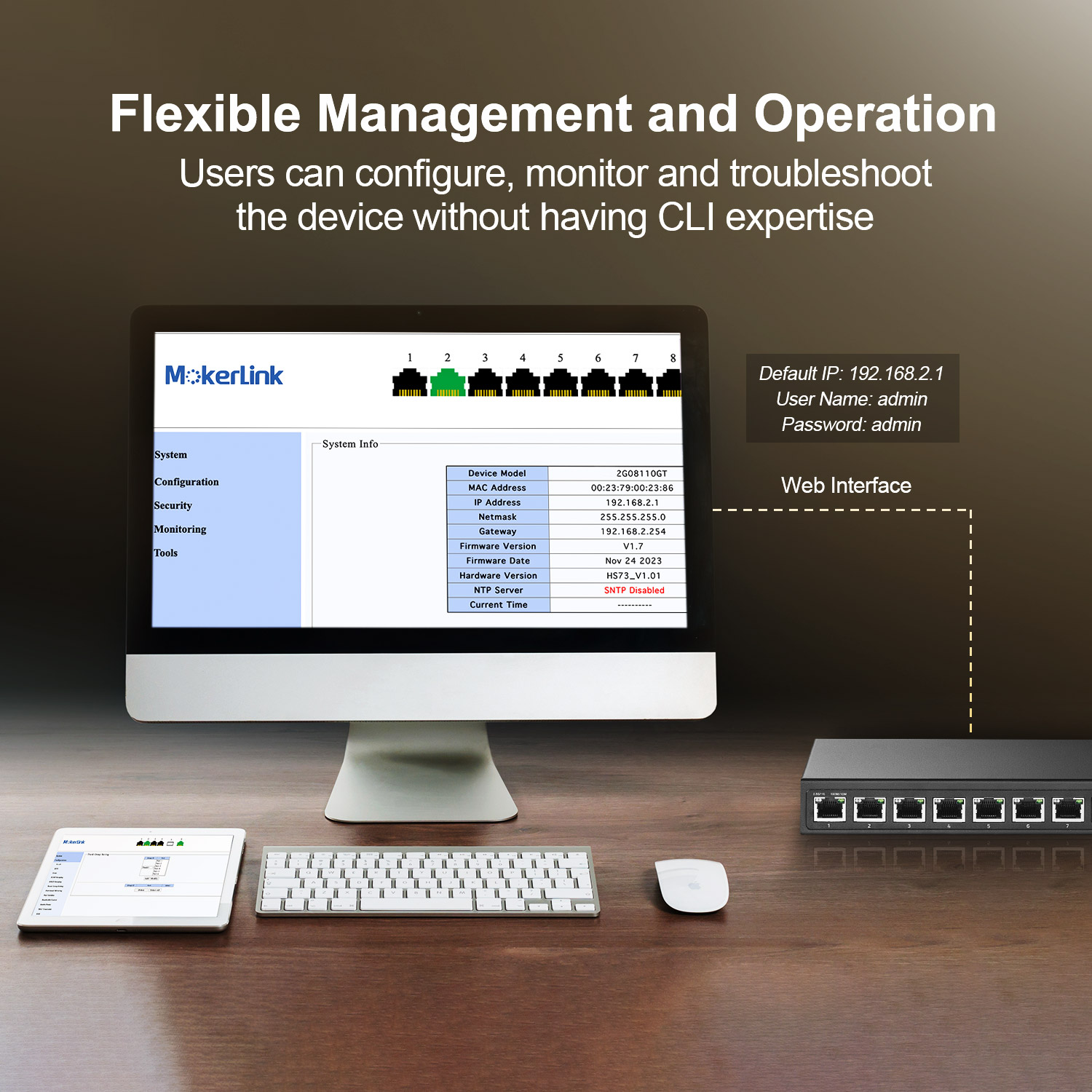

- Web GUI Managed: Support device/port status query and various L2 configurations: such as VLAN, QoS, security, multicast, MAC address table, diagnosis, etc.
- Metal Fanless: With durable metal casing, fanless design lowers energy consumption, quiet no noise and stable operation
- Easy to Maintain：Power and port led indicator light, clearly display the running status and port rate status, installation and maintenance are very simple

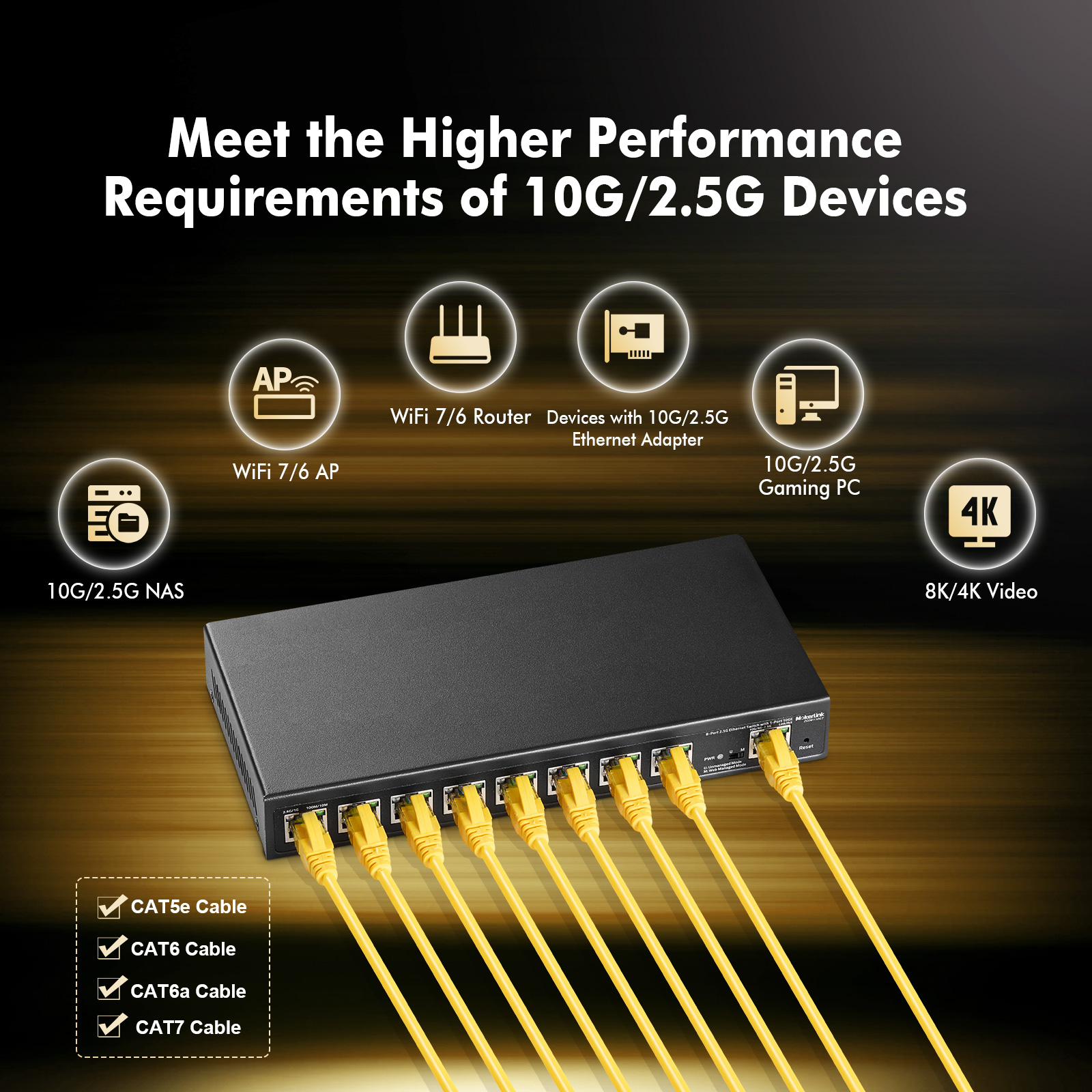

- Widely Used: Mini small size, desktop/wall-mounting design, well-suited for various environments, such as home entrainment and office, 4K video, gaming PC, NAS, PCIe Adapter, Server, WiFi 6 AP and more.
Ask Question About Product
Note: HTML is not translated!
| Ethernet Switch Hardware Specifications | |
| Product Model | 2G08110GT |
| Product Name | 8-Port 2.5G Web Managed Ethernet Switch with 1-Port 10G Ethernet |
| Ethernet Port | 8*10/100/1000/2500Base-TX uplink RJ45 port + 1*100/1000/2.5G/5G/10G uplink RJ45 port |
| Switching Capacity | 60Gbps |
| Throughput | 49.76Mpps |
| Packet Buffer | 8.1 Mbit |
| MAC Address | 4K |
| Jumbo Frame | 12Kbyte |
| Transfer Mode | Store and forward |
| VLANs | 4096 |
| Network protocol | IEEE802.3 (Ethernet), IEEE802.3u (Fast Ethernet), IEEE802.3ab(Gigabit Ethernet), IEEE 802.3bz(5G Ethernet), IEEE 802.3z(Gigabit Ethernet), IEEE 802.3ae(10G Ethernet), IEEE802.3x (Flow control) |
| Industry Standard | EMI: FCC Part 15 CISPR (EN55032) class A EMS: EN61000-4-2 (ESD), EN61000-4-5 (Surge) |
| Network Medium | 10BASE-T ： Cat3,4,5 UTP(≤250 meter) (10G port Not Supported) 100BASE-TX ： Cat5 or later UTP(≤150 meter) 1000BASE-TX ： Cat6 or later UTP(≤150 meter) 2500BASE-TX ： Cat6 or later UTP(≤100 meter) 5G-TX ： Cat6 or later UTP(≤90 meter) 10G-TX ： Cat6 or later UTP(≤80 meter) |
| Lighting Protection | Common mode 6KV;Differential mode 2KV;ESD: Air 8KV, Contact 6KV |
| Working Environment | Operating temperature: -10～+55°C；5%～90% RH Non coagulation, Storage temperature: -40～+75°C；5%～95% RH Non coagulation |

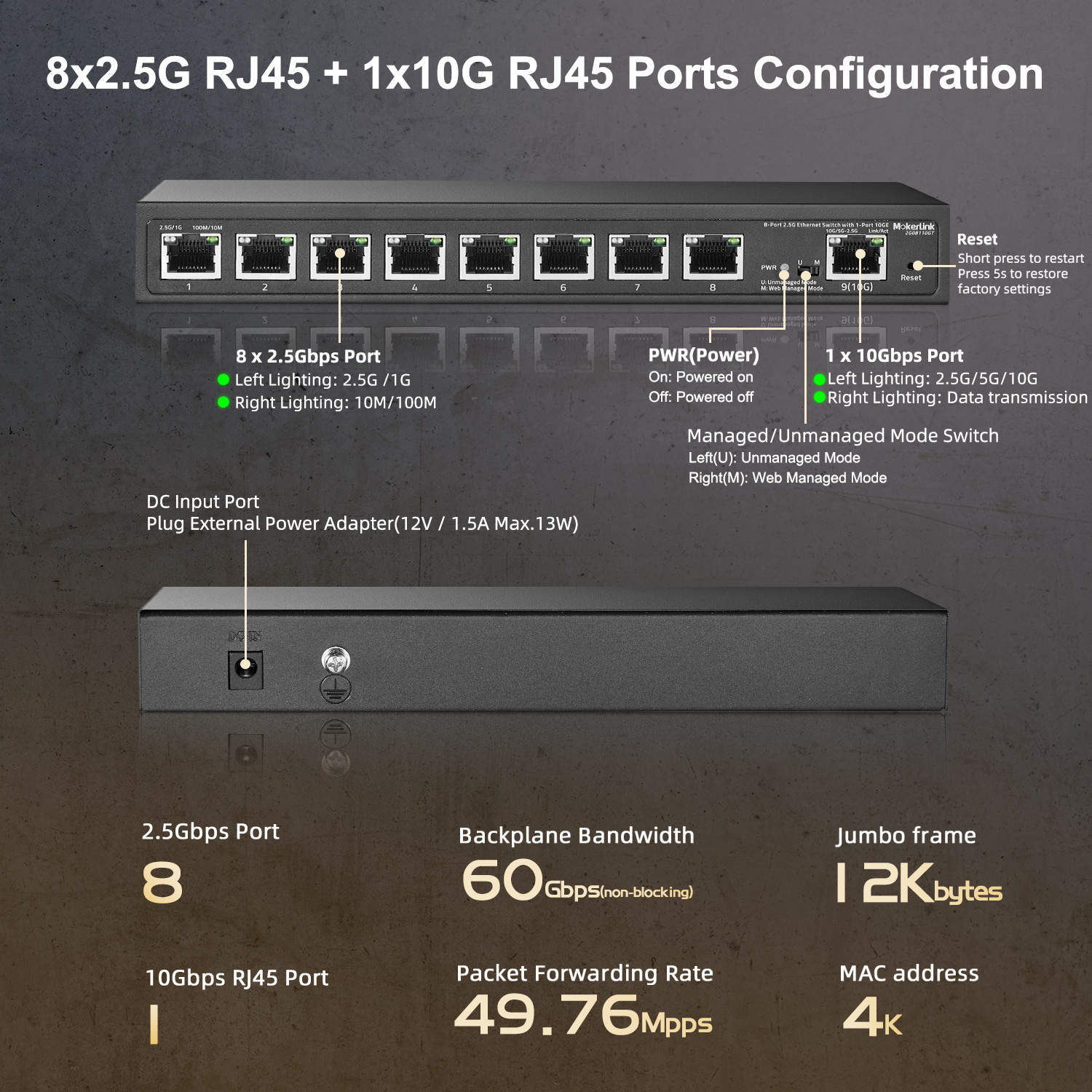

| LED Indicator | PWR:Power LED/SYS LED, 1-8 Ports: Link/Act LED, 1G speed LED, 2.5G speed LED, Port 9: Link/Act LED, 2.5G/5G speed LED, 10G speed LED |
| Structure Size | Product size: 220mm*112mm*28mm Package size: 265mm*220mm*68mm Product weight: 0.73kg Packing weight: 1.03kg |
| Installation | Desktop/Wall Mount |
| Shell | Black Color, Metal Shell |
| Power Voltage | External power DC 12V1.5A max 13W (100-240Vac 50/60Hz 0.2A) |
| Package List | Switch 1pcs, Specification 1pcs, Power adapter 1pcs |
| Software Function | L2 Software Function |
