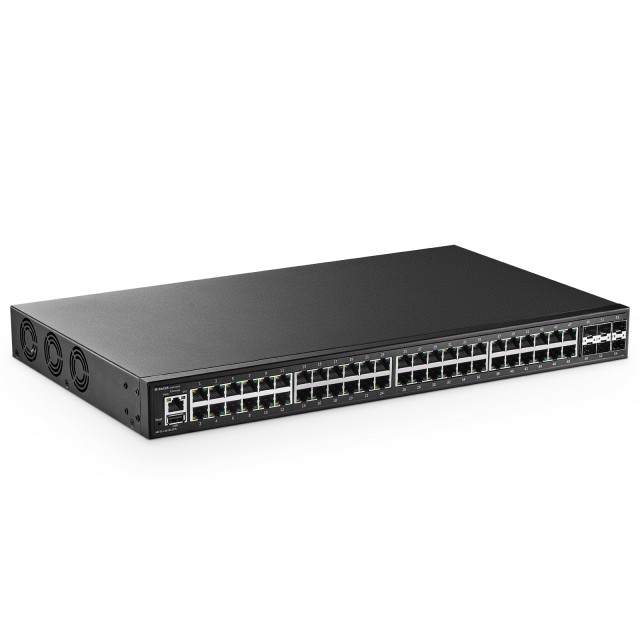

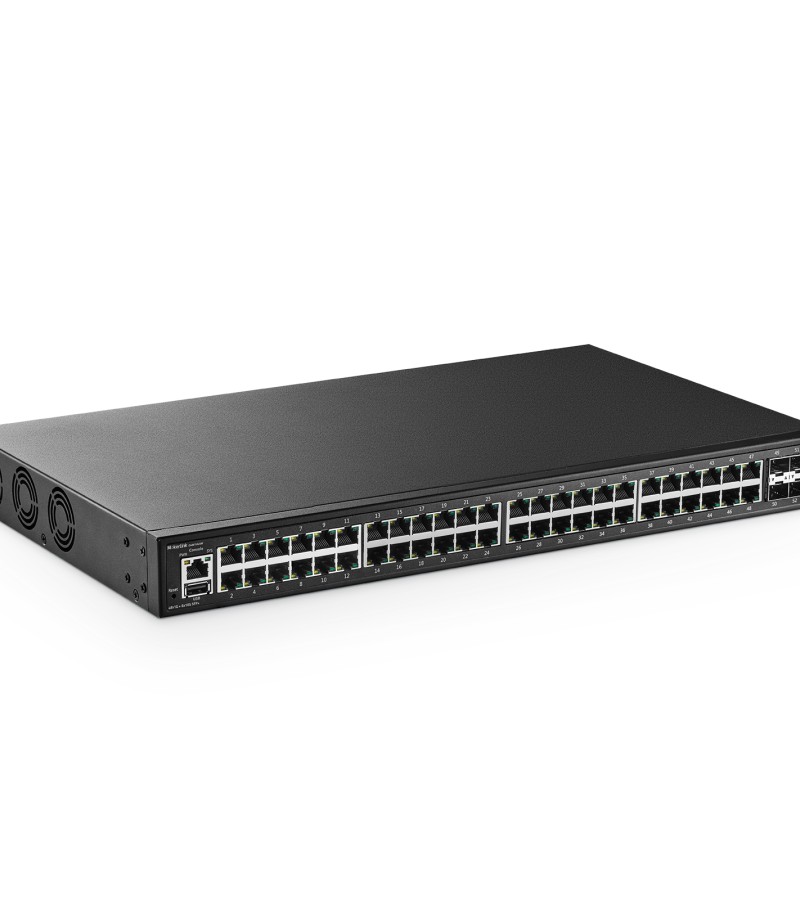

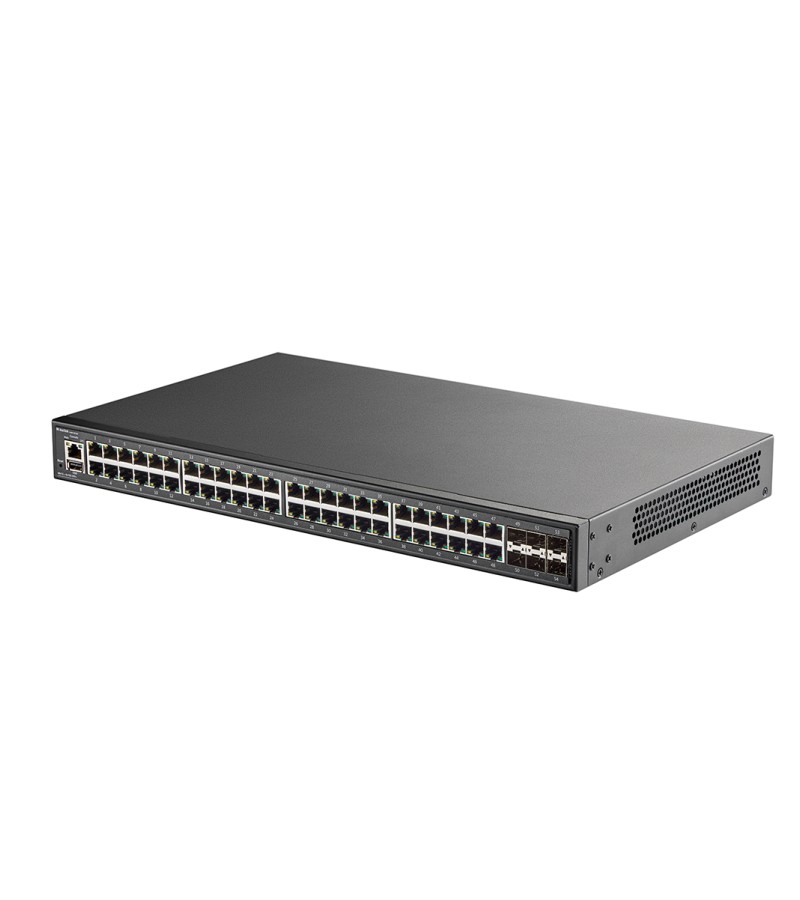

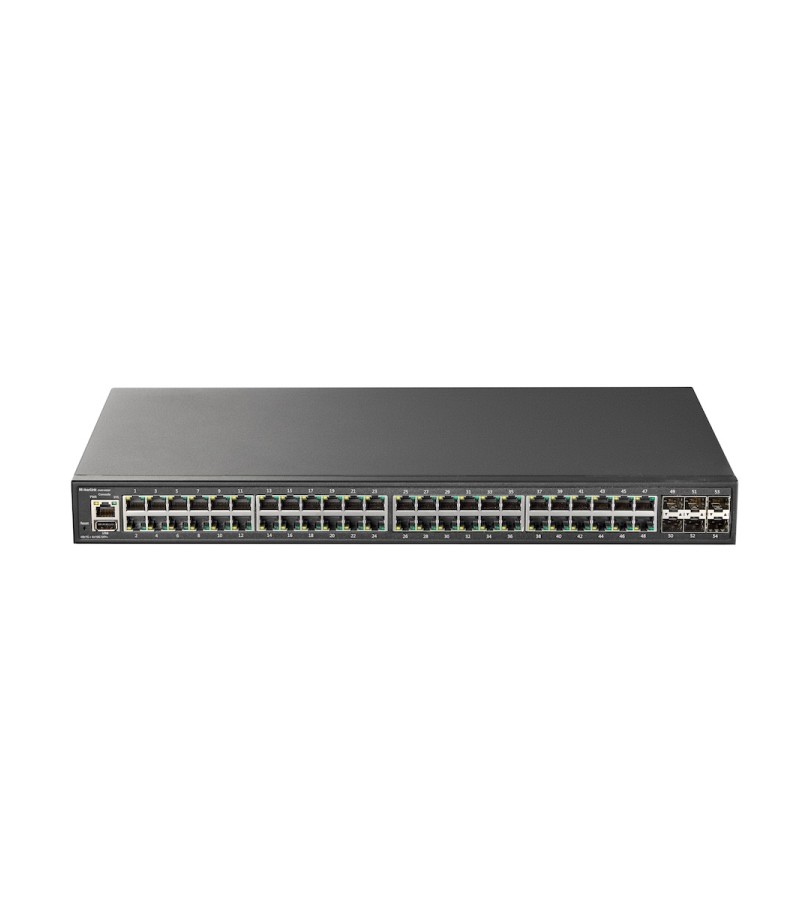

MokerLink 48 Port Gigabit Managed Switch, 48 Port GE, 6x10G SFP+, 1 Console Port, 1 USB Port, L3 Smart Web Managed, Rackmount, DHCP QoS Vlan IGMP and Static Routing

The 48-Port Managed Ethernet Switch is equipped with 48x 10/100/1000BASE-T ports, 6x 10GE SFP BASE-X Uplinks. The switch adopts the most cutting-edge Realtek chip. This access switch delivers a compact, cost-effective solution for carrier IP MAN and enterprise networks. Based on the high-performance hardware and management platform, it supports function such as ACL, VLAN and QoS. It’s simple management mode and flexible installation can meet the requirement of any scenario.

$379.99 Price drop reminder
  • Brand: MokerLink
  • Product Code: G48610GSM
  • Availability: In Stock

Total $379.99

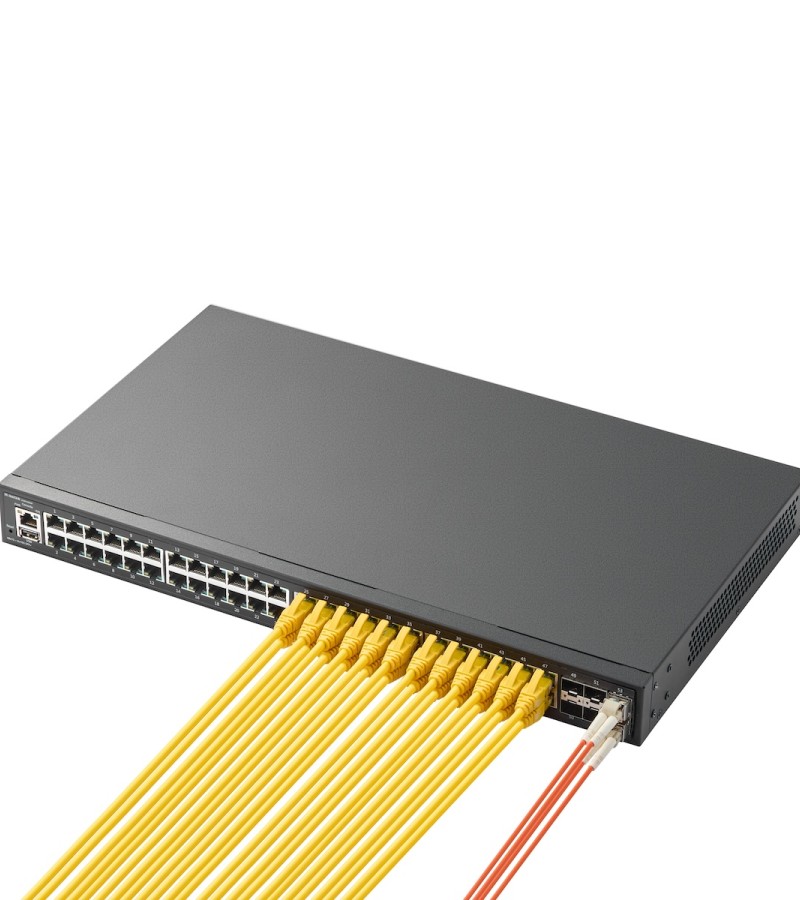

MokerLink 48-port 10G uplink 48-port gigabit managed ethernet switch. Support 48x10/100/1000 adaptive electrical ports, 6x10Gb SFP+ ports, 1 console port, and 1 USB serial port. Perfect security control strategy and CPU protect policy improve fault tolerance and ensure stable operation of the network and load balancing of the interconnection. The device supports automatic DoS attack defense and SNMP, IEEE 802.1, STP, RSTP, Link aggregation, and other functions. Advanced security functions and advanced quality of service (QoS), can be used as core layer, distribution layer or access layer switch with high density port, switch stacking and easy management, are ideal for various commercial network applications.

Key Feature

  • High Performance: Includes 48 x 1 Gigabit ethernet ports, 6 x 10 Gigabit SFP+ UpLink. Switching capacity is 216Gbps, 160.7Mpps Packet forwarding rate, 10Gbps UpLink, provides higher data transfer rates
  • L3 Managed: Support L3 interface, IPv4/IPv6, ARP config; Static Routing, DHCP server/relay/snooping. Layer 3 management functions implemented at lower cost than routers.
  • L2 Features: 4K 802.1Q Vlan, 16K mac table, L2-L4 packet filter, port security, port mirroring, flow rate limiting; QoS; STP/RSTP/MSTP spanning tree; IGMP V1/V2/V3 multicast; storm suppression; ring network protection; link aggregation, etc.
  • Easy to Management: Support various management methods such as Web, CLI (console port, telnet, SSH), SNMP, RMON. The WEB interface has been professionally designed, beautiful, concise and easy to use, with rich CLI commands, suitable for general and professional network management.
  • Widely Used: Support status query, port statistics, fault detection and reporting, easy to maintenance. Durable Metal housing, fanless silent, LED indicator light

Ask Question About Product

Note: HTML is not translated!
Ethernet Switch Hardware Specifications
Product ModelG48610GSM
Product NameMokerLink 48 Port Gigabit Managed Switch with 6 Port 10G SFP+
Ethernet Port48 * 10/100/1000Mbps RJ45 Port 6 * 10G SFP Port 1 * RJ45 Console Port 1 * USB Port
Switching Capacity216Gbps
Throughput160.7Mpps
Packet Buffer16Mbit
Flash Memory 256MB
DDR SDRAM4G
MAC Address32K
Jumbo Frame12Kbytes
Transfer ModeStore and forward
Mean Time Between Failure100000 hour
VLANs4096
Network protocol IEEE 802.3:Ethernet MAC Protocol IEEE 802.3i:10BASE-T Ethernet IEEE 802.3u:100BASE-TX Fast Ethernet IEEE 802.3ab:1000BASE-T Gigabit Ethernet IEEE 802.3z:1000BASE-X Gigabit Ethernet (optical fiber) IEEE 802.3ae:10G Ethernet (optical fiber) IEEE 802.3az:Energy Efficient Ethernet IEEE 802.3ad:Standard method for performing link aggregation IEEE 802.3x:Flow control IEEE 802.1ab: LLDP/LLDP-MED (Link Layer Discovery Protocol) IEEE 802.1p:LAN Layer QoS/CoS Protocol Traffic Prioritization(Multicast filtering function) IEEE 802.1q:VLAN Bridge Operation IEEE 802.1x:Client/Server Access Control and Authentication Protocol IEEE 802.1d:STP IEEE 802.1s:MSTP IEEE 802.1w:RSTP
Industry StandardEMI: FCC Part 15 CISPR (EN55032) class A EMS: EN61000-4-2 (ESD)、EN61000-4-4 (EFT)、EN61000-4-5 (Surge)
Network Medium10BASE-T: Cat3、4、5 or above UTP(≤100 M) 100BASE-TX: Cat5 or above UTP(≤100 M) 1000BASE-TX: Cat5 or above UTP(≤100 M) Multi-mode Fiber: 50/125、62.5/125、100/140um Single-mode Fiber: 8/125、8.7/125、9/125、10/125um
Fiber MediumMulti-mode Fiber: 50/125、62.5/125、100/140um Single-mode Fiber: 8/125、8.7/125、9/125、10/125um
Lighting ProtectionGeneral Mode 4KV, Differential Mode 2KV ;ESD contact 8KV, air 15KV
Security CertificateCE、FCC、RoHS
Working EnvironmentOperating temperature: -10~50°C Storage temperature: -40~85°C Operating Humidity: 10%~90%, No condensation Storage Humidity: 5%~90%, No condensation Working height: Up to 10,000 feet Storage height: Up to 10,000 feet

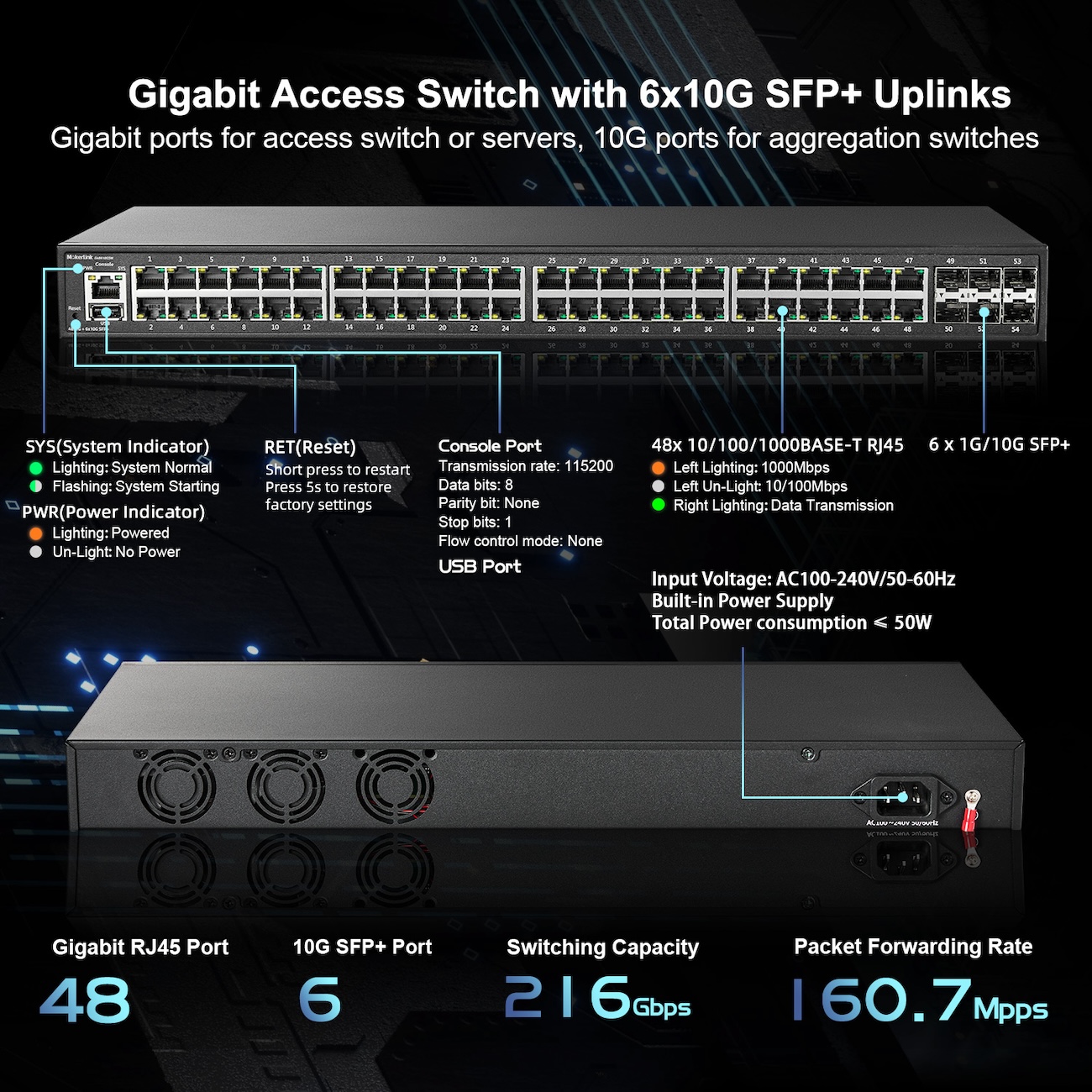

LED IndicatorPWR(Power indicator): Lighting:Powered , Un-Light:No Power; SYS(System lights): Lighting: System is normal , Flashing:system startup; Link(Link light) Lighting:Connecting , Flashing:Data Transmit , Un-Light:Disconnect; Act(data light) Lighting:Connecting , Flashing:Data Transmit , Un-Light:Disconnect
Structure SizeProduct Dimensions: 440*282*44mm Package Dimensions: 500*365*85mm Product N.W: 3.5KG Product G.W: 4.5KG
Installation1U Rack Mount
Power VoltageInput Voltage: AC100-240V/50-60Hz Power supply: 12V6A

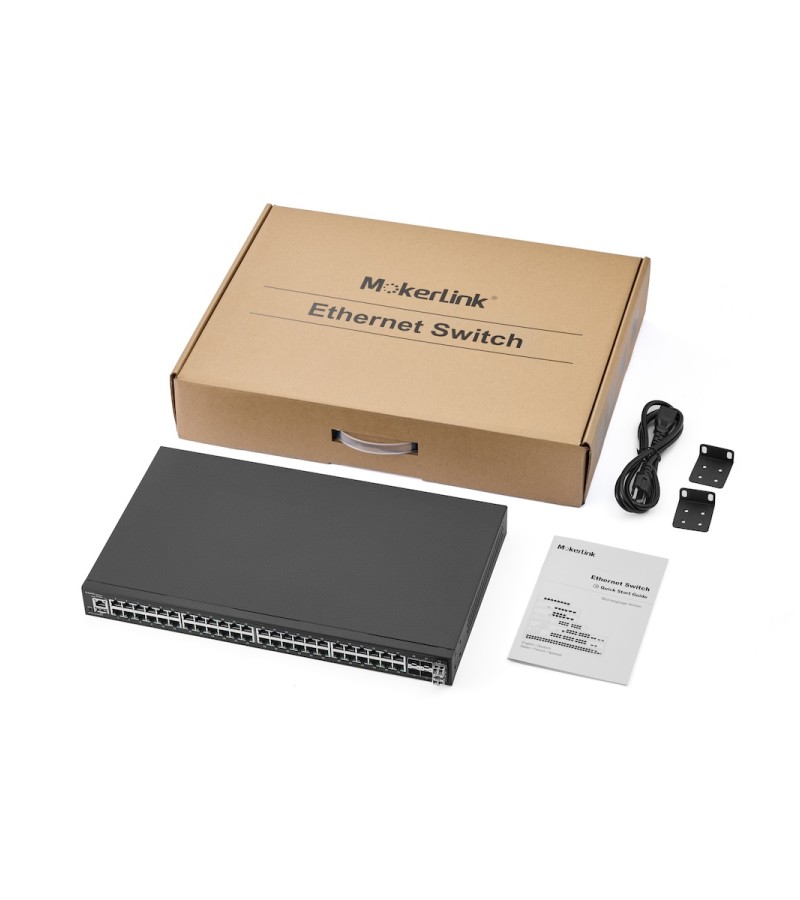

Package ListEthernet switch 1 Set , Instruction manual 1 PCS , Power cord 1PCS Serial cable 1PCS , Rack ear: 1 Pairs
Software FunctionL3 and L2 Software function
  • All(0)
  • Good(0)
  • Fair(0)
  • Poor(0)
  • Image(0)
Name Size Date Added
Ethernet Switch Series Quick Strart Guide 1.87MB 01/12/2022 15:15:56
CLI Manual For L3 Managed Switch 2.24MB 01/12/2022 15:26:47
G48610GSM_Web Configuration Guide-V.5.0 8.99MB 28/01/2024 10:50:28
G48610GSM_Managed_CLI_UserGuide_V1.1 2.19MB 28/01/2024 10:51:08
