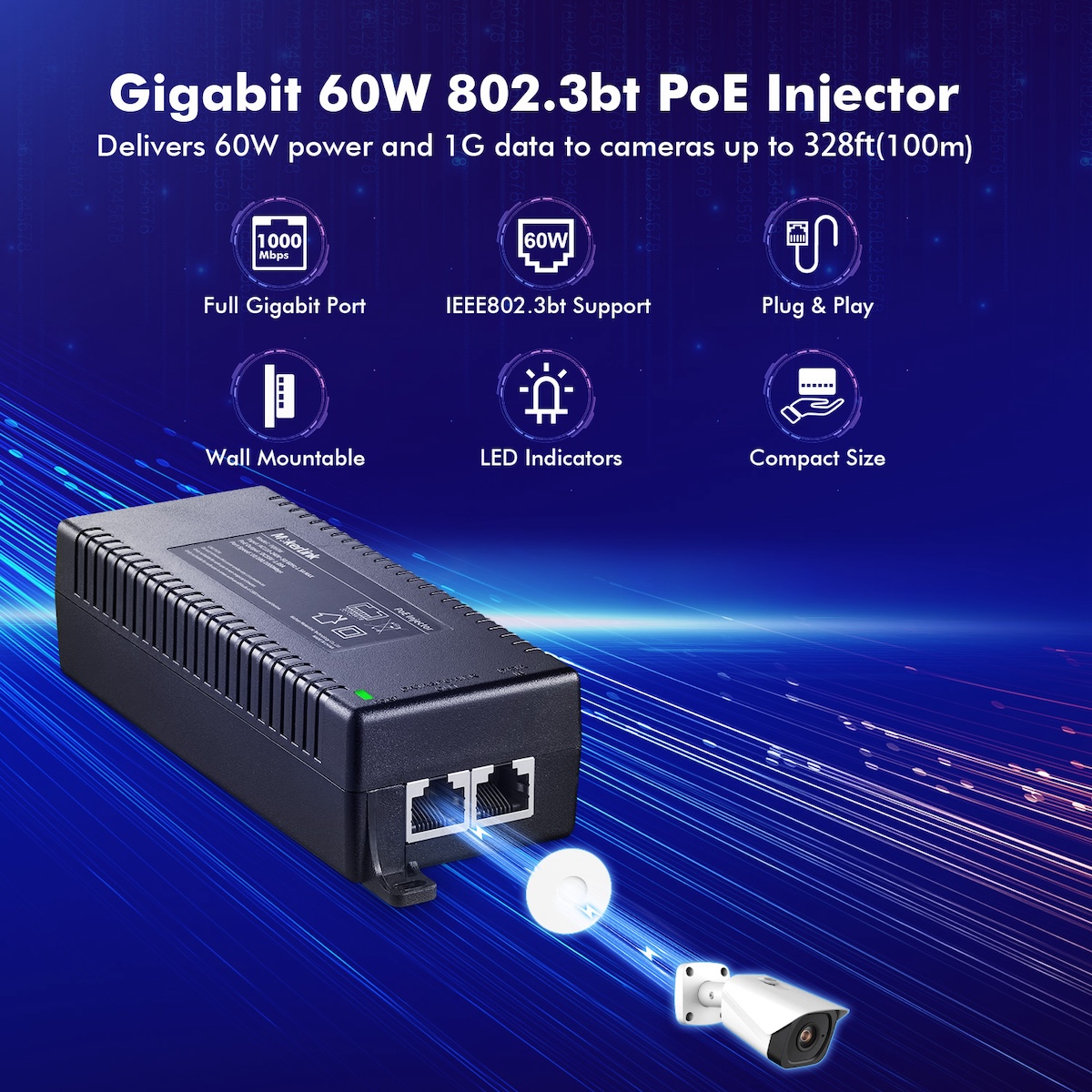

MokerLink Gigabit PoE Injector, 802.3af/at/bt 60W, 10/100/1000Mbps Ethernet, Plug & Play, Distance Up to 100 Meters (328 ft.)
1× gigabit ethernet input port and 1× gigabit output with PoE power, support IEEE 802.3af/at/bt, Max Power is 60W, Plug and Play, Transmit data and power on the single network cable up to 100 meters(328ft.), Widely Used in homes, businesses, shops, private networks and other PoE fields
- Brand: MokerLink
- Product Code: INJ60W
- Availability: In Stock
Product overview
Gigabit Ports: This PoE injector include 1× Gigabit Ethernet Input Port, 1× Gigabit Output with PoE power. Max 1000Mbps with excellent data performance

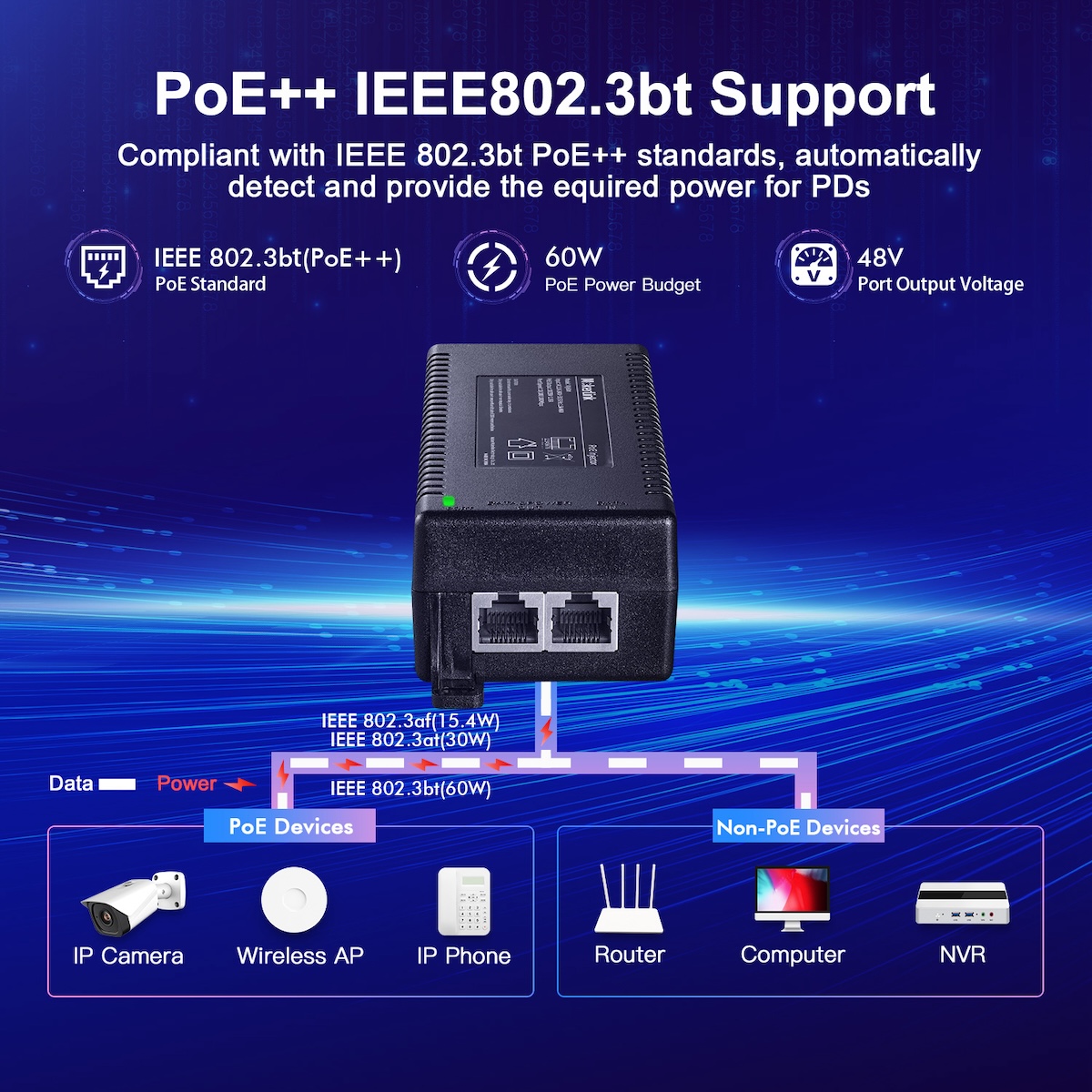

802.3bt PoE: The PoE Port support IEEE802.3af/at/bt, Max Power is 60W, support automatic detection, no forced power supply, no damage to the equipment, PoE Out: 1/2+、3/6-, 48V. (NOT Output 24V)

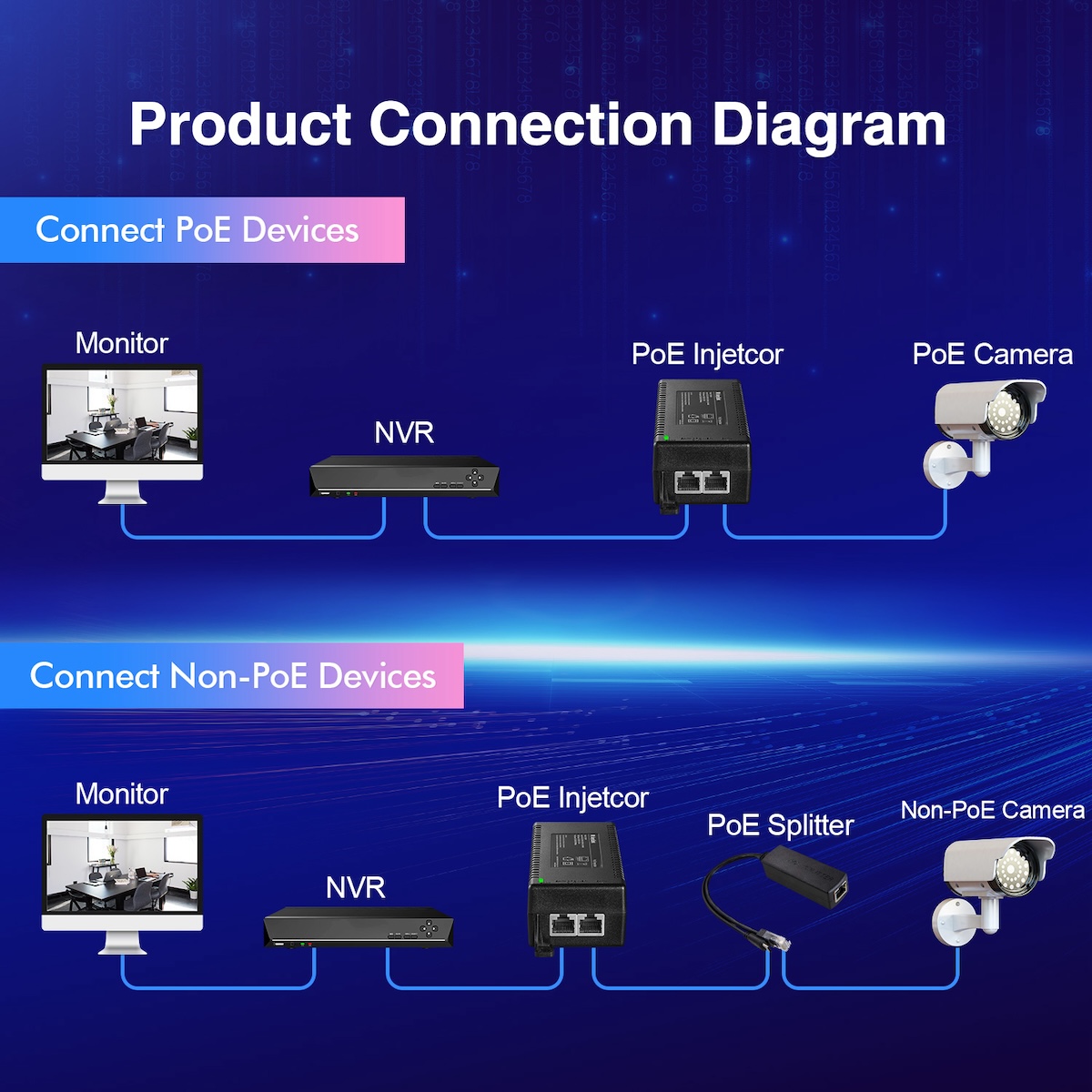

Plug and Play: Just connect the power cord, connect to network and POE equipment, no configuration required to work normally
Long Range: Transmit data and power on the single network cable up to 100 meters(328ft.), perfect for PoE equipment be flexibly installed in a larger area with no power lines or outlets
Widely Used: Mini body, LED indicator, can be connected to PoE camera, ap, etc., widely used in homes, businesses, shops, private networks and other PoE fields
Ask Question About Product
| Ethernet Switch Hardware Specifications | |
| Product Model | INJ60W |
| Product Name | Gigabit 60W 802.3bt PoE Injector |

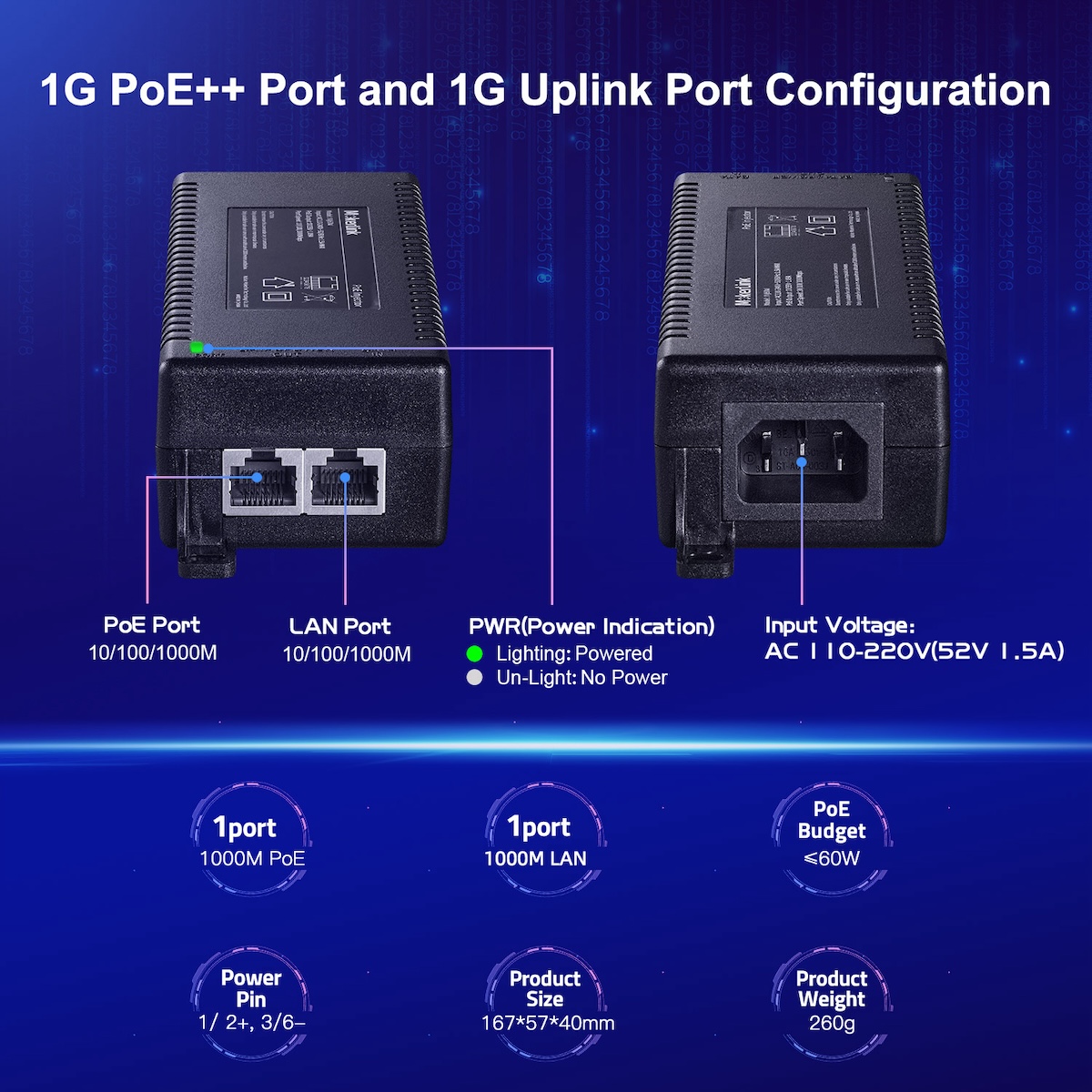

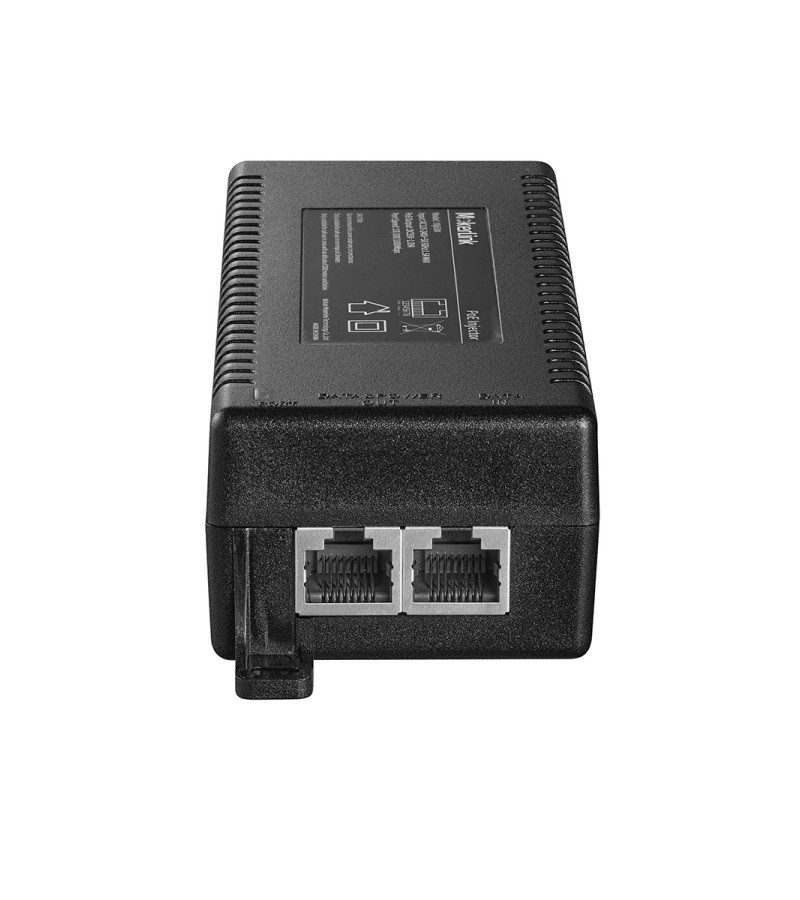

| Ethernet Port | 1× 10/100/1000Mbps input Port, 1× 10/100/1000Mbps Output Port |
| Network protocol | IEEE802.3 (Ethernet) IEEE802.3u (Fast Ethernet) IEEE802.3ab(Gigabit Ethernet) IEEE802.3x (Flow Control) |
| PoE Protocol | IEEE802.3bt (60W) IEEE802.3at (30W) IEEE802.3af (15.4W) |
| PoE Pin | 1/2+; 3/6- |
| Working Environment | Operating temperature: -10~50°C, Storage temperature: -40~70°C, Operating humidity: 10%~90%, no condensation, Storage humidity: 5%~95%, no condensation |
| LED Indicator | PWRPower Indicator) ON: Normal, OFF: Abnormal |
| Structure Size | Product Dimensions: 167*57*40mm Product N.W: 0.37KG |

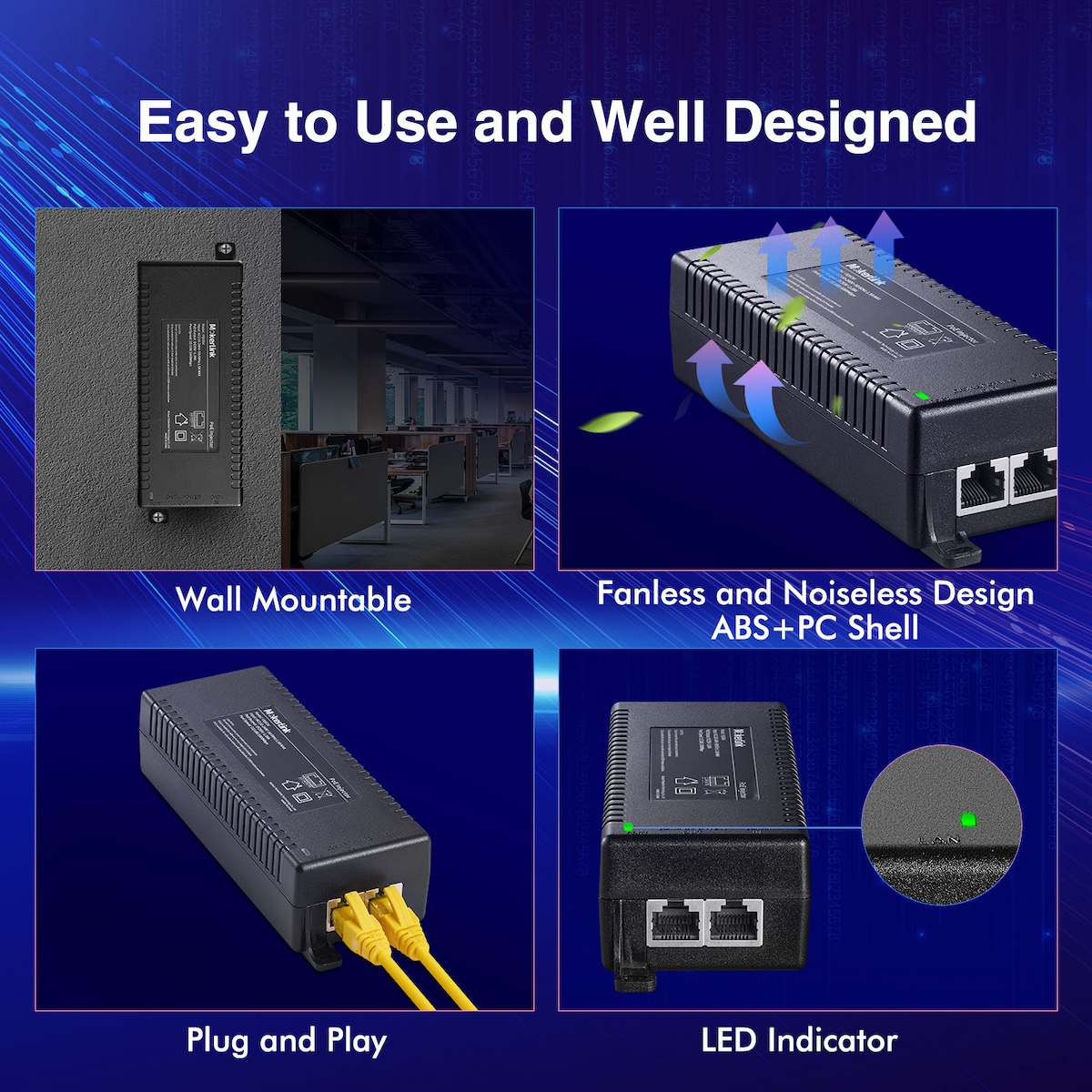

| Installation | Desktop/Wall Mount |
| Shell | Black Color, Plastic Shell |

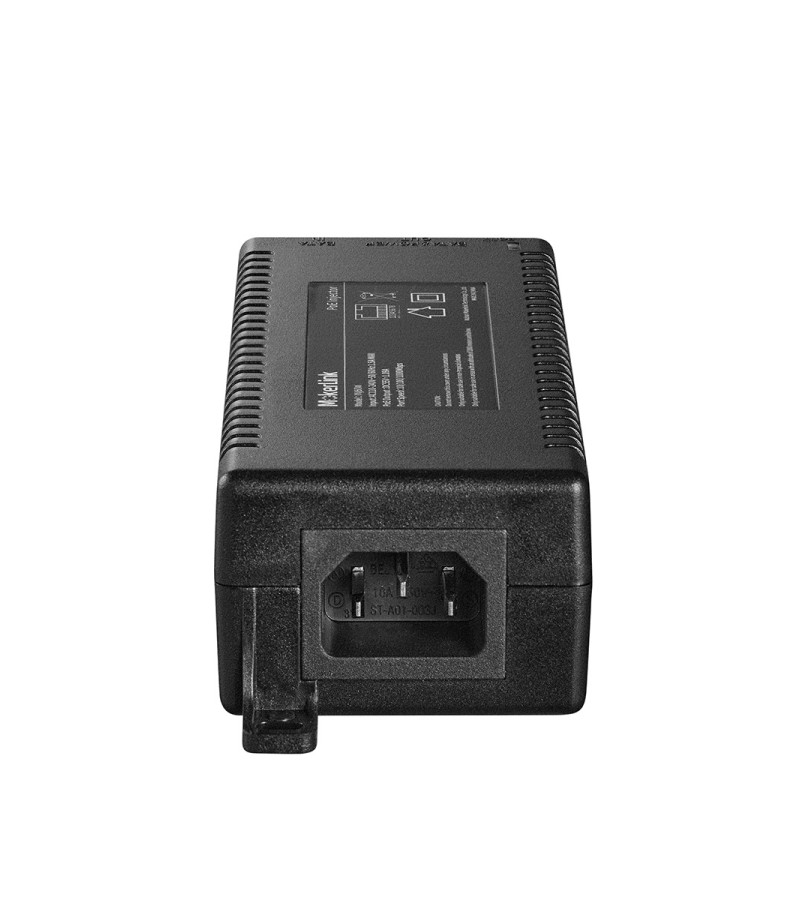

| Power Voltage | Input voltage: AC 100-240 V 50/60HZ |
| Package List | PoE Injector 1pcs, manual 1pcs, Power cable 1pcs |
