MokerLink 10G PoE Injector, 802.3af/at/bt 65W, 10M/100M/1000M/10Gbps Ethernet, Plug & Play, Non-PoE to PoE Adapter, Distance Up to 100 Meters (328 ft.)
1× 10G ethernet input port and 1× 10G output with PoE power, support IEEE 802.3af/at/bt, Max Power is 65W, Plug and Play, Transmit data and power on the single network cable up to 100 meters(328ft.), Widely Used in homes, businesses, shops, private networks and other PoE fields
$79.99
Price drop reminder
- Brand: MokerLink
- Product Code: 10GINJ65W
- Availability: In Stock
Product Description:
10GINJ65W is a single port mid span product, which provides a compact, cost-effective and fully IEEE 802.3af/at/bt compliant solution for base station equipment, high-speed 10G network equipment, wireless LAN (WAN) access points, IP security cameras, VOIP phones and other low port density installations.
10GINJ65W mid span eliminates the need for external power and its associated AC power cables, providing a compact, economical, safe and reliable power solution on top of the existing Ethernet infrastructure.
Product Features:

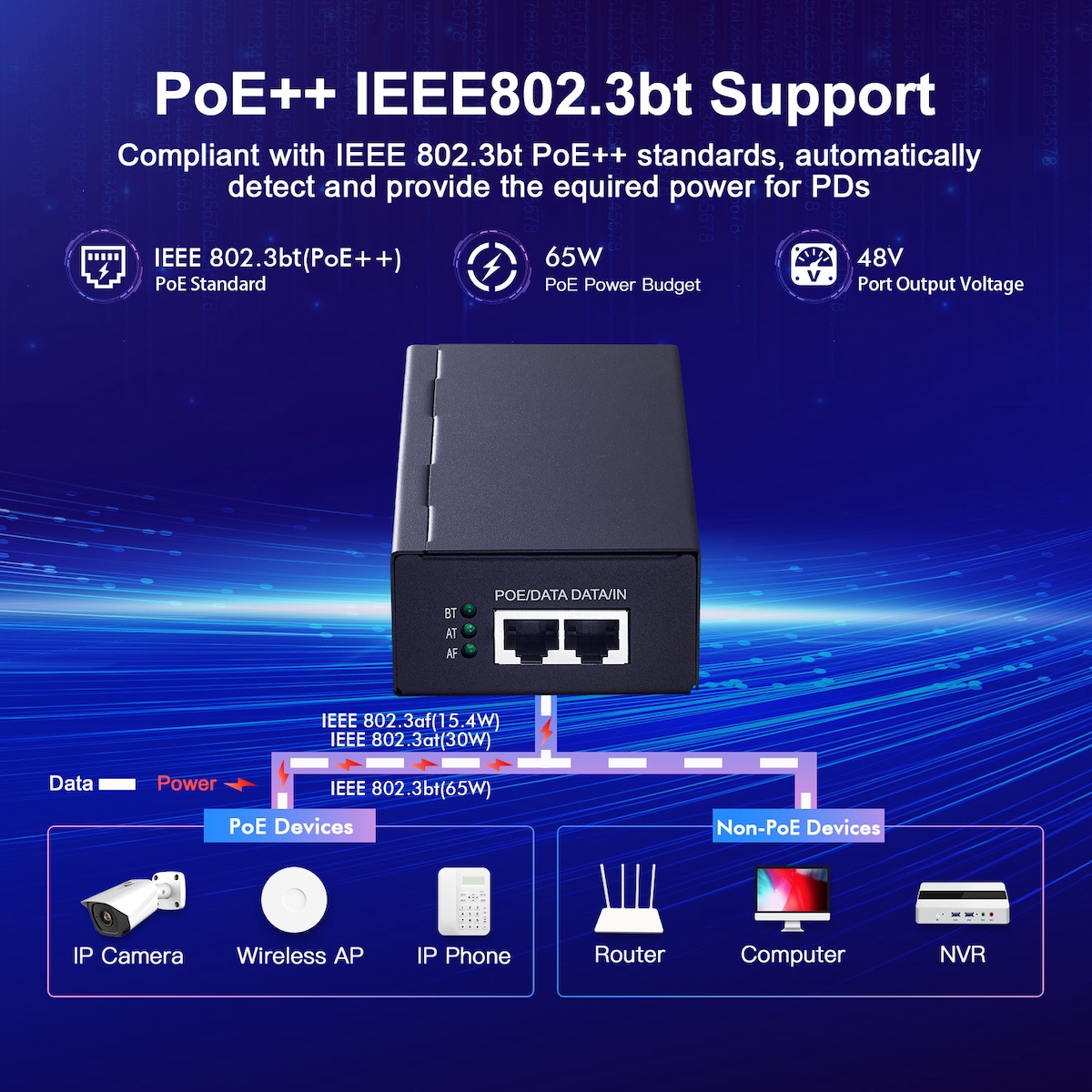

- Full IEEE 802.3af, IEEE 802.3at, IEEE802.3bt Compliant
- Up to 65W of Power on 4-pairs
- Auto-detect of PoE IEEE 802.3af ,IEEE802.3at , IEEE802.3at equipment
- Supports 10/100/1G/2.5G/5G/10G， applications
- LED indicators power input indication
- Distance up to 100 meters(10/100/1G/2.5G/5G);30 meters(10G)
- Internal AC/DC converter – no need for external power brick
- Easy plug-and-play installation
- Surge protection
- EMI standards complies with FCC, CE class B
Ask Question About Product
Note: HTML is not translated!
| Ethernet Switch Hardware Specifications | |
| Product Model | 10GINJ65W |
| Product Name | 10G 965W 802.3bt PoE Injector |

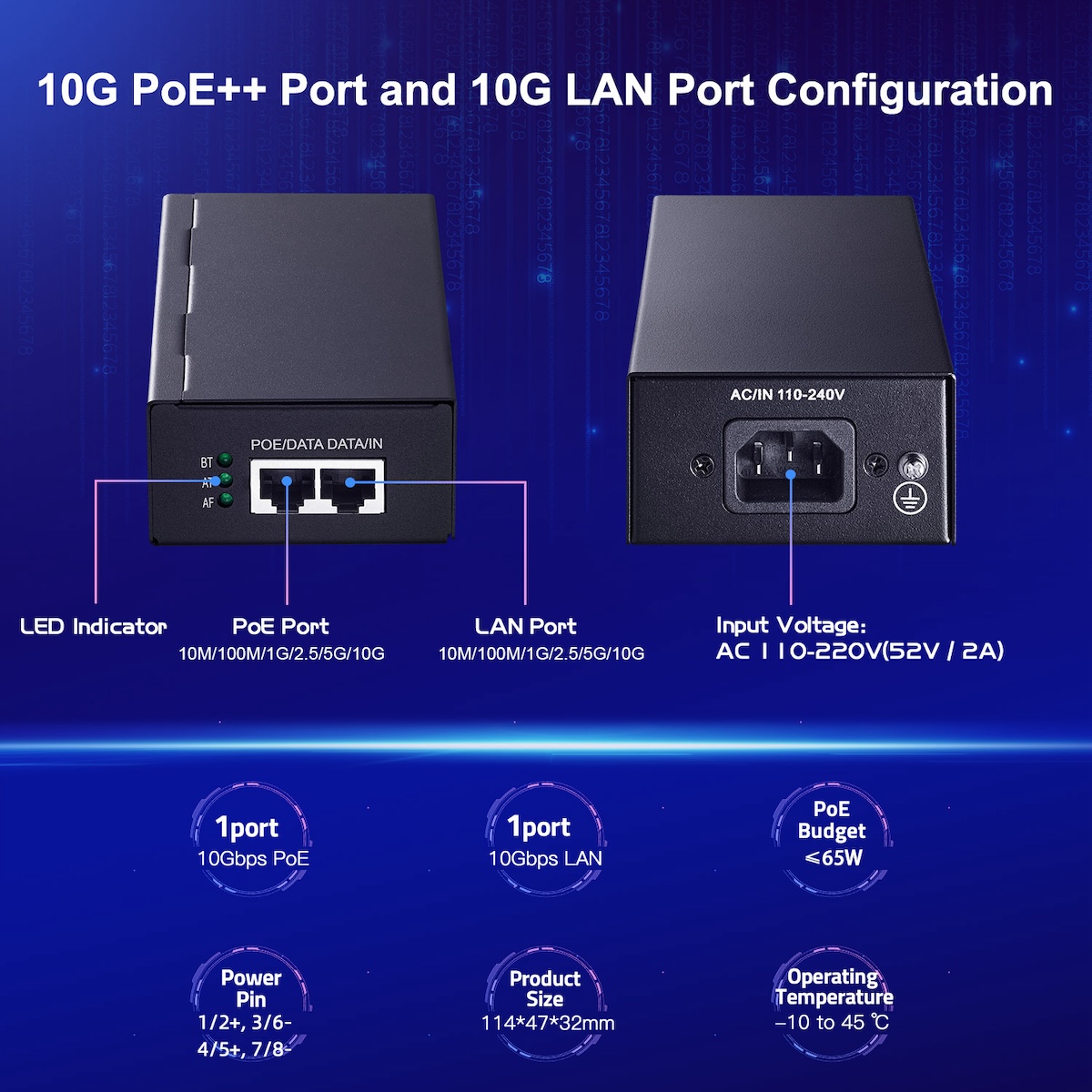

| Ethernet Port | 1× 1G/2.5G/5G/10Gbps input Port, 1× 1G/2.5G/5G/10Gbp Output Port |
| Network protocol | IEEE802.3 (Ethernet) IEEE802.3u (Fast Ethernet) IEEE802.3ab(Gigabit Ethernet) IEEE802.3x (Flow Control) |
| PoE Protocol | IEEE802.3bt (90W) IEEE802.3at (30W) IEEE802.3af (15.4W) |
| PoE Pin | Pin Assignment and Polarity: 3/6 (-), 1/2 (+) 7/8 (-), 4/5 (+) Output Power Voltage: 52Vdc User Port Power: MAX 90W |
| Transmission Distance | 10M/100M/1G/2.5G Max 100 meters 5G Max 90 meters 10G Max 30 meters |
| Lighting Protection | AC port: 6kV RJ45 port: 4kV |
| Working Environment | Operating temperature: -10~50°C, Storage temperature: -40~70°C, Operating humidity: 10%~90%, no condensation, Storage humidity: 5%~95%, no condensation |

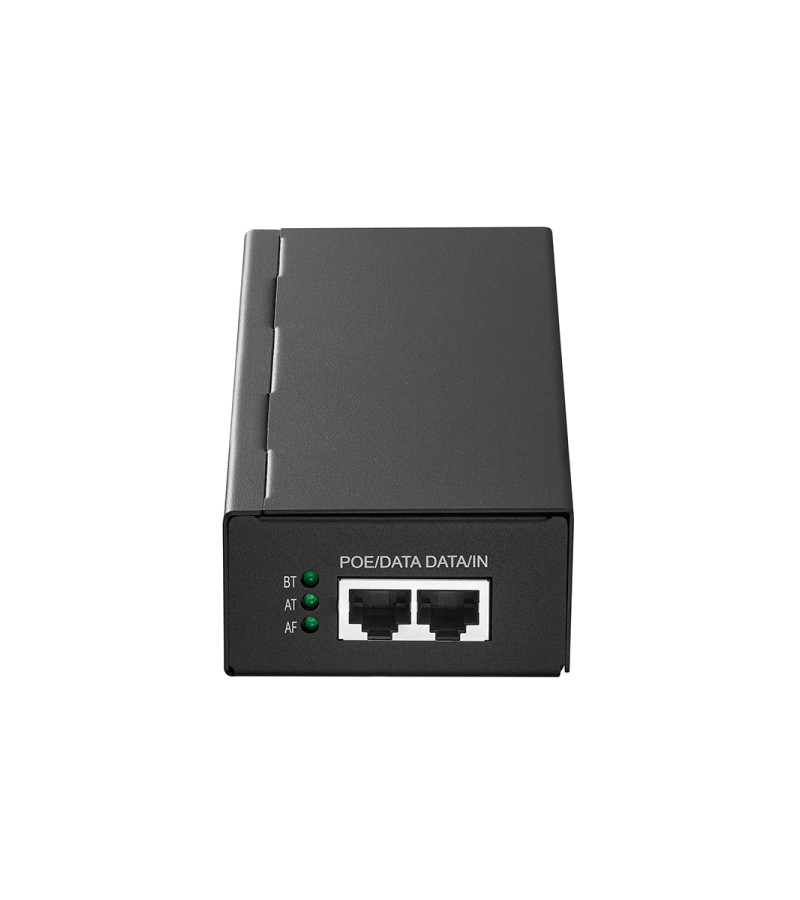

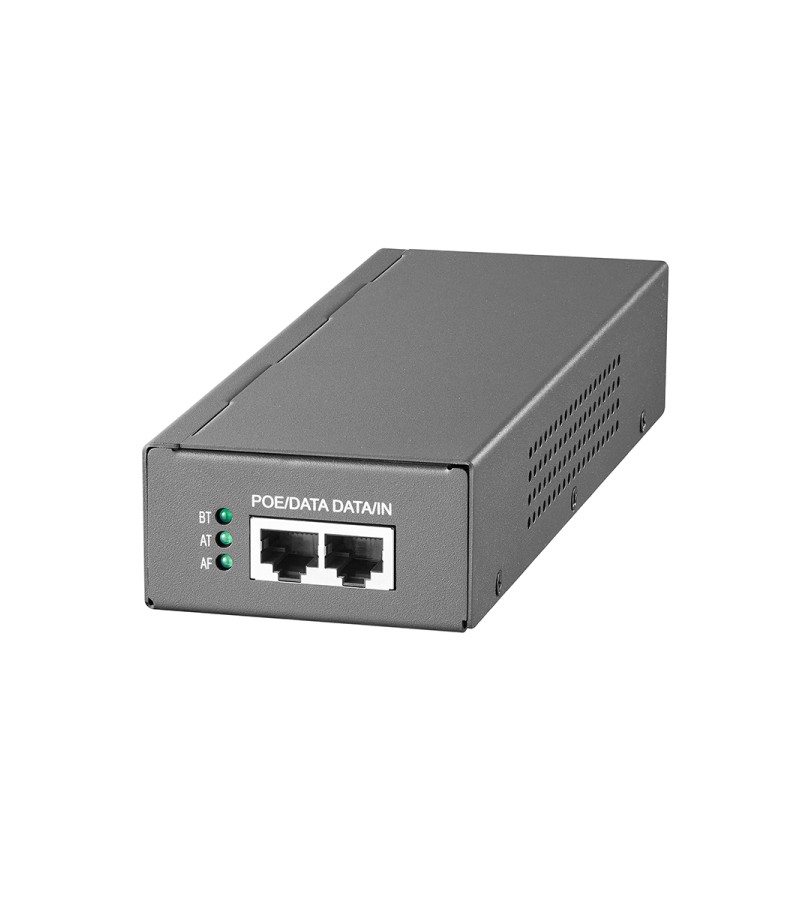

| LED Indicator | System Indicator: AC Power User Indicator: Channel Power |
| Structure Size | Product Dimensions: 114mmx47mmx32mm Product N.W: 0.55KG |

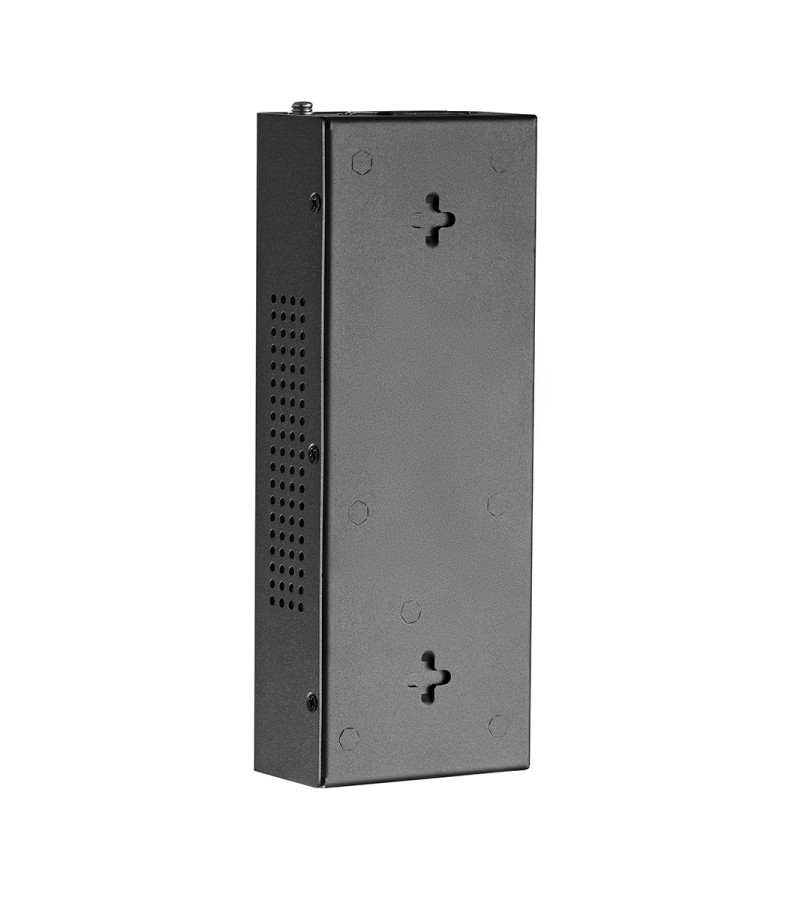

| Installation | Desktop/Wall Mount |

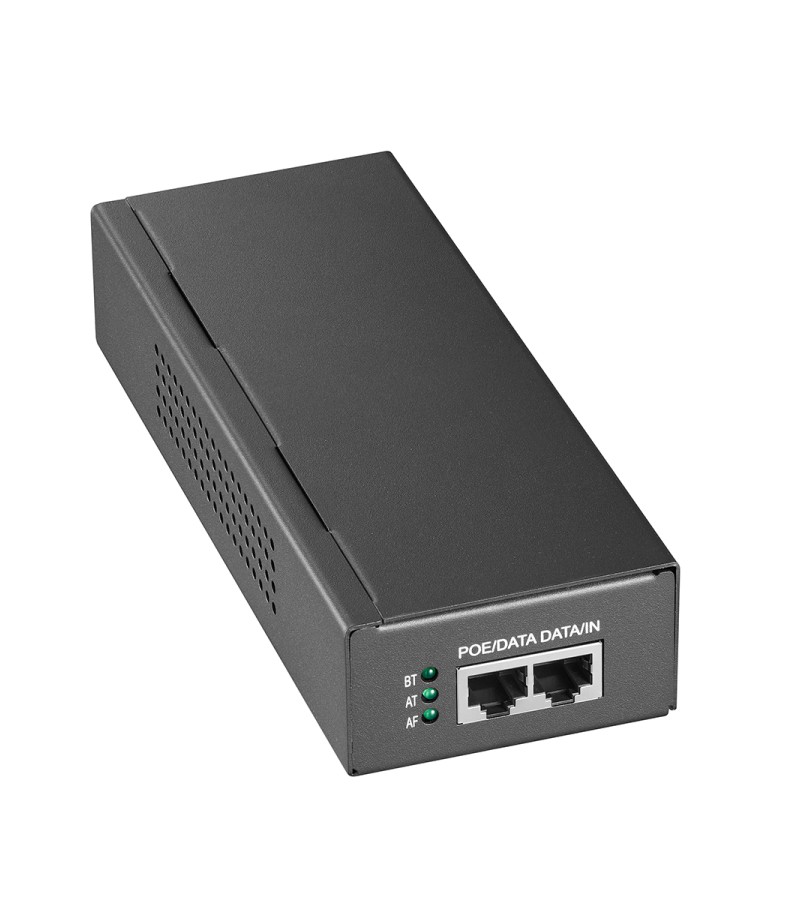

| Shell | Black Color, Metal Shell |

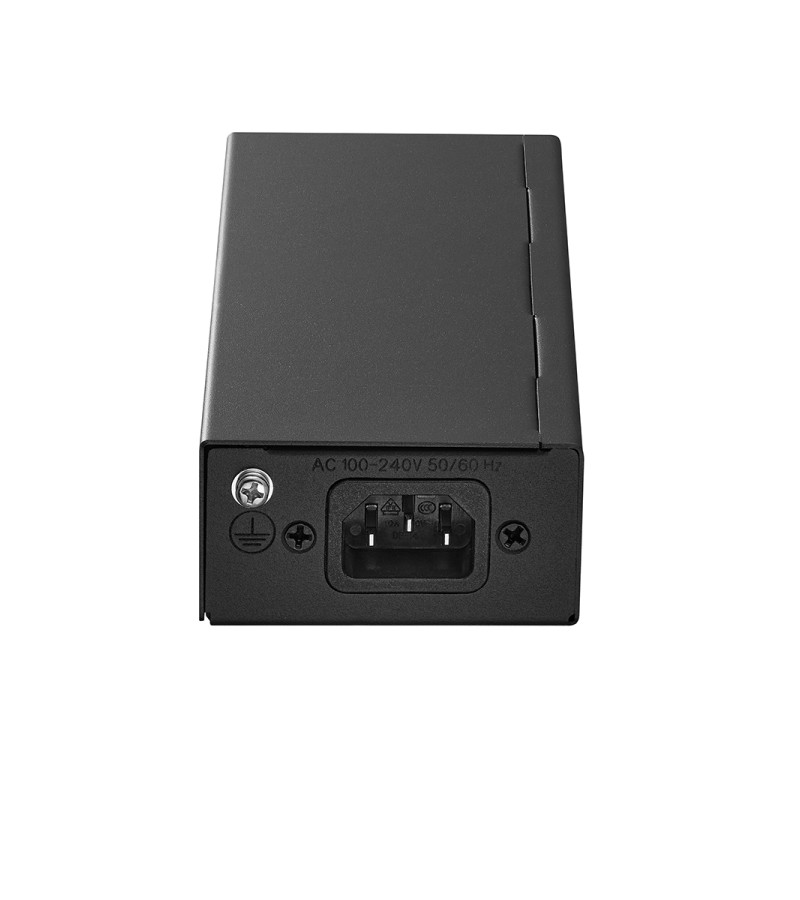

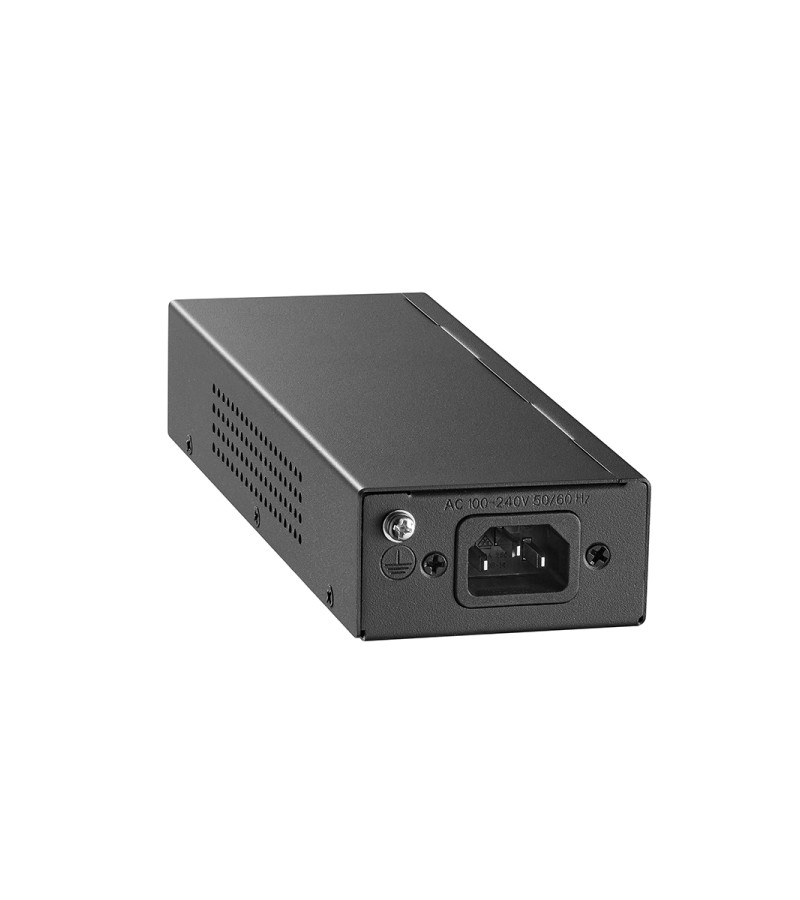

| Power Voltage | AC Input Voltage: 100 to 240 Vac AC Input Current: 1.2 A 100-240 Vac AC Frequency: 50 to 60 Hz |
| Package List | PoE Injector 1pcs, manual 1pcs, Power cable 1pcs |
