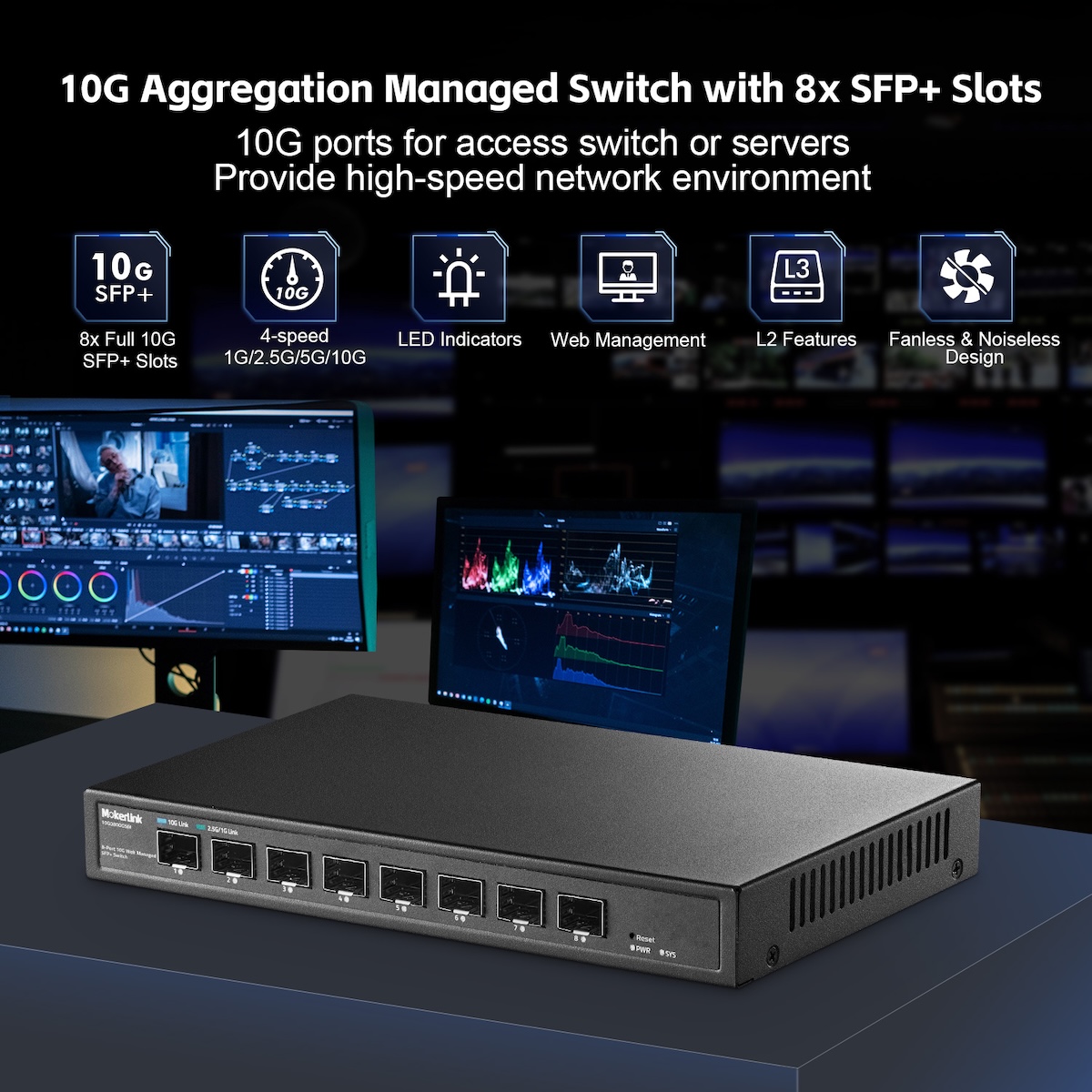

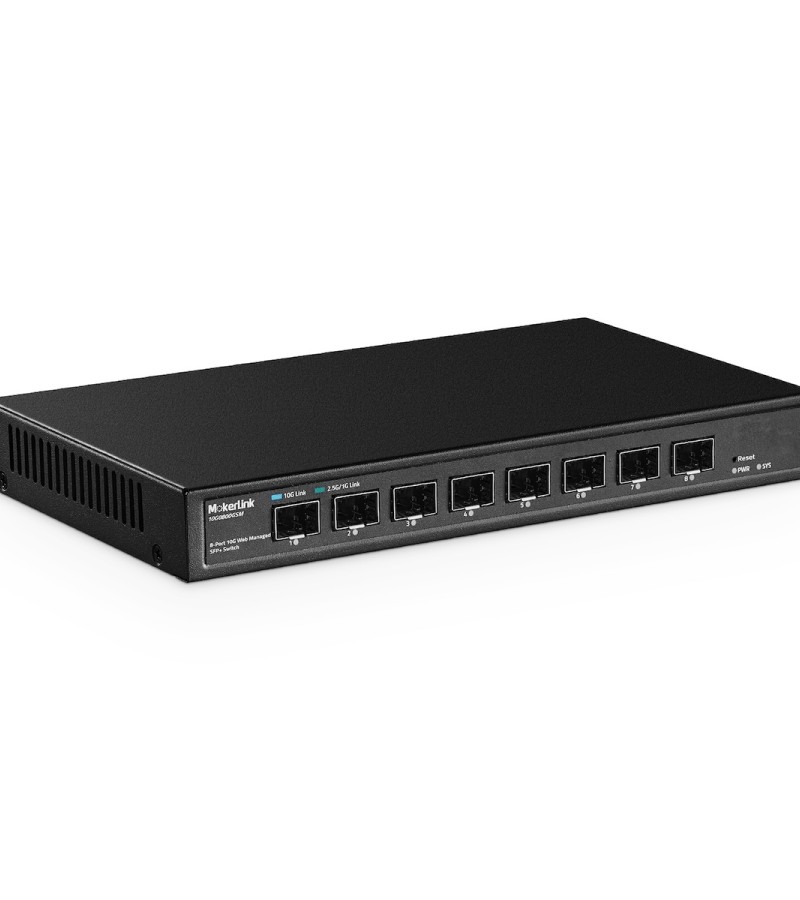

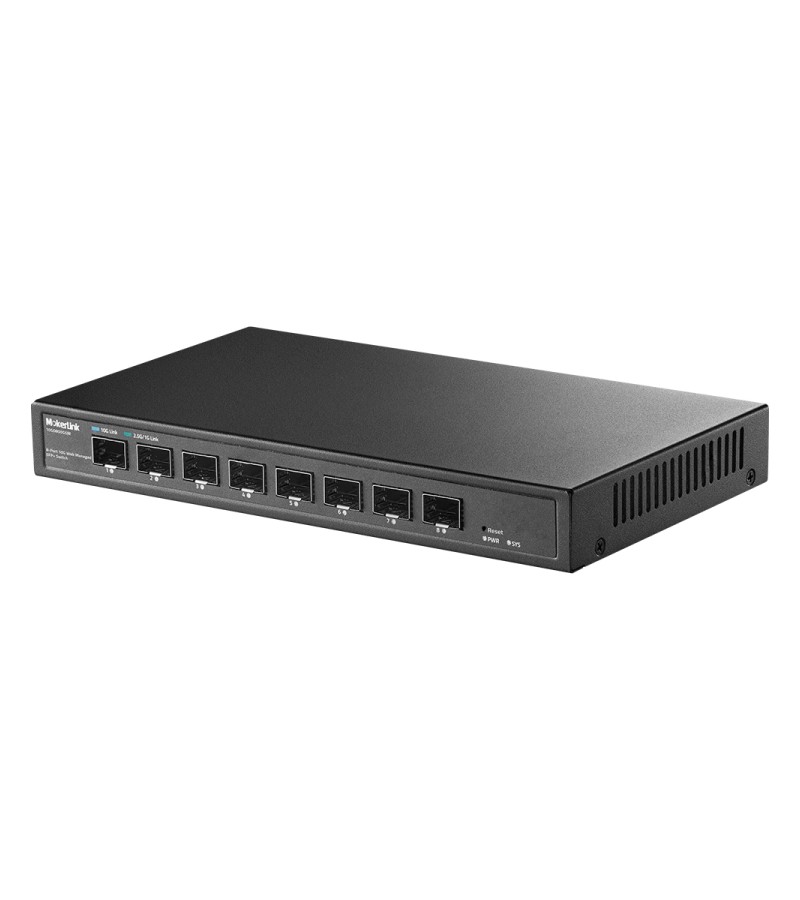

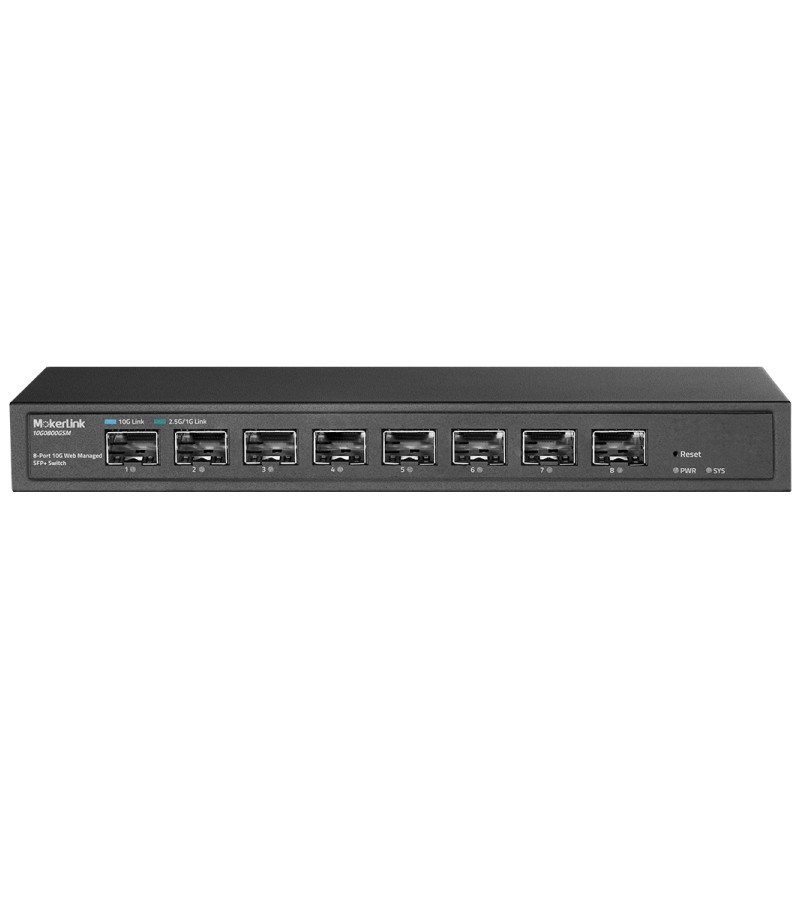

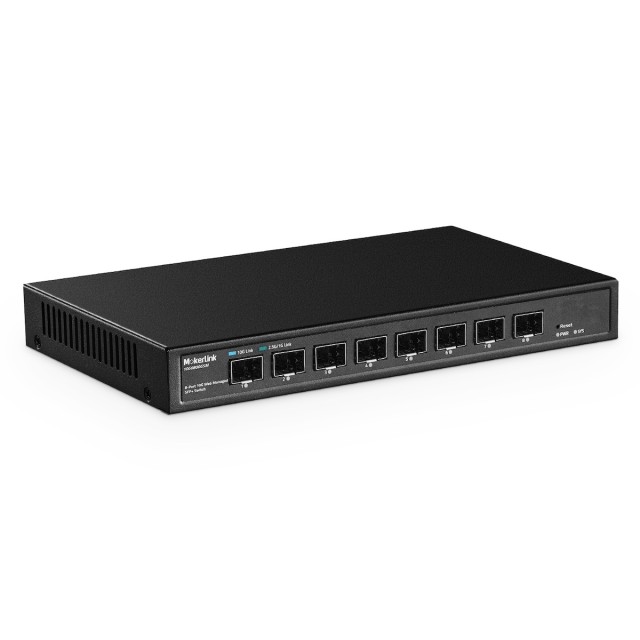

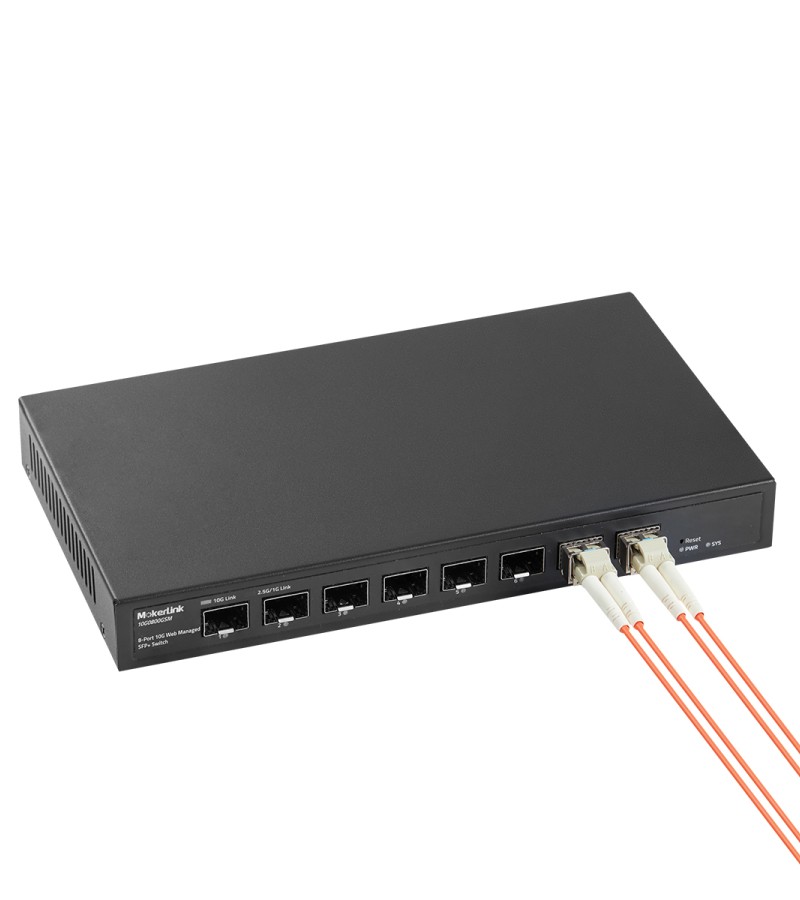

MokerLink 8 Port 10Gbps SFP+ Managed Switch, Support 1G/2.5G/10G SFP Module, 160Gbps Bandwidth, Metal Fanless Web Managed Network Switch

8 x 10Gbps open SFP+ slots, support 1G/2.5G/10G sfp modules,160Gbps Bandwidth. Support web managed and various L2 configurations: such as VLAN, QoS, security, multicast, MAC address table, diagnosis, etc. Suitable for high-speed and long-distance fiber transmission

$199.00 Price drop reminder
  • Brand: MokerLink
  • Product Code: 10G0800GSM
  • Availability: In Stock

Total $199.00

【Product overview】

8 port 10G SFP Web Managed Ethernet Switch Adopting high-quality and high-speed network chip solutions, with all 10G SFP+ ports and smoother line speed forwarding, equipped with 8* 10G SFP+ ports, supporting speeds of 1.25G/2.5G/10G,By adopting a storage and forwarding mechanism and integrating high-capacity cache internally, it ensures that all ports can achieve 10 Gigabit non blocking line speed forwarding, adapting to more unexpected situations. Steel shell design, efficient and stable heat dissipation, all steel shell structure, sturdy and durable, high strength, efficient heat dissipation, ensuring stable product operation. This switch can be widely used in areas such as security network video surveillance, hotels, campuses, and network engineering for medium and large enterprises.



【Main Feature】

  • Supports 8* 10G SFP+ ports;
  • Supports IEEE802.3、IEEE802.3u,IEEE802.3x,IEEE802.3ab,IEEE802.3z;
  • Ethernet ports support 1.25G/2.5G/10G self- adaptive;
  • Support port Auto MDI/MDIX;
  • Adopting a storage and forwarding exchange mechanism;
  • All ports support line speed switching;
  • Panel indicator lights monitor working status and help failure analysis;
  • Support QoS data priority;
  • Support web management;



【Application environment】

  • Metropolitan area optical fiber broadband network: Telecom, cable TV, network system integration, such as number, according to network operators.
  • Broadband private network: applicable to financial, government, oil, electric power, public security, education and other industries private network.
  • Multimedia transmission, image, voice and data integrated transmission, for remote teaching, meeting TV, video phone and other applications.
  • Real-time monitoring: real-time control signal, image and data transmission.



Ask Question About Product

Note: HTML is not translated!
Ethernet Switch Hardware Specifications
Product Model10G0800GSM
Product Name8-Port 10G Web Management Ethernet Switch
Ethernet Port8* 10G SFP+ ports
Switching Capacity160Gbps
Throughput119.04Mpps
Packet Buffer16MB
Flash Memory 16MB
DDR SDRAM128MB
MAC Address16K
Jumbo Frame12Kb
Transfer ModeStore and forward
VLANsVLAN range 1-4094, maximum active VLAN is 4K
Network protocol IEEE802.3 (Ethernet) IEEE802.3u (Fast Ethernet) IEEE 802.3ab (Gigabit Ethernet) IEEE 802.3z (Gigabit Ethernet fiber standard) IEEE 802.3ae (10G Ethernet) IEEE802.3x (Flow control)
Industry StandardEMI: FCC Part 15 CISPR (EN55032) class A EMS: EN61000-4-2 (ESD), EN61000-4-5 (Surge)
Network MediumMulti-mode Fiber: 50/125, 62.5/125, 100/140um Single-mode Fiber: 8/125, 8.7/125, 9/125, 10/125um
Transmission DistanceMulti-mode Fiber: 50/125, 62.5/125, 100/140um Single-mode Fiber: 8/125, 8.7/125, 9/125, 10/125um
Lighting ProtectionESD: air 8KV, Contact 6KV, Class B.
Working EnvironmentWorking temperature: - 10~50 ° C Storage temperature: - 40~70 ° C Working humidity: 10%~90%, non-condensing Storage humidity: 5%~95%, non-condensing

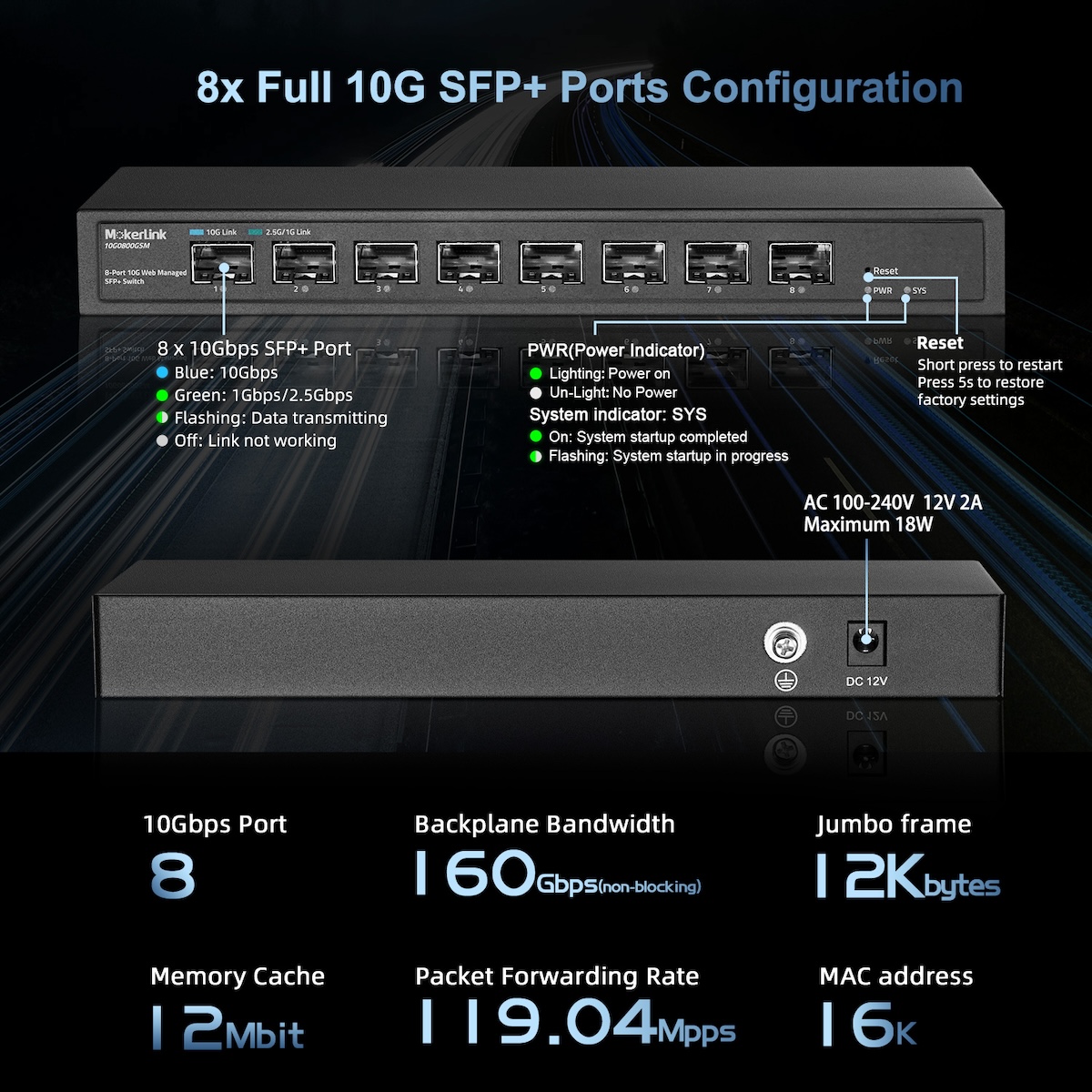

LED IndicatorPWR On: Powered on, Off: Powered off. SYS On: System normal, Flashing: System startup. 10G (Blue Light) On: Link connect normal, Flashing: Data transmitting, Off: Link off. 2.5G/1G (Green Light) On: Link connect normal, Flashing: Data transmitting, Off: Link off. Reset Long press for 6 seconds to restore factory settings
Structure SizeProduct Size: 220*126*28mm Package Size: 259*228*60mm Product Net-Weight: 0.62KG Product Gross-Weight: 0.86KG
InstallationDesktop
ShellBlack Color, Metal Shell
Power VoltagePower Adapter: 12V/2A, Maximum 18W
Package ListSwitch: 1 Set, Instruction manual: 1 PC, Certificate: 1 PC, Power cord: 1 PC Serial cable: 1 PC, Rack ear: 1 Pair
Software FunctionL2 Feature: VLAN, QoS, Trunk, STP/RSTP, IGMP, etc.
