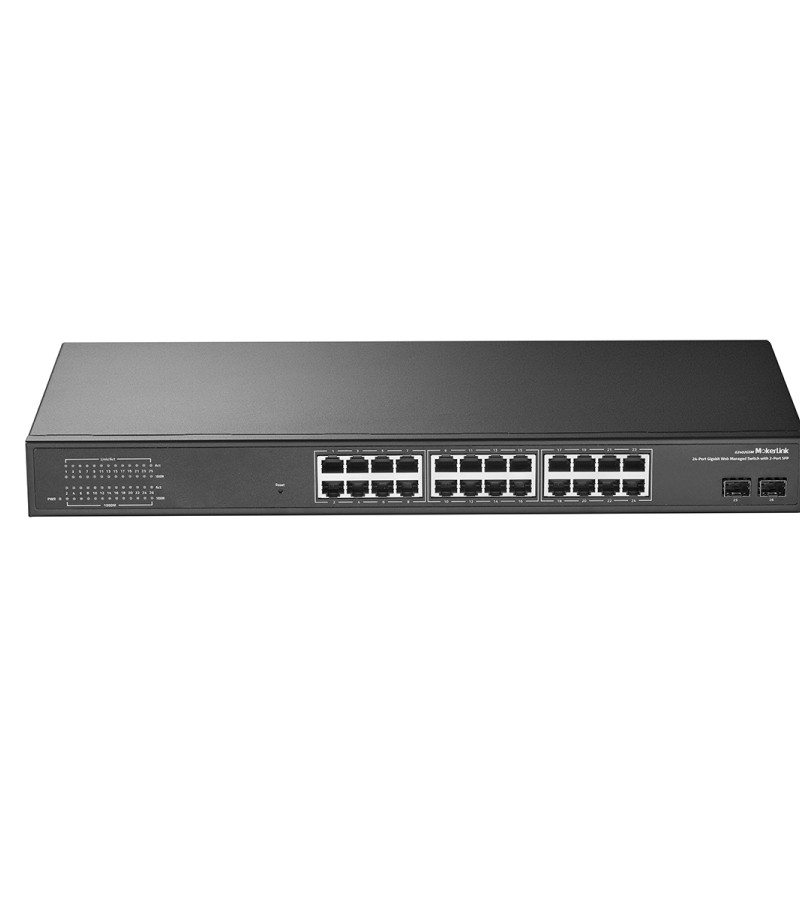

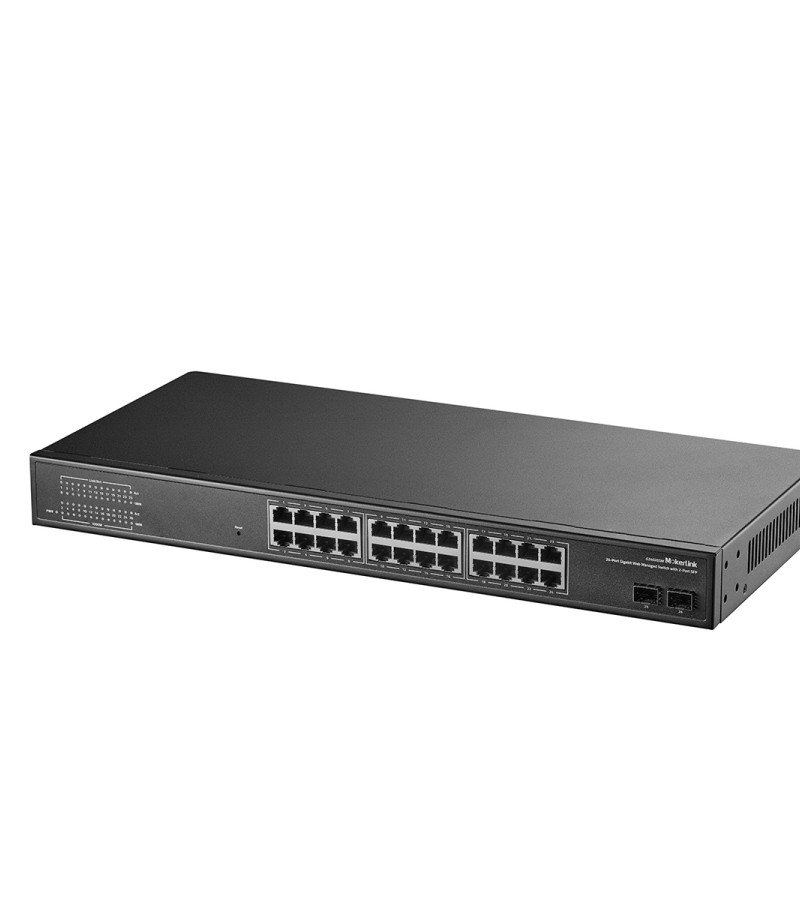

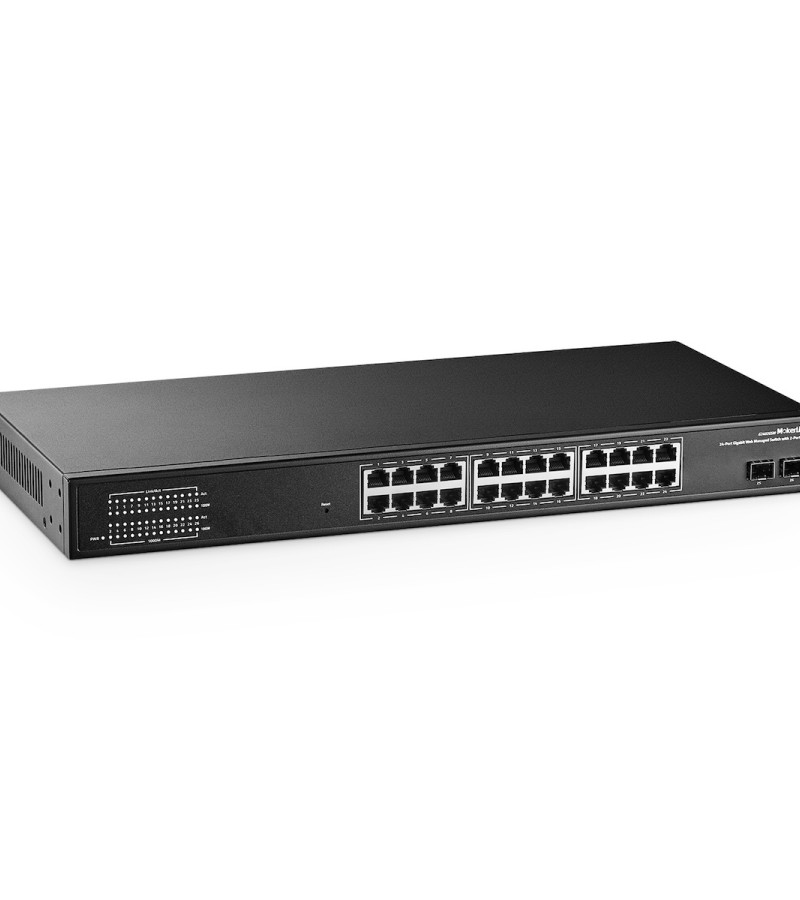

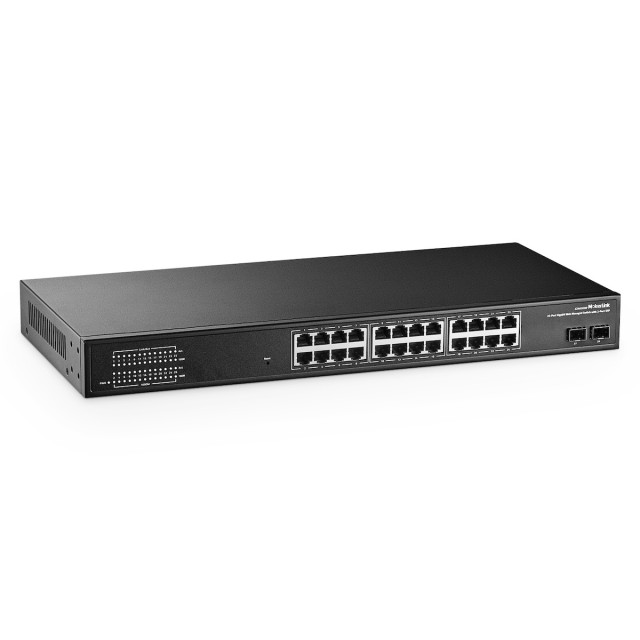

MokerLink 26 Port Gigabit Managed Switch, 24 Port GE, 2 x 1G SFP, L2+ Smart Web Managed, Rackmount Fanless, QoS Vlan IGMP and Static Routing
24x1G ethernet ports and 2x1G SFP UupLink ports. Switching capacity is 52 Gbps, Support web managed and L2 features, widely used in building/enterprise/business/data/broadband/access and converge Network.
$105.99
Price drop reminder
- Brand: MokerLink
- Product Code: G2402GSM
- Availability: In Stock
【Introduction】
The 26 port fully gigabit light network managed switch adopts high-quality and high-speed network ICs, and this product completely solves the problem of noise of small switches in the office environment through the fanless mute design. This switch has 24 Gigabit RJ45 ports and 2 1000M SFP ports , can provide seamless connection for 10/100/1000M Ethernet, supports three working modes, one-key smart simple switching working mode, easy to manage and maintain, the product can be widely used in Security network video surveillance, hotel, campus, small and medium-sized enterprise network engineering and other occasions.
【Main Features】

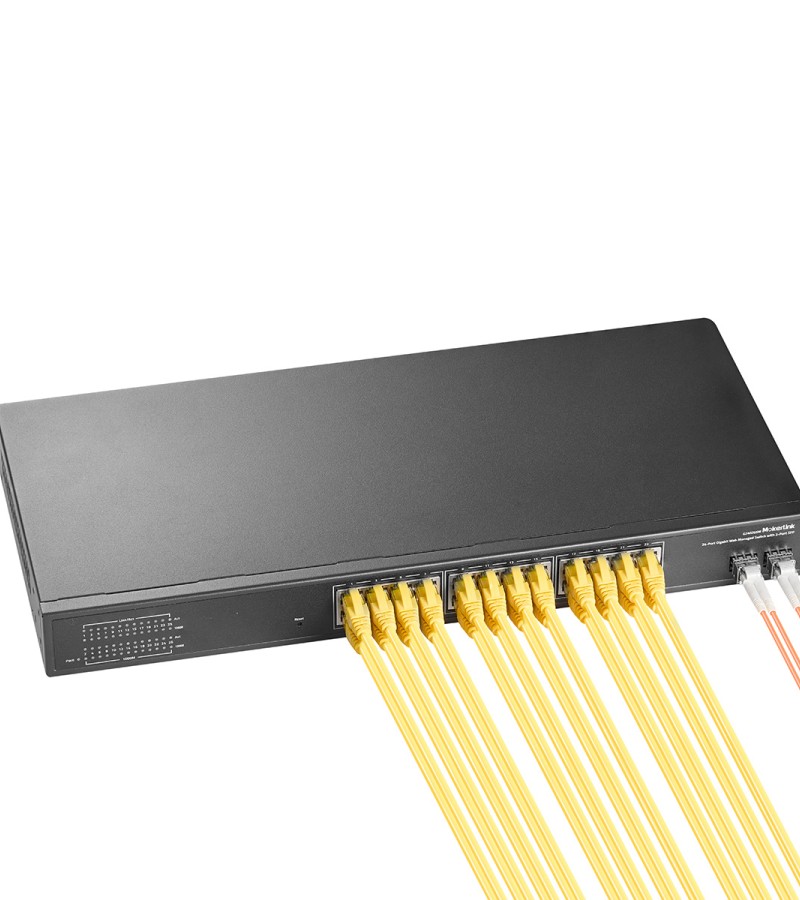

- 24*10/100/1000M RJ45 Ports+2*1000M SFP Ports
- Comply with IEEE 802.3, IEEE 802.3u,IEEE802.3ab,IEEE802.3z standards
- Ethernet port 10/100/1000M rate auto adaptive
- Flow control mode: full-duplex adopts IEEE 802.3x standard, half-duplex adopts Back pressure standard
- Support Port Auto-flip (Auto MDI/MDIX）
- Panel indicators to monitor working status and help fault analysis
- Support QoS data priority
- Surge Protection: General 6KV（level B）, ESD 8KV air, 6KV contact（level C）
【Application Environment】
- Metro Optical Broadband Network: Data network operators such as telecommunications, cable TV, and network system integration,etc.
- Broadband private network: Suitable for financial, government, oil, railway, electric power, public security, transportation, education and other industries
- Multimedia transmission: Integrated transmission of images, voice and data, suitable for remote teaching, conference TV, videophone and other applications
- Real-time monitoring: Simultaneous transmission of real-time control signals, images and data
Ask Question About Product
Note: HTML is not translated!
| Ethernet Switch Hardware Specifications | |
| Product Model | G2402GSM |
| Product Name | MokerLink 24 Port Gigabit Web Managed Switch with 2 Port SFP |
| Ethernet Port | 24*10/100/1000Mbps RJ45 Ports 2*1000M SFP Ports |
| Switching Capacity | 52Gbps |
| Throughput | 38.68Mpps |
| Packet Buffer | 4Mbit |
| MAC Address | 8K |
| Jumbo Frame | 9216Kbytes |
| Transfer Mode | Store and forward |
| Mean Time Between Failure | 100000 hour |
| VLANs | VLAN range 1-4094, with a maximum active VLAN of 31 |
| Network protocol | IEEE802.3 (10Base-T) IEEE802.3u (100Base-TX) IEEE802.3ab(1000Base-TX) IEEE802.3z(1000Base-FX) IEEE802.3x (Flow control) |
| Industry Standard | EMI: FCC Part 15 CISPR (EN55032) class A EMS: EN61000-4-2 (ESD)、EN61000-4-4 (EFT)、EN61000-4-5 (Surge) |
| Network Medium | 10Base-T : Cat3、4、5 or above UTP(≤100m) 100Base-TX : Cat5 or above UTP(≤100m) 1000Base-TX : Cat5 or above UTP(≤100m) |
| Fiber Medium | Multimode fiber : 50/125, 62.5/125, 100/140μm Single mode fiber: 8/125, 8.7/125, 9/125, 10/125μm |
| Lighting Protection | General 6KV（level B）, ESD 8KV air, 6KV contact（level C） |
| Security Certificate | CE、FCC、RoHS |
| Working Environment | Working Temperature：-10~50°C Storage Temperature：-40~70°C Working Humidity ：10%~90%，non-condensing Storage Temperature：5%~95%，non-condensing |
| LED Indicator | PWR(power supply) Lighting: Powered, Un-Light：No Power, Link/Act(1-26) Lighting：Connecting, Flashing：Data Transmit, Un-Light：Disconnect, 1000M(1-26) Lighting：1000M Link Connecting, Un-Light: 10/100M Link Connecting or Disconnect, Reset Long press for 6 seconds to restore factory settings |
| Structure Size | Product Dimension : 440*204*44mm Package Dimension : 500*290*85mm N.W：2.36kg G.W：2.93kg |
| Installation | 1U Rack Mount |

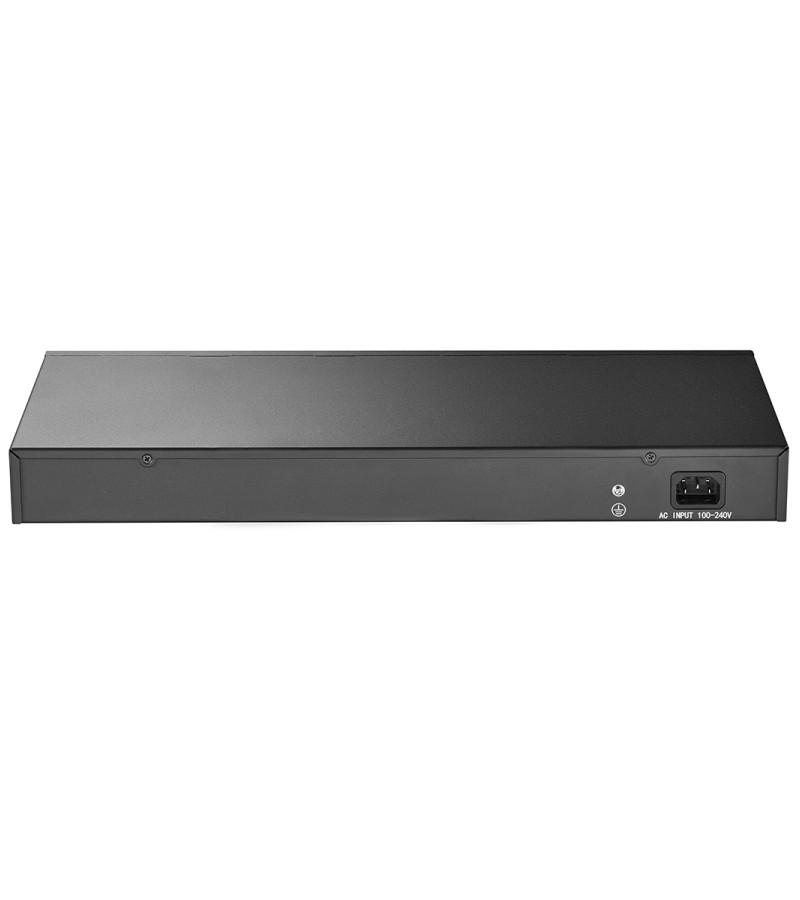

| Power Voltage | Input: AC 100-240V, 50/60Hz Input Voltage ：AC 100-240 V 50/60Hz, Power supply: 12V 2A, Maximum 20W |

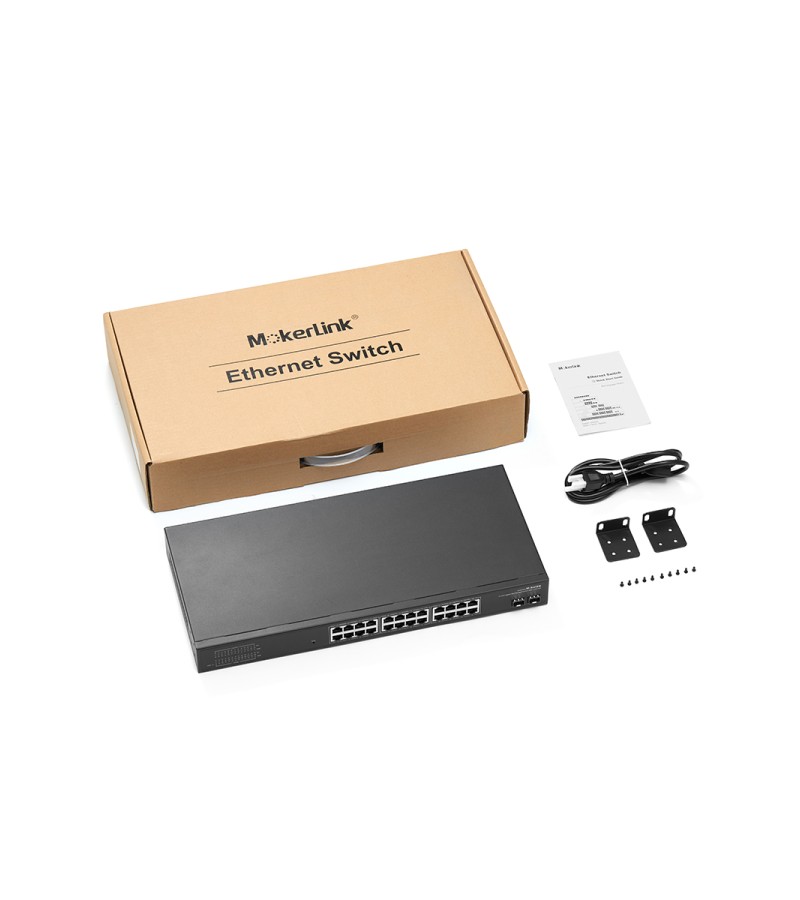

| Package List | Switch 1 pcs, Power cord 1 pcs, User manual 1 pc, Certification 1 pc, Brackets 1 pair |
| Software Function | L2 Software function |
