MokerLink Outdoor 3 Port Gigabit PoE Extender, IEEE 802.3 af/at/bt PoE Repeater 90W, 10/100/1000Mbps, 1 PoE in 2 PoE Out, Wall Mount IP67 Waterproof POE Passthrough Switch

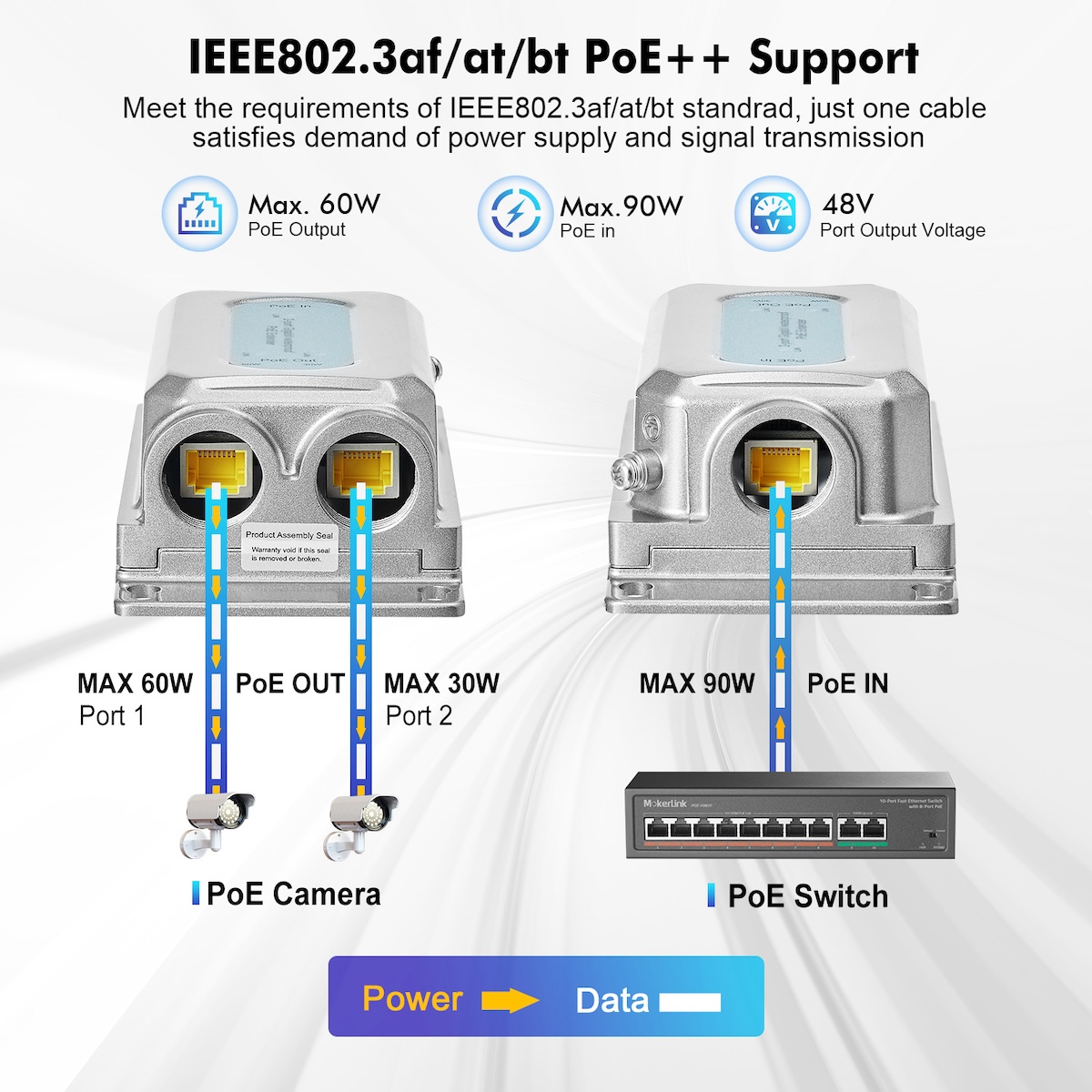

1 PoE in and 2 PoE out, 10/100/1000Mbps. PoE transmission distance up to 100 meters. IP67 outdoor weatherproof, IEEE 802.3 af/at/bt support, Input Max 90W IEEE802.3 bt, Port 1 Output Max 60W IEEE802.3 bt, Port 2 Output Max 30W IEEE802.3at. PoE Voltage 44-57 Vdc. PoE pin: Input, 1/2 (+), 3/6 (-), 4/5(+), 7/8(-); Output: 1/2 (+), 3/6 (-), 4/5(+), 7/8(-). Unmanaged Plug & Play, Support 3-level cascading, can connect poe AP, camera, phone and other POE devices.
$99.99
Price drop reminder
- Brand: MokerLink
- Product Code: POE-102GBTO
- Availability: In Stock

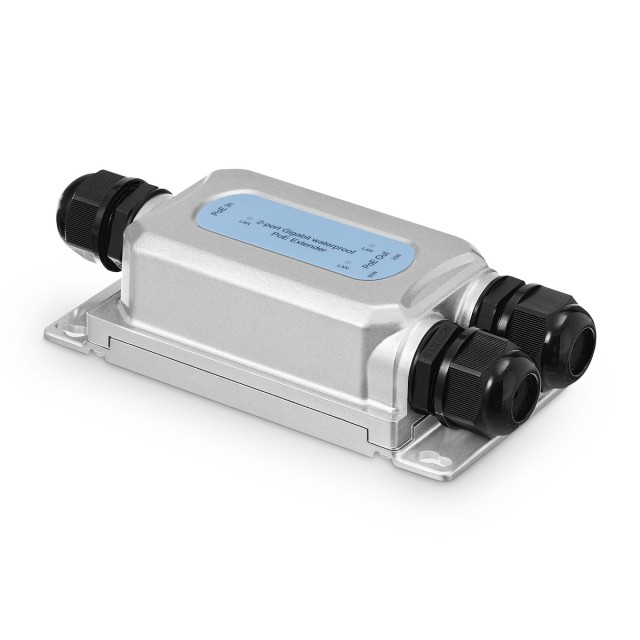

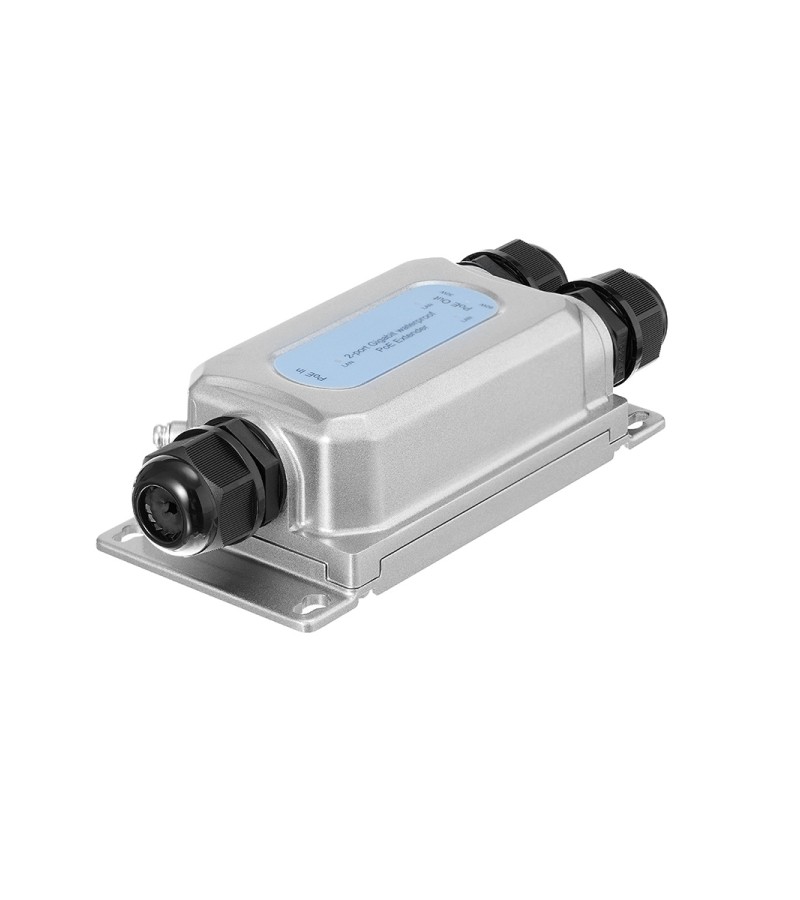

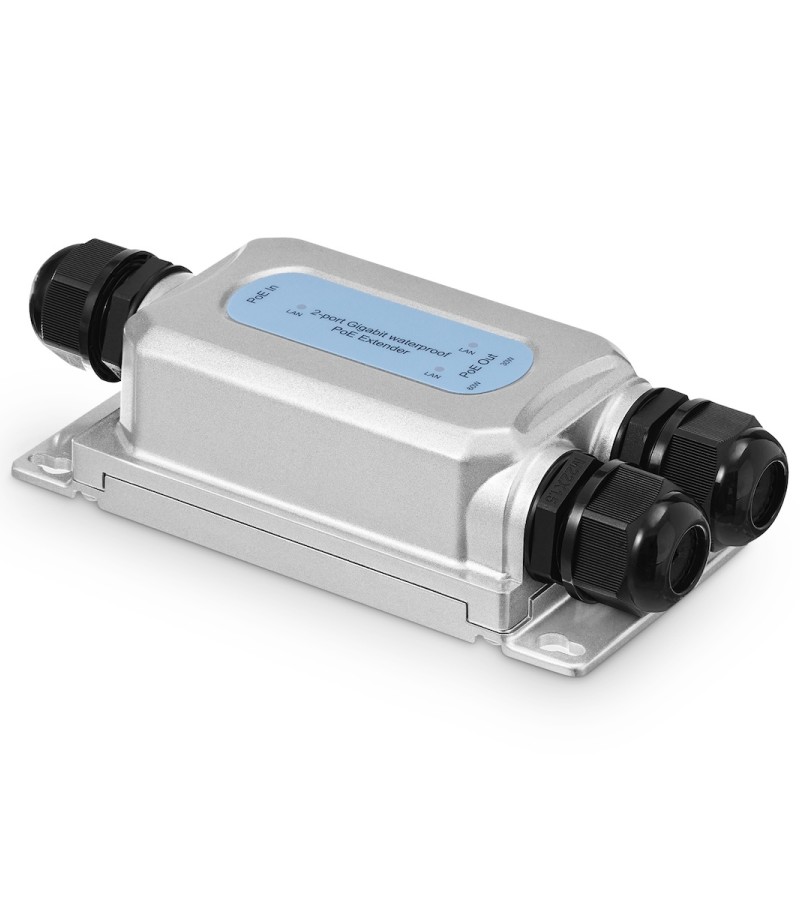

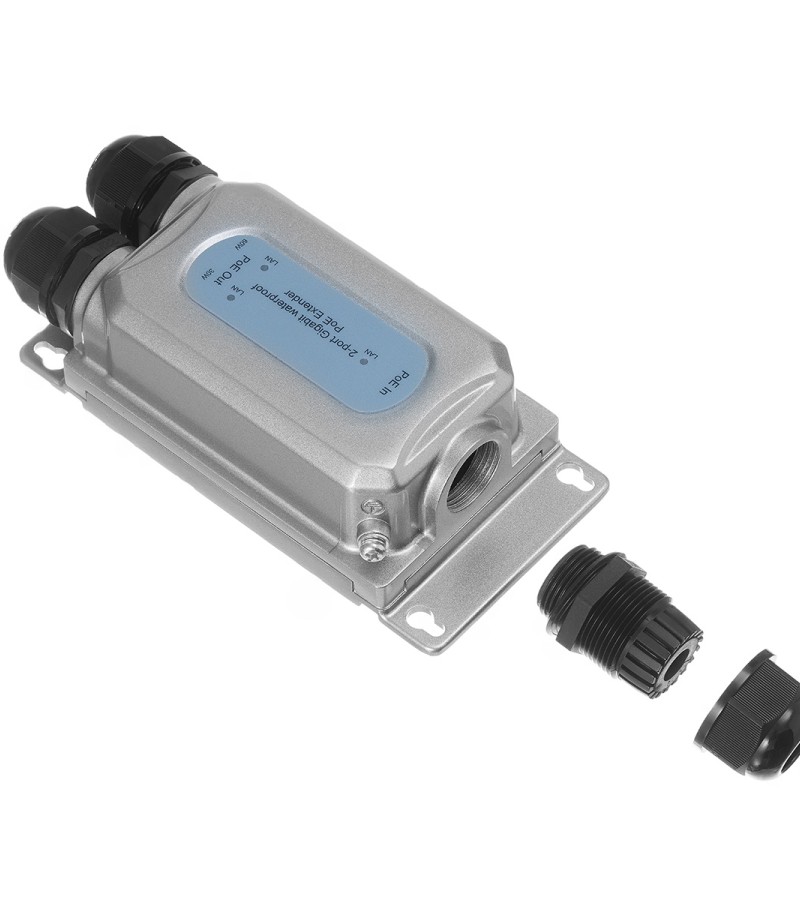

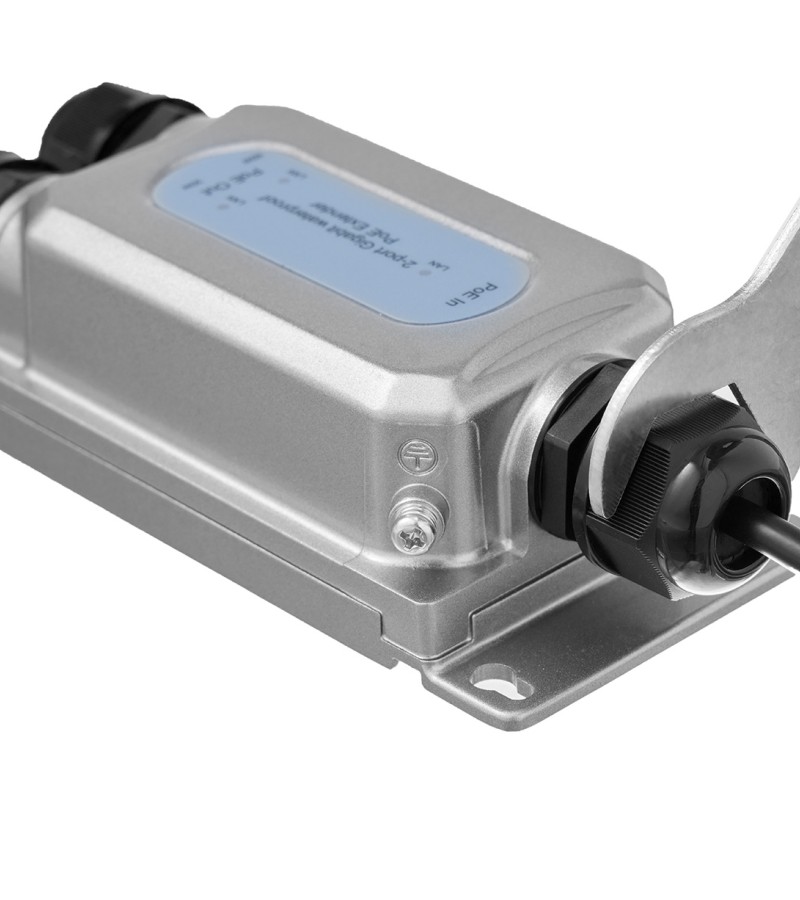

This Product is a Gigabit IP67 waterproof PoE extender independently. It supports one RJ45 (PD) port in and 90W input(IEEE802.3bt). Two ports have PSE function, each supporting up to 30W output, without configuration, plug and play.

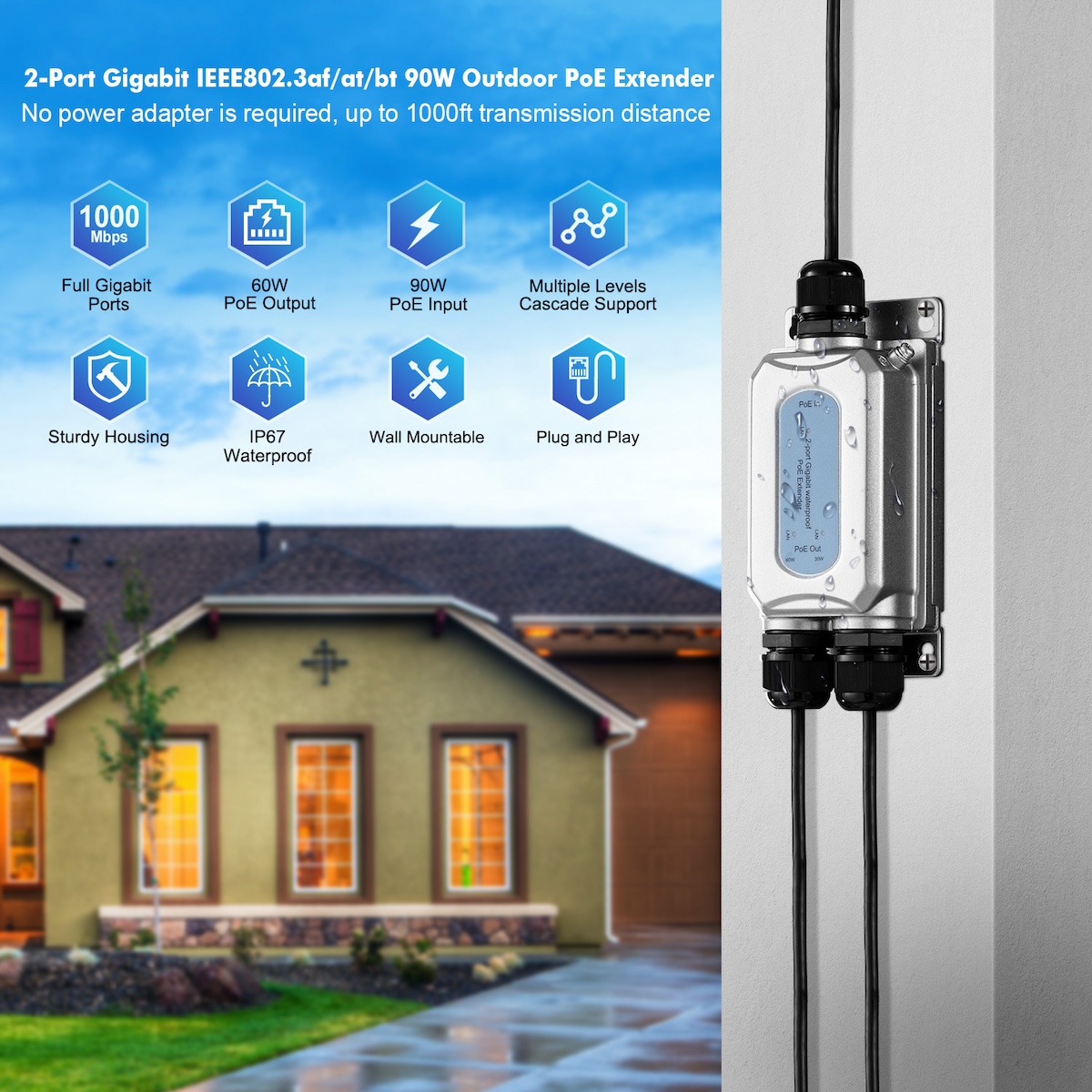

Professional room shell design, adapted to various harsh environments, with high stability, reliability, industrial level, wide temperature. The whole machine does not need power adapter, so it is convenient for harsh outdoor environment . reliable power for outdoor work AP, cameras etc.
Ask Question About Product
Note: HTML is not translated!
| Ethernet Switch Hardware Specifications | |
| Product Model | POE-102GBTO |
| Product Name | 2-port Gigabit waterproof PoE Extender |

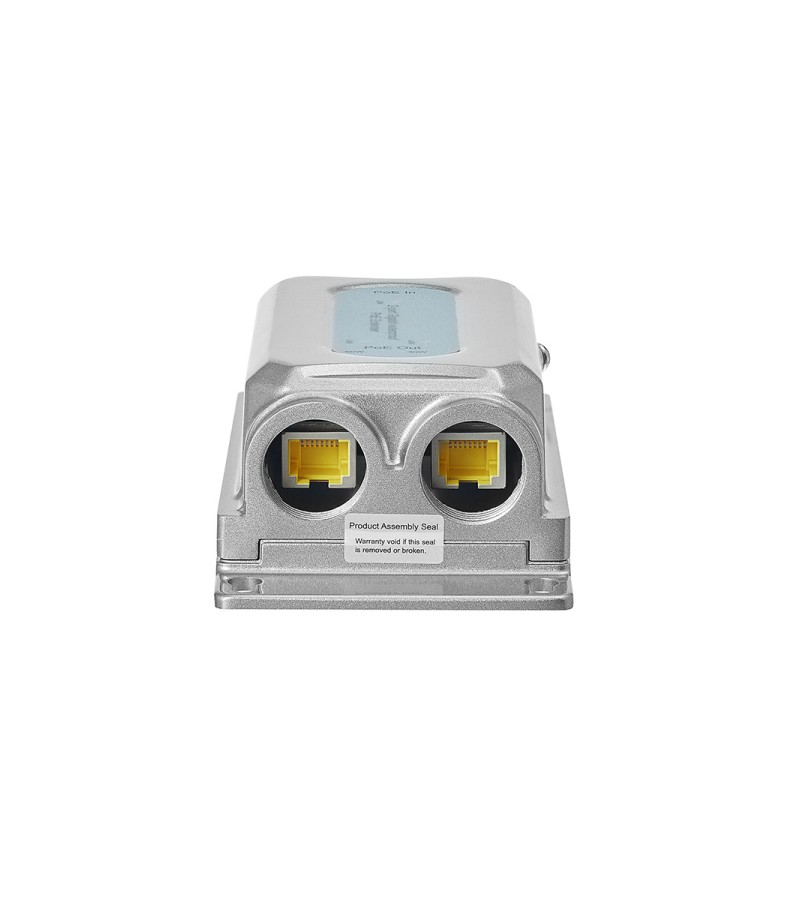

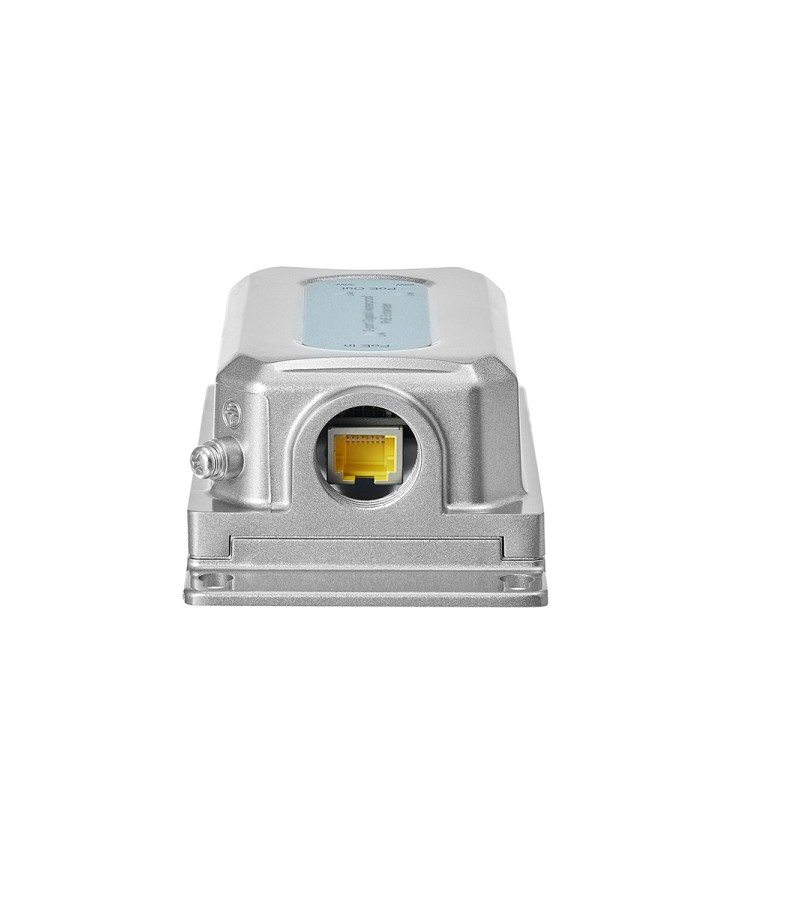

| Ethernet Port | PoE in port:1 x 10/100/1000Mbps RJ45 port PoE out port : 2 x 10/100/1000Mbps RJ45 port |
| Network protocol | IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at, IEEE802.3bt， IEEE802.3x |
| PoE Protocol | IEEE802.3af, IEEE802.3at, IEEE802.3bt |
| PoE Pin | 1/2 (+), 3/6 (-), 4/5(+), 7/8(- |
| PoE Power Budget | PoE input 90W Max |

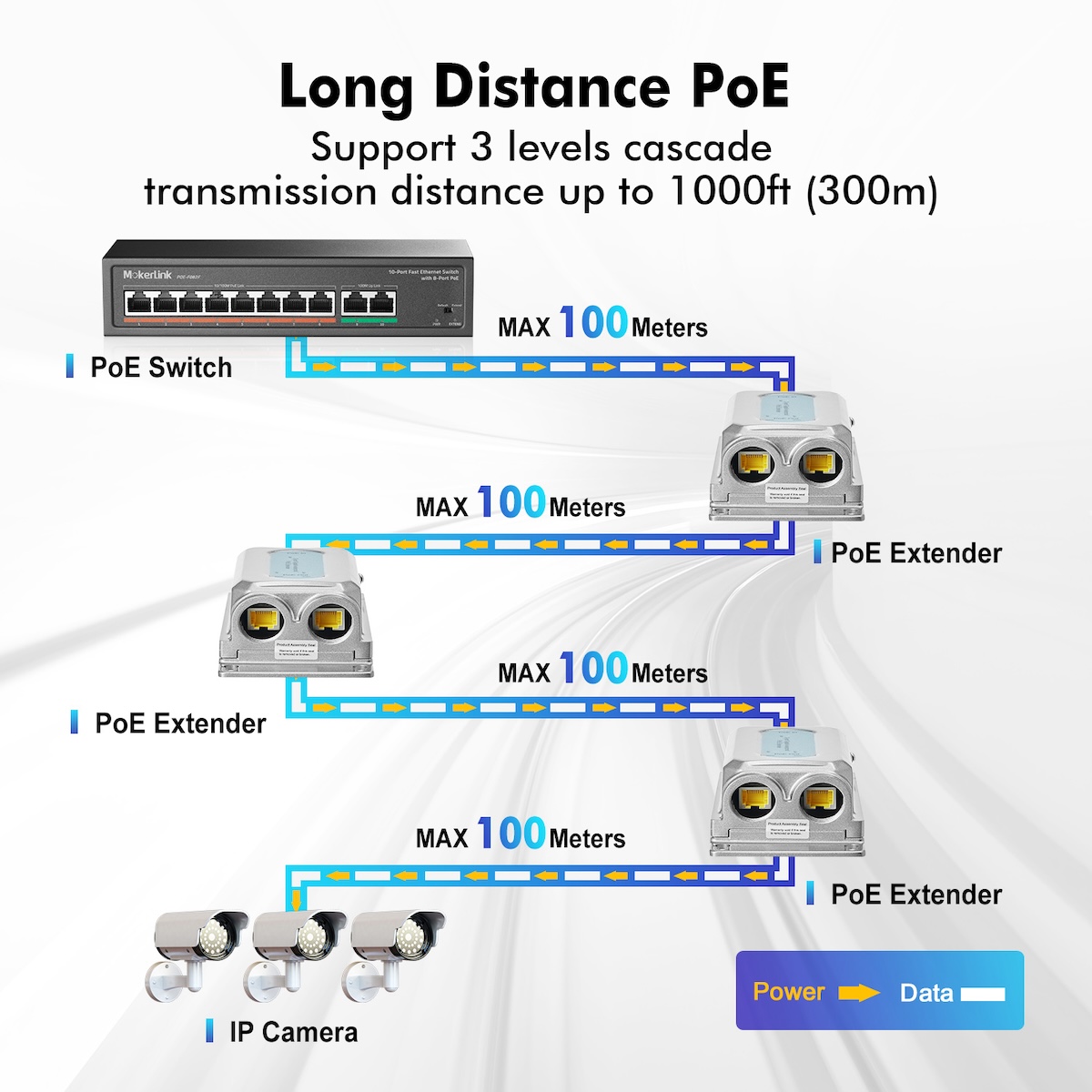

| Transmission Distance | Up to 1000ft(300m) ,support 3 level cascading |
| Working Environment | Operating Temperature: -20℃ ~ 60℃ Storage Temperature：-40℃ ~ 80℃, Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 90% non-condensing |
| Structure Size | 150*73*44MM |
| Shell | Metal |
