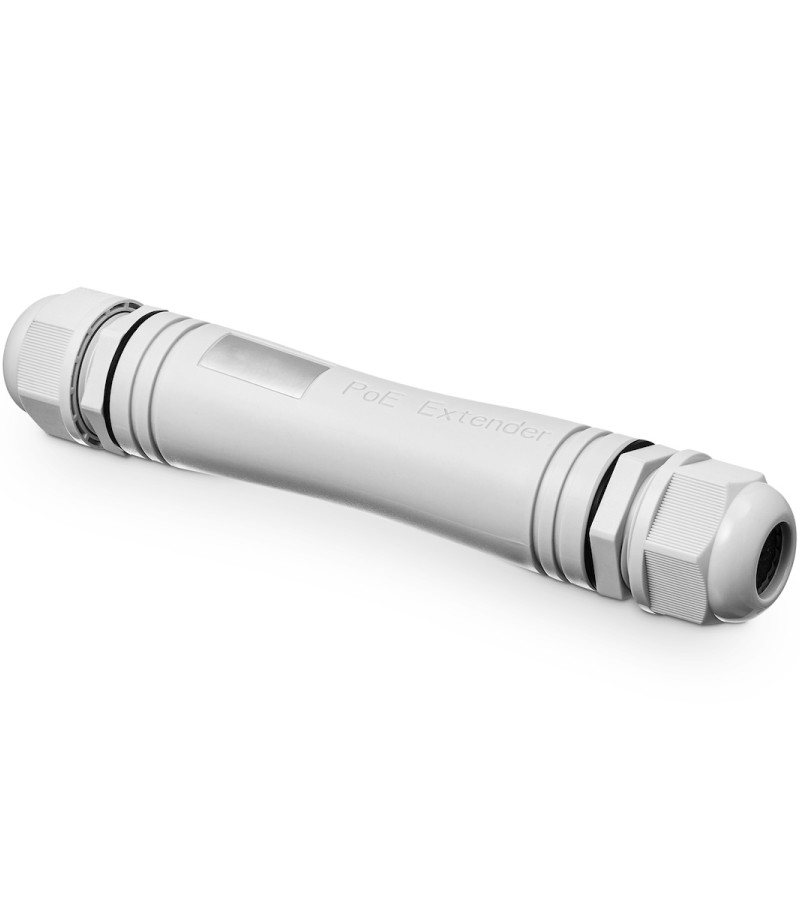

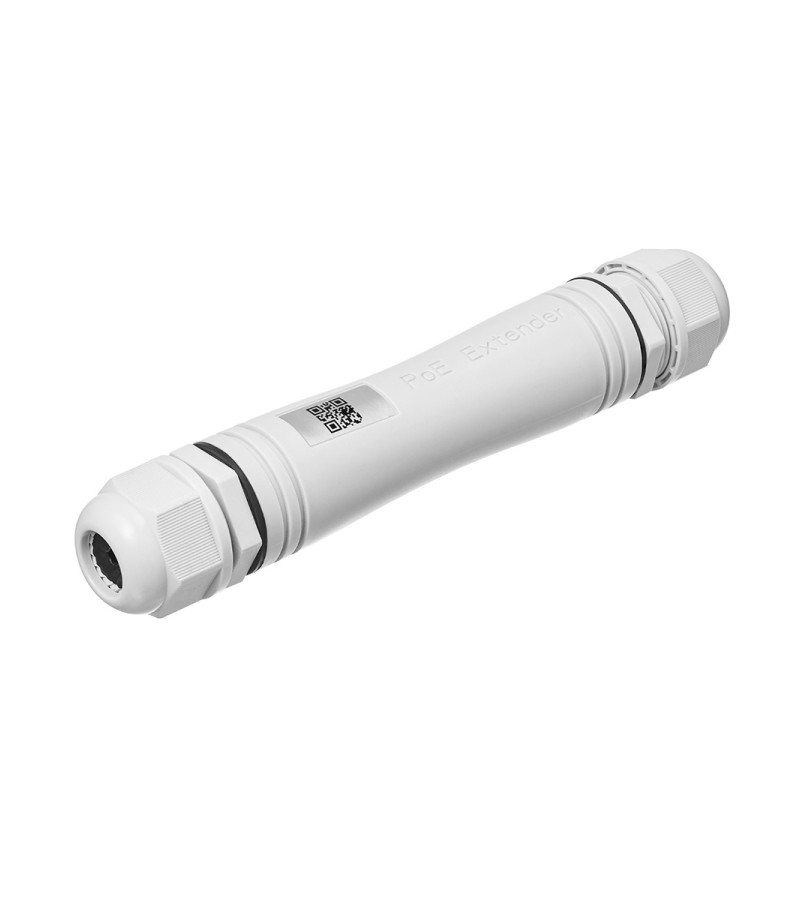

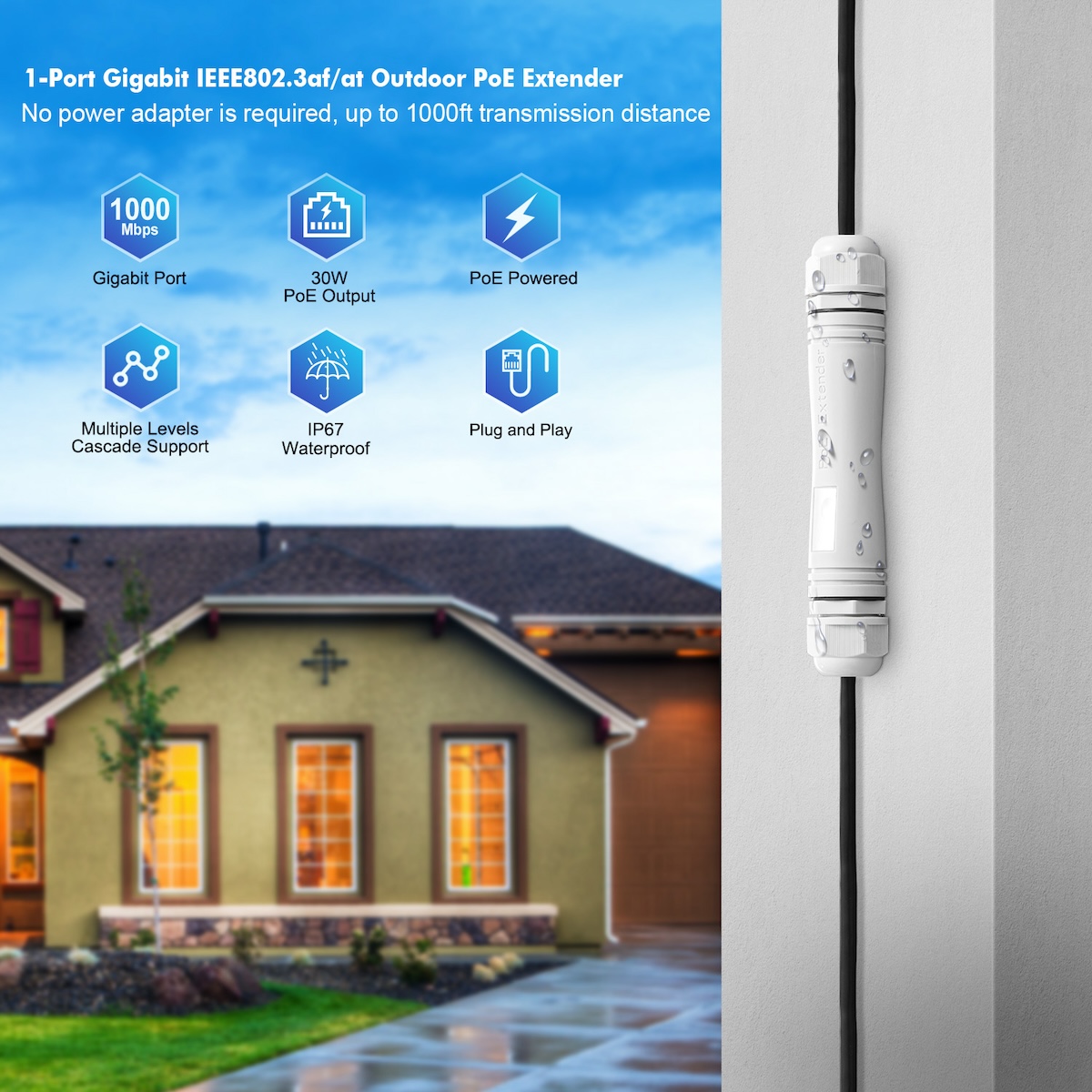

MokerLink Outdoor 2 Port Gigabit PoE Extender, IEEE 802.3 af/at PoE Repeater 30W, 10/100/1000Mbps, 1 PoE in 1 PoE Out, Wall Mount IP67 Waterproof POE Passthrough Switch
1 PoE in and 1 PoE out, 10/100/1000Mbps. IP67 outdoor weatherproof, IEEE 802.3 af/at support, Max 30W, PoE Voltage 44-57 Vdc. PoE pin: Input, 1/2 (+), 3/6 (-); Output: 1/2 (+), 3/6 (-). Unmanaged Plug & Play, No need for additional power adapter.
$58.99
Price drop reminder
- Brand: MokerLink
- Product Code: POE-101GAFO
- Availability: In Stock

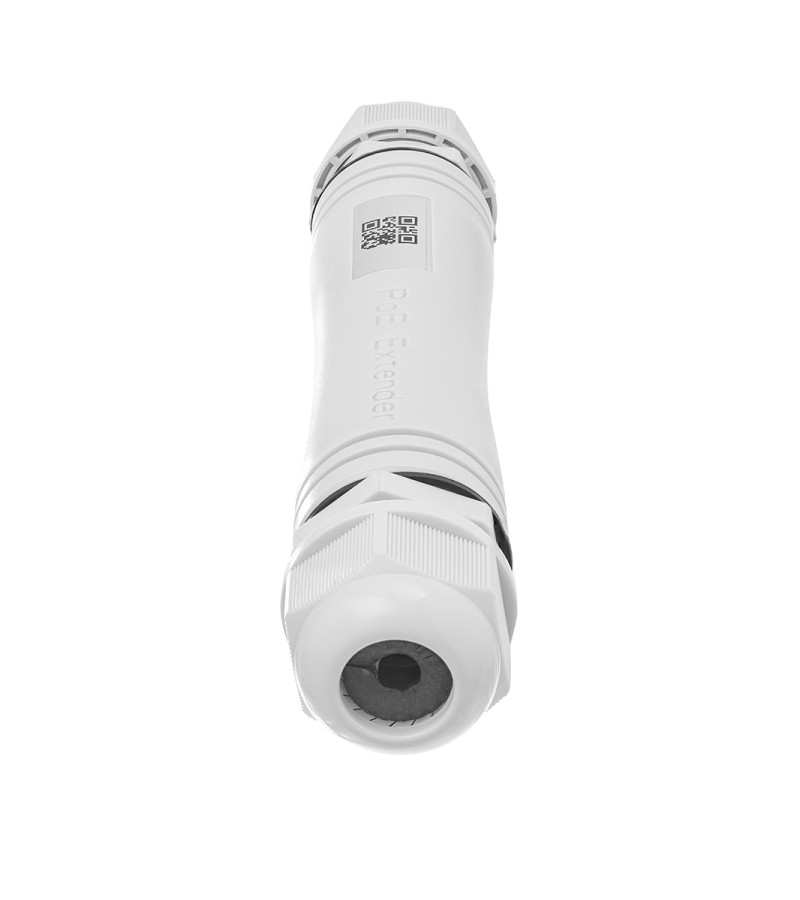

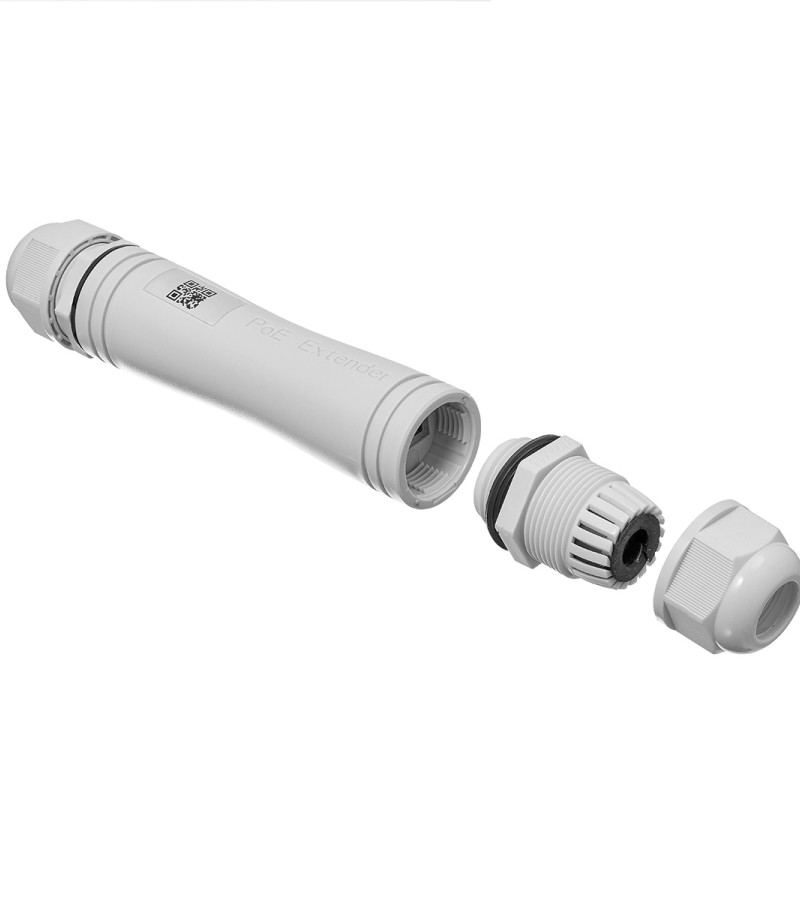

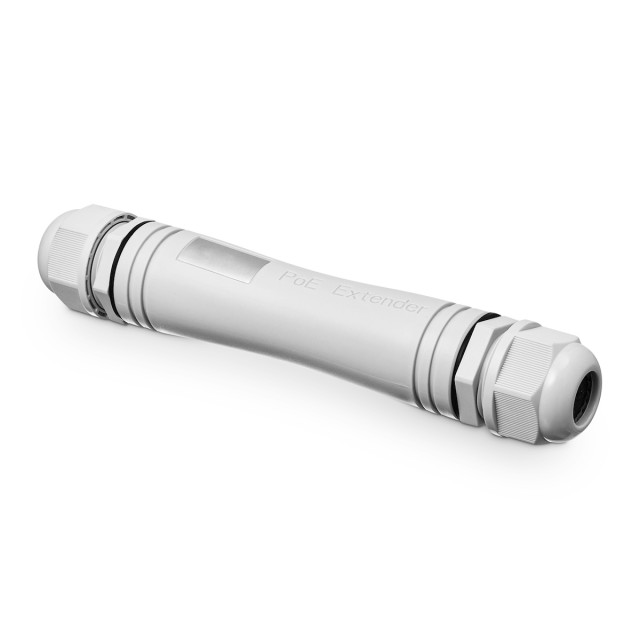

POE-101GAFO is a 30W single-port gigabit long-distance waterproof PoE extender, which provides two 10/100/1000Mbps RJ45 ports, the input port connects to the PSE device, and the output port connects to the IP terminal PD device. The two extenders can be used with a long range PoE switch to extend 10Mbps network data up to 720 meters. No configuration required, plug and play.
Ask Question About Product
Note: HTML is not translated!
| Ethernet Switch Hardware Specifications | |
| Product Model | POE-101GAFO |
| Product Name | 30W Gigabit Long-range Waterproof PoE Extender |

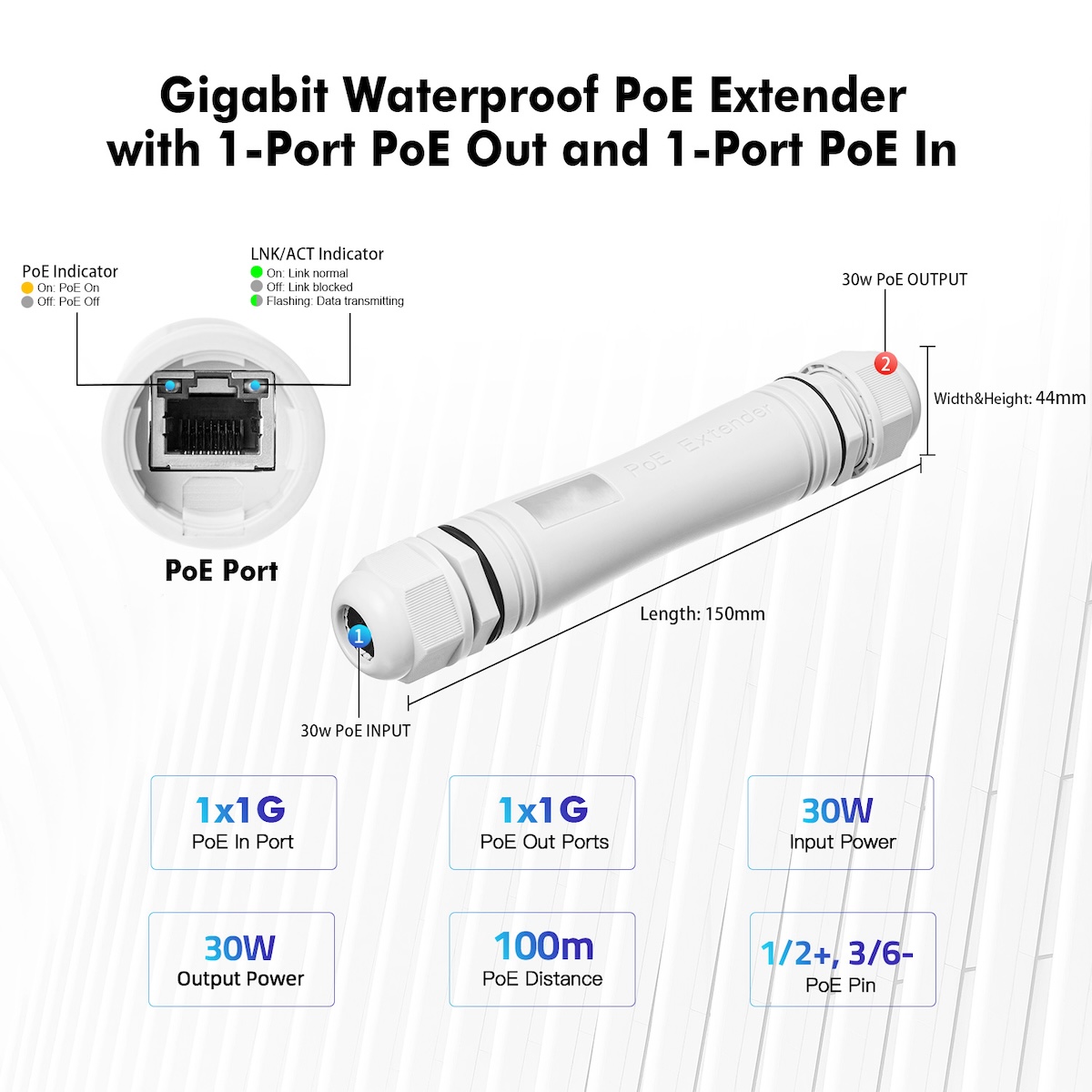

| Ethernet Port | PoE in port:1 x 10/100/1000Mbps RJ45 port PoE out port :1 x 10/100/1000Mbps RJ45 port |
| Network protocol | IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x, IEEE802.3af, IEEE802.3at |

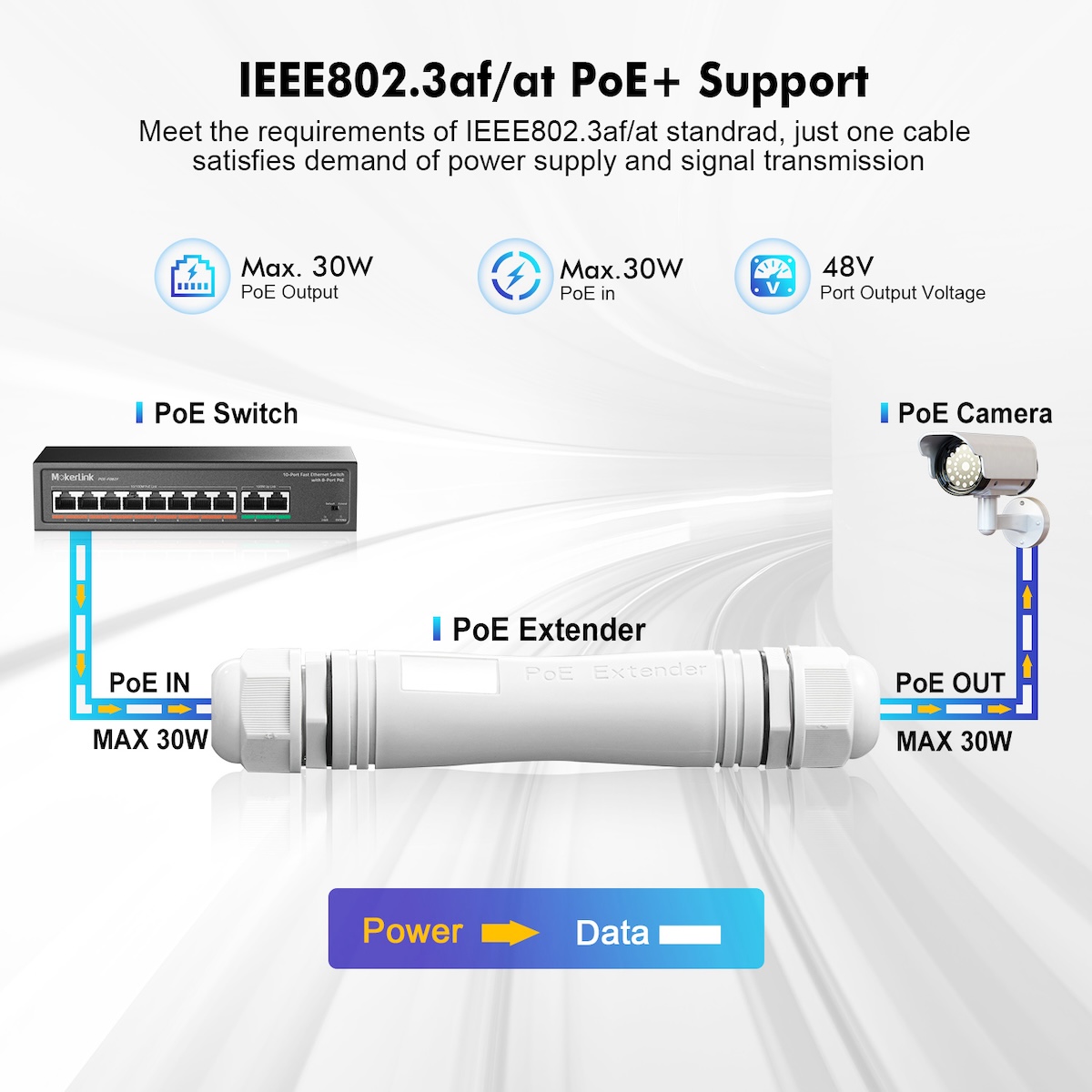

| PoE Protocol | IEEE802.3af, IEEE802.3at |
| PoE Pin | 1/2 (+), 3/6 (-) |
| PoE Power Budget | PoE input 30W Max |

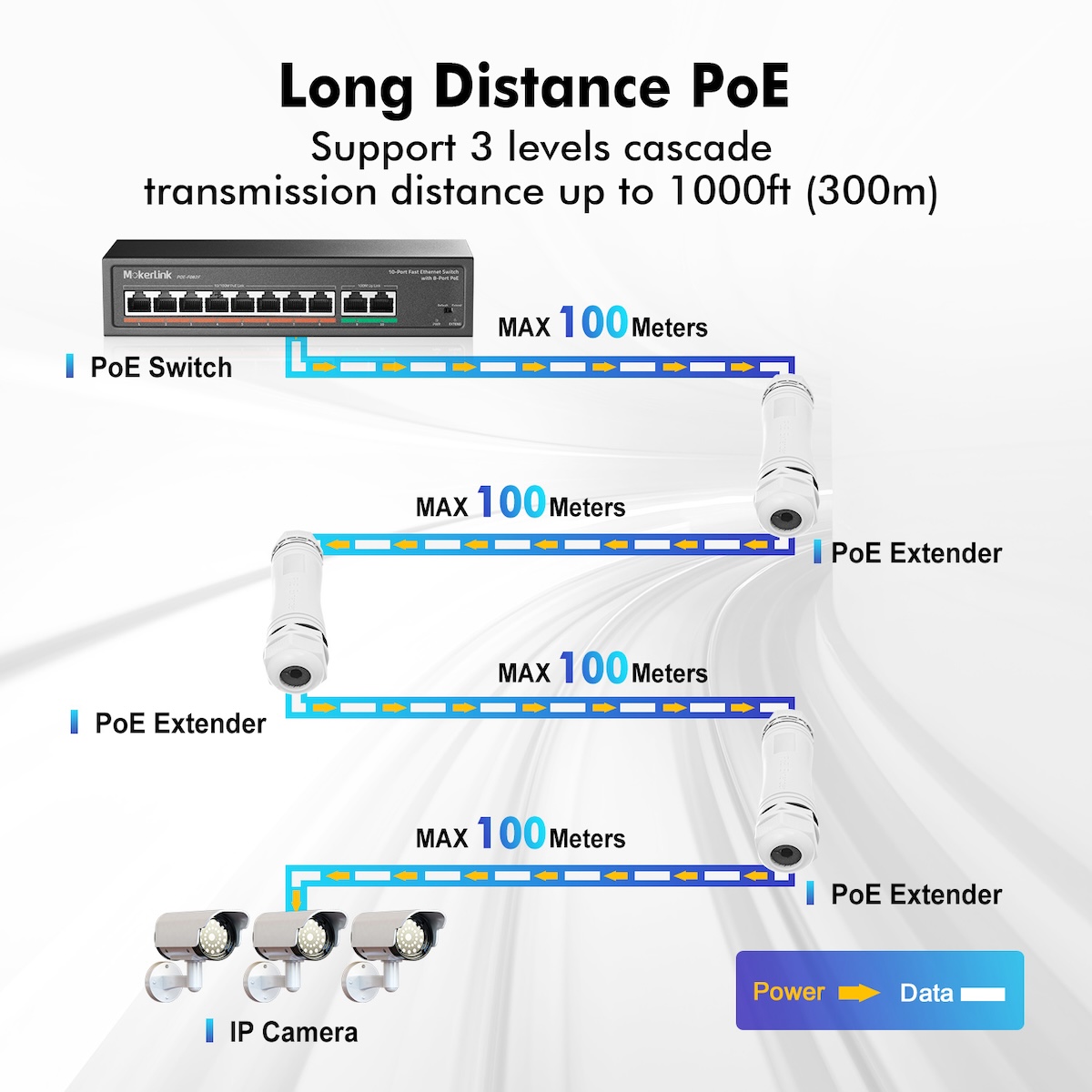

| Transmission Distance | up to 260m at 1Gbps, up to 400 meters at 100Mbps, and up to 520m at 10Mbps |
| Working Environment | Operating Temperature: -10℃ ~ 50℃ Storage Temperature：-40℃ ~ 70℃, Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 90% non-condensing |
| Structure Size | 156.5*29*29mm |
| Shell | ABS+PC |
