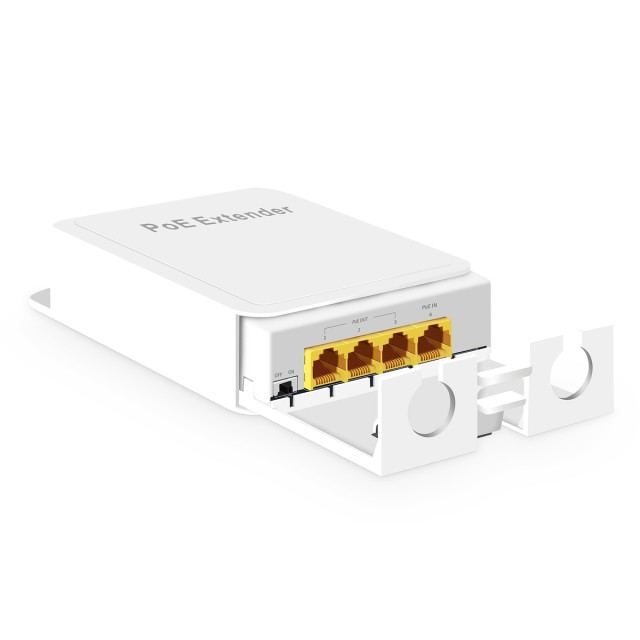

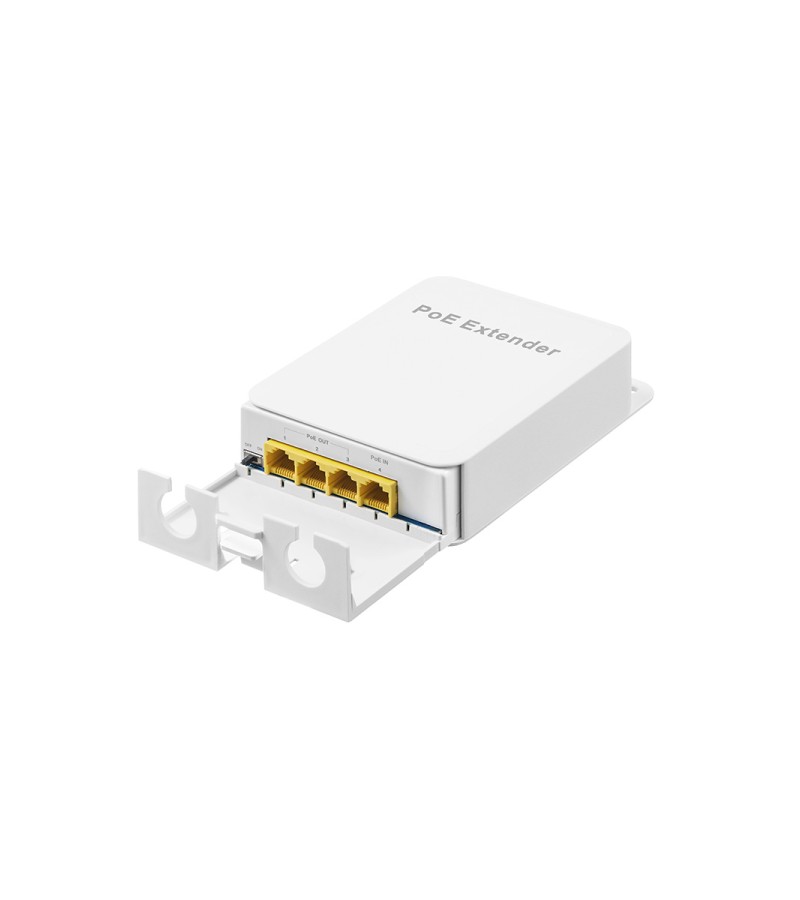

MokerLink 4 Port Gigabit PoE Extender, IEEE 802.3 af/at PoE Repeater, 10/100/1000Mbps, 1 PoE in 3 PoE Out, Wall & Din Rail Mount POE Passthrough Switch
1 PoE in and 3 PoE out, 10/100/1000Mbps. All ports support IEEE 802.3af/at, input Max 30W, output Max 24W, Average 8W per port. PoE Voltage 44-57 Vdc. PoE pin: Input, 1/2 (+), 3/6 (-), 4/5(+), 7/8(-); Output: 1/2 (+), 3/6 (-). Unmanaged Plug & Play, Support wall mount and din rail mount, Widely Used to connect poe AP, camera, phone and other POE devices
- Brand: MokerLink
- Product Code: EXT-AT13GO
- Availability: In Stock
Product Overview

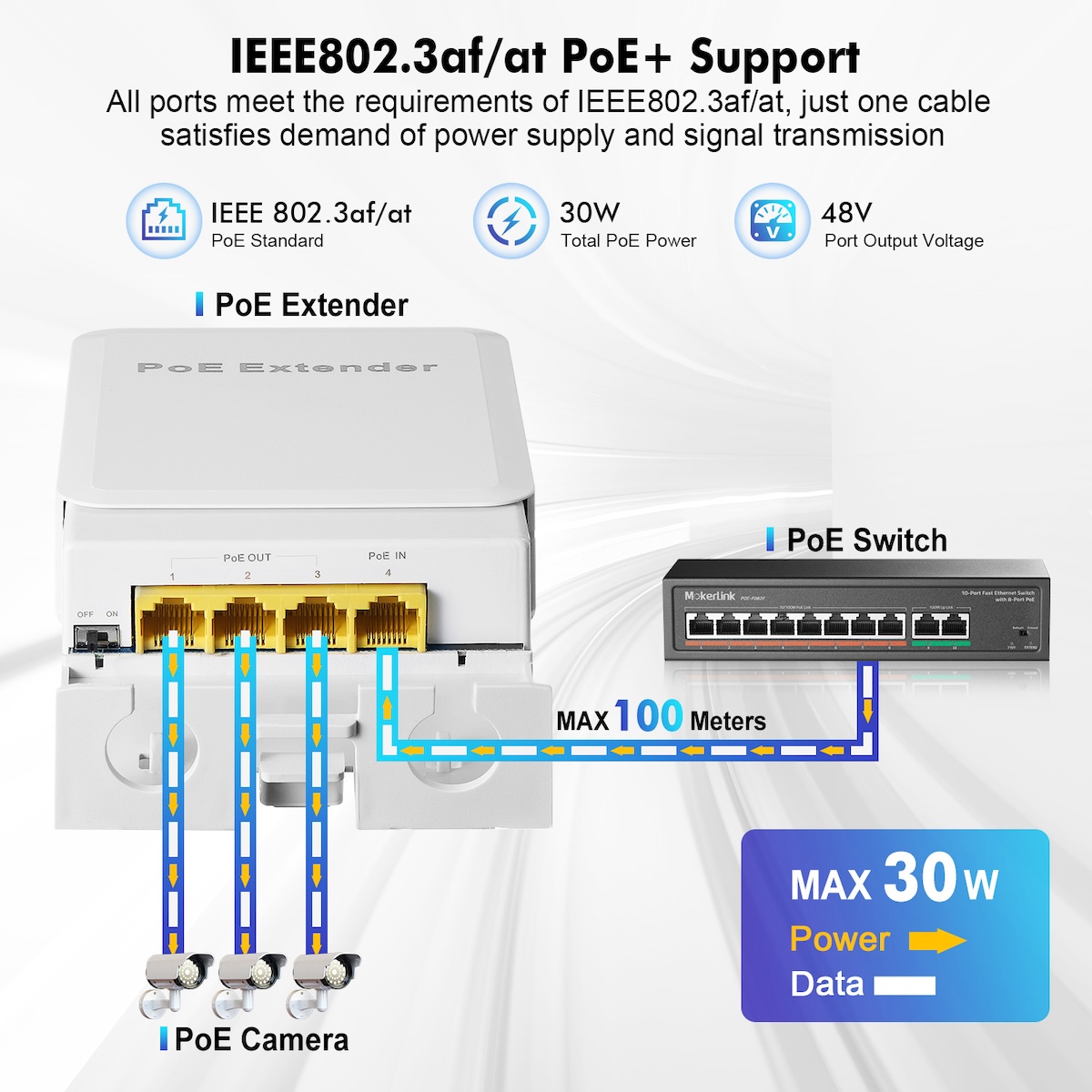

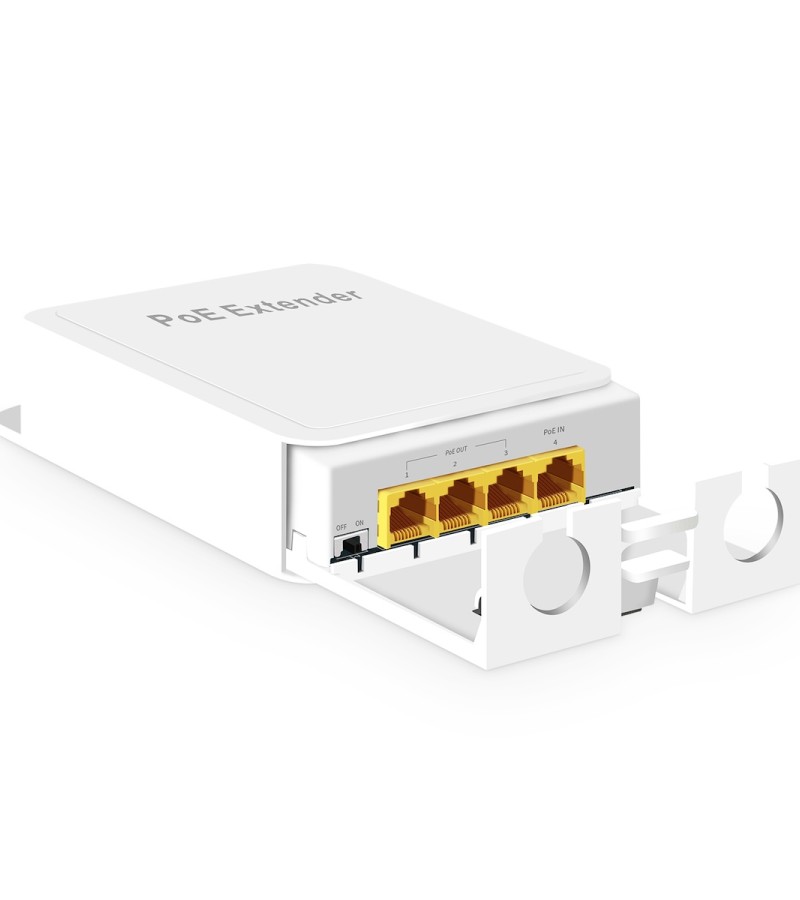

4 Gigabit PoE Ports: Include 1 PoE In, 3 PoE Out, 10/100/1000Mbps speed. POE transmission distance 100 meters.

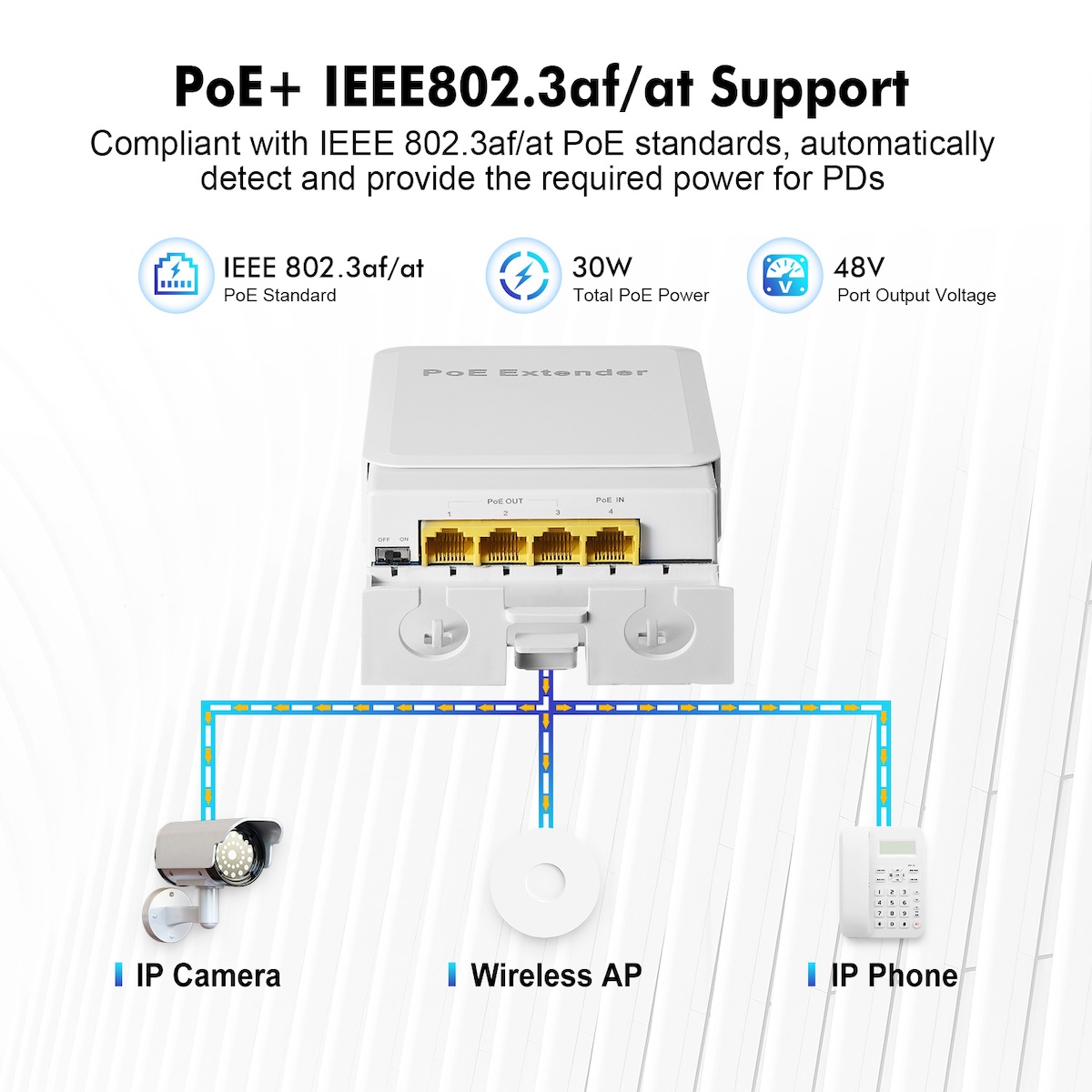

IEEE 802.3 af/at: All ports support this standard PoE, Input Max 30W, Output Max 24W, Average 8W per port. PoE Voltage 44-57 Vdc. PoE pin: Input, 1/2 (+), 3/6 (-), 4/5(+), 7/8(-); Output: 1/2 (+), 3/6 (-).
Unmanaged Plug & Play: Support power detection function, automatically detect devices, just plug in the ethernet cable, connect directly to the device, without configuration.

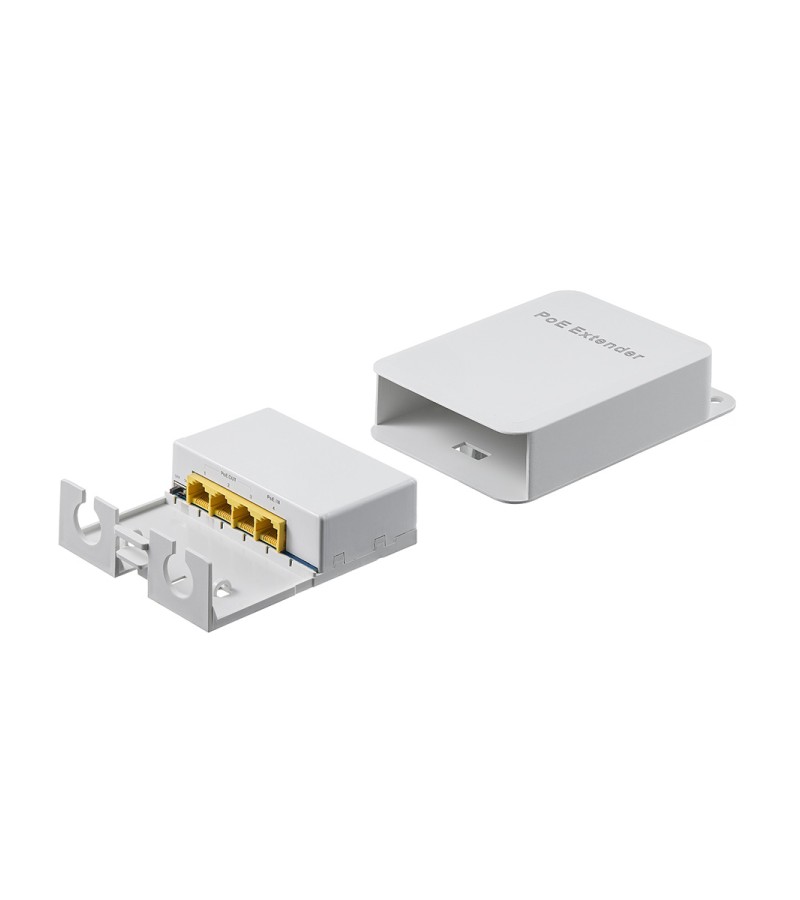

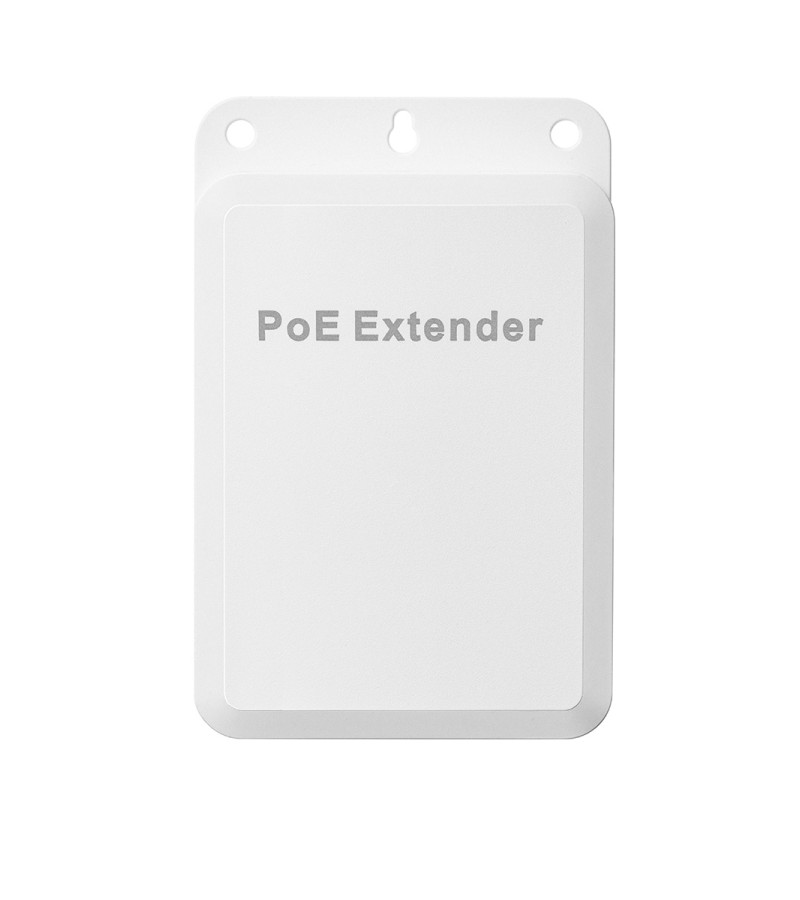

Easy Installation: No need for additional power adapter, powered by POE network. Support wall mount and din rail mount, small size, save space, suitable for more positions
Widely Used: Support 3-level cascading, can connect poe AP, camera, phone and other POE devices, increase POE coverage at low cost
Ask Question About Product
| Ethernet Switch Hardware Specifications | |
| Product Model | EXT-AT13GO |
| Product Name | 4-Port 1000M Outdoor PoE Extender |
| Ethernet Port | 1*10/100/1000Mbps PoE In Port + 3*10/100/1000Mbps PoE Out Port |
| Switching Capacity | 10Gbps |
| Throughput | 7.4Mpps |
| Network protocol | IEEE802.3 (10Base-T), IEEE802.3u (100Base-TX/FX), IEEE802.3x (Flow control) , IEEE802.3ab (1000Base-TX) |
| PoE Protocol | IEEE802.3at (30W), IEEE802.3af (15.4W) |
| PoE Pin | 1/2 (-), 3/6 (+), 4/5(+), 7/8(-) |
| PoE Power Budget | Input Max 30W, Output Max 24W, Average 8W per port. PoE Voltage 44-57 Vdc |
| Network Medium2 | 10Base-T : Cat5e or above UTP(≤100m) 100Base-TX : Cat,5e or above UTP(≤100m) , 1000Base-TX : Cat5 or above UTP(≤100m) |

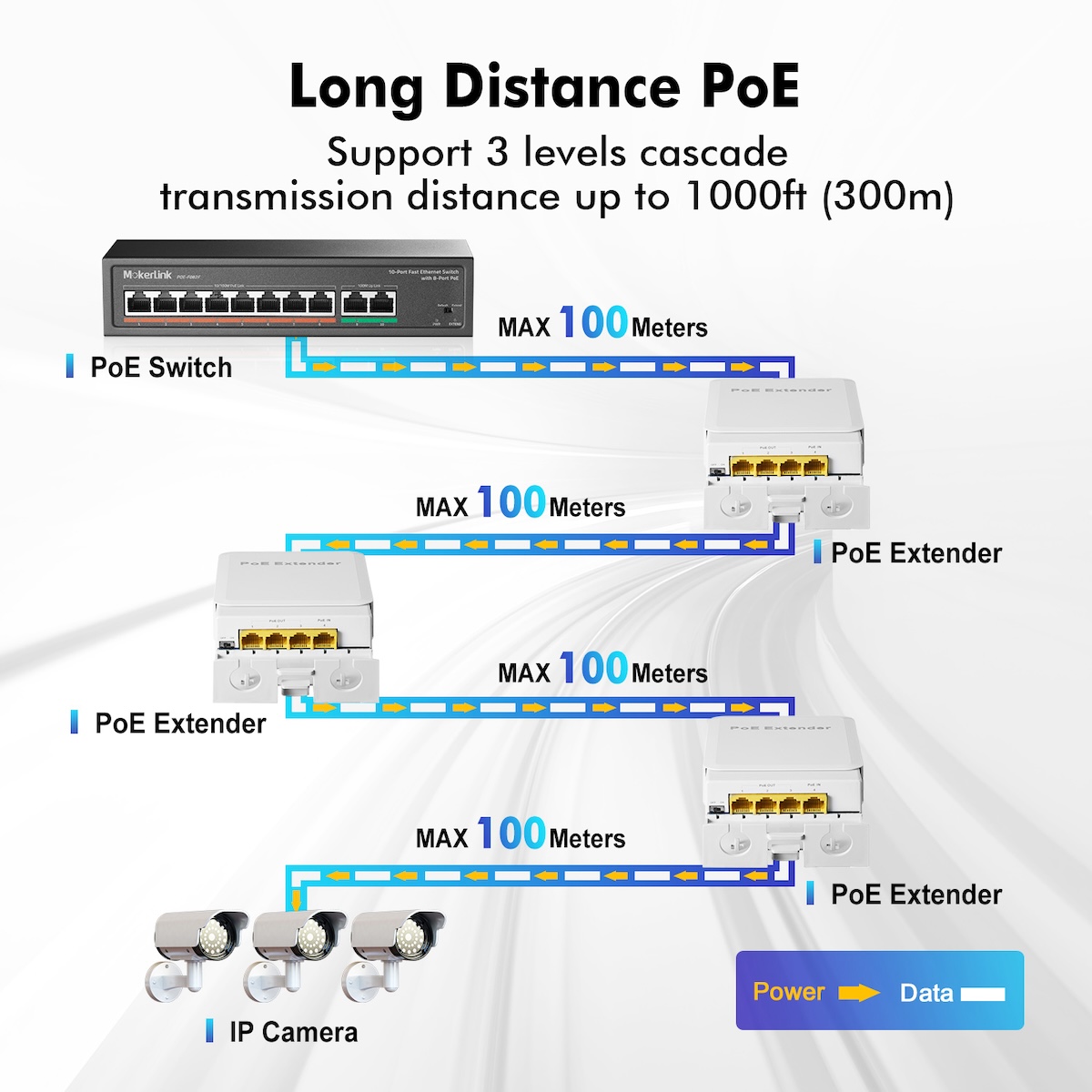

| Transmission Distance | Up to 1000ft(300m) ,support 3 level cascading |
| Working Environment | Working Temperature：-10~55°C, Storage Temperature：-40~85°C |

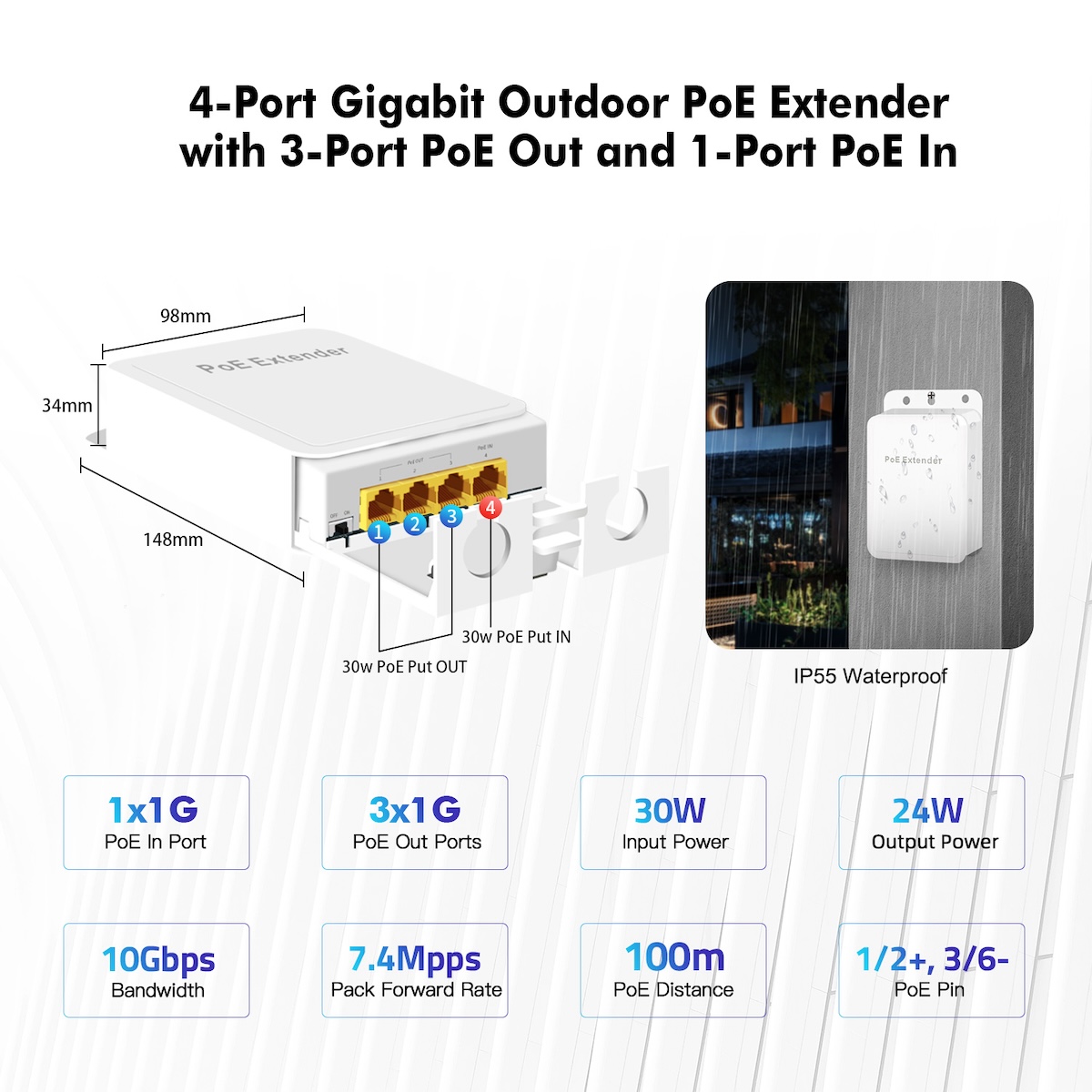

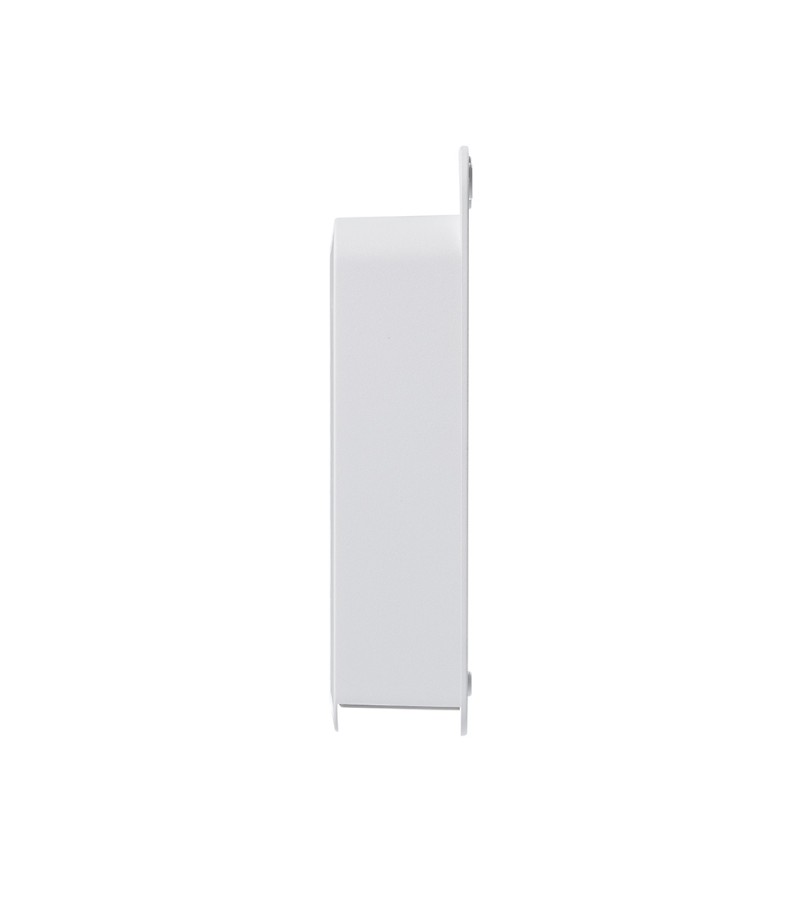

| Structure Size | Product Size: 98*148*34mm, Product Weight:150g |
| Shell | ABS+PC |
