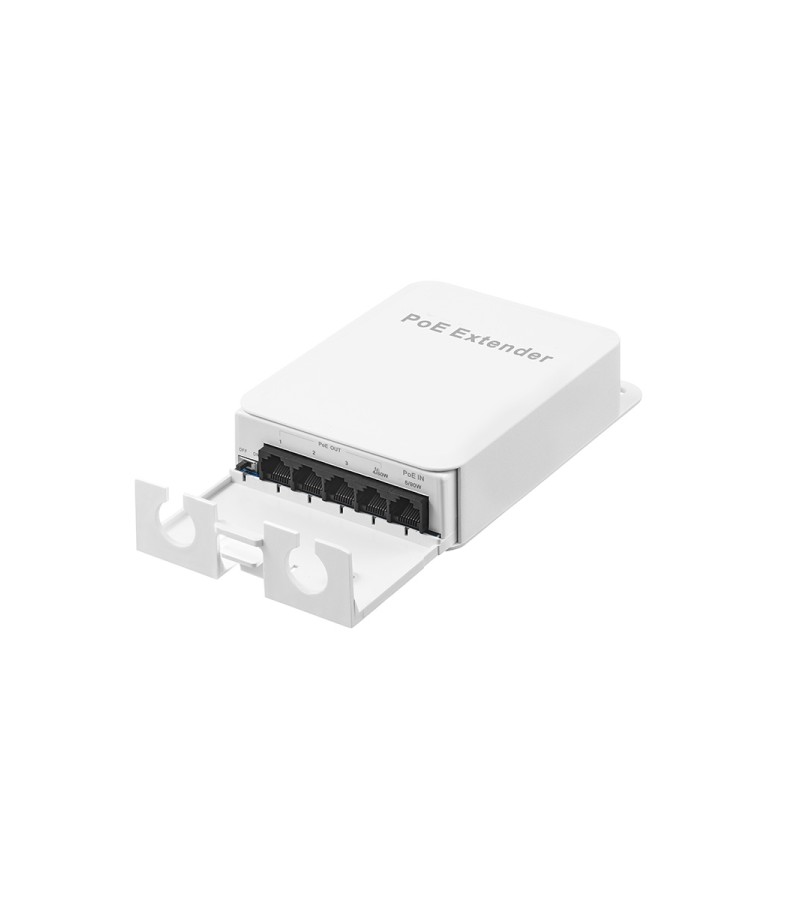

MokerLink Outdoor 5 Port PoE Extender, IEEE 802.3 af/at/bt PoE Repeater 90W, 10/100Mbps, 1 PoE in 4 PoE Out, Wall Mount Waterproof POE Passthrough Switch

1 PoE in and 4 PoE out, 10/100Mbps. Input Max 90W IEEE802.3bt, Port 1-3 Output Max 30W IEEE802.3af/at, Port 4 Output Max 60W IEEE802.3bt. PoE Voltage 44-57 Vdc. PoE pin: Input, 1/2 (+), 3/6 (-), 4/5(+), 7/8(-); Output: 1/2 (+), 3/6 (-). Unmanaged Plug & Play, Support wall mount and din rail mount, Widely Used to connect poe AP, camera, phone and other POE devices

$49.99 Price drop reminder
  • Brand: MokerLink
  • Product Code: EXT-AT14FO
  • Availability: In Stock

Total $49.99

Product Overview

5 PoE Ports: Include 1 PoE In, 4 PoE Out, 10/100Mbps speed. POE transmission distance 100 meters.

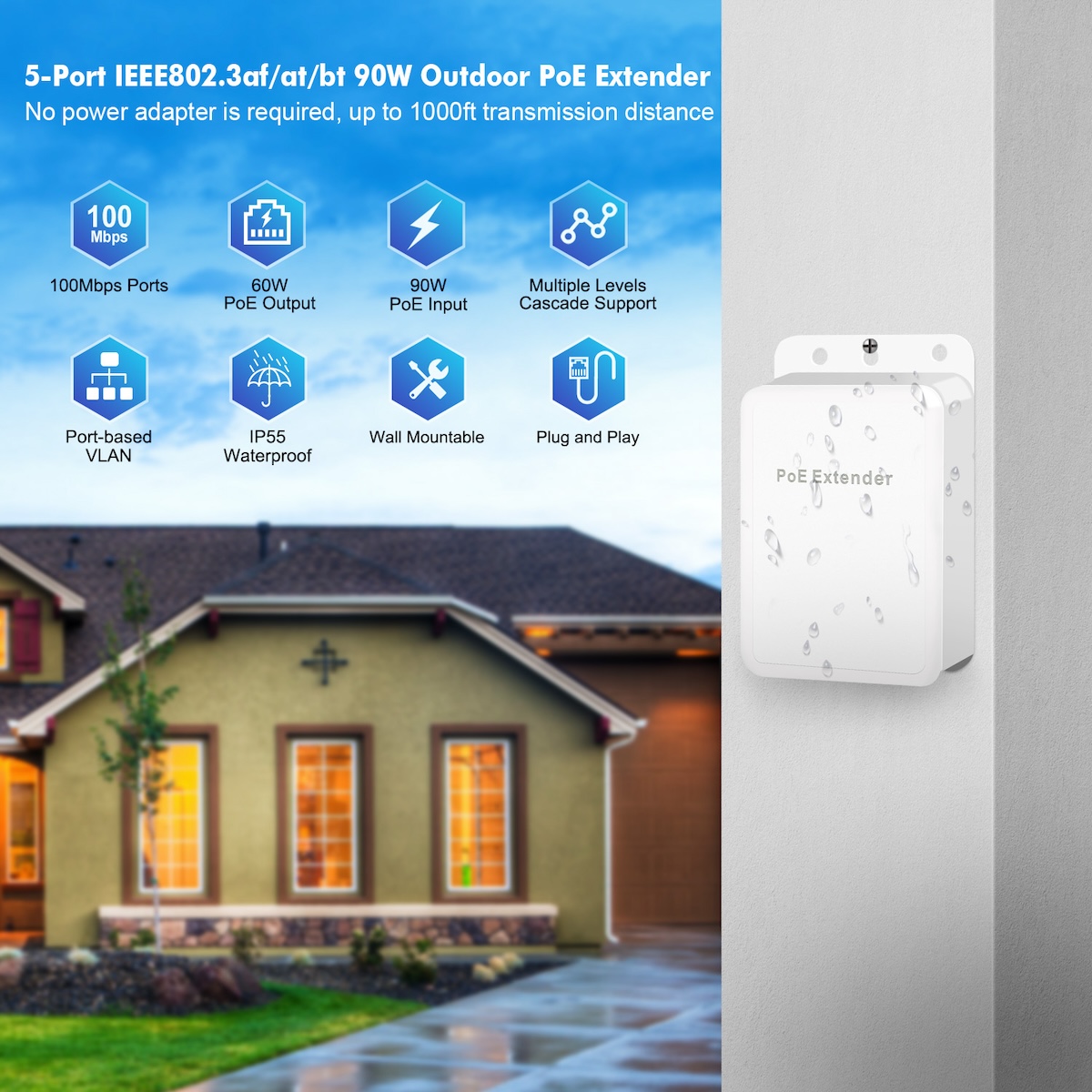

Outdoor Weatherproof: Industrial grade ABS polymer material shell, cable interface are all protected in the shell, which has better waterproof, dustproof, and snowproof effects, and is more suitable for outdoor use; also for complex indoor environments, such as warehouses, computer rooms, garages, attics, etc

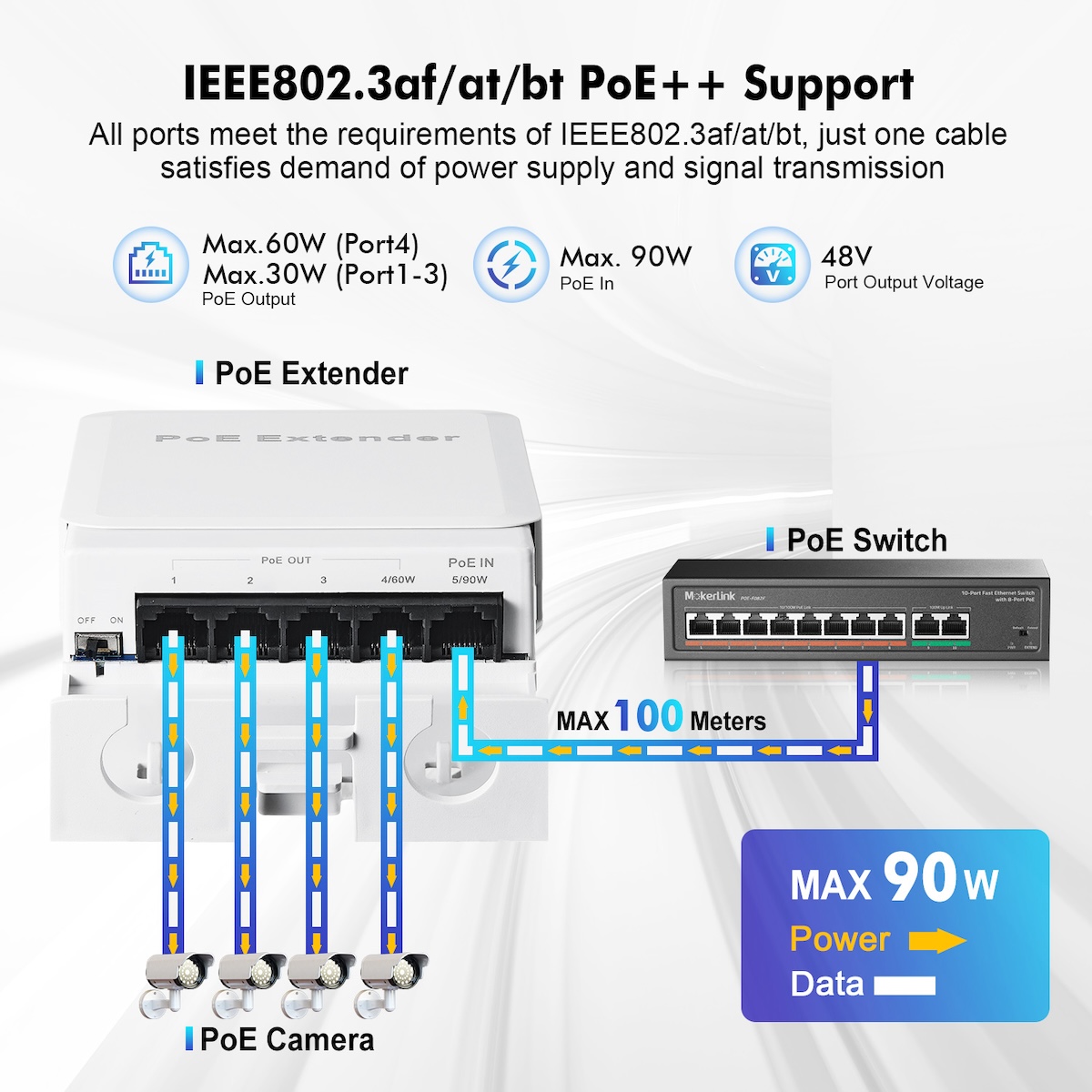

IEEE 802.3 af/at/bt: All ports support this standard PoE, Input Max 90W IEEE802.3bt, Port 1-3 Output Max 30W IEEE802.3af/at, Port 4 Output Max 60W IEEE802.3bt. PoE Voltage 44-57 Vdc. PoE pin: Input, 1/2 (+), 3/6 (-), 4/5(+), 7/8(-); Port 1-3 Output: 1/2 (+), 3/6 (-). Port 4 Output: 1/2 (+), 3/6 (-), 4/5(+), 7/8(-).

Unmanaged Plug & Play: Support power detection function, automatically detect devices, just plug in the ethernet cable, connect directly to the device, without configuration.

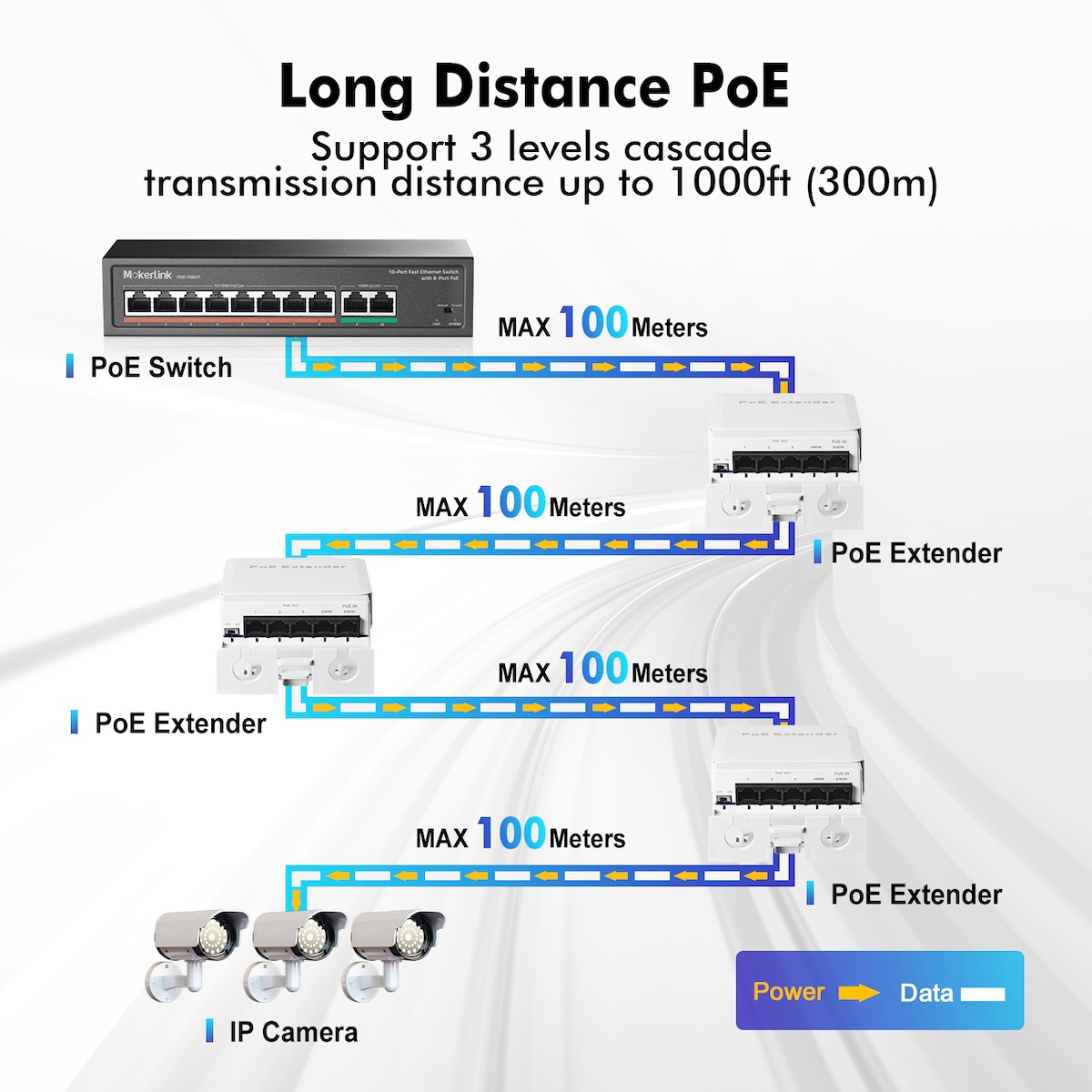

Easy Installation: No need for additional power adapter, powered by POE network. Support wall mount, small size, save space, suitable for more positions.Support 3-level cascading, can connect poe AP, camera, phone and other POE devices, increase POE coverage at low cost



Ask Question About Product

Note: HTML is not translated!
Ethernet Switch Hardware Specifications
Product ModelEXT-AT14FO
Product Name5-Port 100M 90W Outdoor PoE Extender
Ethernet Port1*10/100Mbps PoE In Port + 4*10/100Mbps PoE Out Port
Switching Capacity1Gbps
Throughput0.74Mpps
Network protocol IEEE802.3 (10Base-T), IEEE802.3u (100Base-TX/FX), IEEE802.3x (Flow control)
PoE ProtocolIEEE802.3bt(90W), IEEE802.3at(30W), IEEE802.3af (15.4W)
PoE Pin1/2 (-), 3/6 (+), 4/5(+), 7/8(-)
PoE Power BudgetInput Max 90W IEEE802.3bt, Port 1-3 Output Max 30W IEEE802.3af/at, Port 4 Output Max 60W IEEE802.3bt. PoE Voltage 44-57 Vdc. PoE pin: Input, 1/2 (+), 3/6 (-), 4/5(+), 7/8(-); Output: 1/2 (+), 3/6 (-)
Network Medium210Base-T : Cat5e or above UTP(≤100m) 100Base-TX : Cat,5e or above UTP(≤100m)
Transmission Distance Up to 1000ft(300m) ,support 3 level cascading
Working Environment Working Temperature:-10~55°C, Storage Temperature:-40~85°C

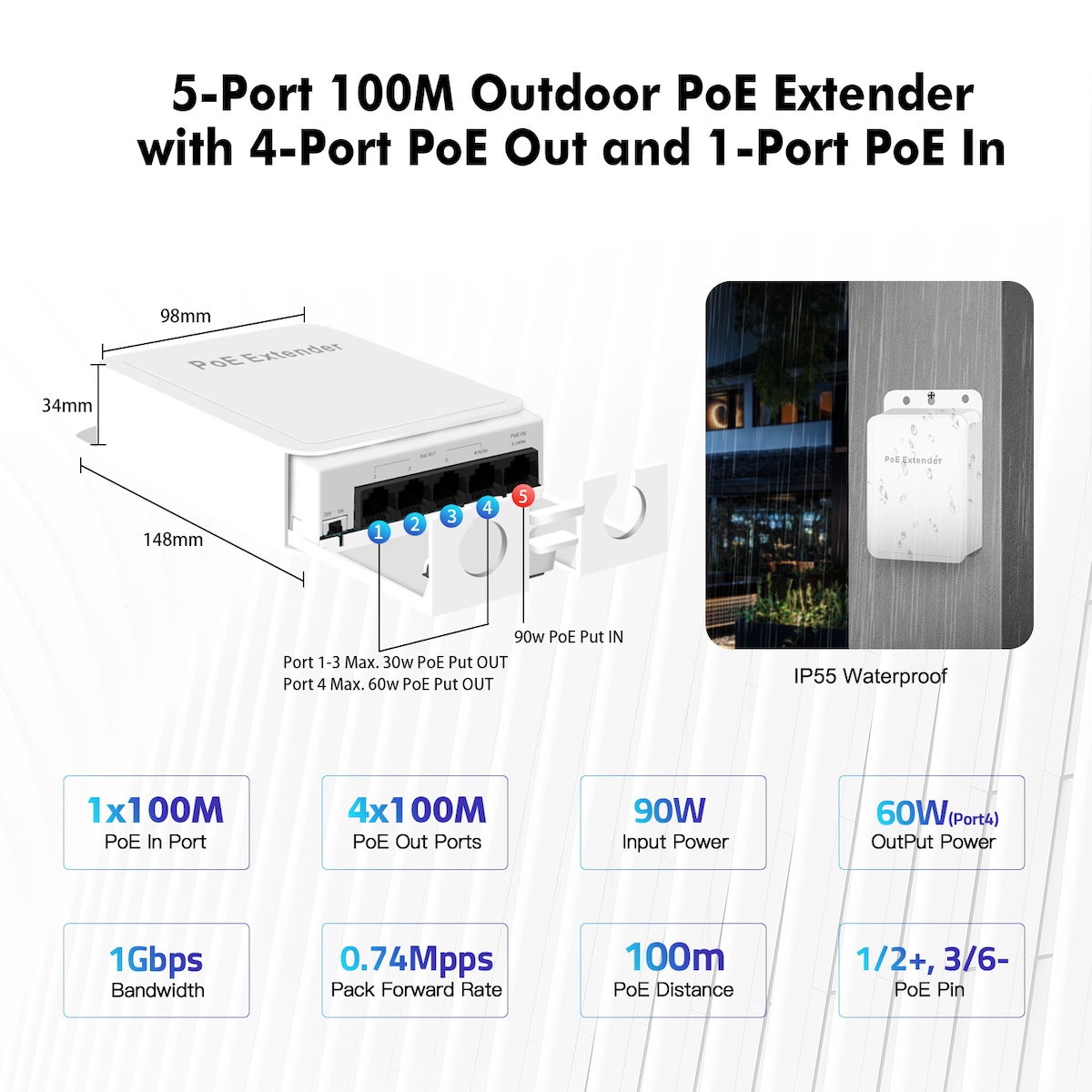

Structure Size Product Size: 98*148*34mm, Product Weight:160g
Shell ABS+PC
