MokerLink 5 Port PoE Extender, IEEE 802.3 af/at/bt 90W PoE Repeater, 10/100/Mbps, 1 PoE in 4 PoE Out, Wall & Din Rail Mount POE Passthrough Switch

1 PoE in and 4 PoE out, 10/100Mbps. Support IEEE 802.3 af/at/bt PoE standard, Input Port 1 IEEE802.3bt Max 90W, Output Port 2 IEEE802.3bt Max 60W, Output Port 3-5 IEEE802.3at Max 30W. PoE Voltage 44-57 Vdc. PoE pin: Input: 1/2 (+), 3/6 (-), 4/5(+), 7/8(-); Output 4: 1/2 (+), 3/6 (-), 4/5(+), 7/8(-); Output 3-5: 1/2 (+), 3/6 (-). Unmanaged Plug & Play, Support wall mount and din rail mount

$44.99 Price drop reminder
  • Brand: MokerLink
  • Product Code: EXT-BT14F
  • Availability: In Stock

Total $44.99

Product Overview

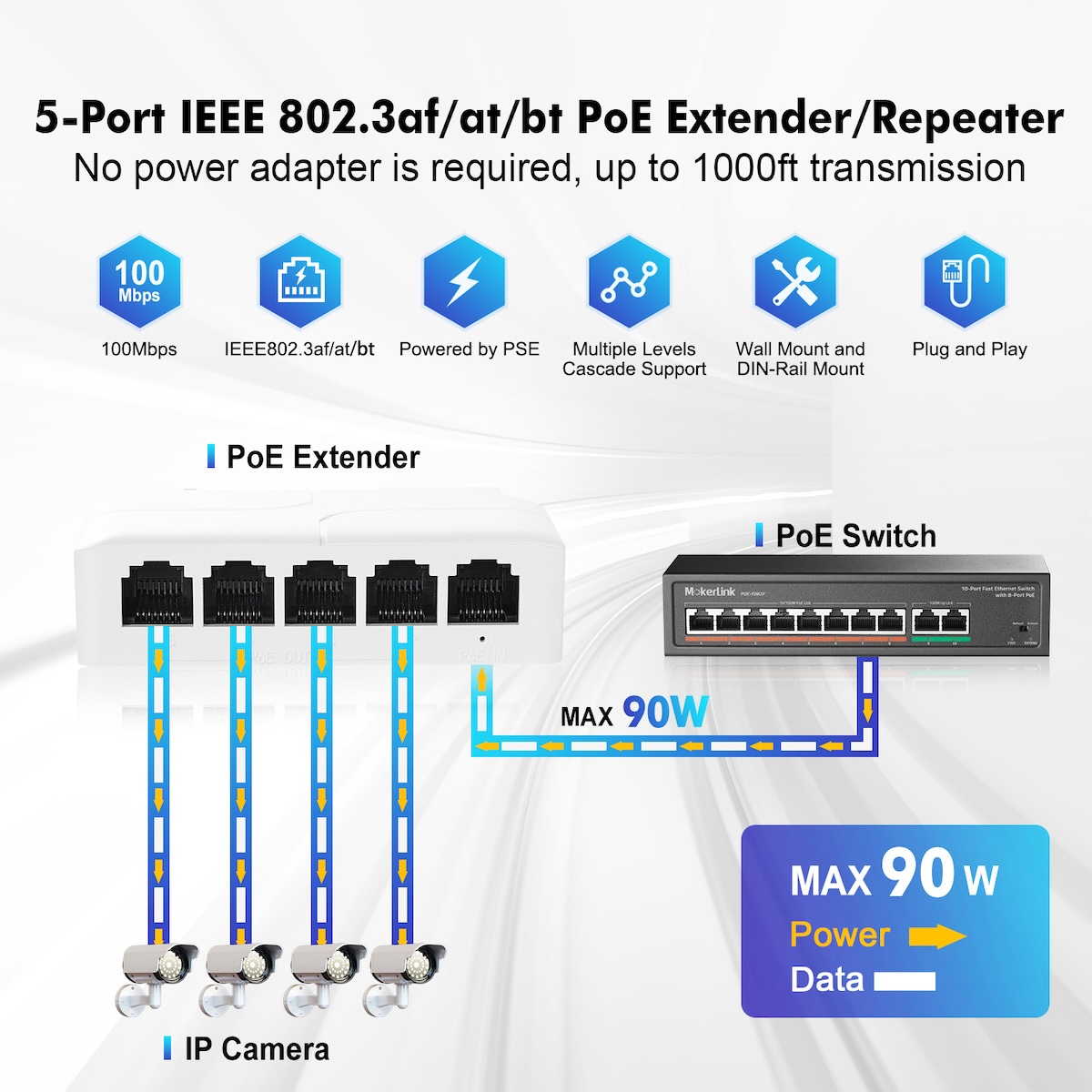

5 100Mbps PoE Ports: Include 1 PoE In, 4 PoE Out, 10/100Mbps speed. POE transmission distance 100 meters.

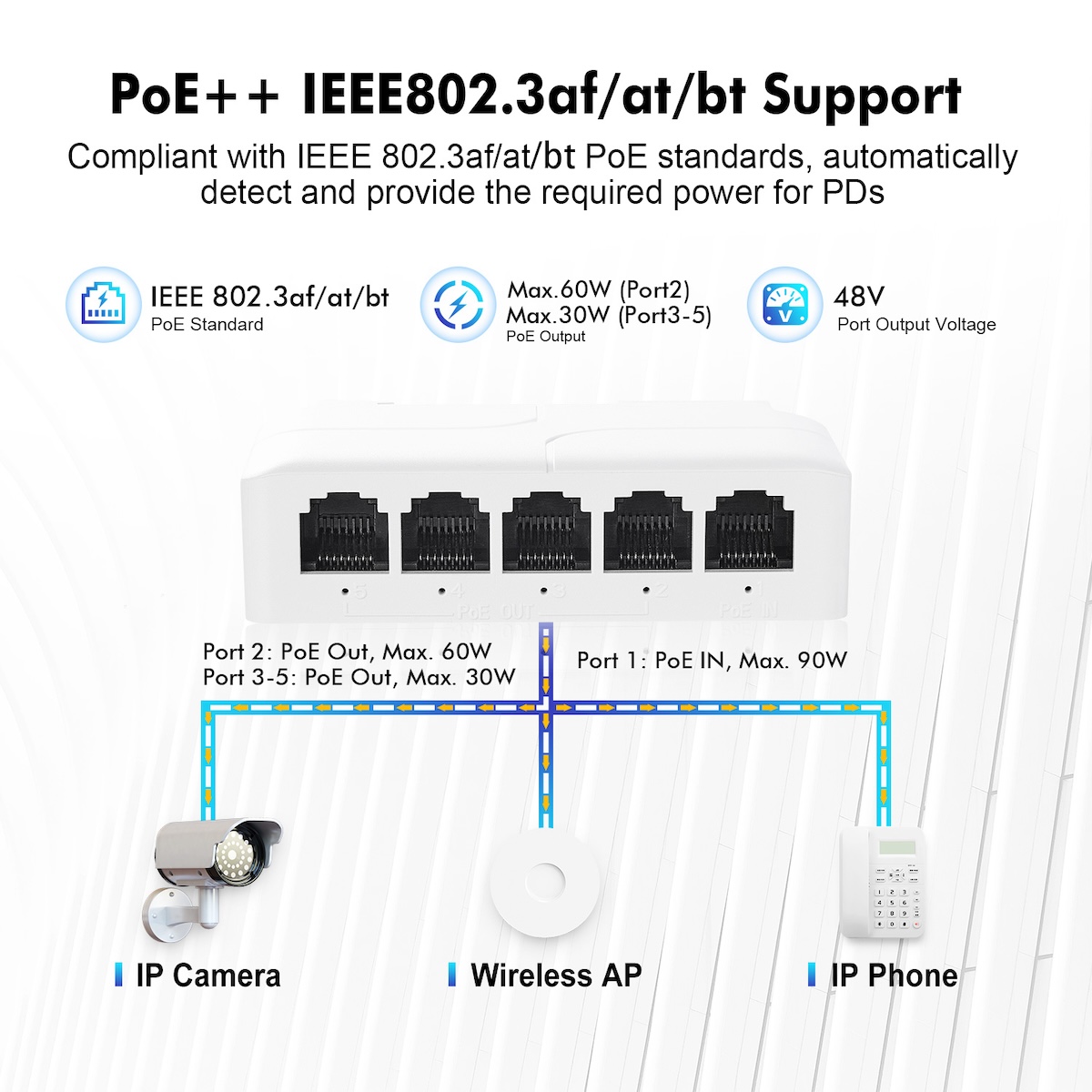

IEEE 802.3 af/at/bt: Support this standard PoE, Input Port 1 IEEE802.3bt Max 90W, Output Port 2 IEEE802.3bt Max 60W, Output Port 3-5 IEEE802.3at Max 30W. PoE Voltage 44-57 Vdc. PoE pin: Input: 1/2 (+), 3/6 (-), 4/5(+), 7/8(-); Output 4: 1/2 (+), 3/6 (-), 4/5(+), 7/8(-); Output 3-5: 1/2 (+), 3/6 (-).

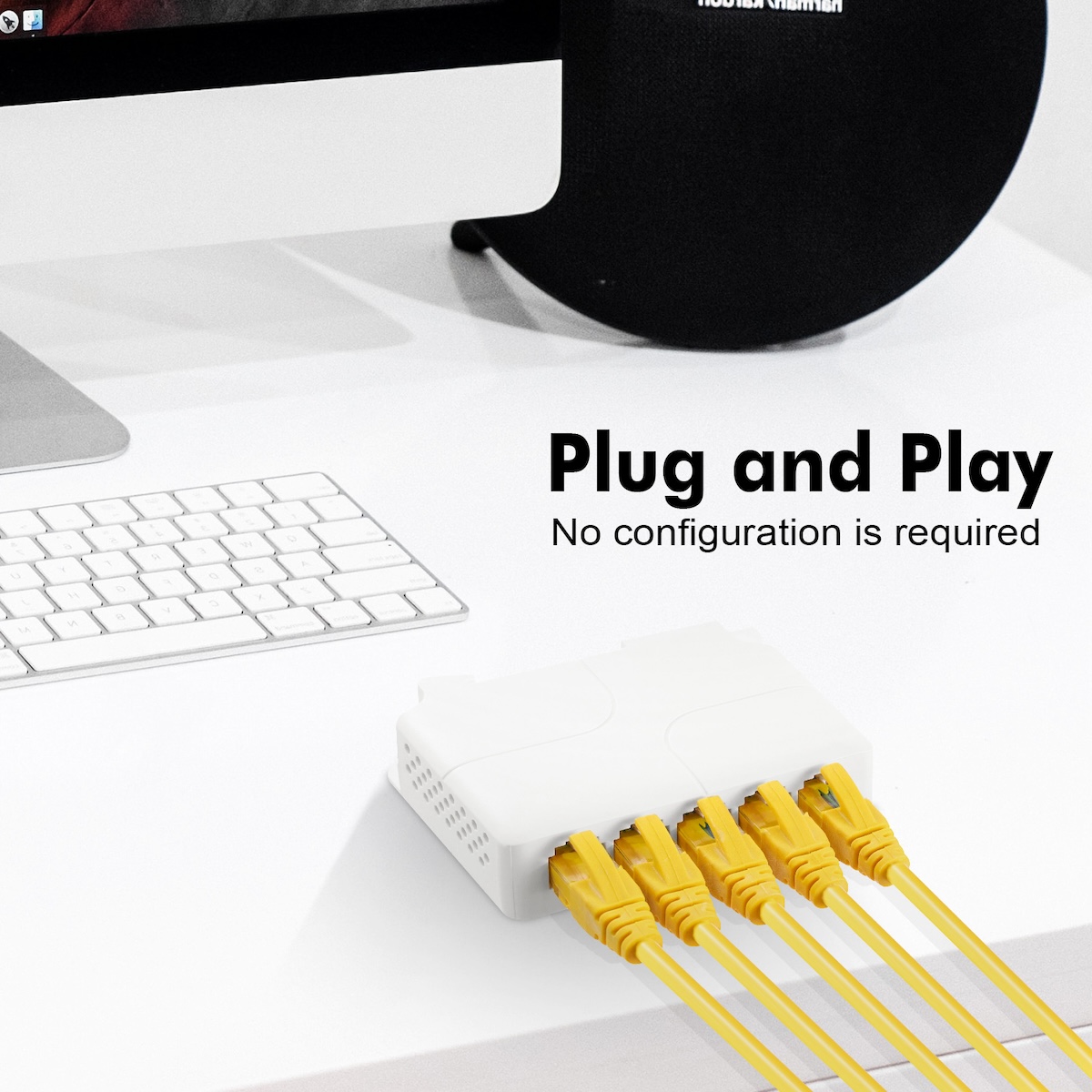

Unmanaged Plug & Play: Support power detection function, automatically detect devices, just plug in the ethernet cable, connect directly to the device, without configuration.

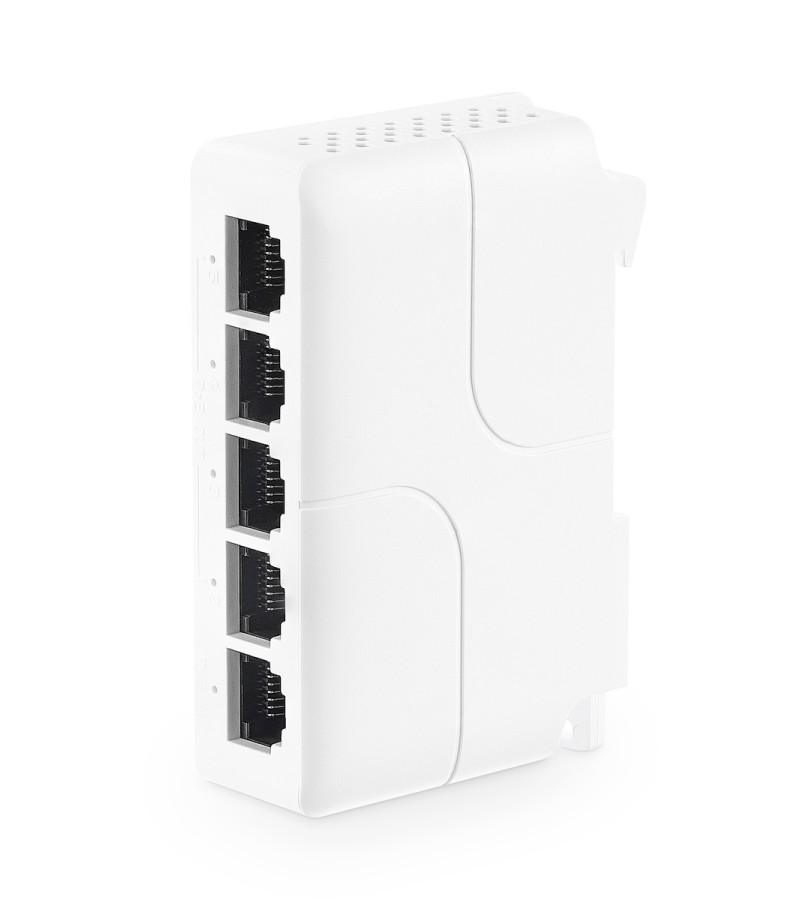

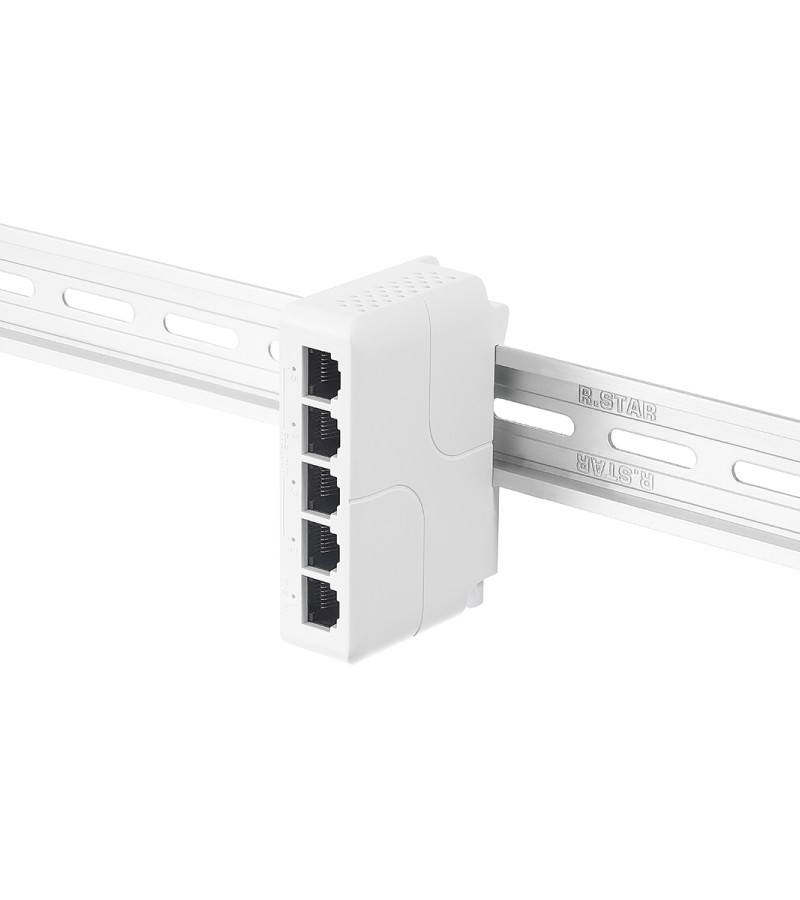

Easy Installation: No need for additional power adapter, powered by POE network. Support wall mount and din rail mount, small size, save space, suitable for more positions

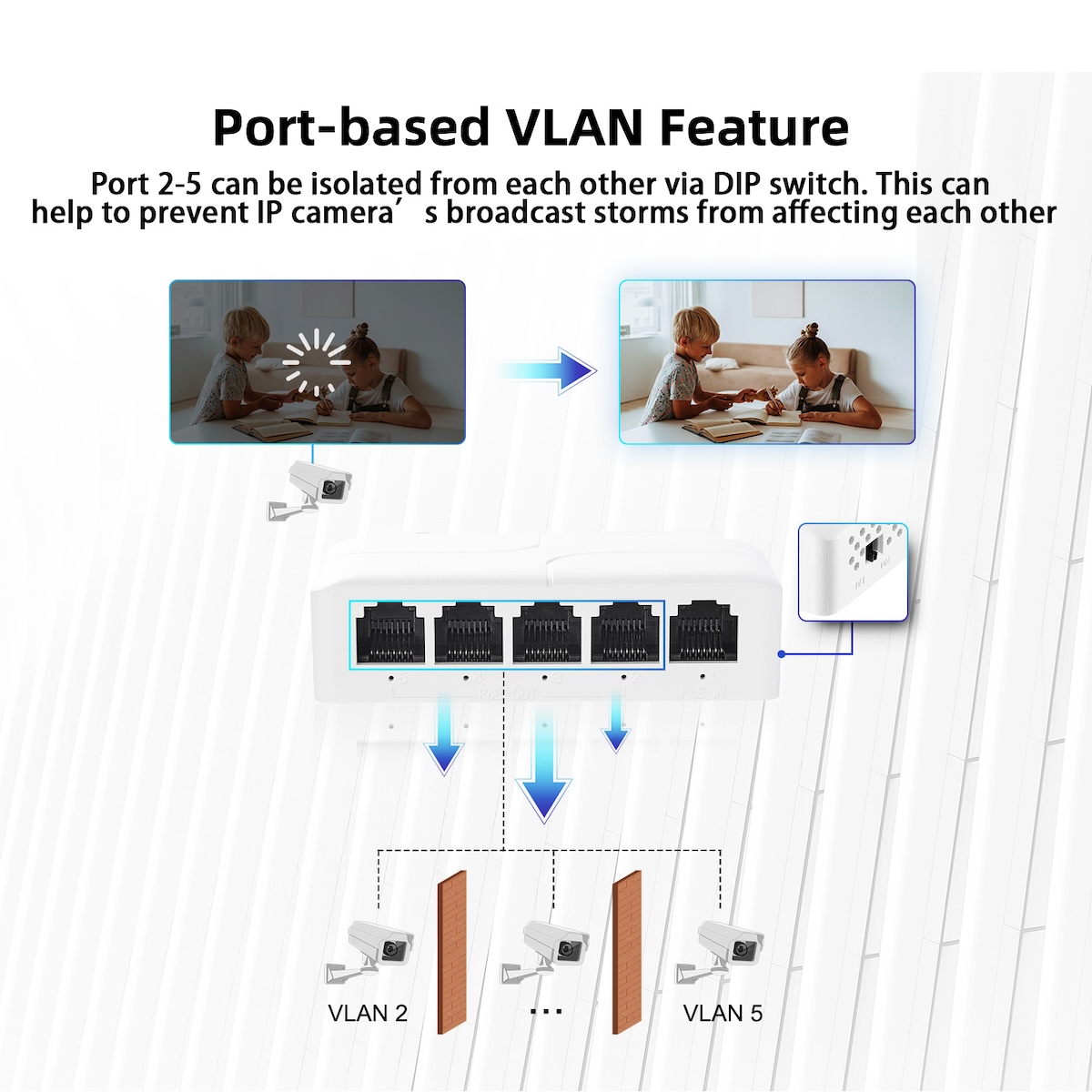

Widely Used: Support one-key vlan mode, Support 3-level cascading, can connect poe AP, camera, phone and other POE devices, increase POE coverage at low cost



Ask Question About Product

Note: HTML is not translated!
Ethernet Switch Hardware Specifications
Product ModelEXT-Bt14F
Product Name5-Port 100M 90W PoE Extender
Ethernet Port1*10/100Mbps PD Ethernet Port + 4*10/100Mbps PoE Port
Switching Capacity1Gbps
Throughput0.74Mpps
Network protocol IEEE802.3 (10Base-T), IEEE802.3u (100Base-TX/FX), IEEE802.3x (Flow control) , IEEE802.3ab (1000Base-TX)
PoE ProtocolIEEE802.3bt (90W),IEEE802.3at (30W), IEEE802.3af (15.4W)
PoE Pin1/2 (-), 3/6 (+), 4/5(+), 7/8(-)
PoE Power Budget Input Port 1 IEEE802.3bt Max 90W, Output Port 2 IEEE802.3bt Max 60W, Output Port 3-5 IEEE802.3at Max 30W. PoE Voltage 44-57 Vdc
Network Medium210Base-T : Cat5e or above UTP(≤100m) 100Base-TX : Cat,5e or above UTP(≤100m)

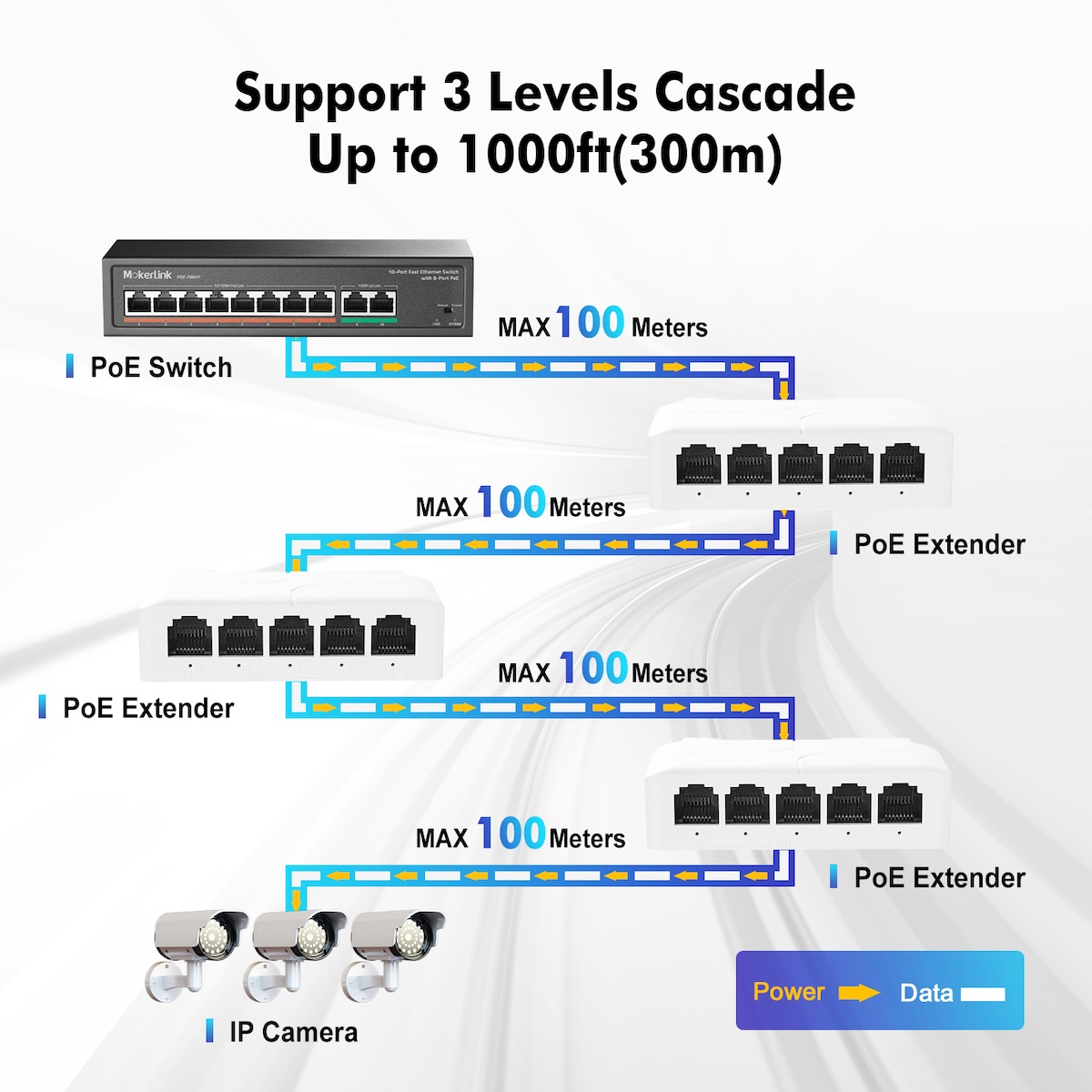

Transmission Distance Up to 1000ft(300m) ,support 3 level cascading
Working Environment Working Temperature:-10~55°C, Storage Temperature:-40~85°C

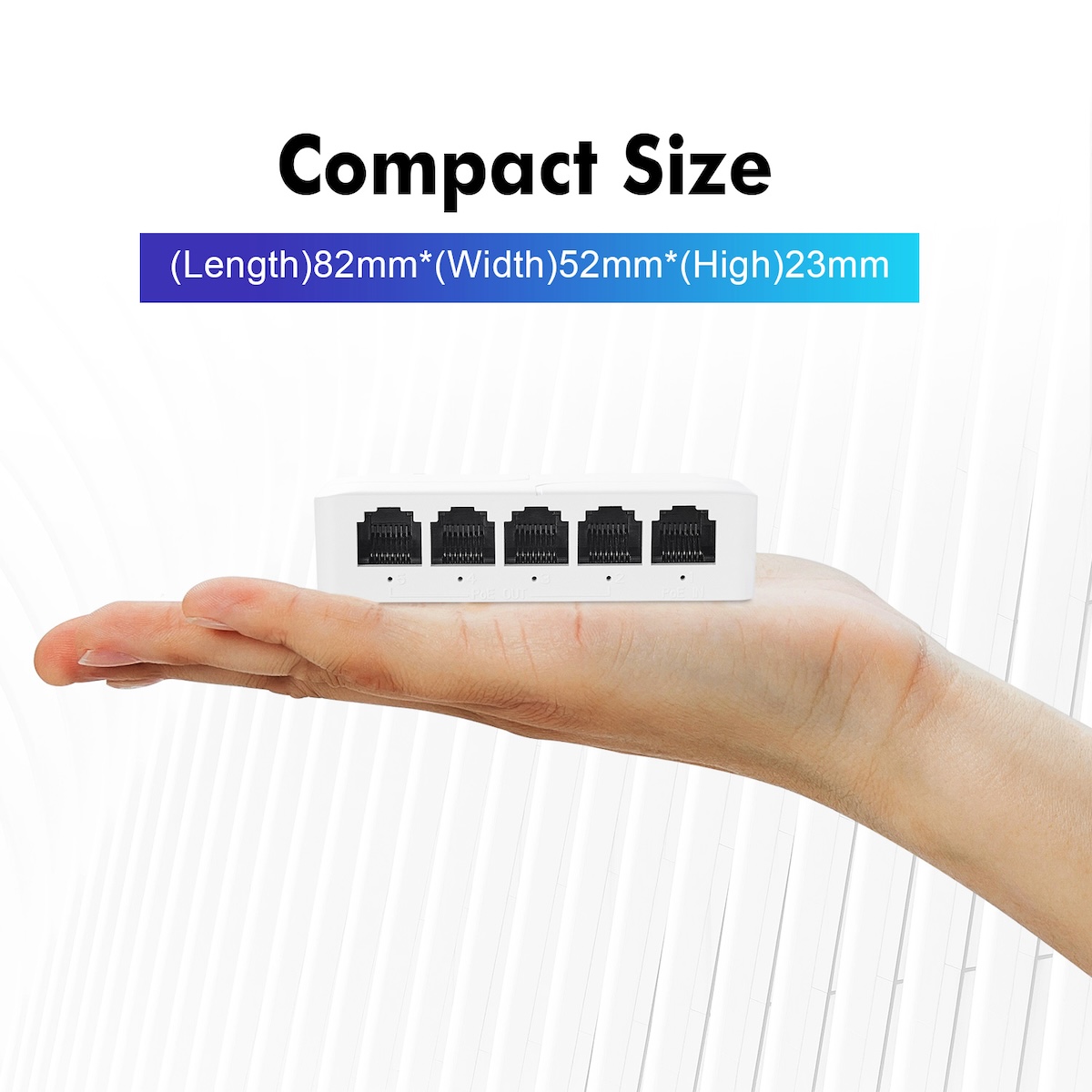

Structure Size Product Size: 82*52*23mm, Product Weight:60g
Shell ABS+PC
