MokerLink 8 Port Gigabit Industrial DIN-Rail Ethernet Switch Managed, 2 SFP Ports, 20Gbps Switching Capacity, Web L2+ Managed IP40 Network Switch (-40 to 185°F), with Power Supply

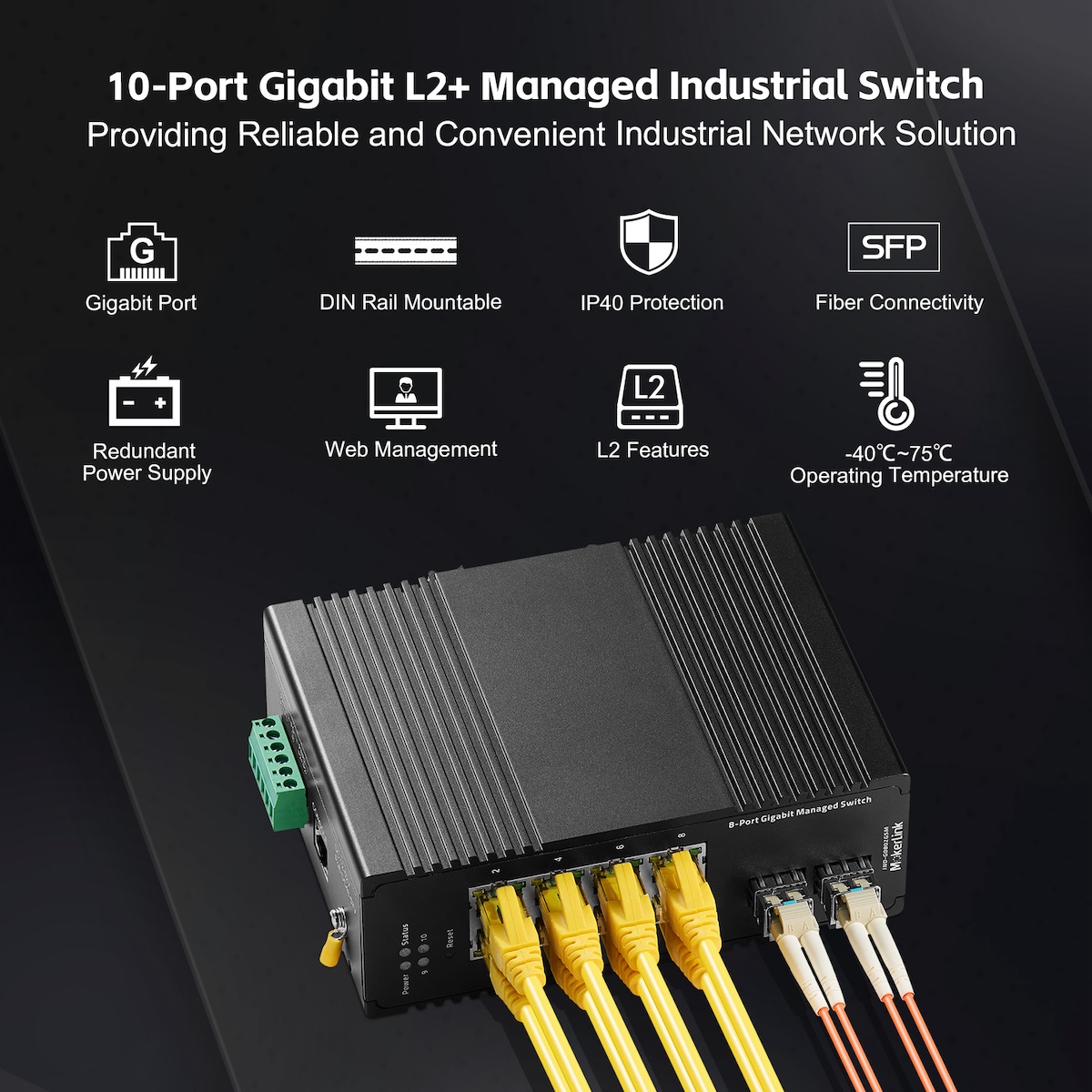

8 gigabit ethernet ports and 2 gigabit SFP ports, switching capacity up to 20bps, web management interface, with rich L2+ functions, IP40 protection grade, working temperature -40~75°C(-40~185°F), Dual power supply input, equipped with one UL-certified power adapter
- Brand: MokerLink
- Product Code: IND-G0802GSM
- Availability: In Stock
Product Overview
8-Port Gigabit managed industrial switch, supporting 8 10/100/1000Base-T (X) ports and 2 1000Base-X optical ports. The product complies with FCC, CE, and RoHS standards. The switch has a working temperature of -40 ℃ to 85 ℃, and has strong robustness to adapt to various harsh environments. It can also be conveniently placed in a compact control box. The installation characteristics of the guide rail, wide temperature operation, IP40 protection level shell and LED indicator light, as well as various rich protocols, while supporting public Ethernet multi ring protection technology (ERPS), greatly improving network flexibility and enhancing the reliability and security of industrial networks, providing reliable and convenient solutions for users' Ethernet device networking, It can be widely used in industrial scenarios with Ethernet access such as smart cities, smart transportation, smart pipe corridors, and smart industries.
Product Features

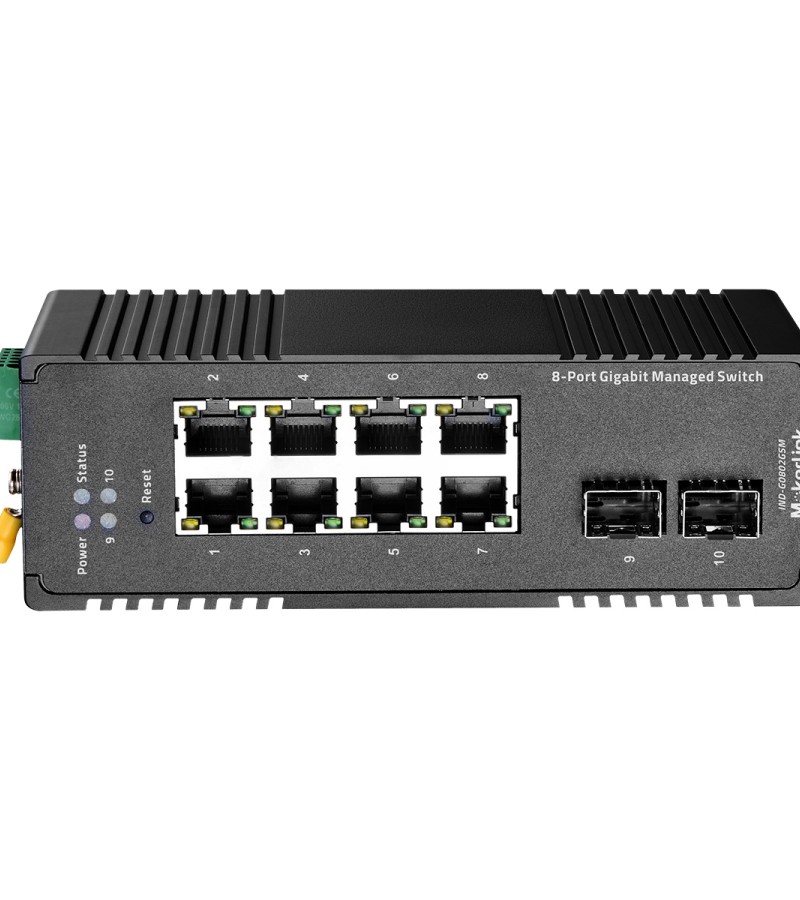

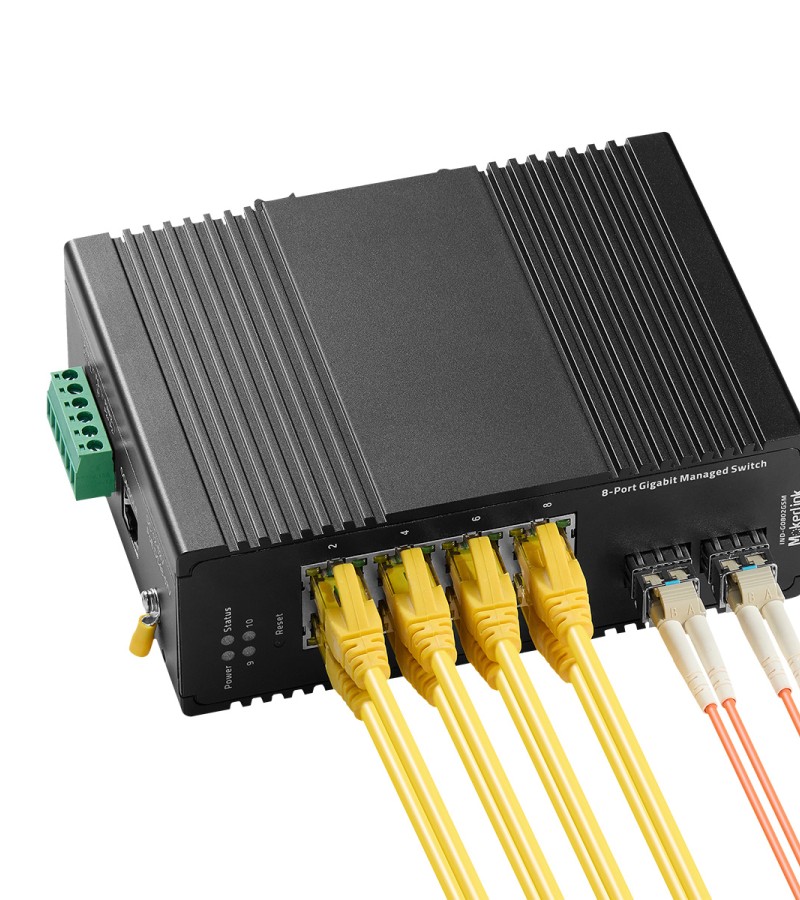

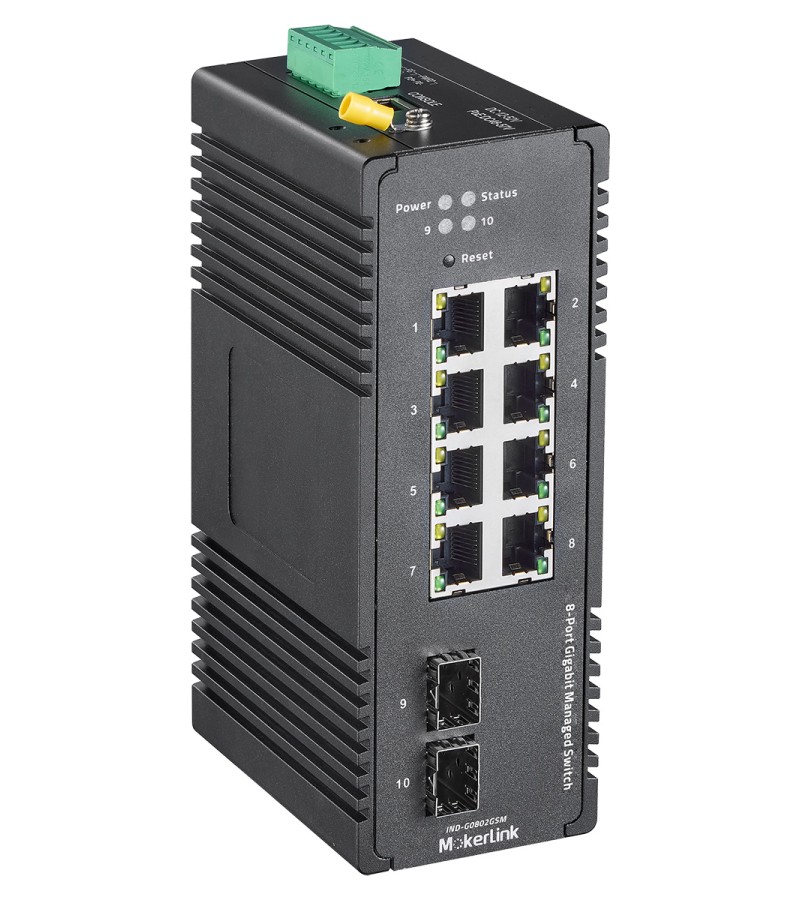

- Provide 8 gigabit downlink electrical ports, 2 gigabit uplink optical ports, and 1 console port
- Support ERPS/STP/RSTP/MSTP/QOS/SNMP (V1, V2, V3)
- 2 gigabit SFP ports
- Support wide temperature design -40 ℃~85 ℃
- Supporting IP40 protection level without fan design

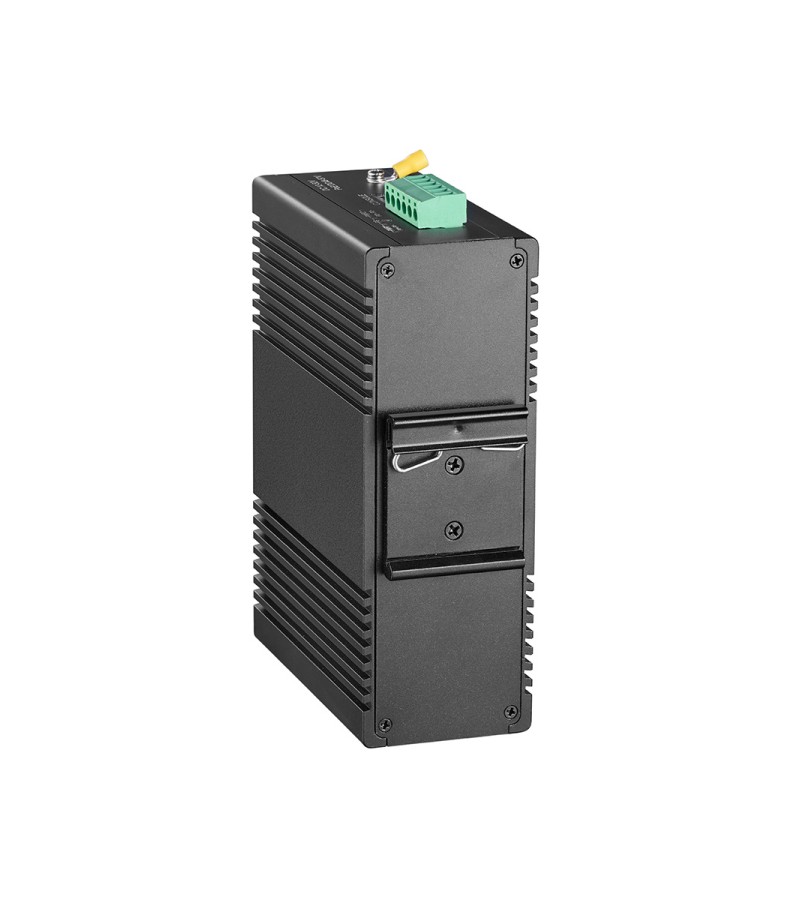

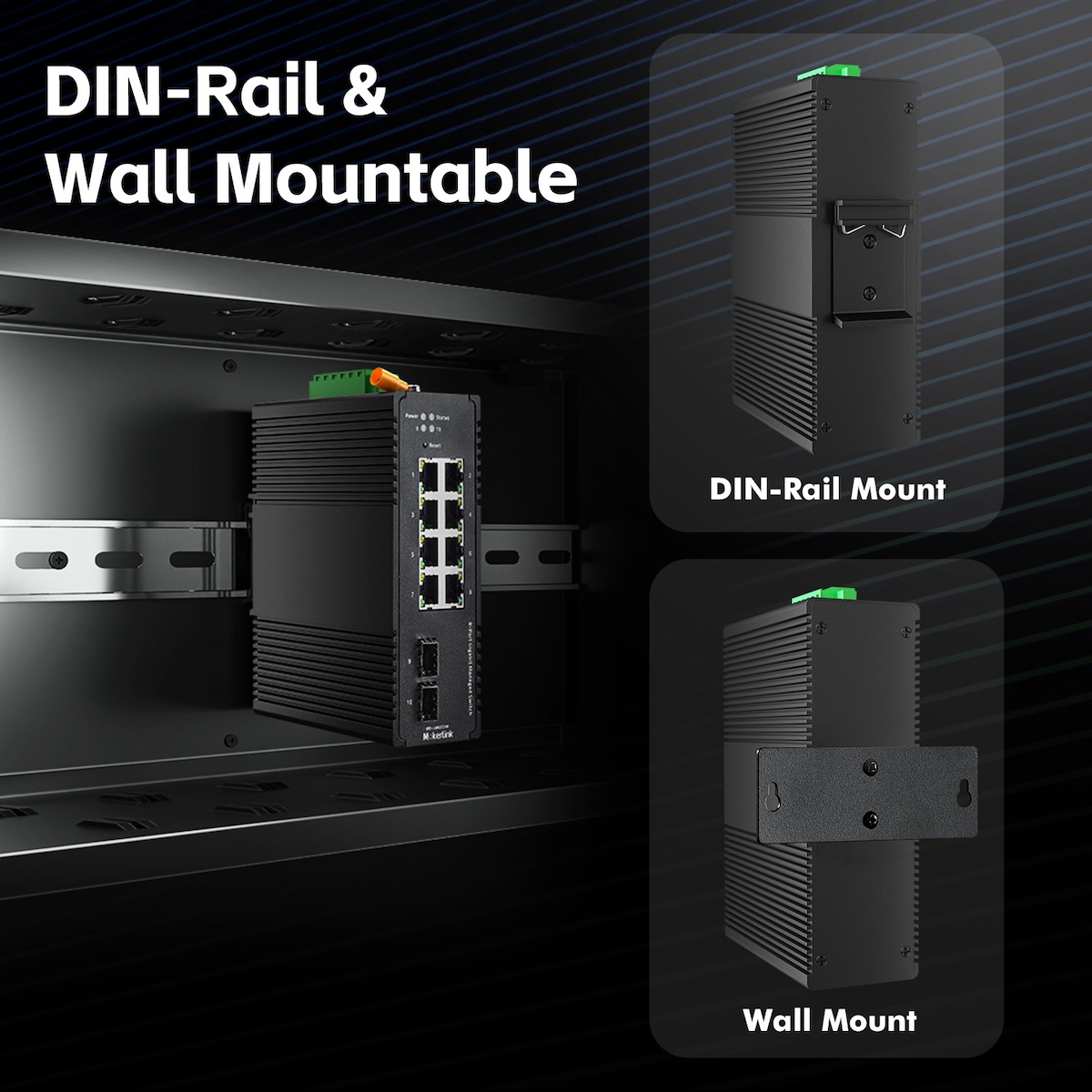

- Aluminum alloy metal shell DIN rail installation wall mounted installation

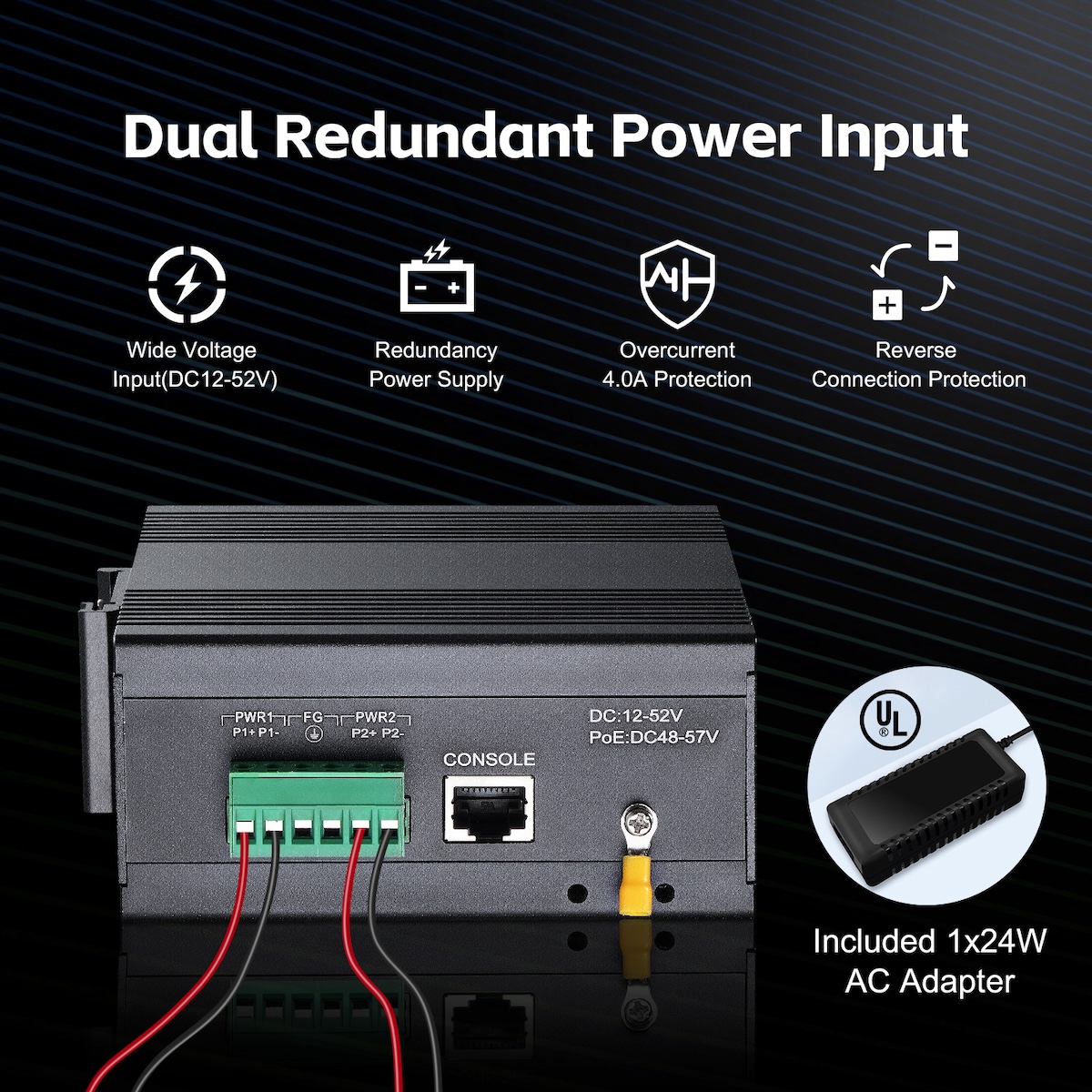

- Support dual power supply redundant backup input power supply: DC12-52V
- EMC industrial level 4 electromagnetic anti-interference
- Network interface lightning protection common mode ± 4KV differential mode ± 2KV
Ask Question About Product
| Industrial Ethernet | |
| Model | IND-G0802GSM |
| Product Name | 8-Port Gigabit L2 Managed Industrial Switch with 2 Port SFP |
| Product Description | 8-Port Gigabit managed industrial switch, supporting 8 10/100/1000Base-T (X) ports and 2 1000Base-X optical ports |
| RJ45 port | IEEE802.3 - CSMA/CD, IEEE802.3i - 10Base-T, IEEE802.3u - 100Base-TX/FX, IEEE802.3x -, IEEE802.3z - 1000Base-X, IEEE802.3ab - 1000Base-T |
| Port Description | 8x10/100/1000Mbps RJ45 + 2x1000Mbps SFP port + 1xconsole port |
| Network Protocol | IEEE802.3 - CSMA/CD；IEEE802.3i - 10Base-T；IEEE802.3u - 100Base-TX/FX；IEEE802.3x - Flow control；IEEE802.3z - 1000Base-X；IEEE802.3ab - 1000Base-T； |
| Work environment | Operating temperature: - 40℃ ~+ 85℃ (- 40 ~ 185 ° f)Storage temperature: - 40℃~ +85℃ (- 40 ~ 185 ° f)Relative humidity: 5% ~ 95% (no condensation) |

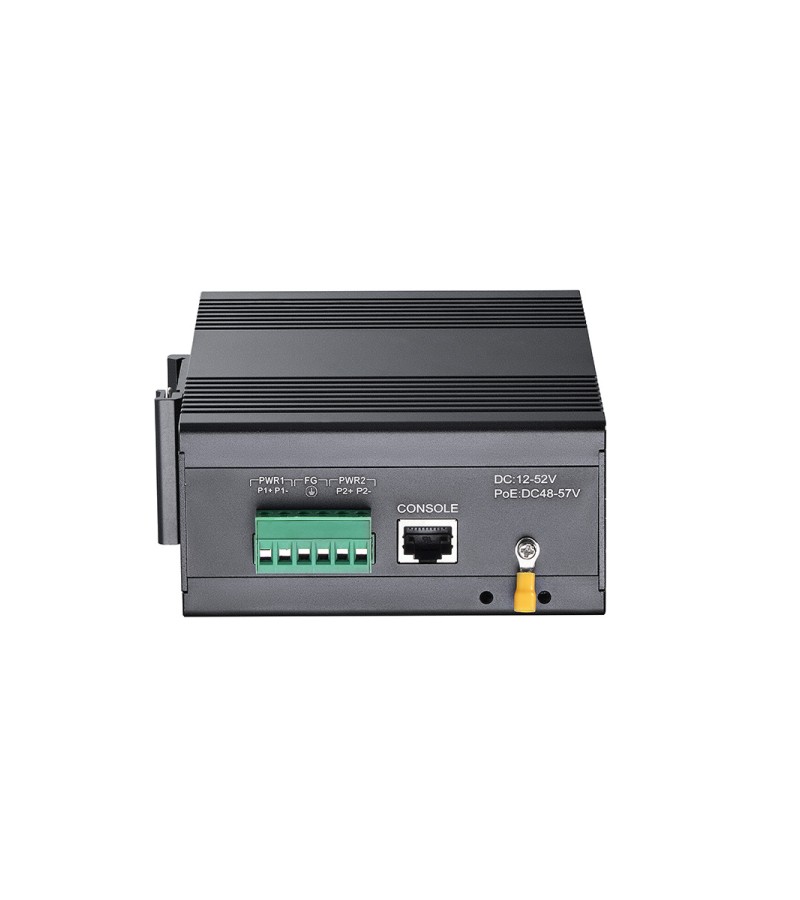

| Power Supply | Input voltage: DC12V-52V (dual power supply redundant backup)Access terminal: Phoenix terminalSupport dual power redundancySupport built-in overcurrent 4.0A protectionSupport reverse grounding protection |
| Switch Properties | Switching capacity ：20Gbps Application level: Level 2verall packet forwarding rate ：14.88MppsMAC Table ：16KPacket buffer ：2MSwitching mode: store forward power consumption: < 3W |
| LED Indicators | Power indicator: PWR interface indicator: electric port and optical port (link / act) |
| Degreeof Protection | IP40 |
| Authentication | Passed certification: CE, FCC, ROHS, ISO9001:2015 Ministry of Public Security Test Report |
| Mean Time Between Failures | 300,000 Hour |
| Warranty | 1 Year |

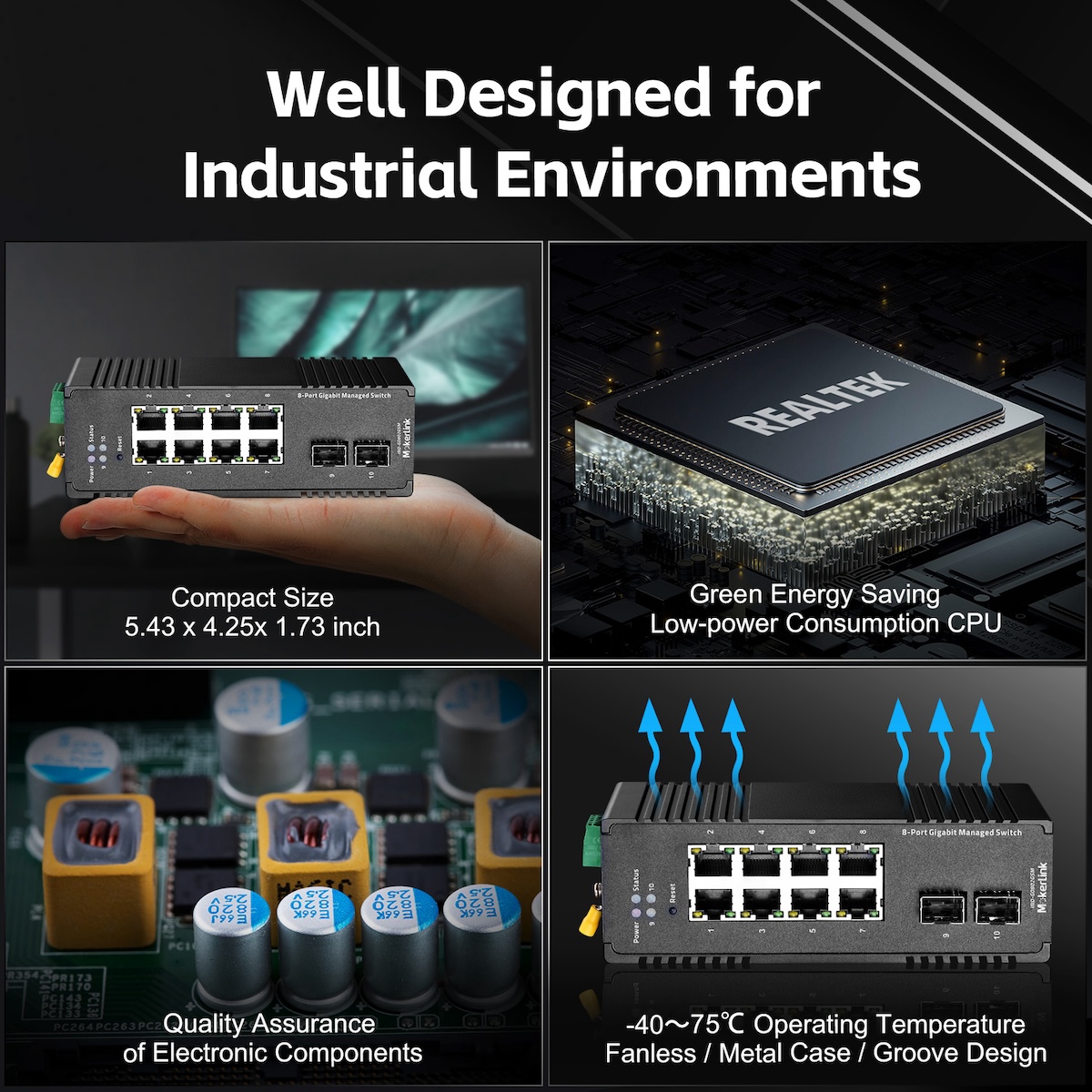

| Mechanical Properties | Enclosure: IP40 protection grade, metal enclosureInstallation: DIN rail type, wall mountedHeat dissipation mode: natural cooling without fanWeight: 0.64kgDimensions: 143 x 101 x 44mm (L x W x H) |
| Industry Standard | EMIFCC Part 15 Subpart B Class A，EN 55022 Class A EMS IEC(EN)61000-4-2(ESD): ±8kV(contact), ±15kV(air) IEC(EN)61000-4-3(RS): 10V/m(80～1000MHz) IEC(EN)61000-4-4(EFT):PowerPort:±4kV; Data Port: ±2kV IEC(EN)61000-4-5(Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV IEC61000-4-6(CS): 10V(150kHz～80MHz)/IEC(EN)61000-4-16(CM EMI) : 30V cont. 300V,1s IEC 60068-2-27 (Shock)/EC 60068-2-32 (Freefall) IEC 60068-2-6 (Vibration) |
