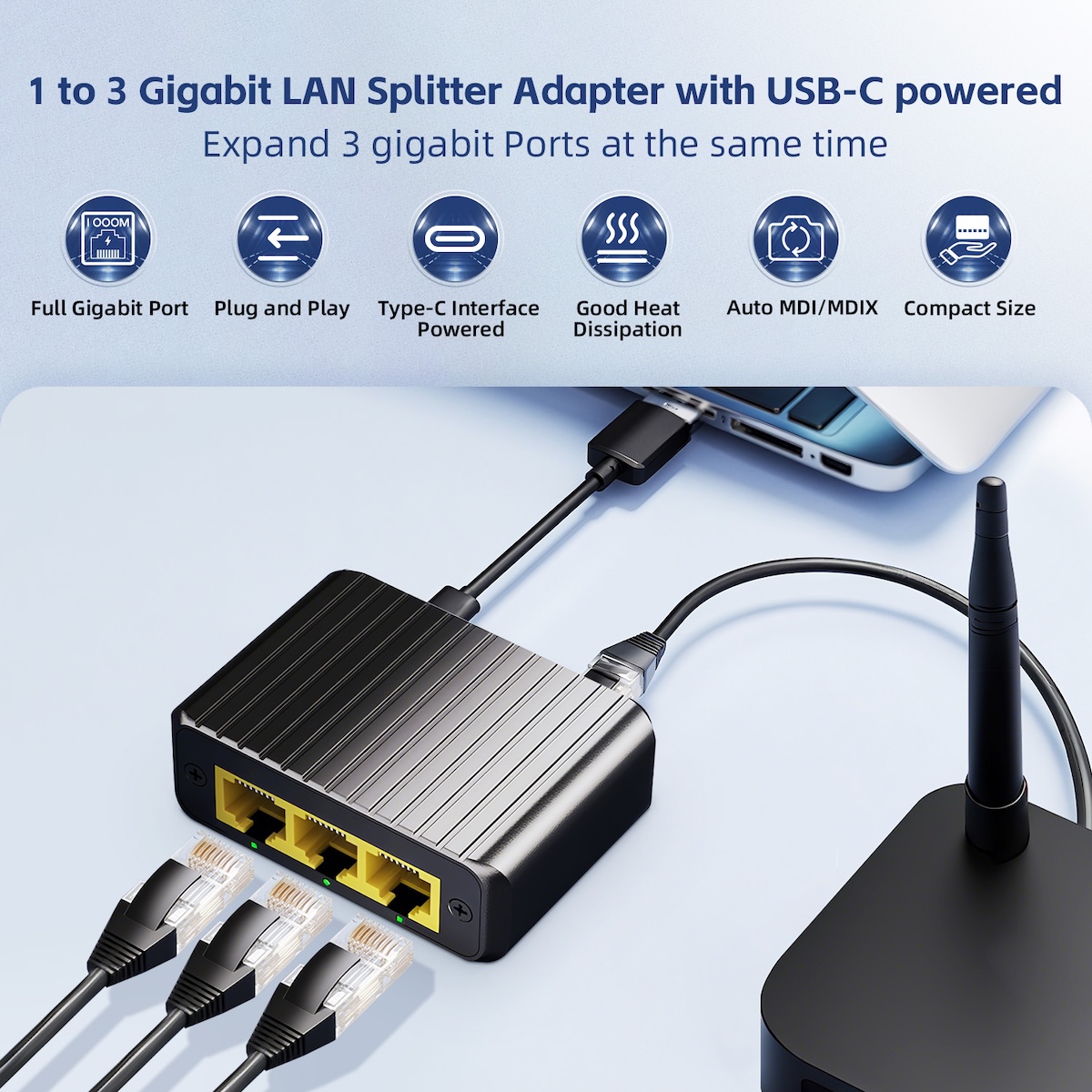

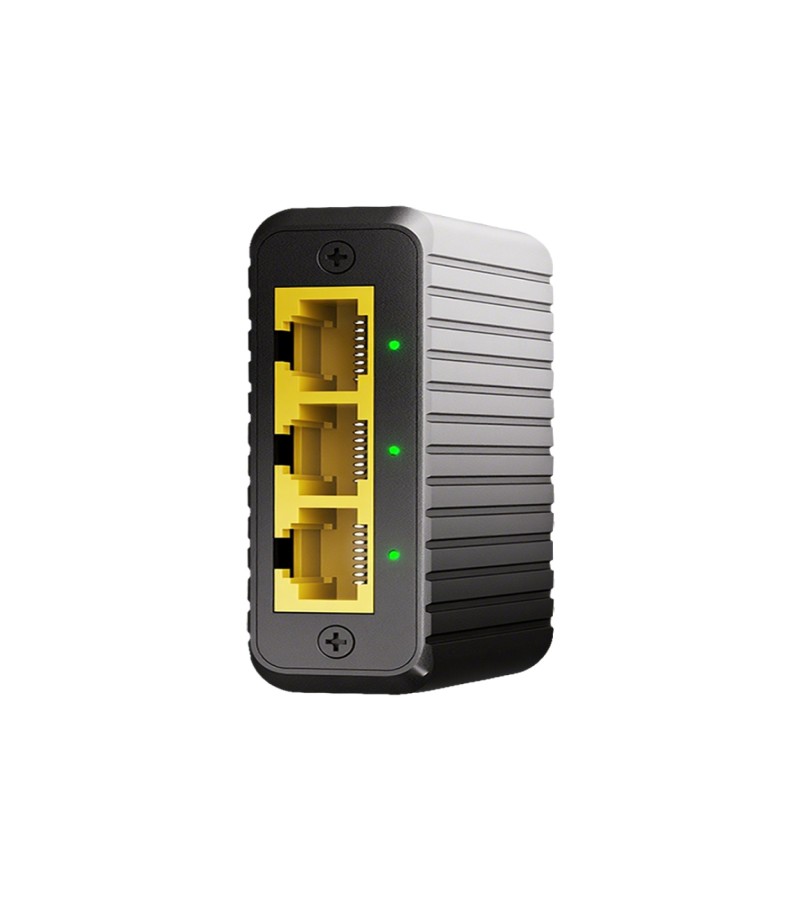

1 to 3 Gigabit Network Splitter, 4 Port Ethernet Switch, Type-C Power Supply, Metal Case Mini Size Plug and Play
The SPT13GE is a gigabit unmanaged switch featuring 4 x 10/100/1000Mbps RJ45 auto-negotiation ports. It boasts low power consumption and utilizes a TYPE-C power port.
$34.99
Price drop reminder
- Brand: MokerLink
- Product Code: SPT13GE
- Availability: In Stock
The SPT13GE is a gigabit unmanaged switch featuring 4 x 10/100/1000Mbps RJ45 auto-negotiation ports. It boasts low power consumption and utilizes a TYPE-C power port. It is simple and convenient to use, requiring no configuration and supporting plug-and-play functionality.
Product Features
- Compliant with IEEE802.3, IEEE802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3x, IEEE802.3az, and IEEE802.1q Ethernet standards.
- 4 10/100/1000Mbps auto-negotiation RJ45 ports, supporting Auto MDI/MDIX function.
- 2K MAC address table with automatic learning and aging functions.
- Supports IEEE802.3x full-duplex flow control and half-duplex backpressure flow control.
- Easy-to-understand LED indicators for showing port connection and data transmission status.
- Compact structural design, suitable for desktop installation and use.
Product Highlight
- Compliant with IEEE802.3, IEEE802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3x, IEEE802.3az and IEEE802.1q standards.
- Flow control method: IEEE 802.3x standard for full-duplex, Backpressure standard for half-duplex.
- Adopting store-and-forward mode.
Ask Question About Product
Note: HTML is not translated!
| Ethernet Switch Hardware Specifications | |
| Product Model | SPT13GE |
| Product Name | 4-Port Gigabit Unmanaged Ethernet Switch with Typec-C Power Input |

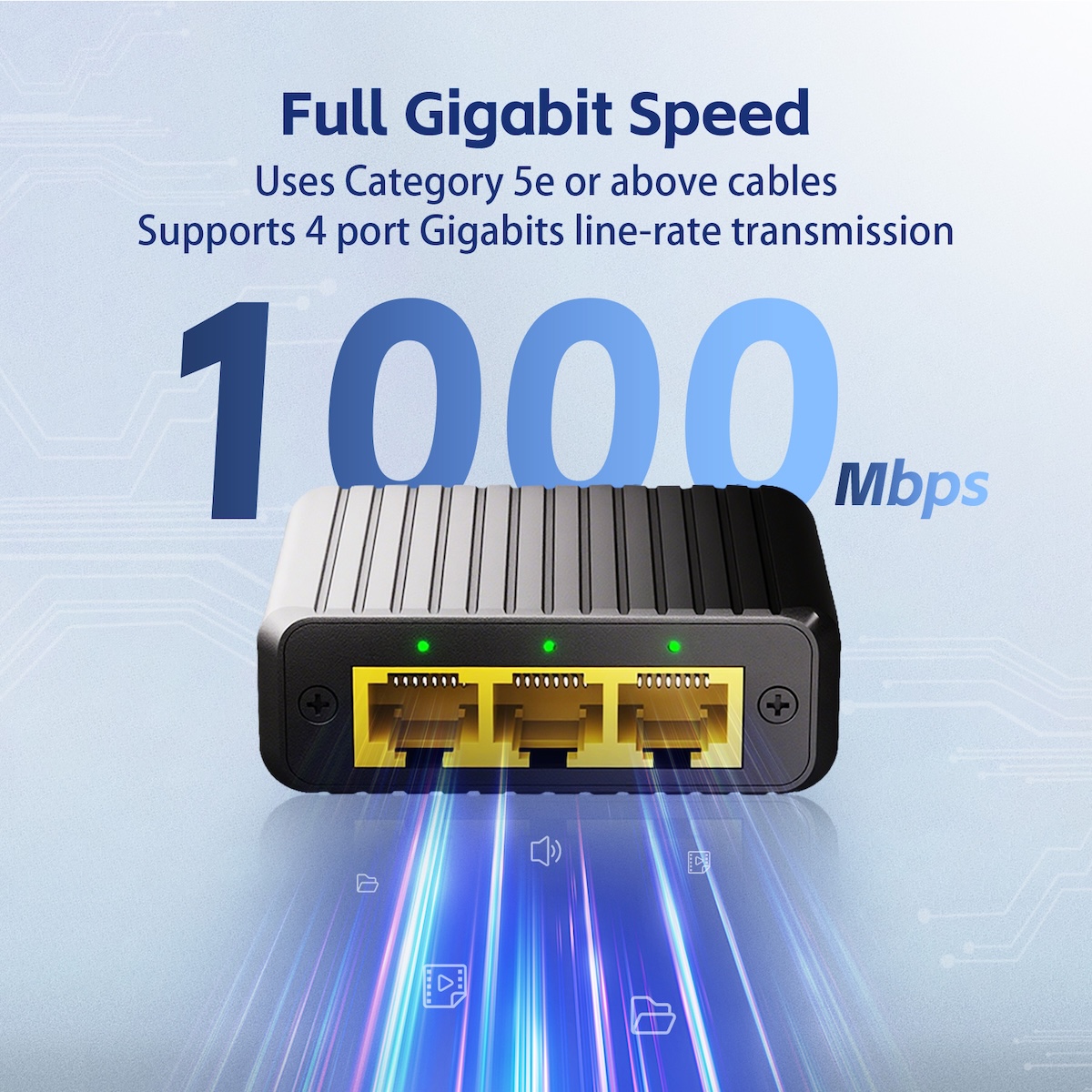

| Ethernet Port | 4x 10/100/1000Mbps auto-adaptive RJ45 ports (Auto MDI/MDIX) |
| Switching Capacity | 8Gbps |
| Packet Buffer | 5.95MPPS |
| MAC Address | 2K |
| Transfer Mode | Storage & Forwarding |
| Network protocol | IEEE802.3 (10Base-T) IEEE802.3u (100Base-TX) IEEE802.3ab (1000Base-TX) IEEE802.3x (Flow control) |
| Network Medium | 10Base-T: Cat3, 4, 5 or above UTP(≤100m) 100Base-TX: Cat5 or above UTP(≤100m) 1000Base-TX: Cat5 or aboveUTP(≤100m) |
| Working Environment | Working Temperature：-0~40°C Storage Temperature：-40~70°C Working Humidity ：10%~90%，non-condensing Storage Temperature：5%~95%，non-condensing |
| LED Indicator | Power, Link/Act |

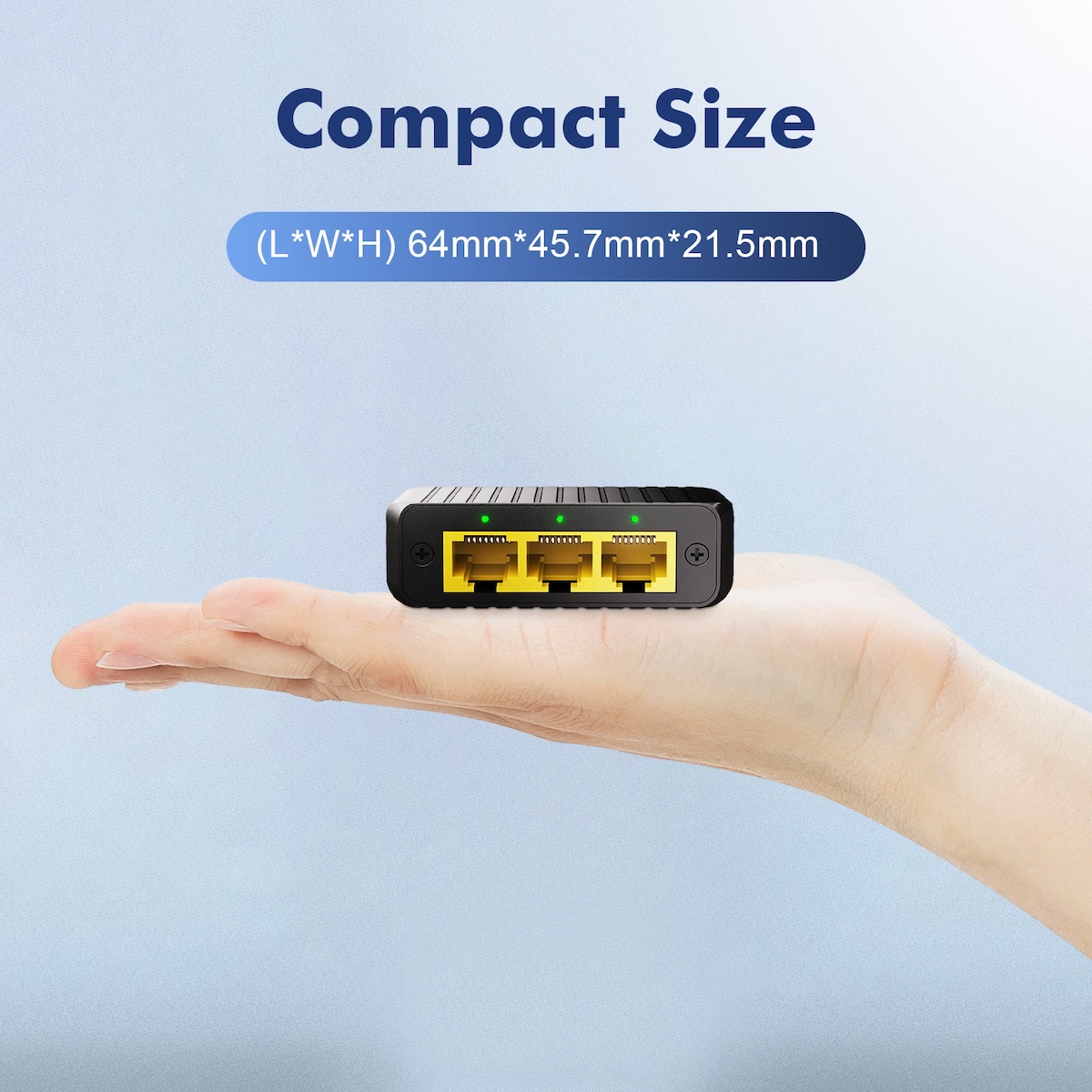

| Structure Size | (Length)64mm*(Width)45.7mm*(High)21.5mm |
| Installation | Desktop |

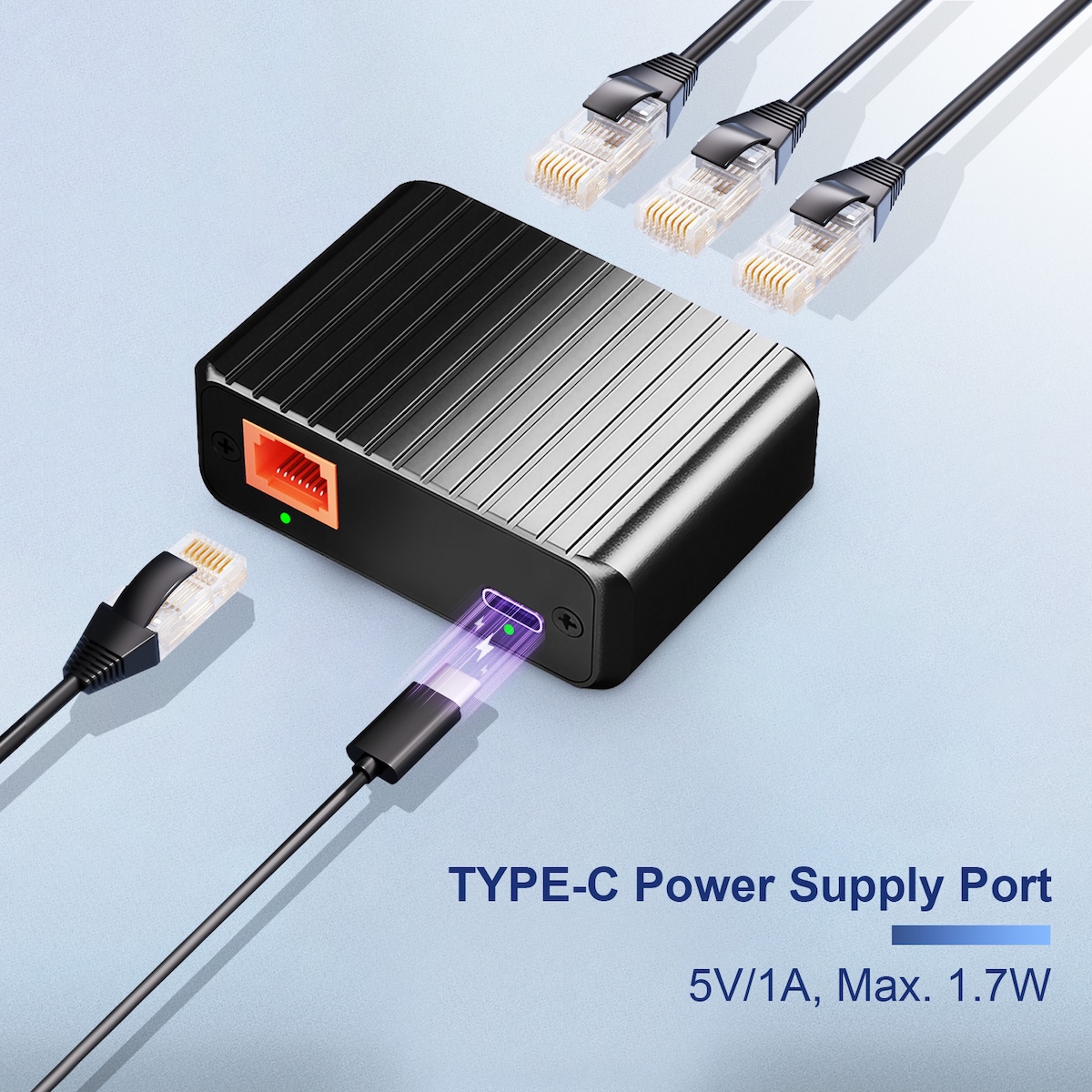

| Power Voltage | Type-C 5V/1A, Total Power Consumption: 1.4W (MAX) |
| Package List | Switch 1 pcs, Type-c Cable 1 pcs, User manual 1 pc |
