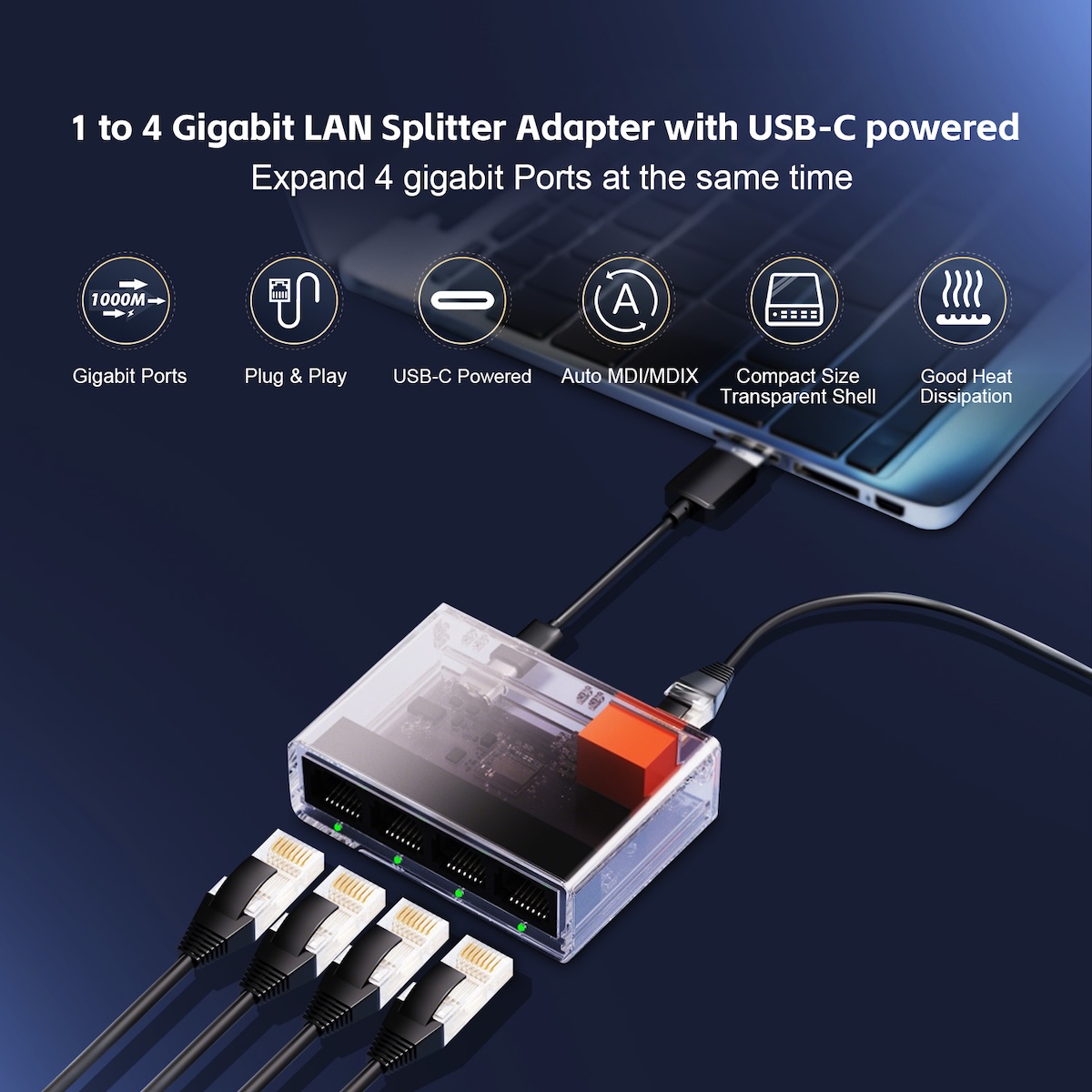

1 to 4 Gigabit Network Splitter, 5 Port Ethernet Switch, Type-C Power Supply, Transparent Shell Mini Size Plug and Play
SPT14GE is a Gigabit Unmanaged Ethernet Switch that offers 5 10/100/1000Mbps RJ45 auto - sensing ports. It has the advantage of low power consumption and adopts TYPE-C power supply port. It is simple and convenient to use, requiring no configuration and supporting plug and play functionality.
$35.99
Price drop reminder
- Brand: MokerLink
- Product Code: SPT14GE
- Availability: In Stock
SPT14GE is a Gigabit Unmanaged Ethernet Switch that offers 5 10/100/1000Mbps RJ45 auto - sensing ports. It has the advantage of low power consumption and adopts TYPE-C power supply port. It is simple and convenient to use, requiring no configuration and supporting plug and play functionality.
Product Features
- Compliant with IEEE802.3, IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3x, IEEE802.3az, and IEEE802.1q Ethernet standards.
- Equipped with 5 10/100/1000Mbps auto-negotiating RJ45 ports supporting Auto MDI/MDIX function.
- 2K MAC address table with automatic learning and aging functions.
- Supports IEEE802.3x full-duplex flow control and half-duplex backpressure flow control.
- Features intuitive LED indicators for port link status and data transmission.

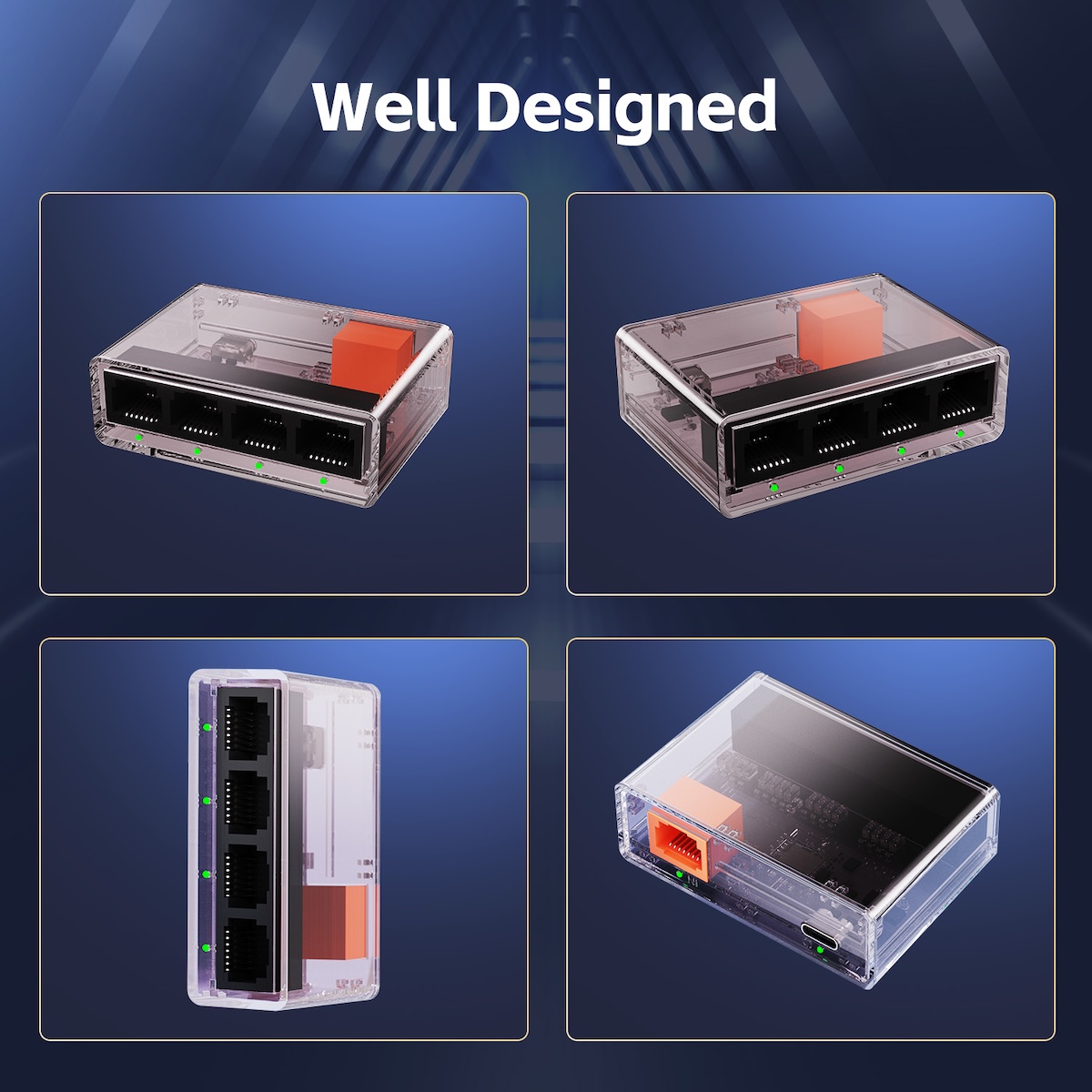

- Compact design suitable for desktop installation.
Product Highlight
- Compliant with IEEE802.3, IEEE802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3x, IEEE802.3az, and IEEE802.1q standards.
- Flow control methods: IEEE 802.3x standard for full-duplex, Backpressure standard for half-duplex;
- Adopts store-and-forward mode.
Ask Question About Product
Note: HTML is not translated!
| Ethernet Switch Hardware Specifications | |
| Product Model | SPT14GE |
| Product Name | 5-Port Gigabit Unmanaged Ethernet Switch with Typec-C Power Input |
| Ethernet Port | 5x 10/100/1000Mbps auto-adaptive RJ45 ports (Auto MDI/MDIX) |
| Switching Capacity | 10Gbps |
| Packet Buffer | 7.44MPPS |
| MAC Address | 2K |
| Transfer Mode | Storage & Forwarding |
| Network protocol | IEEE802.3 (10Base-T) IEEE802.3u (100Base-TX) IEEE802.3ab (1000Base-TX) IEEE802.3x (Flow control) |
| Network Medium | 10Base-T: Cat3, 4, 5 or above UTP(≤100m) 100Base-TX: Cat5 or above UTP(≤100m) 1000Base-TX: Cat5 or aboveUTP(≤100m) |
| Working Environment | Working Temperature：-0~40°C Storage Temperature：-40~70°C Working Humidity ：10%~90%，non-condensing Storage Temperature：5%~95%，non-condensing |
| LED Indicator | Power, Link/Act |
| Structure Size | (Length)65.5mm*(Width)45.5mm*(High)23.4mm |
| Installation | Desktop |

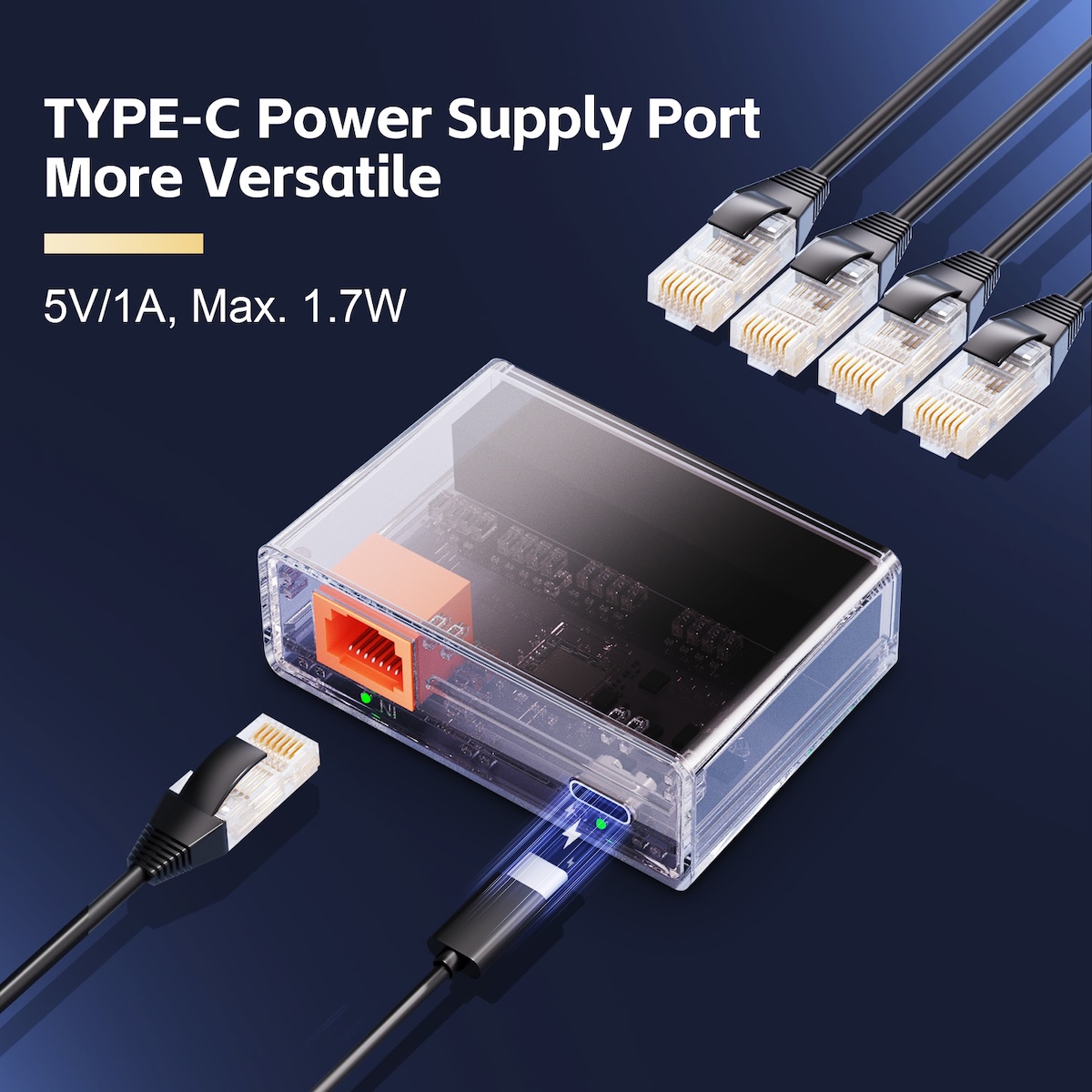

| Power Voltage | Type-C 5V/1A, Total Power Consumption: 1.7W (MAX) |
| Package List | Switch 1 pcs, Type-c Cable 1 pcs, User manual 1 pc |
