MokerLink Indoor/Outdoor Enclosure with Integrated 8 Port Gigabit Managed PoE+, 2 Port 1G SFP Ethernet Switch, IEEE802.3af/at POE 300W Power Supply, Metal IP55 Case, -40 to 158°F

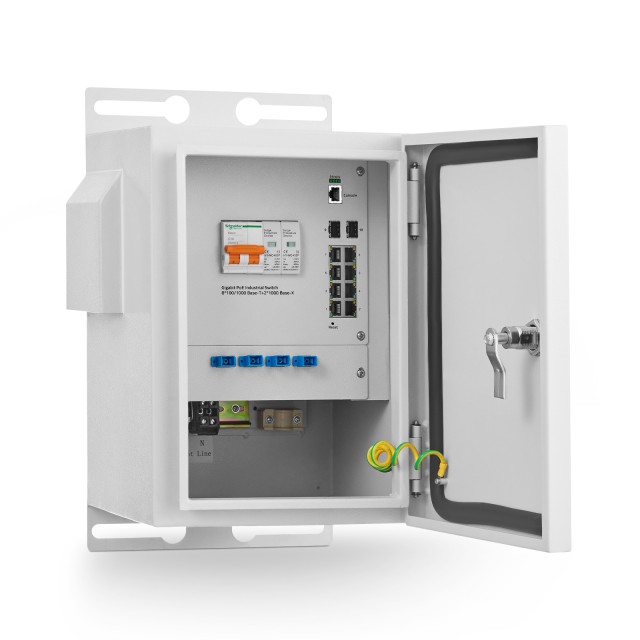

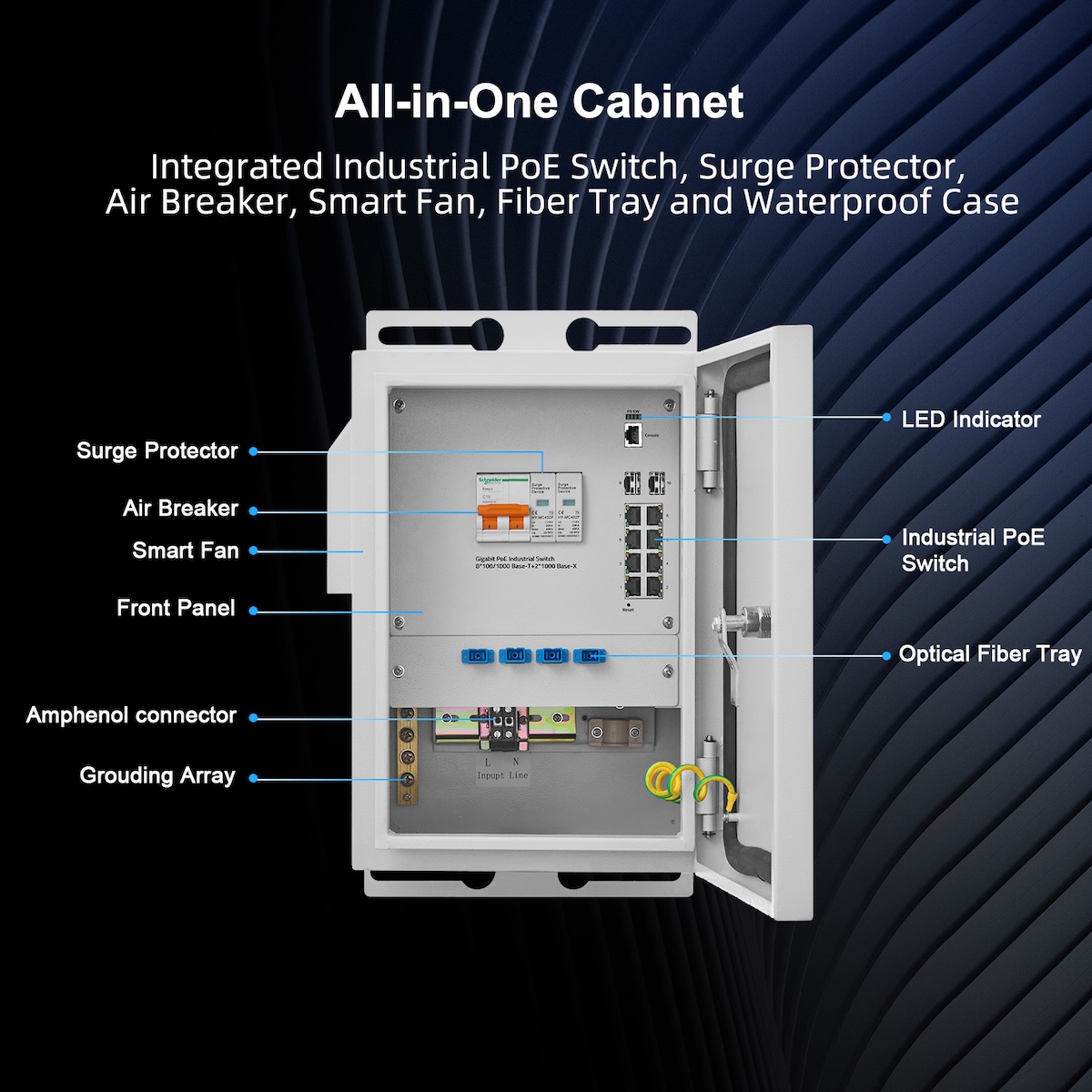

This is indoor/outdoor PoE+ Switch Cabinet with 10-Port industrial managed PoE switch, Optical Fiber Tray, power supply, Surge Protector, Air Breaker and a Smart Fan, all in a single secure cabinet enclosure. Wide range of working environment temperature, high protection level and other technologies, it provides excellent industrial quality with high/low temperature resistance and lightning protection, and enhances the reliability and safety of industrial networks.
$479.99
Price drop reminder
- Brand: MokerLink
- Product Code: BOX-G082GSPM
- Availability: In Stock

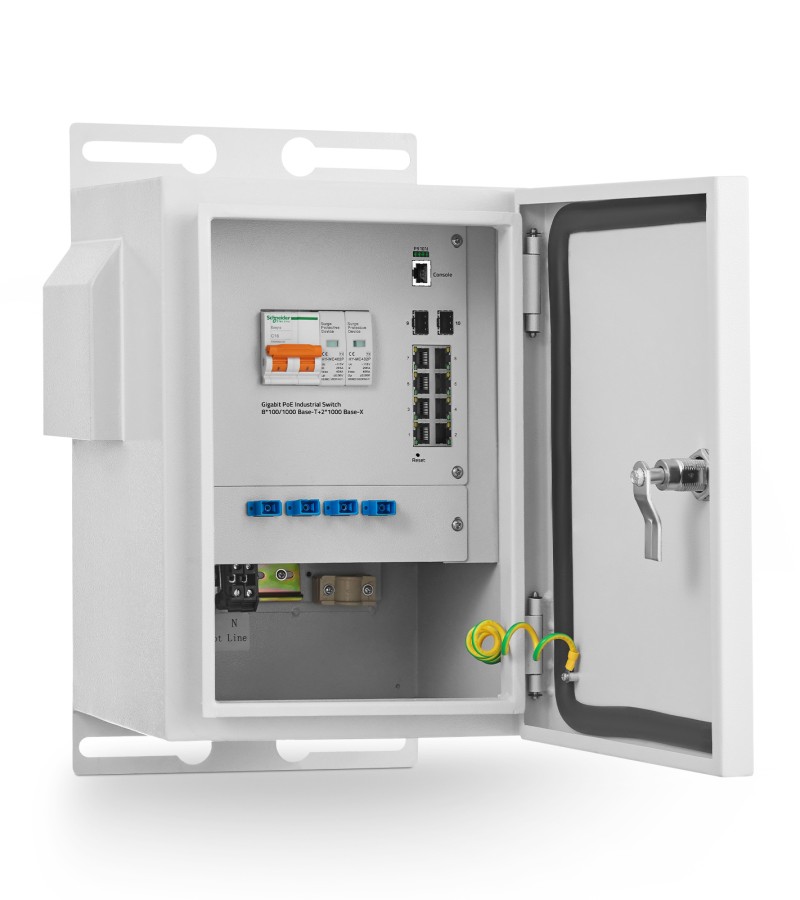

BOX-G082GSPM is an indoor/outdoor PoE+ switch cabinet that integrates a 10-port industrial managed switch, optical fiber tray, power supply, surge protector, air breaker, and smart fan—all housed in a single secure enclosure. Featuring a wide operating temperature range, high protection rating, and advanced technologies, it delivers superior industrial-grade performance with resistance to extreme temperatures and lightning, enhancing the reliability and safety of industrial networks. This makes it well-suited for deployment in harsh environments such as rail transit, safe cities, intelligent transportation, and outdoor monitoring.
Main Features
- 8 Gigabit Ports: Equipped with 8 Gigabit PoE+ Ethernet ports (supporting 10/100/1000Mbps) and 2 1G SFP slots. The SFP slots support single-mode/multi-mode optical modules for extended-distance transmission. With a switching capacity of 20Gbps, each PoE port can simultaneously deliver 1Gbps speeds for high-speed data transmission.

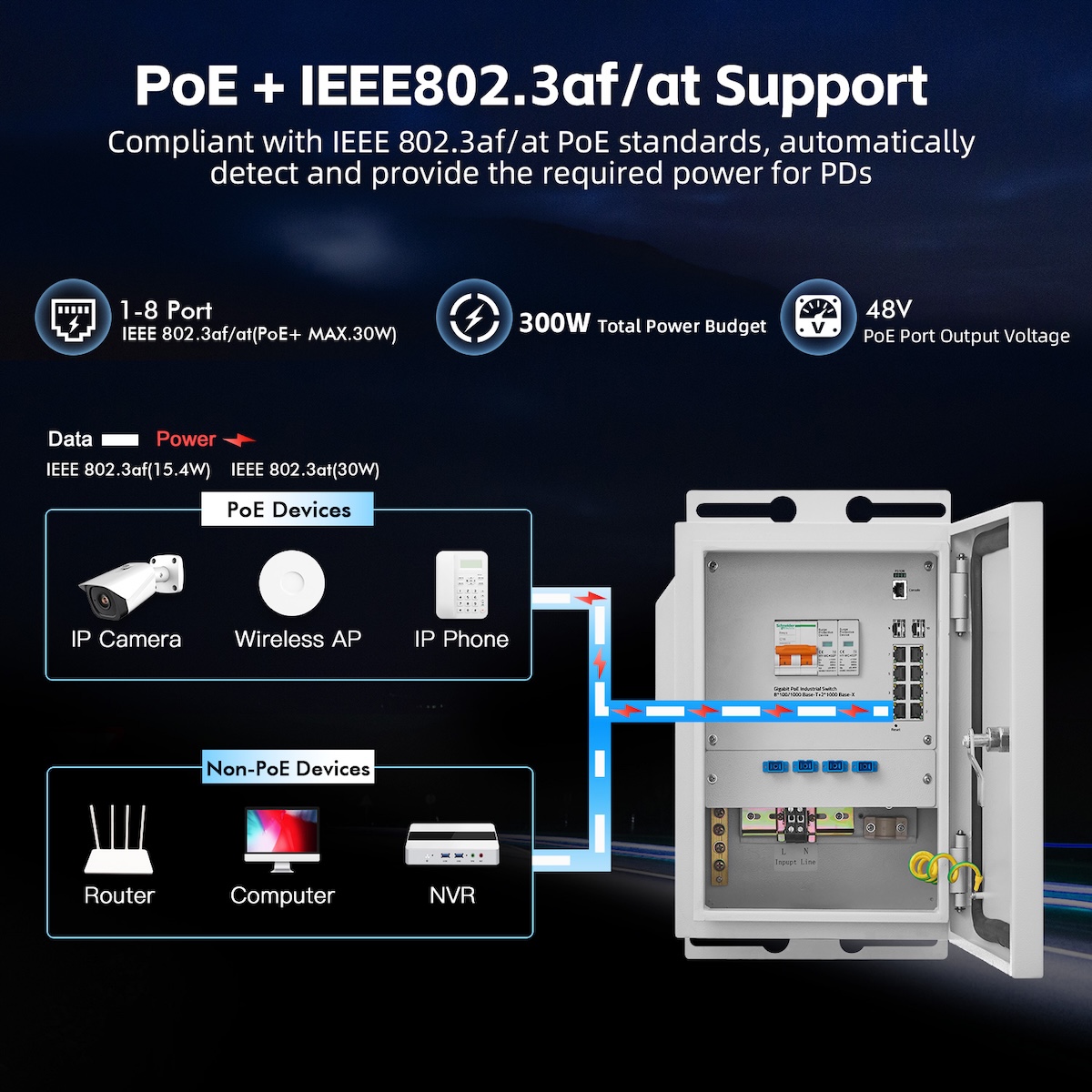

- 300W High PoE Power: Ports 1-8 comply with IEEE 802.3af/at PoE standards, with Per port up to 30W. Includes a 300W internal power supply. Note: Does not support power supply to passive 24V PoE devices, but is fully compatible with non-PoE devices.
- NEMA-Rated Indoor/Outdoor Design: Ideal for non-ventilated and harsh environments, with a wide operating temperature range of -40°C to 70°C (-40°F to 158°F) and a built-in fan for efficient heat dissipation. Constructed from high-quality 1.2mm galvanized sheet, it features a triangle lock, IP55 weather resistance, anti-corrosion, and anti-vandal properties. Supports both pole and wall mounting.

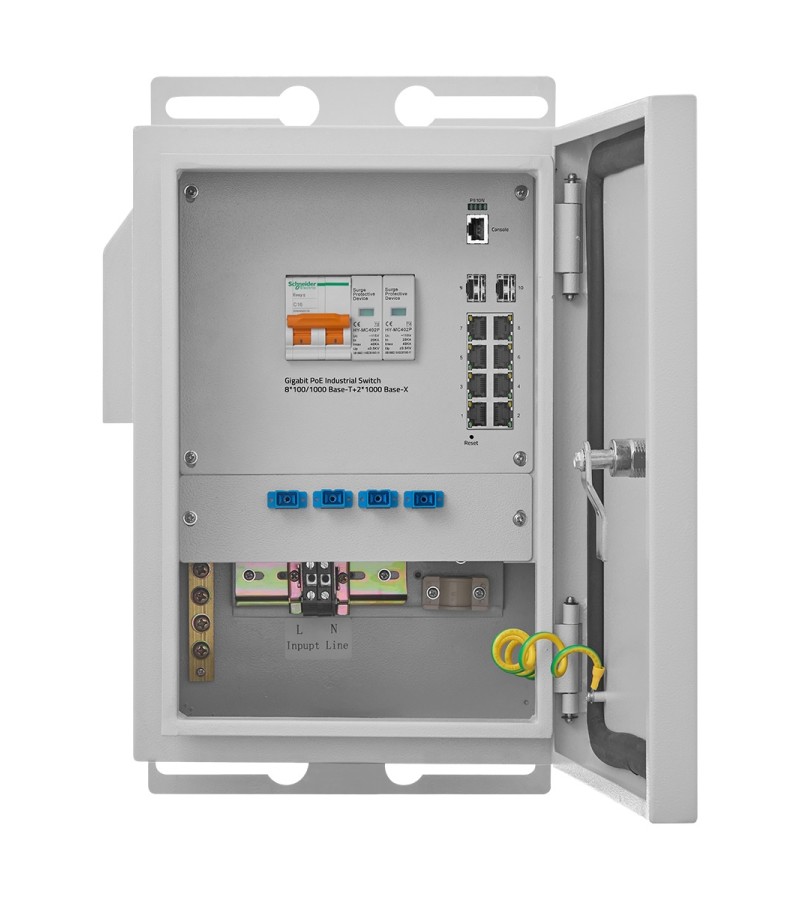

- Integrated Power & Protection: Comes with a built-in power supply and surge protection. The air breaker provides short-circuit protection, overload protection, and isolation, with thermal-magnetic tripping (C-curve characteristics). The cabinet door is fitted with waterproof rubber strips and reinforcing ribs. The optical fiber tray includes a 4-port SC fiber flange and an 8-core fiber management box, with cable entry holes at the bottom for organized wiring.
- Wide Application: With its industrial-grade durability—including extreme temperature resistance and lightning protection—it enhances industrial network reliability and safety, making it ideal for harsh environment deployments such as rail transit, safe cities, intelligent transportation, and outdoor monitoring.
Ask Question About Product
Note: HTML is not translated!
| Ethernet Switch Hardware Specifications | |
| Product Model | BOX-G082GSPM |
| Product Name | All-in-One Indoor/Outdoor Cabinet with Integrated Industrial 10-Port PoE+ Managed Switch |
| Ethernet Port | 8x10M/100M/1000Mbps PoE Ports + 1x1000Mbps SFP Port |
| Switching Capacity | 20Gbps |
| Packet Buffer | 14.88Mpps |
| MAC Address | 8K |
| Jumbo Frame | 9216bytes |
| Transfer Mode | Store and forward |
| Mean Time Between Failure | 100000 hour |
| Network protocol | IEEE802.3 (10Base-T) IEEE802.3u (100Base-TX) IEEE802.3ab(1000Base-TX) IEEE802.3z(1000Base-FX) IEEE802.3x (Flow control) |
| PoE Protocol | Port 1-8 support IEEE802.3af/at (Max. 30W) |
| PoE Pin | V- (RJ45 Pin1,2), V+ (RJ45 Pin 3,6) |
| PoE Power Budget | 300W |
| Industry Standard | EMI: FCC Part 15 CISPR (EN55032) class A EMS: EN61000-4-2 (ESD), EN61000-4-4 (EFT), EN61000-4-5 (Surge) |
| Network Medium | 10Base-T : Cat3、4、5 or above UTP(≤100m) 100Base-TX : Cat5 or above UTP(≤100m) 1000Base-TX : Cat5 or above UTP(≤100m) |
| Lighting Protection | IEC 61000-4-5 Level X（6KV/6KV）（8/20us） |
| Security Certificate | CE、FCC、RoHS |
| Working Environment | Working Temperature：-40℃~+75℃ Storage Temperature：-40℃~+85℃ Working Humidity ：5%~95% non-condensing，non-condensing Storage Temperature：5%~95%，non-condensing Working Height：Maximum10,000 feet Storage heigh：Maximum 10,000 feet |
| LED Indicator | PWR，Link/ACT LED |
| Structure Size | Product Dimensions: 220X230X300mm,Material: High-quality galvanized sheet, thickness 1.2mm, Weight: Net weight: 7.25KG, Gross weight: 8.25KG |

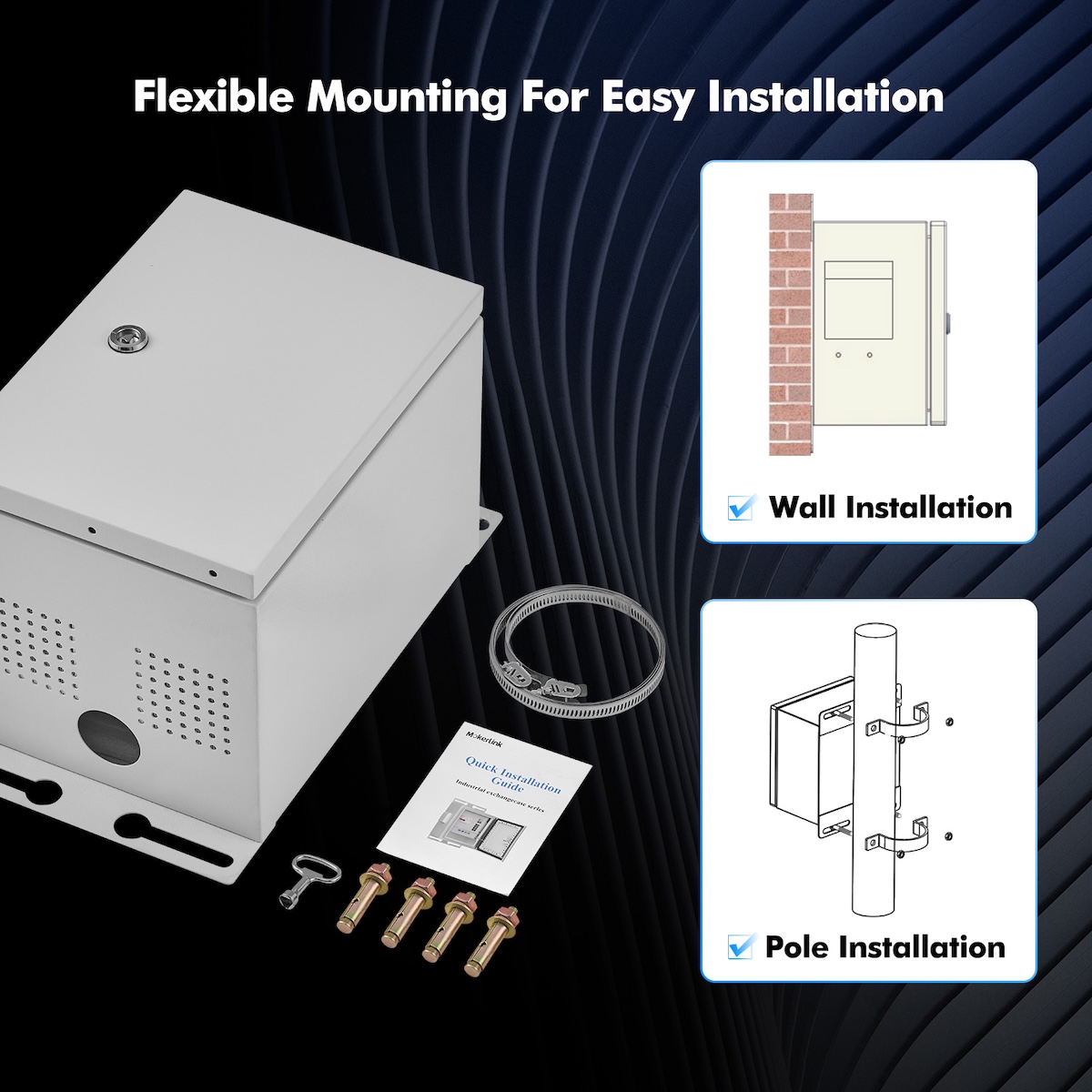

| Installation | Wall/Pole Mountable |
| Shell | box mounting ears thickness 1.5mm, Box lock: Triangle lock, Door: built-in reinforcing ribs, Bottom of the box: the box is 50mm, and there is an air inlet hole at the bottom of the box (insect-proof net welded inside), FAN: air volume 90CFM, 92*92*25mm, line length 300mm |
| Power Voltage | AC100-240V, 50/60Hz, Total Power consumption 300W |
| Package List | Switch 1 PC, Power cord 1 PC, User manual 1 PC |
| Software Function | L2+/L2 Features: Static Routing, DHCP Server, VLAN, QoS, IGMP, LACP, ACL |
