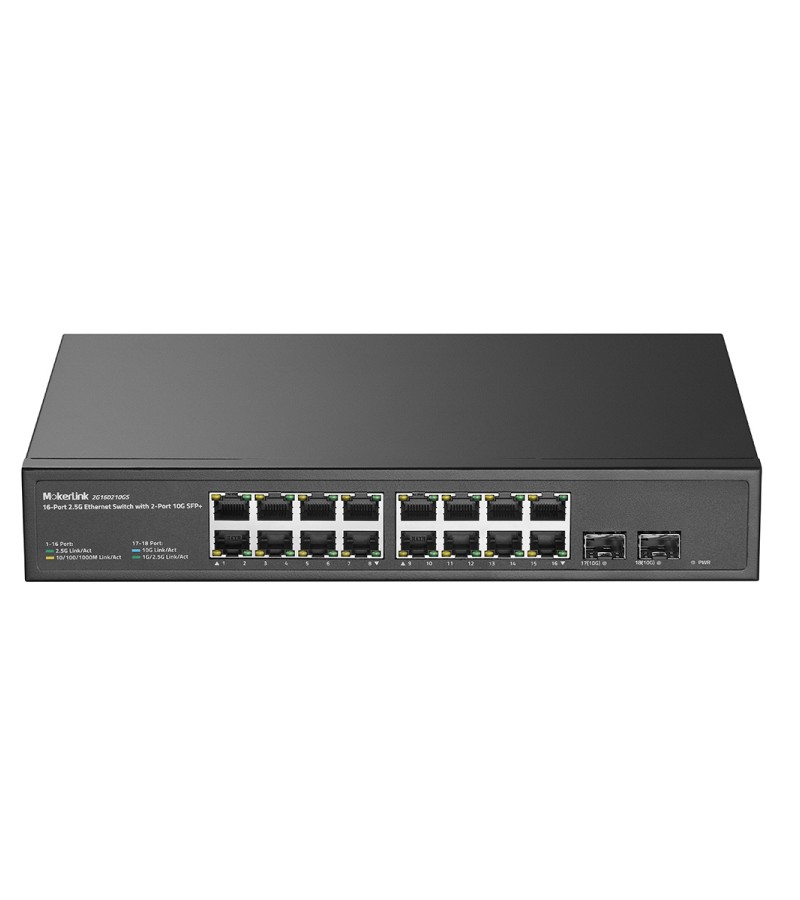

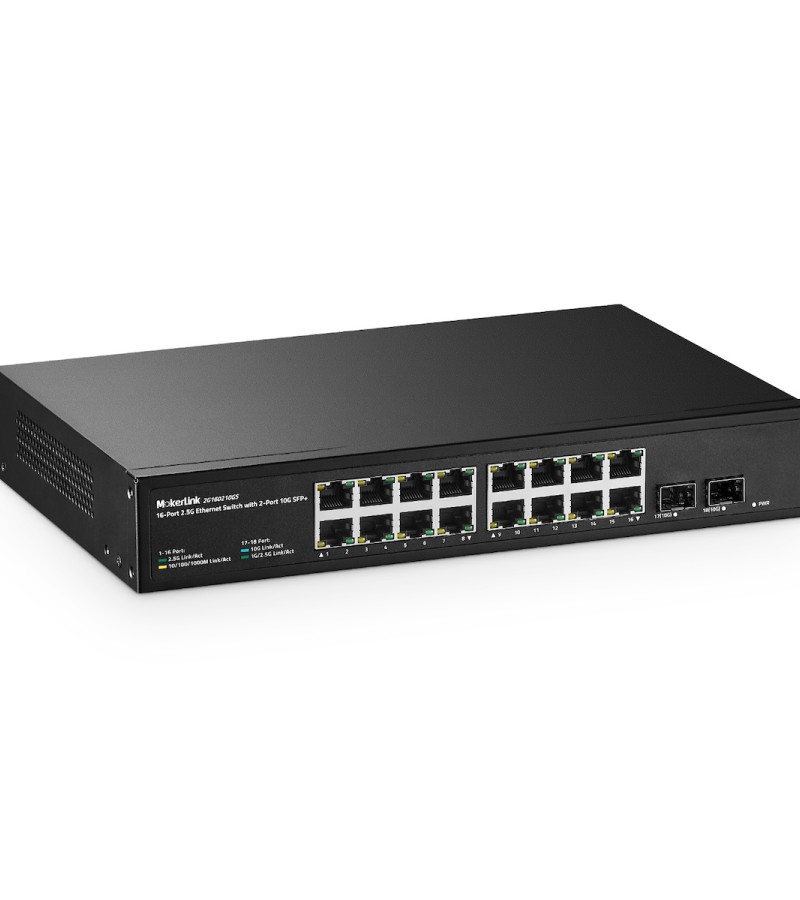

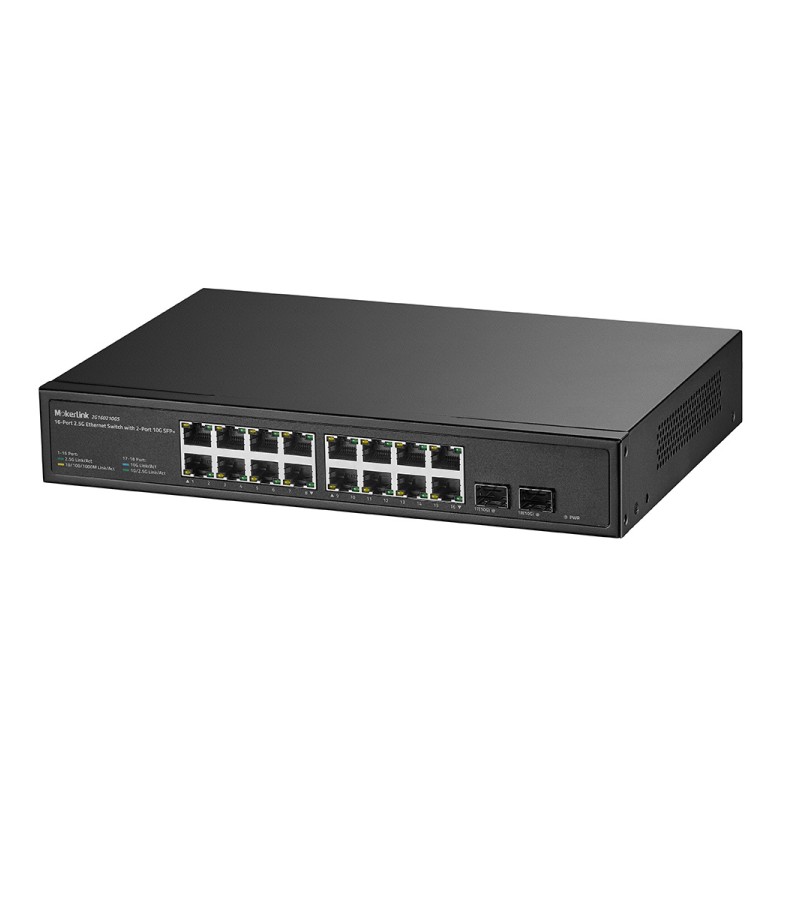

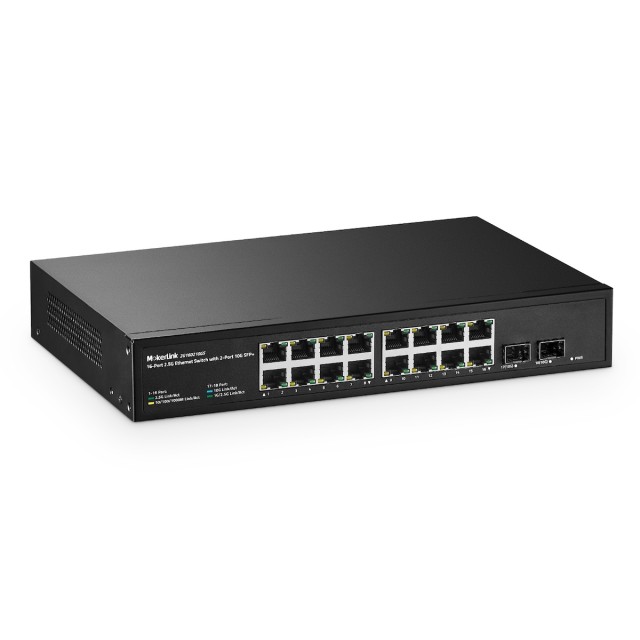

MokerLink 16 Port 2.5 Gigabit Ethernet Switch with 2x10G SFP+, 16 x 2.5G RJ45 Ports Compatible with 10/100/1000Mbps, Metal Unmanaged Fanless Rackmout Network Switch

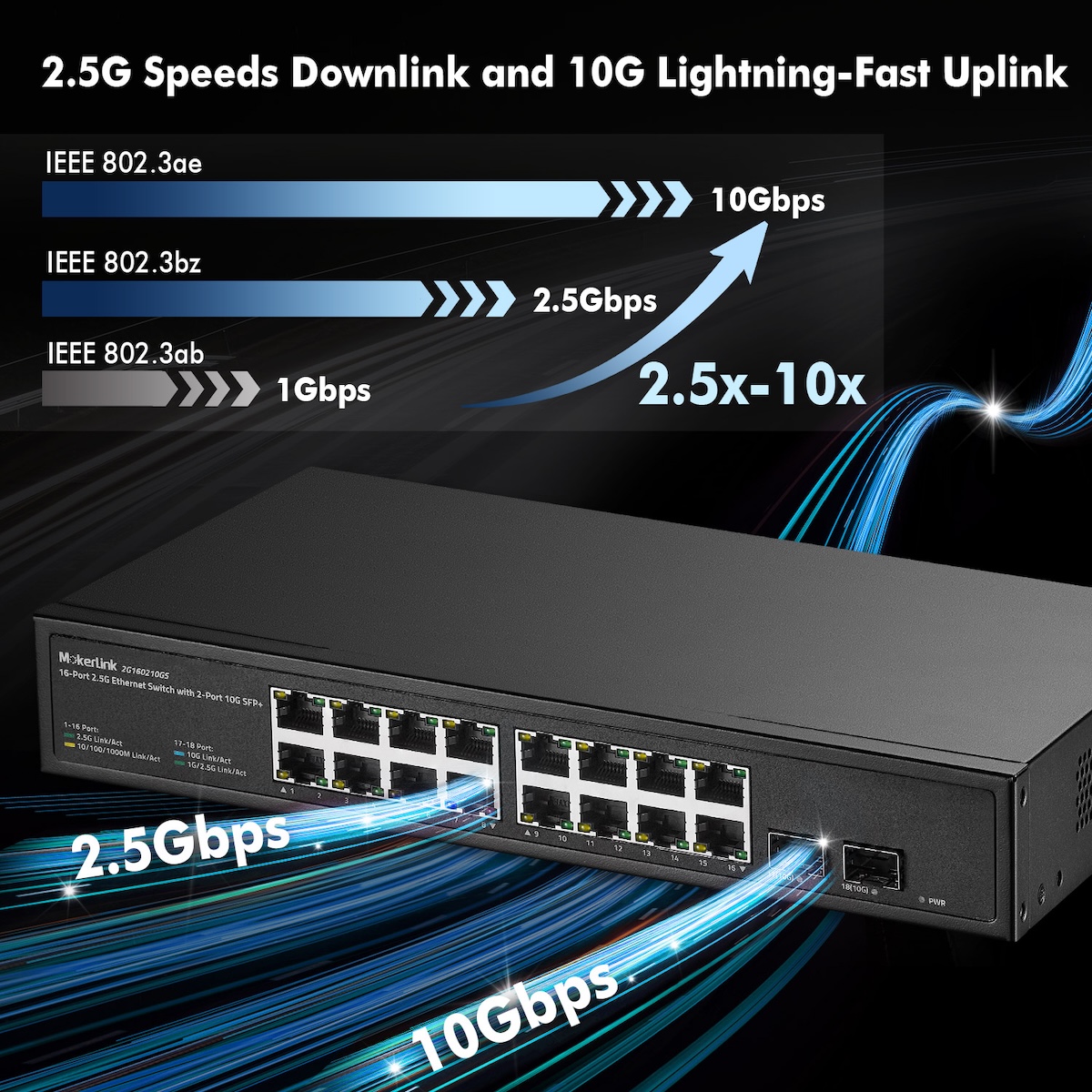

The 2G160210GS is an unmanaged switch with 16x2.5GbE and 2x10GbE SFP+ ports. 16 ethernet ports provide either 100M, 1000M and 2.5G connectivity, as well as 2 SFP+ Fiber port with 1G or 10Gt connectivity. Each port automatically detects which speed is needed.
$209.99
Price drop reminder
- Brand: MokerLink
- Product Code: 2G160210GS
- Availability: In Stock

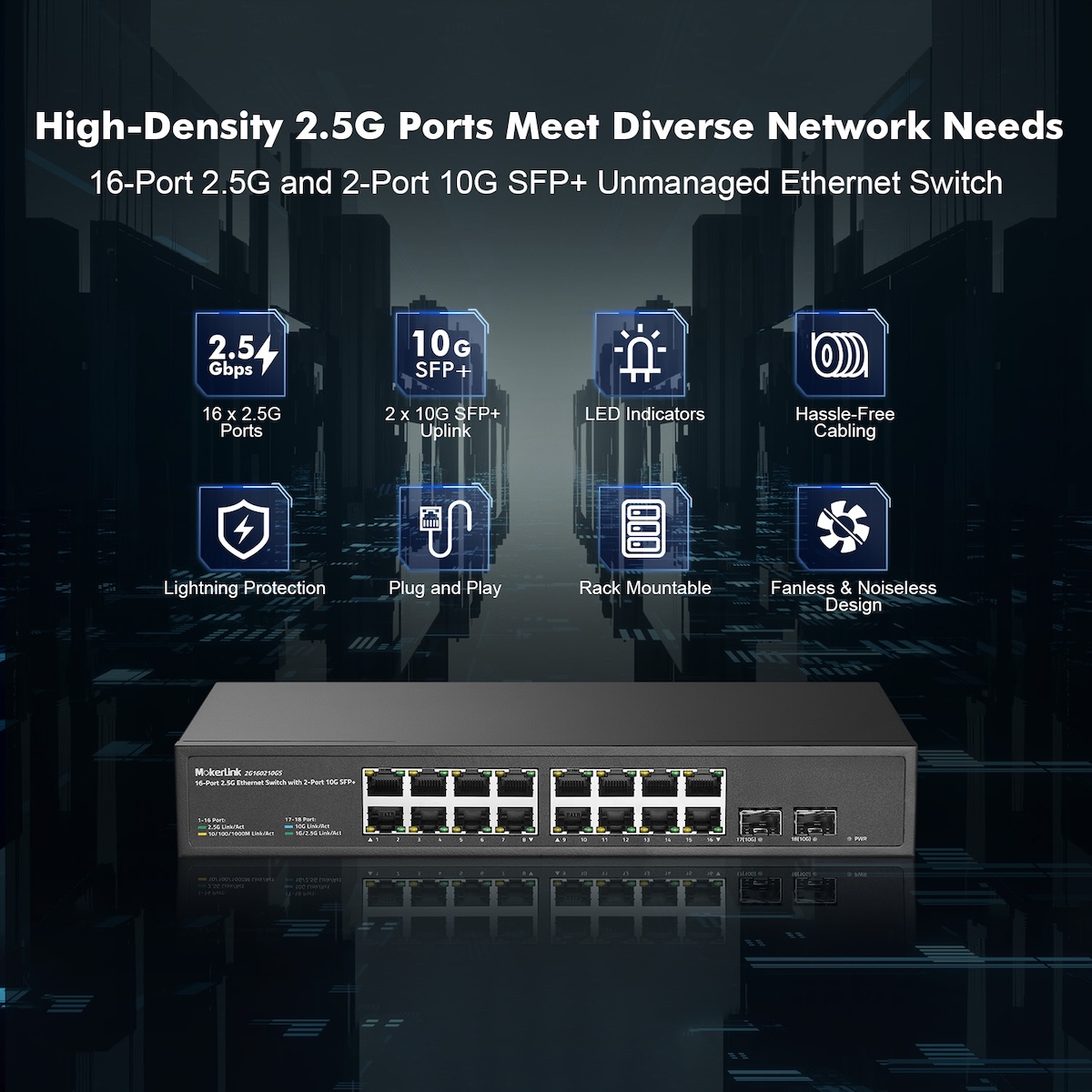

Main Features
- 16*2.5Gbps RJ45 ports + 2*10Gbps SFP+ ports
- Comply with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3z, IEEE802.3ae, and IEEE 802.3x standards
- Ethernet Ports support 10M/100M/1G/2.5Gbps self-adaptive
- Support automatic port flipping (Auto MDI/MDIX)
- The panel indicator LEDs will monitor the working status and assist in fault analysis
- Flow control method, IEEE802.3x standard for full duplex and Backpressure standard for half duplex
Ask Question About Product
Note: HTML is not translated!
| Ethernet Switch Hardware Specifications | |
| Product Model | 2G160210GS |
| Product Name | 16-port 2.5G Unmanaged Ethernet Switch with 2-port 10G SFP+ |
| Ethernet Port | 16*2.5Gbps RJ45 ports + 2*10Gbps SFP+ ports |
| Switching Capacity | 120Gbps |
| Throughput | 89.28Mpps |
| Packet Buffer | 8Mbit |
| MAC Address | 16K |
| Jumbo Frame | 12Kbytes |
| Transfer Mode | Store and forward |
| Mean Time Between Failure | 100000 hour |
| Network protocol | IEEE802.3 (Ethernet) IEEE802.3u (Fast Ethernet) IEEE802.3ab(Gigabit Ethernet) IEEE 802.3bz (5G Ethernet) IEEE 802.3z (Gigabit Ethernet) IEEE 802.3ae (10G Ethernet) IEEE802.3x (Flow control) |
| Industry Standard | EMI: FCC Part 15 CISPR (EN55032) class A EMS: EN61000-4-2 (ESD)、 EN61000-4-5(Surge) |

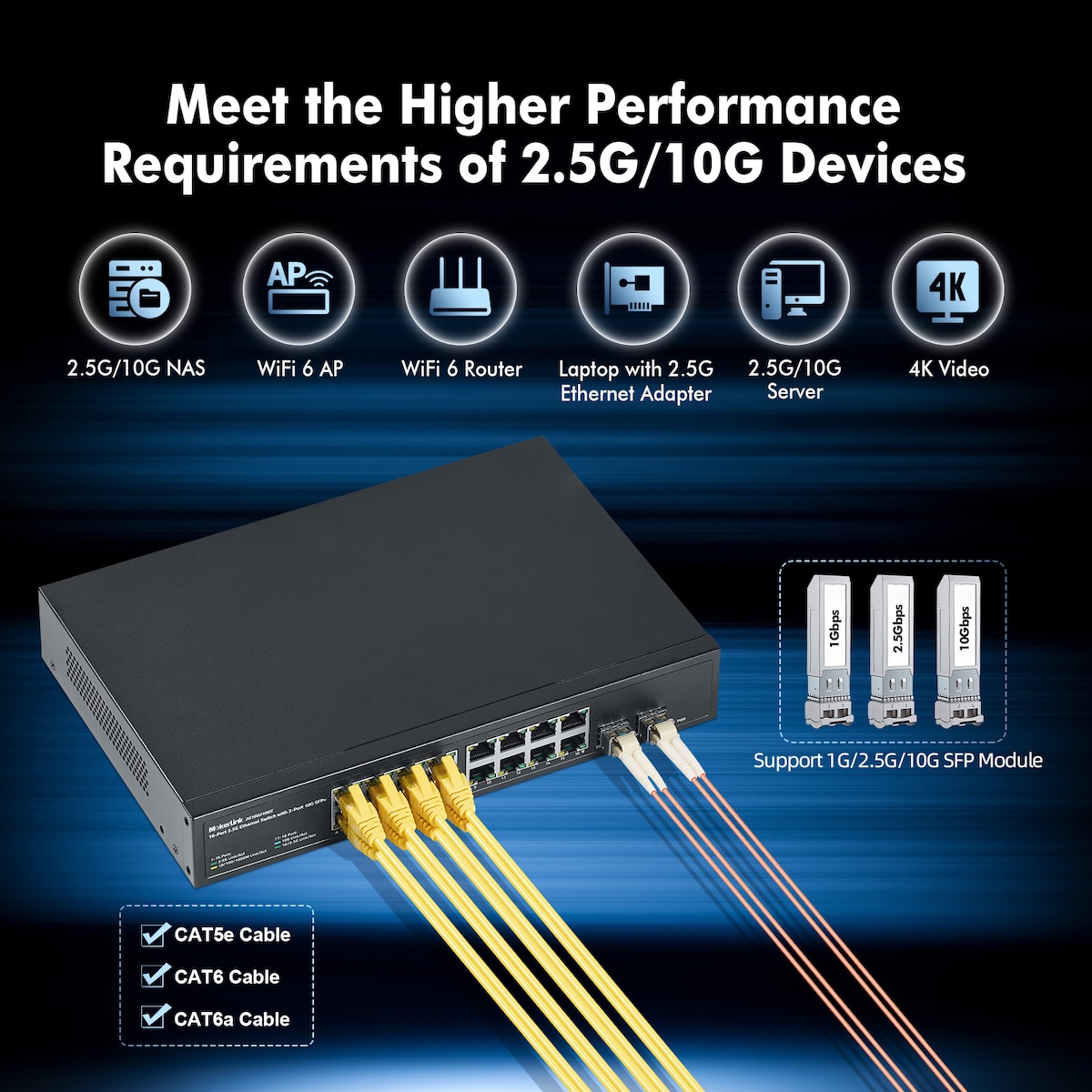

| Network Medium | 10Base-T: Cat3, 4, 5 or above UTP/STP(≤100m) 100Base-TX: Cat5 or above UTP/STP(≤100m) 1000Base-TX: Cat5 or above UTP/STP(≤100m) 2.5GBase-T: Cat5e or above UTP/STP(≤100m) 5GBase-T: Cat6 or above UTP/STP(≤100m) 10GBase-T: Cat6a or above UTP/STP(≤100m) 1000BASE-SX: 62.5μm MMF(multi mode) (Minimum range：2m～275m) or 50μm MMF 1000BASE-LX: 62.5μm/50μm MMF(Minimum range：2m～550m) or 10μm SMF(Minimum range：2m～5km) 2500BASE-X: G.652D SMF(Single mode) (Minimum range：2m～500m or 2m～5Km) 10GBASE-SR: OM1/OM2/OM3 or above MMF(Operating range：2m～300m) 10GBASE-LR: IEC B1.1 and B1.3 SMF(Minimum range：2m～10km) |
| Security Certificate | CE、FCC、RoHS |
| Working Environment | Operating temperature: -10~50°C Storage temperature: -40~70°C Operating humidity: 10%~90%, no condensation Storage humidity: 5%~90%, no condensation |

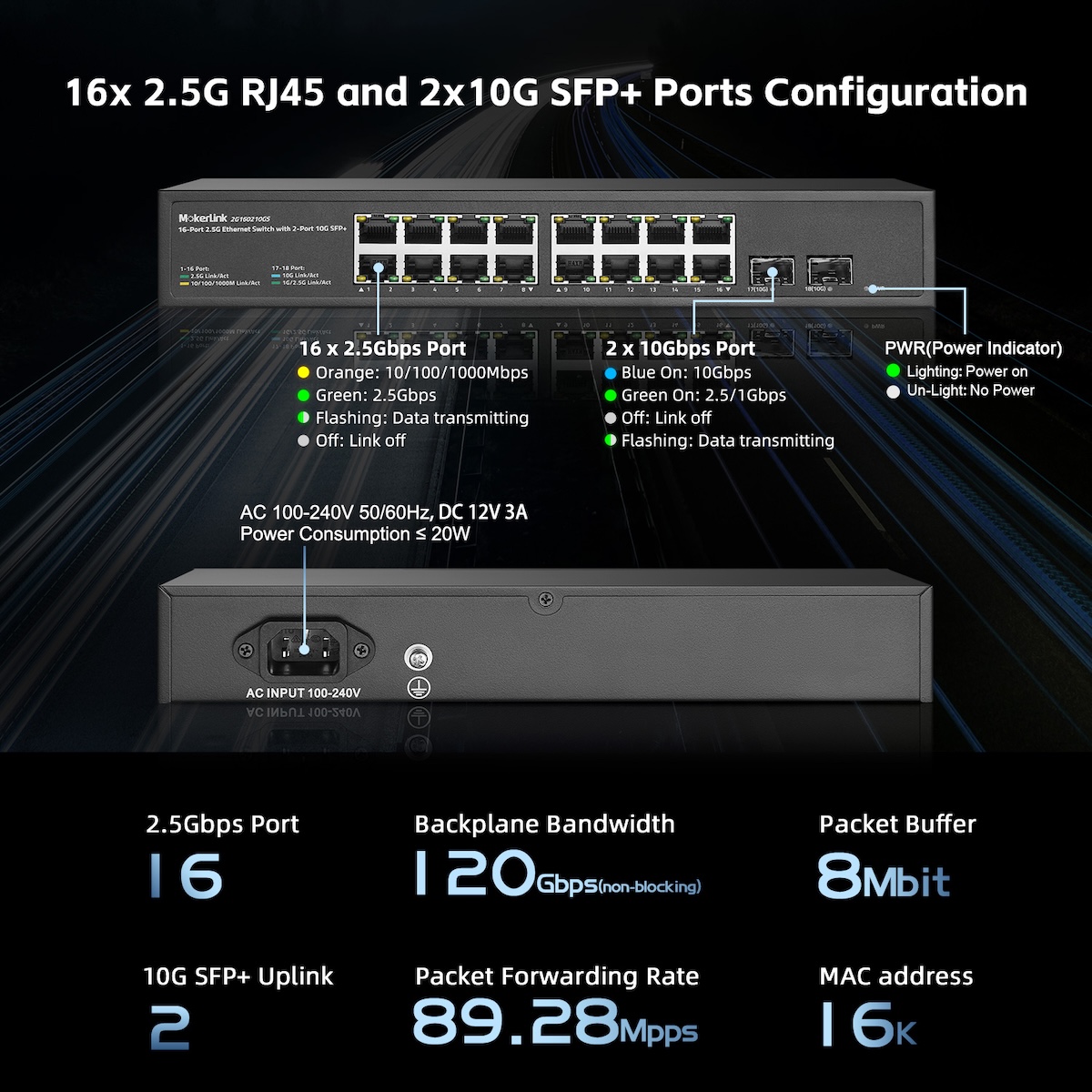

| LED Indicator | PWR Green LED On: Powered onOff: Powered off; Ports 1-16 Green LED on: 2.5Gbps Link normal, Yellow LED on: 10/100/1000Mbps Link normal, Off: Link blocked, Flashing: Data transmitting; Ports 17-18 Blue LED on: 10Gbps Link normal, Green LED on: 1G/2.5Gbps Link normal, Off: Link blocked, Flashing: Data transmitting |
| Structure Size | Product Dimensions: 270*180*45mm Packaging Dimensions: 312*262*84mm Product Net Weight: 1.09KG Product Gross Weight: 1.61KG |
| Installation | Desktop / Rack Mount |
| Shell | Black Color, Metal Shell |

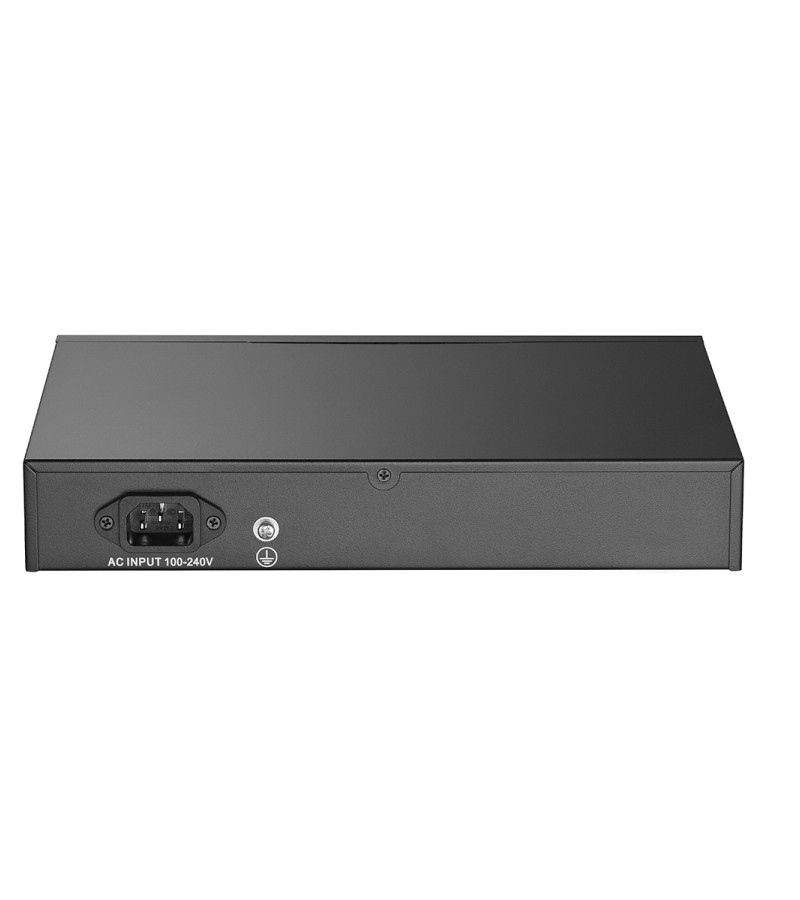

| Power Voltage | AC 100-240V 50/60Hz DC 12V 3A |

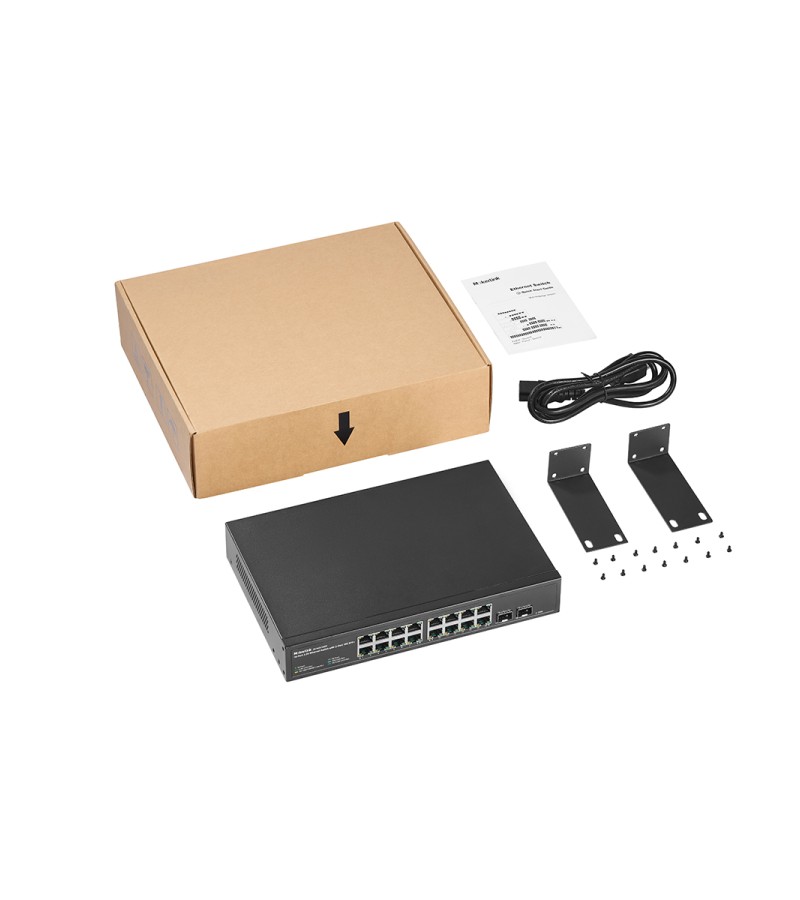

| Package List | Switch 1 PC, Power adapter 1pc, User manual 1 PC |
