MokerLink 5 Port Outdoor Gigabit POE Switch, with 4 POE+ Ports 1000Mbps, 78W IEEE802.3af/at, Weatherproof Unmanaged Plug and Play Fanless Switch
Equipped with 4 x 1000M RJ45 PoE ports and 1 x 1000M RJ45 uplink port, each PoE port provides a maximum power supply of 30W, with a total power output of 78W. Its sleek and compact design achieves an IP66 waterproof rating, making it suitable for harsh outdoor environments.
$69.99
Price drop reminder
- Brand: MokerLink
- Product Code: POE-G041GO
- Availability: In Stock
POE-G041GO is an Outdoor Waterproof PoE Switch. It adopts the latest high-speed Ethernet switch chip, features an ultra-high backplane bandwidth design, and delivers exceptional data processing speed and seamless data transmission performance. Its sleek and compact design achieves an IP66 waterproof rating, making it suitable for harsh outdoor environments.

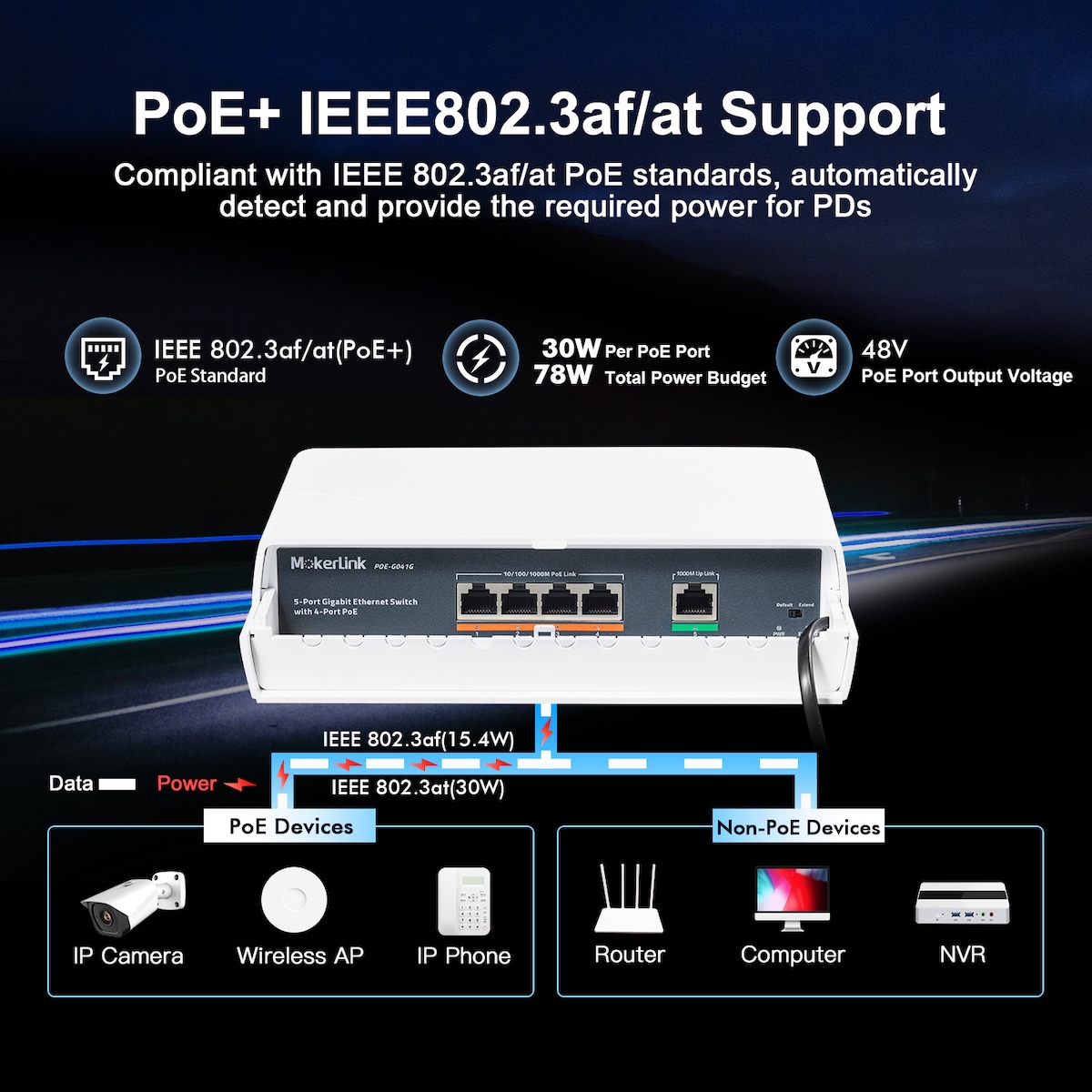

Equipped with 4 x 1000M RJ45 PoE ports and 1 x 1000M RJ45 uplink port, each PoE port provides a maximum power supply of 30W, with a total power output of 78W. The switch can automatically detect and identify PD devices compliant with IEEE 802.3af/at standards, and supports priority scheduling.
Product Highlights
- Features 4 x 10/100/1000 Mbps auto-adaptive RJ45 PoE ports, enabling high-speed forwarding and lossless data transmission
- Equips 1 x 10/100/1000 Mbps auto-adaptive RJ45 uplink port
- All ports support MDI/MDIX auto-crossover and auto-negotiation, compliant with IEEE 802.3X flow control (full-duplex) and backpressure (half-duplex)
- 4 x 10/100/1000 Mbps PoE ports support IEEE802.3af/at(Max. 30W).
- Automatically detects PD devices and delivers power safely, without damaging non-PoE devices
Product Feaures
Ask Question About Product
Note: HTML is not translated!
| Ethernet Switch Hardware Specifications | |
| Product Model | POE-G041GO |
| Product Name | 5-Port Outdoor Gigabit Ethernet Switch with 4-Port PoE |
| Ethernet Port | 4*10/100/1000M PoE Port, 1*10/100/1000M RJ45 UpLink Port |
| Switching Capacity | 12Gbps |
| Packet Buffer | 8.92Mpps |
| MAC Address | 2K |
| Transfer Mode | Store and forward |
| Mean Time Between Failure | 100000 hour |
| Network protocol | IEEE802.3 (10Base-T) IEEE802.3u (100Base-TX) IEEE802.3ab(1000Base-TX) IEEE802.3x (Flow control) |
| PoE Protocol | IEEE802.3af (15.4W) IEEE802.3at (30W) |
| PoE Pin | 1/2+, 3/6- |
| PoE Power Budget | 78W |
| Industry Standard | EMI: FCC Part 15 CISPR (EN55032) class A EMS: EN61000-4-2 (ESD), EN61000-4-4 (EFT), EN61000-4-5 (Surge) |
| Network Medium | 10Base-T: Cat3, 4, 5 or above UTP(≤100m), 100Base-TX : Cat5 or above UTP(≤100m), 1000Base-TX : Cat5 or above UTP(≤100m) |
| Lighting Protection | 4KV Lighting Protection |
| Security Certificate | CE、FCC、RoHS |
| Working Environment | Working Temperature: -10~50℃ Storage Temperature: -20~85℃ Working Humidity: 10%~90%，non-condensing Storage Temperature: 5%~90%，non-condensing Working Height: Maximum10,000 feet Storage heigh: Maximum 10,000 feet |

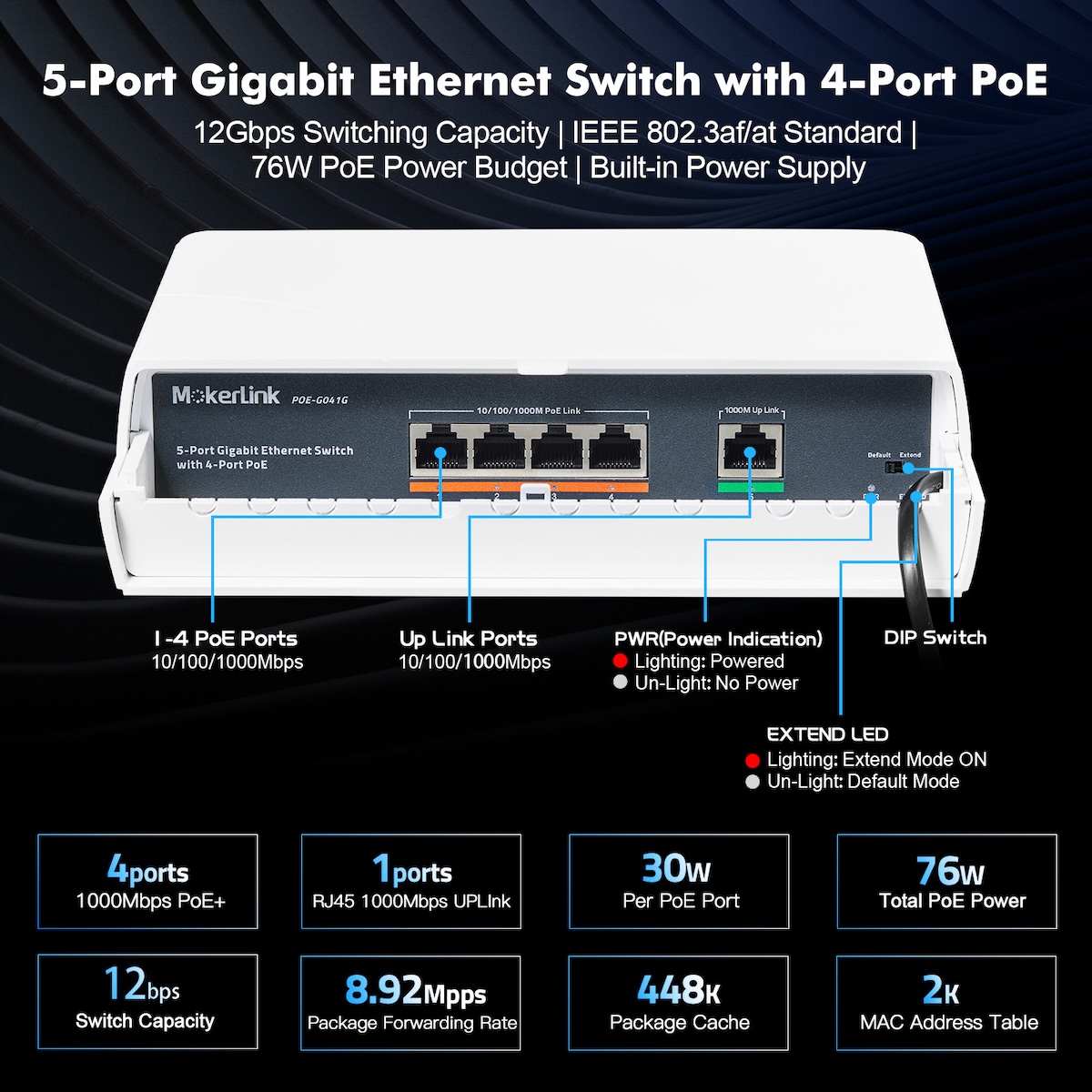

| LED Indicator | 1-5 Green Light (Link&Data) On: PoE on, Link Connecting, Flashing: Data Transmit, Off Disconnect PWR(Power) On: Powered on, Off: Powered off. |

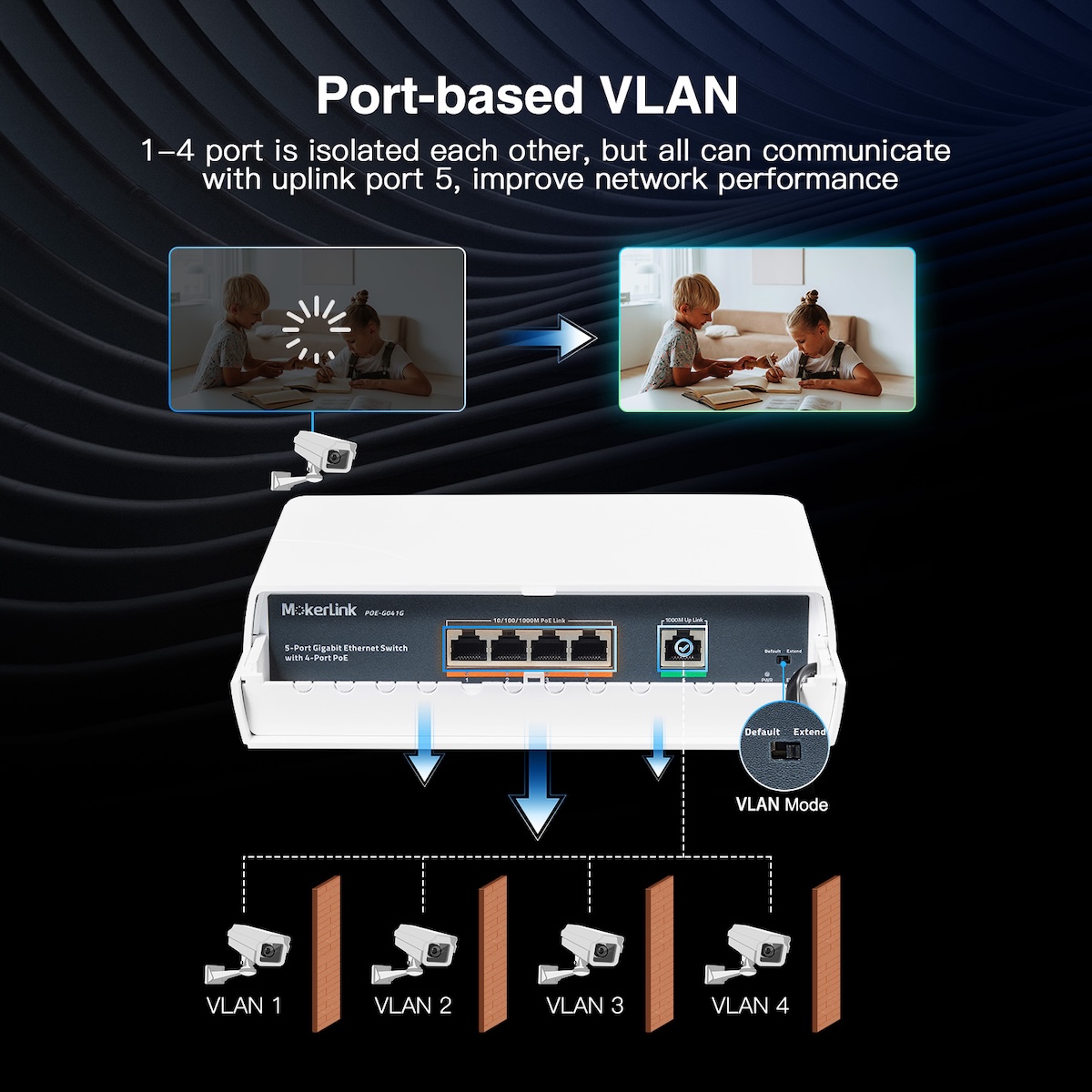

| DIP Switch | Extend: Extend mode is enabled (ports 1-4 are isolated and communicate with ports 5 of the uplink. ; Default: Default mode (all ports communicate with each other) |

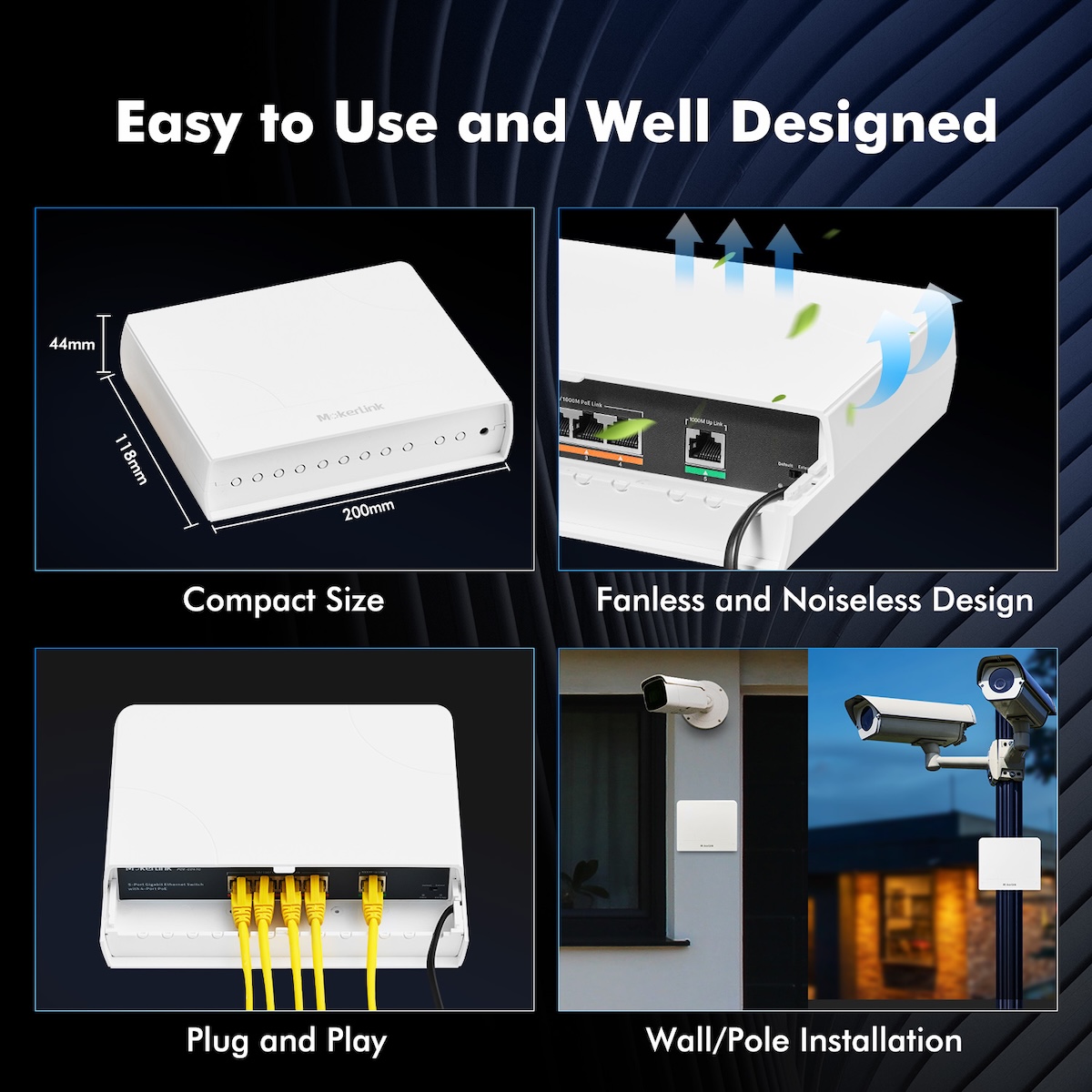

| Structure Size | Product Dimension (L*W*H): 206*172*44mm, Package Dimension (L*W*H): 230*190*70mm, N.W: 0.85kg, G.W: 1.05kg |
| Installation | Wall/Pole Mountable |
| Shell | White, ABS+PC |
| Power Voltage | Input Voltage: AC 100-240V, Power supply: 52V/1.5A, ≤78W |
| Package List | Switch 1 PC, User manual 1 PC |
