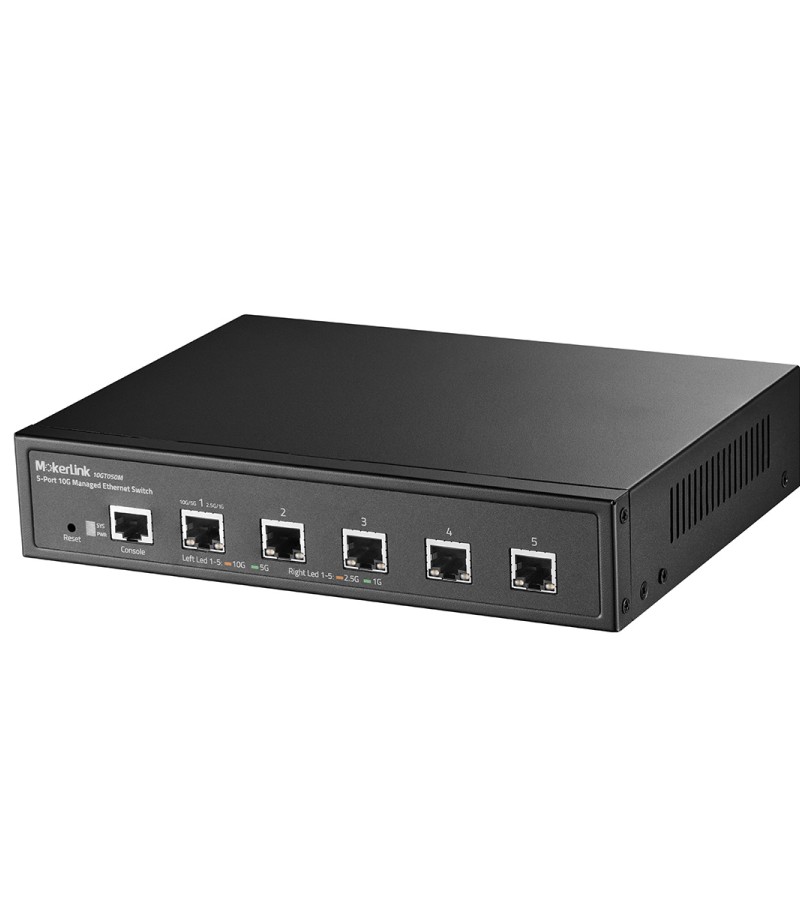

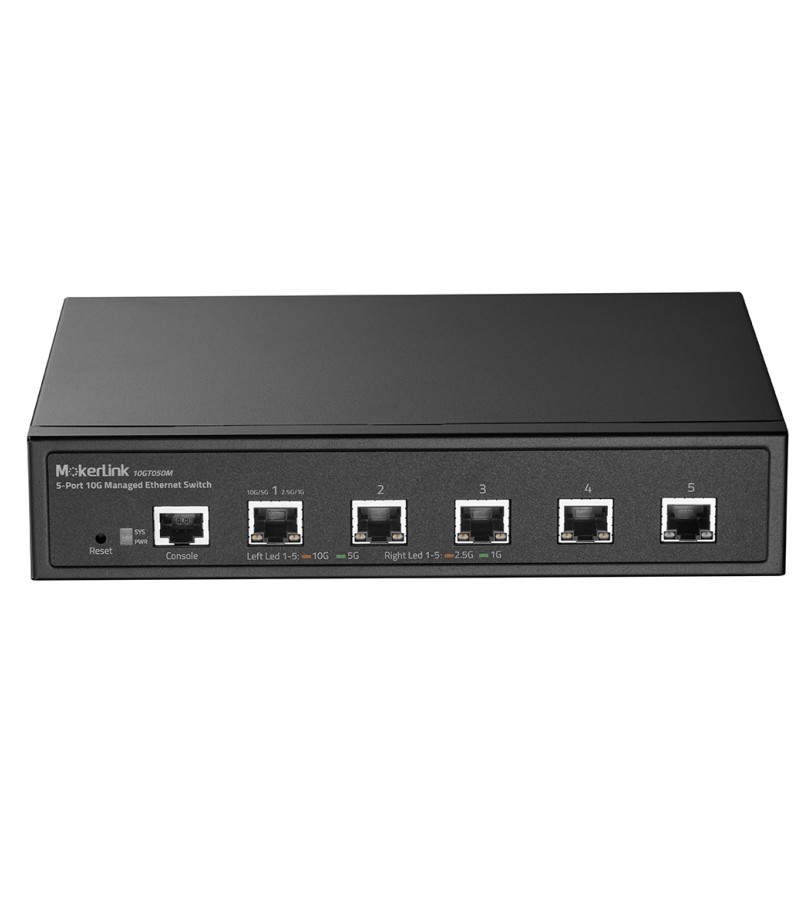

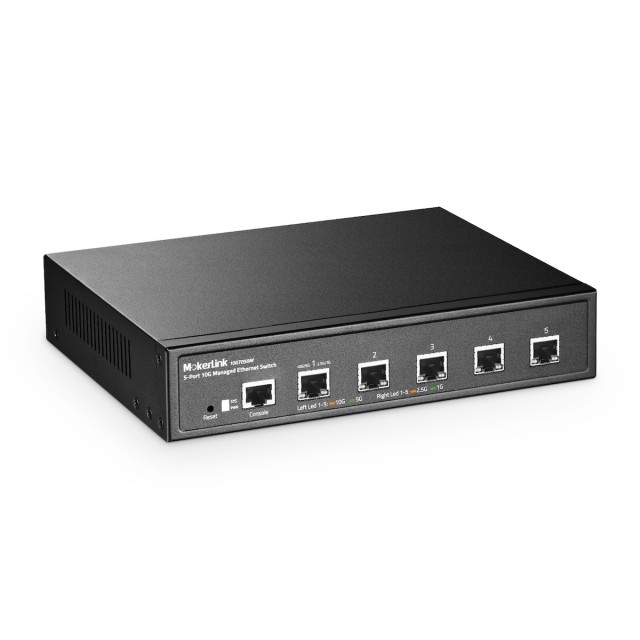

MokerLink 5 Port 10G Managed Ethernet Switch, 10G/5G/2.5G/1G Auto-Adaptive, L3 Web/CLI Managed, Metal Desktop|Rackmount Network Switch
5 x 10Gbps ethernet ports, every port support auto-adaptive 10G/5G/2.5G/1000M/100M data rate, supports auto-flip and wire-speed forwarding, Web/CLI L3 Managed, Support device/port config and query. Layer 3 Route: IPV4/IPV6 Management, IPV4/IPv6 Routes,ARP,Loopback Interface. Layer 2 Switching: such as VLAN, ACL, QoS, Jumbo frame,DHCP,security, multicast, MAC address table, diagnosis, Statistics, MSTP/ RSTP/STP etc, Power and port led indicator light, Widely Used for various high performance environments
$239.99
Price drop reminder
- Brand: MokerLink
- Product Code: 10GT050M
- Availability: In Stock

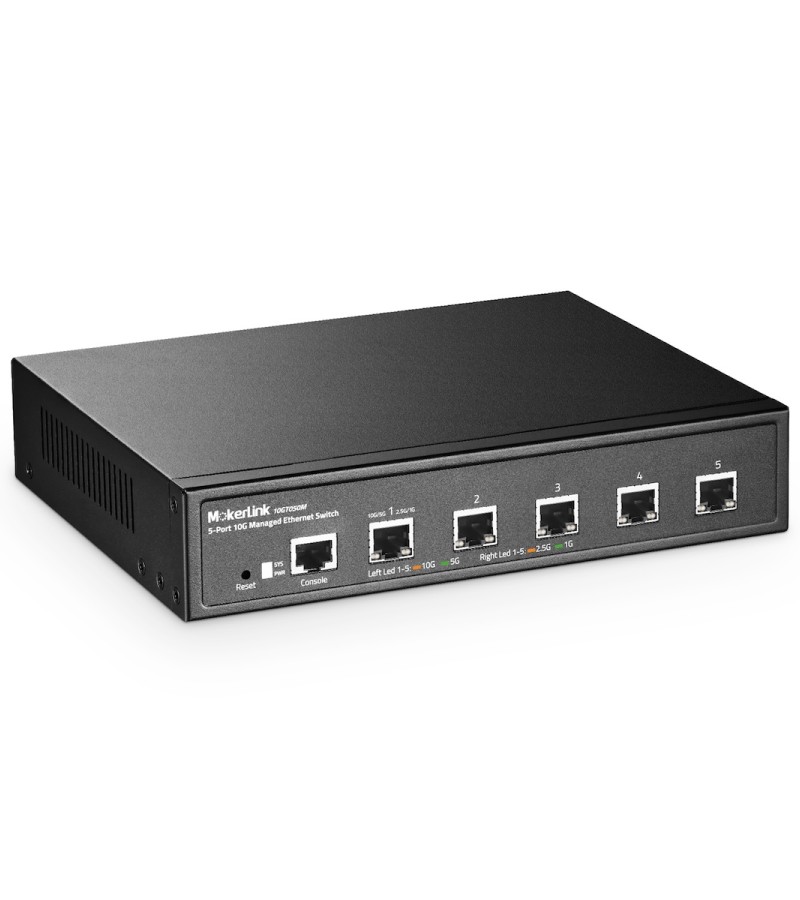

The 10GT080M is a Layer 3 Managed Switch, it features 5x 100M/1000M/2.5G/5G/10Gbps auto-adaptive RJ45 ports and 1x Console port, covering diverse high-speed connectivity needs. All RJ45 ports support MDI/MDIX auto-flip and wire-speed forwarding—eliminating crossover cable hassles while ensuring maximum data transfer efficiency.
It comes with comprehensive security policies, robust QoS controls, and versatile VLAN features, paired with user-friendly management and maintenance capabilities. This makes it well-suited to meet the network connectivity and access needs of enterprises, residential communities, hotels, office networks, and campus networks.

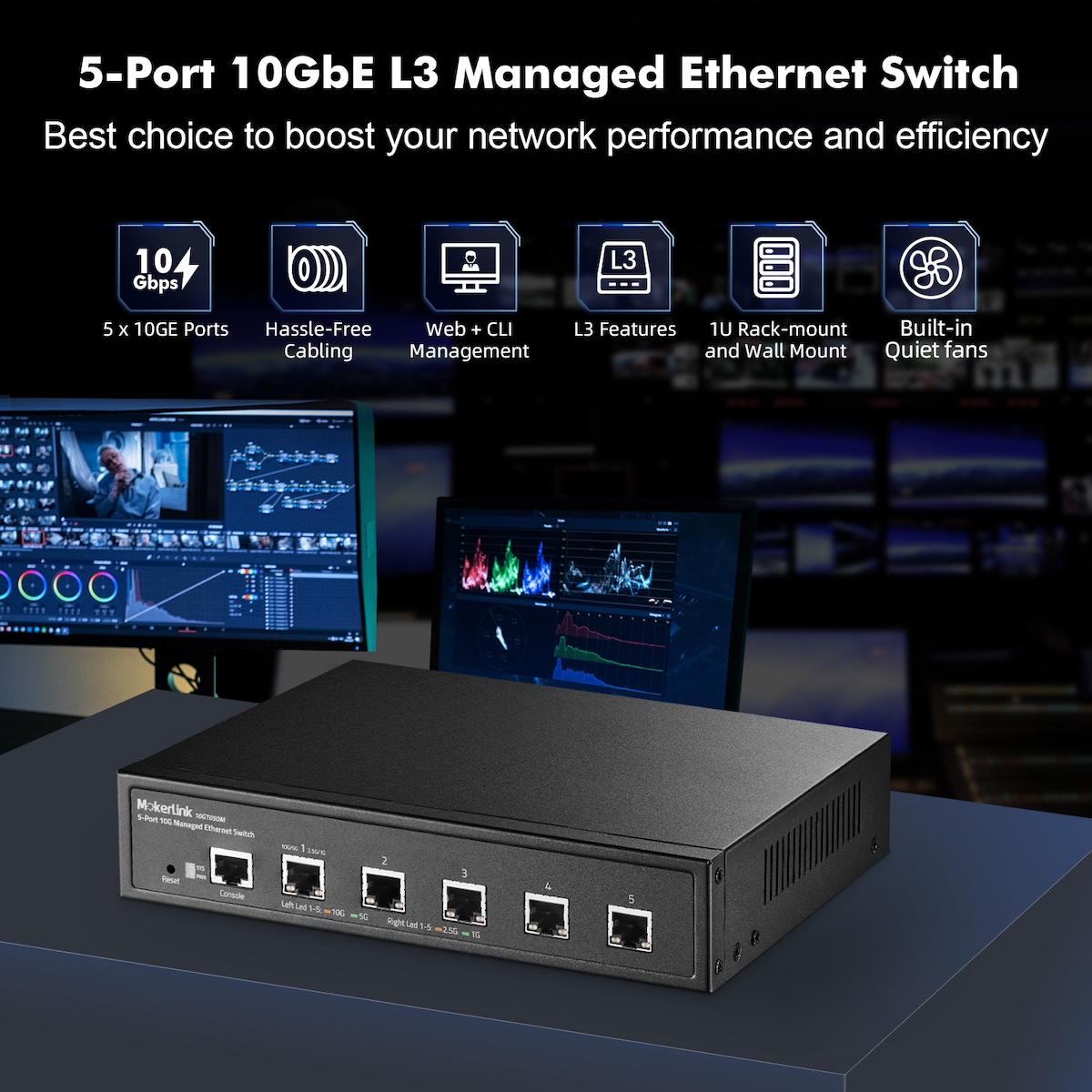

Product Highlights

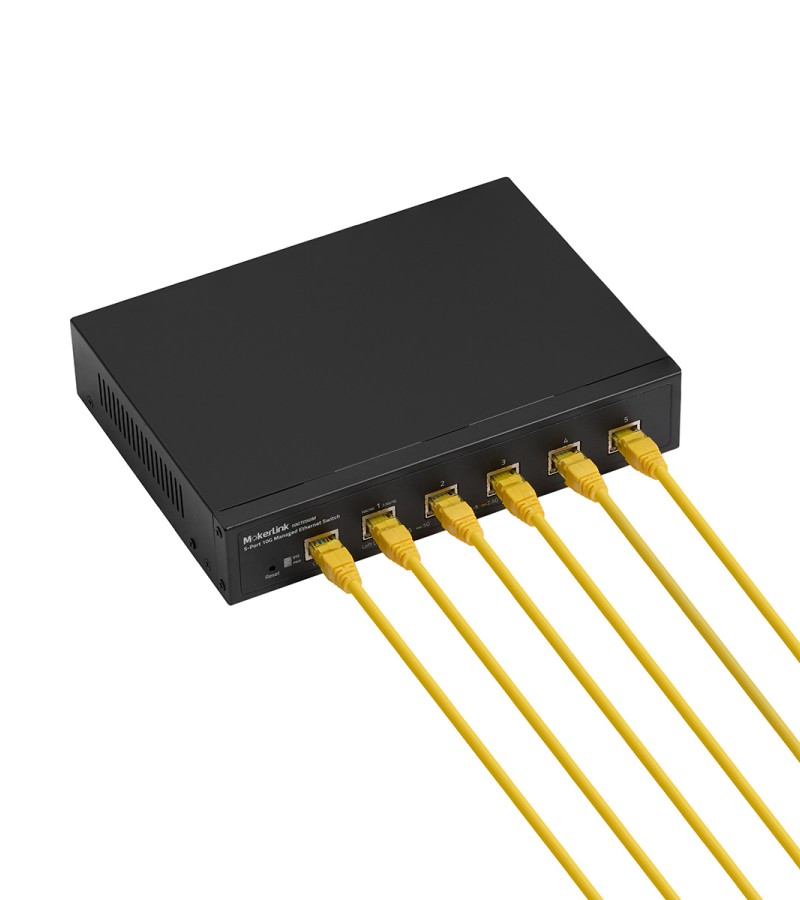

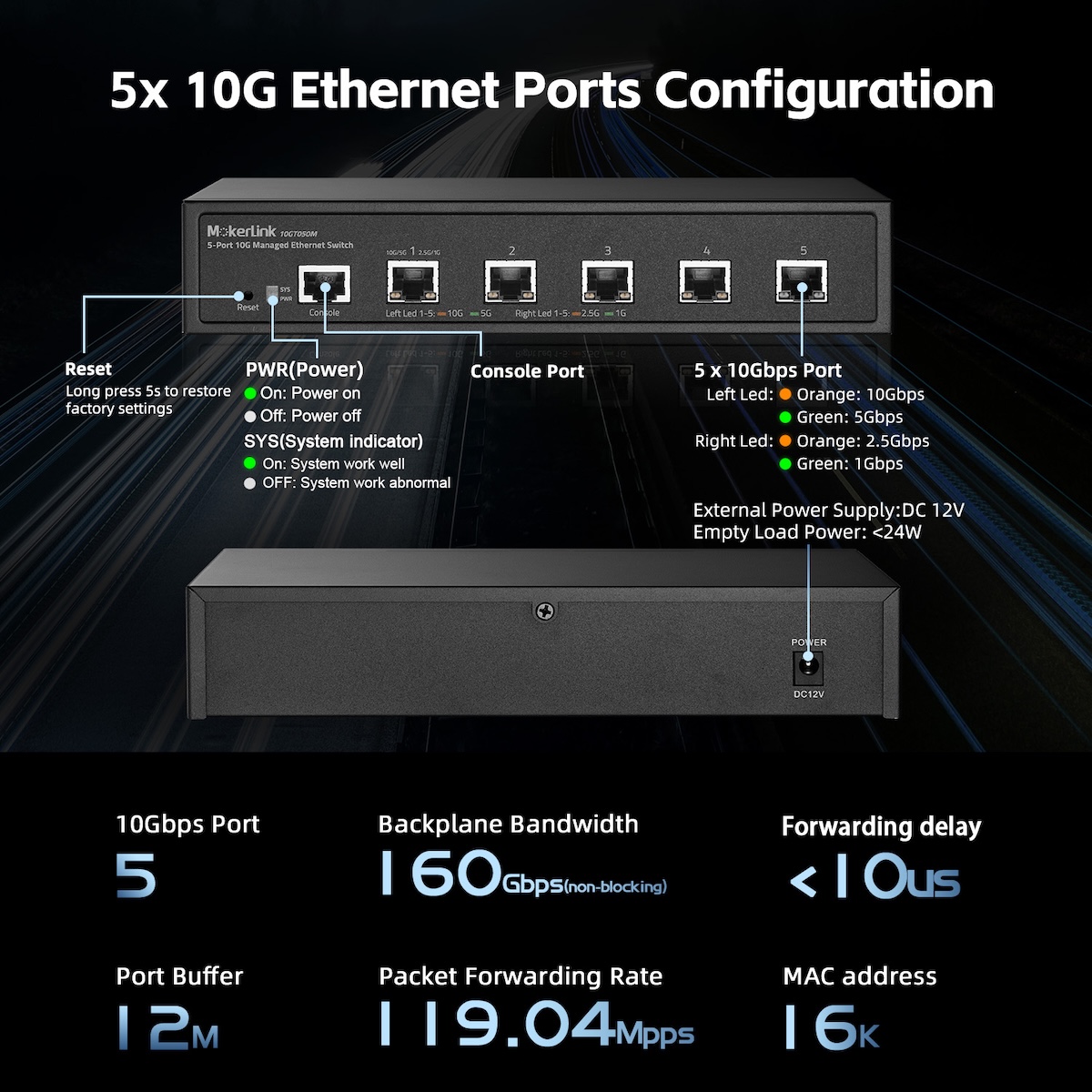

- 5*1000/2500/5000/10000 Base-T Ports, feature Auto MDI/MDIX for automatic port flipping;
- Panel indicator lights monitor real-time operational status;
- Supports IEEE 802.3x full-duplex flow control and Backpressure half-duplex flow control ;
- Support Layer3 static routing and dynamic routing such as OSPF, RIP etc;
- Layer 2 protocols support VLAN, LACP, QoS, IGMP, and more;

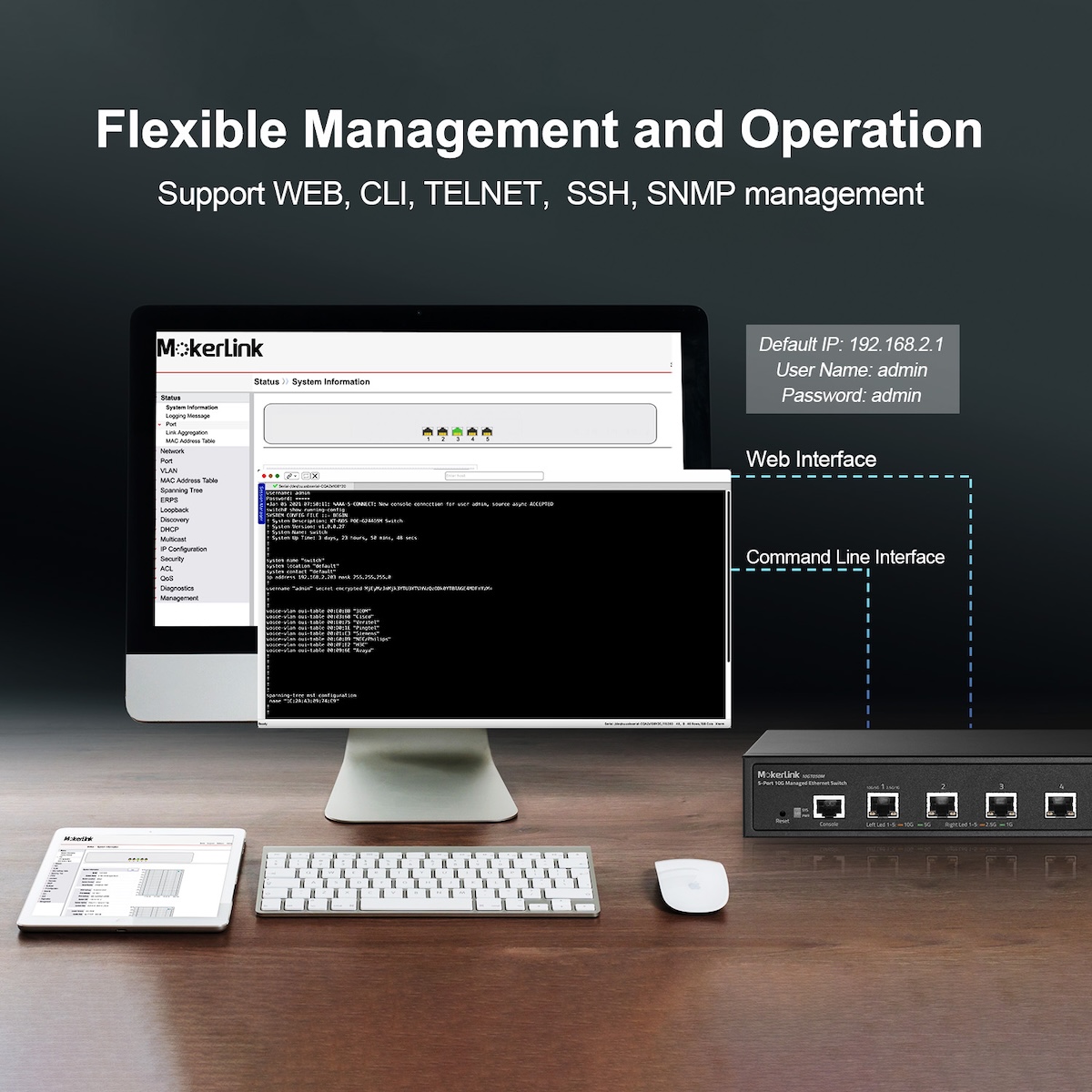

- Flexible management and maintenance via Console, Telnet, SSH, and other methods;
- 4KV port lightning protection and ESD 8KV-15K
Product Features
Ask Question About Product
Note: HTML is not translated!
| Ethernet Switch Hardware Specifications | |
| Product Model | 10GT050M |
| Product Name | 5-Port 10G L3 Managed Ethernet Switch |
| Ethernet Port | 5*1000/2500/5000/10000Mbps Base-T |

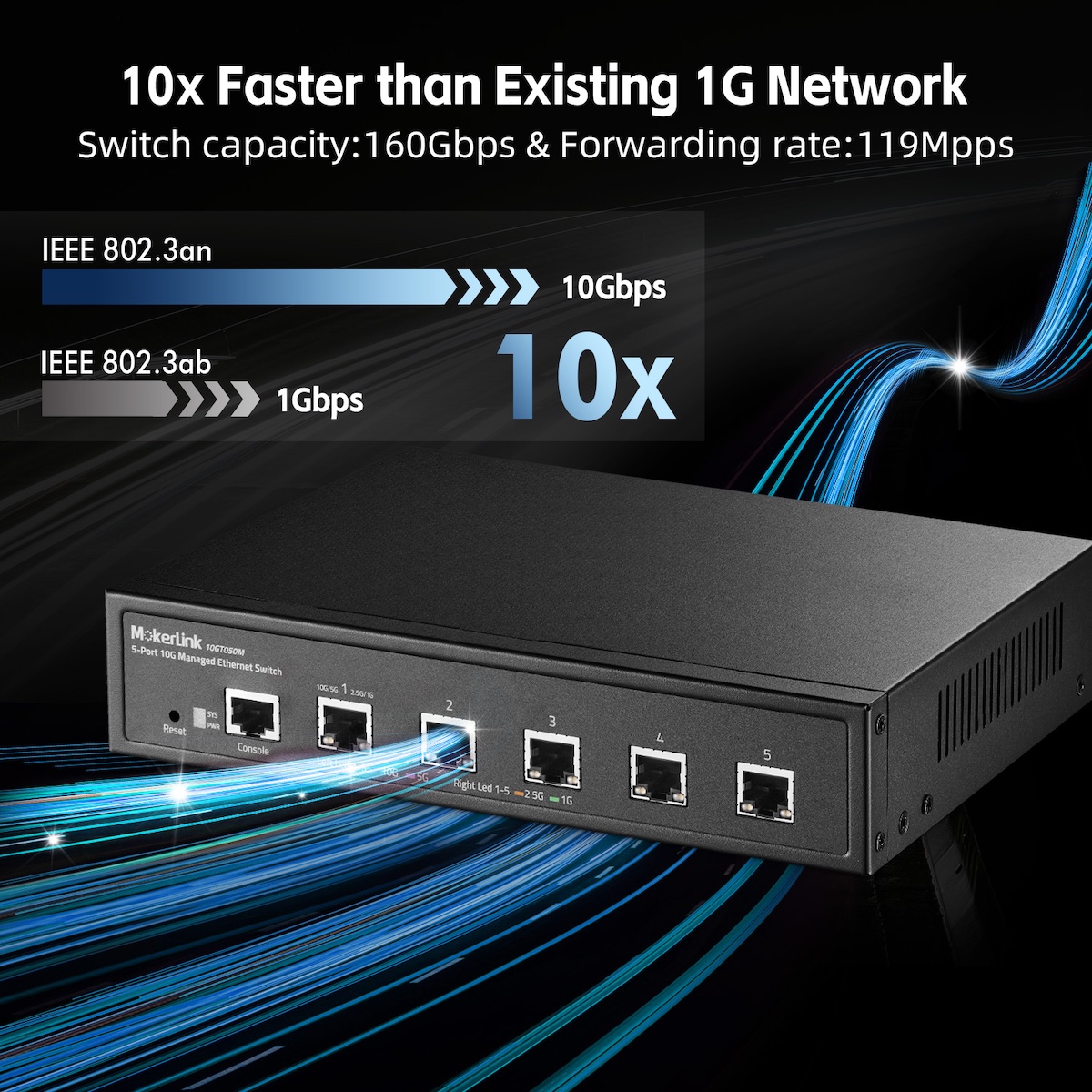

| Switching Capacity | 160G |
| Throughput | 119.04Mpps |
| Packet Buffer | 12M bit |
| MAC Address | 16K |
| Jumbo Frame | 12Kbyte |
| Transfer Mode | Store and forward |
| Network protocol | IEEE802.3 (Ethernet), IEEE802.3u (Fast Ethernet), IEEE802.3ab(Gigabit Ethernet), IEEE 802.3bz(5G Ethernet), IEEE 802.3z(Gigabit Ethernet), IEEE 802.3ae(10G Ethernet), IEEE802.3x (Flow control) |
| Lighting Protection | Power Surge Protection: 4KV/2KV Ethernet Port Surge Protection: 4KV/2KV Anti-static Interference: 8KV/15KV Free Drop: 0.5M |
| Working Environment | Operating temperature: -10～+55°C；5%～90% RH Non coagulation, Storage temperature: -40～+75°C；5%～95% RH Non coagulation |
| LED Indicator | PWR，SYS，Link/ACT LED,seep LED |
| Structure Size | Product size: 220*161*44mm Product weight: 1.15kg |

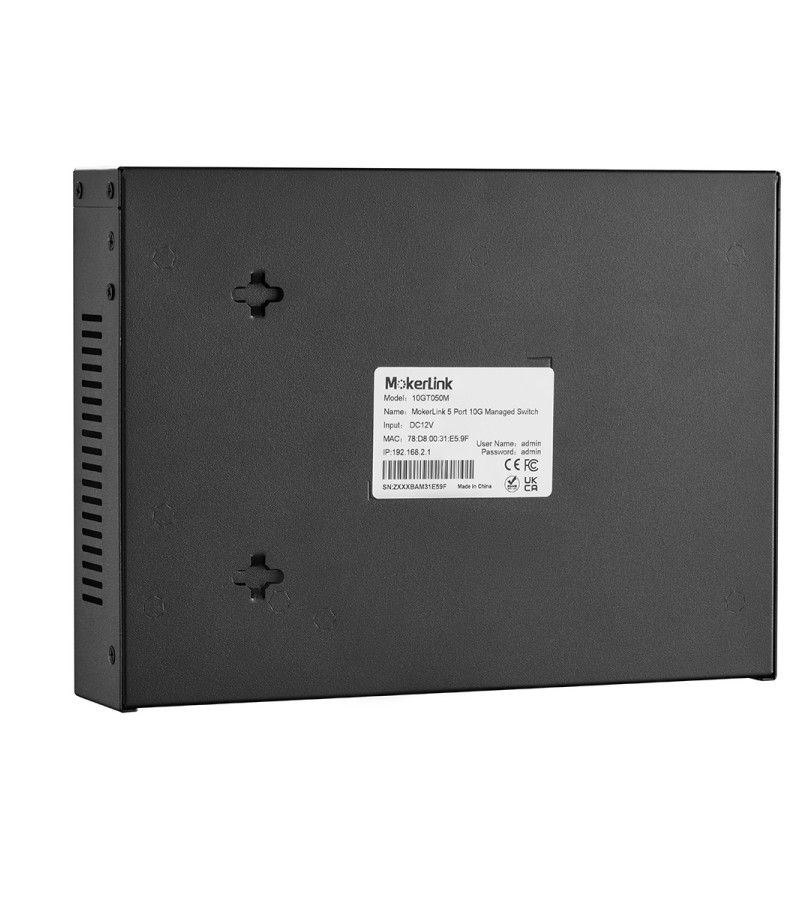

| Installation | Rack Mount/Wall Mount |
| Shell | Black Color, Metal Shell |

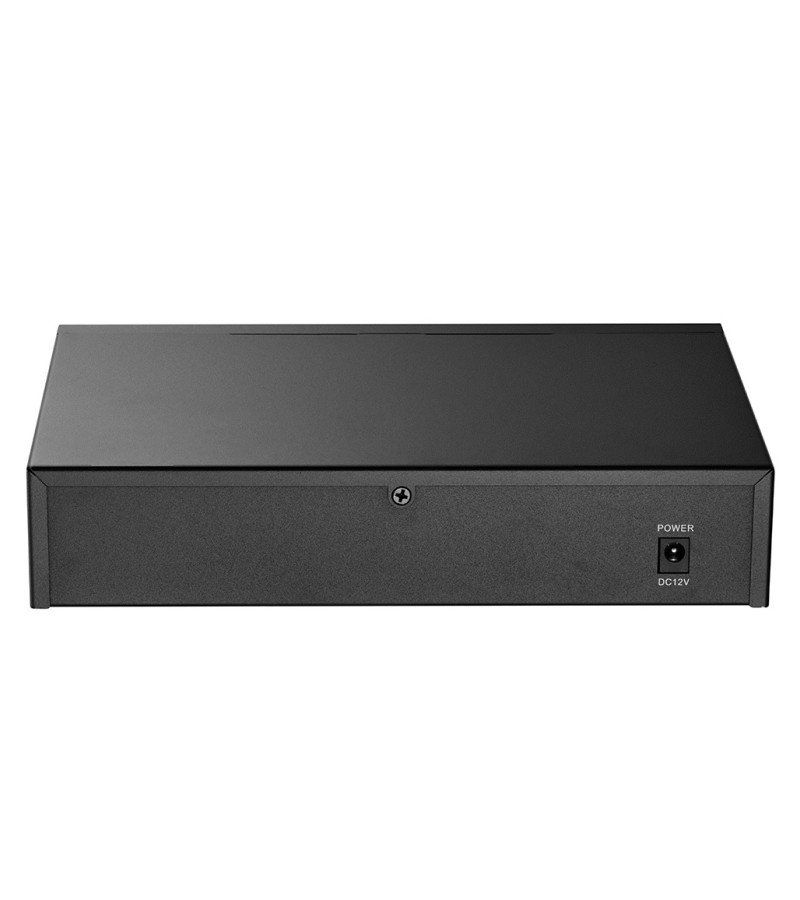

| Power Voltage | Built-in power DC 12V/2A, Max 24W (100-240Vac 50/60Hz) |

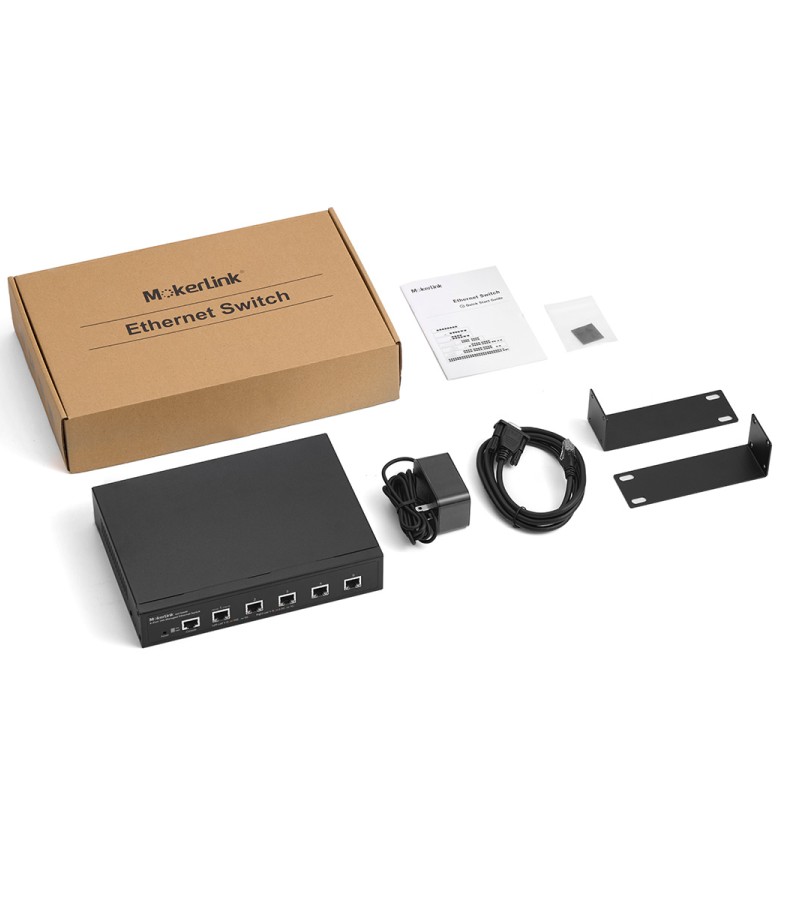

| Package List | Switch 1pcs, manual 1pcs, Power adapter 1pcs |
| Software Function | Layer 3 Route: IPV4/IPV6 Management, IPV4/IPv6 Routes,ARP,Loopback Interface. Layer 2 Switching: such as VLAN, ACL, QoS, Jumbo frame,DHCP,security, multicast, MAC address table, diagnosis, Statistics, MSTP/ RSTP/STPetc |
