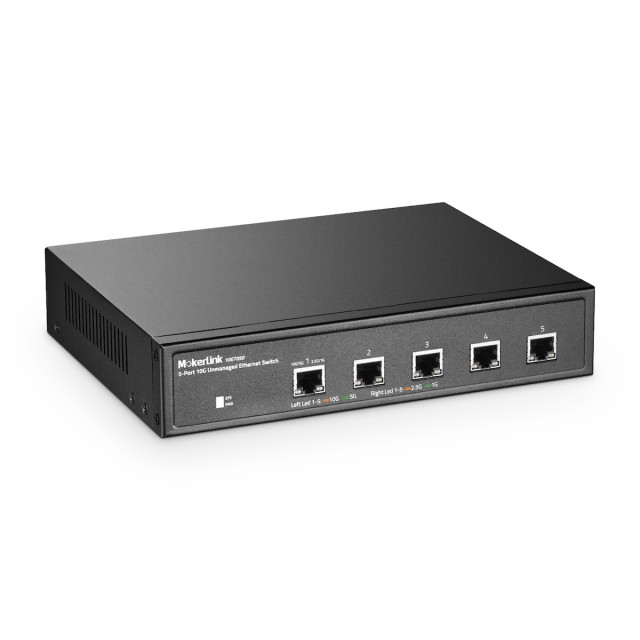

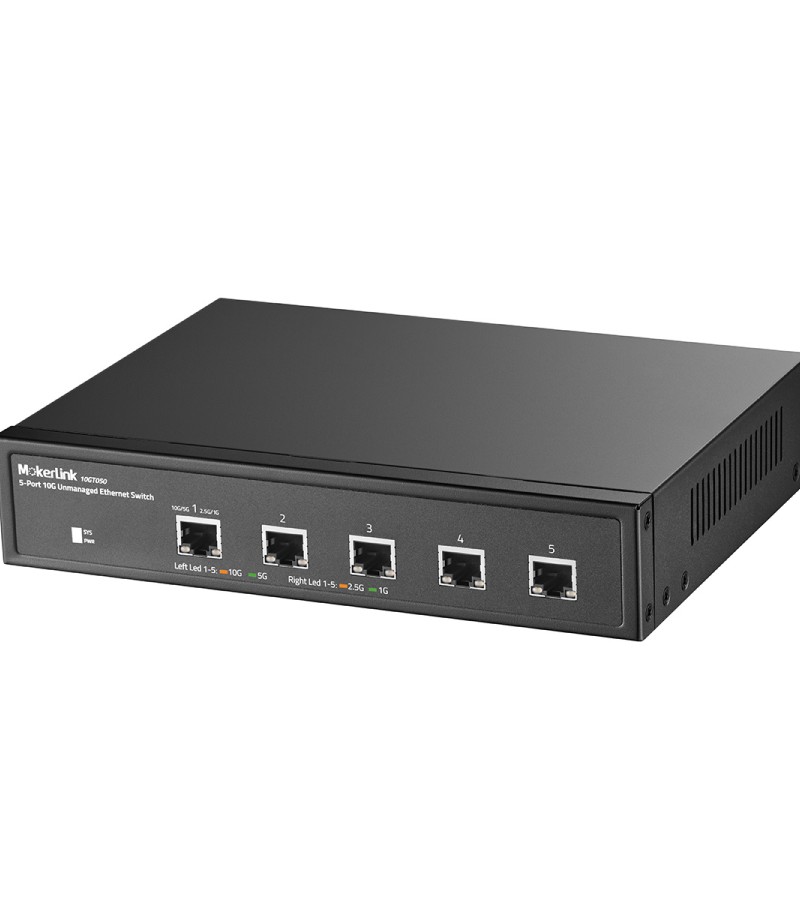

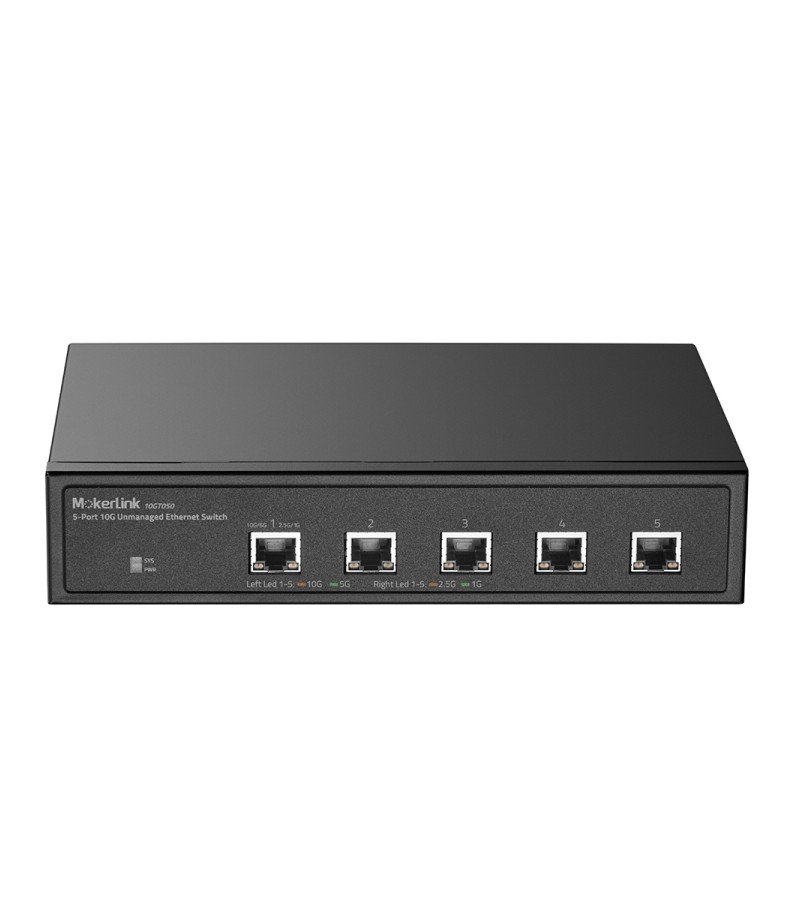

MokerLink 5 Port 10G Unmanaged Ethernet Switch, 10G/5G/2.5G/1G Auto-Adaptive, Plug and Play, Metal Desktop|Rackmount Network Switch
5 x 10Gbps ethernet ports, every port support auto-adaptive 10G/5G/2.5G/1000M/100M data rate, Unmanaged Plug and Play 160Gbps Bandwidth: switching capacity is 160Gbps, Jumbo Frame 16Kbytes, all ports can achieve non-blocking 10G line speed forwarding, with excellent data performance.Easy to Maintain with power and port led indicator light, clearly display the running status and port rate status, installation and maintenance are very simple, Widely Used for various high performance environments
$219.99
Price drop reminder
- Brand: MokerLink
- Product Code: 10GT050
- Availability: In Stock

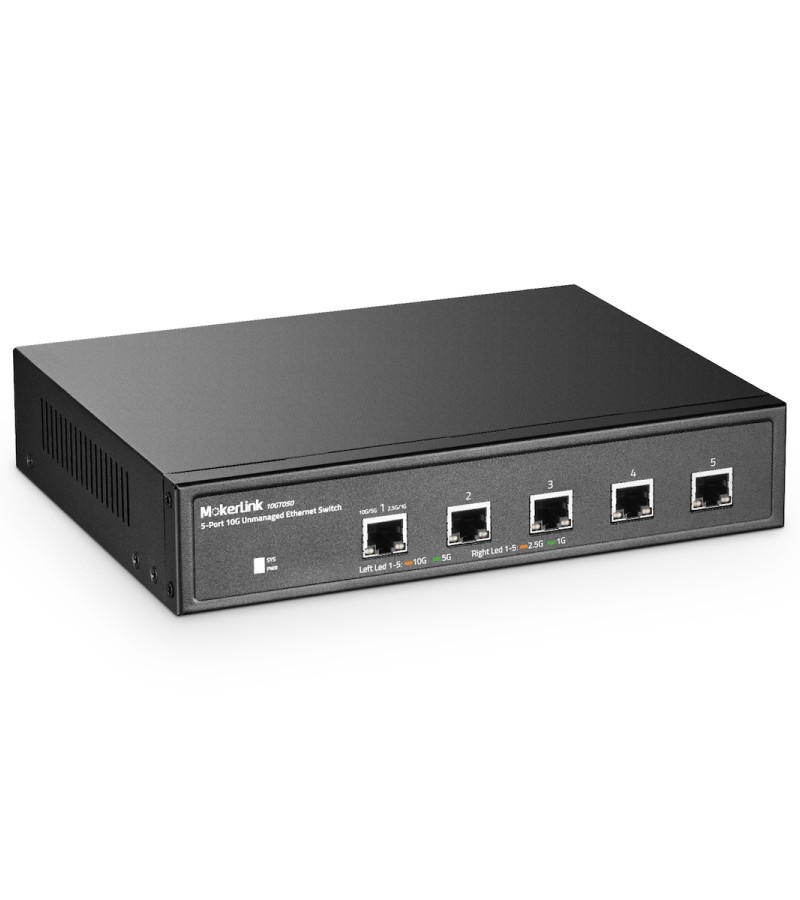

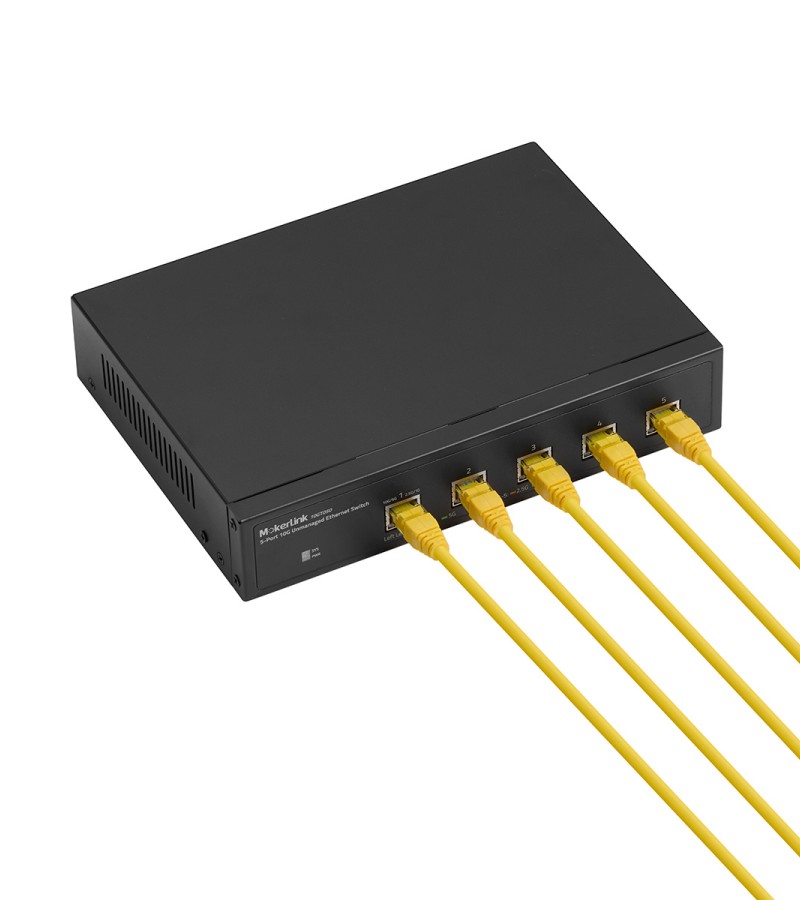

The 10GT050 is an unmanaged switch, featuring 5x 10M/100M/1000M/2.5G/5G/10Gbps auto-adaptive RJ45 ports to fit diverse network speed needs. All 5 ports support MDI/MDIX auto-flip and wire-speed forwarding, eliminating the hassle of crossover cables while ensuring maximum data transfer efficiency. It adopts store-and-forward switching technology, which minimizes packet loss and delivers stable, reliable data transmission for smooth network operations.
Product Highlights
- 5x Auto-Negotiate 1G/2.5G/5G/10G Base-T RJ45 Ports
- AC 100-240V 50/60Hz Wide-Range Universal Power Input
- -10℃ to +55℃ Wide Temperature Range for Stable Operation
- Intelligent Fan Cooling System for Efficient Heat Dissipation
- 4KV Surge/Lightning Protection for All Ethernet Ports
- 8KV-15KV ESD Protection (Compliant with IEC 61000-4-2)
- 100,000H MTBF Ensures Long-Term High Operational Reliability
Product Features
Ask Question About Product
Note: HTML is not translated!
| Ethernet Switch Hardware Specifications | |
| Product Model | 10GT050 |
| Product Name | 5-Port 10G Unmanaged Ethernet Switch |
| Ethernet Port | 5*1000/2500/5000/10000Mbps Base-T |

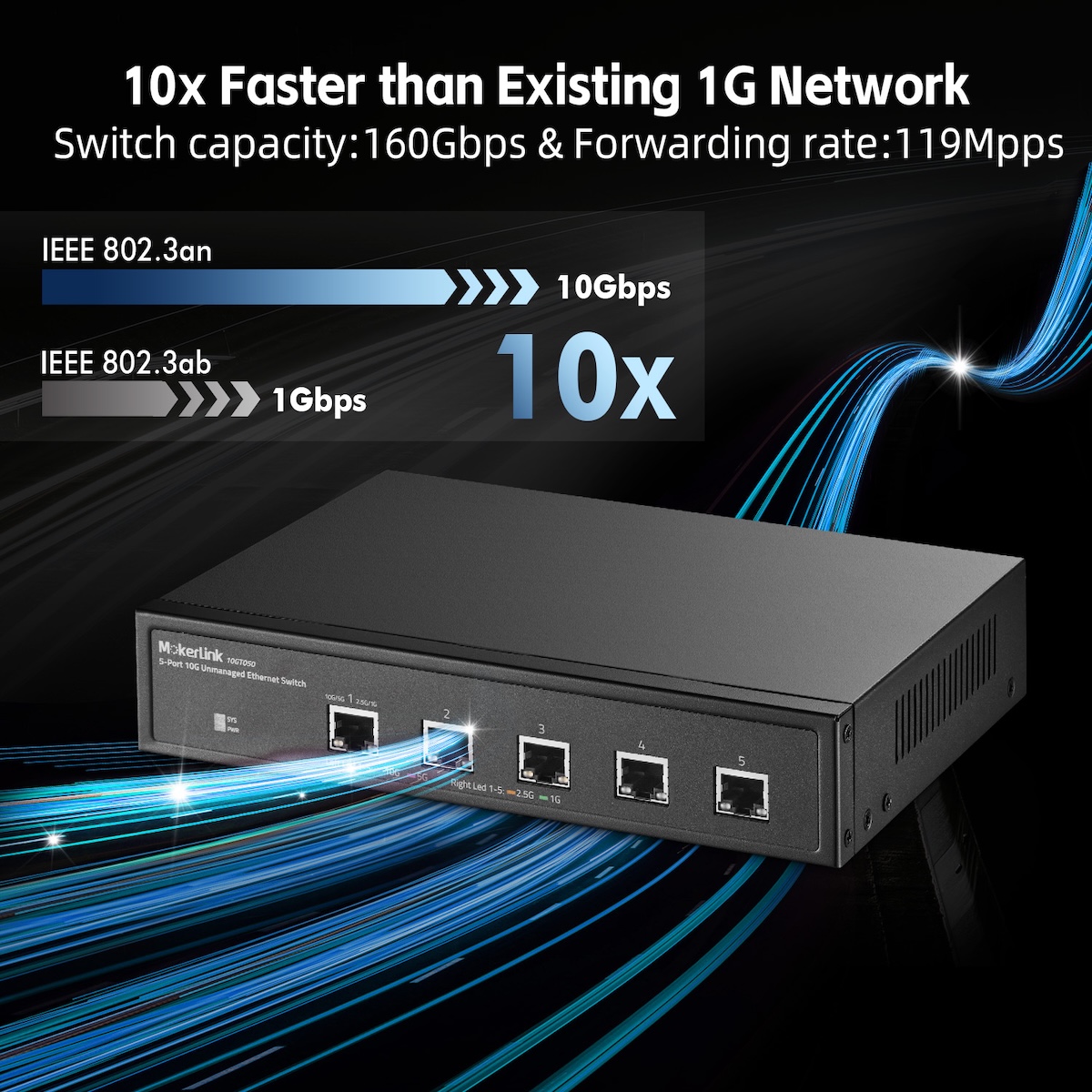

| Switching Capacity | 160G |
| Throughput | 119.04Mpps |
| Packet Buffer | 12M bit |
| MAC Address | 16K |
| Jumbo Frame | 12Kbyte |
| Transfer Mode | Store and forward |
| Network protocol | IEEE802.3 (Ethernet), IEEE802.3u (Fast Ethernet), IEEE802.3ab(Gigabit Ethernet), IEEE 802.3bz(5G Ethernet), IEEE 802.3z(Gigabit Ethernet), IEEE 802.3ae(10G Ethernet), IEEE802.3x (Flow control) |
| Lighting Protection | Power Surge Protection: 4KV/2KV Ethernet Port Surge Protection: 4KV/2KV Anti-static Interference: 8KV/15KV Free Drop: 0.5M |
| Working Environment | Operating temperature: -10～+55°C；5%～90% RH Non coagulation, Storage temperature: -40～+75°C；5%～95% RH Non coagulation |

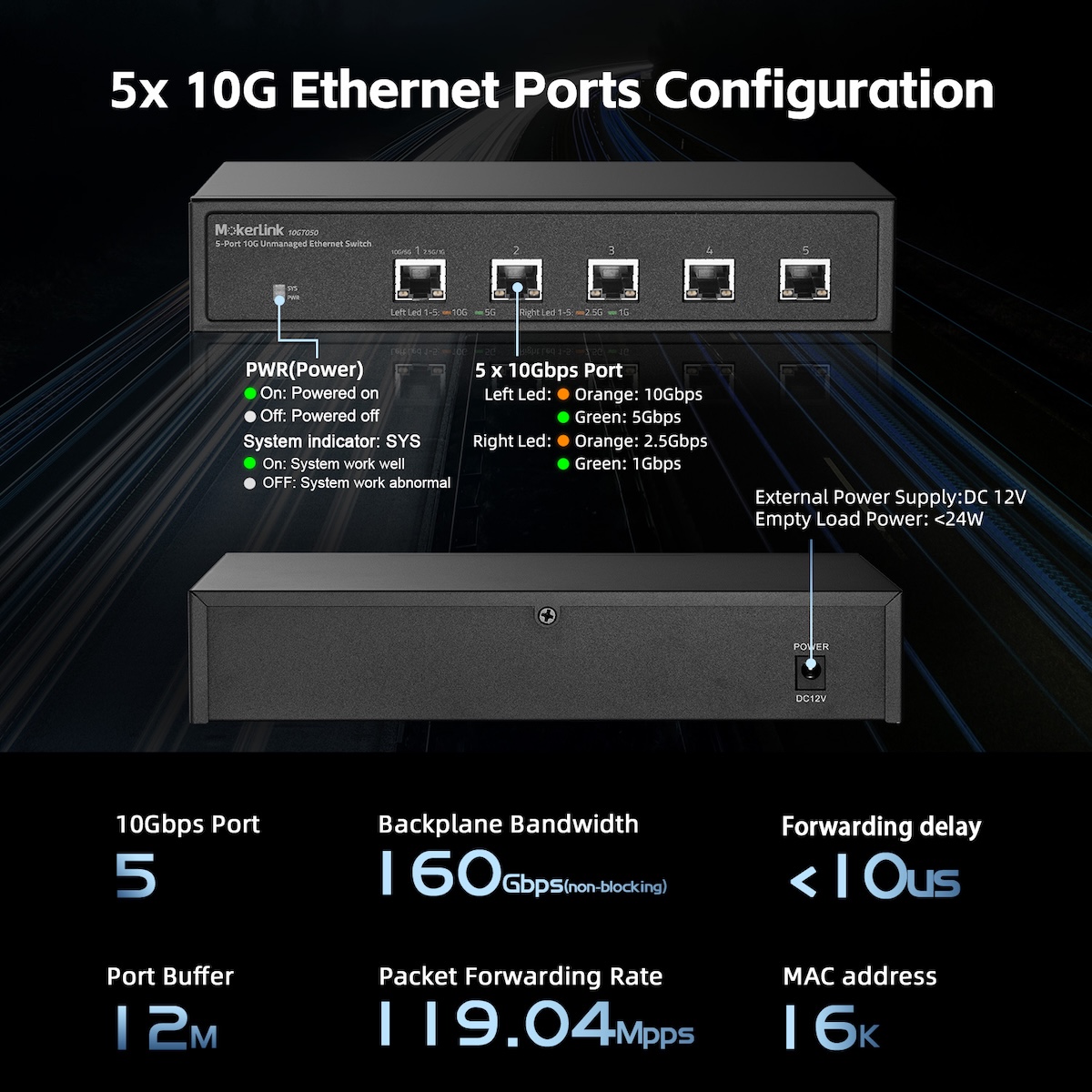

| LED Indicator | PWR，SYS，Link/ACT LED,seep LED |
| Structure Size | Product size: 220*161*44mm Product weight: 1.15kg |

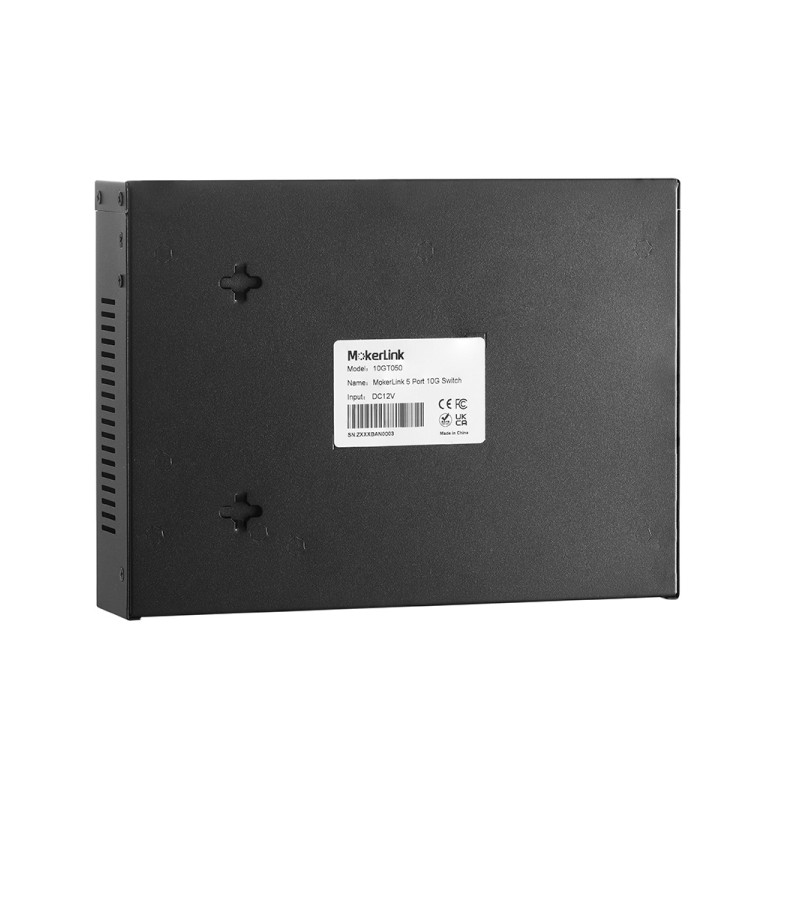

| Installation | Rack Mount/Wall Mount |
| Shell | Black Color, Metal Shell |

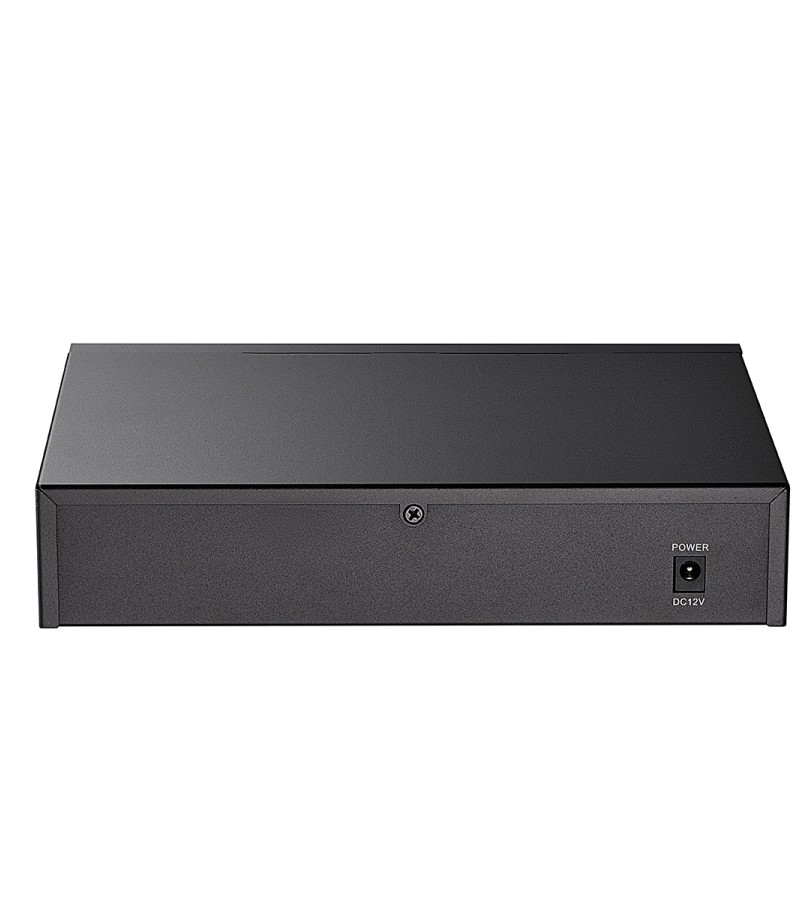

| Power Voltage | Built-in power DC 12V/2A, Max 24W (100-240Vac 50/60Hz) |

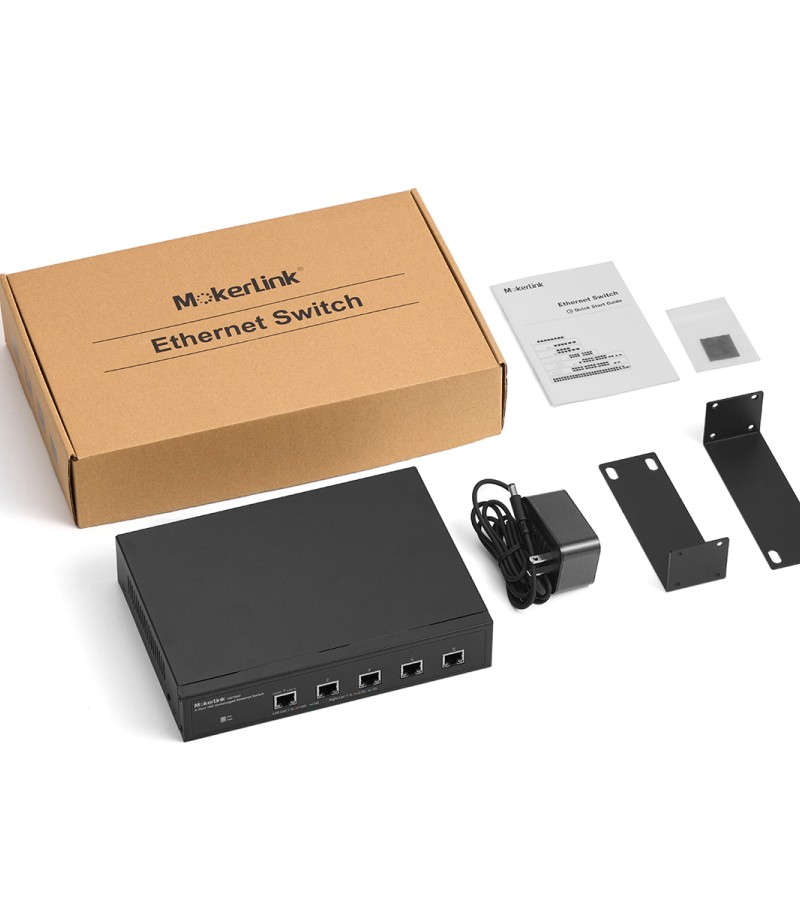

| Package List | Switch 1pcs, manual 1pcs, Power adapter 1pcs |
