MokerLink 8 Port 10G Managed Switch, 4x10G Ethernet RJ45 Ports, 4x10G SFP+ Slot, L3 Web/CLI Managed, Metal Desktop|Wallmount Network Switch

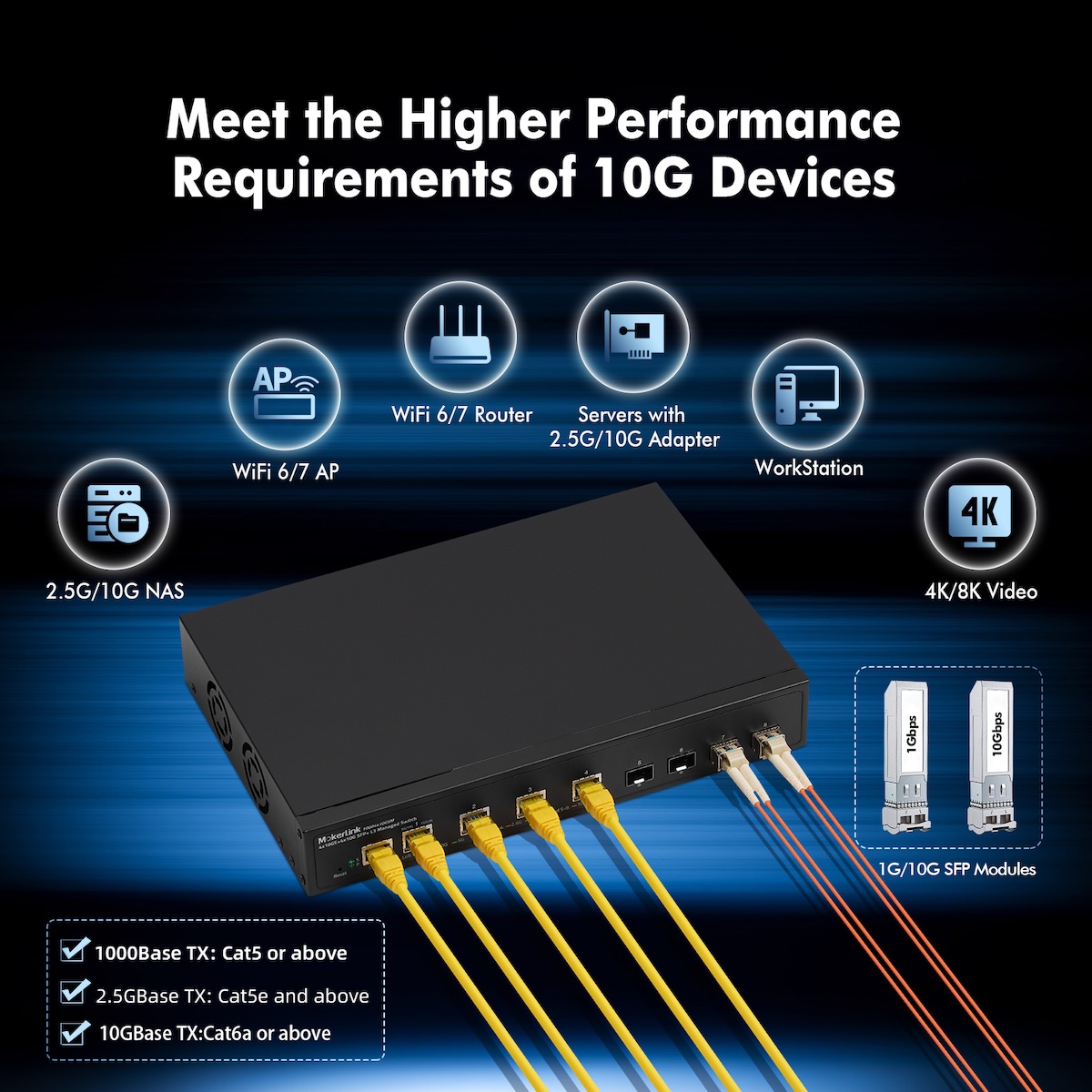

This switch is equipped with 4x 10G auto-adaptive Ethernet ports (compatible with 10G/5G/2.5G/1000M/100M) and 4x 10G SFP+ optical slots (supporting 1G/10G optical modules for long-distance fiber transmission). Boasting 160Gbps switching capacity, 119.04Mpps packet forwarding rate and a 16K MAC address table, it supports full-duplex flow control to achieve non-blocking 10G wire-speed forwarding. It features Layer 3 management via Web/CLI, covering IPv4/IPv6 routing, VLAN, ACL and other functions, along with
$259.99
Price drop reminder
- Brand: MokerLink
- Product Code: 10G04410GSM
- Availability: In Stock

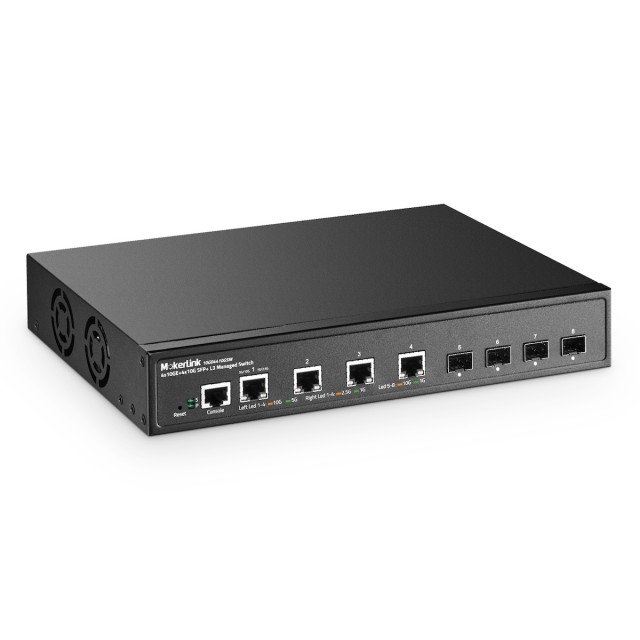

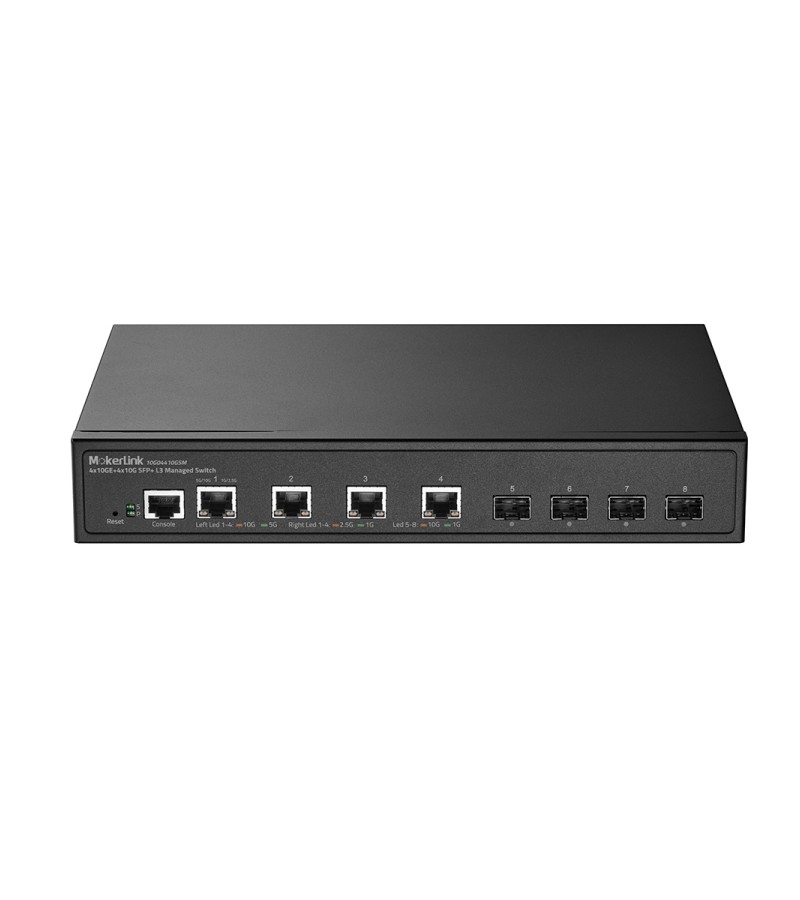

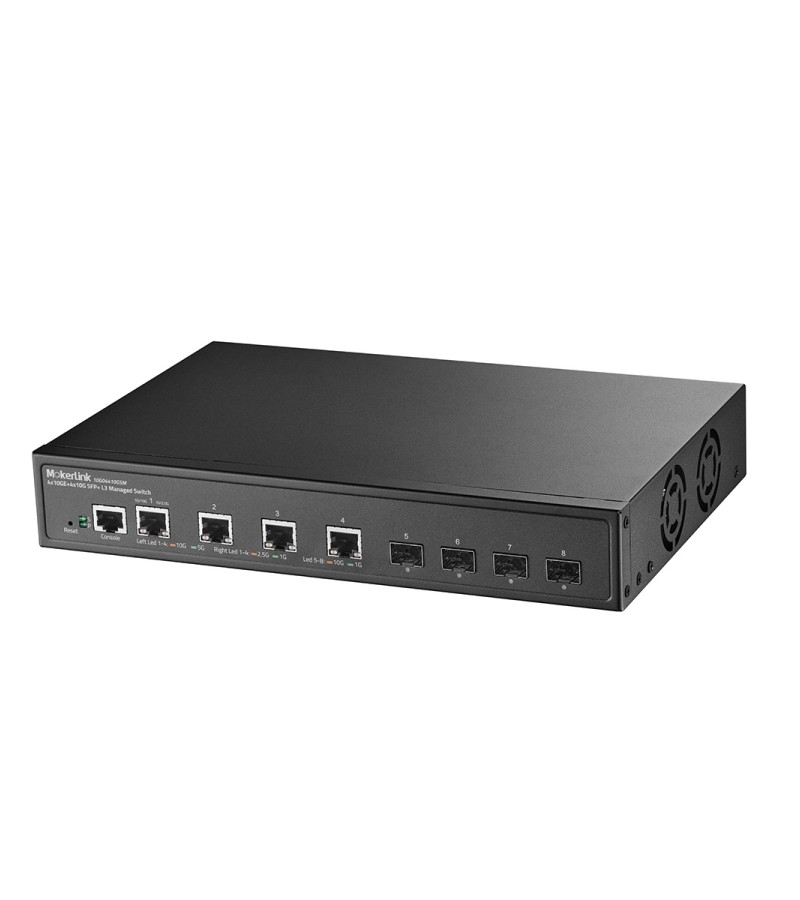

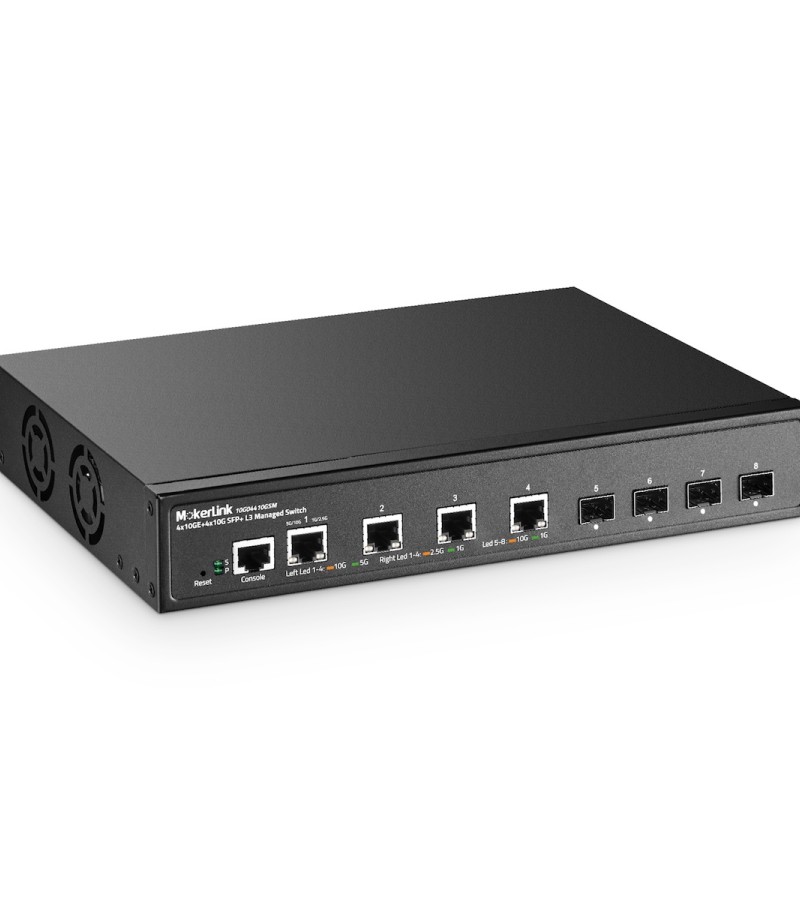

The 10G04410GSM is a L3 managed switch, featuring 4x 100M/1000M/2.5G/5G/10Gbps auto-adaptive RJ45 ports and 4x 1000M/2.5G/10Gbps SFP+ fiber module slots. Each RJ45 port supports MDI/MDIX auto-flip and wire-speed forwarding, ensuring seamless connectivity and maximum throughput.
It boasts comprehensive security policies, robust QoS controls, and versatile VLAN features, paired with user-friendly management and maintenance capabilities. This makes it well-suited to meet the networking needs of enterprises, residential communities, hotels, and office networks.
Product Highlight

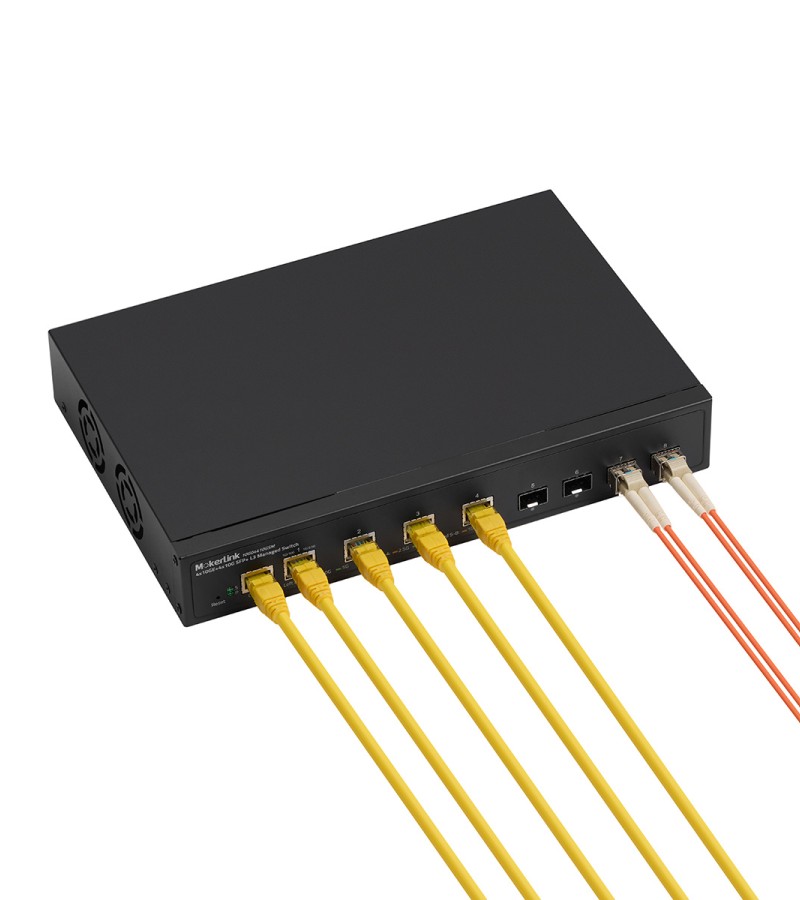

- 4*100M/1G/2.5G/5G/10Gbps RJ45 Ports and 4*1G/2.5G/10Gbps SFP+ slots;

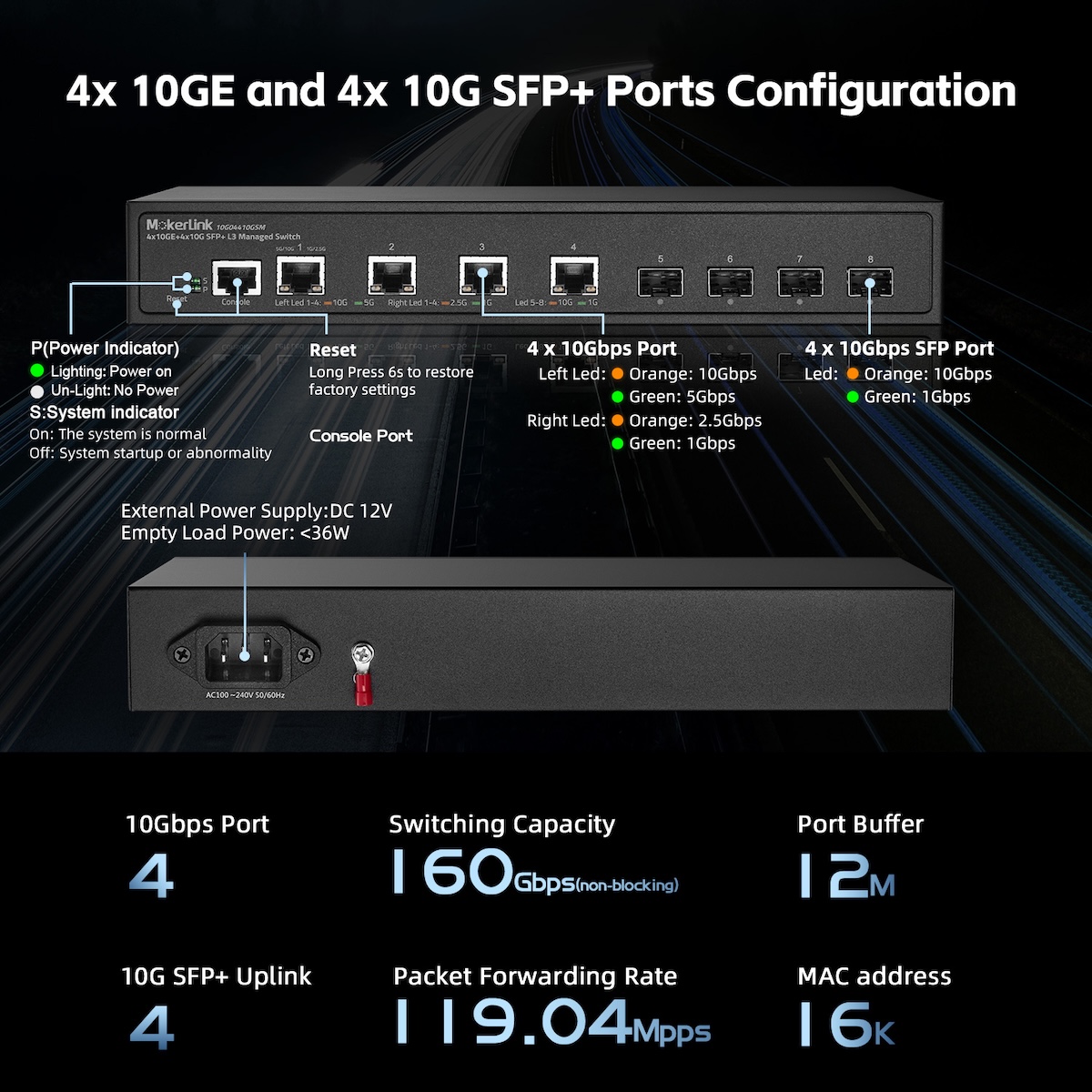

- Panel indicator lights monitor real-time operational status;
- Supports IEEE 802.3x full-duplex flow control and Backpressure half-duplex flow control ;
- Support Layer 3 static routing and dynamic routing such as OSPF, RIP etc;
- Layer 2 protocols support VLAN, LACP, QoS, IGMP, and more;
- Flexible management and maintenance via Console, Telnet, SSH, and other methods;
- 4KV port lightning protection and ESD 8KV-15KV
Product Features
Ask Question About Product
Note: HTML is not translated!
| Ethernet Switch Hardware Specifications | |
| Product Model | 10G04410GSM |
| Product Name | 4x10G RJ45 and 4x10G SFP+ Ports L3 Managed Ethernet Switch |
| Ethernet Port | 4*100M/1G/2.5G/5G/10G RJ45 ports + 4*1G/10G SFP+ ports + 1*Console Port |

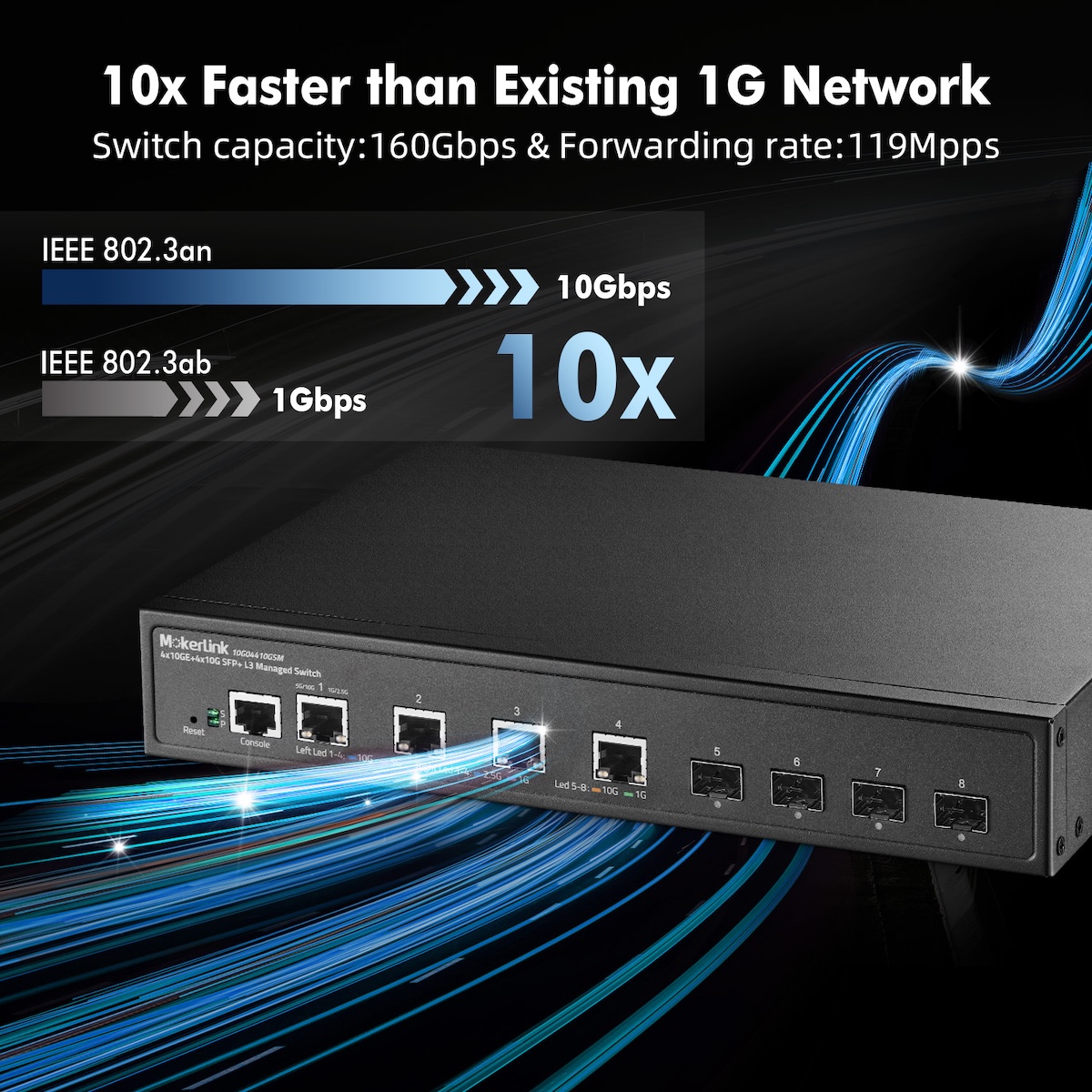

| Switching Capacity | 160Gbps |
| Throughput | 119.04Mpps |
| Packet Buffer | 12M |
| MAC Address | 16K |
| Jumbo Frame | 12Kbyte |
| Transfer Mode | Store and forward |
| Network protocol | IEEE802.3 (Ethernet), IEEE802.3u (Fast Ethernet), IEEE802.3ab(Gigabit Ethernet), IEEE 802.3bz(5G Ethernet), IEEE 802.3z(Gigabit Ethernet), IEEE 802.3ae(10G Ethernet), IEEE802.3x (Flow control) |
| Lighting Protection | Power Surge Protection: 6KV/2KV Ethernet Port Surge Protection: 4KV/2KV Anti-static Interference: 8KV/15KV Free Drop: 0.5M |
| Working Environment | Operating temperature: -10～+55°C；5%～90% RH Non coagulation, Storage temperature: -40～+75°C；5%～95% RH Non coagulation |
| LED Indicator | PWR，SYS，Link/ACT LED,seep LED |
| Structure Size | Product size: 270*181*44mm Product weight: 1.37kg |

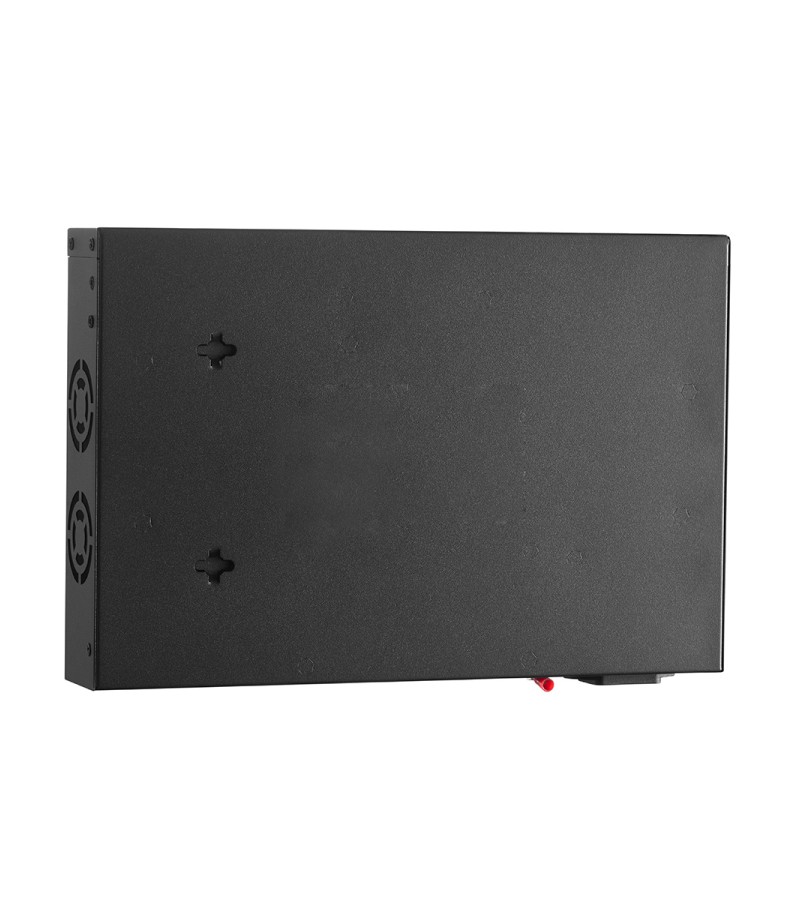

| Installation | Wall Mount / Rack Mount |
| Shell | Black Color, Metal Shell |

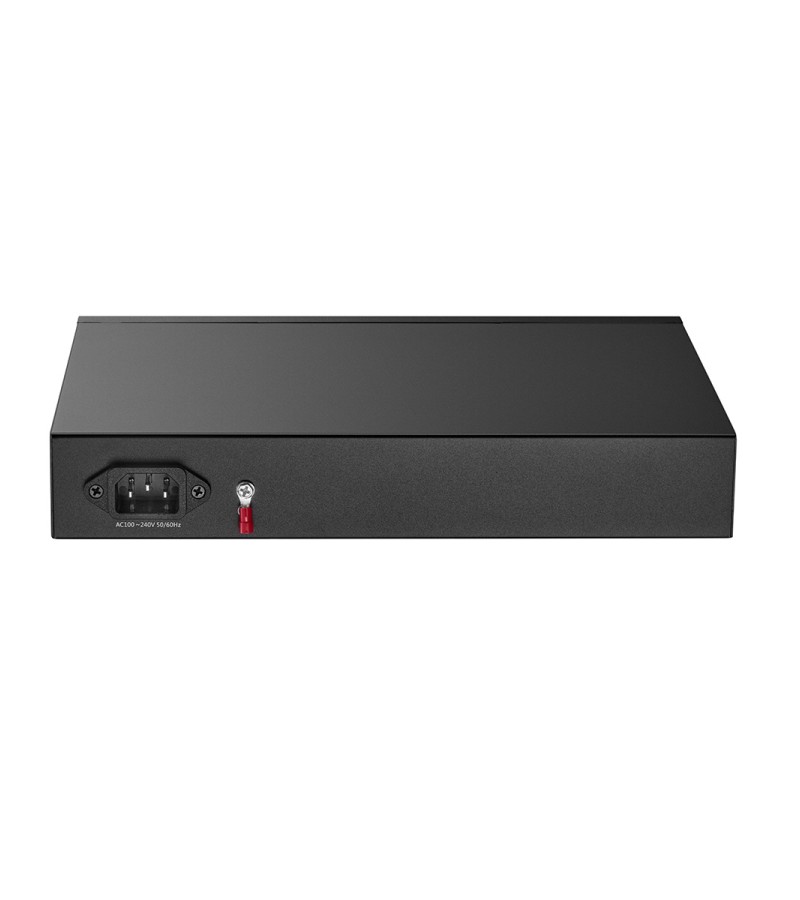

| Power Voltage | AC 100-240V 50/60Hz, DC 12V, Empty Load Power: <36W |

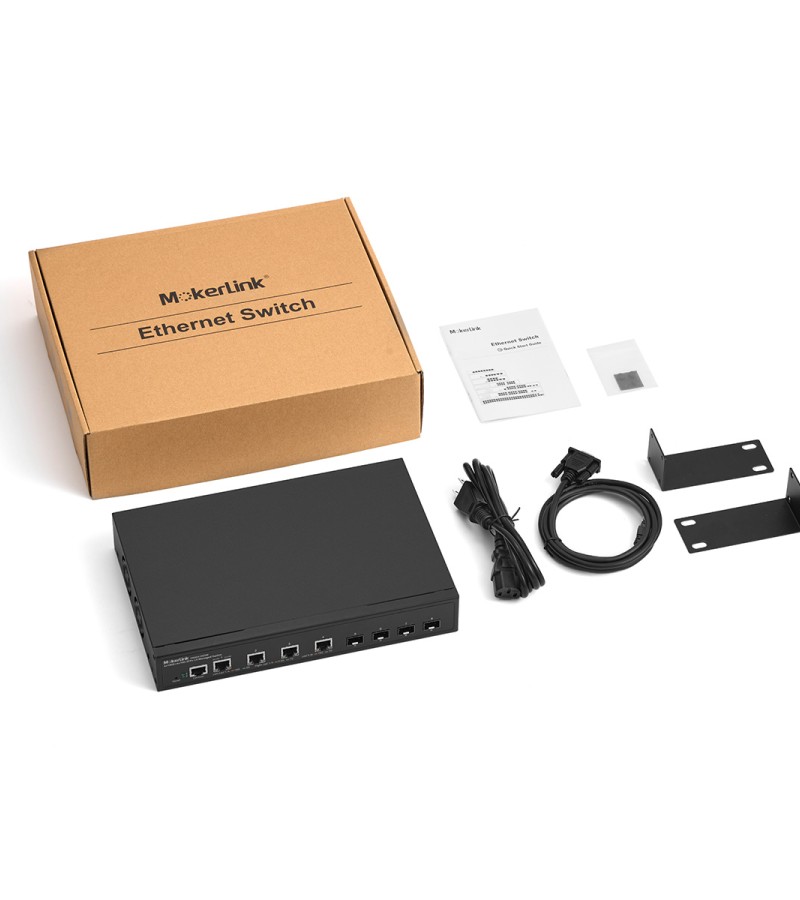

| Package List | Switch 1pcs, Specification 1pcs, Power code 1pcs |
| Software Function | Layer 3 Route: IPV4/IPV6 Management, IPV4/IPv6 Routes,ARP,Loopback Interface. Layer 2 Switching: such as VLAN, ACL, QoS, Jumbo frame,DHCP,security, multicast, MAC address table, diagnosis, Statistics, MSTP/ RSTP/STP etc |
