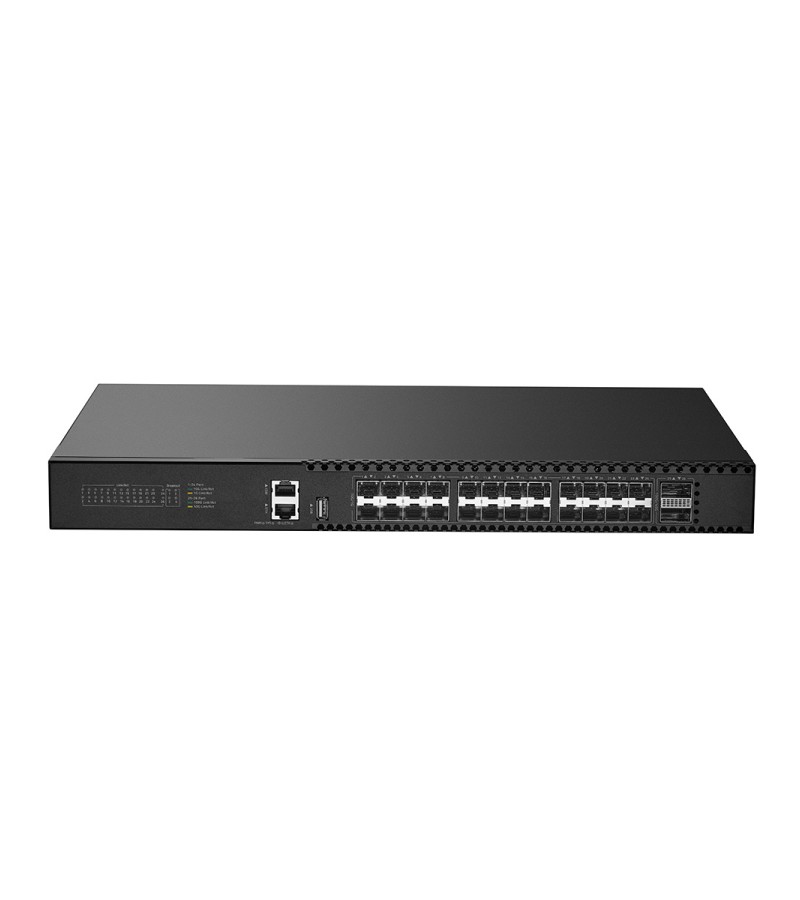

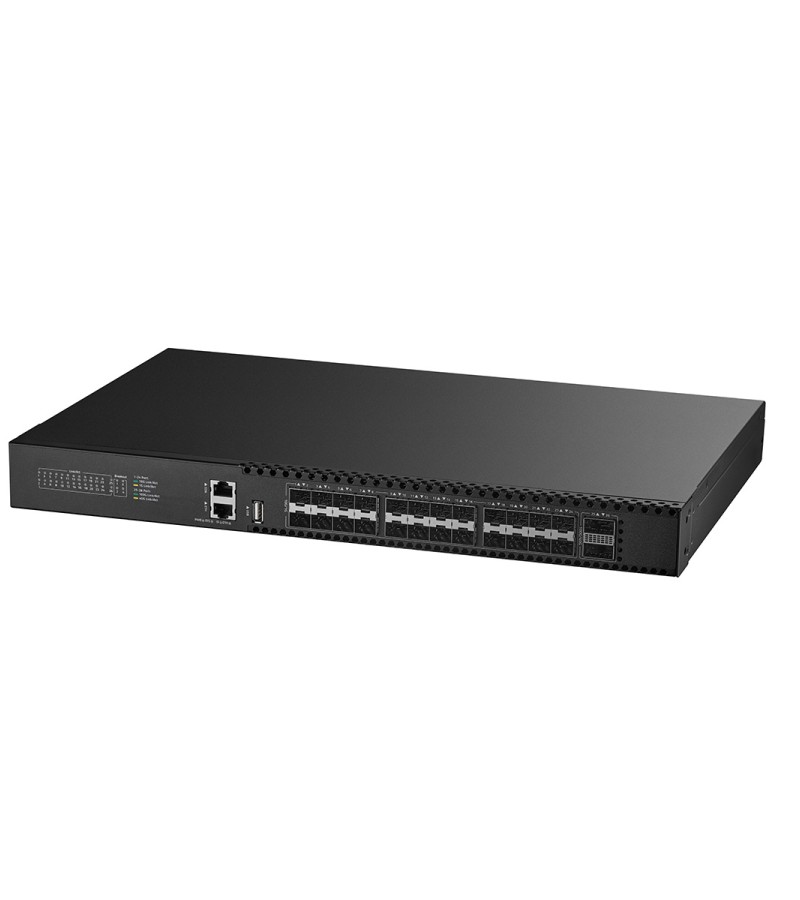

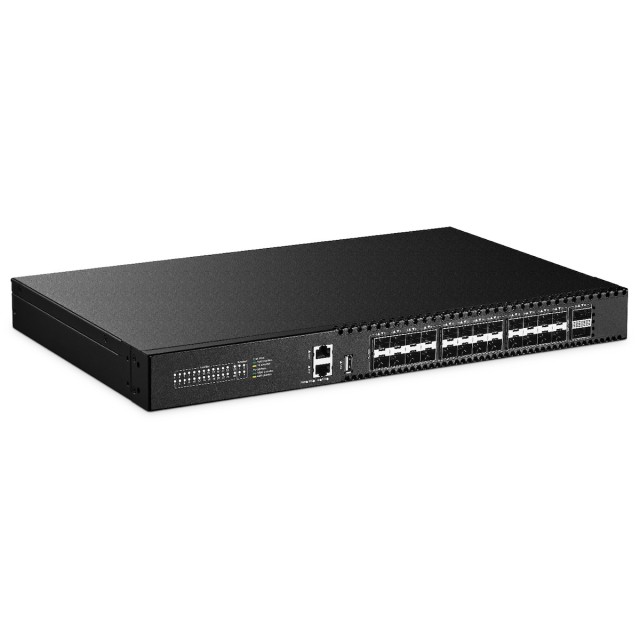

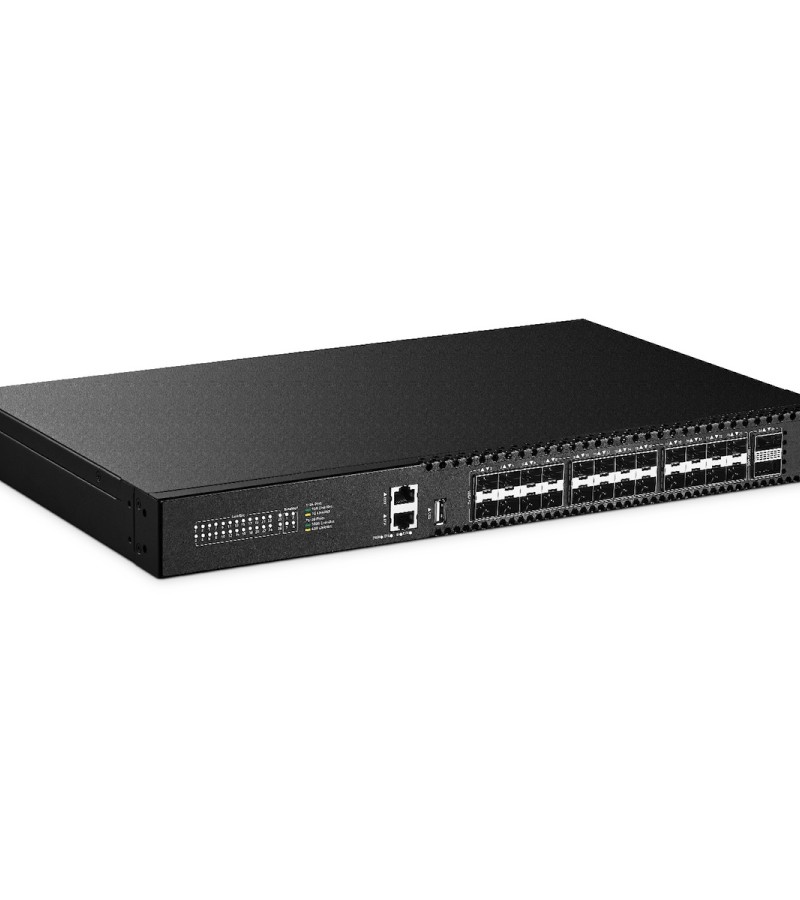

MokerLink 24-Port Ethernet L3 Switch, 24 x 10Gb SFP+, with 2 x 100Gb QSFP28
The 10G242100GSM is a high-performance Layer 3 Ethernet switch featuring 24 x 1G/10GbE SFP+ ports and 2 x 40G/100 GbE QSFP28 ports, all integrated into a compact 1U form factor. Equipped with full-featured system software, comprehensive protocols, and rich application support, it enables rapid service deployment and simplified management for both traditional Layer 2 and Layer 3 networks. Specifically engineered to handle demanding workloads, this switch supports advanced capabilities including MLAG, ETH OAM
$899.99
Price drop reminder
- Brand: MokerLink
- Product Code: 10G242100GSM
- Availability: In Stock
The 10G242100GSM is a high-performance Layer 3 Ethernet switch featuring 24 x 1G/10GbE SFP+ ports and 2 x 40G/100 GbE QSFP28 ports, all integrated into a compact 1U form factor. Equipped with full-featured system software, comprehensive protocols, and rich application support, it enables rapid service deployment and simplified management for both traditional Layer 2 and Layer 3 networks. Specifically engineered to handle demanding workloads, this switch supports advanced capabilities including MLAG, ETH OAM, dual-stack IPv4/IPv6, sFlow, SNMP, and more.
Ideal for next-generation metro and enterprise networks requiring high-speed transmission and long-haul connectivity, the 10G242100GSM is perfectly suited for scenarios such as remote office interconnection, WAN extension, and mission-critical data transfer.
Product Highlight
- Support 24*10Gbps SFP+ Ports and 2*100Gbps QSFP28 ports
- 100G/40Gbps ports (support 25G/10Gbps module splitting rates)

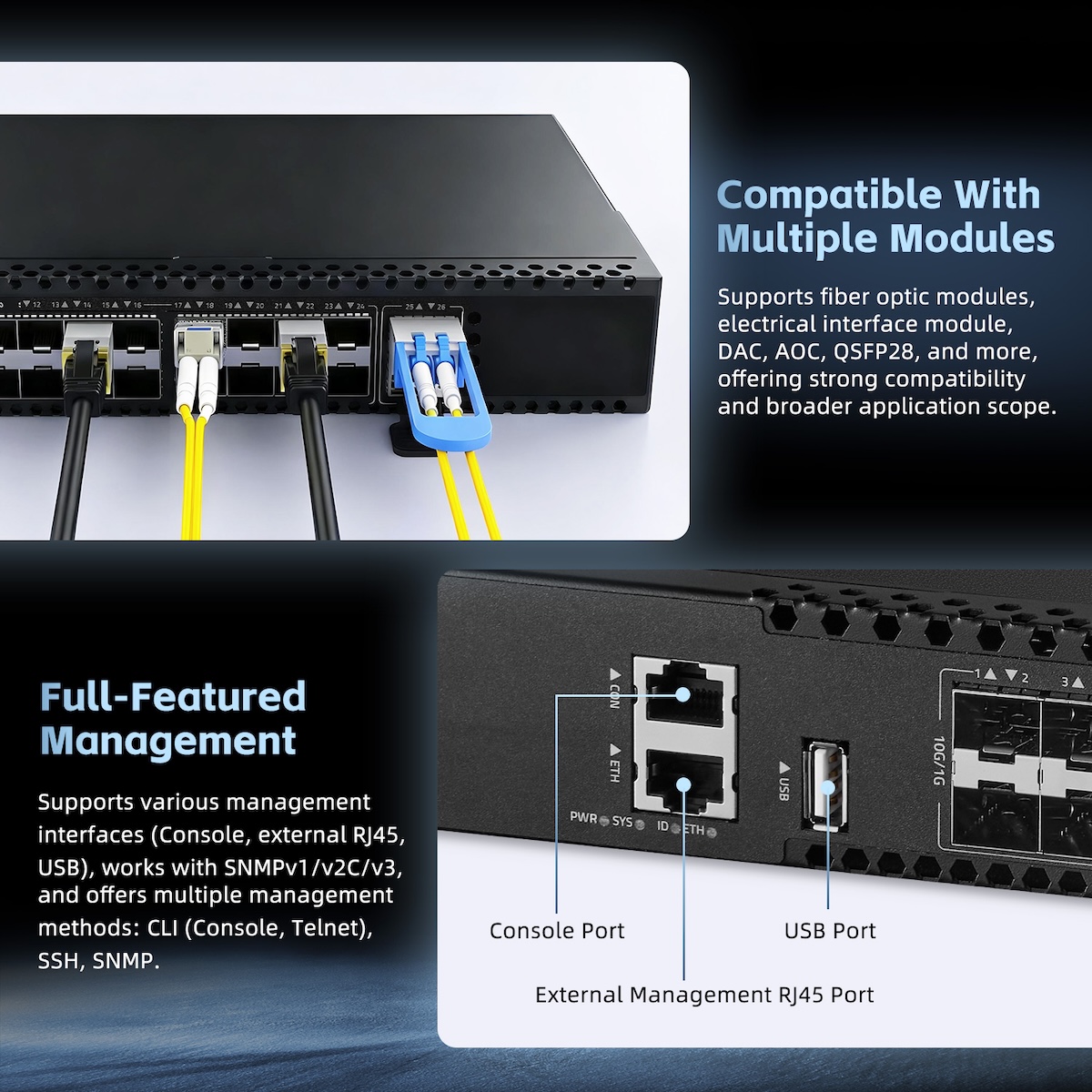

- 1*Console port, 1*ETH port, 1*USB port
- Operating Temperature: 0~45°C
- Support Cut-Through forwarding mode with fixed transmission delay
- Support complete L2/L3 features
Product Features
Ask Question About Product
Note: HTML is not translated!
| Ethernet Switch Hardware Specifications | |
| Product Model | 10G242100GSM |
| Product Name | 24x10G SFP+ and 2x100G QSFP L3 Managed Ethernet Switch |

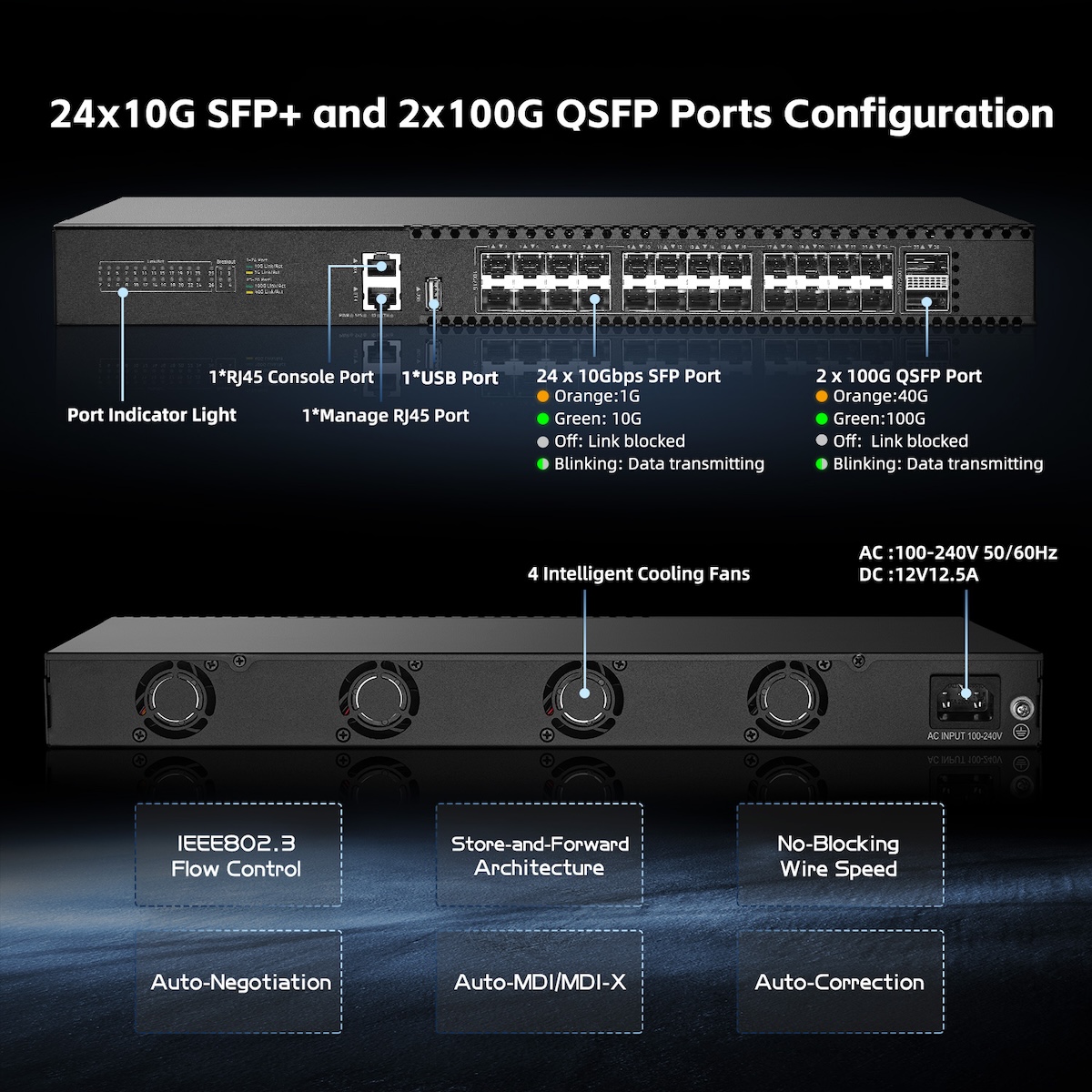

| Ethernet Port | 24*10Gbps SFP+ ports, 2*100Gbps QSFP28 ports, 1*Console port, 1*ETH port 1*USB port |
| Switching Capacity | 880Gbps |
| Throughput | 654Mpps |
| Packet Buffer | 9Mbit |
| Flash Memory | 8GB |
| DDR SDRAM | 2GB |
| MAC Address | 98K |
| Jumbo Frame | 9Kbytes |
| Transfer Mode | Store and forward |
| Network protocol | IEEE802.3 (Ethernet), IEEE 802.3ae (10G Ethernet), IEEE 802.3ba (40/100G Ethernet), IEEE802.3x (Flow Control), IEEE 802.3az (Energy Efficient Ethernet), IEEE 802.3ad (link Aggregation), IEEE 802.1AB LLDP/LLDP-MED (Link Layer Discovery Protocol), IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP), IEEE 802.1s Multiple Spanning Tree Protocol (MSTP), IEEE 802.1Q (Virtual VLAN) IEEE 802.1p (VLAN Label), IEEE 802.1X (User uthentification) |
| Lighting Protection | Port Surge: Common mode 4KV, Differential mode 2KV(Class A) Electrostatic ESD: Air 8KV, Contact 6KV(Class C) |
| Working Environment | Operating temperature: -10～+55°C；5%～90% RH Non coagulation, Storage temperature: -40～+75°C；5%～95% RH Non coagulation |
| LED Indicator | ID Green LED On: ID indication on, Off: ID indication off; ETH Green LED on: 1Gbps Link normal, Yellow LED on: 10/100Mbps Link normal, Off: Link blocked, Flashing: Data transmitting; PWR Green LED On: Powered on, Off: Powered off; SYS Green LED on: The system is starting up or running normally, Yellow LED on: System abnormal alarm or other errors, Off: The system is not powered on or running abnormally; Ports 1-24 Green LED on: 10Gbps Link normal, Yellow LED on: 1Gbps Link normal, Off: Link blocked, Flashing: Data transmitting; Ports 25~26 Green LED on: 100Gbps Link normal, Yellow LED on: 40G Link normal, Off: Link blocked, Flashing: Data transmitting; Breakout Loop flashing: Data transmission |
| Structure Size | Product Dimensions: 440*280*44mm Packaging Dimensions: 500*365*85mm Product Net Weight: 3.63KG Product Gross Weight: 4.36KG |
| Installation | Desktop / Rack Mount |
| Shell | Black Color, Metal Shell |
| Power Voltage | AC 100-240V 50/60Hz DC 12V12.5A |

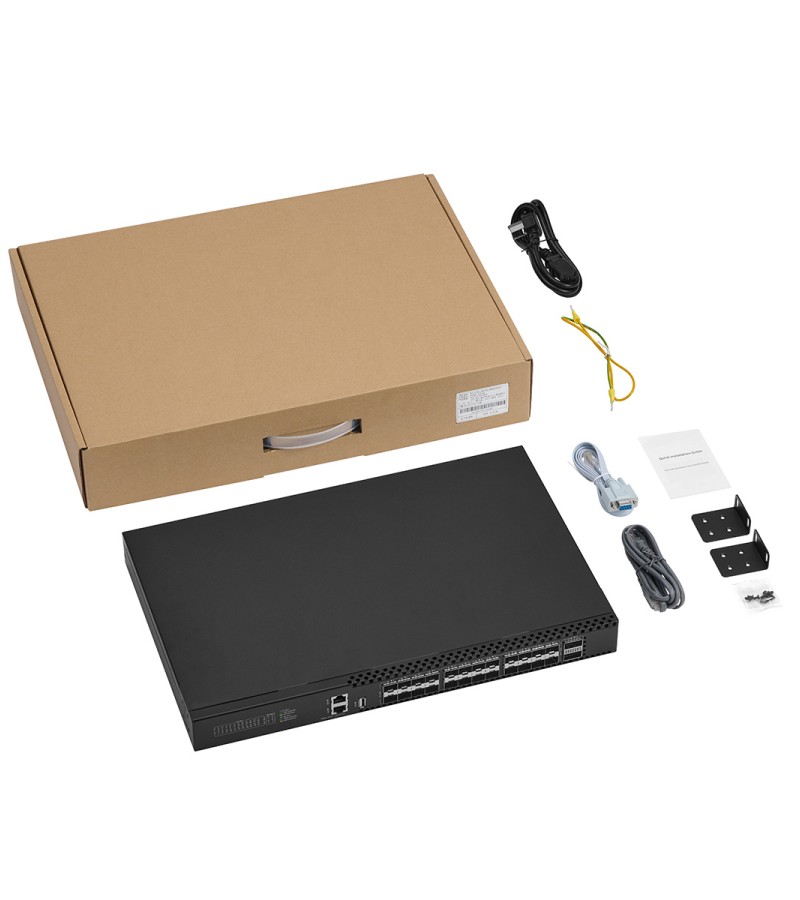

| Package List | Switch 1pcs, Manual 1pcs, Power code 1pcs, Console Cable 1pcs |
| Software Function | Layer 3 Route: IPV4/IPV6 Management, IPV4/IPv6 Routes,ARP,Loopback Interface. Layer 2 Switching: such as VLAN, ACL, QoS, Jumbo frame,DHCP,security, multicast, MAC address table, diagnosis, Statistics, MSTP/ RSTP/STP etc |
