MokerLink 8 Port Industrial Din Rail Switch, 8 x 10/100Mbps Ethernet Ports, Extend 250M, Metal DIN-Rail & Wall Mount Included

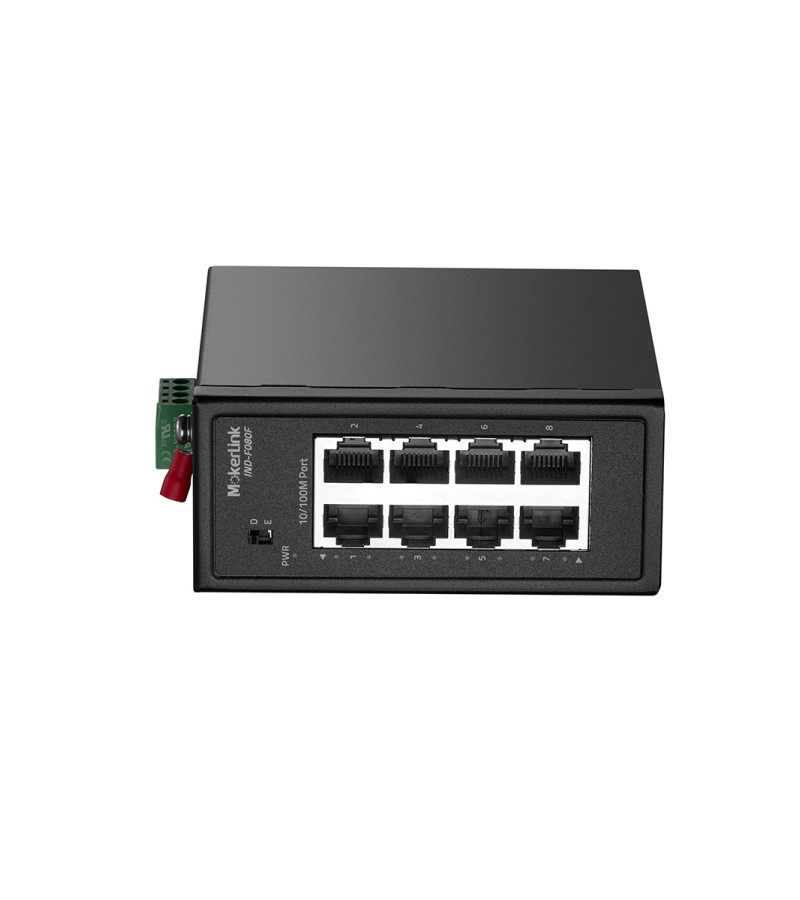

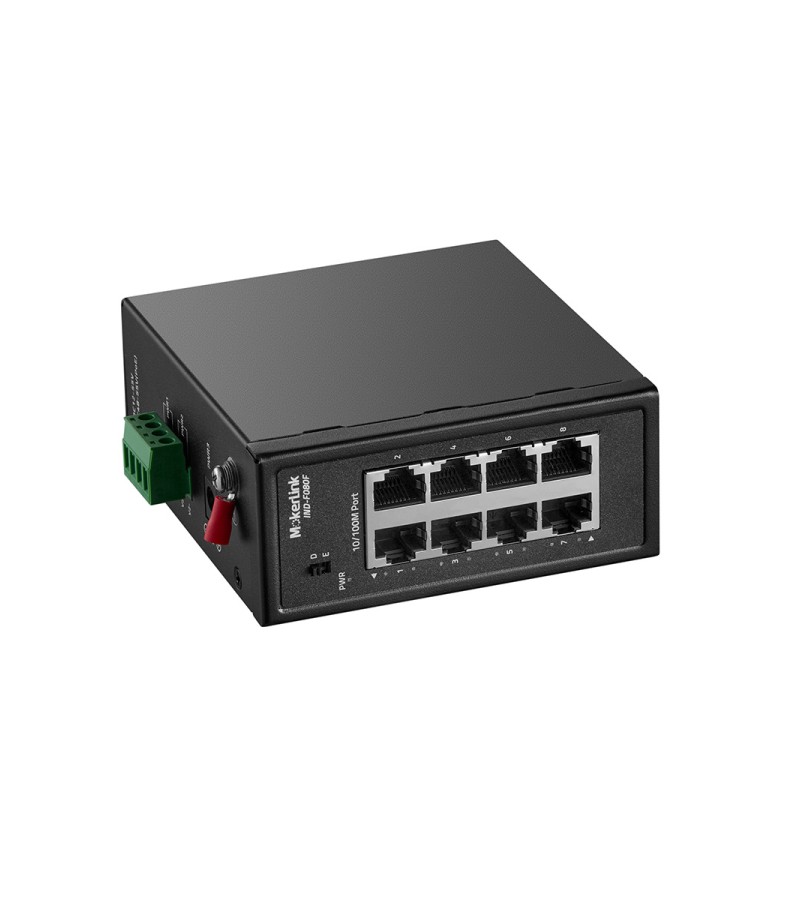

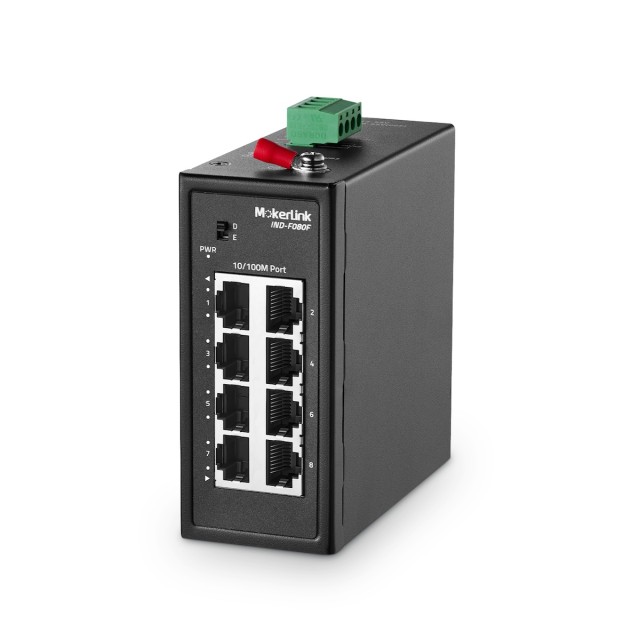

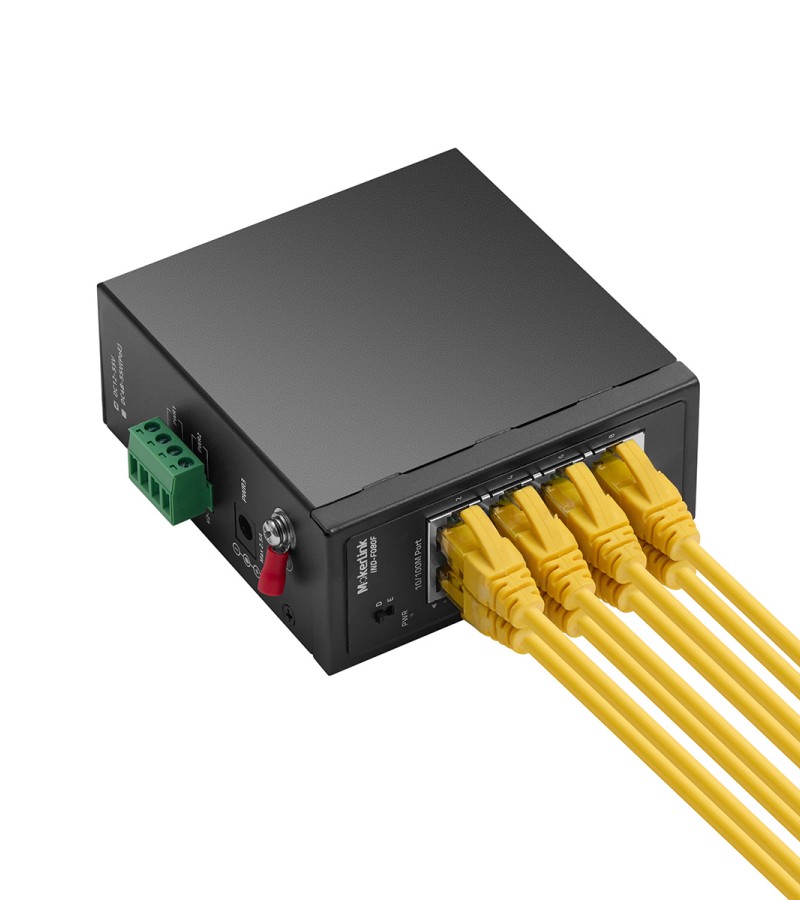

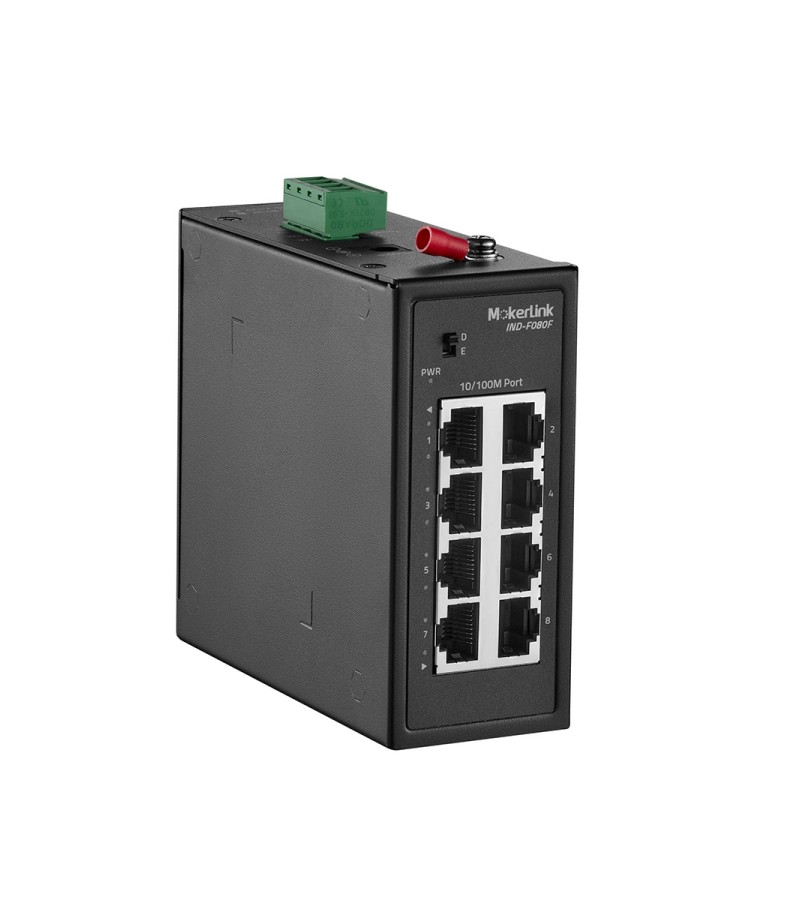

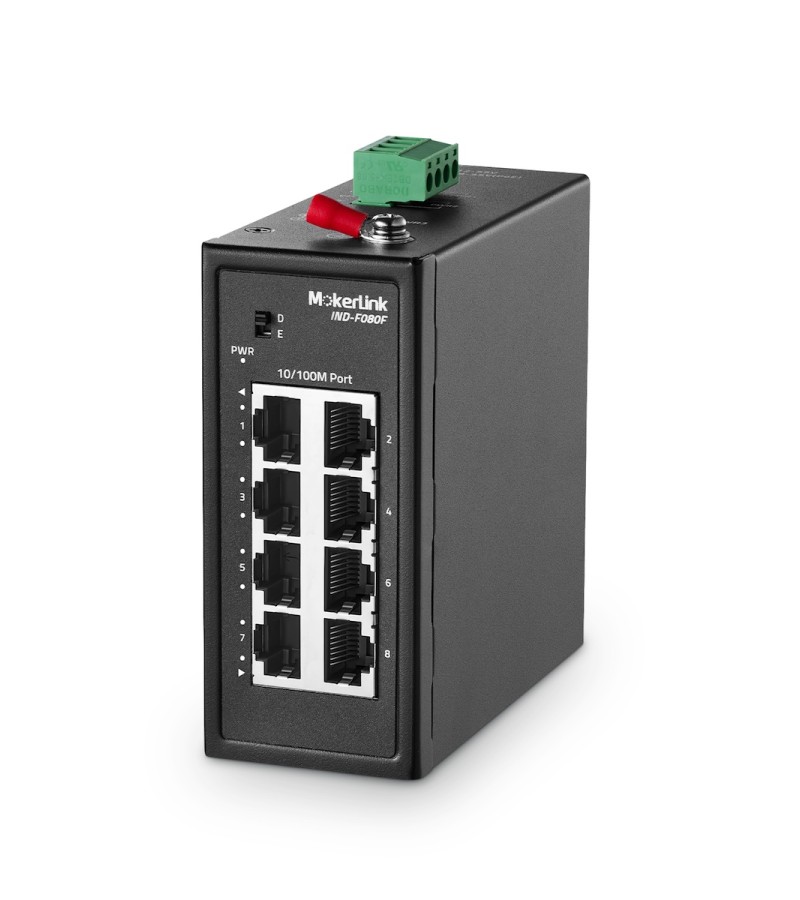

The IND-F080F is a ruggedized 8-port Industrial Ethernet Switch that delivers non-blocking wire-speed performance in severe industrial environments. It is equipped with 8x 10/100BASE-TX RJ45 ports, encased in a durable IP30-rated housing and integrated with a redundant power supply. Its slim, space-saving form factor is ideal for surveillance systems, industrial control management, and wireless infrastructure in demanding operating conditions, boasting an extended operating temperature range of -40°C to 75°

0 reviews

$59.99 Price drop reminder

Brand: MokerLink
Product Code: IND-F080F
Availability: In Stock

Qty

 

Total $59.99

Mobile

Product Overview

The IND-F080F is a rugged 8-port industrial Ethernet switch engineered to deliver non-blocking wire-speed performance even in the harshest industrial settings. Equipped with 8×10/100BASE-TX RJ45 ports, it features a robust IP30-rated enclosure and a built-in redundant power supply for enhanced reliability. Boasting a slim, space-efficient form factor and an extended operating temperature range of -40°C to 75°C, this switch is ideally suited for surveillance systems, industrial control management, and wireless infrastructure deployments under demanding operational conditions.

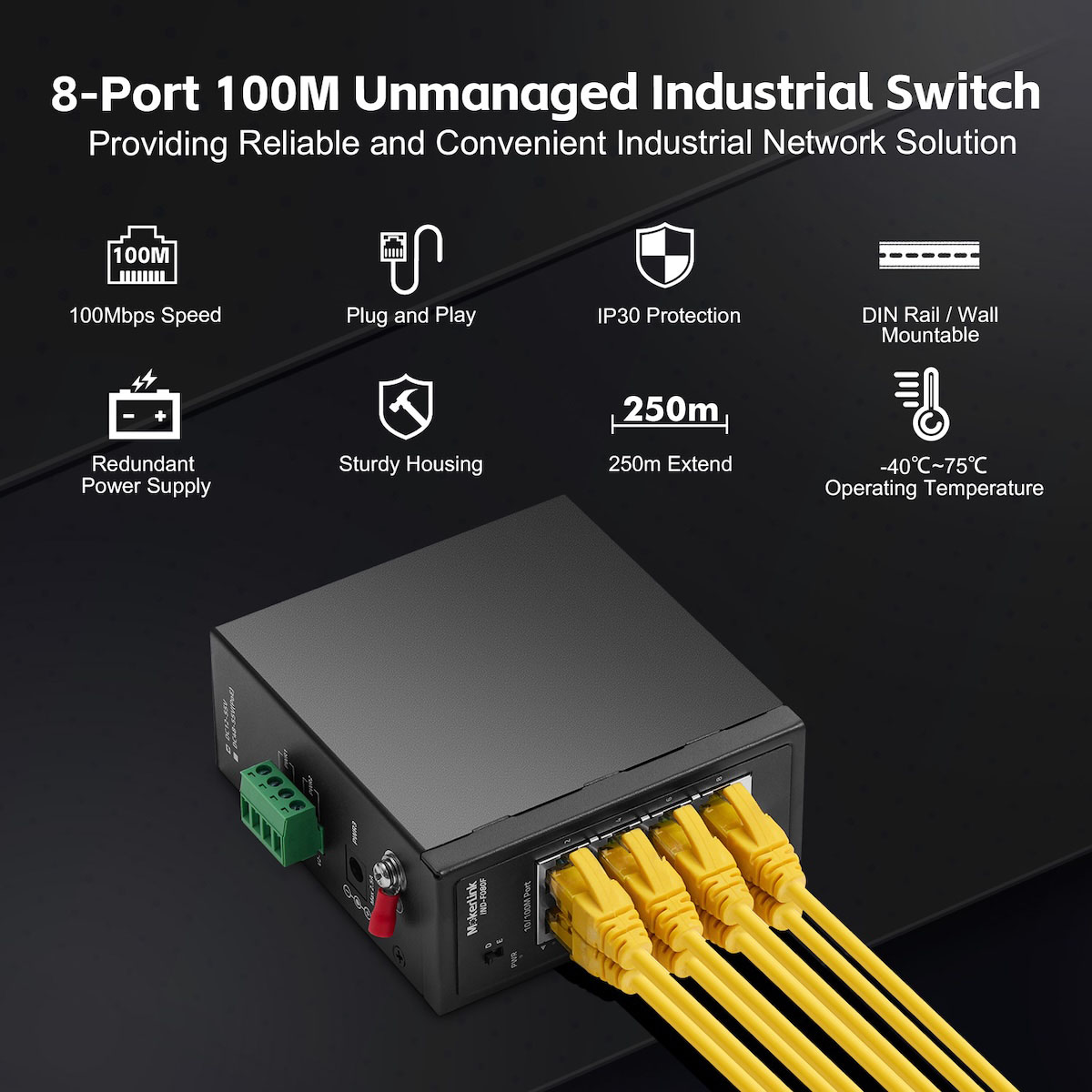

Product Characteristics

8×10/100 Mbps RJ45 Ports
Compliant with IEEE 802.3, IEEE 802.3u and IEEE 802.3x Standards

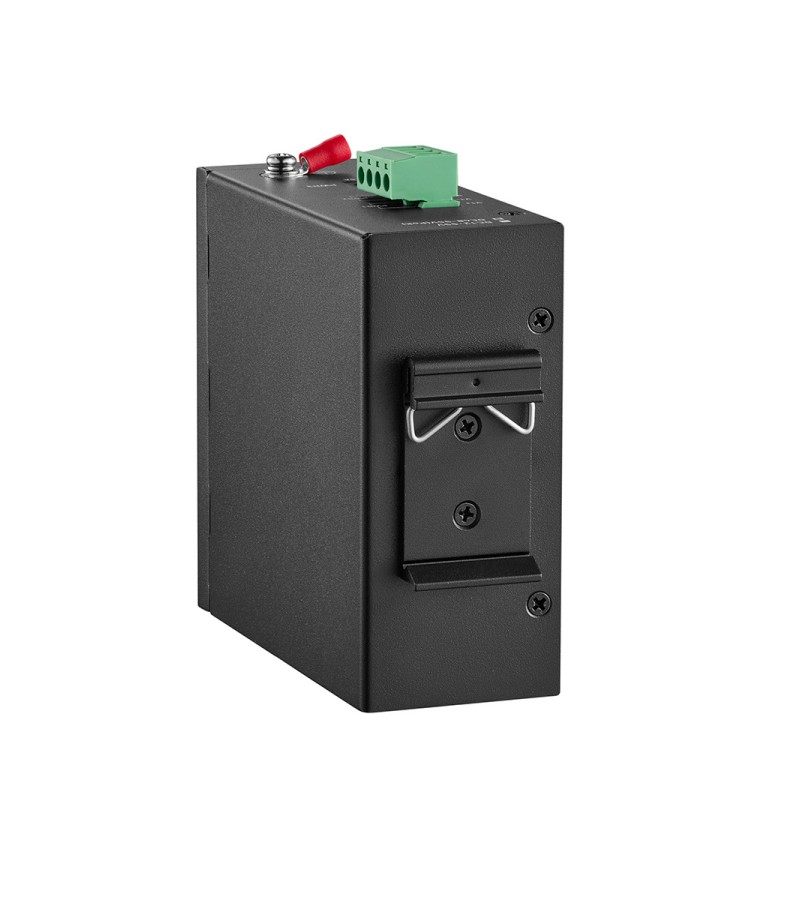

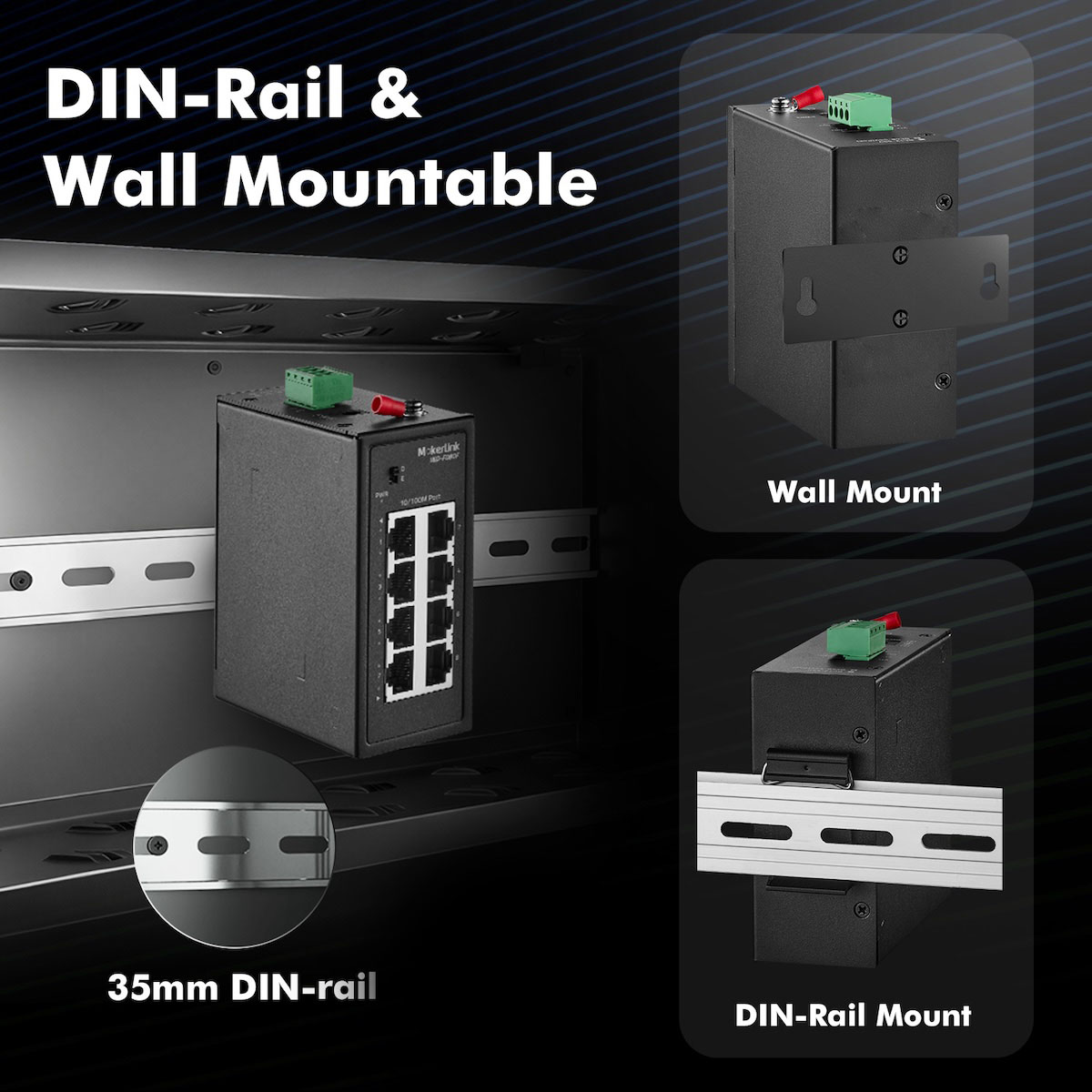

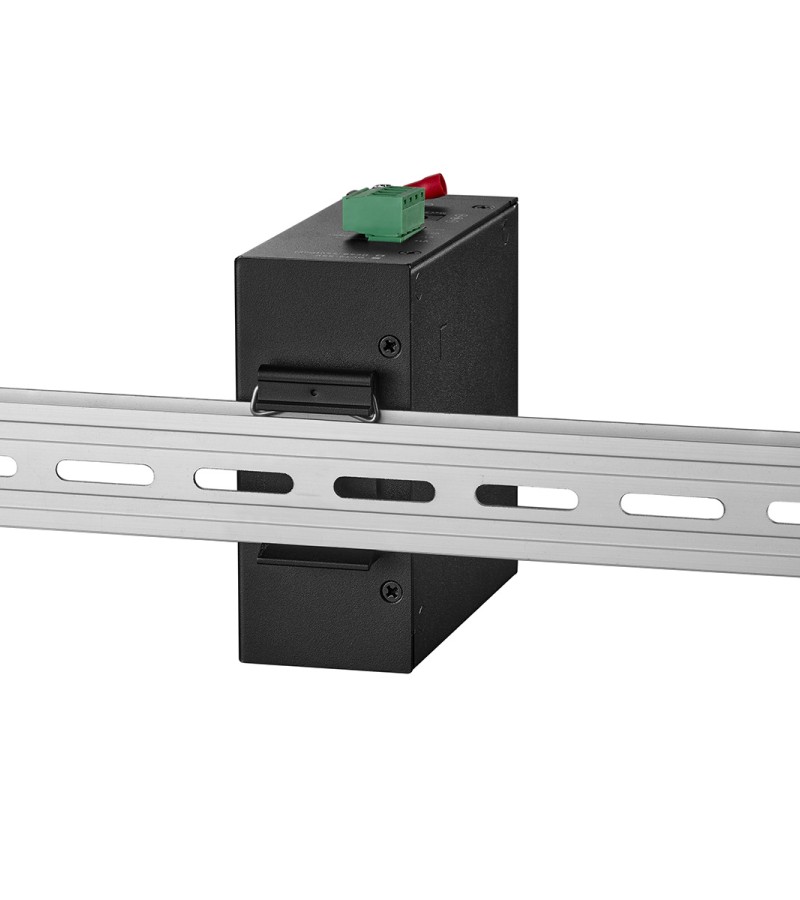

IP30 Protection Rating, Rugged High-strength Housing, DIN35 Rail Mount Compatible
Industrial-grade Class 4 Design, Operating Temperature Range: -40°C to 75°C

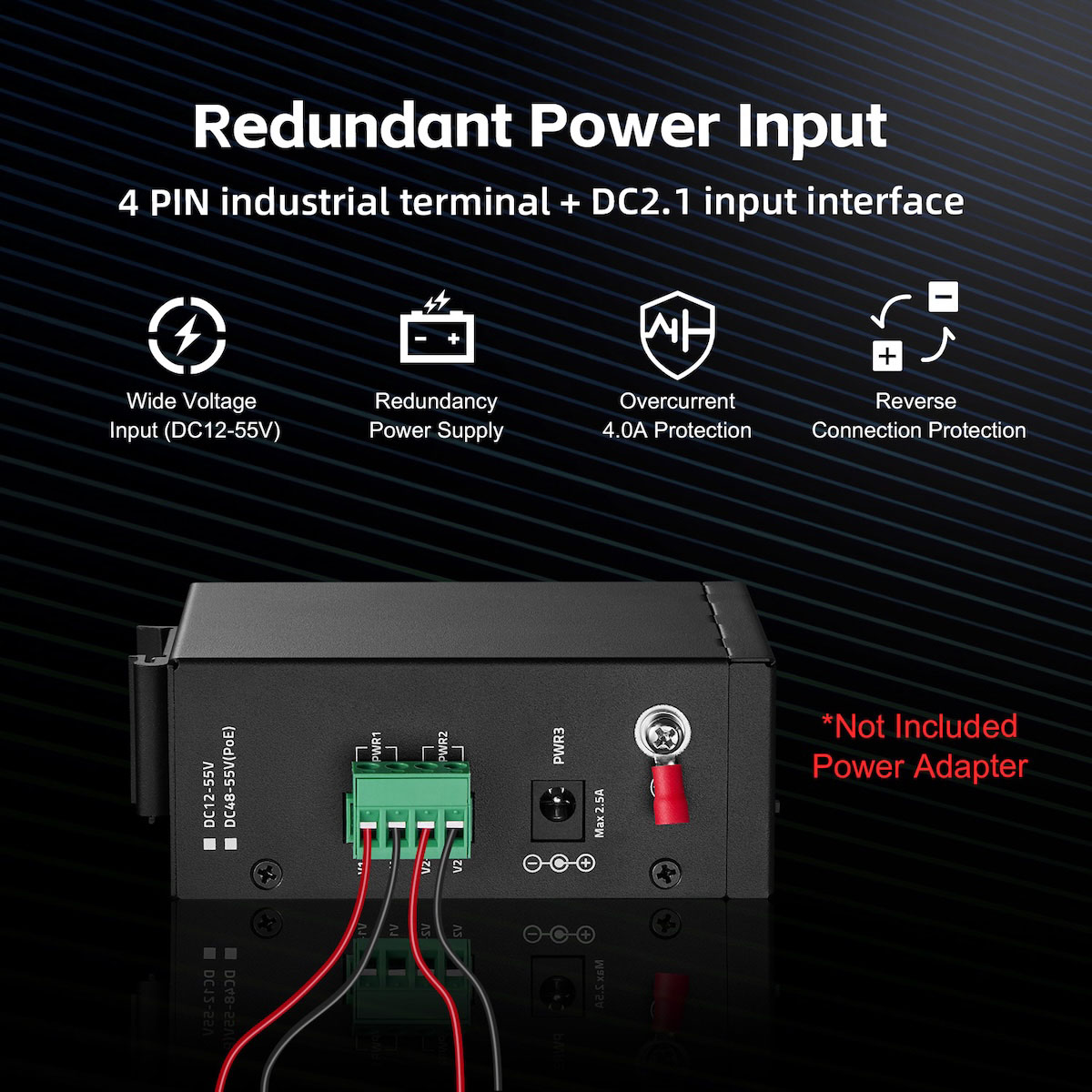

Supports Redundant Power Supply & Reverse Polarity Protection
Features Extended Transmission Function

Product Features

Ask Question About Product

Your Name

Your Question:

Note: HTML is not translated!

Industrial Ethernet
Model	IND-F080F
Product Name	8-port 100Mbps Industrial Ethernet Switch
Port Description	8*100Mbps RJ45 ports
Network Protocol	IEEE802.3 (Ethernet) IEEE802.3u (Fast Ethernet) IEEE802.3x (Flow Control)
Work environment	Operating temperature: - 40℃ ~ 75℃ (- 40 ~ 185 ° f) Storage temperature: - 40℃~ 75℃ (- 40 ~ 185 ° f) Relative humidity: 5% ~ 95% (no condensation

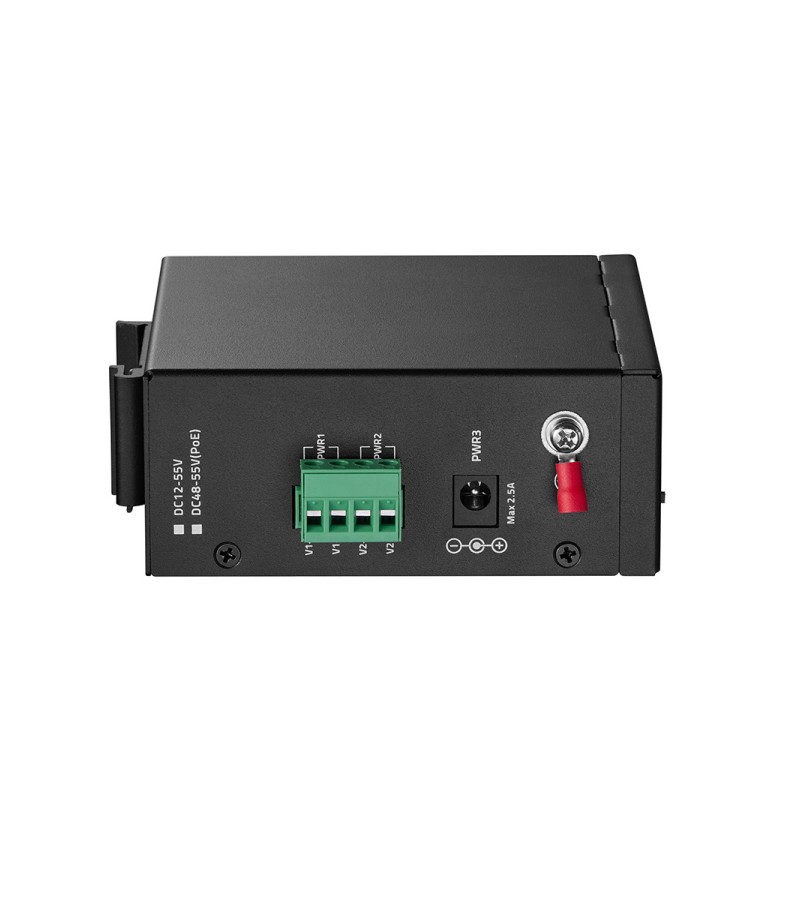

Power Supply	DC12~55V Power wiring: 4 PIN industrial terminals (redundant V1+V1-, V2+V2-)/DC 2.1(DC 2.1 cannot be combined with V1, V2 used simultaneously)
Switch Properties	Switching capacity: 1.6Gbps application level: layer 2 Overall packet forwarding rate: 1.19Mpps Mac table: 2K Package buffer: 0.448M Delay time: &amp;lt; 4 μ s Switching mode: store forward, Mainboard Power Consumption: 1.61W

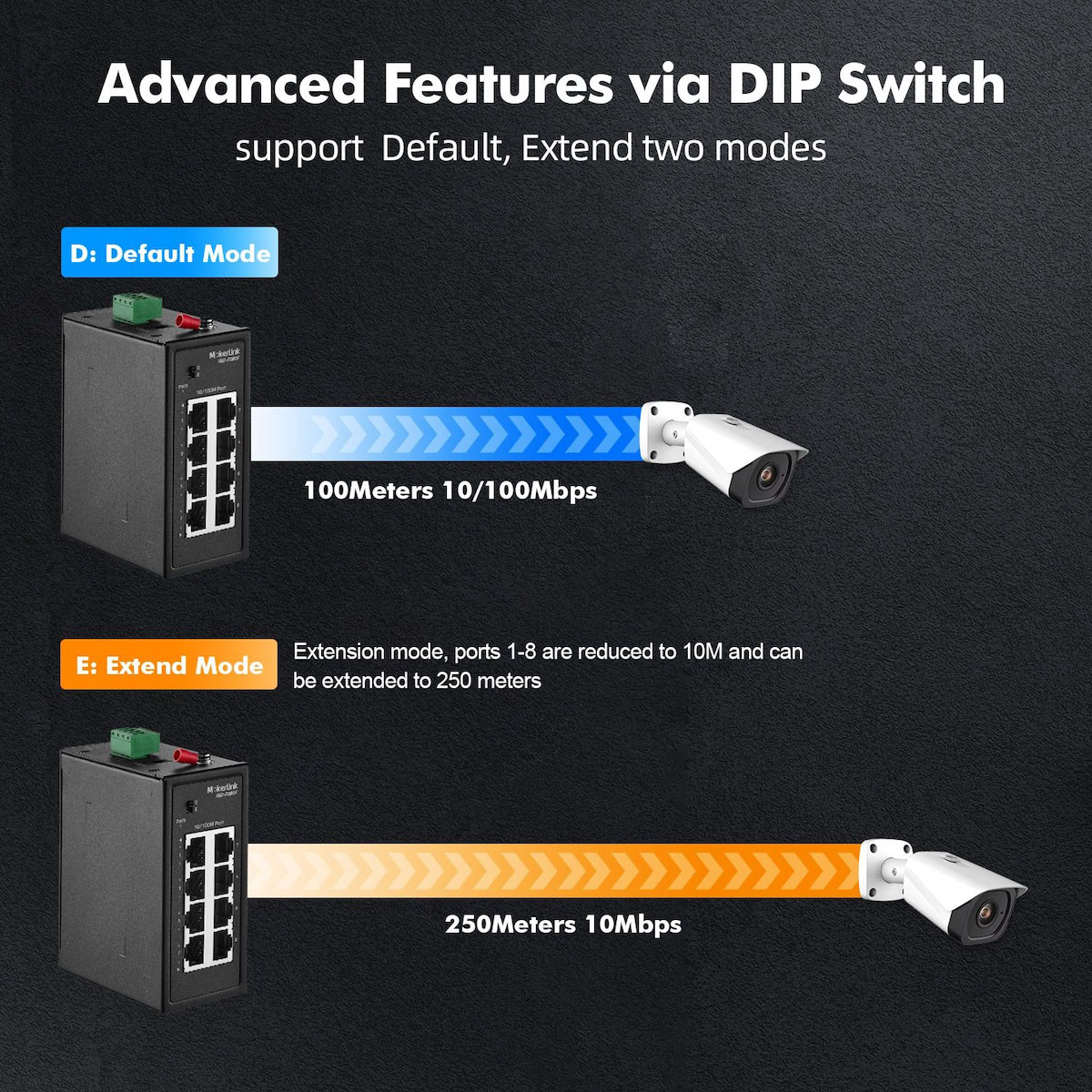

LED Indicators	PWR Green LED On: Powered on, Off: Powered off; Ports 1-8 Green LED On: 10/100/1000Mbps Link normal Off: Link blocked, Fast Flashing: Data transmitting, D/E Modes Buttons D: Normal mode, all ports can communicate with each other, transmission distance is within 100 meters, transmission rate is 10/100Mbps adaptive E: Extend mode, ports 1-8 force 10Mbps to extend the transmission distance to 250meters
Degreeof Protection	IP30
Warranty	1 Year

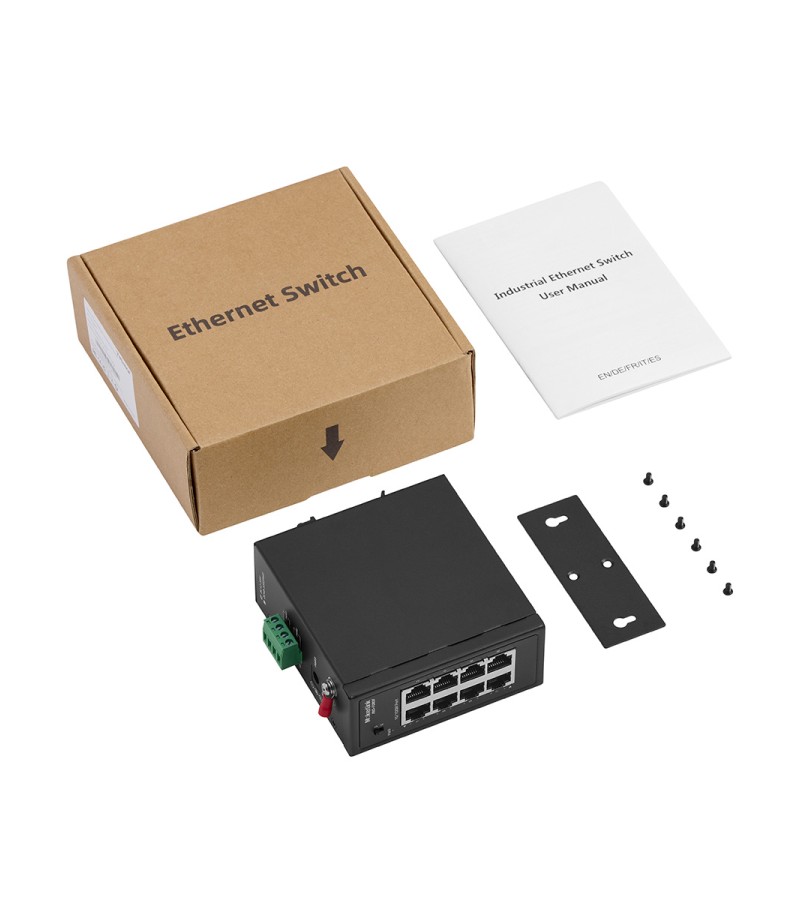

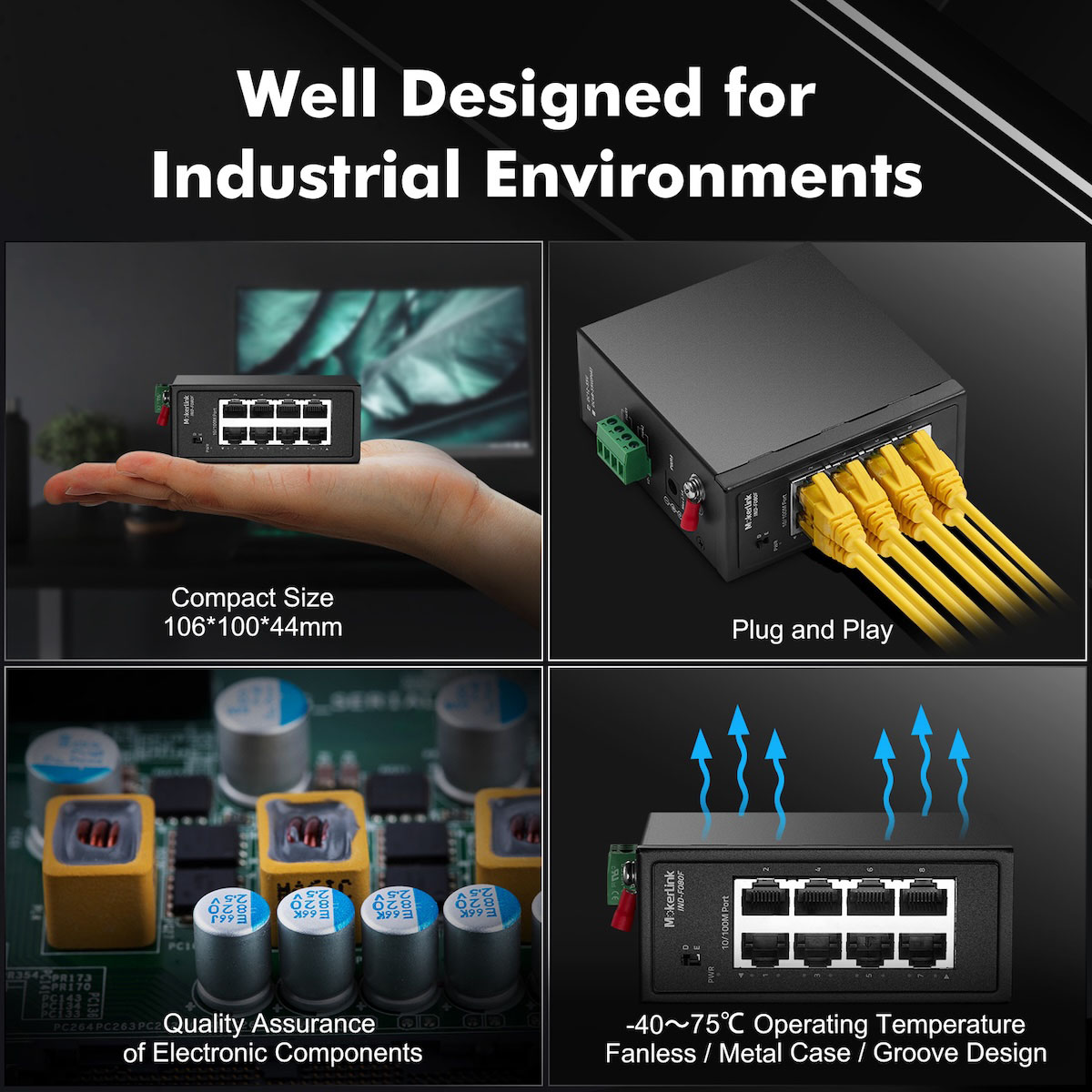

Mechanical Properties	Enclosure: IP30 protection grade, metal enclosure Installation: DIN rail type, wall mounted Heat dissipation mode: natural cooling without fan, Product Dimensions: 10010644mm Packaging Dimensions: 17514060mm Product Net Weight: 0.53KG Product Gross Weight: 0.6KG

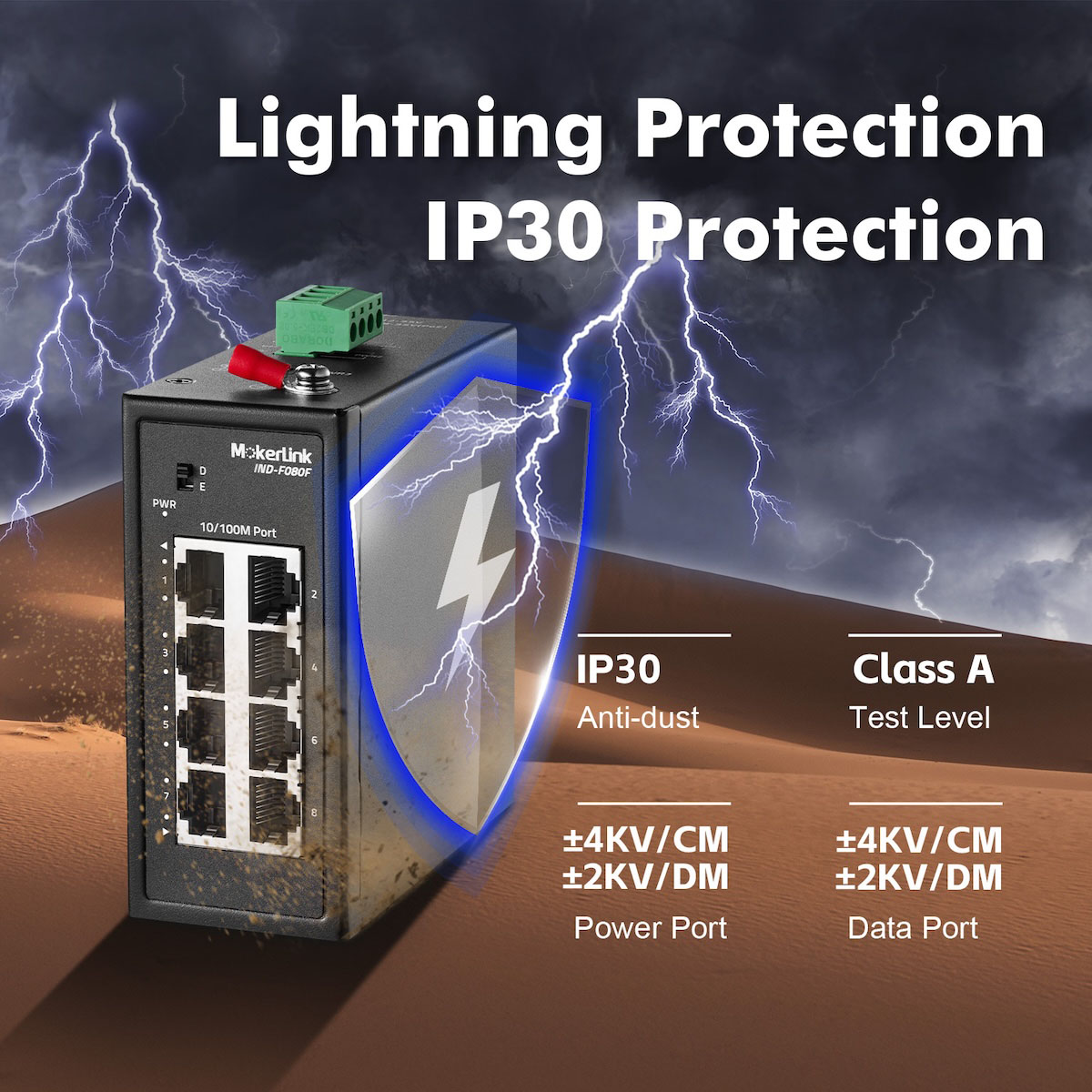

Industry Standard	EMI FCC Part 15 Subpart B Class A，EN 55022 Class A EMS IEC(EN)61000-4-2(ESD): ±8kV(contact), ±15kV(air) IEC(EN)61000-4-3(RS):10V/m(80~1000MHz) IEC(EN)61000-4-4(EFT):PowerPort:±4kV; Data Port: ±2kV IEC(EN)61000-4-5(Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV IEC61000-4-6(CS):10V(150kHz～80MHz)/IEC(EN)61000-4-16(CM EMI) : 30V cont. 300V,1s IEC60068-2-27(Shock)/EC60068-2-32(Freefall) IEC 60068-2-6 (Vibration)
