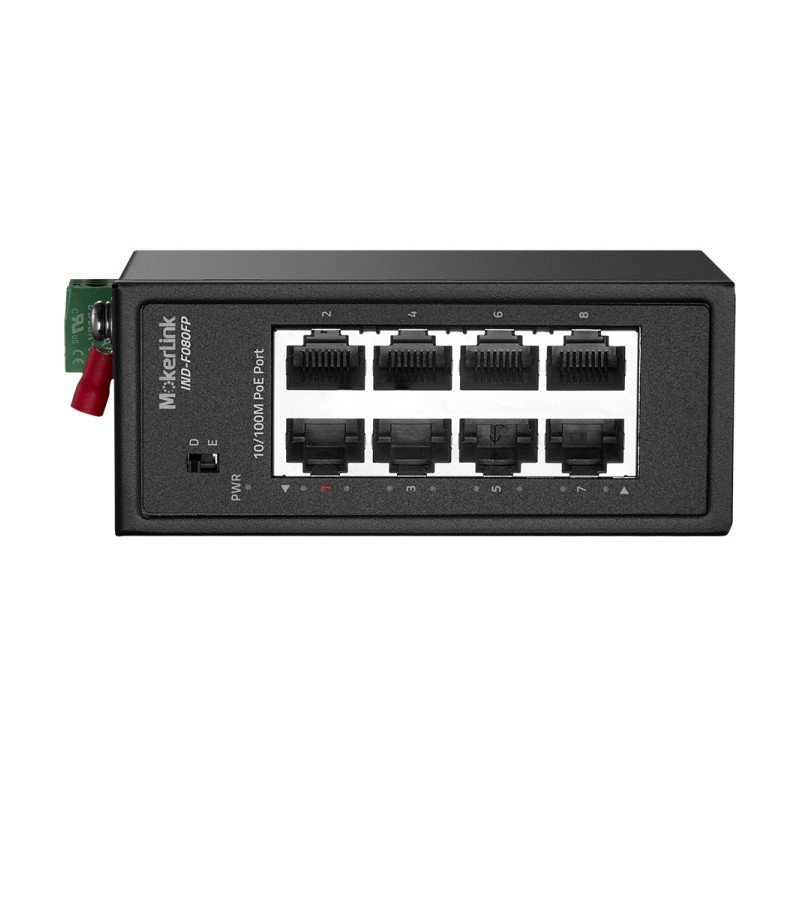

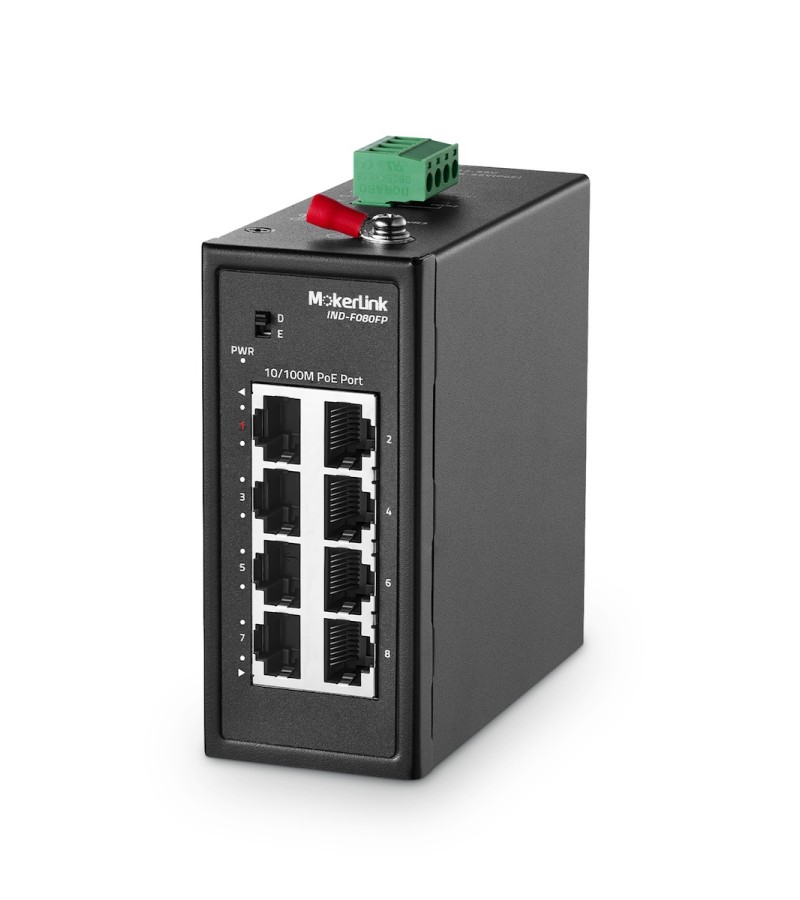

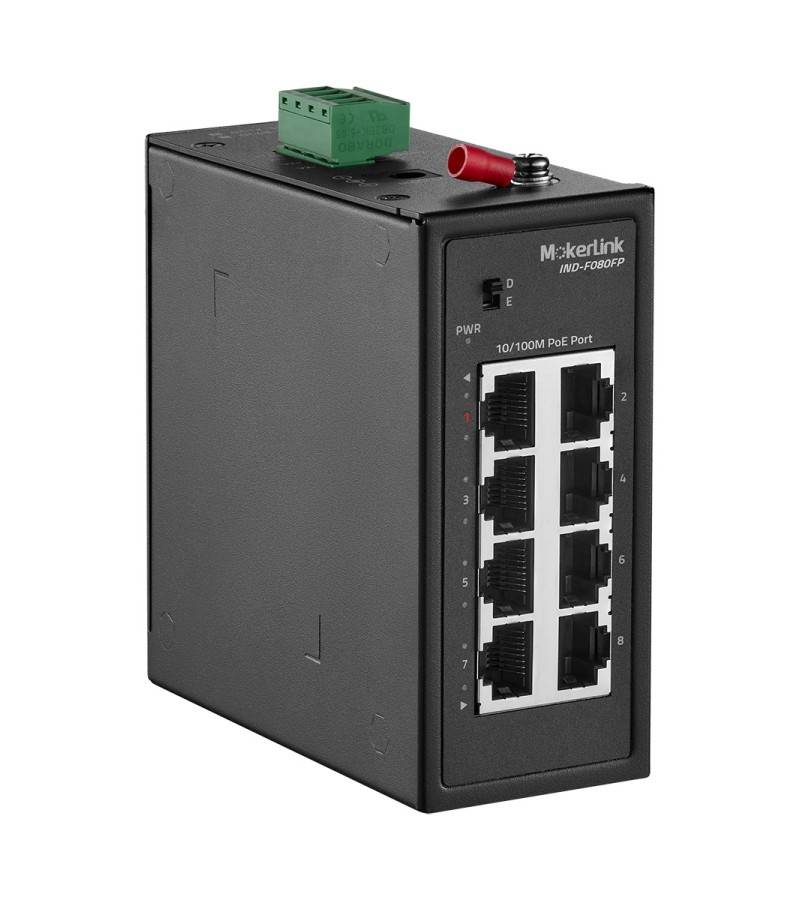

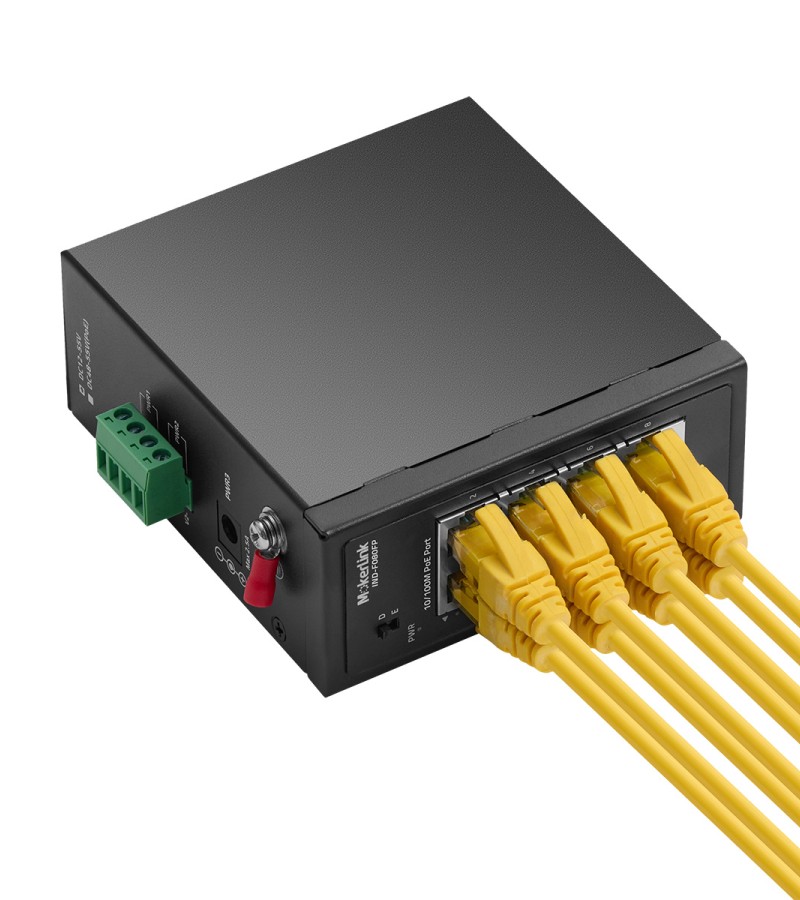

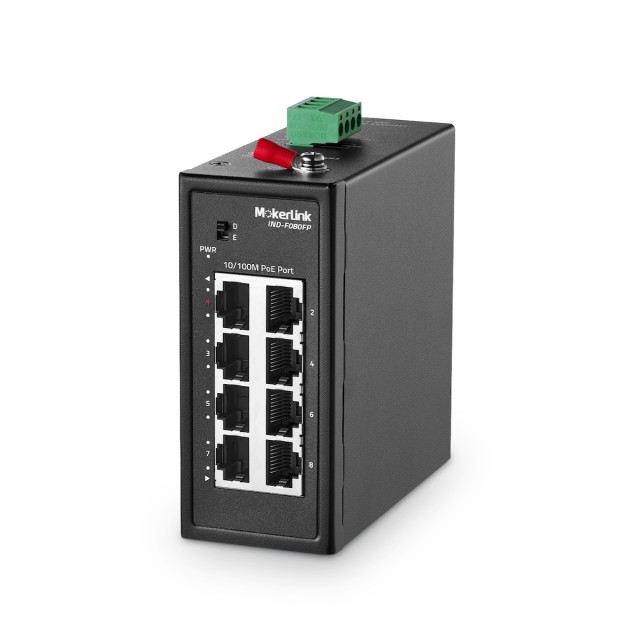

MokerLink 8 Port PoE Industrial Din Rail Switch, 8 PoE+ IEEE802.3af/at, 10/100Mbps Fast Ethernet, Extend 250M, DIN-Rail & Wall Mount Included

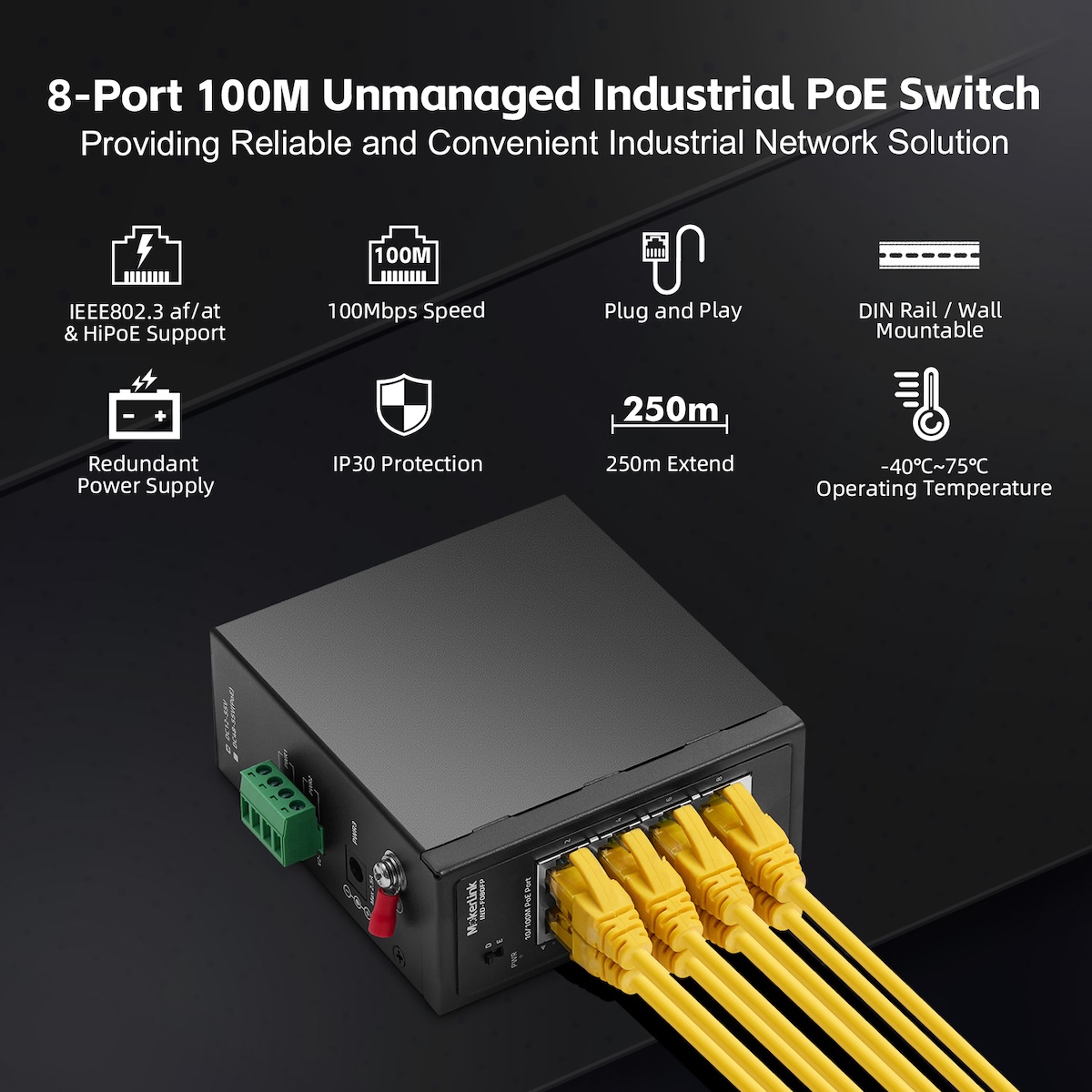

The IND-F080FP is a hardened 8-port Industrial PoE Switch, delivering non-blocking wire-speed performance in harsh industrial environments. It features 8x 10/100BASE-TX RJ45 ports, housed in a rugged IP40 enclosure with a redundant power system. It compatible with DIN rail and wall mounting for space efficiency The PoE ports 1-8 comply with the IEEE 802.3af/at standards and feature dual power inputs of 48–55Vdc. Using standard Cat5/5e/6 cables to transmit Ethernet data, the switch can simultaneously supply
$69.99
Price drop reminder
- Brand: MokerLink
- Product Code: IND-F080FP
- Availability: In Stock
Product Overview
Product Characteristics
Product Features
Ask Question About Product
Note: HTML is not translated!
| Industrial Ethernet | |
| Model | IND-F080FP |
| Product Name | 8-port 100Mbps Industrial PoE Switch |
| Port Description | 8*100Mbps PoE ports |
| Network Protocol | IEEE802.3 (Ethernet) IEEE802.3u (Fast Ethernet) IEEE802.3x (Flow Control) |

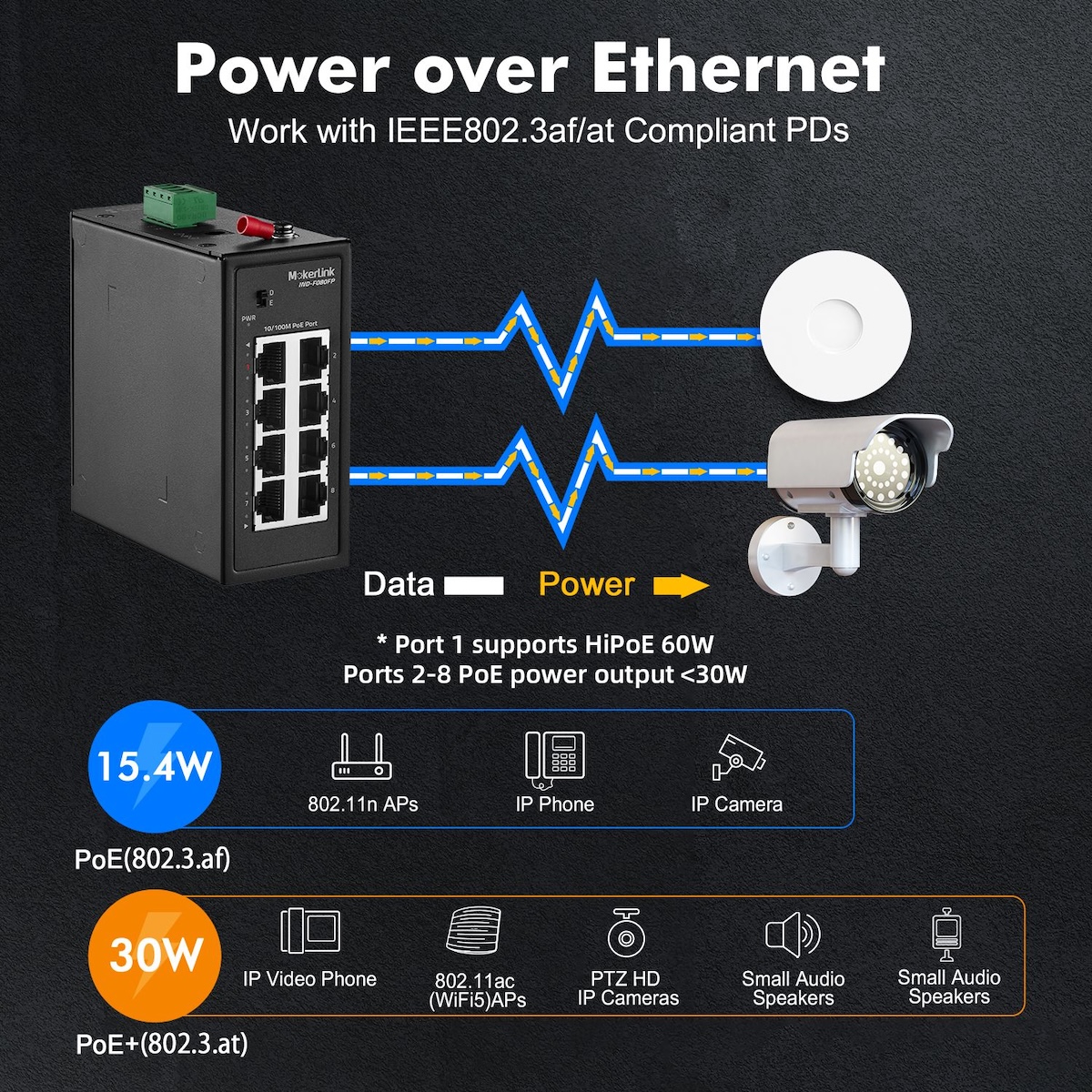

| PoE Parameters | PoE Standard IEEE802.3af (15.4W), IEEE802.3at (30W); PoE Port Output Voltage DC 48-55V; PoE Ports Port 1 supports HiPoE 60W Ports 2-8 PoE power output <30W; PoE Power Budget According to the adapter; PoE Ports Port 1 supports HiPoE 60W, Ports 2-8 PoE power output <30W; PoE Power Budget According to the adapter |
| Work environment | Operating temperature: - 40℃ ~ 75℃ (- 40 ~ 185 ° f) Storage temperature: - 40℃~ 75℃ (- 40 ~ 185 ° f) Relative humidity: 5% ~ 95% (no condensation |

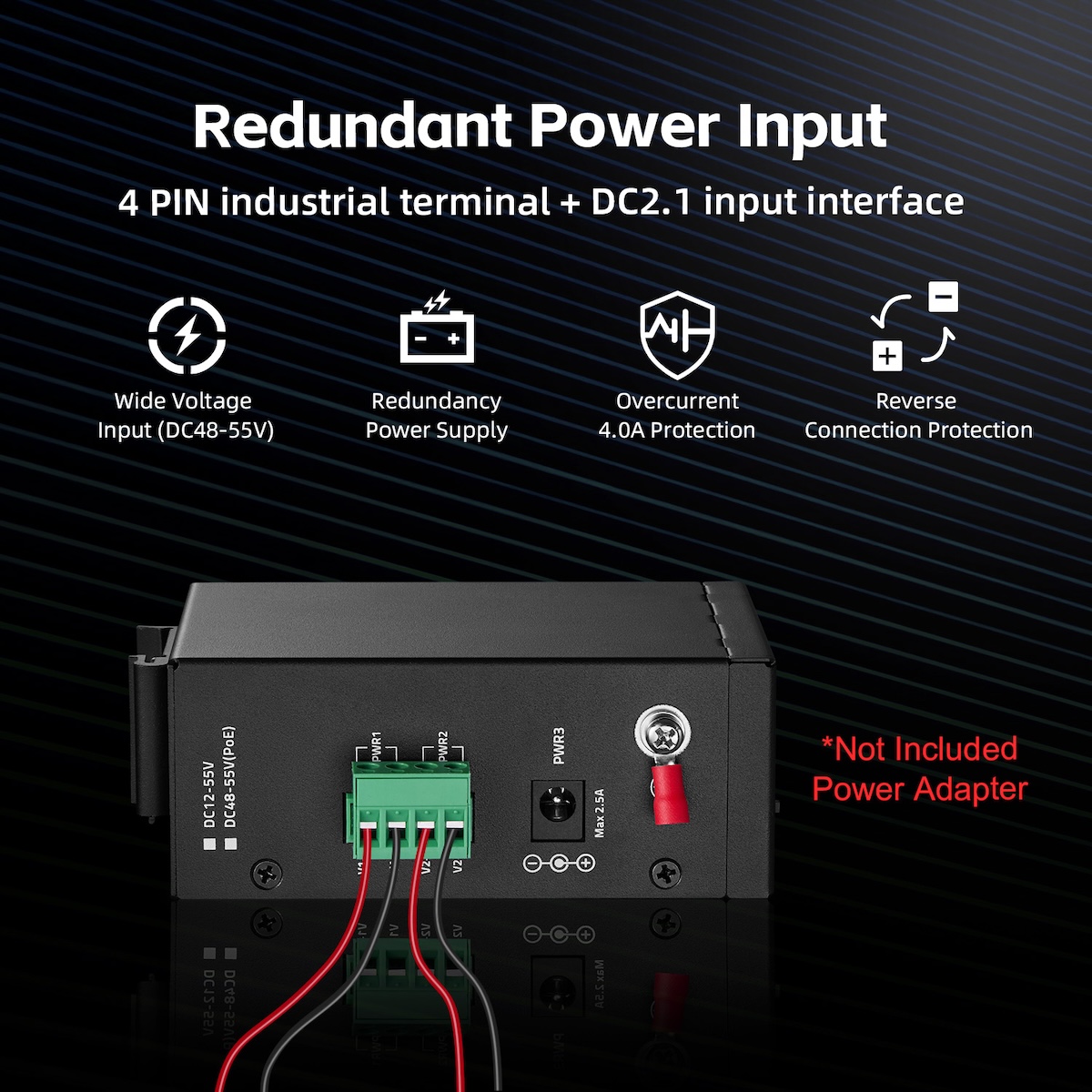

| Power Supply | DC48~55V (PoE) Power wiring: 4 PIN industrial terminals (redundant V1+V1-, V2+V2-)/DC 2.1(DC 2.1 cannot be combined with V1, V2 used simultaneously) |
| Switch Properties | Switching capacity: 1.6Gbps application level: layer 2 Overall packet forwarding rate: 1.19Mpps Mac table: 2K Package buffer: 0.448M Delay time: &amp;amp;lt; 4 μ s Switching mode: store forward, Mainboard Power Consumption: 1.61W |

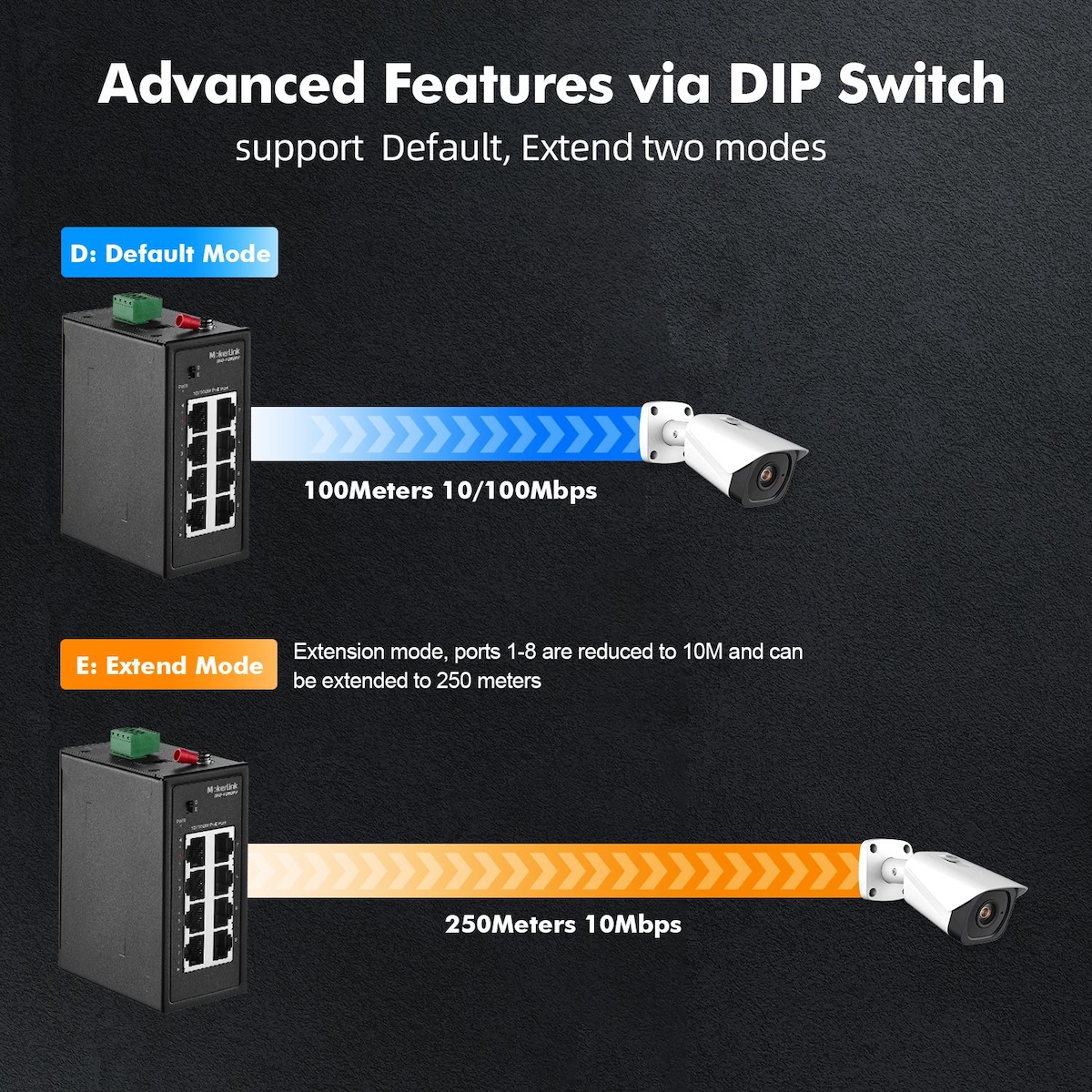

| LED Indicators | PWR Green LED On: Powered on, Off: Powered off; Ports 1-8 Green LED On: 10/100/1000Mbps Link normal Off: Link blocked, Fast Flashing: Data transmitting, D/E Modes Buttons D: Normal mode, all ports can communicate with each other, transmission distance is within 100 meters, transmission rate is 10/100Mbps adaptive E: Extend mode, ports 1-8 force 10Mbps to extend the transmission distance to 250meters |
| Degreeof Protection | IP30 |
| Warranty | 1 Year |

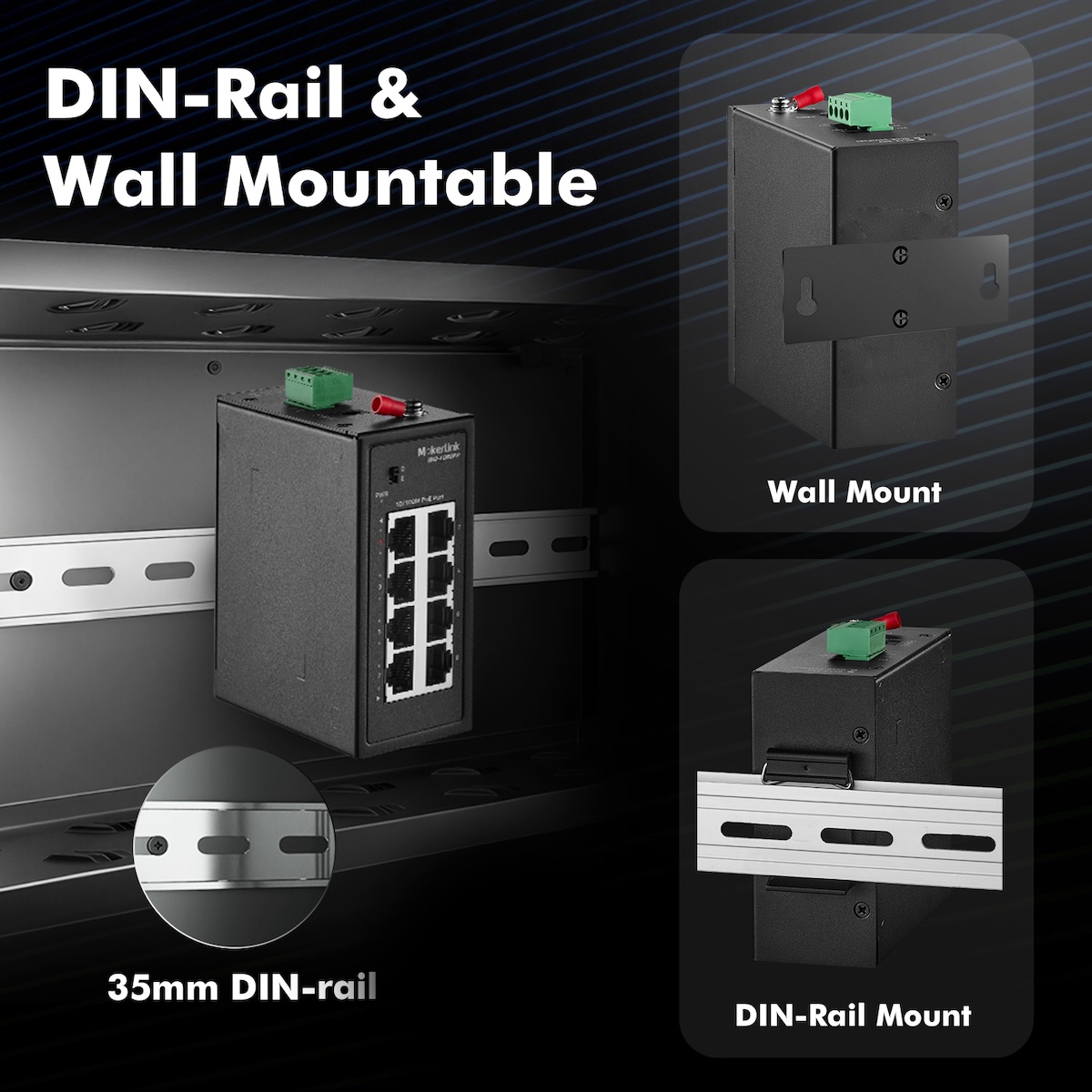

| Mechanical Properties | Enclosure: IP30 protection grade, metal enclosure Installation: DIN rail type, wall mounted Heat dissipation mode: natural cooling without fan, Product Dimensions: 100*106*44mm Packaging Dimensions: 175*140*60mm Product Net Weight: 0.53KG Product Gross Weight: 0.6KG |
| Industry Standard | EMI FCC Part 15 Subpart B Class A，EN 55022 Class A EMS IEC(EN)61000-4-2(ESD): ±8kV(contact), ±15kV(air) IEC(EN)61000-4-3(RS):10V/m(80~1000MHz) IEC(EN)61000-4-4(EFT):PowerPort:±4kV; Data Port: ±2kV IEC(EN)61000-4-5(Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV IEC61000-4-6(CS):10V(150kHz～80MHz)/IEC(EN)61000-4-16(CM EMI) : 30V cont. 300V,1s IEC60068-2-27(Shock)/EC60068-2-32(Freefall) IEC 60068-2-6 (Vibration) |
