MokerLink 10 Port Gigabit Industrial Solar Battery UPS PoE Switch, Input DC12V-48V to Output DC 48V, IEEE802.3af/at PoE, Mini Size, Unmanaged IP40 Network Switch (-40 to 185°F), 20Gbps Capacity
IND-G082GPW is a Mini Industrial Unmanaged Switch, It come with 8-Port 10/100/1000BASE-T 802.3at PoE + 2x10/100/1000BASE-T Uplink ports, with 12~48VDC wide range power input. It is designed to match the critical industrial standards. It can also operate at standard operating temperature range -40 to 80℃.Housed in rugged DIN rail or wall mountable IP40 enclosures, these switches are perfect choices for harsh environments,such as industrial networking, inteligent transportation systems (ITS).
- Brand: MokerLink
- Product Code: IND-G082GPW
- Availability: In Stock

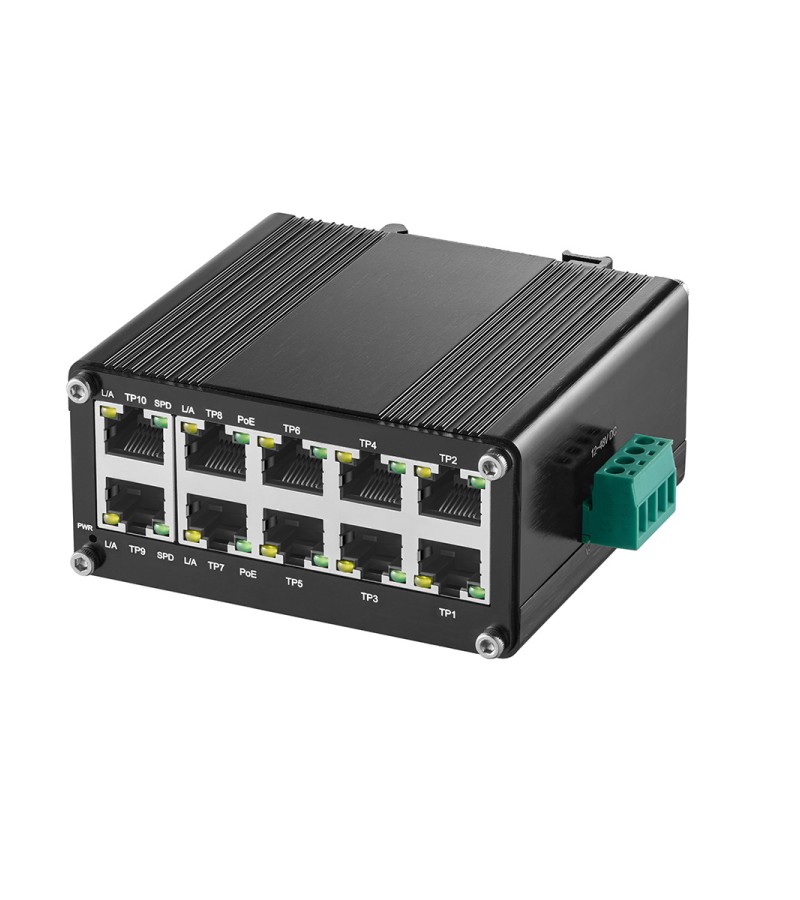

The IND-G082GPW is a compact, miniaturized industrial-grade Ethernet switch featuring 8 x 10/100/1000T IEEE 802.3at PoE+ ports and 2 x 10/100/1000T uplink ports, specifically engineered for deployment in space-constrained environments. Even under harsh industrial conditions, it delivers exceptional performance—boasting a total PoE+ output capacity of up to 240 watts and wire-speed Gigabit forwarding, ensuring seamless data transmission at full throughput.

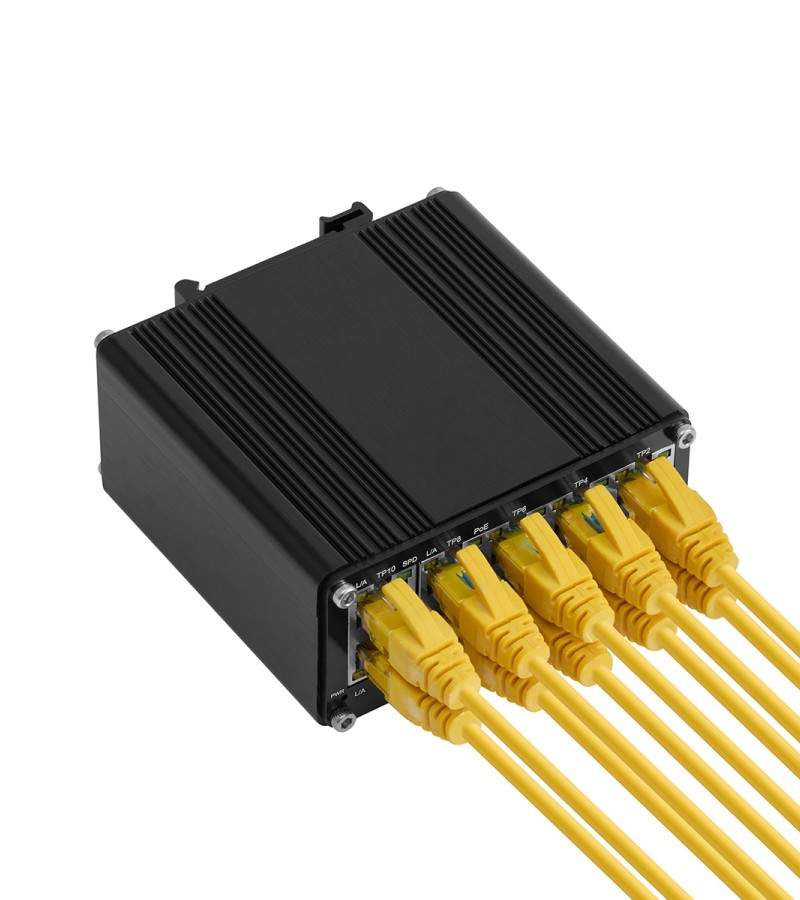

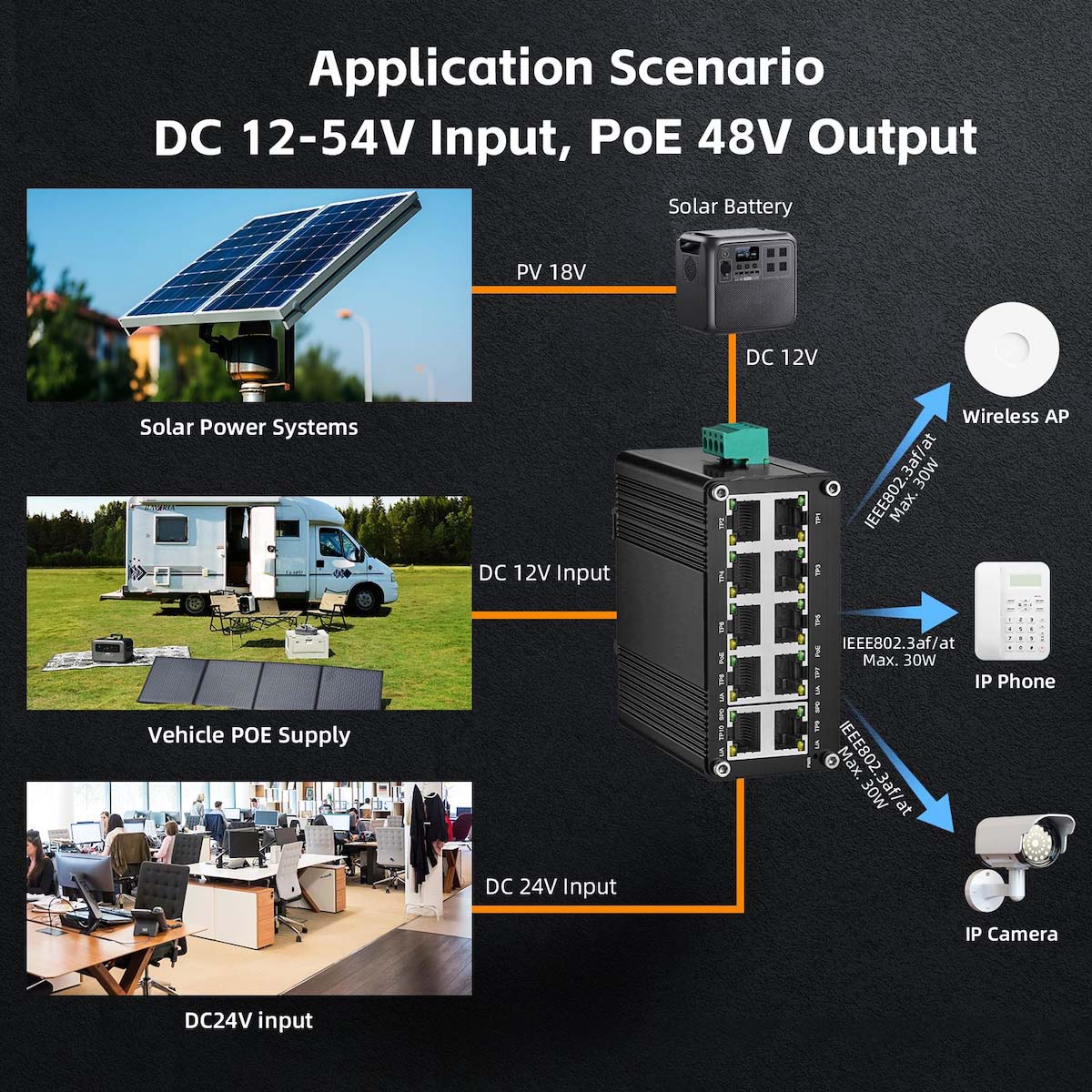

Equipped with 8 IEEE 802.3at PoE+ compliant 10/100/1000BASE-T ports and 2 dedicated 10/100/1000BASE-T RJ45 copper uplink interfaces, the switch supports flexible network expansion and high-speed upstream connectivity. Its power system offers versatile 12~48V DC input, enabling reliable power redundancy and adaptability to diverse industrial power configurations. With a total PoE power budget of 240 watts, it accommodates a wide range of PoE-powered devices—from IP cameras to wireless access points—without the need for complex software configuration.
Housed in a rugged IP40-rated metal enclosure, the IND-G082GPW excels in harsh operating environments, withstanding a wide temperature range of -40°C to 80°C. The industrial-grade metal chassis provides robust protection against electromagnetic interference (EMI) and high-voltage electrical surges, making it ideal for plant floors, curbside traffic control cabinets, and other unconditioned industrial settings. Its ventilated structural design eliminates the need for cooling fans, ensuring silent, maintenance-free operation while maintaining optimal thermal performance.

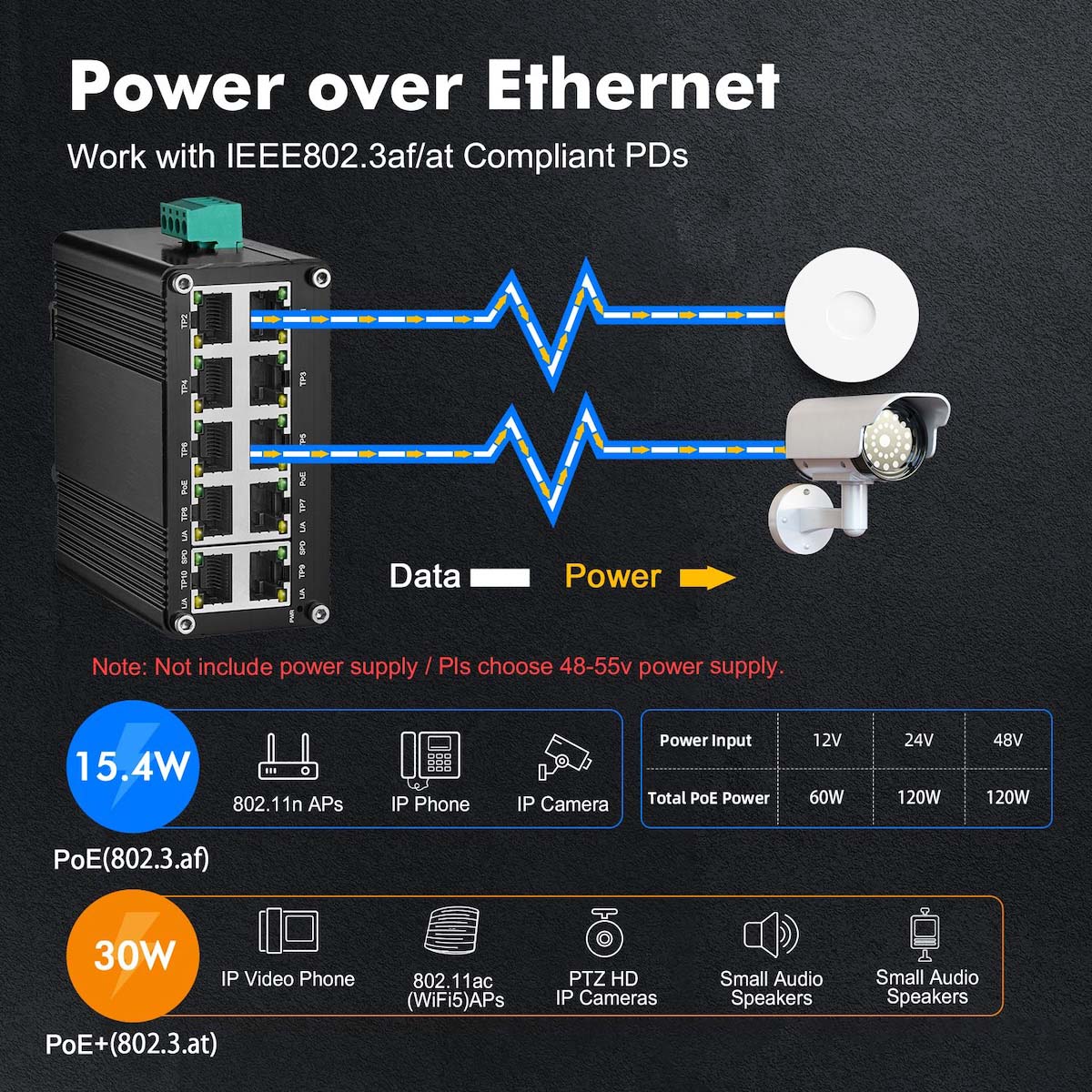

Compliant with IEEE 802.3at PoE+ standards, each PoE port delivers up to 30 watts of power output. This allows users to flexibly deploy both standard and high-power PoE devices simultaneously, streamlining installation and reducing the need for additional power cables—all with zero software configuration required.
Main Characteristics

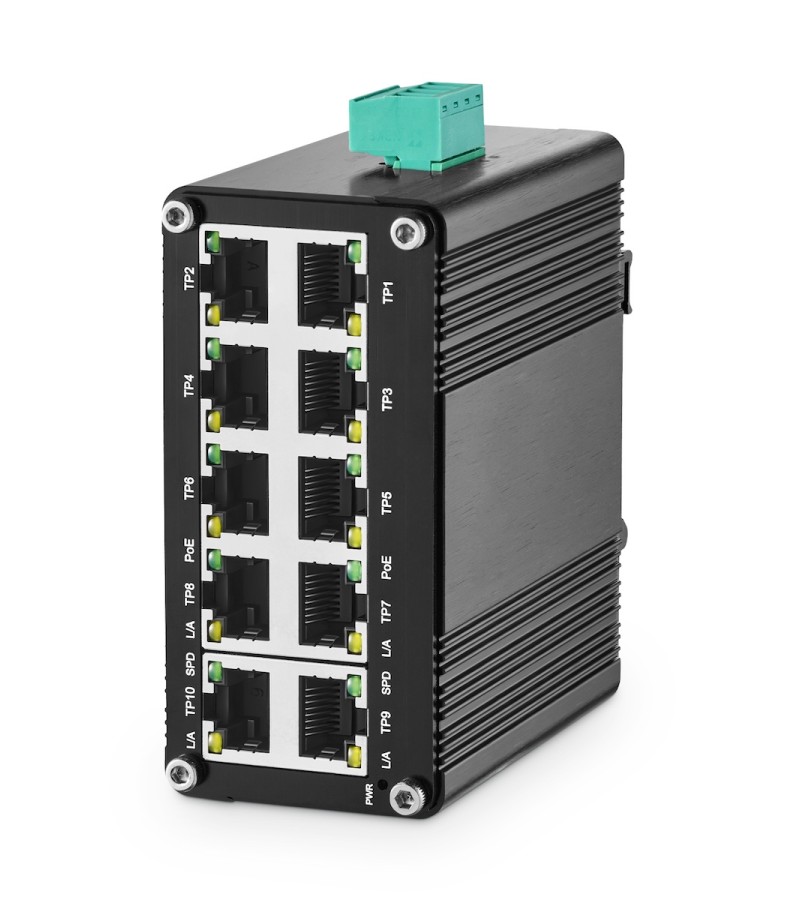

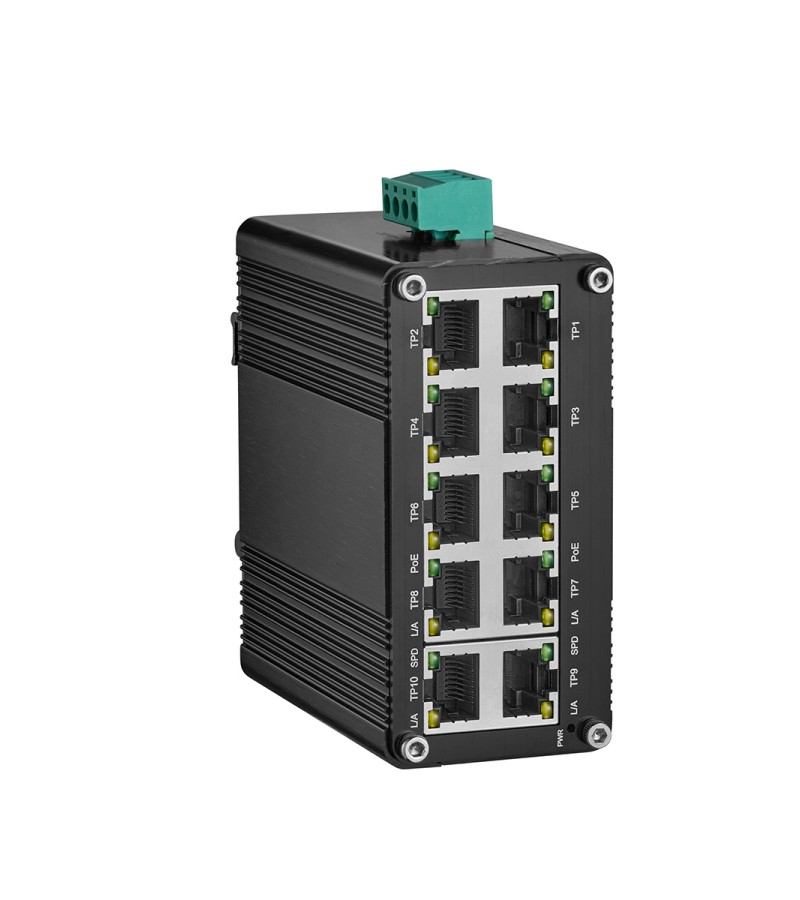

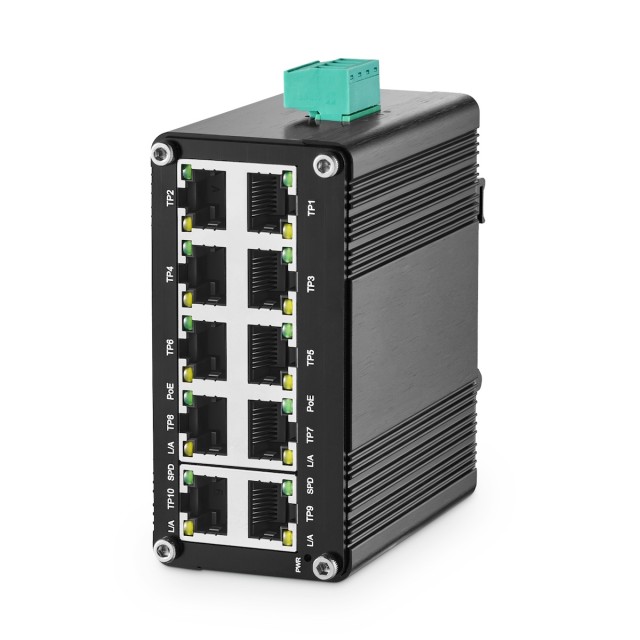

- 10x 10/100/1000BASE-T Gigabit Ethernet RJ45 copper ports
- Up to 8 ports of IEEE 802.3af/at devices powered
- Up to 240-watt PoE budget
- 12~48V DC redundant power with reverse polarity protection
- Supports 802.3x Flow control
- Complies with IEEE 802.3az Energy Efficient Ethernet (EEE)

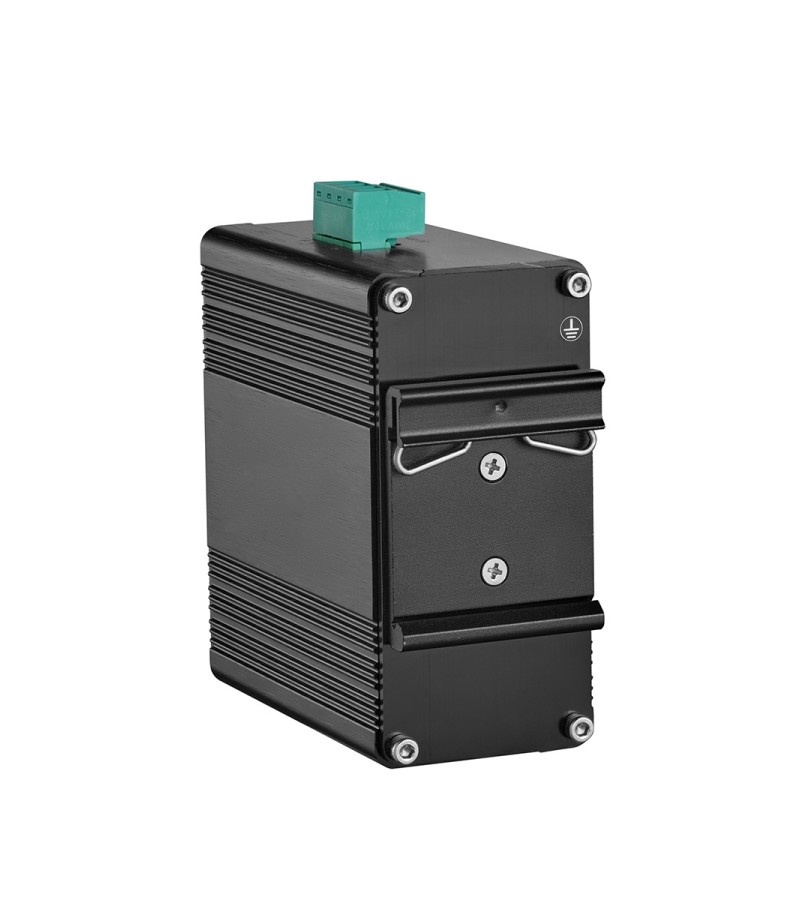

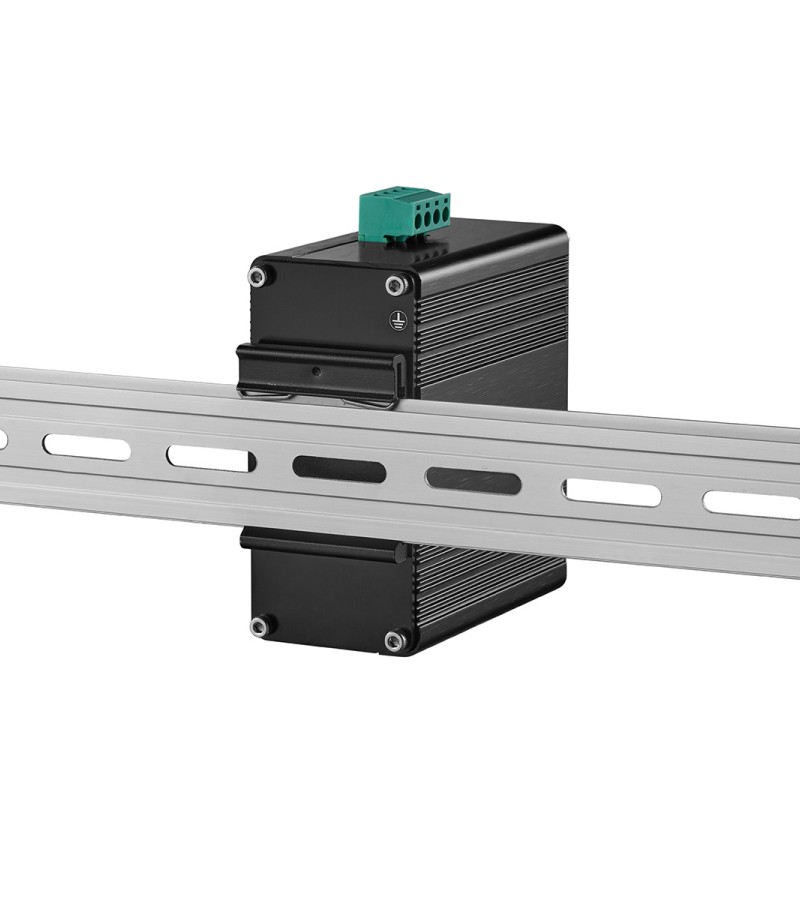

- Supports DIN-Rail installation
- Industry standard design, dustproof and close design IP40, rugged high-strength metal case
- -40°C to 80°C (-40°F to 176°F) operating temperature
Product Features
Ask Question About Product
| Industrial Ethernet | |
| Model | IND-G082GPW |
| Product Name | 10 Port Gigabit Industrial Solar Battery UPS PoE Switch |
| Product Description | 8x 10/100/1000Mbps PoE Ports + 2x 10/100/1000Mbps RJ45 UpLink Ports |
| RJ45 port | 10/100/1000Baset (x) automatic detection，Full/half duplex MDI/mdi-x adaptive |
| Network Protocol | IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3x Full-Duplex Flow Control IEEE 802.3az Energy Efficient Ethernet (EEE) |
| PoE Parameters | Connector: 10 10/100/1000BASET RJ45 auto-MDI/MDI-X ports, 8 ports with 802.3at PoE+ function (Port 1 to 8); Port: RJ45; Power Pin Assignment: 1/2(+), 3/6(-), 4/5(+), 7/8(-); PoE Budget Up to 240-watt PoE budget (48V DC), Up to 90-watt PoE budget (24V DC), Up to 60-watt PoE budget (12V DC); Max. Number of Class 4 PDs: 8 |
| Work environment | Operating temperature: - 40℃ ~ 85℃ (- 40 ~ 185 ° f)Storage temperature: - 40℃~ 85℃ (- 40 ~ 185 ° f)Relative humidity: 5% ~ 95% (no condensation |

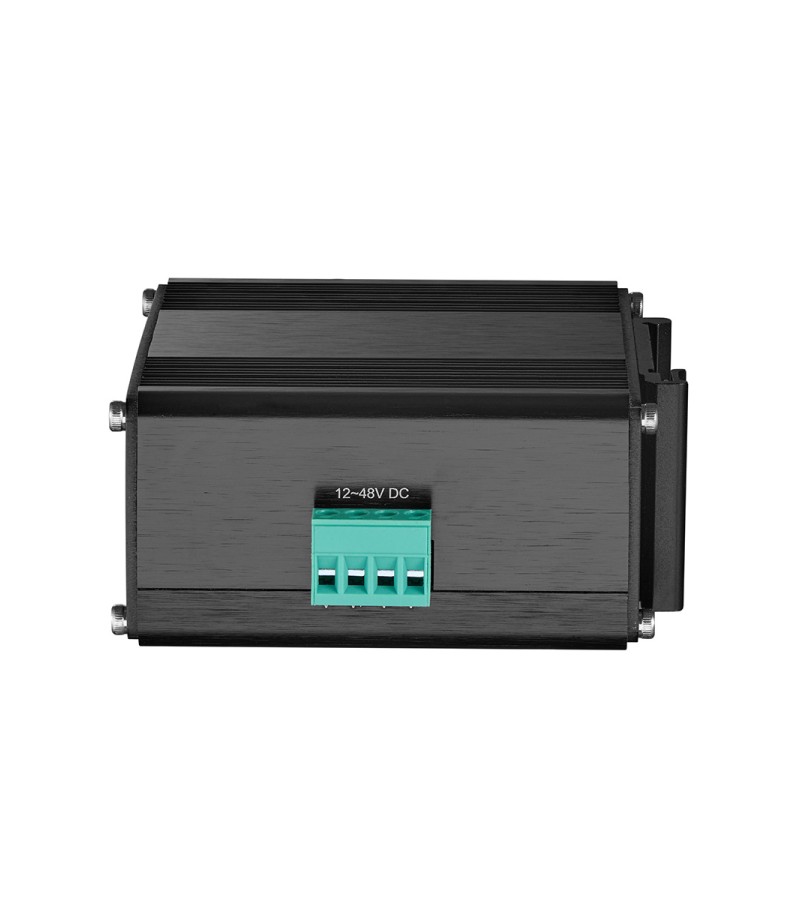

| Power Supply | Input Power: 12~48VDC Redundant power with polarity reverses protection function; Power Consumption <250W (Non-PoE<10W) Power Input Overload: Automatic Resettable |
| Switch Properties | Switch Capacity: 20Gbps/non-blocking;Switch Throughput: 14.88Mpps@64bytes; Packet Buffer: 2Mbits; Packet Length: 9216bytes; MAC Address Table: 4K entries; Forward & Filtering Rate: 14,880pps (10Mbps), 148,800pps (100Mbps), 1,488,000pps (1000Mbps) |

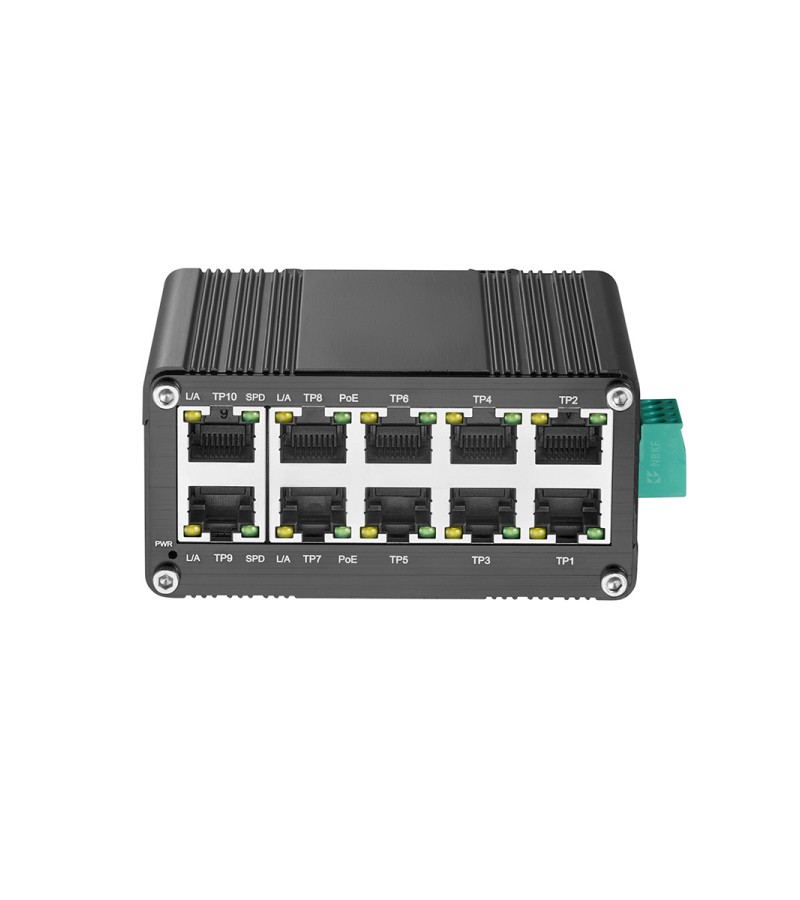

| LED Indicators | PWR On: Power on, Off: Power off; PoE On: PoE is activate, Flashing: PD is detected, Off: No PDs. TP(L/A) On: Connected, Flashing: Link activity; SPD On: 1000Mbps, Off: 10/100Mbps; |
| Degreeof Protection | IP40 |
| Authentication | Passed certification: CE, FCC, ROHS, ISO9001:2015 Ministry of Public Security Test Report |
| Mean Time Between Failures | 300,000 Hour |
| Warranty | 1 Year |
| Mechanical Properties | Enclosure: IP40 protection grade, metal enclosureInstallation: DIN rail type, wall mounted, Heat dissipation mode: natural cooling without fan; Weight: 0.5kg, Dimensions: 95 x 88 x 46mm (L x W x H) |
| Industry Standard | EMI FCC Part 15 Sub part B Class A，EN 55022 Class A EMS IEC(EN)61000-4-2(ESD): ±8kV(contact), ±15kV(air) IEC(EN)61000-4-3(RS):10V/m(80~1000MHz) IEC(EN)61000-4-4(EFT):PowerPort:±4kV; Data Port: ±2kV IEC(EN)61000-4-5(Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV IEC61000-4-6(CS):10V(150kHz～80MHz)/IEC(EN)61000-4-16(CM EMI) : 30V cont. 300V,1s IEC60068-2-27(Shock)/EC60068-2-32(Freefall) IEC 60068-2-6 (Vibration) |
