MokerLink 11 Port Gigabit PoE Switch with 8 PoE+ Port, 2 Gigabit Uplink, 1 SFP Port, 120W AI Detection, Qos, Fanless Metal Plug & Play Unmanaged Network Switch

8x Gigabit PoE ports, 2 Gigabit Uplink and 1 SFP Port, support IEEE802.3af/at PoE standard, Up to 120W PoE budget, Plug & Play, PoE watchdog, the port 1-2 support Qos function, Widely Used

$69.99 Price drop reminder
  • Product Code: POE-G083GS
  • Availability: In Stock

Total $69.99

11-Port Gigabit PoE switch, using high-quality high-speed network IC and the most stable PoE chip,  The PoE port meets the IEEE802.3af or IEEE802.3at standard.  This series of PoE switches can provide seamless connection for 10/100/1000M Ethernet, and the PoE power supply port can automatically detect and supply power to powered devices that comply with IEEE802.3af or IEEE802.3at standards, and non-PoE devices intelligently detect no power supply, only data is transferred.

Key Features
  • 8*10/100/1000M POE Ports + 2*10/100/1000Mbps RJ45 UpLink Ports + 1*1000Mbps SFP Port.
  • Comply with IEEE 802.3, IEEE 802.3u,IEEE802.3ab,IEEE802.3z standards.
  • The Power supply is 120W.
  • Ethernet port 10/100/1000M rate auto adaptive.
  • Flow control mode: full-duplex adopts IEEE 802.3x standard, half-duplex adopts Back pressure       standard.
  • Support Port Auto-flip (Auto MDI/MDIX).
  • Panel indicators to monitor working status and help fault analysis.
  • Wall mount support.
Product Highlights


11 Gigabit PoE Ports: Includes 8 Gigabit POE ports, 2 Gigabit Uplink and 1 SFP Port, all ports support gigabit rate(1000Mbps), With excellent data  exchange performance, the SFP port can be connected to optical fiber, suitable for long-distance transmission greater than 100 meters.

High POE Power: Maximum support 120W high output power, built-in power supply makes installation easier. Support IEEE 802.3af/at, each port max power supply reached 30W. *Please note: not support passive 24V PoE.*

Plug & Play, AI Detection: Just plug in the power cord, connect the ethernet cable to the PoE device, can be used without configuration. AI intelligent detection, automatic detection of port data, if disconnected, automatically restart the port device, ensure stable operation and worry-free maintenance

Qos: The port 1-2 support Qos function, can connect important network device to these 2 ports, when network congestion occurs, it will be protected first to prevent data loss6.

Widely Used: Built-in Industrial Power Supply. Durable Metal housing. LED indicator lights. Widely used in IP cameras, Wireless Access Point, Computer Networks etc. Any questions please contact us, we will provide the best support.


Ask Question About Product

Note: HTML is not translated!
Ethernet Switch Hardware Specifications
Product ModelPOE-G083GS
Product Name11-Port Gigabit Ethernet Switch with 8-Port PoE
Ethernet Port8* Gigabit PoE Ports + 2* Gigabit Ethernet ports + 1* Gigabit SFP Port
Switching Capacity12Gbps
Packet Buffer8.92Mpps
Flash Memory 448Kb
MAC Address2K
Jumbo Frame9216bytes
Transfer ModeStorage and forward
Mean Time Between Failure100000 Hours
VLANsSupport Port-Based Vlan
Network protocol IEEE802.3 (Ethernet) IEEE802.3u (Fast Ethernet) IEEE802.3ab (Gigabit Ethernet) IEEE802.3x (Flow Control) IEEE 802.3z (Gigabit Ethernet Fiber Standard)
PoE ProtocolIEEE802.3af(15.4W) IEEE802.3at(30W)
PoE Pin1,2(+), 3,6(-)
PoE Power Budget120W
Industry StandardEMI: FCC Part 15 CISPR (EN55032) class A EMS: EN61000-4-2 (ESD)、 EN61000-4-5 (Surge)
Network Medium10Base-T: Cat 3, 4, 5 Class or above UTP/STP (≤ 100m) 100Base-TX: Cat 5 Class or above UTP/STP (≤ 100m) 1000Base-TX: Cat 5 Class or above UTP/STP (≤ 100m)
Fiber MediumMultimode optical fiber: 50/125, 62.5/125, 100/140um Single-mode optical fiber: 8/125, 8.7/125, 9/125, 10/125um
Lighting ProtectionCommon mode 4KV; ESD: Air 8KV, Contact 6KV
Working EnvironmentWorking temperature: -10~50°C Storage temperature: -40~70°C Working humidity: 10%~90%, non-condensing Storage humidity: 5%~95%, non-condensing
LED IndicatorPWR (Power),1-11 Green Light (Link&Data)
DIP SwitchExtend:Isolation mode. Ports 1 to 8 are isolated and communicate with the upstream interface. Default:Normal mode, all interfaces can communicate with each other, the transmission rate is 10/100/1000M adaptive
Structure SizeProduct size: 200*118*44mm, Package size: 230*190*70mm, Product weight: 0.70KG, Packing weight: 0.95KG
InstallationDesktop and Wall Mountable
ShellGrey and Metal Shell
Power VoltageInput voltage: AC 100-240 V 50-60Hz Supply power:52V /2.3A 120W

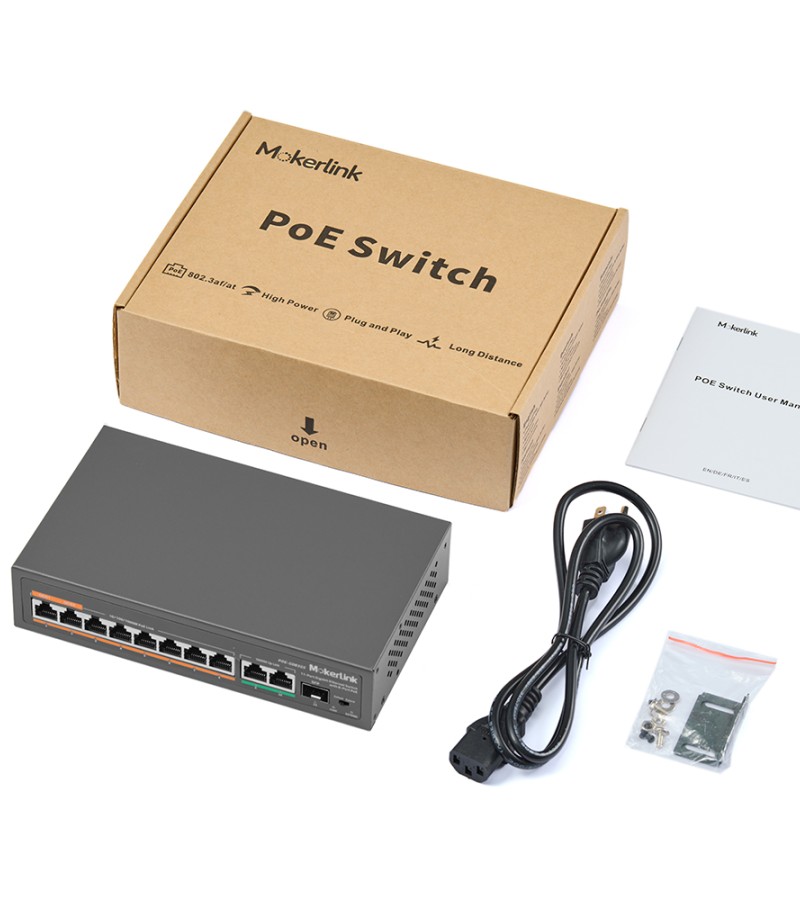

Package ListSwitch 1 pc, Power cord 1 pc, User manual 1 pc
  • All(0)
  • Good(0)
  • Fair(0)
  • Poor(0)
  • Image(0)
Name Size Date Added
Ethernet Switch Series Quick Strart Guide 1.87MB 01/12/2022 15:15:56
POE-G083GS_DataSheet 437.78KB 25/03/2023 20:45:54
