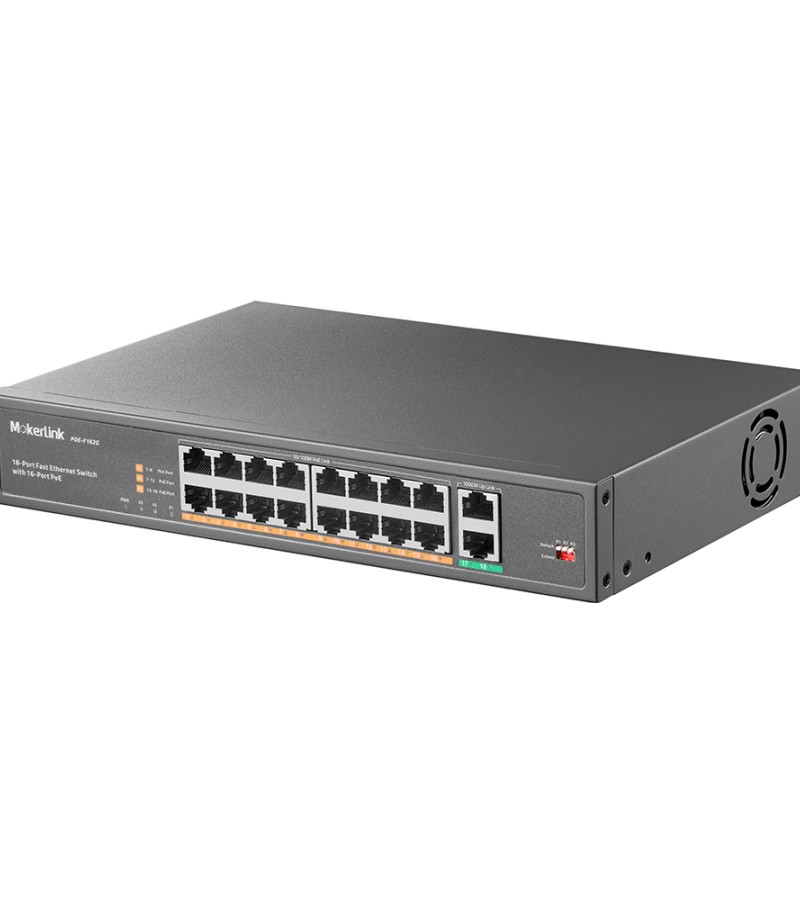

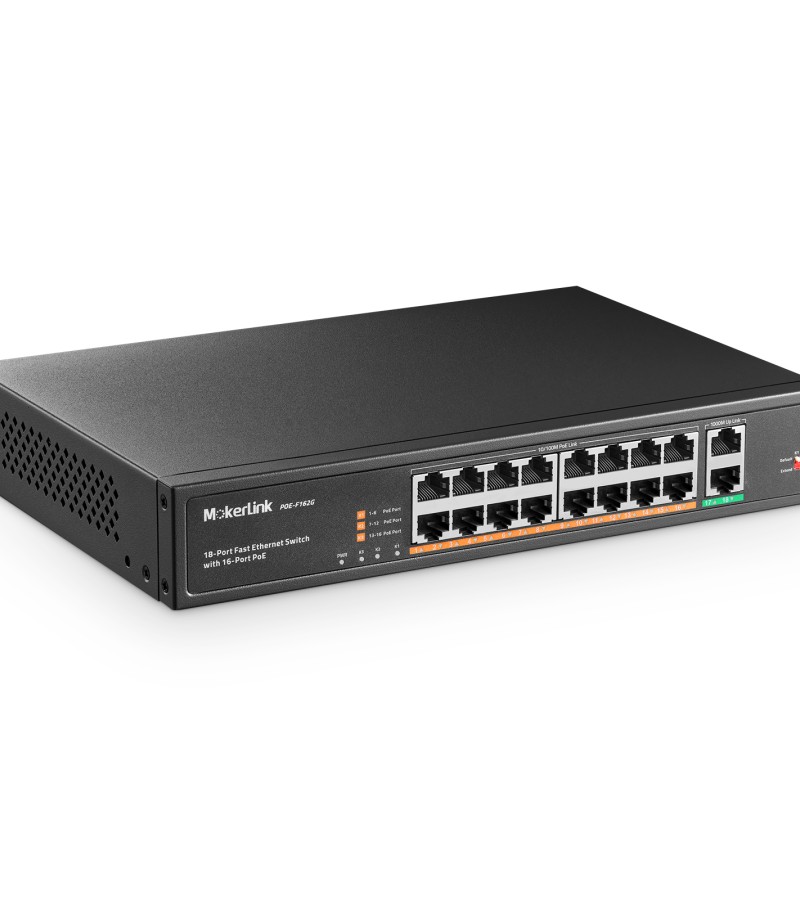

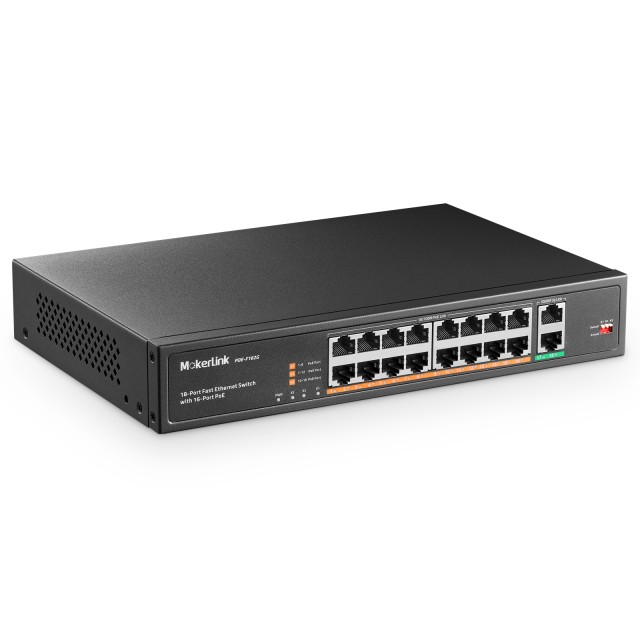

MokerLink 16 Port PoE Switch with 2 Gigabit Uplink Ethernet Port, 250W High Power, Support IEEE802.3af/at, Rackmount Unmanaged Plug and Play

16 POE ports(10/100Mbps) and 2 Gigabit UpLink ports(10/100/1000Mbps). Maximum support 250W high output power, Support IEEE 802.3af/at, each port max power supply reached 30W. Unmanaged Plug & Play, Extend function, Widely Used

$119.99 Price drop reminder
  • Brand: MokerLink
  • Product Code: POE-F162G
  • Availability: In Stock

Total $119.99

18 Port Fast Ethernet PoE switch with high quality and high-speed network IC and the most stable PoE chips, provide seamless connections to 10/100/1000M Ethernet, and the PoE supply port can automatically detect and supply receiving devices meeting IEEE802.3af/at standard, non-PoE devices intelligently detect no power and only transmit data.


PoE technology (Power over Ethernet), Ethernet power supply technology, while also providing DC power supply technology for some IP-based terminals, such as IP phones, wireless access AP, network cameras, etc. DC receiving devices called powered devices.


With simple and convenient installation and maintenance means and rich business characteristics, we can help users to build a safe and reliable high-performance network. It is mainly located in the core or convergence layer of user networks of industrial parks, buildings, factories and mines, government organs, community broadband; and can be widely used in small and medium-sized enterprises, Internet cafes, hotels, schools and other Ethernet access scenarios.


Main Feature

  • 16*10/100M PoE Ports + 2*Gigabit Uplink Ethernet Ports
  • Comply with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab,  IEEE 802.3z standard
  • Ethernet port support 10/100M adaptive
  • Flow control mode: full duplex using IEEE 802.3x standard, half duplex using Back pressure standard
  • Support port auto-flip(Auto MDI/MDIX)
  • Uses a store-and-forward switching mechanism
  • Panel indicators monitor operating status and help with fault analysis
  • Supporting Default, Extend modes
  • Compatible with 1U rack mount


Application Environment

  • Urban optical fiber broadband network: Telecommunications, cable TV, network system integration, according to network operators.
  • Broadband special network: Suitable for finance, government, oil, electricity, public security, education and other industries.
  • Multimedia transmission: Image, voice, data comprehensive transmission, suitable for remote teaching, conference television, video telephone and other applications.
  • Multimedia transmission: Image, voice, data comprehensive transmission, suitable for remote teaching, conference television, video telephone and other applications.


Ask Question About Product

Note: HTML is not translated!
Ethernet Switch Hardware Specifications
Product ModelPOE-F162G
Product Name18-Port Fast Ethernet Switch with 16-Port PoE
Ethernet Port16*10/100M PoE Port + 2*Gigabit uplink RJ45 Port
Switching Capacity12Gbps
Packet Buffer8.928Mpps
MAC Address2K
Jumbo Frame9216bytes
Transfer ModeStore and forward
Mean Time Between Failure100000 Hours
Network protocol IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3x

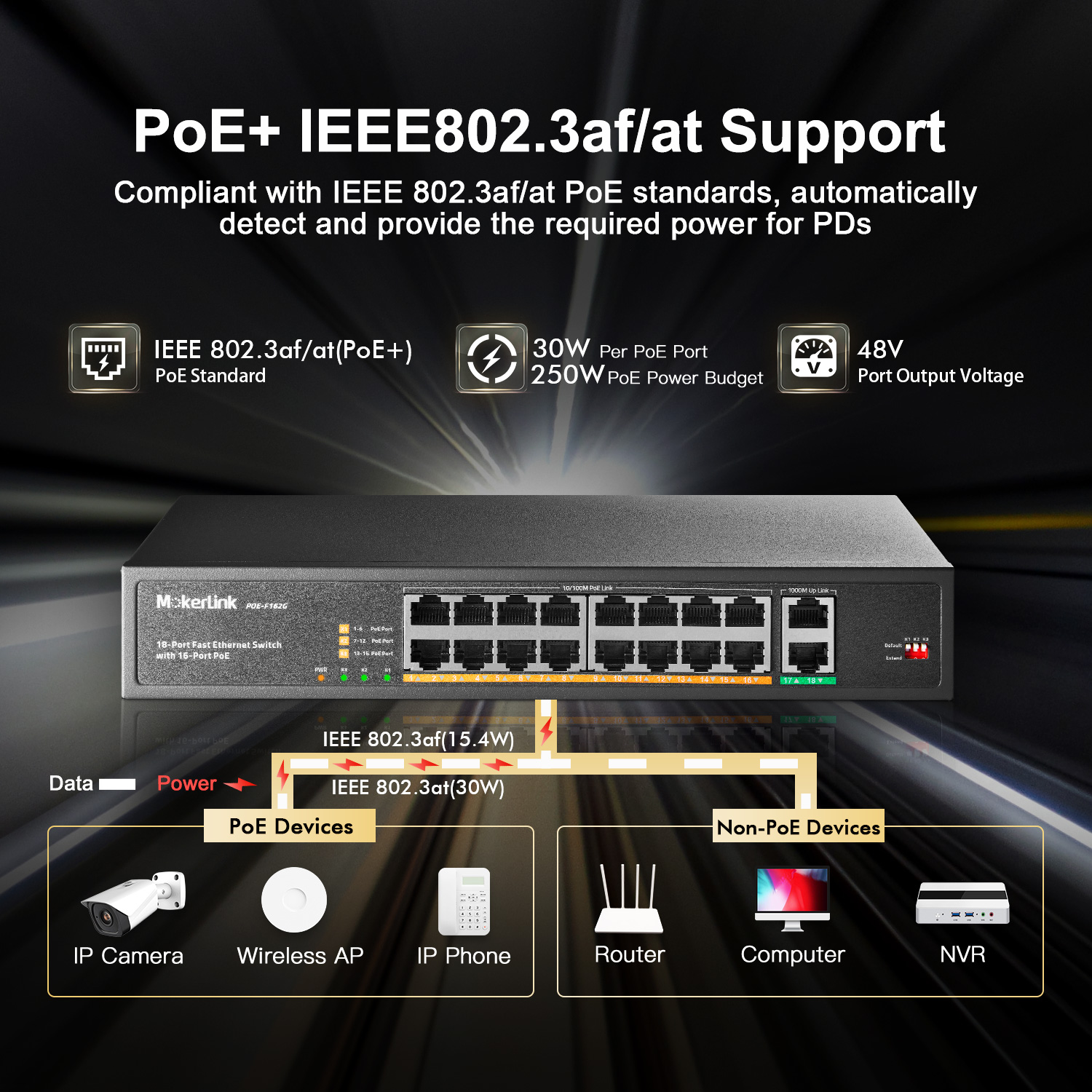

PoE ProtocolIEEE802.3af (15.4 W) IEEE802.3at (30 W)
PoE Pin1/2+, 3/6-
PoE Power Budget250W
Industry StandardEMI: FCC Part 15, CISPR (EN55032) class A EMS: EN61000-4-2 (ESD)、 EN61000-4-5 (Surge)
Network Medium10BASE-T: Cat 3、4、5 UTP(≤100 meter) 100BASE-TX: Cat5 or more UTP (≤100 meter) 1000Base-TX : Cat5 or more UTP/STP(≤100 meter))
Lighting Protection6KV Lighting Protection
Security CertificateCE, FCC, ROHS
Working EnvironmentWorking Temperature:-10~50°C Storage Temperature:-40~70°C Working Humidity :10%~90%,non-condensing Storage Temperature:5%~90%,non-condensing

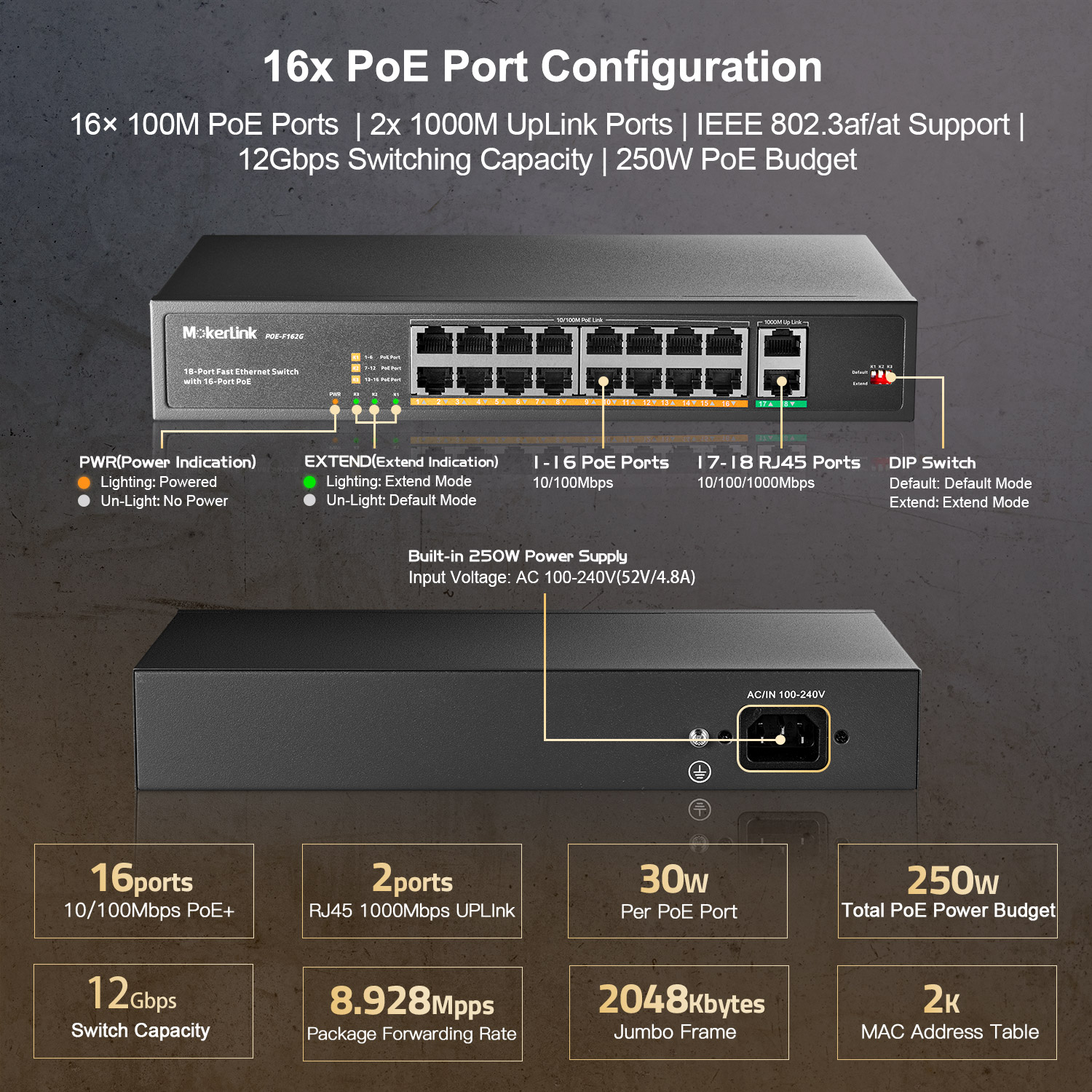

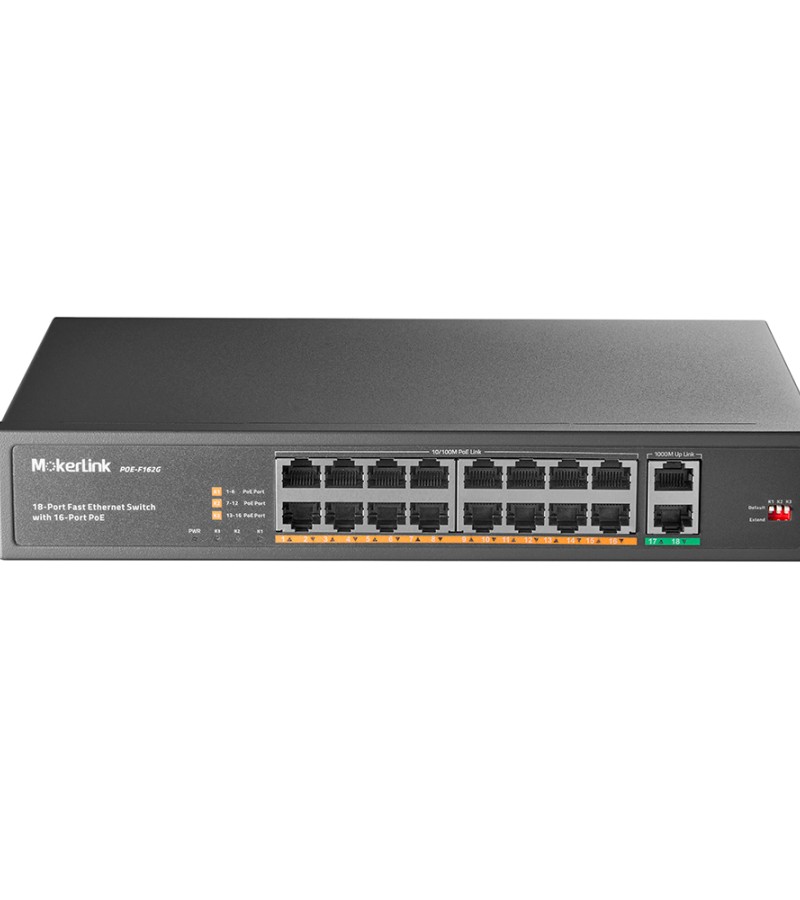

LED IndicatorPWR(POWER), K1,K2,K3(DIP), 1-18 Green Light(Link&Data)

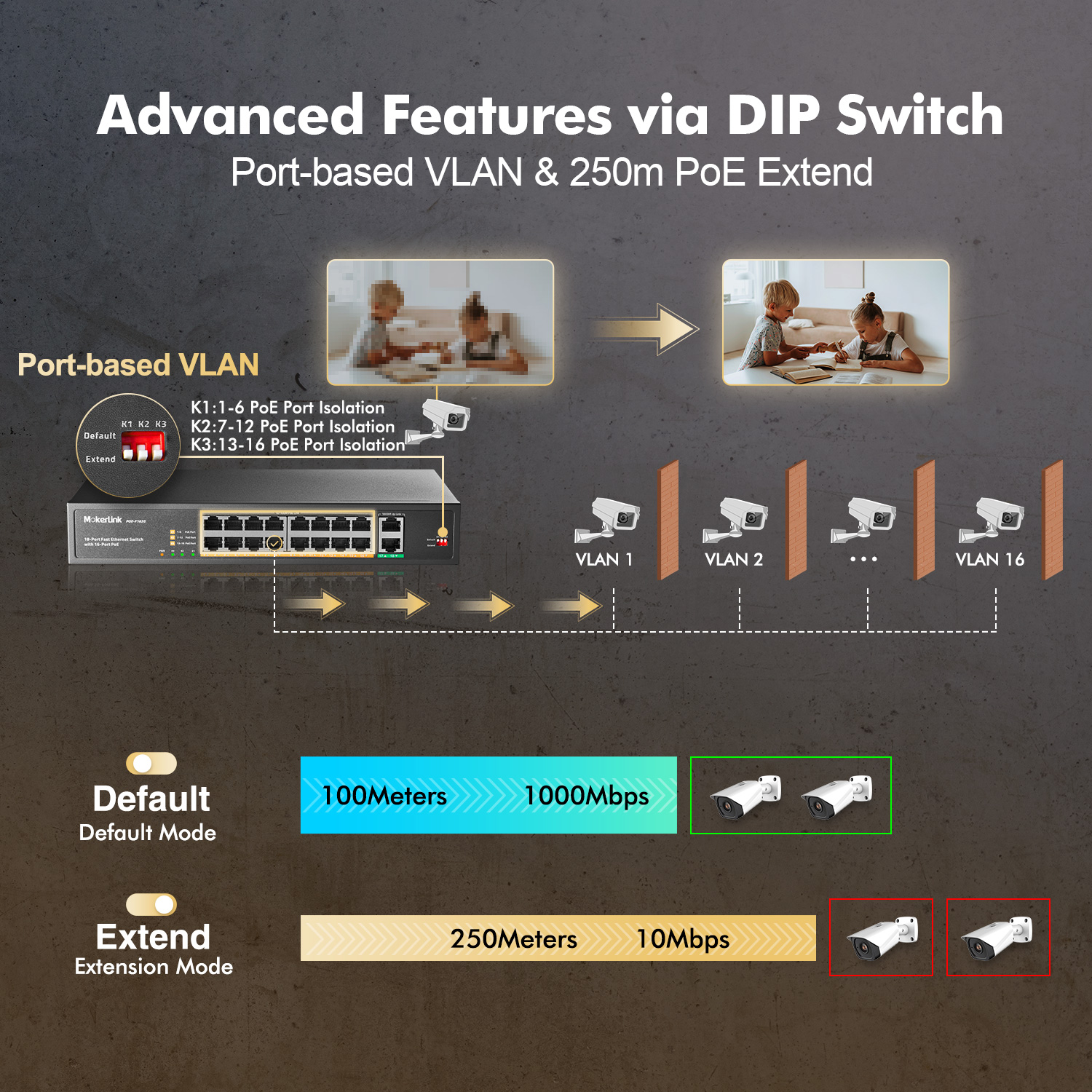

DIP SwitchDefault: Normal mode, all port can communicate with each other, the transmission distance is within 100 meters, the transmission rate is 10M/100M adaptive; Extend(K1,K2,K3): Extend mode, 1-16 ports PoE power supply and data transmission distance can be extended to 250 meters, the transmission rate becomes 10M, Port 1-16 isolated each other, transmission with uplink port
Structure SizeProduct Dimensions: 270*181*44mm, Package Dimensions: 350*240*90mm, Product N.W:1.4KG, Product G.W: 1.9KG
Installation1U Rack Mount
ShellGrey, Metal Shell

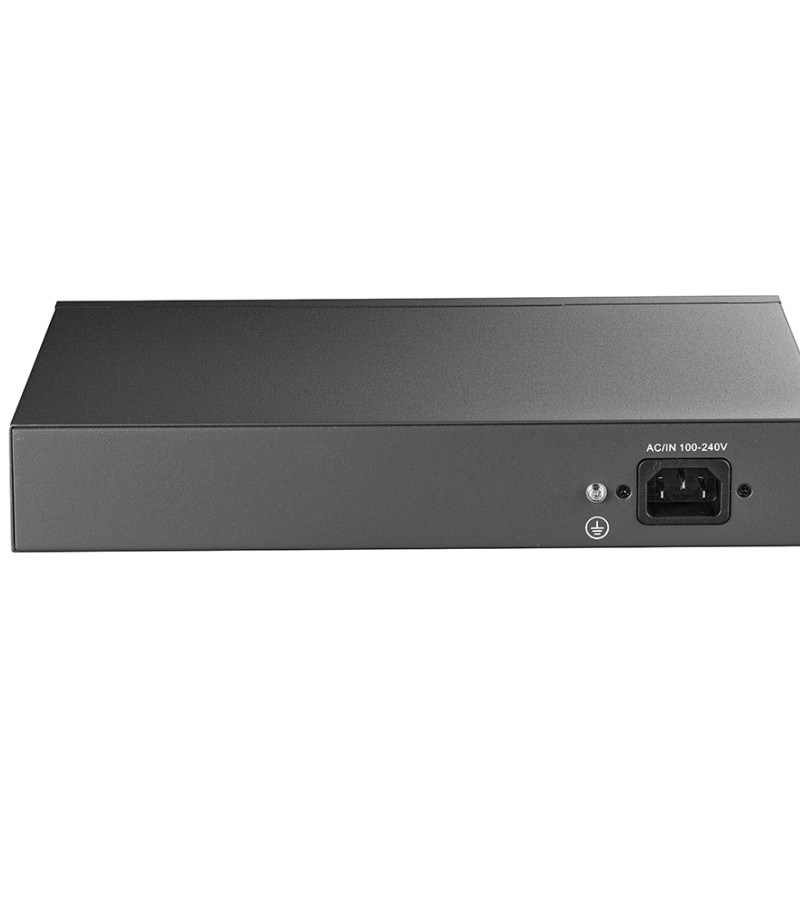

Power VoltageInput voltage: AC 100-240 V 50-60Hz Supply power:52V /4.6A 250W

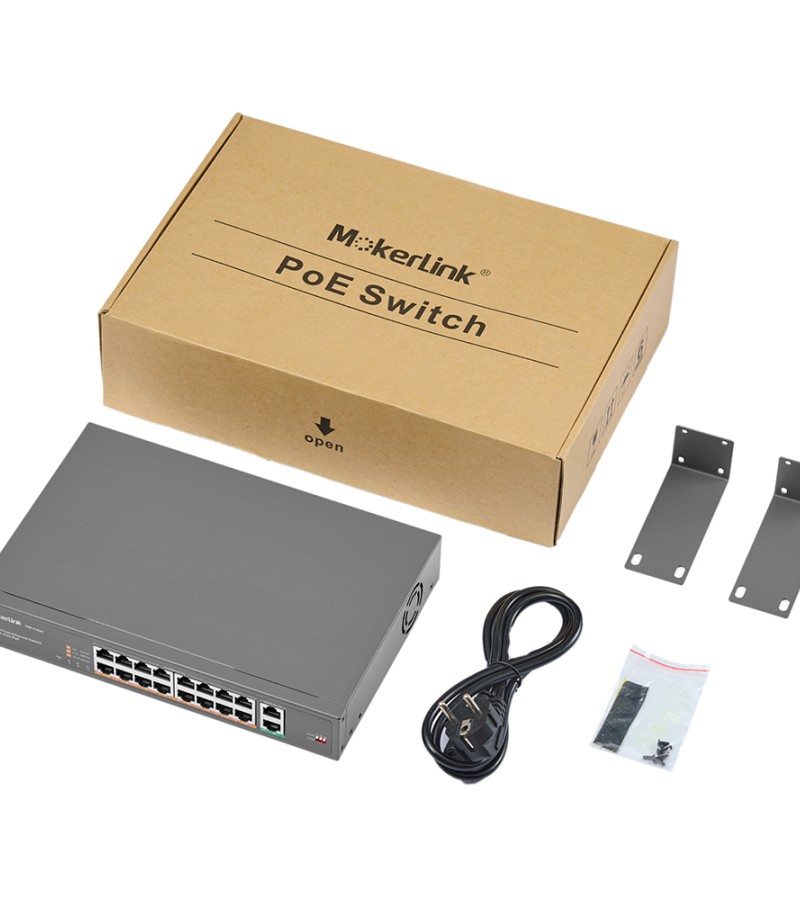

Package ListSwitch 1 pc, Power cord 1 pc, User manual 1 pc
