MokerLink WiFi Bridge, Wireless Outdoor CPE for PtP and PtMP Transmission, 2.4GHz 300Mbps 1KM Distance

1KM transmit outdoor distance, 24V passive PoE power supply, With LED display and push button, easy to configure the PTP/PTMP connections, IP65 water-proof level, ESD and surge protection, Local web management

$89.99 Price drop reminder
  • Brand: MokerLink
  • Product Code: WB300M
  • Availability: In Stock

Total $89.99

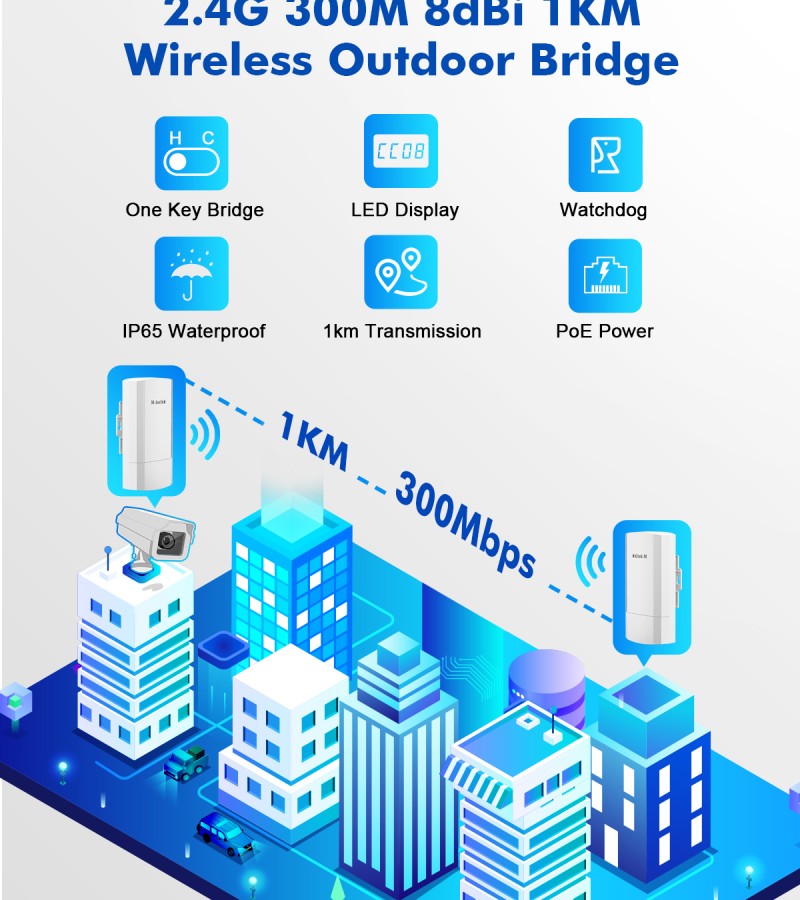

WB300M is a 300Mbps outdoor CPE with LED display to configure the WDS PT/PTMP connection. It complies with IEEE 802.11b/g/n standard, with 8dBi dual polarized high gain antenna, the PTP/PTMP distance is more than 1000 meters.


It support Wireless AP, Wireless Bridge operation mode for PTP/PTMP connections, with LED display, easy to setup WB300M’s operation mode, IP address, Channel by Function/Selection switch together with LED display, no need to access into GUI, avoid the complex setup program, and simple to view the connection status and signal strength by LED display, save much human work and cost, make the long range wireless coverage, data transmit and wireless monitoring simple and professional.


 WB300M with ABS waterproof, dustproof and sunscreen shell, temperature adaptive also; Meantime, it supports 24V passive PoE and 4KV lightning protection, ideal for outdoor use;

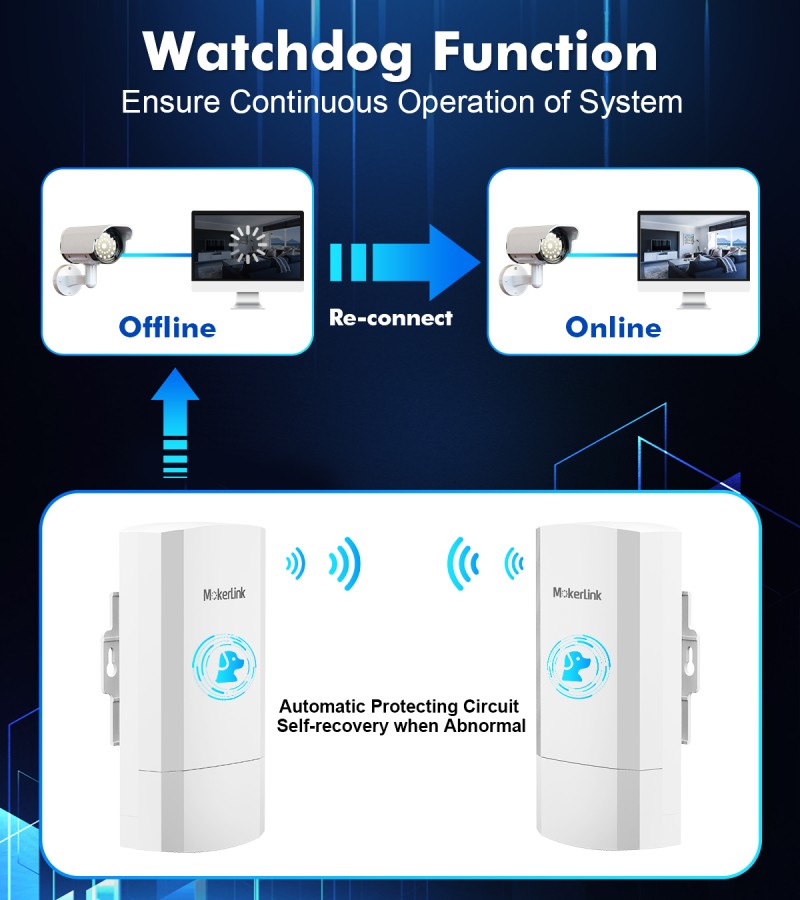

It support watchdog self-detection function, reboot and recover device automatically if some network attack. Besides that, it support cloud remote management, administrator can monitor the working status, upgrade firmware, reboot, timed reboot device through cloud server, recover and maintain device at any time and any location, operator level outdoor PTP/PTMP connection equipment.


 Main Features:


Solution for Indoor/ Outdoor Video Data Transmission.

Professional outdoor shell suit for multiple harsh environments.

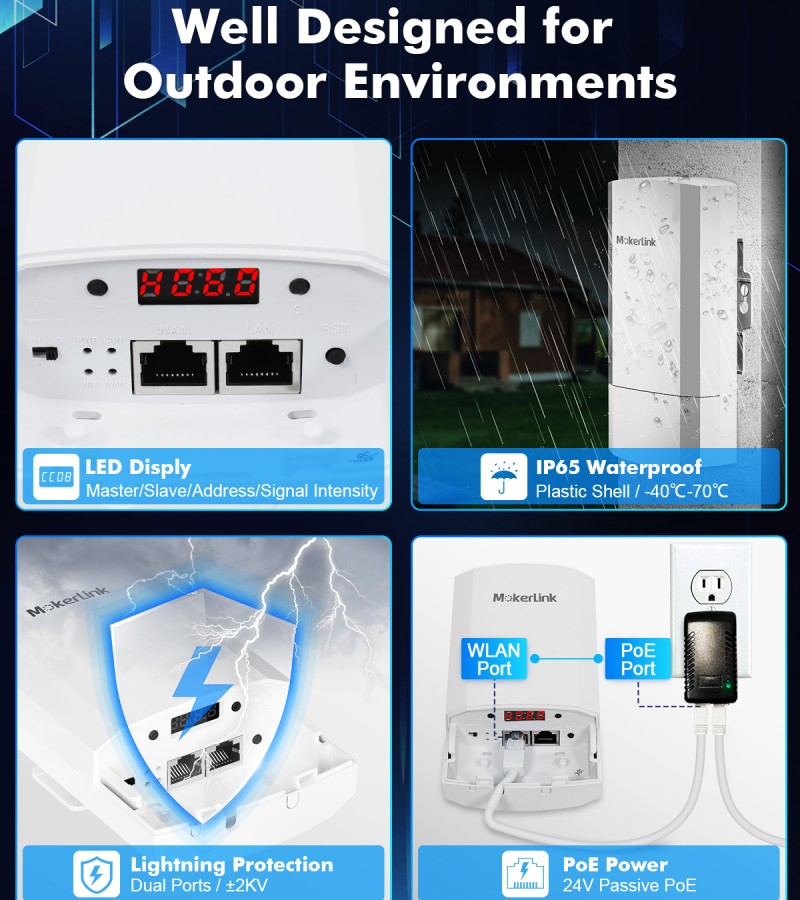

Adopt outdoor ABS plastic shell, simple and elegant! Support professional lightning protection, IP65 water-proof, dust-proof, suit for multiple harsh environments. Even in extreme hot and cold environment (-40℃ - 70℃), also can work stably.

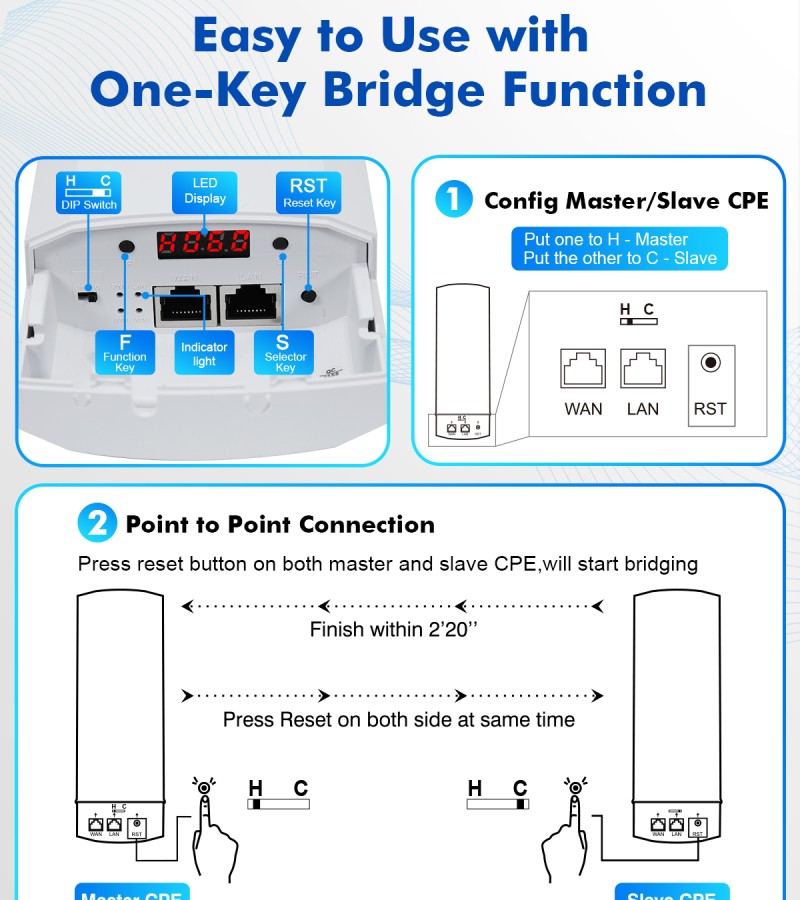

LED Display and Button Press to Bridge. With visible LED display to show host/ client mode/ signal strength/ IP address, then with H/ C button, press it to change the host/ client mode for quickly point to point and point to multi-point wireless connection, simple to install and degu, cost saving.

AP + Bridge operation mode, more stable. Support AP and bridge operation mode, simple to built the PTP/ PTMP connections, meet with multiple Wi-Fi transmission scheme demands.

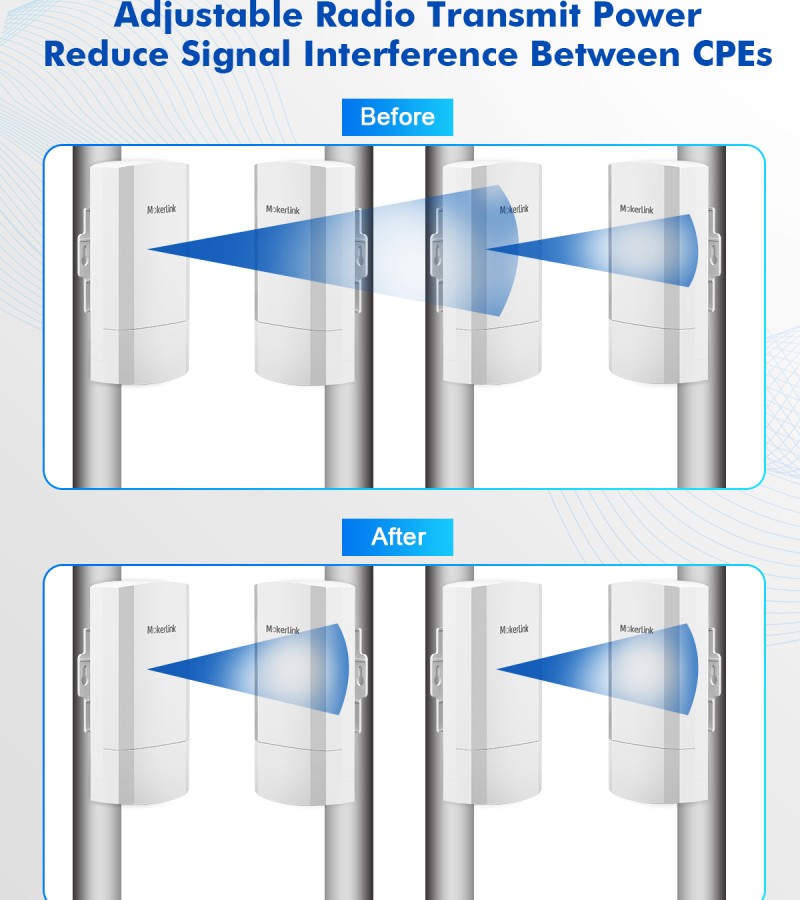

Adjustable RF Power. The transmission RF power is adjustable based on environment. Cut down RF power in place with high density of people or wireless AP, or increase RF power in long range place to improve the performance.

Patent QSDK firmware, independent core algorithm. HiMAX private protocol, effectively avoid Ei-Fi interference.

Designed for indoor wireless transmission, distance up to 1000 meters. Receive distance up to 1000 meters, easy to transmit 4K video.

Elevator monitoring application scenarios. 2.4GHz frequency, 300Mbps high speed, effectively ensure clear and smooth monitoring picture.

Lisa Clarke: the password on the item is too short. how do i connect to the wifi
2022-12-22 04:54:49
Answer: The default password for SSID is 66666666, the password - admin is for web GUI.
2022-12-27 17:20:26

Ask Question About Product

Note: HTML is not translated!
Wireless Hardware Specifications
Name2.4G 300Mbps Outdoor CPE with LED Display
Wireless StandardsIEEE802.11b/g/n
Operating Bands2.4GHz - 2.484GHz
AntennaBuilt-in 8 dBi directional antenna
Signal Rate300Mbps
Maximum Transmit Power≤ 21dBm
End Users50+
Interface1 * 10/100 RJ45 WAN Port 1 * 10/100 RJ45 LAN Port 1 * Reset Button 1 * S/ M Switch 2 * Function Buttons
LED Light Sys, WAN, LAN
Power Supply24V Passive POE adapter

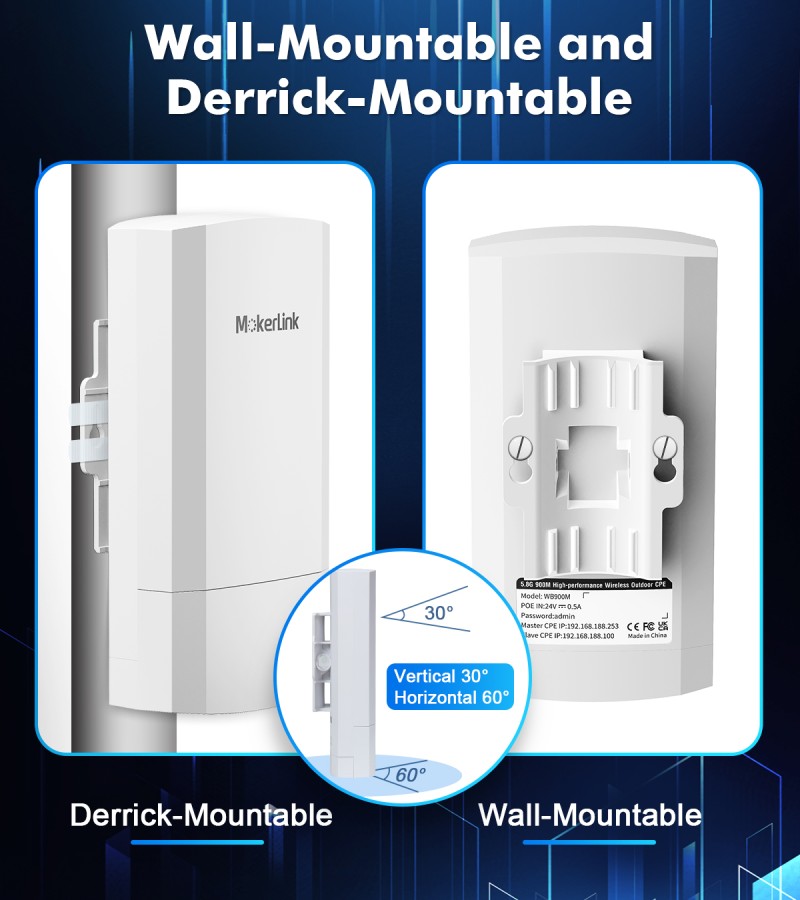

InstallationPole/Wall Mounting
Power Consumption≤ 5W
External ButtonsReset Button(long press for 8 seconds to restore the factory default configuration)
Structure Size168* 88*57.6MM / 0.5kg
EnvironmentOperating Temperature: -30~55 ℃ Limit working temperature: -40~70 ℃ Storage Temperature: -40~70 ℃ Humidity: 5%~95% non-condensing
Wireless Software Features
Operation ModeAP Mode + Repeater Mode
Wireless FunctionSupport SSID hiding, Enable/Disable Wireless Radio
Wireless SecurityCaptive Portal Authentication Static backlist and whitelist Wireless Isolation Between Clients SSID to VLAN Mapping SUpport 802.1X WPA/WPA2/PSk/WPA/WPA2-Enterprise
ManagementSupport Local Management with Web
  • All(0)
  • Good(0)
  • Fair(0)
  • Poor(0)
  • Image(0)
Name Size Date Added
Wireless Bridge User Manual 2.06MB 01/12/2022 14:58:23
WB300M Firmware 20221017101840 4.84MB 01/12/2022 15:01:57
