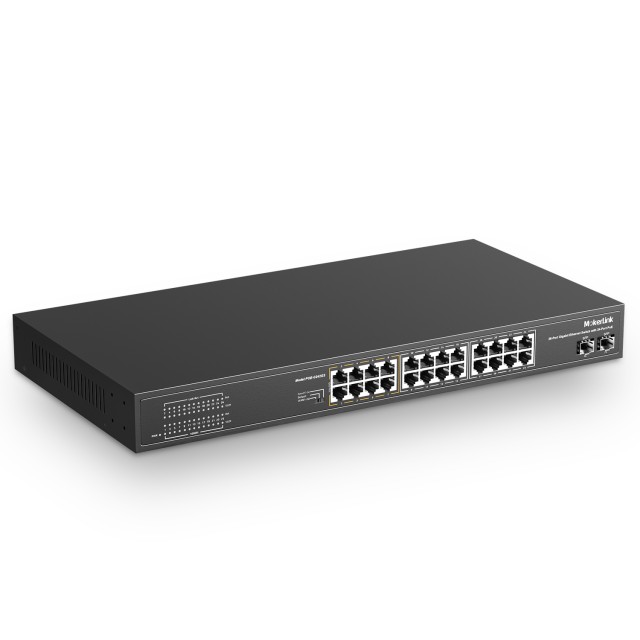

MokerLink 24 Port Gigabit PoE Switch with 2 SFP Ports Uplink, 24 Gigabit PoE+ Ports, 2 Gigabit SFP Uplink, 300W IEEE802.3af/at, Fanless Rackmount Unmanaged Plug and Play Ethernet Switch
24 Gigabit PoE+ ports and 2 Gigabit SFP UpLink, Maximum support 300W high output power, Support IEEE 802.3af/at, each port max power supply reached 30W, Unmanaged Plug & Play, Support Qos & Vlan & Extend advantage function, widely used in home/business/data network
$189.99
Price drop reminder
- Brand: MokerLink
- Product Code: POE-G242GS
- Availability: In Stock
Full Gigabit PoE+ Switch with 2 UpLink SFP Port
24 gigabit PoE ports + 2 Gigabit SFP optical ports, support for IEEE802.3, IEEE802.3u,IEEE802.3x,IEEE802.3ab,IEEE802.3z
Ethernet ports support 10 / 100 / 1000M adaptive and POE features, Support for port automatic flip (Auto MDI/MDIX)
Ethernet ports support 10 / 100 / 1000M adaptive and POE features, Support for port automatic flip (Auto MDI/MDIX)
Exchange mechanism using storage and forwarding, All ports support line-speed switching
![](http://www.mokerlink.com/image/catalog/26port/26 port-spec.jpg)
Compatible with IEEE802.3af/at
PoE switch determines and delivers the exact power supply to your devices with up to 30W power output
If a device not IEEE802.3af/at compliant, only network data will be transmitted through the LAN cable
to avoid from being damaged by incorrect power sending.
![](http://www.mokerlink.com/image/catalog/26port/26 port-ieee.jpg)
Link Extention to 250m
PoE (Power Over Ethernet) usually has a maximum run of around 100 meters. When link extend mode is enabled,
it will allow you to increase your run to a distance of 250 meters.
the maximum speed will downgrade to 10Mbps.
![](http://www.mokerlink.com/image/catalog/26port/POE-G242GS-250m.jpg)
Port-based VLAN
When you enable the extend mode with DIP switch,switch divides traffic for ports 1-24 to prevent IP camera's muliticast or broadcast storm from affecting each other.
![](http://www.mokerlink.com/image/catalog/26port/POE-G242GS-vlan.jpg)
SFP Modual Support
24 port gigabit PoE switch support Up-link SFP ports,The switch's port 25-26 use fiber cable to connect wired network segments
throughout buildings or across campuses extending beyond the limitations of Ethernet cabling.
![](http://www.mokerlink.com/image/catalog/26port/POE-G242GS-sfpport.jpg)
support Qos
Priority data forwarding to ensure uninterrupted important link. Port 1-24 support vlan,
isolated from each other and communicate with two optical ports, reduce network congestion..
![](http://www.mokerlink.com/image/catalog/26port/POE-G242GS-yxj.jpg)
Support rack-mount in 19'' cabinet, and includes all the necessary mounting hardware in the box.Save your space and easy to manage.
![](http://www.mokerlink.com/image/catalog/26port/POE-G242GS-rack.jpg)
Ask Question About Product
Note: HTML is not translated!
Ethernet Switch Hardware Specifications | |
Product Model | POE-G242GS |
Product Name | 24 Port Gigabit PoE Switch with 2 Port SFP UpLink |
Ethernet Port | 24*10/100/1000M PoE Port + 2*Gigabit SFP Port |
Switching Capacity | 52Gbps |
Throughput | 38.7Mpps |
Packet Buffer | 4M |
MAC Address | 8K |
Jumbo Frame | 9Kbytes |
Transfer Mode | Store and forward |
Mean Time Between Failure | 100000 hour |
Network protocol | IEEE802.3 (10Base-T) IEEE802.3u (100Base-TX) IEEE802.3ab (1000Base-TX) IEEE802.3z (1000Base-FX) IEEE802.3x (Flow control) |
PoE Protocol | IEEE802.3af (15.4W) IEEE802.3at (30W) |
PoE Pin | 1/2(+), 3/6(-) |
PoE Power Budget | 300W |
Industry Standard | EMI: FCC Part 15 CISPR (EN55032) class A EMS: EN61000-4-2 (ESD) EN61000-4-4 (EFT)、 EN61000-4-5 (Surge) |
Network Medium | 10Base-T : Cat3,4,5 or above UTP(≤100m) 100Base-TX : Cat5 or above UTP(≤100m) 1000Base-TX : Cat5 or aboveUTP(≤100m) |
Fiber Medium | Multimode fiber : 50/125、62.5/125、100/140um Single mode fiber : 8/125、8.7/125、9/125、10/125um |
Security Certificate | CE、FCC、RoHS |
Working Environment | Working Temperature:-20~50°C Storage Temperature:-40~85°C Working Humidity :10%~90%,non-condensing Storage Temperature:5%~90%,non-condensing Working Height:Maximum10,000 feet Storage heigh:Maximum 10,000 feet |
LED Indicator | PWR(power supply),ACT(Link&Data),1000Mbps(1000M Link) |
DIP Switch | VLAN: 1-24 port is isolated each other, but all can communicate with uplink port 25/26 Default :All ports communicate freely Extend:17-24 Port support 250 meters transmission on 10Mbps/s |
Structure Size | Product Dimension (L*W*H): 440mm*280mm*44mm Package Dimension (L*W*H): 500mm*365mm*85mm N.W:3.2kg G.W:3.8 kg |
Installation | 1U Rack Mount |
Shell | Black Color, Metal Shell |
Power Voltage | Input Voltage : AC 100-240V, 50/60Hz Power supply:52V7.69A |
Package List | Switch 1 pcs, Power cord 1 pcs, User manual 1 pc, Brackets 1 pair |
