MokerLink 8 Port PoE Gigabit Industrial DIN-Rail Ethernet Switch, 96W PoE+ Power, 16Gbps Switching Capacity, IP40 Rated Unmanaged Network Switch (-40 to 185°F), with Power Supply

8 gigabit ethernet ports, all ports support 10/100/1000Mbps rate, the poe port 1-8 support IEEE802.3af/at standard, switching capacity up to 16Gbps, The shell is made of industrial-grade aluminum alloy, integrated DIN-rail mount kit, IP40 protection grade, working temperature -40~75°C(-40~185°F), Dual power supply input support, equipped with one UL-certified power adapter, plug and play, no configuration needed

$129.99 Price drop reminder
  • Brand: MokerLink
  • Product Code: IND-G080GP
  • Availability: In Stock

Total $129.99
Product Overview

8 ports Industrial PoE switch supporting 8x 10/100/1000Base TX PoE ports. The products comply with FCC, CE and ROHS standards. IND-G080GP has a working temperature of - 40℃ ~ 85℃, has super firmness, can adapt to various harsh environments, and can also be conveniently placed in a compact control box. The installation characteristics of guide rail, wide temperature operation, IP40 protection grade shell and LED indicator light make IND-G080GP  a plug and play industrial equipment, using high-quality and high-speed network IC and the most stable PoE chip, the PoE port meets the IEEE802.3af or 802.3at standard, provide reliable and convenient solutions for users' Ethernet equipment networking, and can be widely used in industrial scenarios of Ethernet access such as smart city, smart transportation, smart pipe gallery and smart industry.


Product characteristics
Ensure reliable data transmission and long service life.
It supports full duplex or half duplex mode with automatic negotiation capability.
The network interface supports full-automatic intersection recognition.
Compatible with IEEE802.3at (30W) and IEEE802.3af (15.4w)
The built-in store and forward mechanism supports a variety of protocols.
Green energy saving, using low-power CPU.
Working power supply: DC 12V-52V provides reverse connection protection and 4A overcurrent protection.
Lightning surge protection (power supply): 5000A (surge waveform is 8 / 20 μ).
It meets the industrial operation standard, and the mean time between failures is more than 300000 Hours.


Auto Detects Power Devices
Compatible with IEEE802.3af/at protocol,Industrial PoE switch determines and delivers the exact power supply to your devices with up to 96W power output.

Full Gigabit Port
The industrial ethernet switch is available with 8x10/100/1000Base T(X) RJ45 Port and 14Gbps exchange cacpacity, provide enough bandwidth to prevent network bottlenecks.
IP40 Protection
8-Port unmanaged industrial PoE switch adopt with high strength IP40 protective housing, industrial EMC design to increase the reliability of communication network.
Wide Temperature Operation
MokerLink industrial ethernet switches are designed with wide temperature support to ensure operation reliability in extreme temperatures ranging from -40ºC to 85ºC.
Lightning Protection
The industrial switch's 4KV power port surge protection and 2KV network port surge protection can adapt to harsh outdoor environment and ensure the reliability of the uninterrupted network system.
Redundant Power Supply
This industrial ethernet switch support dual redundant power supply(included 1x96W AC adapter).Each of the power supplies will have the capacity to run the device on its own. This makes sure that the switch could operate normally even if one power supply fails.

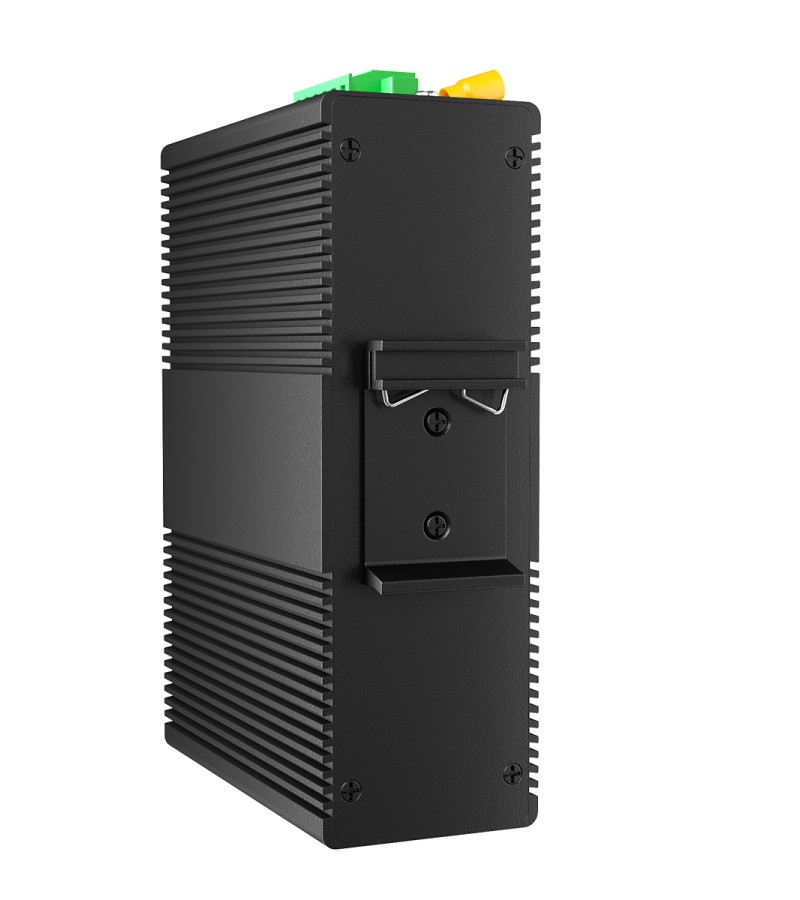

DIN Rail Mountable
Ultra Compact industrial Ethernet switche can be mounted on a 35mm din rail.Save time and space.
Compact Size
MokerLink industrial ethernet switches are housed in a compact sturdy metal case.you can mount it on the desktop or cabinet.
Metal Case & Fanless
The industrial ethernet switch features with aluminum case and fanless design that ensures noiseless operation and greater reliability over time.
Industrial-grade Electronic Components
The industrial ethernet switch adopt with high quality of electronic components.Make sure it can be widely used in various industrial scenarios.

Ask Question About Product

Note: HTML is not translated!
Industrial Ethernet
ModelIND-G080GP
Product Name8 Port Gigabit Industrial Unmanaged PoE Switch
Product Description8 Way unmanaged Industrial PoE Switch
RJ45 port10/100/1000BaseT(X)Automatic detection Full / half duplex MDI/MDI-X Self-adaption
Port Description8x10/100/1000Mbps PoE Port
Network ProtocolIEEE802.3 - CSMA/CD; IEEE802.3i - 10Base-T; IEEE802.3u - 100Base-TX/FX; IEEE802.3x - Flow control IEEE802.3z - 1000Base-X; IEEE802.3ab - 1000Base-T;
PoE ParametersPoE Standard: Compatible with IEEE802.3af /IEEE802.3atSingle port maximum: 15.4 W (IEEE 802.3af)Single port max: 30 W (IEEE 802.3at)PoE Compatibility: IEEE 802.3af/at autosensingPoE port output voltage: DC 48-57VPower pin: 1/2+ ; 3/6-
Work environment Operating temperature: - 40℃ ~ 85℃ (- 40 ~ 185 ° f) Storage temperature: - 40℃ ~ 85℃ (- 40 ~ 185 ° f) Relative humidity: 5% ~ 95% (no condensation)

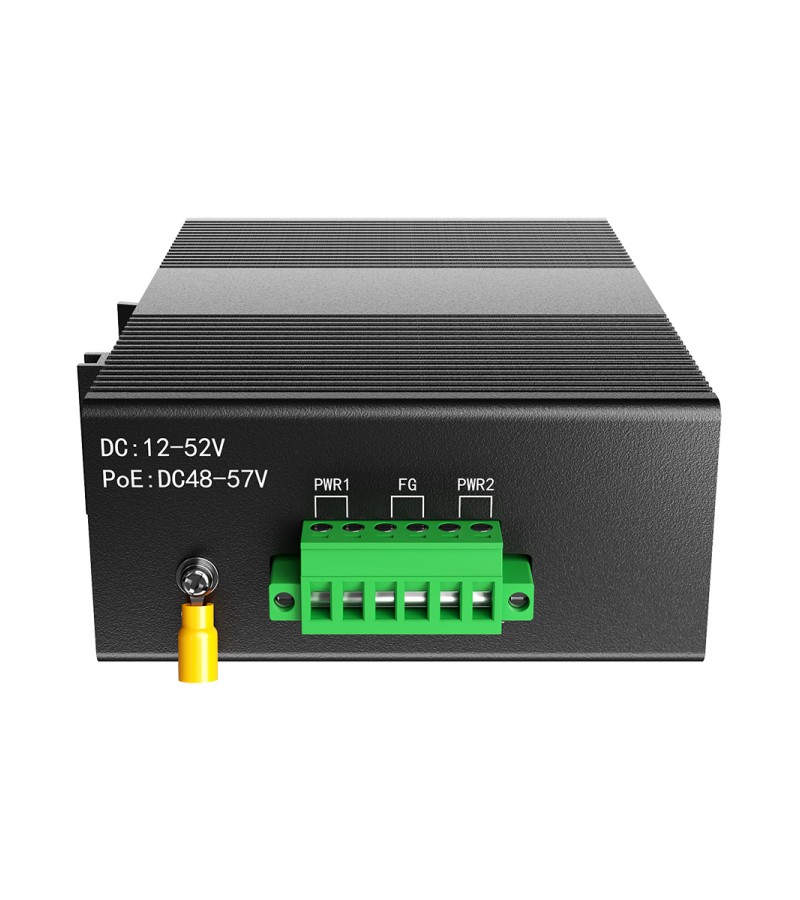

Power SupplyInput voltage: DC48V-52V (dual power supply redundant backup) Access terminal: Phoenix terminal Support dual power redundancy Support built-in overcurrent 4.0A protection Support reverse grounding protection
Switch PropertiesSwitching capacity: 16Gbps application level: layer 2 Overall packet forwarding rate: 11.904Mpps MAc table: 8K Package buffer: 1M Delay time: < 4 μ s Switching mode: store forward power consumption: < 3W
LED IndicatorsPower indicator: PWR interface indicator: electric port and optical Port (link / act)
Degreeof ProtectionIP40
AuthenticationPassed certification: CE, FCC, ROHS, ISO9001:2015 Ministry of Public Security Test Report
Mean Time Between Failures300,000 Hour
Warranty1 Year
Mechanical PropertiesEnclosure: IP40 protection grade, metal enclosure Installation: DIN rail type, wall mounted Heat dissipation mode: natural cooling without fan Weight: 0.64kg Dimensions: 143 x 101 x 44mm (L x W x H)
Industry StandardEM IFCC Part 15 Subpart B Class A,EN 55022 Class A EMS IEC(EN)61000-4-2(ESD): ±8kV(contact), ±15kV(air) IEC(EN)61000-4-3(RS): 10V/m(80~1000MHz) IEC(EN)61000-4-4(EFT):PowerPort:±4kV; Data Port: ±2kV IEC(EN)61000-4-5(Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV IEC61000-4-6(CS): 10V(150kHz~80MHz)/IEC(EN)61000-4-16(CM EMI) : 30V cont. 300V,1s IEC 60068-2-27 (Shock)/EC 60068-2-32 (Freefall) IEC 60068-2-6 (Vibration)
