MokerLink 8 Port 10Gbps SFP+ Switch, Support 1G SFP and 10G SFP+, 160Gbps Bandwidth, Fanless Unmanaged Plug and Play Ethernet Switch

8 x 10Gbps SFP+ ports, auto-adaptive 1G/10G optical fiber module, 160Gbps Bandwidth with non-blocking 10G line speed forwarding, Open SFP slot, Plug and Play, Unmanaged simple setup, Metal case, fanless design, quiet and stable operation, suitable for high-speed and long-distance fiber transmission.

$229.99 Price drop reminder
  • Brand: MokerLink
  • Product Code: 10G080GS
  • Availability: In Stock

Total $229.99
MokerLink 8 port 10G ethernet switch upgrading networks by providing a more reliable, stable, seamless network and easily multiplying the network speed by 10 times. It provides 8* 1G/10Gbps SFP+ ports with line speed forwarding capability per port.
  • 8*10 Gigabit SFP + optical ports are provided to realize line speed forwarding.
  • Each port supports MDI/MDIX automatic flip and duplex / rate self negotiation.
  • 10000M Base-t(x) automatic detection, full/half duplex MDI / mdi-x adaptive.
With 10 Gigabit speed, the 10G080GS brings high-flexibility and high-bandwidth connectivity to WIFI6 AP, router, servers, workstations and other attached devices. It enables you to save time when transferring large files. 12K jumbo frames are also supported to improve network utilization in large files transfer.
Full 10G Port
The 10G080GS features non-blocking wire-speed architecture with 160Gbps switching capacity for maximum data throughput. It supports IEEE 802.3x flow control for full-duplex mode, and back pressure flow control for half-duplex mode alleviates traffic congestion and ensures reliable data transmission. An 16K MAC address table provides scalability for even the largest networks.
Plug and Play
This 8 port 10G switch support installation plug and play. No configuring is required. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables or uplink ports. Auto-negotiation on each port senses the link speed of a network device (either 1G/10Gbps) and intelligently adjusts for compatibility and optimal performance.
Open SFP Slot

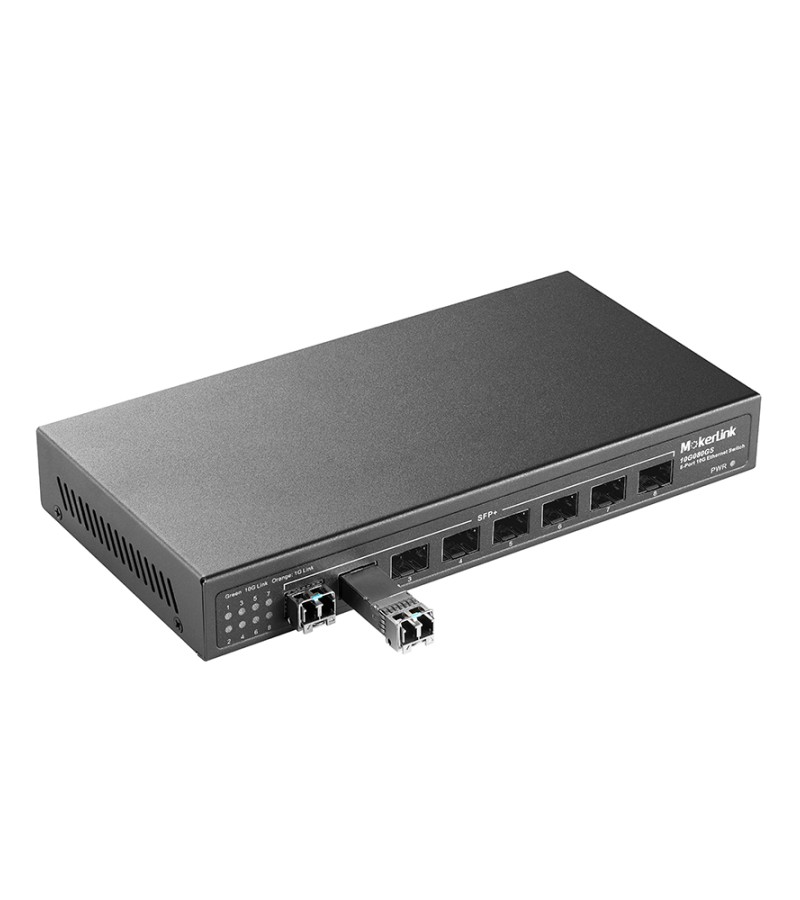

This 10G fiber optic switch is equipped with 8 open SFP Port, lets you customize your connection mode or distance using most MSA-Compliant transceivers.
Lighting Protection
The 8 port 10g switch fetures with 6KV power port surge protection and 2KV network port surge protection can adapt to harsh outdoor environment and ensure the reliability of the uninterrupted network system.
Fanless Quiet Design
Fanless design improve energy efficiency and lower financial cost. Passive cooling achieves high levels of natural convection and heat dissipation by utilizing a heat spreader or a heat sink to maximize the radiation and convection heat transfer modes, It is a solution for switches to maintain optimal operating temperatures without causing much noise.
Compact Size
The compact design makes these sensors interesting for room critical applications.
Fabian: Good evening, I am interested by this product but live in Belgium. Is it electrically compatible? 230 volt - 50hertz - power plug C or E type. Thank you.
2022-12-09 06:05:35
Answer: The power adapter included with this model support 100V-240 Voltage.
2022-12-10 19:55:40

Ask Question About Product

Note: HTML is not translated!
Ethernet Switch Hardware Specifications
Product Model10G080GS
Product Name8 Port Unmanaged 10G SFP+ Fiber Switch
Ethernet Port8*1G/10G SFP+ Ports
Switching Capacity160Gbps
Packet Buffer12Mbit SRAM
CPUMIPS-34Kc Up to 800MHz CPU
MAC Address16K
Jumbo Frame12Kbytes
Transfer ModeStore and forward
Network protocol IEEE 802.3, IEEE 802.3z, IEEE 802.3ae Support 12K mega frame transmission
Fiber MediumMultimode dual fiber, Single mode single fiber, SFP to RJ45 power module, Support CPRI mode optical port interconnection
Lighting Protection3KV 8/20us, IP30
Working EnvironmentWorking Temperature: -10~55°CStorage Temperature: -40~75°CWorking Humidity: 10%~90%,non-condensingStorage Temperature: 5%~90%,non-condensingWorking Height: Maximum10,000 feetStorage heigh: Maximum 10,000 feet
LED IndicatorPWR: Power LED, Port: 1G Link LED, 10G Link LED
Structure SizeProduct Dimension (L*W*H): 223mm*103mm*28mm Package Dimension (L*W*H): 281mm*170mm*100mm N.W: 0.71kg, G.W: 1.16kg
InstallationDesktop and wall mount
ShellBlack, Metal Shell

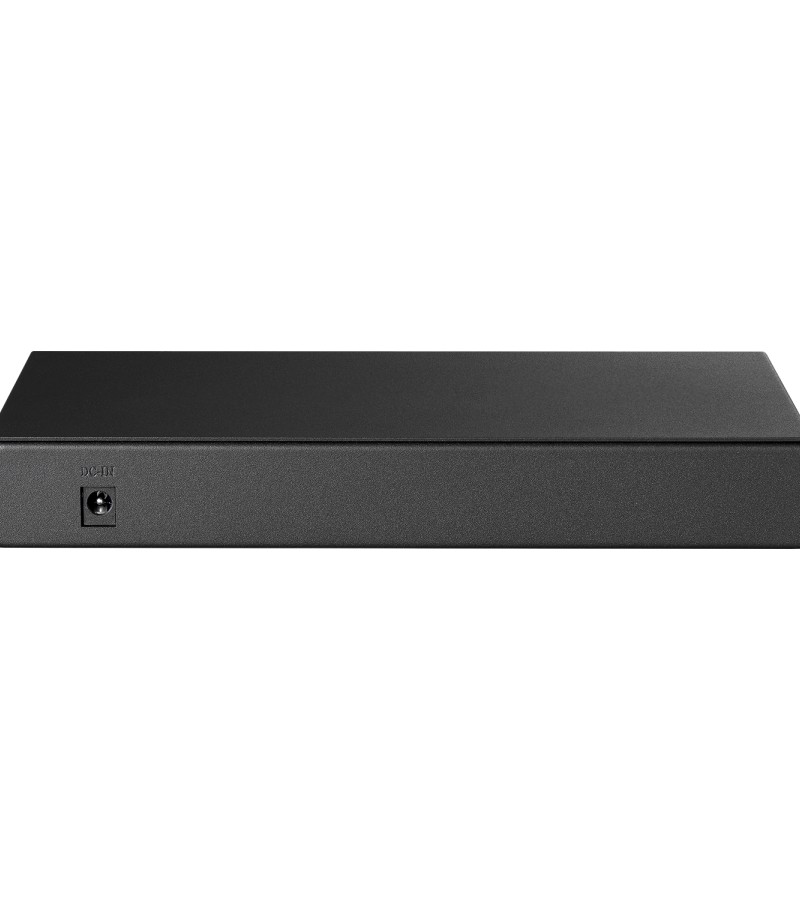

Power VoltageExternal power supply, DC12V2A

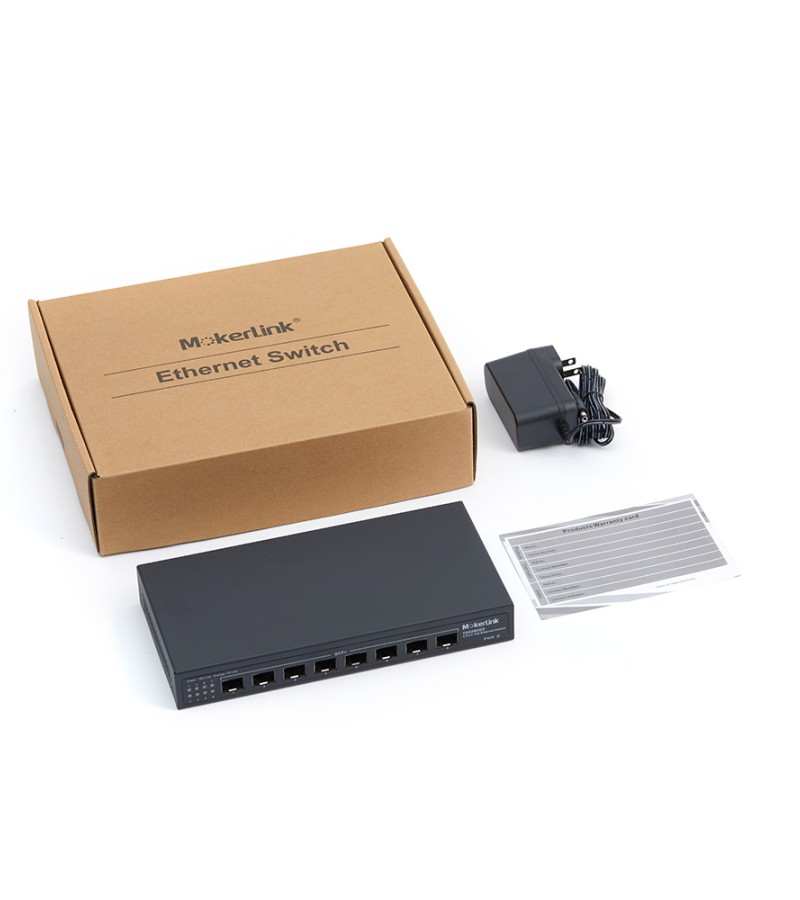

Package ListSwitch 1 pcs, Power adapter 1 pcs, User manual 1 pc
  • All(2)
  • Good(2)
  • Fair(0)
  • Poor(0)
  • Image(0)
Name Size Date Added
8 Port Unmanaged 10G SFP Switch User Manual 1.49MB 10/12/2022 15:21:16
