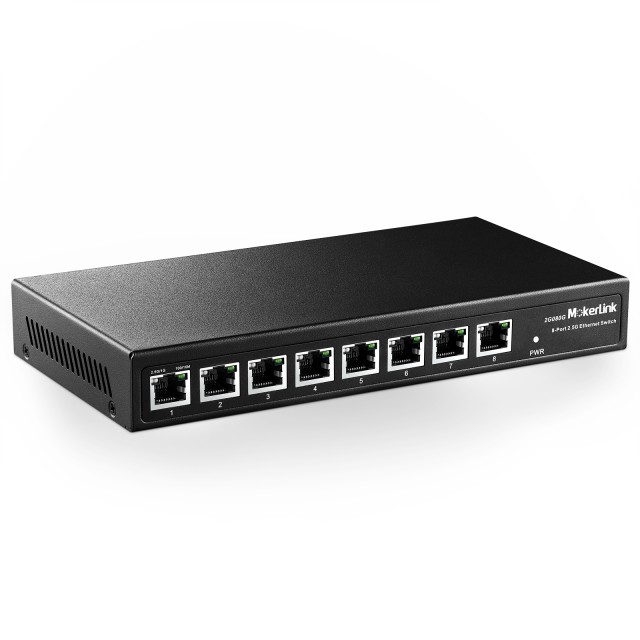

MokerLink 8 Port 2.5G Ethernet Switch, 8 x 2.5GBASE-T Ports, Compatible with 10/100/1000Mbps, Metal Unmanaged Fanless Network Switch
8 x 2.5Gigabit Ethernet Ports, Unmanaged Plug and Play, durable metal casing, fanless design, widely used for 4K video, gaming PC, NAS, PCIe Adapter, Server, WiFi 6 AP and more
- Brand: MokerLink
- Product Code: 2G080G
- Availability: In Stock
- Up to 80G backplane bandwidth, 12M cache, 28.8M packet forwarding rate, and support 12K jumbo frame transmission.
- Provide 8*10M/100M/1000M/2.5G RJ45 ports for high-speed transmission.
- Each port supports MDI/MDIX automatic flip and duplex/rate self negotiation.
- Support IEEE 802.3x full duplex flow control and backpressure half duplex flow control.
Full 2.5G Port
The 2G080G features non-blocking wire-speed architecture with 80Gbps switching capacity for maximum data throughput. It supports IEEE 802.3x flow control for full-duplex mode, and back pressure flow control for half-duplex mode alleviates traffic congestion and ensures reliable data transmission. An 8K MAC address table provides scalability for even the largest networks.
Plug and Play
This 8 port 2.5G switch support installation plug and play. No configuring is required. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables or uplink ports. Auto-negotiation on each port senses the link speed of a network device (either 10/100/1000Mbps) and intelligently adjusts for compatibility and optimal performance.
Work with Existing Cabling
It can be deployed where extra bandwidth is demanded without costly, time-consuming re-cabling or equipment replacement costs.
Lighting Protection
The 8 port 2.5g switch fetures with 6KV power port surge protection and 2KV network port surge protection can adapt to harsh outdoor environment and ensure the reliability of the uninterrupted network system.
Fanless Quiet Design
Fanless design improve energy efficiency and lower financial cost. Passive cooling achieves high levels of natural convection and heat dissipation by utilizing a heat spreader or a heat sink to maximize the radiation and convection heat transfer modes, It is a solution for switches to maintain optimal operating temperatures without causing much noise.
Compact Size
The compact design makes these sensors interesting for room critical applications.
Ask Question About Product
| Ethernet Switch Hardware Specifications | |
| Product Model | 2G080G |
| Product Name | 8 Port 2.5G Ethernet Switch |
| Ethernet Port | 8*10M/100M/1000M/2.5G RJ45 Port |
| Switching Capacity | 80Gbps |
| Throughput | 28.8Mpps |
| Packet Buffer | 12M |
| CPU | MIPS-34Kc UP to 800MHZ CPU |
| MAC Address | 16K |
| Jumbo Frame | 12Kb |
| Transfer Mode | Store and forward |
| Network protocol | IEEE 802.3/U、IEEE 802.3ab、IEEE 802.3bz、IEEE 802.3x |
| Network Medium | 10BASE-T ： Cat3,4,5 UTP(≤250 meter) 100BASE-TX ： Cat5 or later UTP(150 meter) 2500/1000BASE-TX ：Cat6 or later UTP(150 meter) |
| Transmission Distance | 10BASE-T: Cat5 or later UTP(150 meter)100BASE-TX: Cat5 or later UTP(150 meter)2500/1000BASE-TX: Cat6 or later UTP(150 meter) |
| Lighting Protection | 6KV 8/20us;IP30 |
| Working Environment | Working Temperature: -10~55°CStorage Temperature: -40~75°CWorking Humidity: 10%~90%，non-condensingStorage Temperature: 5%~90%，non-condensingWorking Height: Maximum10,000 feetStorage heigh: Maximum 10,000 feet |
| LED Indicator | PWR: Power LEDPort: 10M/100M LED; 1G LED; 2.5G LED |
| Structure Size | Product Dimension (L*W*H): 223mm*103mm*28mmPackage Dimension (L*W*H): 305mm*205mm*55mmN.W: 0.8kgG.W: 1.2kg |
| Installation | Desktop and Wall Mount |
| Shell | Black Color, Metal Shell |
| Power Voltage | Adatpor: MAX 15W (AC 100-240V 50/60HZ MAX 0.3A) |
| Package List | Switch 1 pcs, Power cord 1 pcs, User manual 1 pc |
