MokerLink 5 Port 2.5 Gigabit Ethernet with 2 Port 10G SFP+, 128Gbps Bandwidth, Metal Fanless, Web Managed L2 Network Switch

5 x 2.5Gigabit Ethernet Ports and 2 x 10Gbps SFP+ ports enable high-bandwidth connected, Support web GUI management, durable metal casing, fanless design, Widely used for 4K video, gaming PC, NAS, PCIe Adapter, Server, WiFi 6 AP and more

$219.99 Price drop reminder
  • Brand: MokerLink
  • Product Code: 2G05210GSM
  • Availability: In Stock

Total $219.99
MokerLink 7 port 2.5G/10G web managed switch upgrading networks by providing a more reliable, stable, seamless network. It provides 5*10M/100M/1G/2.5G RJ45 ports + 2*10G SFP+ ports with line speed forwarding capability per port.
Key Feature
  • 2.5G Ports: The network switch has 5 x 2.5Gigabit Ethernet Ports, compliant IEEE 802.3bz (2.5G) standard, auto negotiation backwards compatible 10/100/1000Mbps.
  • 10 Gigabit SFP+: 2 x 10Gbps SFP+ ports, enable high-bandwidth connected, auto-adaptive 1G/2.5G/10G optical fiber module, wider rate range
  • Support web GUI management, device/port status query and various configurations: such as VLAN, QoS, security, multicast, MAC address table, diagnosis, etc.
  • Easy to Maintain: durable metal casing, fanless design lowers energy consumption, quiet no noise and stable operation. Power and port led indicator light, clearly display the running status and port rate status, installation and maintenance are very simple
  • Widely Used: high performance 128G switching capacity, desktop/wall-mounting design, well-suited for various environments, such as home entrainment, 4K video, gaming PC, NAS, PCIe Adapter, Server, WiFi 6 AP and more.
2.5G and 10G Port Configuration
The 2G05210GSM features non-blocking wire-speed architecture with 128Gbps switching capacity for maximum data throughput. It supports IEEE 802.3x flow control for full-duplex mode, and back pressure flow control for half-duplex mode alleviates traffic congestion and ensures reliable data transmission. An 16K MAC address table provides scalability for even the largest networks.
4. Real-time monitoring: Simultaneous transmission of real-time control signals, images and data.
VLAN Support
This switch support IEEE802.1Q VLAN function, By segregating your networks without buying separate equipment for each, you can create virtual boundaries around business units to slow down or stop attacks for higher security.
QoS Support
Advanced QoS prioritize critical business traffic such as video conferencing, offering a lag-free network experience that helps the long-term customer and employee relationships.

Lighting Protection

The 7 port 2.5g/10G switch fetures with 4KV surge protection, It can adapt to harsh outdoor environment and ensure the reliability of the uninterrupted network system.

Fanless Quiet Design

Fanless design improve energy efficiency and lower financial cost. Passive cooling achieves high levels of natural convection and heat dissipation by utilizing a heat spreader or a heat sink to maximize the radiation and convection heat transfer modes, It is a solution for switches to maintain optimal operating temperatures without causing much noise.

Fiber Connectivity

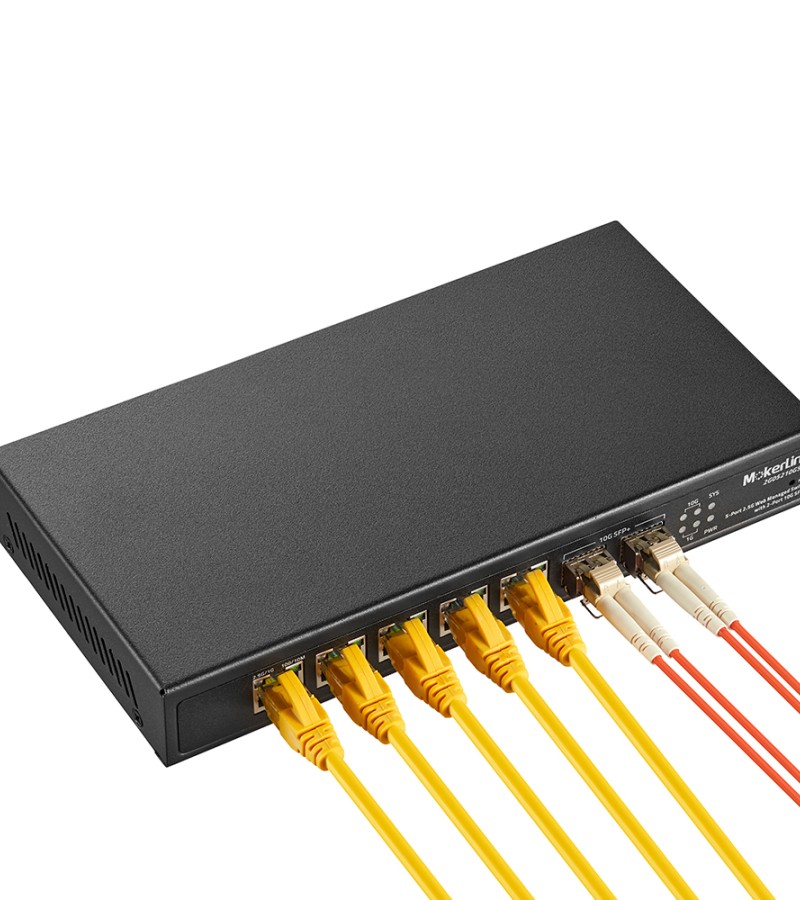

The switch support up-link 10G fiber ports, The switch's port 6,7 use fiber cable to connect wired network segments throughout buildings or across campuses extending beyond the limitations of Ethernet cabling.



Ask Question About Product

Note: HTML is not translated!
Ethernet Switch Hardware Specifications
Product Model2G05210GSM
Product NameMokerLink 5 Port 2.5 Gigabit Ethernet with 2 Port 10G SFP+
Ethernet Port5*10M/100M/1G/2.5Gbps RJ45 ports + 2*1G/10G SFP+ ports
Switching Capacity128Gbps
Packet Buffer12M
MAC Address16K
Jumbo Frame9216bytes
Transfer ModeStore and forward
Network protocol IEEE 802.3/U、IEEE 802.3ab、IEEE 802.3bz、IEEE 802.3x IEEE 802.3ae
Fiber MediumMulti-mode Fiber: 50/125、62.5/125、100/140um Single-mode Fiber: 8/125、8.7/125、9/125、10/125um
Transmission Distance10BASE-T : Cat3,4,5 UTP(≤250 meter) 100BASE-TX : Cat5 or later UTP(150 meter) 2500/1000BASE-TX :Cat6 or later UTP(150 meter)
Lighting Protection6KV 8/20us;IP30
Security CertificateCE mark, commercial;CE/LVD EN60950; FCC Part 15 Class B;RoHS;
Working EnvironmentWorking Temperature: -10~55°CStorage Temperature: -40~75°CWorking Humidity: 10%~90%,non-condensingStorage Temperature: 5%~90%,non-condensingWorking Height: Maximum10,000 feetStorage heigh: Maximum 10,000 feet
LED IndicatorPWR: Power LED Port: 10M/100M LED; 1G LED; 2.5G LED; 10G LED
Structure SizeProduct Dimension (L*W*H): 223mm*113mm*28mm Package Dimension (L*W*H): 295mm*174mm*100mm N.W: 0.71kgG.W: 1.0kg
ShellBlack Color, Metal Shell
Power VoltageExternal power supply AC: 100~240V 50-60Hz ,12V/2A
Package ListSwitch 1 pcs, Power adapter 1 pcs, User manual 1 pc
  • All(0)
  • Good(0)
  • Fair(0)
  • Poor(0)
  • Image(0)
Name Size Date Added
L2 Managed Switch WEB Operation Manual 5.78MB 10/12/2022 16:43:41
2.5G Switch Series Quick Start Guide 628.31KB 11/12/2022 17:43:18
