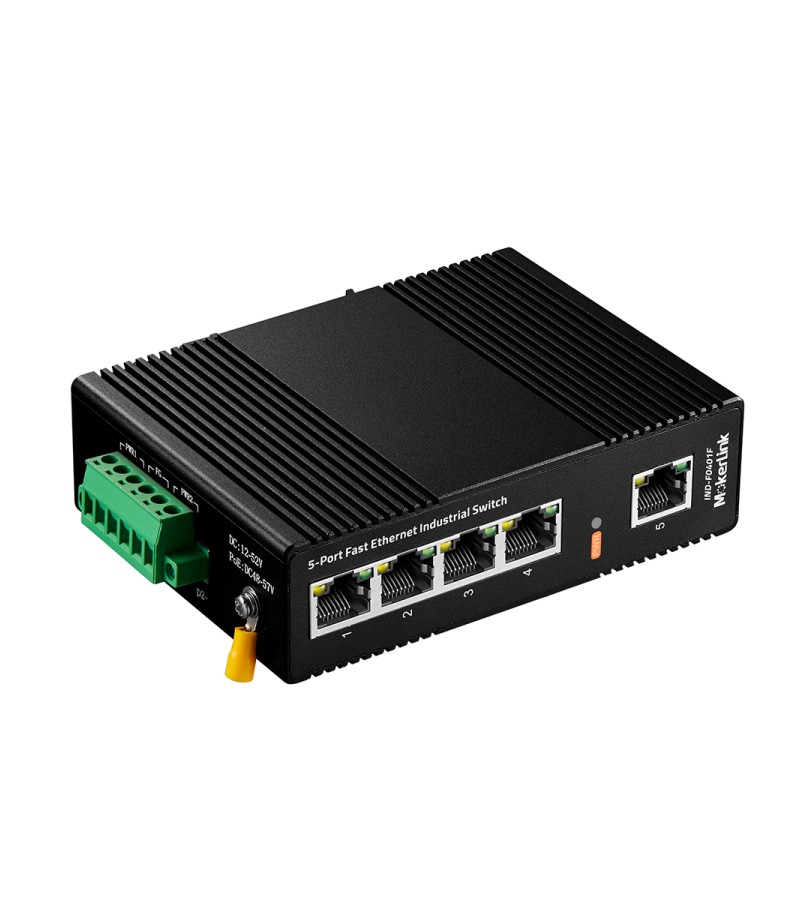

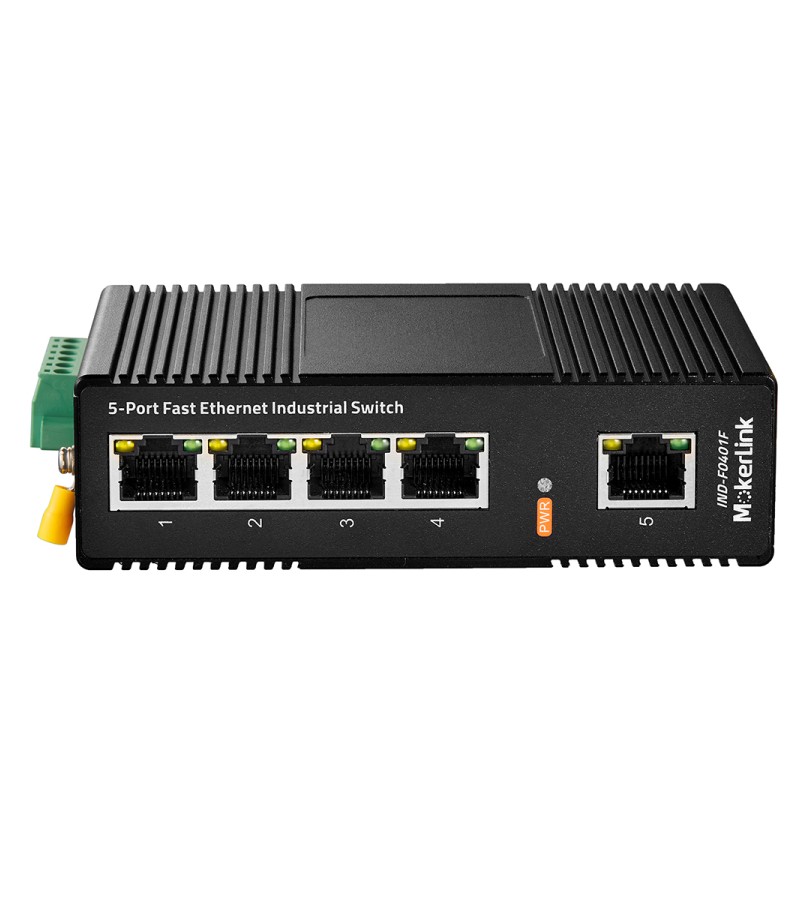

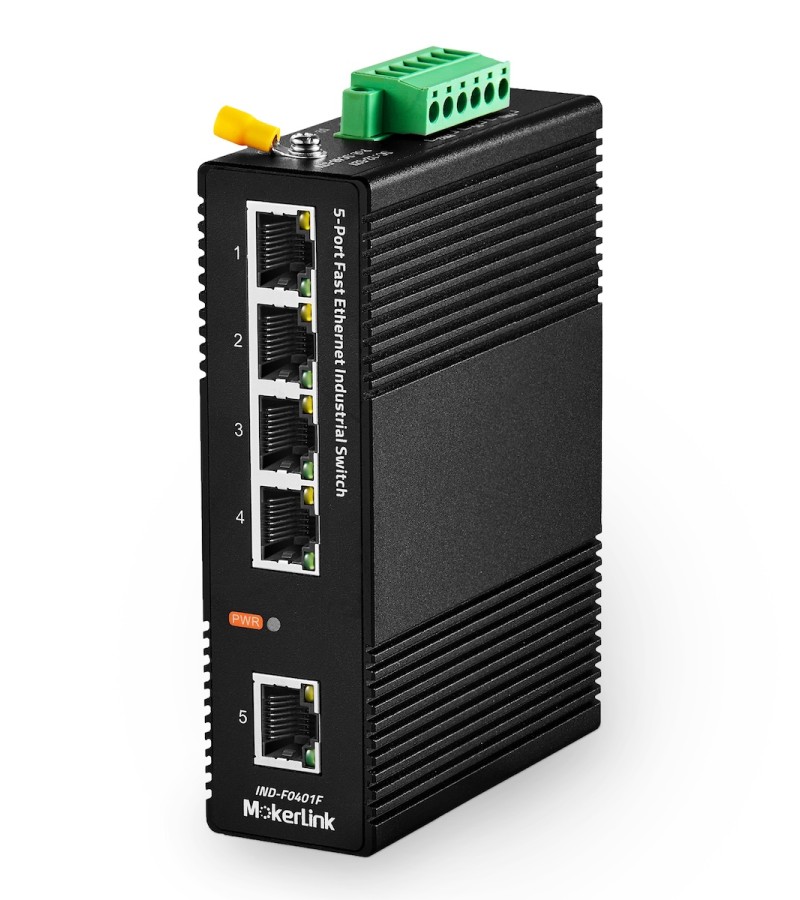

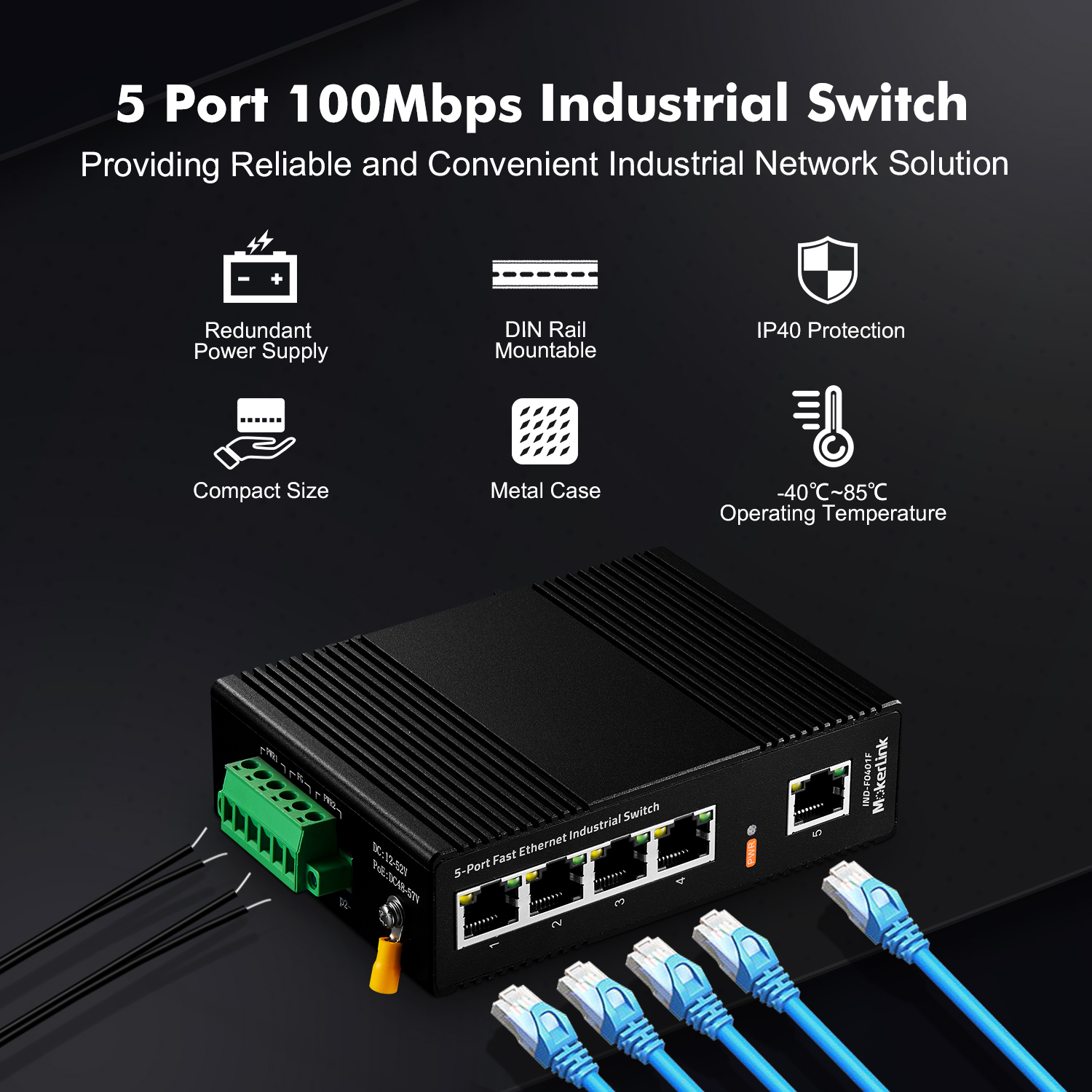

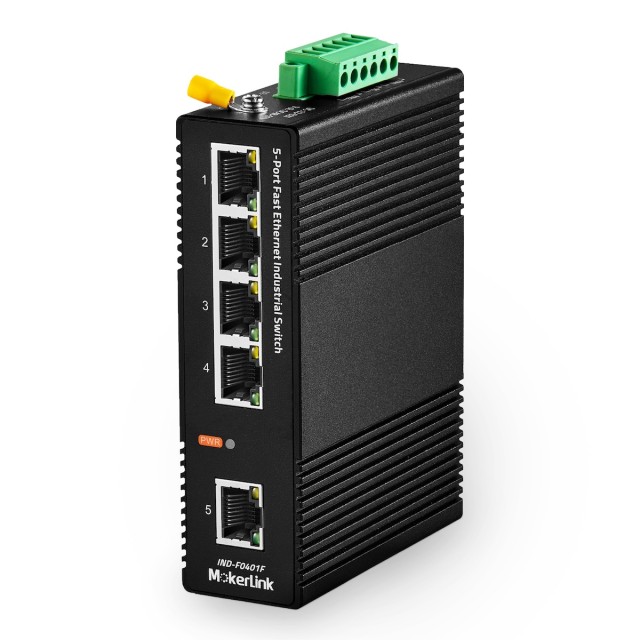

MokerLink 5 Port Industrial DIN-Rail Network Switch, 10/100Mbps Fast Ethernet, IP40 Rated Network Switch (-40 to 185°F), with UL Power Supply
4 ethernet ports and 1 uplink port, 10/100Mbps, plug and play, no configuration needed, low-power consumption CPU, no fan quiet operation, The shell is made of industrial-grade aluminum alloy with better heat dissipation, integrated DIN-rail mount kit, IP40 protection grade, working temperature -40~75°C(-40~185°F), Dual power supply input, equipped with one UL-certified power adapter
- Brand: MokerLink
- Product Code: IND-F0401F
- Availability: In Stock
Product Overview
1x 100Mbps uplink port + 4x 100Mbps downlink ports Industrial Ethernet switch, supporting 1x 10 / 100Base TX uplink port and 4x 10 / 100Base TX downlink ports. The products comply with FCC, CE and ROHS standards. IND-F0401F has a working temperature of - 40℃ ~ 85℃, has super firmness, can adapt to various harsh environments, and can also be conveniently placed in a compact control box. The installation characteristics of guide rail, wide temperature operation, IP40 protection grade shell and LED indicator light make IND-F0401F a plug and play industrial equipment, provide reliable and convenient solutions for users' Ethernet equipment networking, and can be widely used in industrial scenarios of Ethernet access such as smart city, smart transportation, smart pipe gallery and smart industry.
Product characteristics
- Ensure reliable data transmission and long service life.
- It supports full duplex or half duplex mode with automatic negotiation capability.
- The network interface supports full-automatic intersection recognition.
- The built-in store and forward mechanism supports a variety of protocols.
- Green energy saving, using low-power CPU.
- Working power supply: DC 12V-52V provides reverse connection protection and 4A overcurrent protection.
- Lightning surge protection (power supply): 5000A (surge waveform is 8 / 20 μ).
- It meets the industrial operation standard, and the mean time between failures is more than 300000 Hours.
IP40 Protection
5-Port unmanaged industrial ethernet switch adopt with high strength IP40 protective housing, industrial EMC design to increase the reliability of communication network.

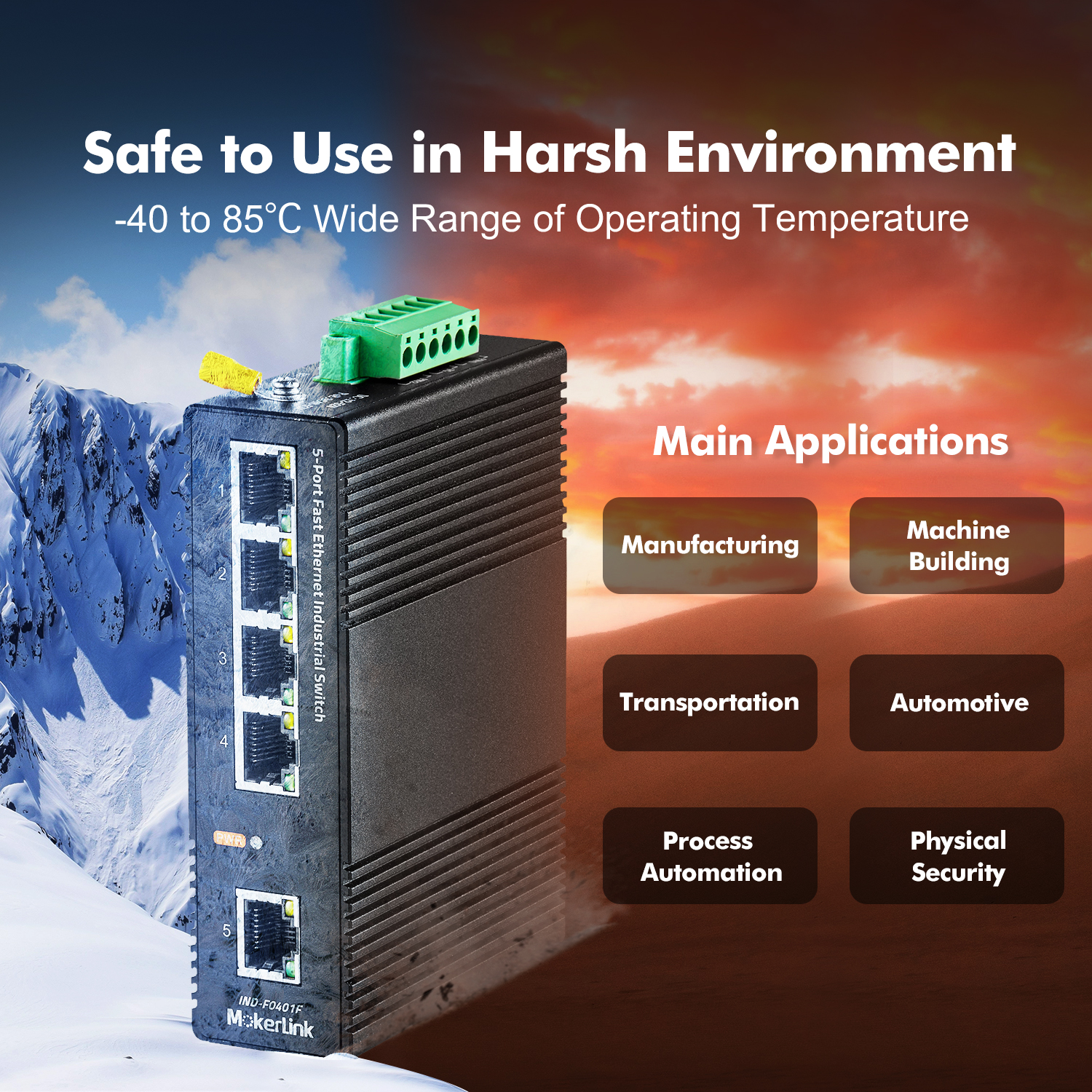

Wide Temperature Operation
MokerLink industrial ethernet switches are designed with wide temperature support to ensure operation reliability in extreme temperatures ranging from -40ºC to 85ºC.

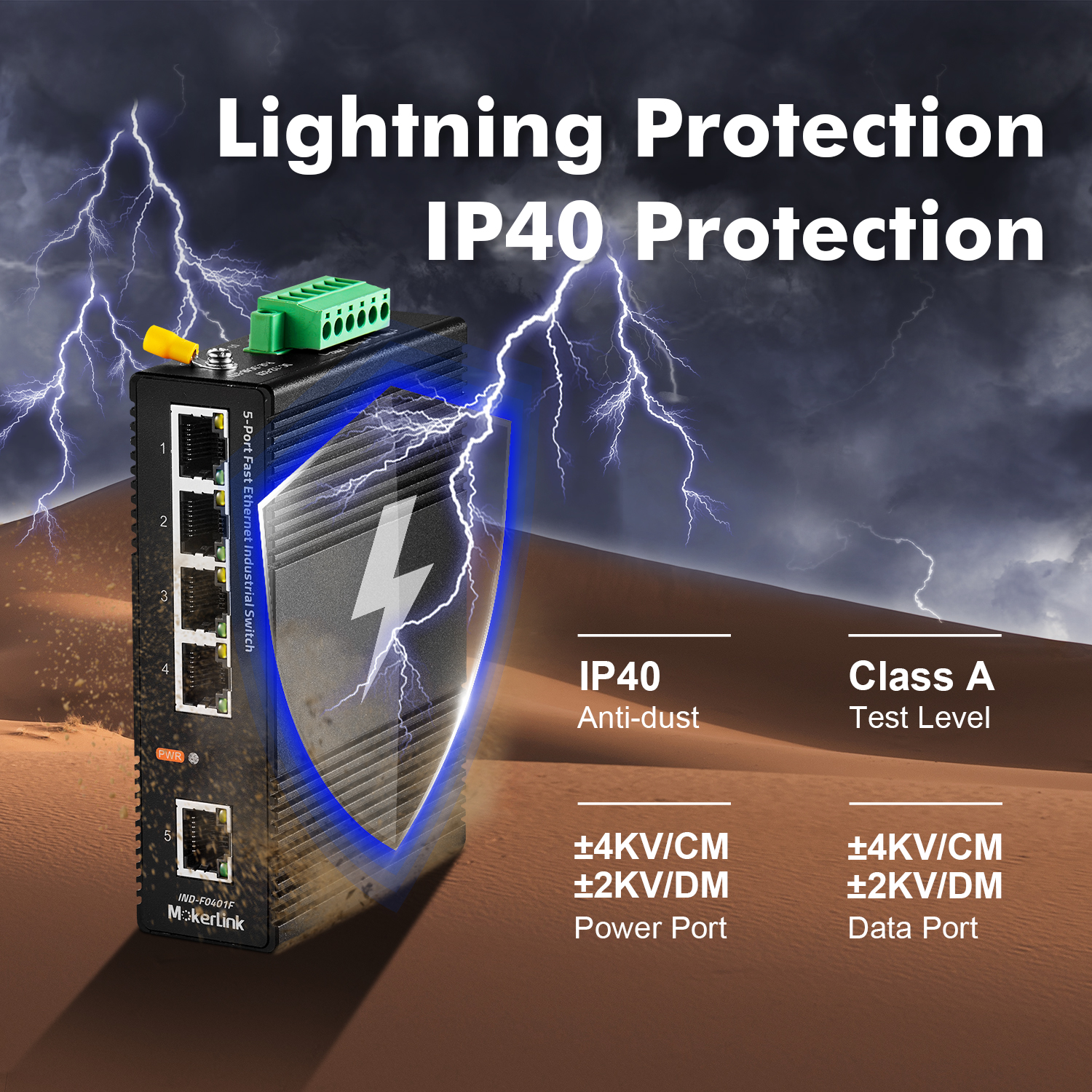

Lightning Protection
The industrial switch's 4KV power port surge protection and 2KV network port surge protection can adapt to harsh outdoor environment and ensure the reliability of the uninterrupted network system.

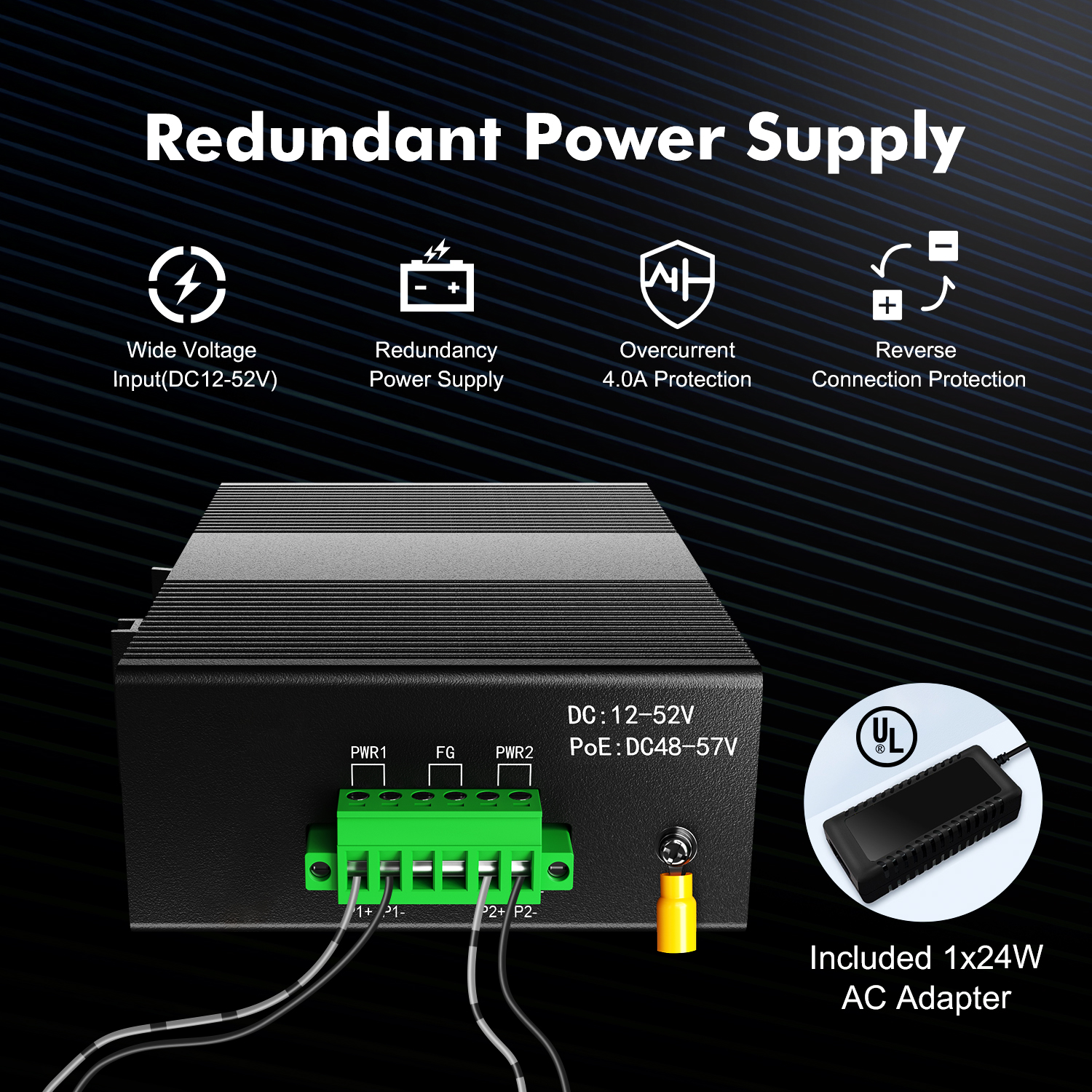

Redundant Power Supply

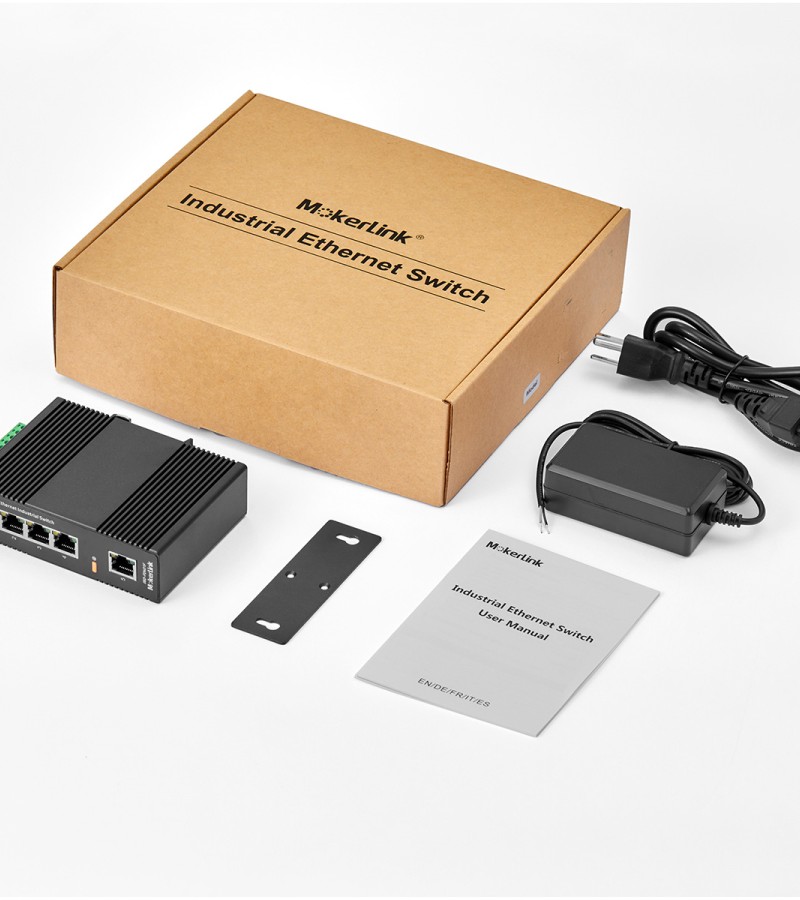

This industrial ethernet switch support dual redundant power supply(included 1x24W AC adapter).Each of the power supplies will have the capacity to run the device on its own. This makes sure that the switch could operate normally even if one power supply fails.

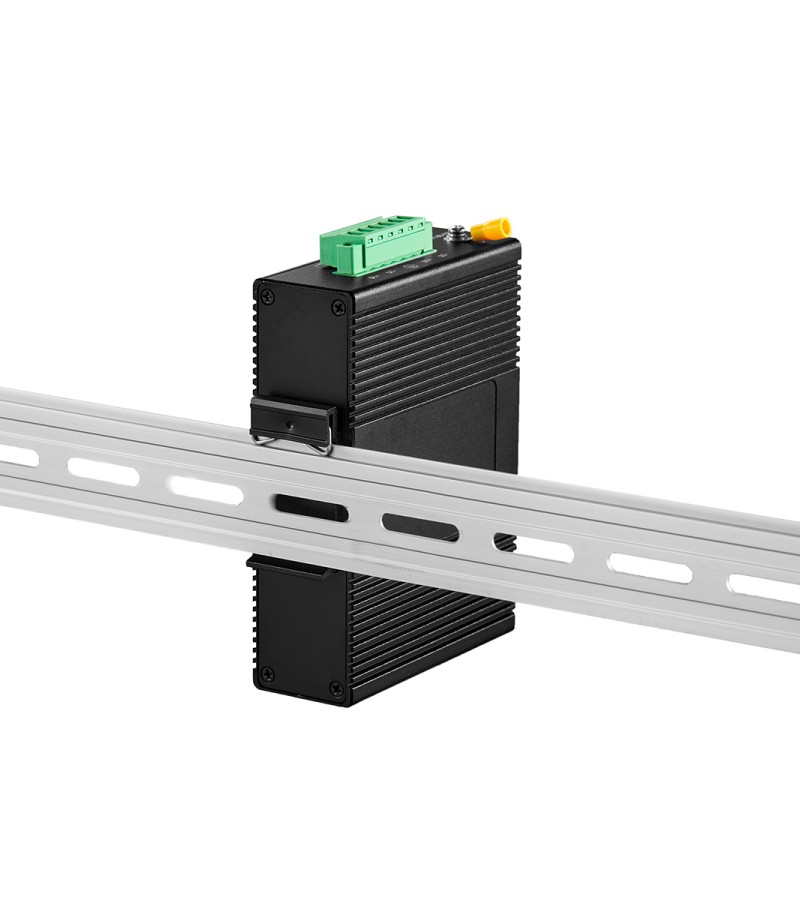

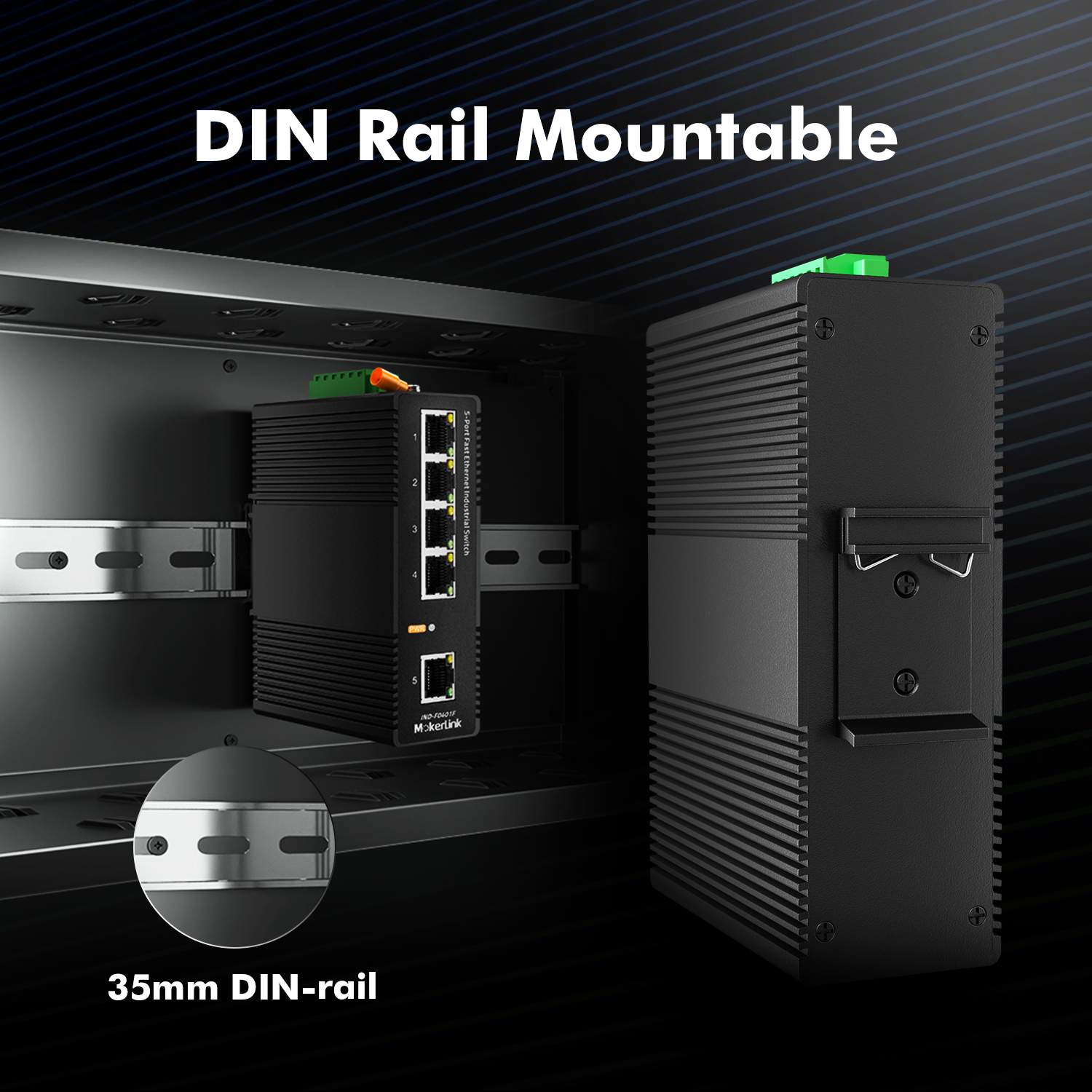

DIN Rail Mountable
Ultra Compact industrial Ethernet switche can be mounted on a 35mm din rail.Save time and space.
Compact Size
MokerLink industrial ethernet switches are housed in a compact sturdy metal case.you can mount it on the desktop or cabinet.
Metal Case & Fanless
The industrial ethernet switch features with aluminum case and fanless design that ensures noiseless operation and greater reliability over time.
Industrial-grade Electronic Components
The industrial ethernet switch adopt with high quality of electronic components.Make sure it can be widely used in various industrial scenarios.
Ask Question About Product
| Industrial Ethernet | |
| Model | IND-F0401F |
| Product Name | 5-port 100Mbps Industrial Ethernet Switch |
| Product Description | 1-Way 100Mbps uplink port + 4-Way 100Mbps downlink Port Industrial Ethernet Switch |
| RJ45 port | 10 / 100Baset (x) automatic detection，Full / half duplex MDI / mdi-x adaptive |
| Port Description | 5 RJ45 Ports |
| Network Protocol | IEEE802.3 - CSMA/CD；IEEE802.3i - 10Base-T；IEEE802.3u - 100Base-TX/FX；IEEE802.3x - flow control； |
| Work environment | Operating temperature: - 40℃ ~ 85℃ (- 40 ~ 185 ° f)Storage temperature: - 40℃~ 85℃ (- 40 ~ 185 ° f)Relative humidity: 5% ~ 95% (no condensation |

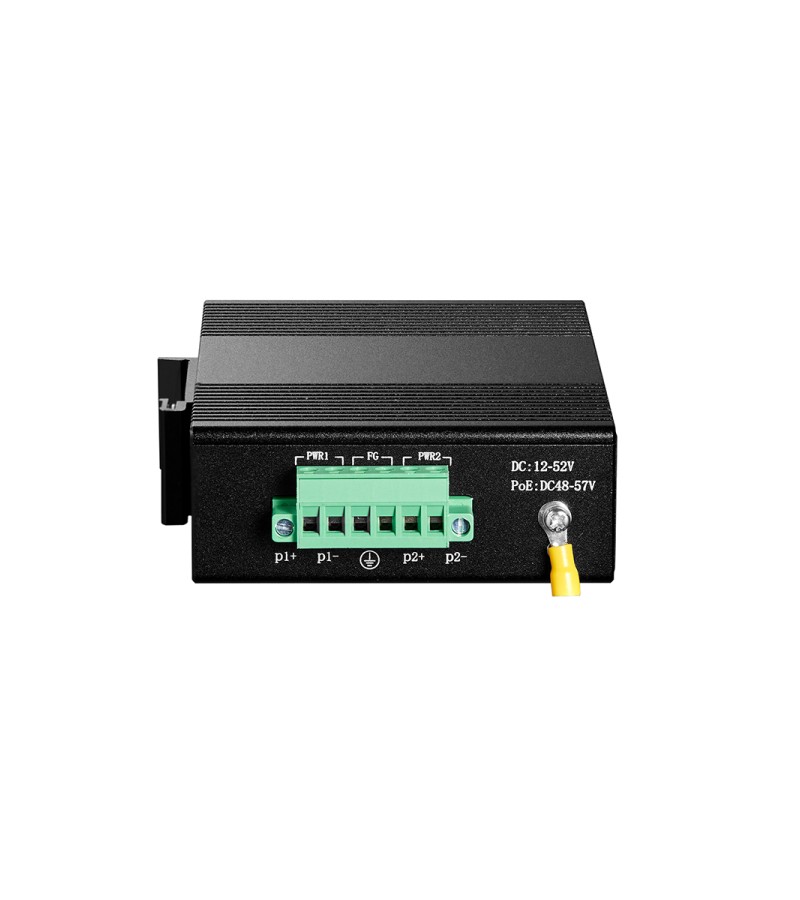

| Power Supply | Input voltage: DC12V-52V (dual power supply redundant backup)Access terminal: Phoenix terminalSupport dual power redundancySupport built-in overcurrent 4.0A protectionSupport reverse grounding protection |
| Switch Properties | Switching capacity: 1.6Gbps application level: layer 2Overall packet forwarding rate: 0.744MppsMac table: 1KPackage buffer: 0.448MDelay time: < 4 μ sSwitching mode: store forward power consumption: < 3W |
| LED Indicators | Power indicator: PWR interface indicator: electric port and optical port (Link /Act) |
| Degreeof Protection | IP40 |
| Authentication | Passed certification: CE, FCC, ROHS, ISO9001:2015 Ministry of Public Security Test Report |
| Mean Time Between Failures | 300,000 Hour |
| Warranty | 1 Year |

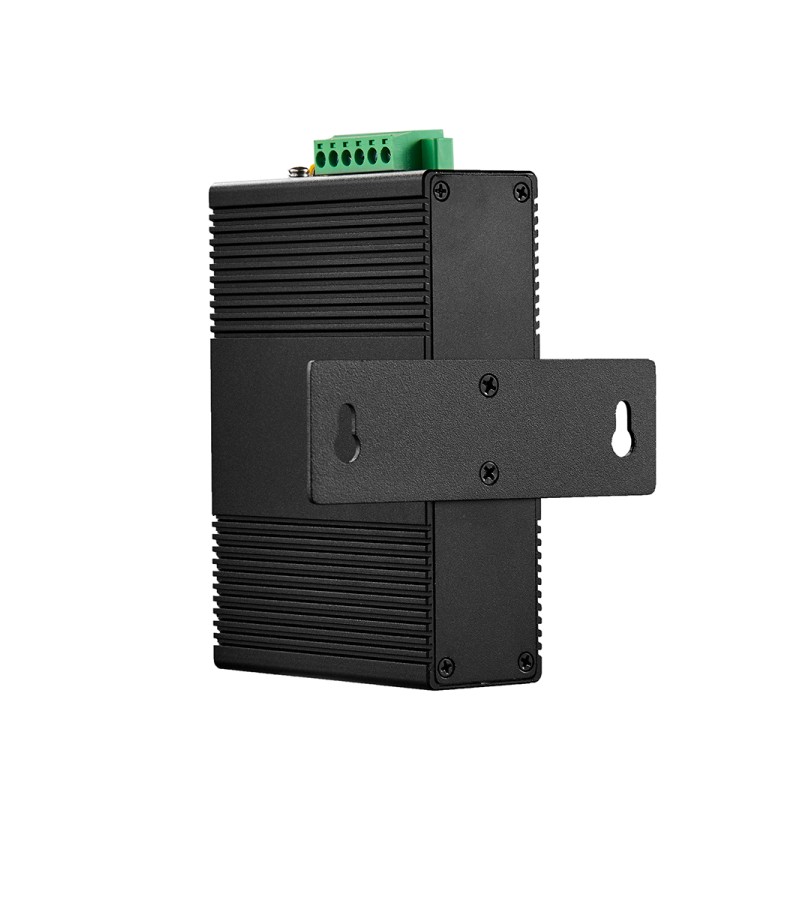

| Mechanical Properties | Enclosure: IP40 protection grade, metal enclosureInstallation: DIN rail type, wall mountedHeat dissipation mode: natural cooling without fanWeight: 0.36kgDimensions: 118 x 86 x 39mm (L x W x H) |
| Industry Standard | EMIFCC Part 15 Subpart B Class A，EN 55022 Class A EMS IEC(EN)61000-4-2(ESD): ±8kV(contact), ±15kV(air) IEC(EN)61000-4-3(RS):10V/m(80~1000MHz) IEC(EN)61000-4-4(EFT):PowerPort:±4kV; Data Port: ±2kV IEC(EN)61000-4-5(Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV IEC61000-4-6(CS):10V(150kHz～80MHz)/IEC(EN)61000-4-16(CM EMI) : 30V cont. 300V,1s IEC60068-2-27(Shock)/EC60068-2-32(Freefall) IEC 60068-2-6 (Vibration) |
