MokerLink Gigabit SFP to RJ45 Converter, A Pair 2 Pack Single-Mode Fiber to Ethernet Media Converter, 10/100/1000Mbps RJ45 Port, 1000Base-LX SFP Module 1310nm up to 20KM

$59.99 Price drop reminder
  • Brand: MokerLink
  • Product Code: MC-G1E1SSM20
  • Availability: In Stock

Total $59.99

The non-managed fiber media converter is designed with a switch controller and buffer memory that connects two types segments operation smoothly. The converter can be used as standalone type or as card type to the 2U 19” converter rack-mount chassis for centralized power management.

Data Rate: 10/100/1000Mbps.

Fiber Type: 20KM for Single mode.

Optic Connector: 1000Base-LX SFP Module 1310nm

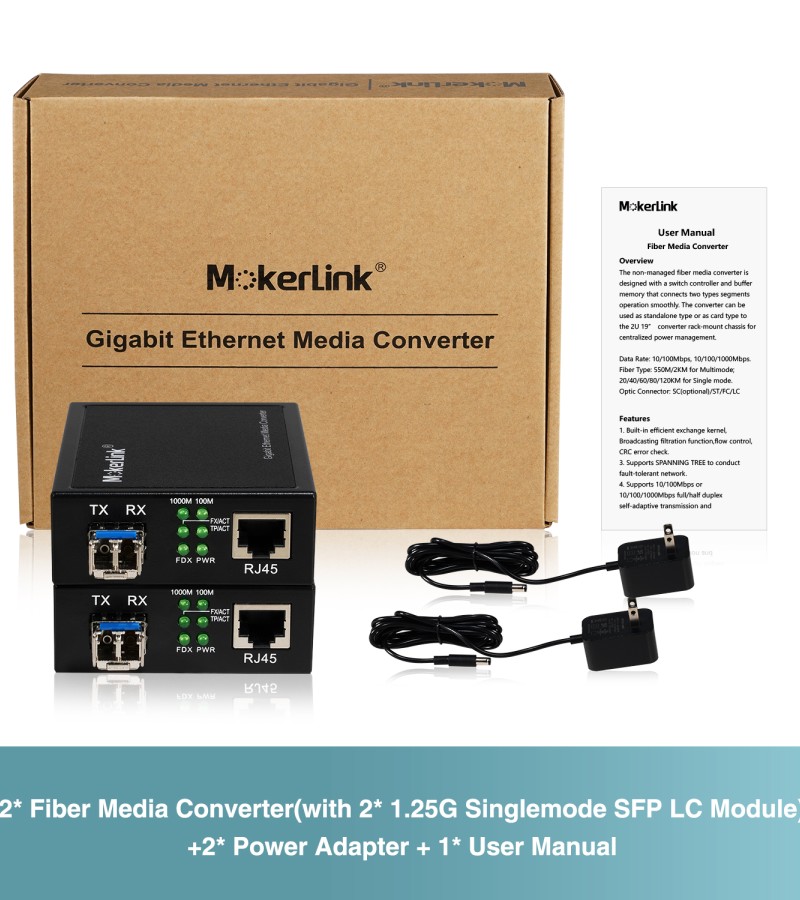

  What’s Included: 2pcs gigabit media converter; 2pcs Single-Mode SFP transceiver; 2pcs AC/DC Power Supply; 1 x User’s Manual. The transceiver has been installed in the converter, making it easier to use.

Gigabit date: 10/100/1000Mbps Ethernet port, support auto-negotiation, MDI/MDIX auto-crossover, full/half Duplex, Cat5/5e,Cat6 for 100 meters; 1.25Gbps Single-Mode SFP Module, support LC interface 1310nm single mode fiber, support 20KM distance transmission.

Plug and Play: connect the power supply, connect to the peer device through the optical fiber and the network cable, then can use it without configuration. **Please pay attention to the use of single-mode fiber with LC interface 1310nm, and TX/RX cross connection**

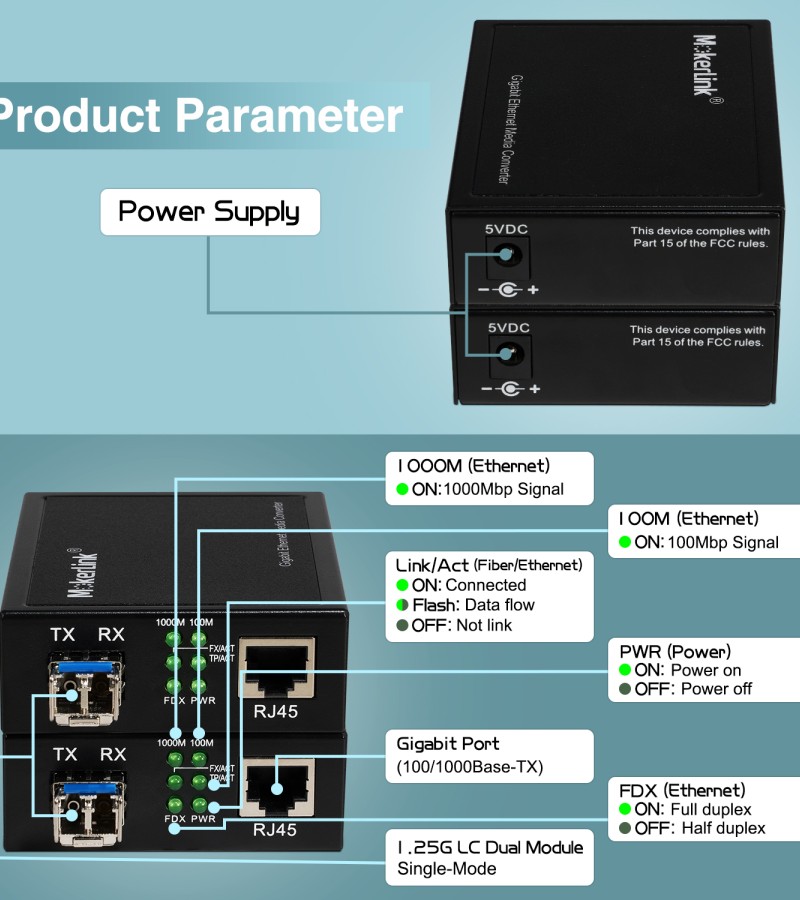

LED indicator: with Power, SFP, RJ45 port LED indicator, can clearly know the working status, and the connection status of fiber and Ethernet, installation, use and maintenance are simpler.

Widely Used: compact size, metal case, cooling holes on both sides, easy to install to various locations that require fiber and ethernet cable conversion, such as home/commercial/industrial, computer room, equipment box, etc.



Features:

1. Built-in efficient exchange kernel

2. Broadcasting filtration function, flow control, CRC error check.

3. Supports SPANNING TREE to conduct fault-tolerant network.

4. Supports 10/100Mbps or 10/100/1000Mbps full/half duplex self-adaptive transmission and auto-negotiations ,easy upgrades.

5. Max.transmission distance can be 120km.

6. External power or Built-in power.

7. Standalone type can be installed into 14slot 2U Rack; Card type into 16slot Rack.

8. Hot-swap ,High reliability.

9. Cache capacity: 1M Bits.

10. Built-in MAC address buffer space : 1K. Standards Protocol IEEE802.3 Ethernet standard IEEE802.3u fast Ethernet standard IEEE802.3d Spanning Tree standard

Ask Question About Product

Note: HTML is not translated!
Fiber Media Converter
ModelMC-G1E1SSM20
Product Name10/100/1000M Media Converter with Single-Mode SFP Module
Transmission TypeGigabit Ethernet
Transmission Mode10/100/1000M Full/half duplex
MTBF2 years
BER<1E-8
Data Buffer1MBits
Power Stability Factor1MBits
Input Power Range(dBm)0~-40
Operation Temperature0℃~70℃
Storage Temperature-45℃~80℃
Maximum Current800mA
Power2.5w
EMCAccord with FCC Part15
VolumeExternal: L×W×H 95×70×26mm Internal: L×W×H 140×110×30mm
