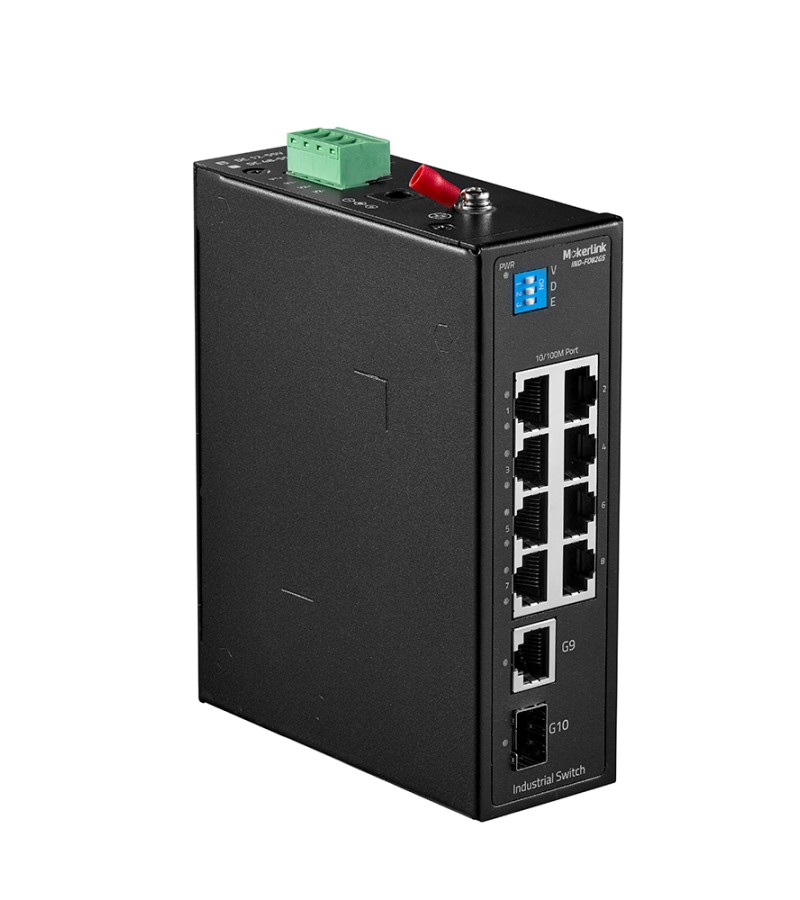

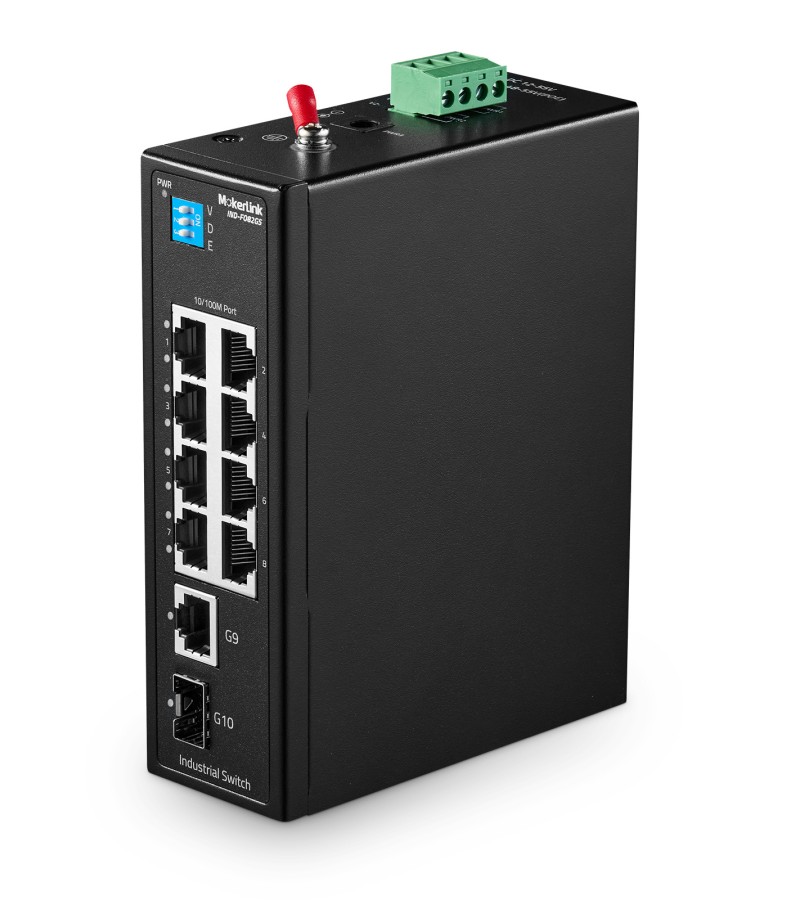

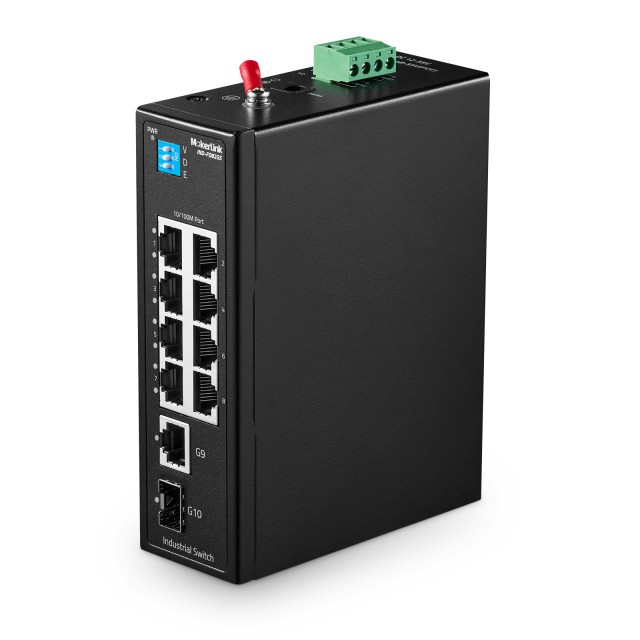

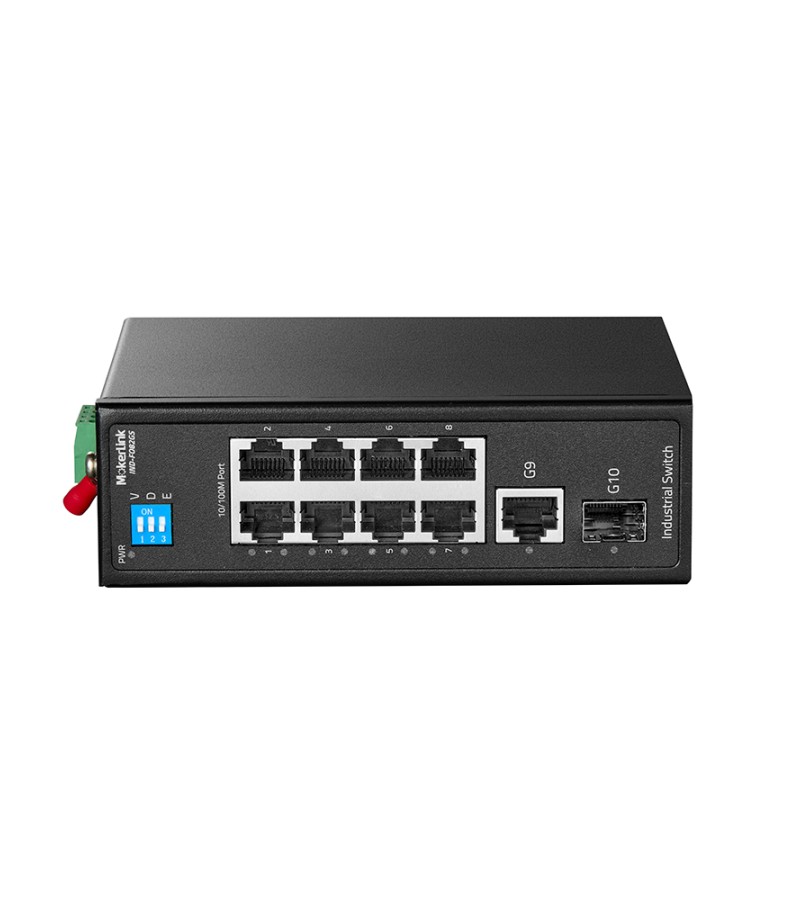

MokerLink 10 Port Industrial Din Rail Switch, 8 Ports 100Mbps,1 Gigabit Ethernet and 1 SFP Uplink, DIN-Rail & Wall Mount
8* 10/100M RJ45 Ports, 1* Gigabit Uplink port and1* Gigabit SFP Port. Vlan & Extend Mode, 1 DC input and 2 Industrial power(4 pin terminal) input, IP40 protection grade, working temperature -40~75°C(-40~185°F, plug and play, no configuration needed
- Brand: MokerLink
- Product Code: IND-F082GS
- Availability: In Stock
MokerLink 10-Ports Gigabit Uplink 100M 8-ports Ethernet Industry Switch support 8* 100M RJ45 Ports+1* Gigabit Uplink Ports+1* SFP Ports. Support DIN-Rail & Wall mounts，support double power supply input (DC12-55V), working temperature -40℃~ +75℃，It has passed the industrial environment certification. The reliable industrial design can ensure that your automation system runs without interruption and stability.
This series of industrial switches can be widely used in wind, electricity, assembly automation, subway PIS, power SCADA, sewage treatment, metallurgy, intelligent transportation, rail transportation, military and other industries,is a green low power industrial Ethernet switch.

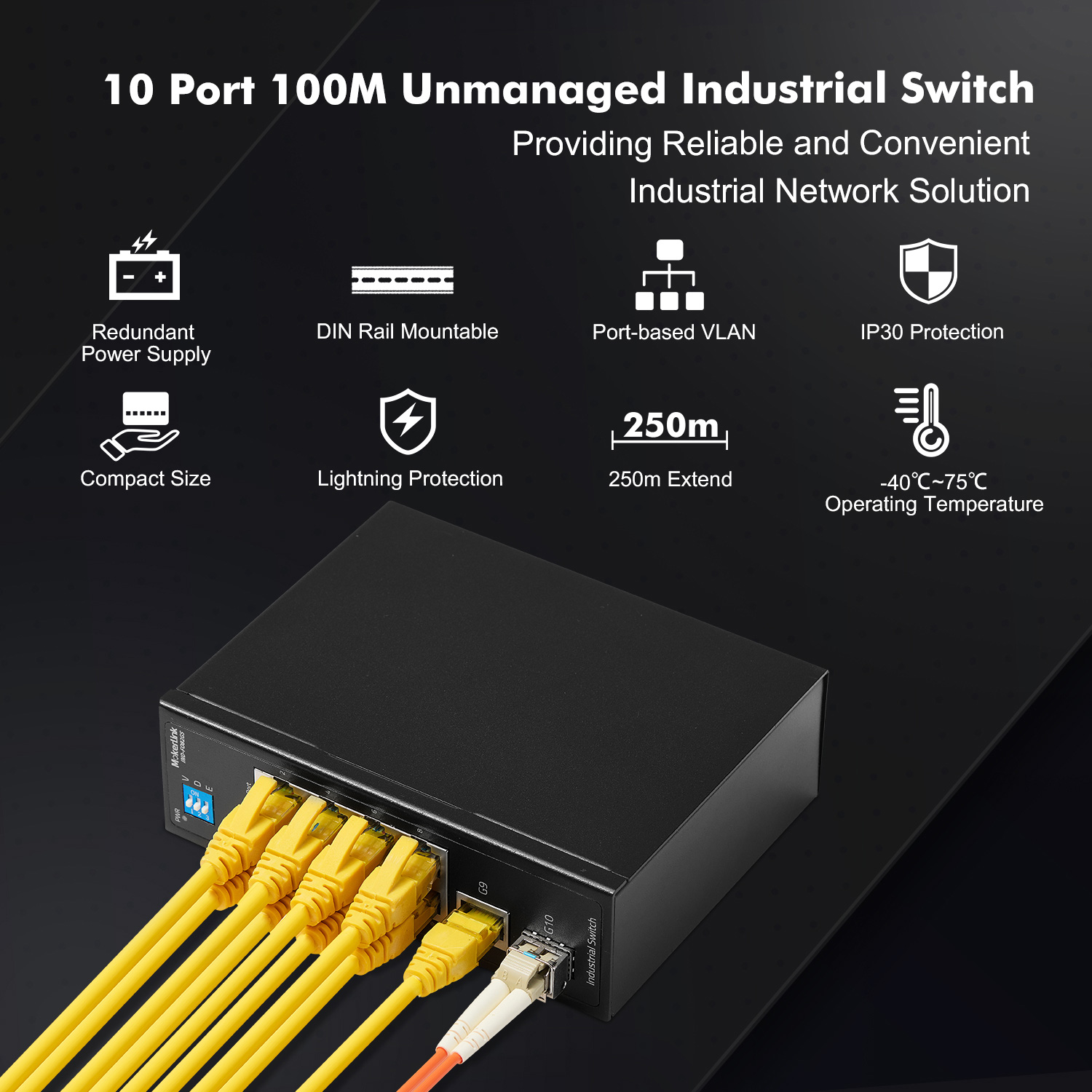

- Support 8* 100M RJ45 Ports+1* Gigabit Uplink Ports+1* SFP Ports.
- IP30 protect grade, high strength iron shell, DIN35 Rail installation
- Industrial grade 4 design, -40 to 85°C working temperature
- Support redundant power supply access, support anti-reverse connection
- Support VLAN, Extend, standard switch dial function
- Support port Surge Protection: Common mode 6KV, Differential mode 2KV; ESD 15KV, Contact 8KV

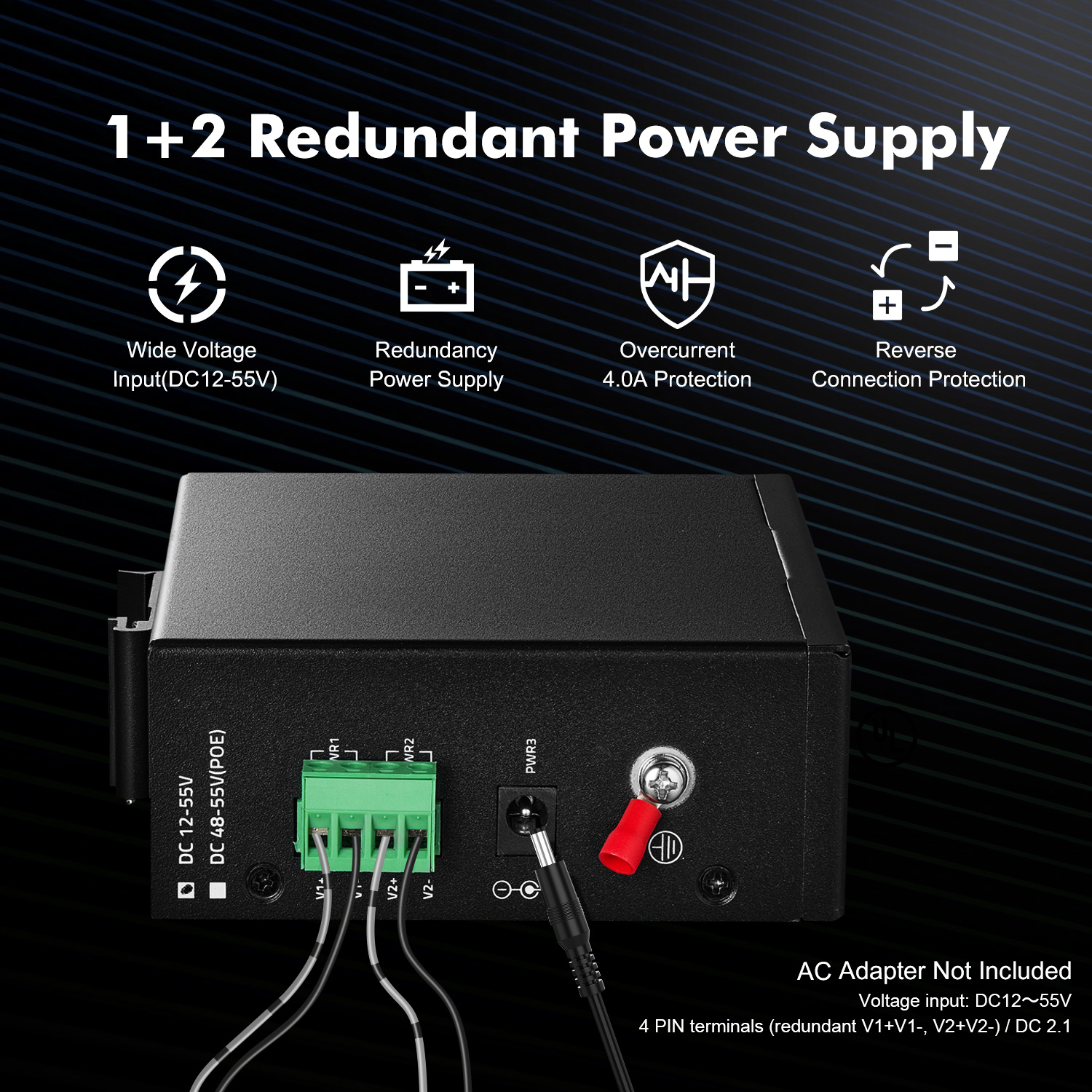

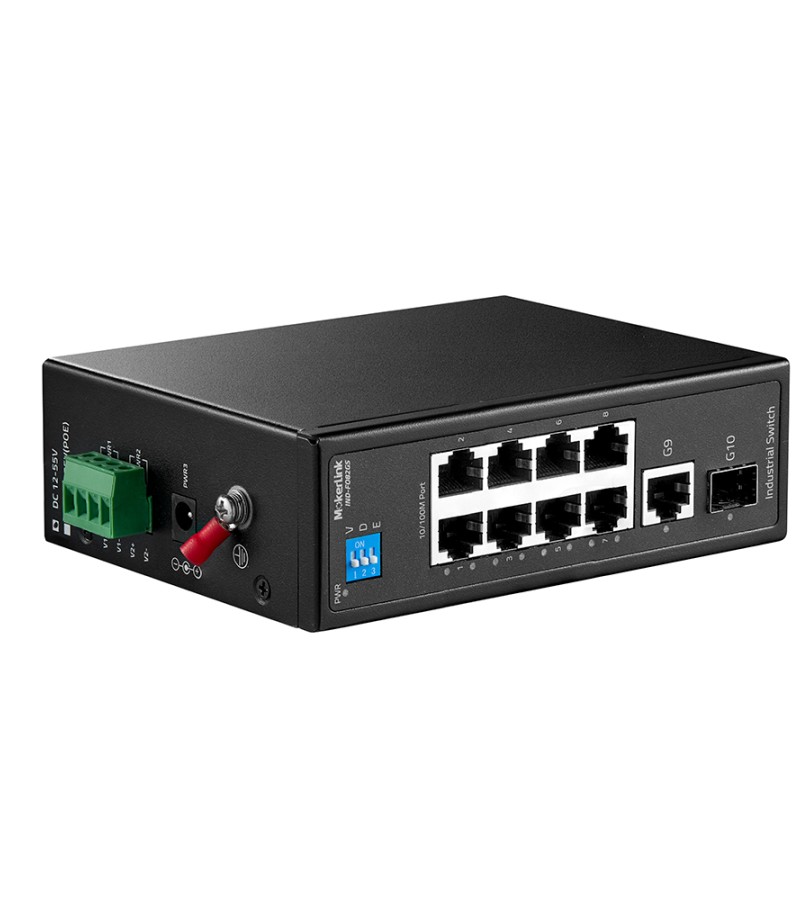

Redundant Power Supply
The industrial switch support triple redundant power supply(1*DC input +2*2 pin terminal input). Each of the power supplies will have the capacity to run the device on its own. This makes sure that the switch could operate normally even if one power supply fails.
IP30 Protection
10-Port unmanaged industrial switch adopt with high strength IP30 protective housing, industrial EMC design to increase the reliability of communication network.
Wide Temperature Operation
MokerLink industrial switches are designed with wide temperature support to ensure operation reliability in extreme temperatures ranging from -40ºC to +75ºC.
Compact Size
MokerLink industrial switches are housed in a compact sturdy metal case. the size is 138*108*44mm. you can mount it on the wall or cabinet.
Fiber Connectivity
10 port PoE industrial switch support 1 x gigabit uplink SFP port, The port10 use fiber cable to connect wired network segments throughout buildings or across campuses extending beyond the limitations of ethernet cabling.

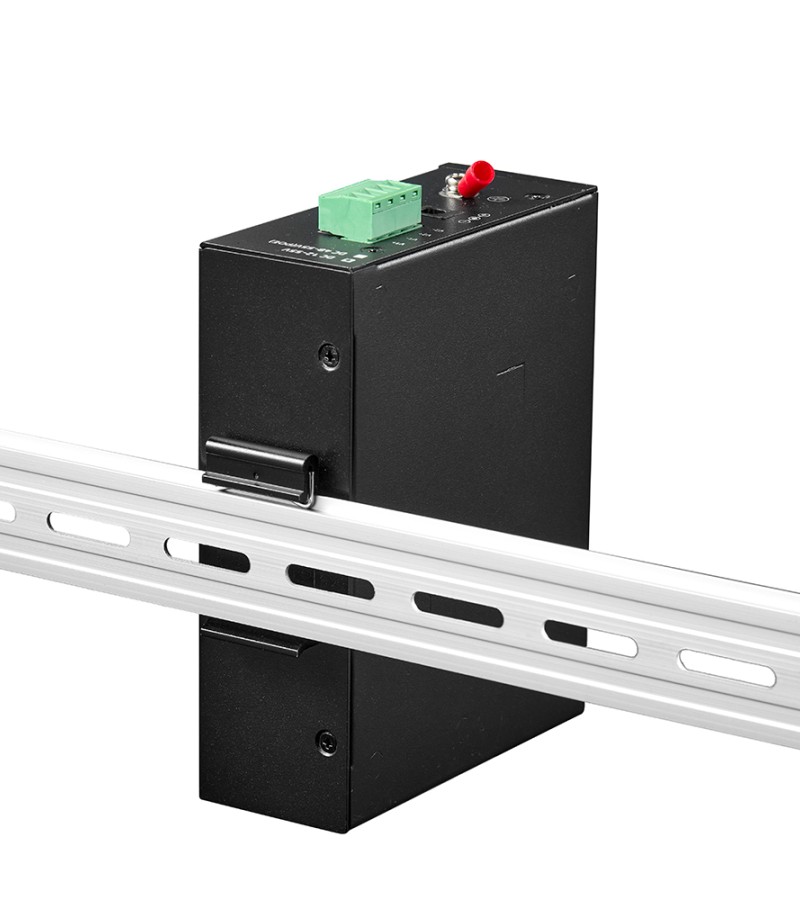

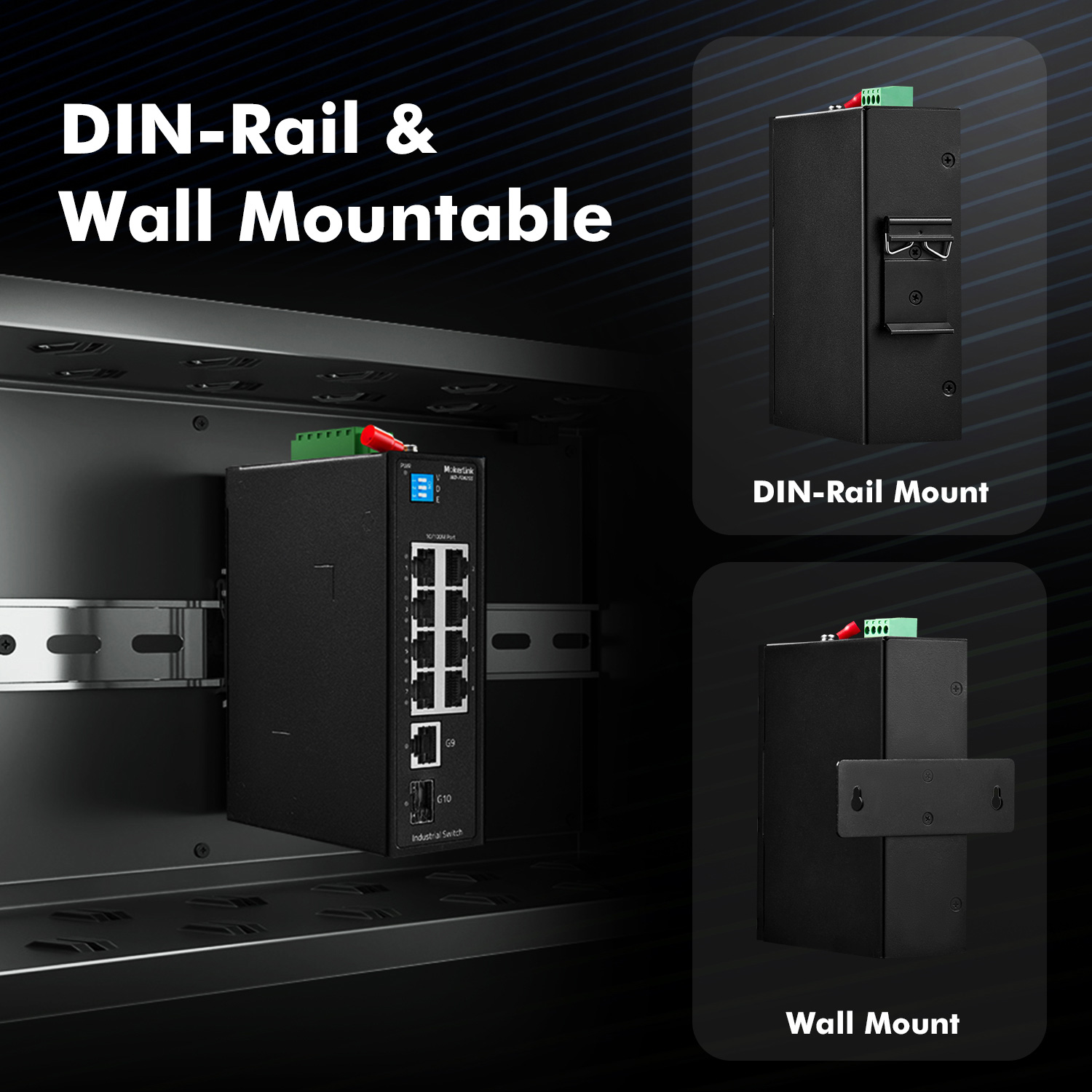

DIN-Rail & Wall Mountable
Ultra compact industrial switche can be mounted on a 35mm din rail and wall(wall mount kit included). Save time and space.

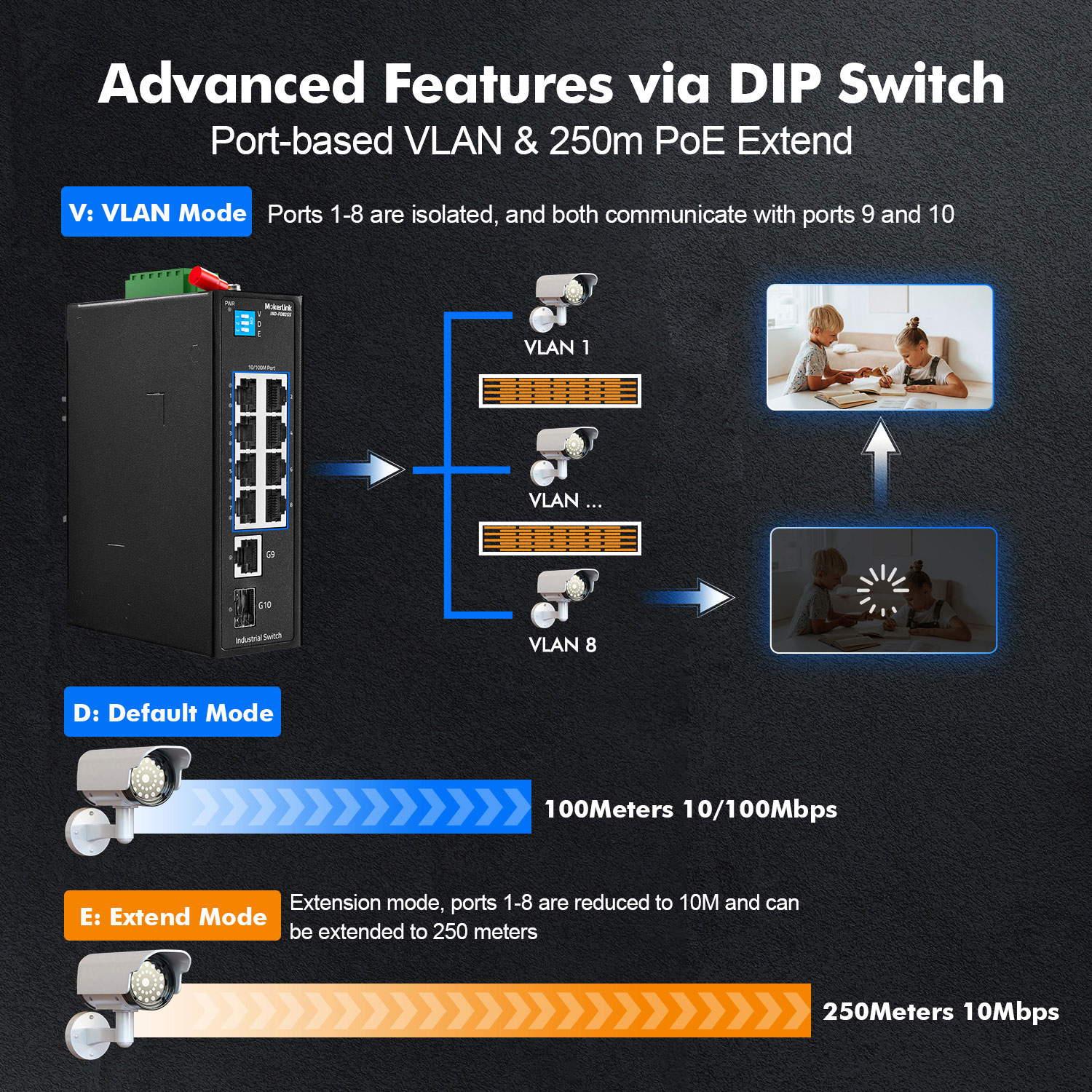

Link Extention to 250m
By dialing or enabling extend mode on the front panel, the transmission distance of a port can be up to 250m, meeting the requirement of wired transmission (bandwidth reduced to 10Mbps).
Port-based VLAN
When you enable the extend mode with DIP switch, switch divides traffic for ports 1-8 to prevent IP camera's muliticast or broadcast storm from affecting each other.
Lightning protection
The industrial switch's 4KV surge protection can adapt to harsh outdoor environment and ensure the reliability of the uninterrupted network system.
Ask Question About Product
| Ethernet Switch Hardware Specifications | |
| Product Model | IND-G082GS |
| Product Name | 10-Ports Gigabit Uplink 100M 8-Ports Ethernet Industry Switch |
| Ethernet Port | 8* 100M RJ45 Ports 1* Gigabit Uplink Ports 1*Gigabit SFP Ports |
| Switching Capacity | 5.6Gbps |
| Throughput | 4.166Mpps |
| MAC Address | 8K |
| Jumbo Frame | 9.6Kbytes |
| Transfer Mode | Store and forward |
| Mean Time Between Failure | 100000h |
| Network protocol | IEEE802.3 IEEE802.3u IEEE802.3z |
| Network Medium | 10BASE-T: Cat5 or more UTP(≤100 m) 100BASE-TX: Cat5 or more UTP(≤100 m) 1000BASE-TX: Cat5 or more UTP(≤100 m) |
| Fiber Medium | Multi-mode：850nm，1310nm. transmission distance：550m/2Km Single-mode：1310nm，1550nm. transmission distance：20/40/60/80/100/120Km |
| Lighting Protection | Common mode 6KV, Differential mode 2KV; ESD 15KV, Contact 8KV |
| Security Certificate | CE ，FCC，ROHS |
| Working Environment | Operating Temperature: -40～75℃ Storage Temperature: -40～85℃ Humidity: 5%~95 %( non-condensing) |
| LED Indicator | PWR, 1-8 Green, G10; PWR - Lighting：Powered, Un-Light：No Power; 1-8 Green - Blinking slowly: 10/100 links are normal, Off: link failure, Flash: link data transfer; G10 - Steady on: The optical fiber connection is normal, No light: no fiber connection, Flash: link data transfer |
| DIP Switch | V,G,E（open up, close down), V：VLAN mode, ports 1-8 are isolated, and both communicate with ports 9 and 10, G：Normal mode, enable watchdog, E：In extension mode, ports 1-8 are reduced to 10M and can be extended to 250 meters |
| Structure Size | Product Size：138×108×44 mm Packing Szie：245×190×60mm Product net weight: 0.567KG Product gross weight: 0.701 KG (excluding power supply) |
| Installation | DIN-Rail Mount |
| Shell | Black Color, Metal Shell, IP30 |
| Power Voltage | Voltage input: DC12～55V Power wiring: 4 PIN industrial terminals (redundant V1+V1-, V2+V2-) / DC 2.1 |

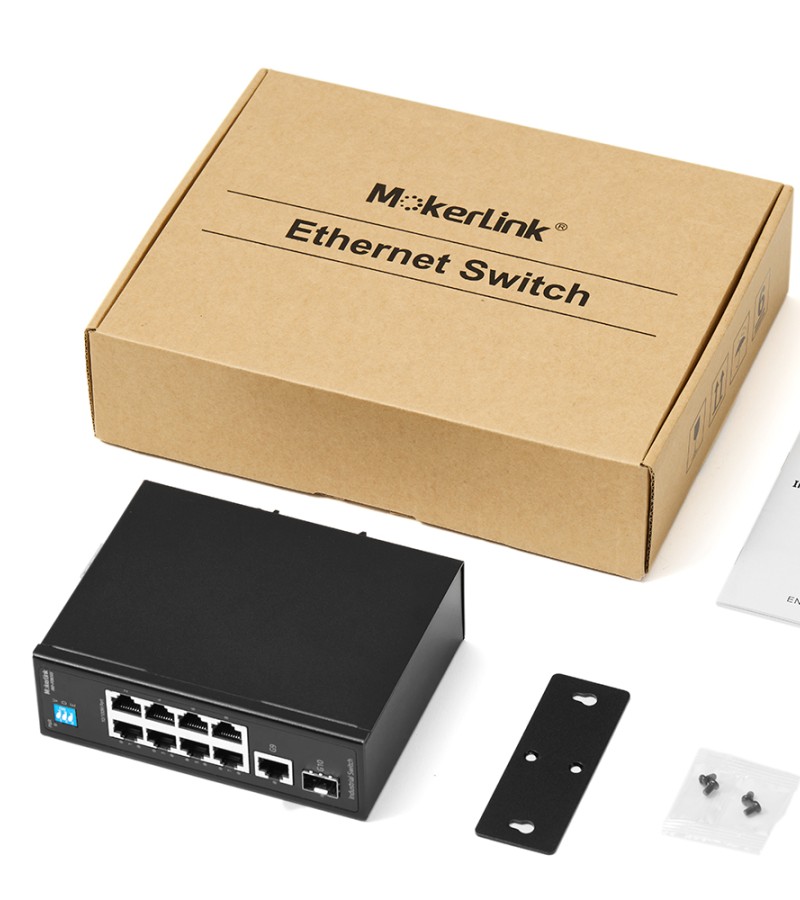

| Package List | Industrial Switch： 1 unit User Guide：1unit Certificate warranty card：1unit Hanging ears: 1 unit |
