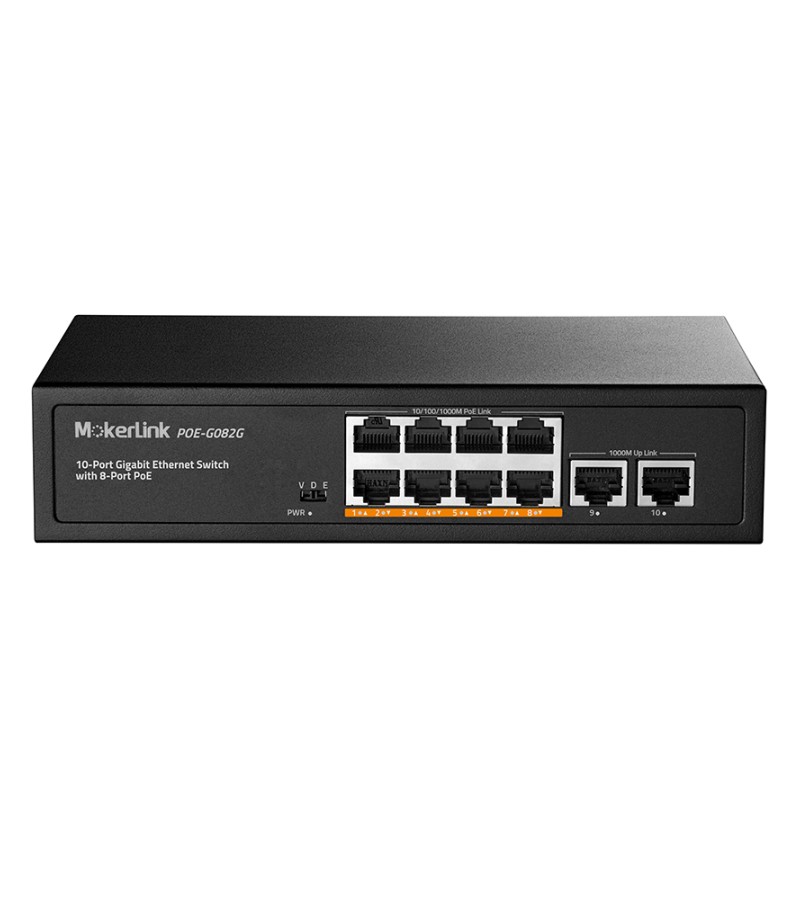

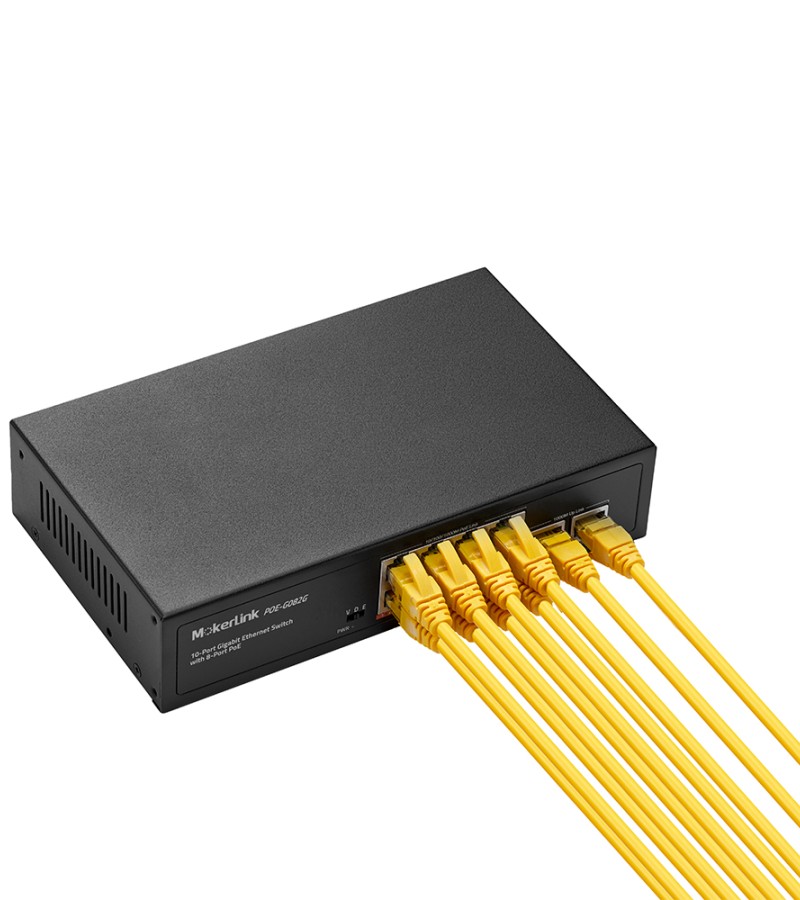

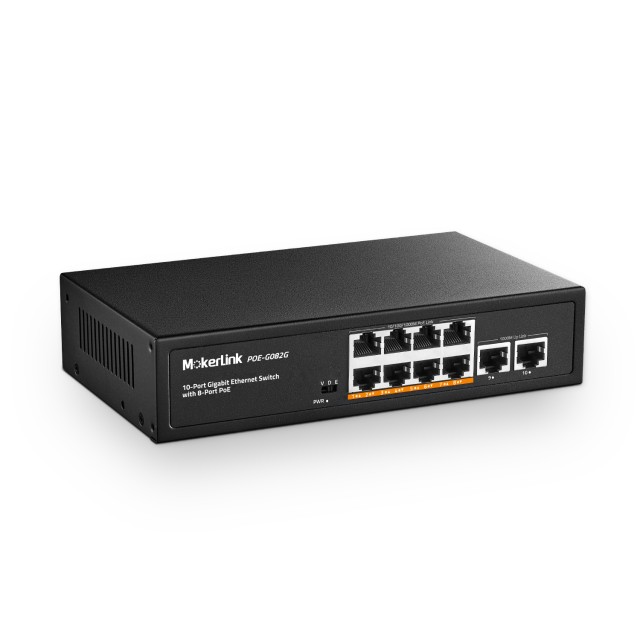

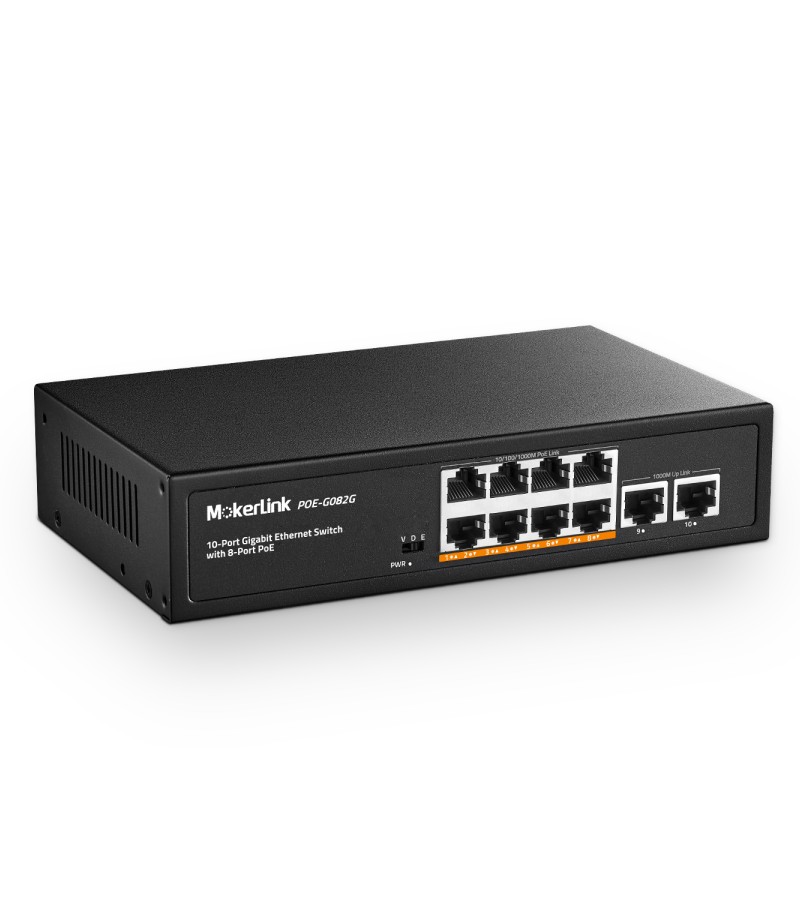

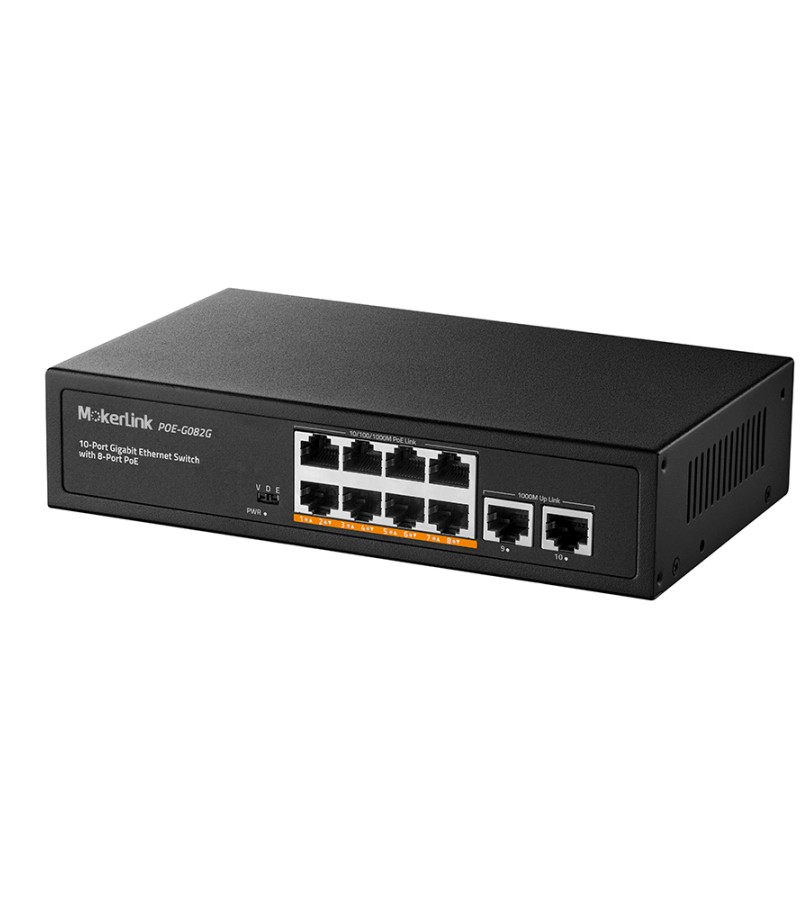

MokerLink 10 Port Gigabit PoE Switch, 8 GE PoE+, 2 GE Uplink, 10/100/1000Mbps, 120W 802.3af/at PoE, Fanless Plug & Play Ethernet Switch
8x gigabit POE+ ports, 2x gigabit UpLink, 10/100/1000Mbps automatic adaptation, Maximum support 120W high output power, built-in power supply, Unmanaged Plug & Play, Support port isolation and 250 PoE extend.
- Brand: MokerLink
- Product Code: POE-G082G
- Availability: In Stock
10-port gigabit ethernet PoE switch provide seamless connections to 10/100/1000M ethernet, PoE is an ethernet power supply that transmits data signals to IP-based terminals, such as IP phones, wireless access aps, and network cameras. and the PoE supply port can automatically detect and supply receiving devices meeting IEEE802.3af/at standard, non-PoE devices intelligently detect no power and only transmit data.
Power over Ethernet (PoE) technology transmits data signals for IP-based terminals (such as IP phones, APs, and network cameras) and provides DC power for the devices. These devices that receive DC power are called receiving devices.
With simple installation and maintenance methods and rich service functions, it helps users build high-performance networks that are secure and reliable. It is mainly located in industrial parks, buildings, factories, mines, government agencies, residential broadband and other user network core or fusion layer; it can be widely used in Ethernet access scenarios such as small and medium-sized enterprises, Internet cafes, hotels, and schools.
- 8*10/100/1000M PoE Ports +2*1000M Ethernet Ports;
- Support IEEE 802.3, IEEE 802.3u, IEEE 802.3u, IEEE802.3x standard;
- Ethernet Ports support 10/100/1000M self-adaptive;
- The AI mode is automatically enabled 10M speed for Ports 7-8 in Extend mode;
- POE priority is supported, from port 1 to port 8, which is enabled by default；
- Flow control mode: full-duplex adopts IEEE 802.3x standard, half-duplex adopts Back pressure standard;
- Zero configuration feature, automatically supplied to adaptive equipment;
- Panel indicator monitoring status and help failure analysis;
- With DIP switch, support VLAN, Default and Extend modes.
- Metro Optical Broadband Network: Data network operators such as telecommunications, cable TV, and network system integration,etc.
- Broadband private network: Suitable for financial, government, oil, railway, electric power, public security, transportation, education and other industries
- Multimedia transmission: Integrated transmission of images, voice and data, suitable for remote teaching, conference TV, videophone and other applications
- Real-time monitoring: Simultaneous transmission of real-time control signals, images and data.
Ask Question About Product
|Ethernet Switch Hardware Specifications|
|Product Name||10 Port Gigabit Ethernet Switch with 8 PoE|
|Ethernet Port||8* Gigabit PoE Ethernet Ports 2* Gigabit Uplink Ethernet Port|
|Transfer Mode||Store and forward|
|Mean Time Between Failure||100000 hour|
|Network protocol||IEEE802.3 (10Base-T) IEEE802.3u (100Base-TX) IEEE802.3ab (1000Base-TX) IEEE802.3x (Flow control)|
|PoE Protocol||IEEE802.3af (15.4W) IEEE802.3at (30W)|
|PoE Pin||1/2(+), 3/6(-)|
|PoE Power Budget||120W|
|Industry Standard||EMI: FCC Part 15 CISPR (EN55032) class A EMS: EN61000-4-2 (ESD), EN61000-4-5 (Surge)|
|Network Medium||10Base-T : Cat3, 4, 5 or above UTP(≤100m) 100Base-TX : Cat5 or above UTP(≤100m) 1000Base-TX : Cat5 or above UTP(≤100m)|
|Working Environment||Working Temperature: -10~50°C Storage Temperature: -40~70°C Working Humidity: 10%~90%, non-condensing Storage Temperature: 5%~90%, non-condensing|
|LED Indicator||PWR (Power), 1-10 Green Light (Link&amp;amp;amp;Data), PWR On: Powered on, Off: Powered off, 1-10 Green Light (Link&amp;amp;amp;Data) On: Link normal, Off: Link blocked, Flashing: Data transmitting|
|DIP Switch||VLAN：Isolation mode. Ports 1 to 8 are isolated and communicate with the upstream interface. Default：Normal mode, all interfaces can communicate with each other, the transmission distance is less than 100 meters, the transmission rate is 10/100/1000M adaptive; The port AI mode is disabled. Extend：Link extension mode, 7-8 ports force 10M, transmission distance extend to 250M.|
|Structure Size||Product size: 200*118*44mm Package size: 245*190*60mm Net weight: 0.71KG Gross weight: 0.99KG|
|Shell||Black Color, Metal Shell|
|Power Voltage||Input voltage: AC100-240V, Power supply: 52V2.3A (120W)|
|Package List||Switch 1 PC, Power cord 1 PC, User manual 1 PC|
