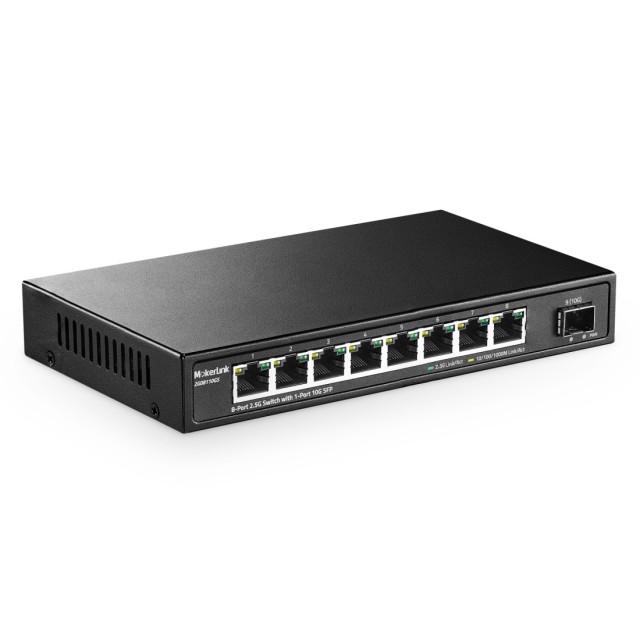

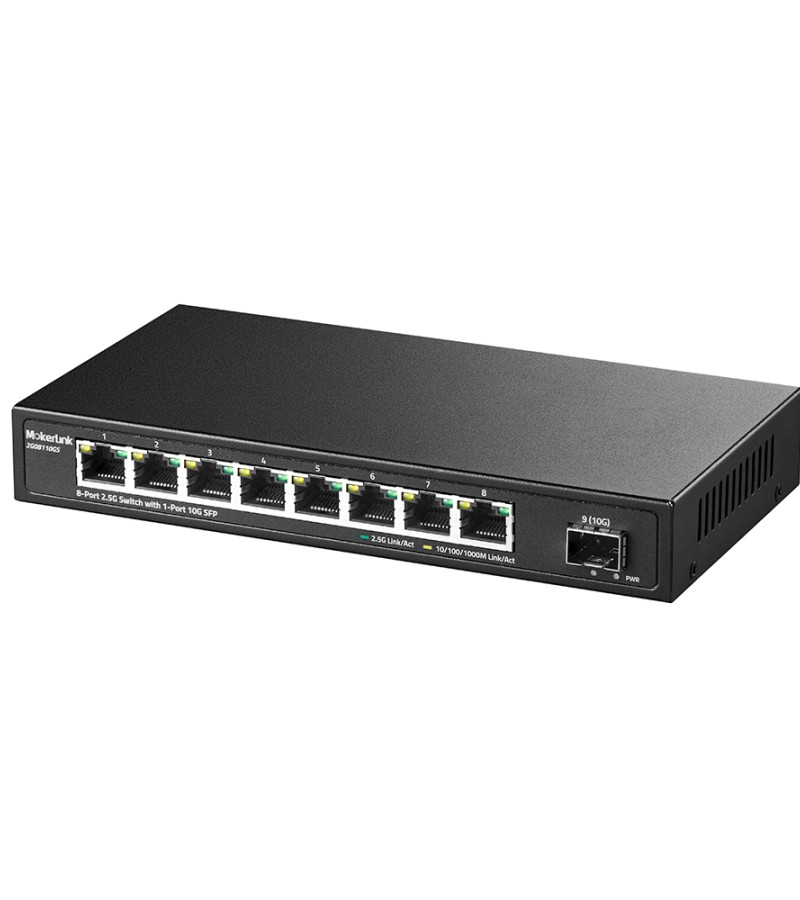

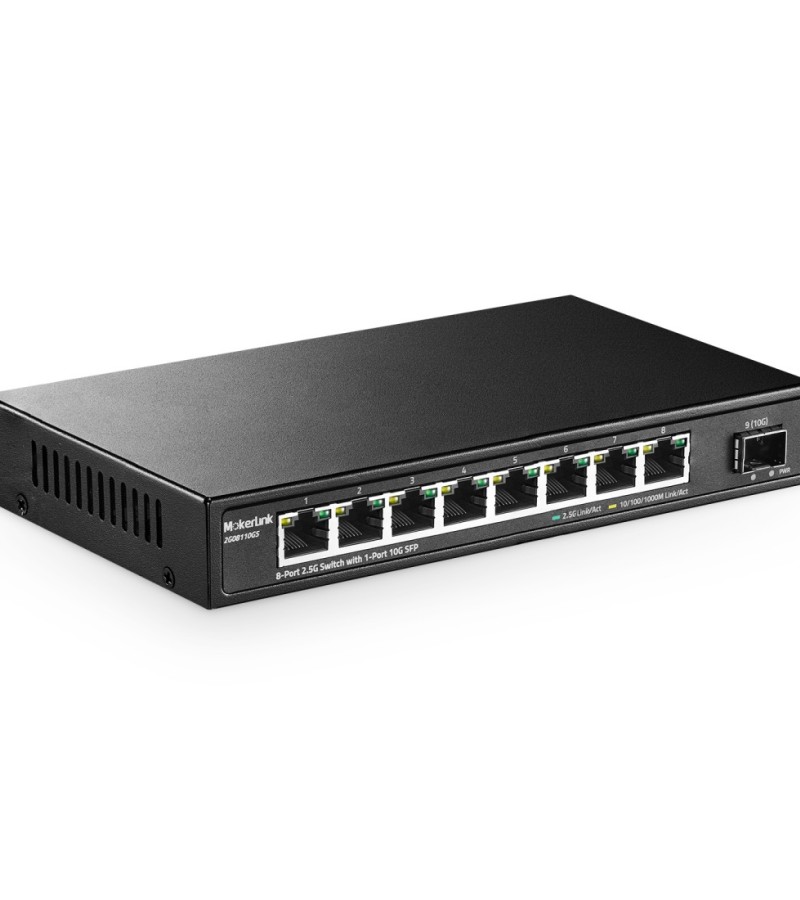

MokerLink 8 Port 2.5G Ethernet Switch with 10G SFP, 8 x 2.5G Base-T Ports Compatible with 10/100/1000Mbps, Metal Unmanaged Fanless Network Switch

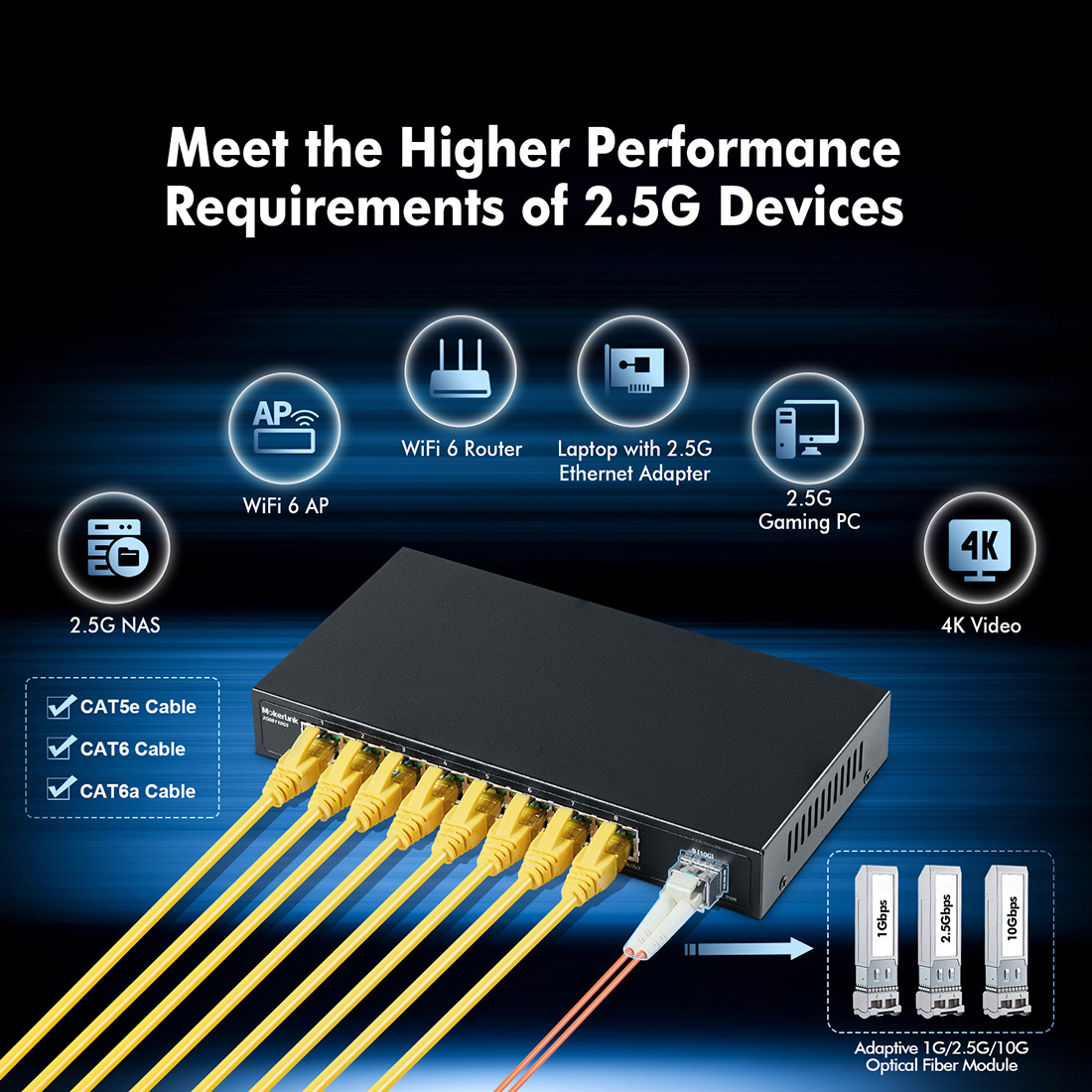

8 x 2.5G RJ45 ports and 1 x 10G SFP+ port, SFP slot support 1G/2.5G/10G module. Unmanaged Plug and Play, Metal Fanless, desktop/wall-mounting design, well-suited for 4K video, gaming PC, NAS, PCIe Adapter, Server, WiFi 6 AP

$109.99 Price drop reminder
  • Brand: MokerLink
  • Product Code: 2G08110GS
  • Availability: In Stock

Total $109.99

Product overview

The 9 port 10G uplink 2.5G Ethernet switch adopts the network chip solution of high quality and high speed. The product is designed to be fan-free and quiet, which completely solves the problem of loud noise of small switches deployed in the office environment. The switch has 8* 2.5G RJ45 ports and 1* 10G SFP port, providing seamless connection to 10/100/1000M/2.5G Ethernet for easy management and maintenance. The switch can be widely used in security network video surveillance, hotels, campuses, and network engineering of small and medium-sized enterprises。



Main Feature

8 * 2.5 G RJ45 port +1* 10 G SFP ports

Support IEEE 802.3、 IEEE802.3u、 IEEE 802.3ab、 IEEE 802.3bz、 IEEE 802.3ae、 IEEE 802.3x

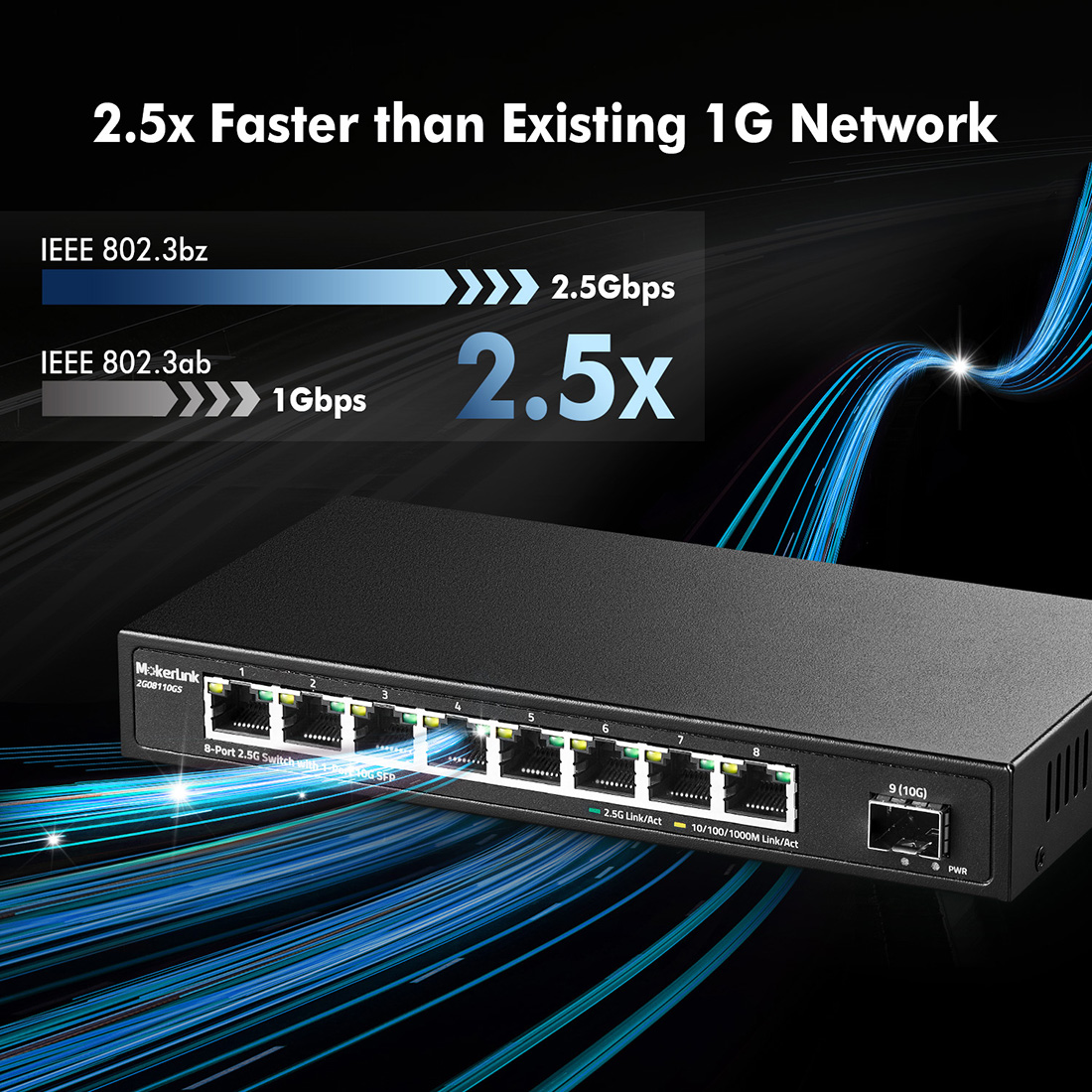

Ethernet port support 10/100/1000 m / 2.5 G adaptive

Supports automatic port rollover(Auto MDI/MDIX)

Panel indicators monitor working status and assist in fault analysis

Flow control mode, full duplex adopts IEEE802.3x standard, half duplex adopts Backpressure standard

Support lightning protection: common mode 6KV; Electrostatic air 8KV, contact 6KV



Application environment

Metropolitan area optical fiber broadband network: telecom, cable TV, network system integration, such as number, according to network operators

Broadband private network: applicable to financial, government, oil, electric power, public security, education and other industries private network

Multimedia transmission, image, voice and data integrated transmission, for remote teaching, meeting TV, video phone and other applications

Real-time monitoring: real-time control signal, image and data transmission



Ask Question About Product

Note: HTML is not translated!
Ethernet Switch Hardware Specifications
Product Model2G08110GS
Product Name9 Ports 10G Uplink 2.5G Ethernet Switch

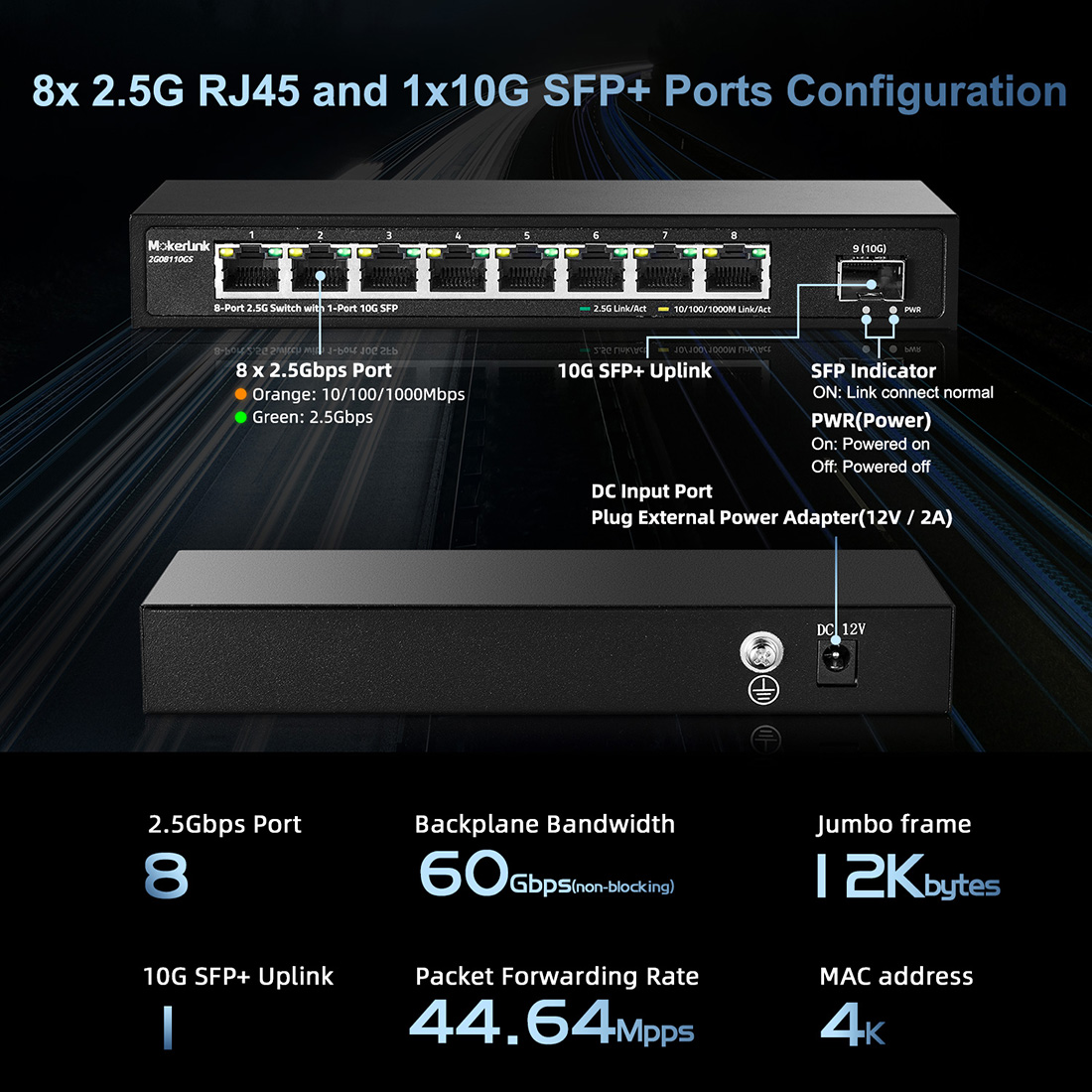

Ethernet Port8*2.5G RJ45 ports + 1*10G SFP ports
Switching Capacity60Gbps
Throughput44.64Mpps
MAC Address4K
Jumbo Frame12Kbytes
Transfer ModeStore and forward
Mean Time Between Failure100000 hour
Network protocol IEEE802.3 (Ethernet) IEEE802.3u (Fast Ethernet) IEEE802.3ab(Gigabit Ethernet) IEEE 802.3bz(5G Ethernet) IEEE 802.3z(Gigabit Ethernet) IEEE 802.3ae(10G Ethernet) IEEE802.3x (Flow control)
Industry StandardEMI: FCC Part 15 CISPR (EN55032) class A EMS: EN61000-4-2 (ESD)、 EN61000-4-5(Surge)
Network Medium10Base-T : Cat3, 4, 5 or above UTP(≤100m) 100Base-TX : Cat5 or above UTP(≤100m) 1000Base-TX : Cat5 or above UTP(≤100m)
Security CertificateCE、FCC、RoHS
Working EnvironmentOperating temperature: -10~50°C Storage temperature: -40~70°C Operating humidity: 10%~90%, no condensation Storage humidity: 5%~90%, no condensation

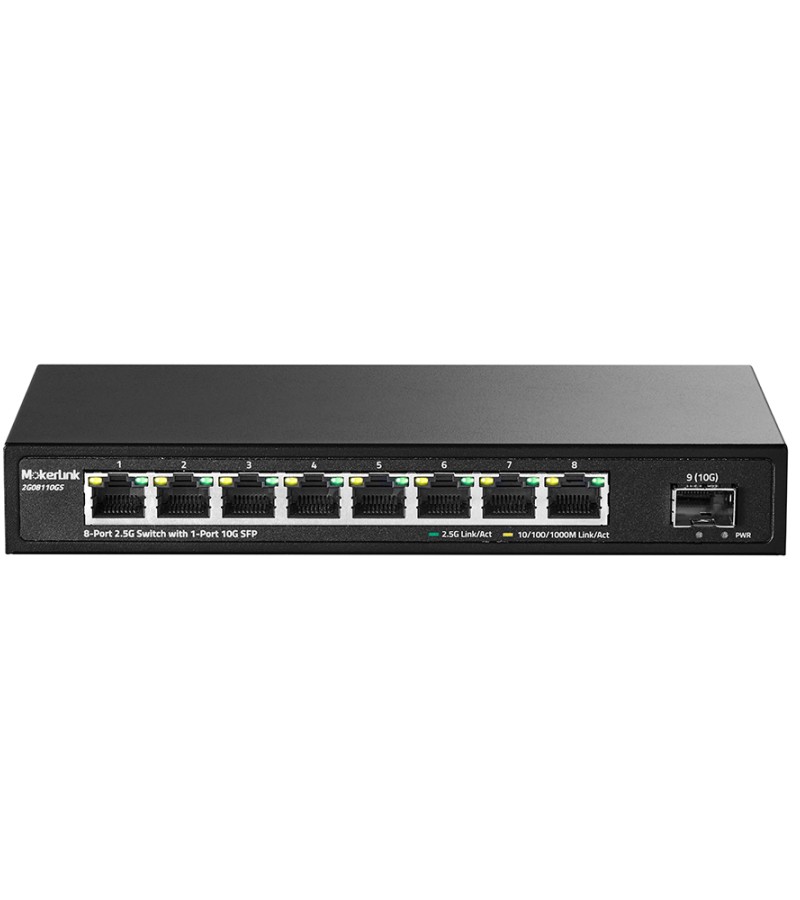

LED IndicatorPWR(Power indicator)On: Powered on, Off: Powered off, 1-8 Network port yellow indicator On: 2.5G, Link connect normal, Off: Link off, Flashing: data transmitting, 1-8 Network port green indicator Lighting, Connecting, Flashing: Data Transmit, Un-Light: Disconnect, Flashing: data transmitting
Structure SizeProduct size: 190*100*28mm Package size: 245*190*60mm Product weight: 0.49KG Packing weight: 0.71KG
InstallationWall Mount
ShellBlack Color, Metal Shell

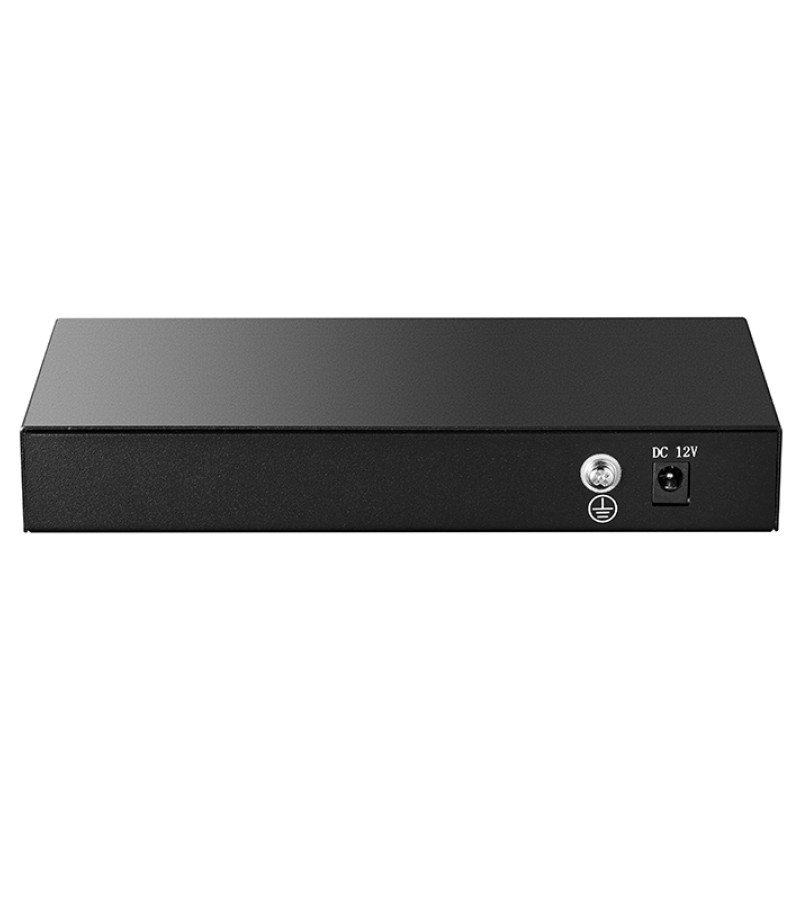

Power VoltageAdapter input voltage: AC 100-240 V Switch input voltage: DC 12V2A

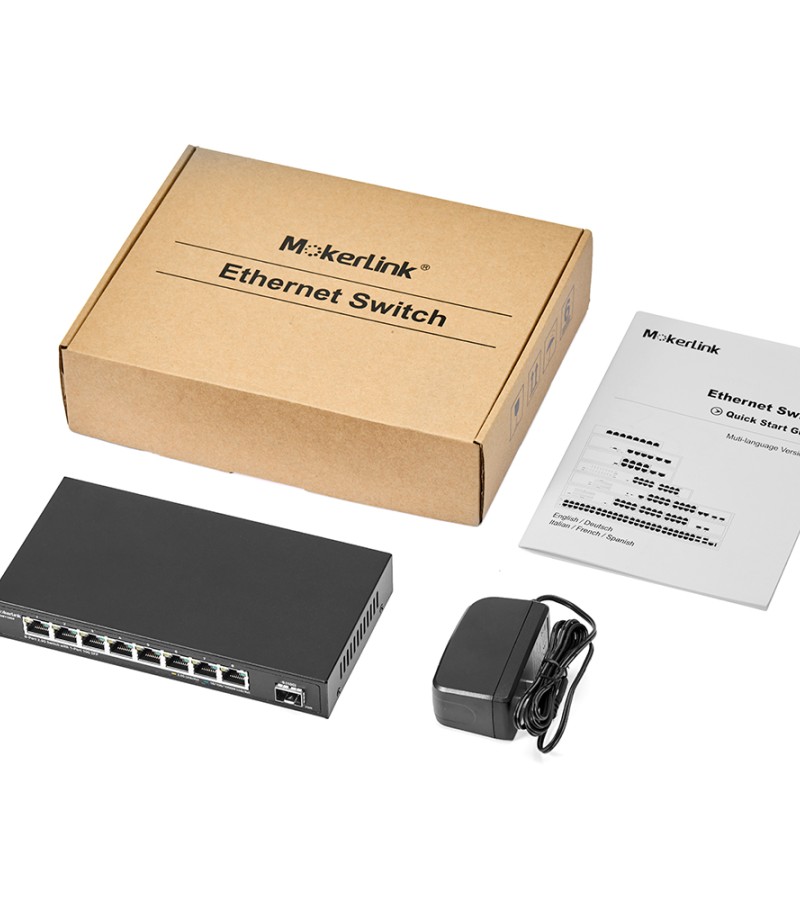

Package ListSwitch 1 PC, Power adapter 1pc, User manual 1 PC
  • All(0)
  • Good(0)
  • Fair(0)
  • Poor(0)
  • Image(0)
Name Size Date Added
Ethernet Switch Series Quick Strart Guide 1.87MB 01/12/2022 15:15:56
2G08110GS_DataSheet 404.09KB 14/03/2023 11:33:31
