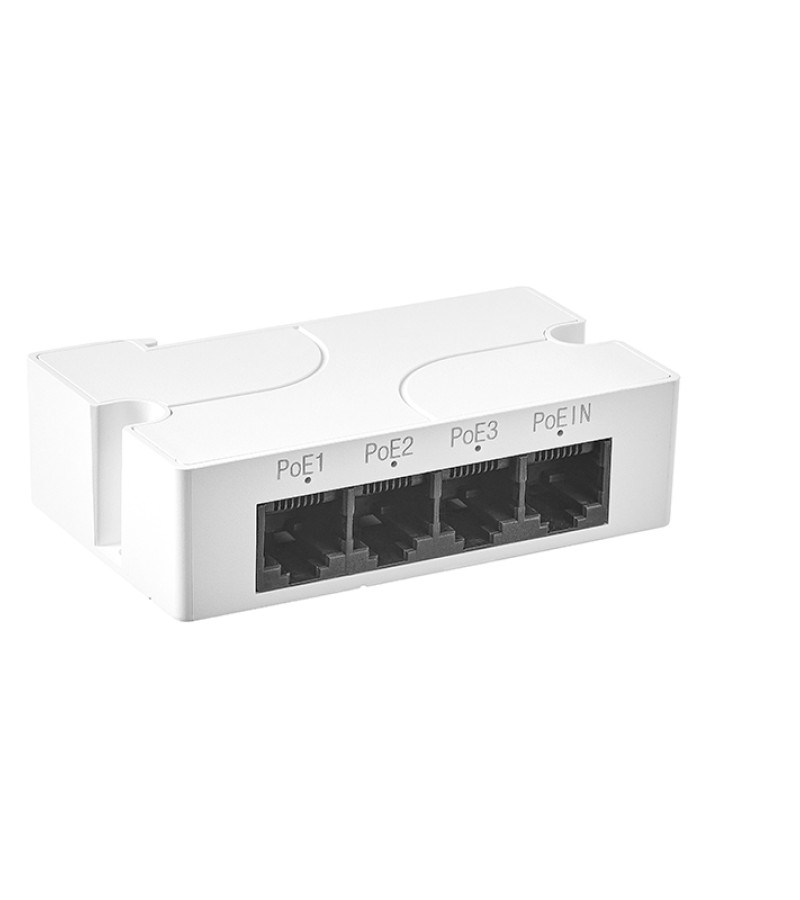

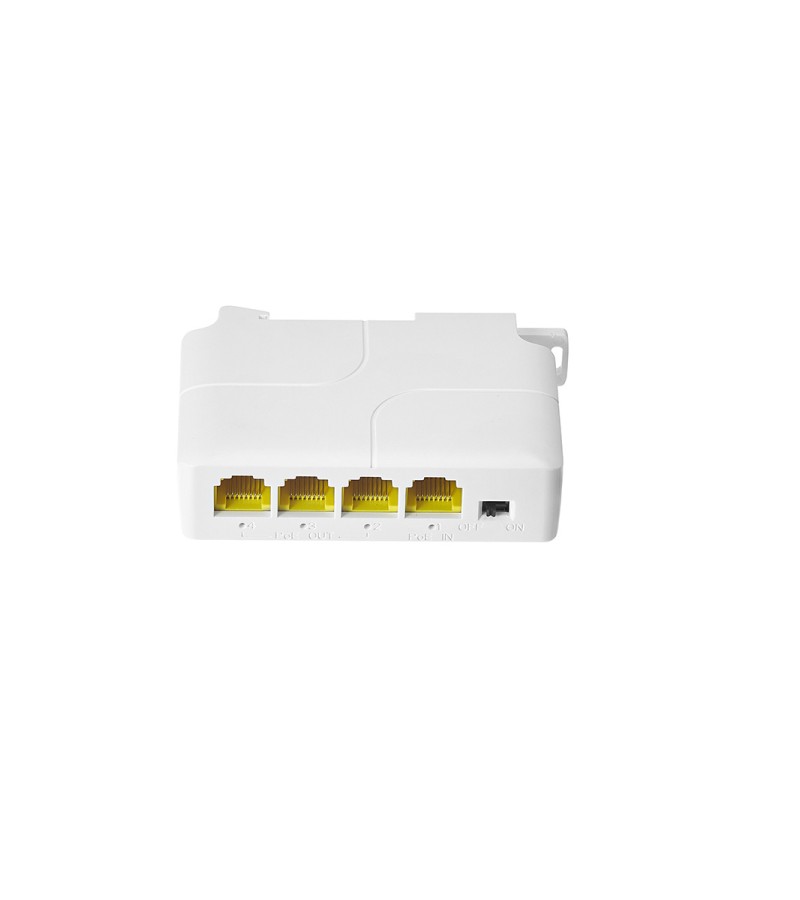

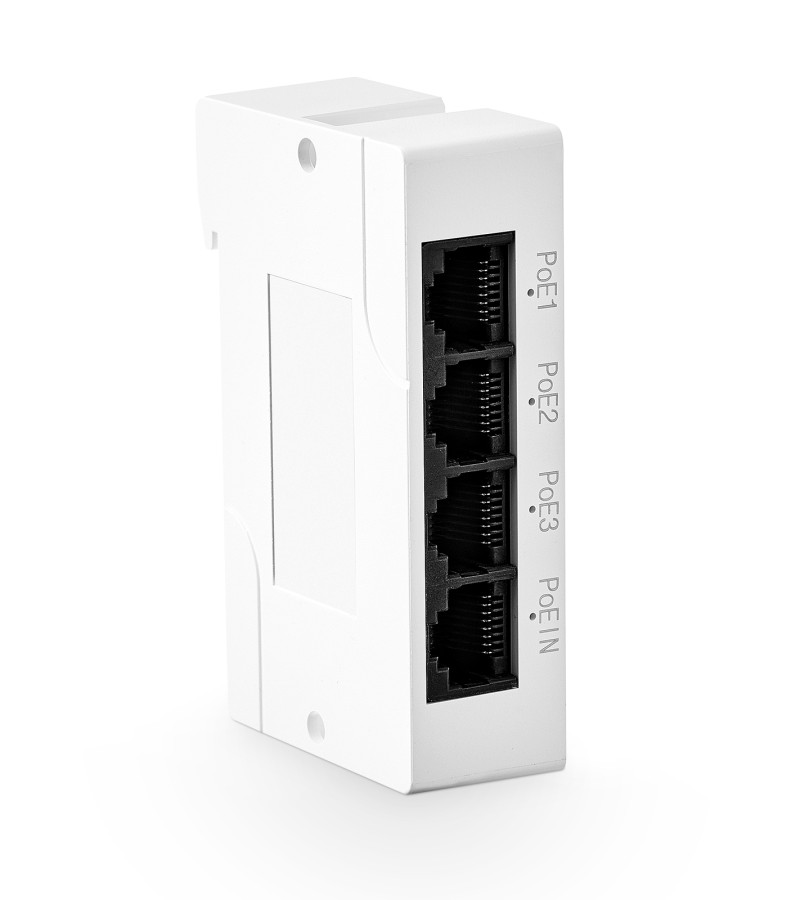

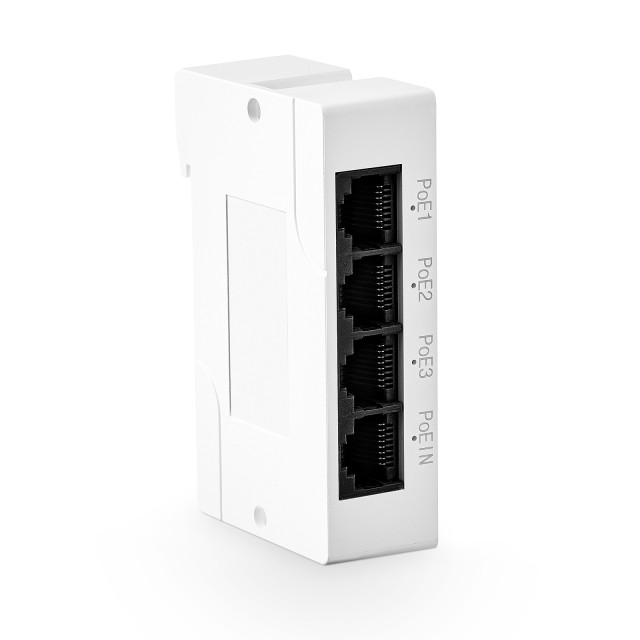

MokerLink 4 Port Gigabit PoE Extender, IEEE 802.3 af/at PoE Repeater, 10/100/1000Mbps, 1 PoE in 3 PoE Out, Wall & Din Rail Mount POE Passthrough Switch

1 PoE In, 3 PoE Out, 10/100/1000Mbps speed, support IEEE 802.3af/at standard, Input Max 30W, Output Max 24W, Unmanaged Plug & Play, support wall mount and din rail mount

$39.99 Price drop reminder
  • Brand: MokerLink
  • Product Code: EXT-AT13G
  • Availability: In Stock

Total $39.99

3-Port IEEE802.3 af/at gigabit PoE extender uses advanced network cable drive technology and power supply technology to break through the limit of ethernet transmission distance within 100 meters, and can extend the 1000BASE-T electrical signal to 1000ft(300 meters). It is powered by PoE switch/POE Injector that support IEEE802.3af/at. The product also applicable to non-PoE switches and can be widely used in security PoE network monitoring and PoE network engineering. Using high-quality and high-speed network IC and the most stable PoE chip to ensure the safe and stable operation of your.

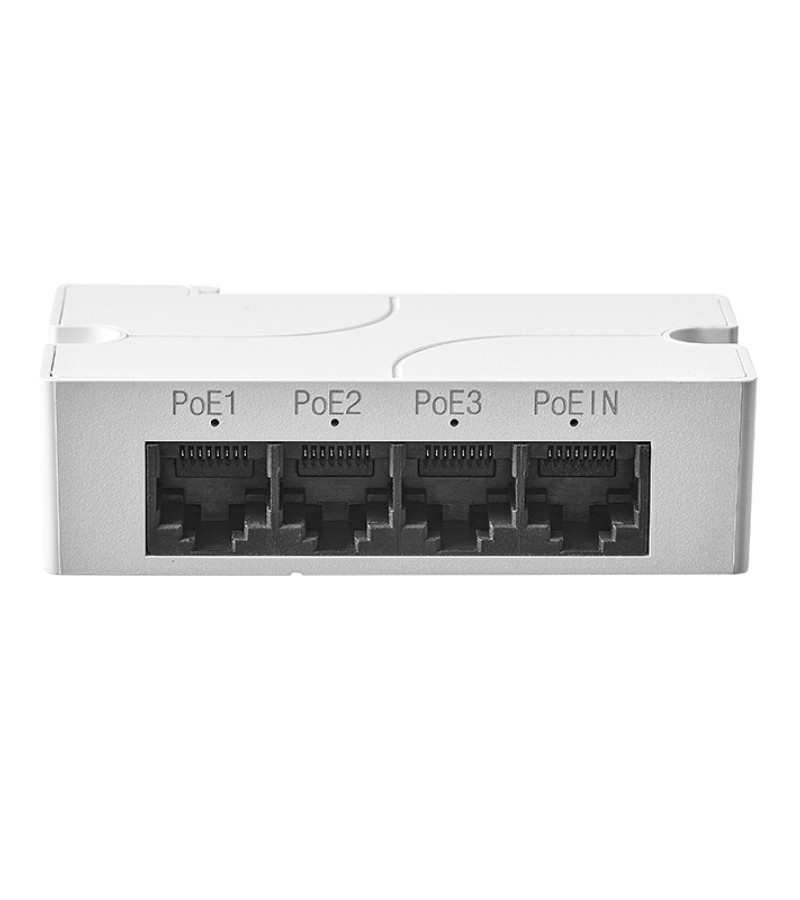

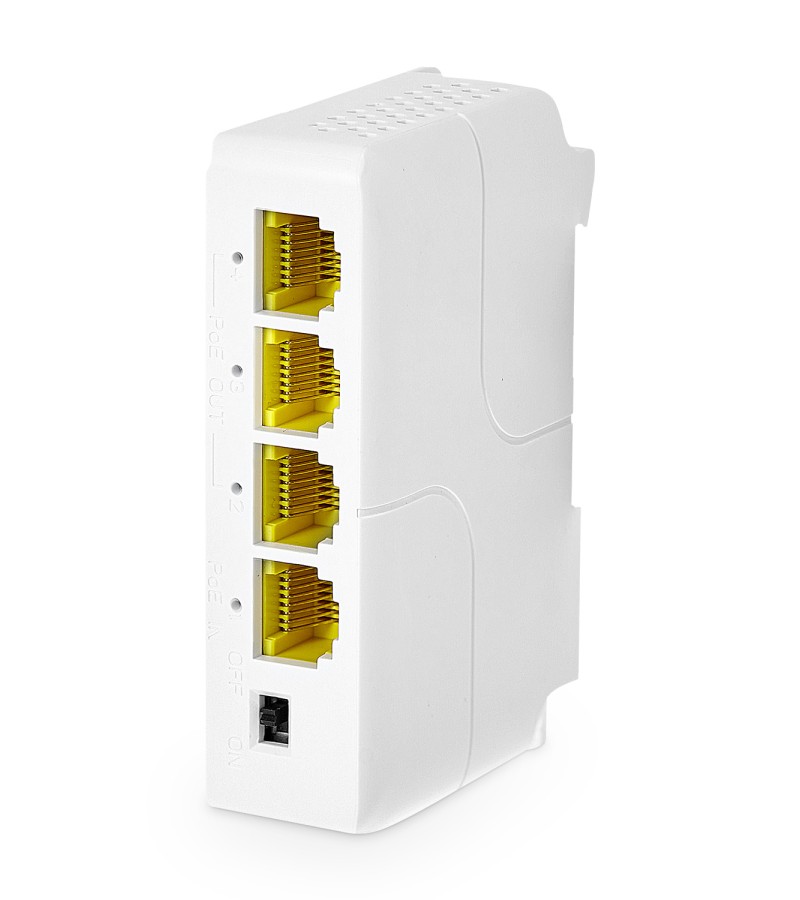

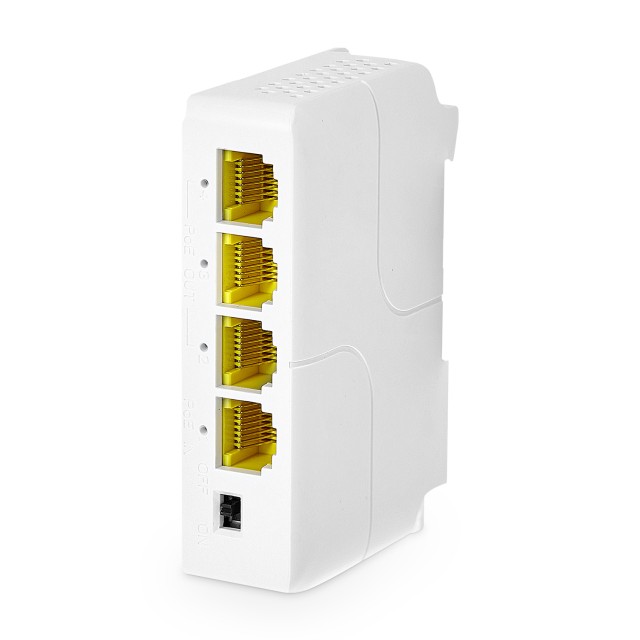

  • 1*10/100/1000Mbps PD Ethernet Port + 3*10/100/1000Mbps PoE Port.
  • Comply with IEEE 802.3、IEEE 802.3u、IEEE 802.3af/at Standards.
  • Input Max 30W, Output Max 24W.
  • Ethernet Port Supports 10/100Mbps adaptive and PoE functions.
  • Support Port Auto Flip (Auto MDI/MDIX).
  • Panel indicator monitoring status and help failure analysis.
  • Flow control mode: full-duplex adopts IEEE802.3x standard, half-duplex adopts Back pressure standard.
  • Plug and Play, no configuration is required.
  • DIN-rail and wall mountable.

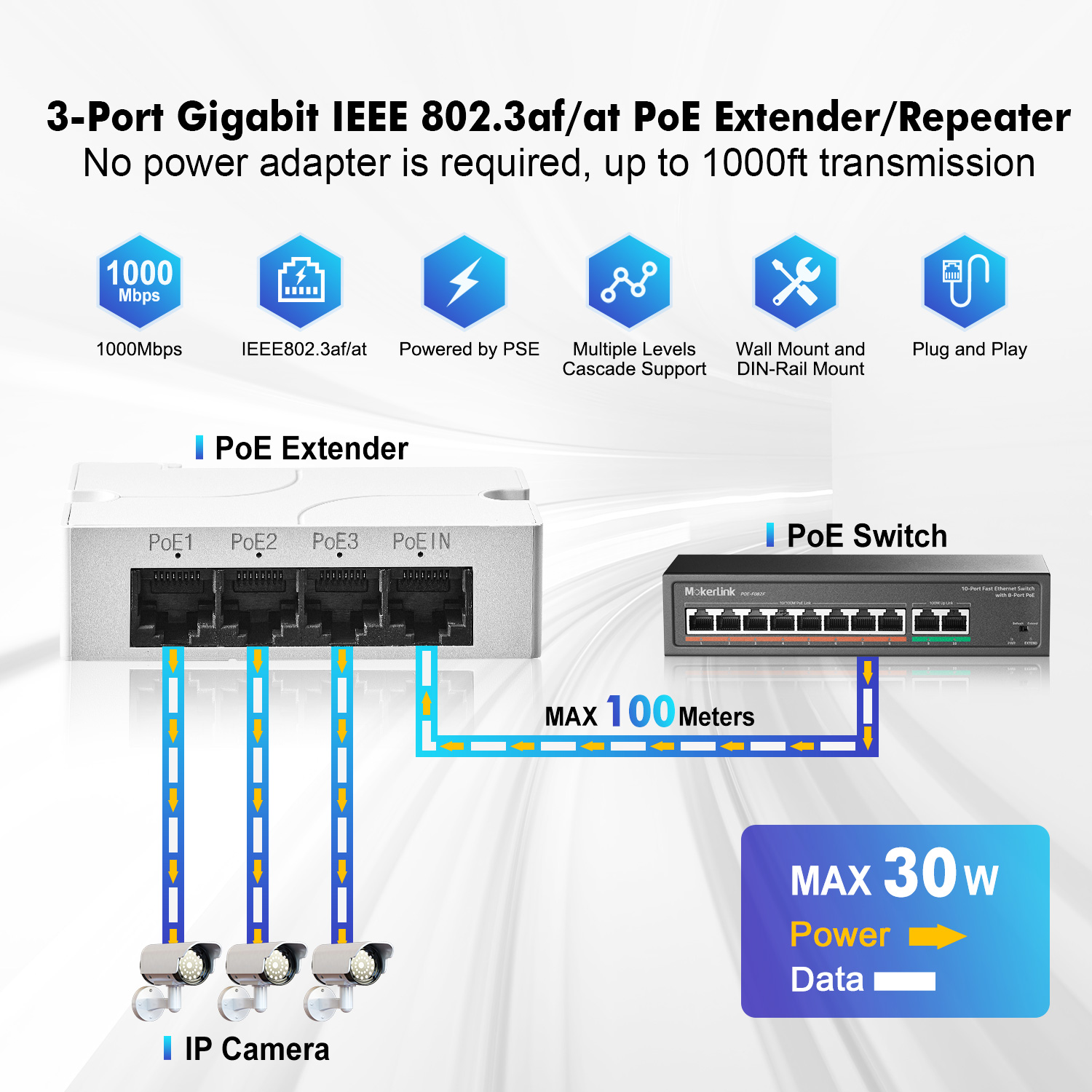

PoE Powered and 1000ft Extension Distance

The PoE extender is powered by PoE Switch/PoE NVR/PoE Injector that comply with IEEE 802.3af/at Standards. It extends a single PoE/PoE+ network connection up to an additional 100m (328 ft.) for a remote PoE or PoE+ device.

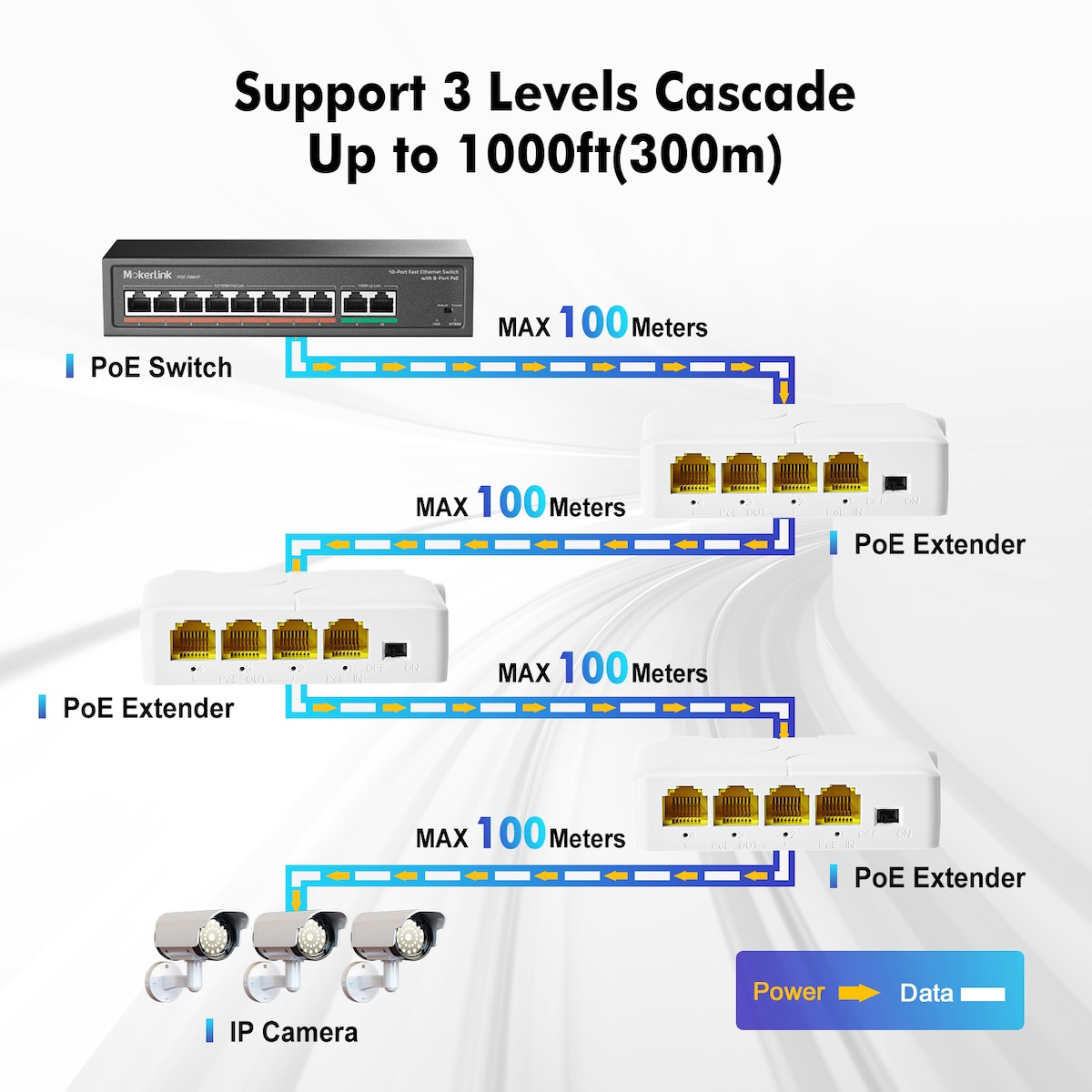

The PoE extender also supports 3 levels cascade deployment, the transmission distance up to 1,000ft(300m).

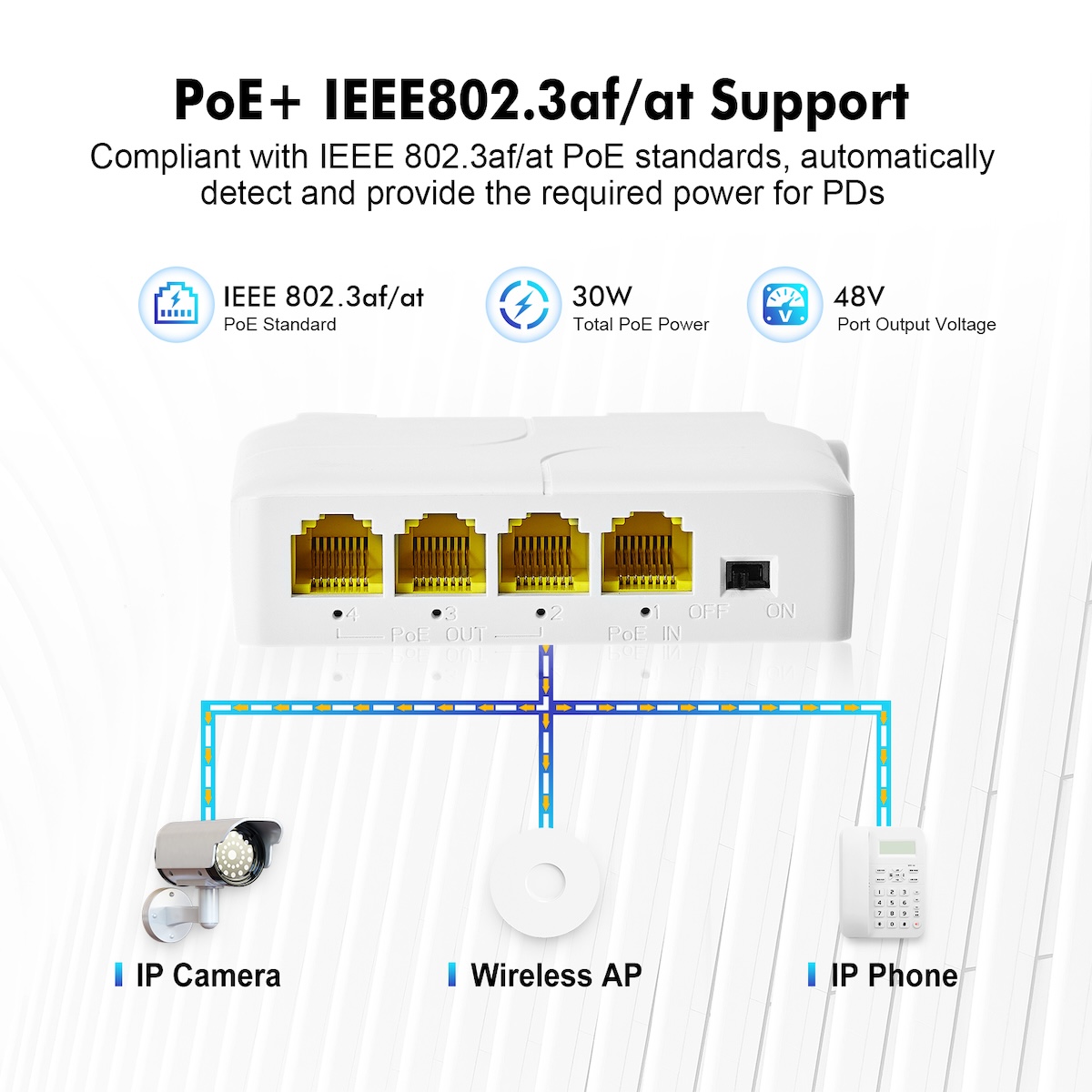

IEEE802.3af/at (PoE/PoE+) Support

The 3 PoE out ports compatible with IEEE802.3af/at standard, It determines and delivers the exact power supply to your devices with up to 30W power output.

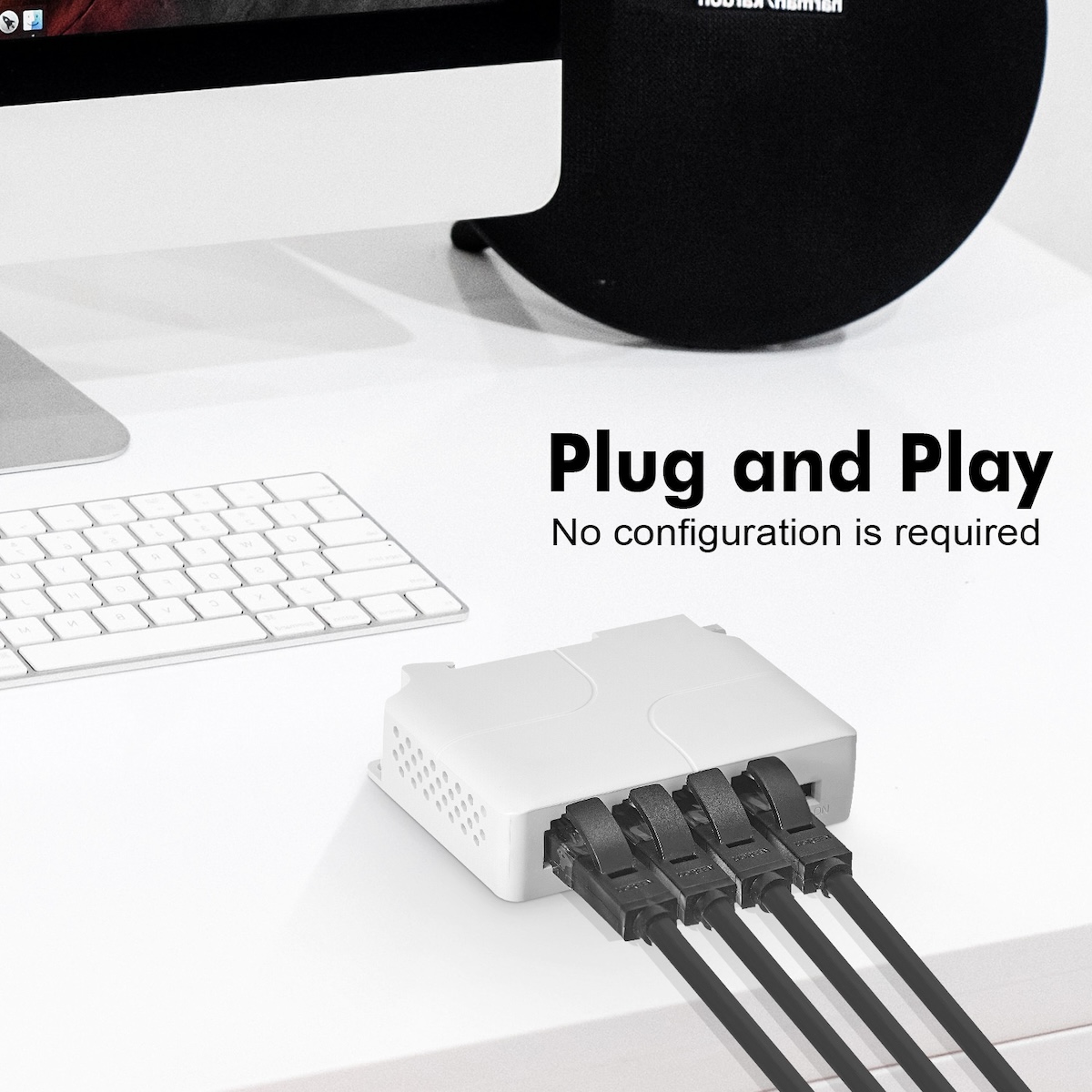

Plug and Play

The 3 port PoE extender support installation plug and play. No configuring is required. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device.

LED Indicators

You can quickly check working status and troubleshoot ports with led indicator on each port. Green(work well), Off(no power).

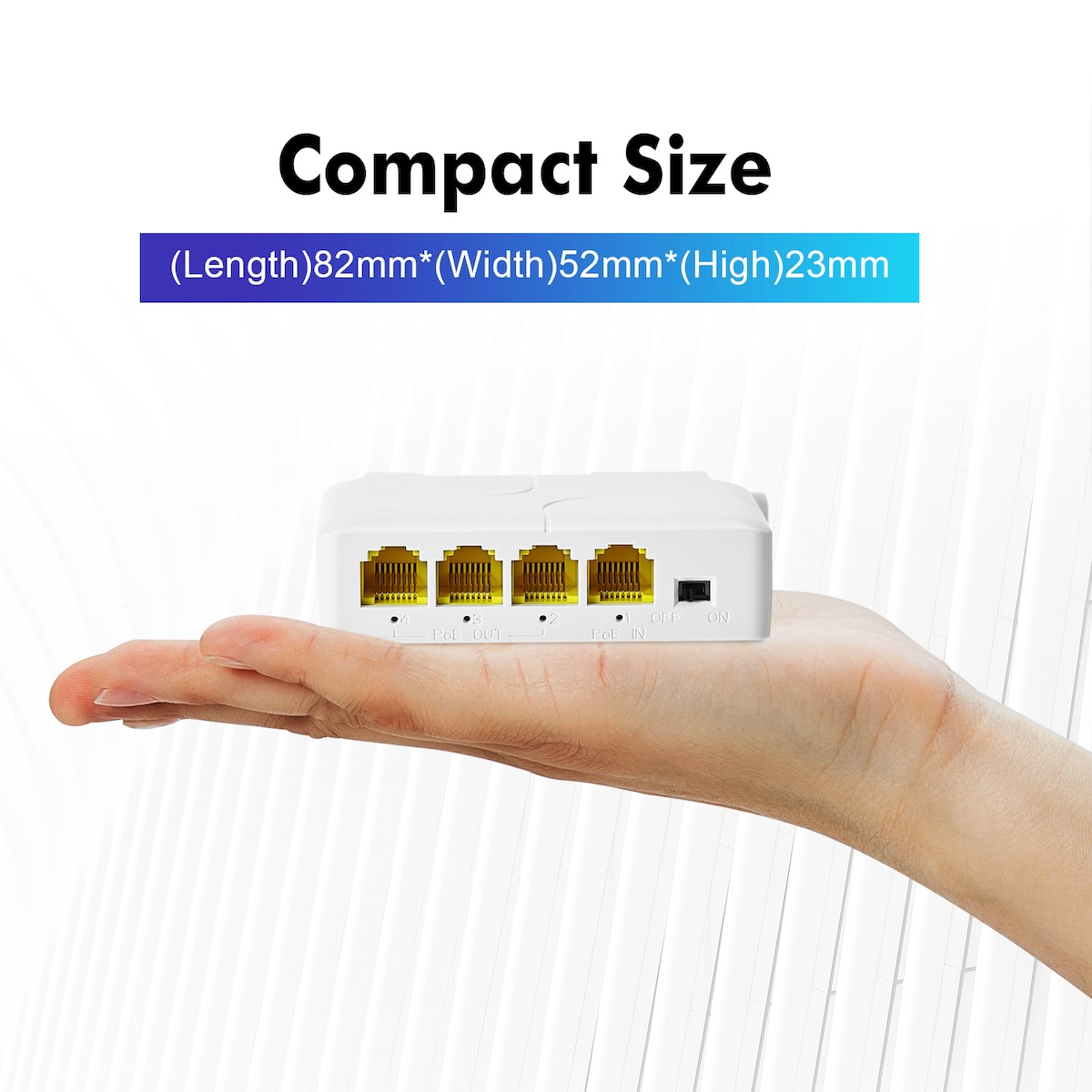

Compact Size

Compact dimension (82mm * 52mm * 23mm”), This design makes these sensors interesting for room critical applications.

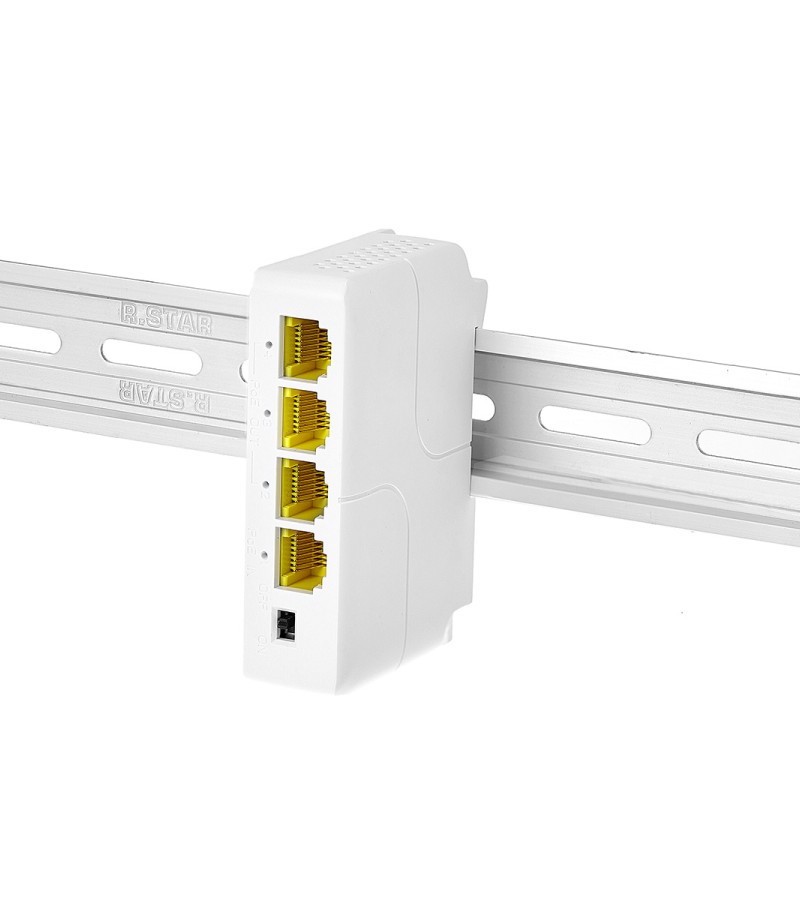

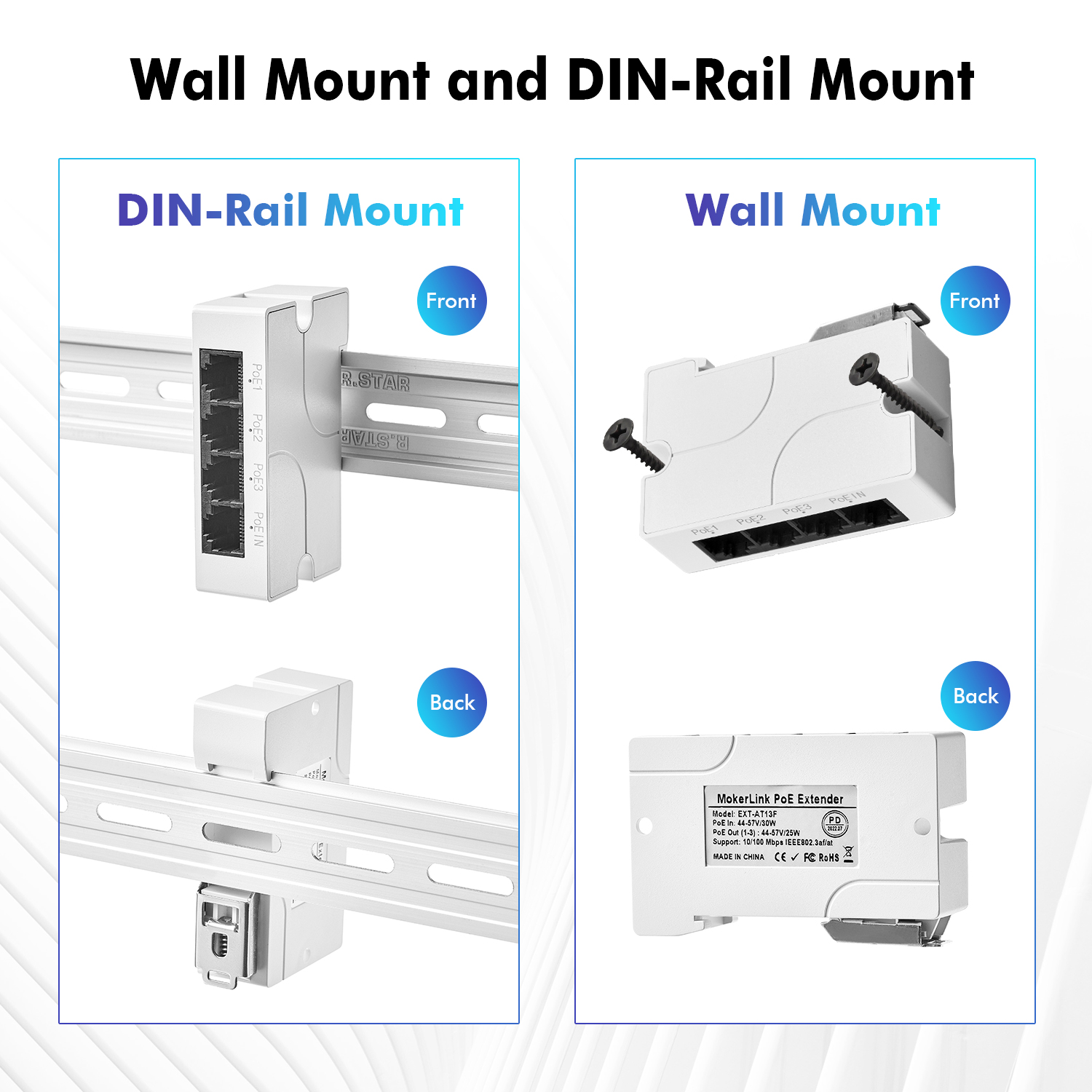

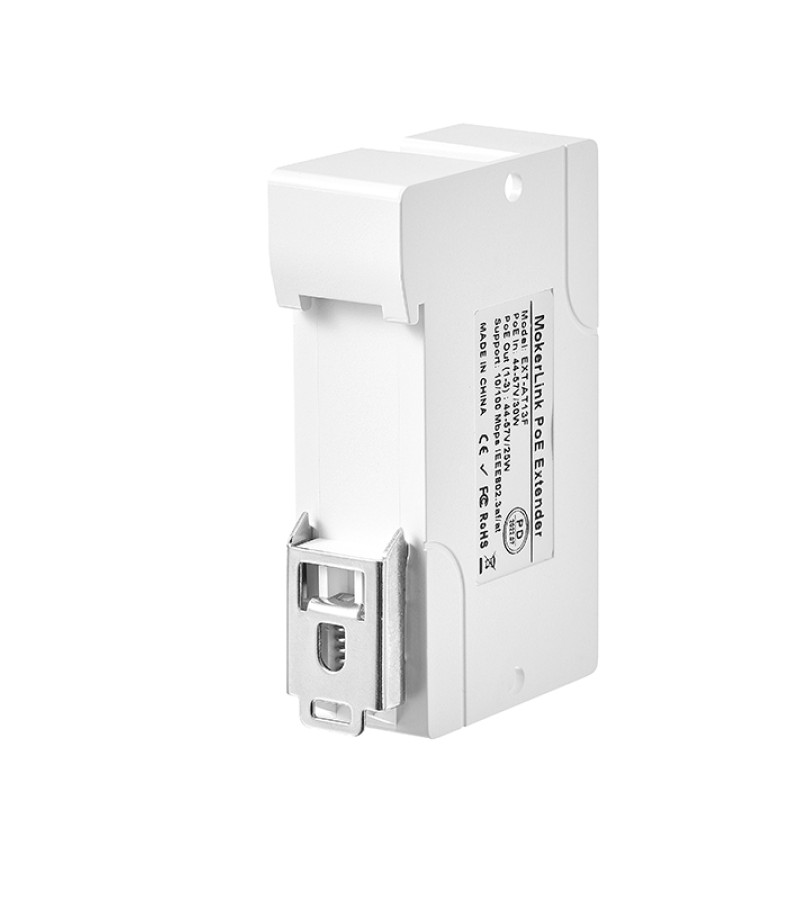

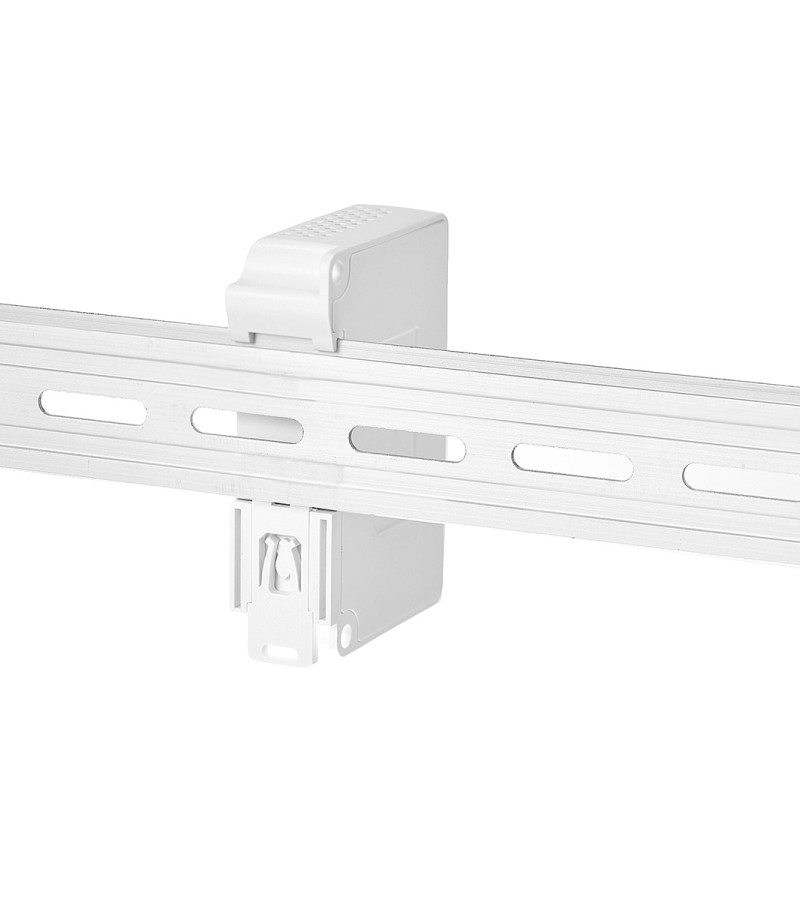

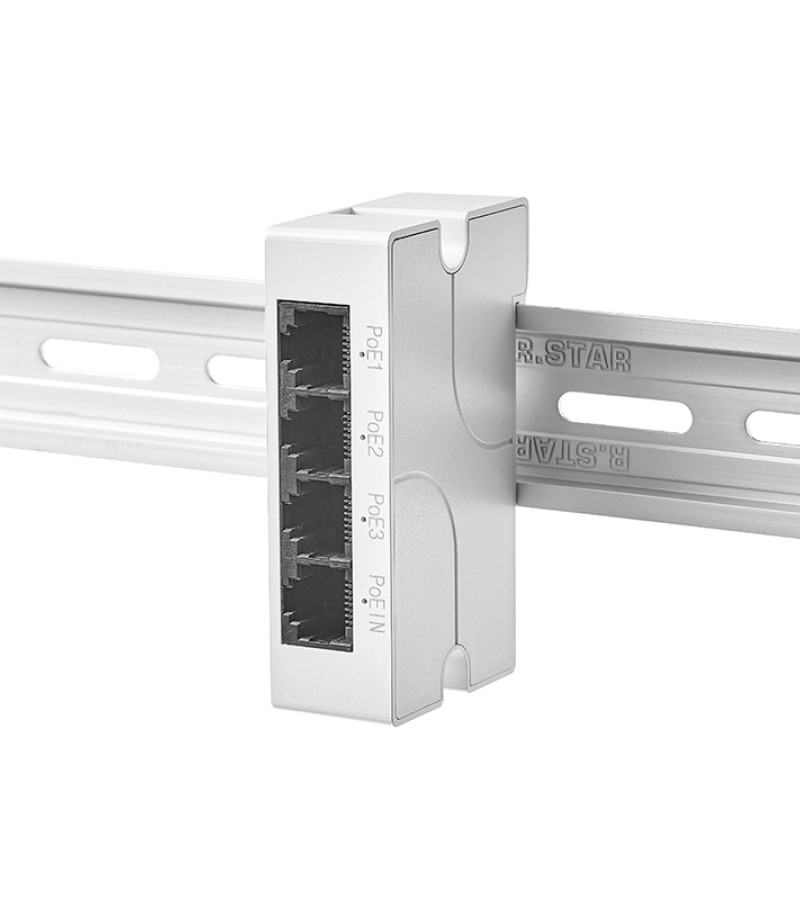

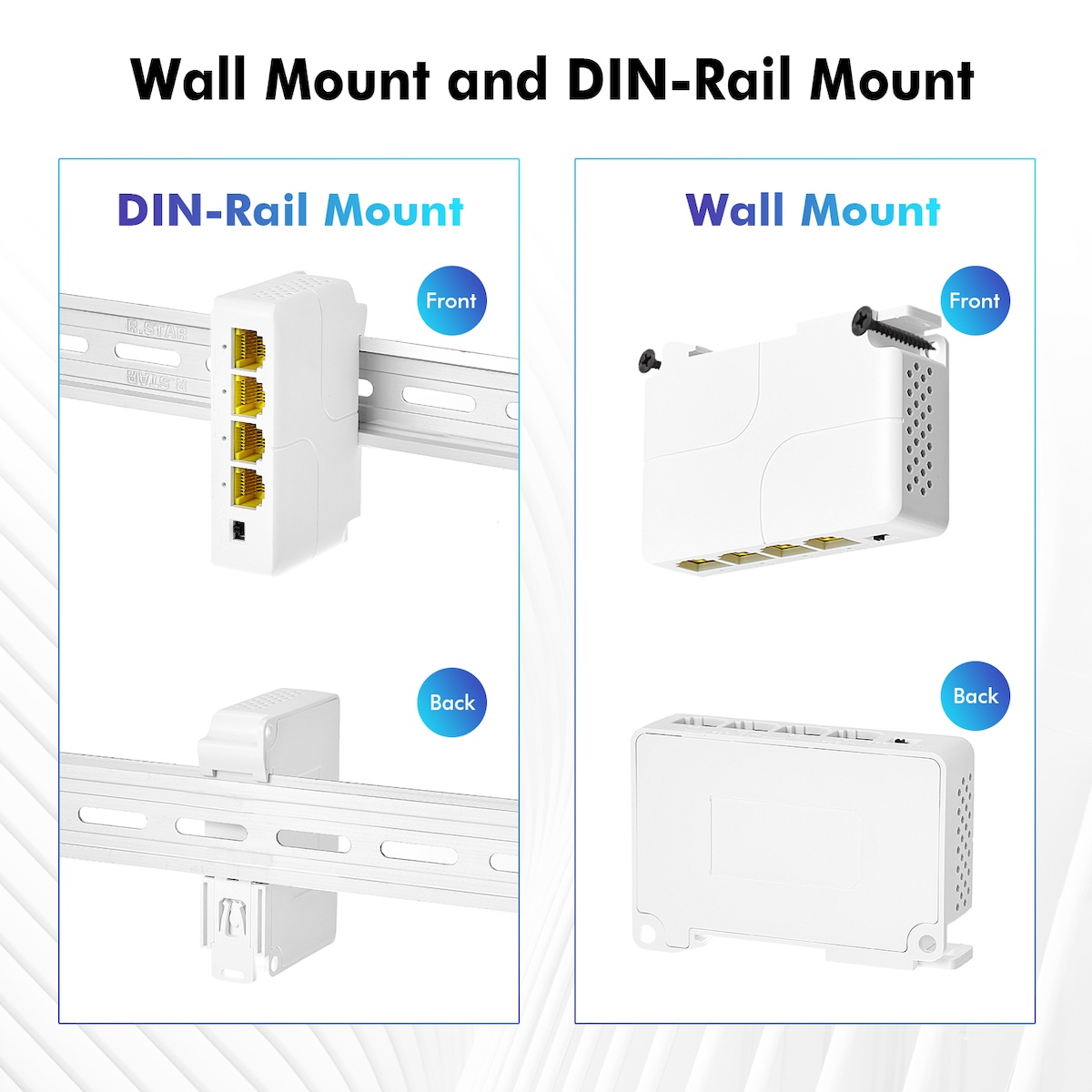

DIN-Rail Mountable

Ultra Compact PoE repeater can be mounted on a 35mm din rail. Save time and space.

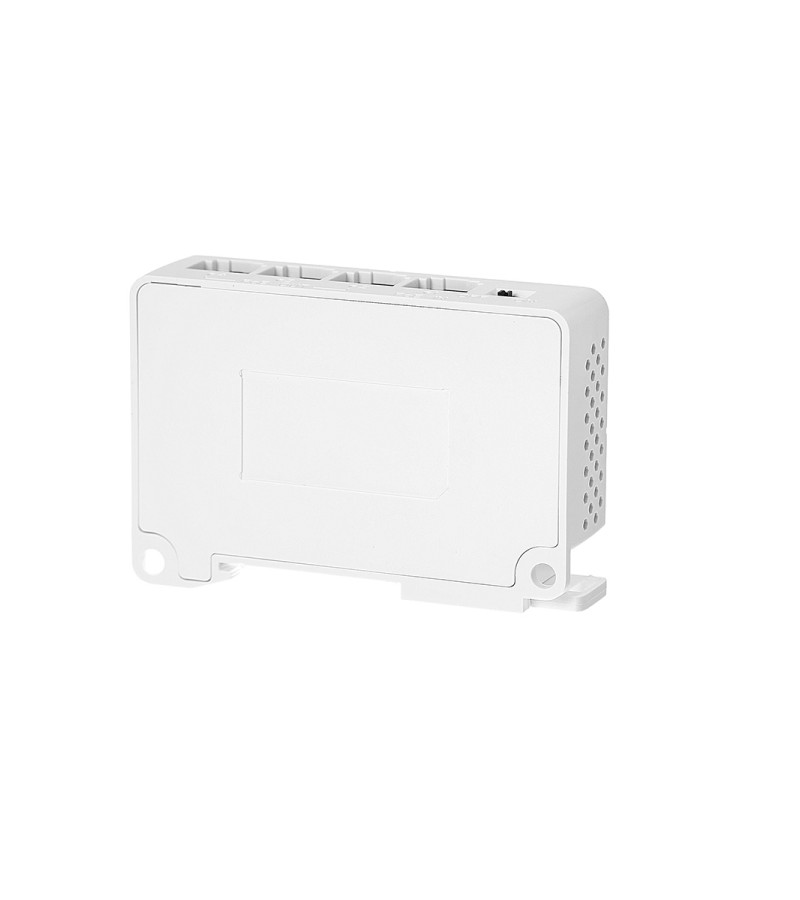

Wall Mountable

You can mount the extender on the wall or desktop,perfect solution for a variety of environments.

Ask Question About Product

Note: HTML is not translated!
Ethernet Switch Hardware Specifications
Product ModelEXT-AT13G
Product Name4-Port 1000M PoE Extender
Ethernet Port1*10/100/1000Mbps PD Ethernet Port + 3*10/100/1000Mbps PoE Port
Switching Capacity10Gbps
Network protocol IEEE802.3 (10Base-T), IEEE802.3u (100Base-TX/FX), IEEE802.3x (Flow control) , IEEE802.3ab (1000Base-TX)
PoE ProtocolIEEE802.3at (30W), IEEE802.3af (15.4W)
PoE Pin1/2 (-), 3/6 (+), 4/5(+), 7/8(-)
PoE Power BudgetInput Max 30W, Output Max 24W, Average 8W per port. PoE Voltage 44-57 Vdc
Network Medium210Base-T : Cat5e or above UTP(≤100m) 100Base-TX : Cat,5e or above UTP(≤100m) , 1000Base-TX : Cat5 or above UTP(≤100m)
Transmission Distance Up to 1000ft(300m) ,support 3 level cascading
Working Environment Working Temperature:-10~55°C, Storage Temperature:-40~85°C
Structure Size Product Size: 82*52*23mm, Product Weight:55g
Shell ABS+PC
