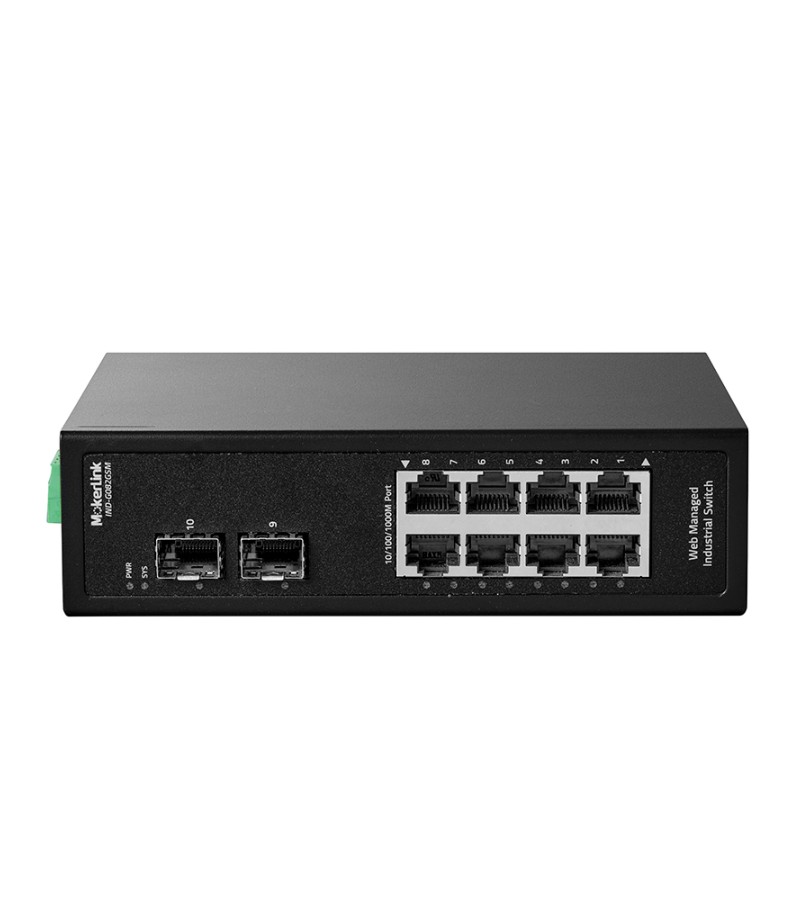

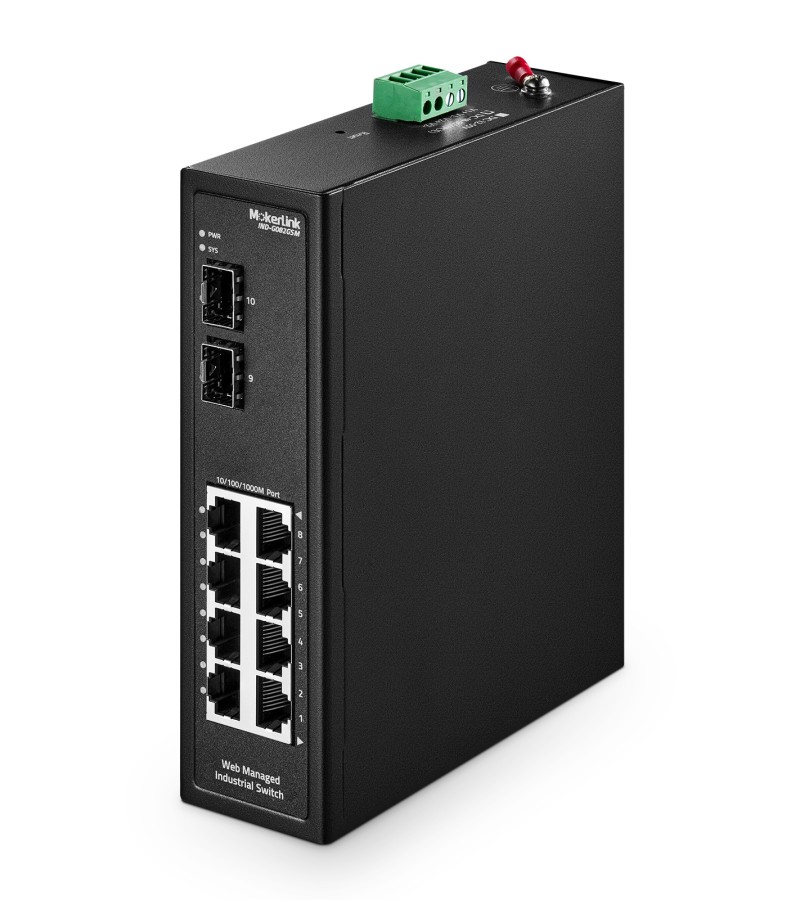

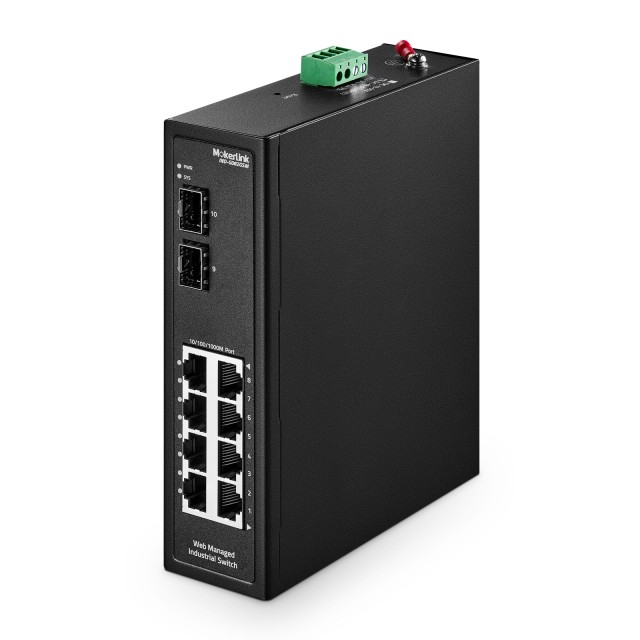

MokerLink 8 Port Gigabit Managed Industrial DIN-Rail Ethernet Switch with 2 SFP Ports, 20Gbps Switching Capacity, Web Managed IP40 Network Switch (-40 to 185°F)
8* Gigabit Ethernet Ports, 2* Gigabit SFP Ports, iron housing, IP40 Defense, 6KV Surge Protection, 15KV ESD, with super anti-interference protection capacity, support DIN rail/wall mounting installation. Support redundant power input (DC12-55V), operating temperature range -40 ° C to +75 ° C, pass the industrial environment certification
$149.99
Price drop reminder
- Brand: MokerLink
- Product Code: IND-G082GSM
- Availability: In Stock
IND-G082GS support 8* Gigabit Ethernet Ports, 2* Gigabit SFP Ports, iron housing, IP40 Defense, 6KV Surge Protection, 15KV ESD, with super anti-interference protection capacity, support DIN rail/wall mounting installation. Support redundant power input (DC12-55V), operating temperature range -40 ° C to +75 ° C, pass the industrial environment certification, reliable industrial design can ensure your system uninterrupted and stable operation.
This series of industrial switch can be widely used in wind power, electric power, assembly automation, metro PIS, power SCADA, sewage treatment, metallurgy, intelligent transportation, rail transportation, military and other industries, is a green and low power industrial switch.
Main Feature
- Support 8* Gigabit Ethernet Port+ 2* Gigabit SFP Port
- Support IEEE802.3, IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3z, storage and forward
- Ethernet ports support 10/100/1000M auto-adaptation
- Iron housing, DIN35 Rail
- Industrial grade 4 protective design, -40 to 75°C operating temperature
- 4KVSurgeProtection,15KVESD
Application Environment
- Metro Optical Broadband Network: Data network operators such as telecommunications, cable TV, and network system integration, etc.
- Broadband private network: Suitable for financial, government, oil, railway, electric power, public security, transportation, education and other industries
- Multimedia transmission: Integrated transmission of images, voice and data, suitable for remote teaching, conference TV, videophone and other applications
- Real-time monitoring: Simultaneous transmission of real-time control signals, images and data
- Resistance to harsh environment: Suitable for networking in harsh environment with strong electromagnetic interference and long distance.
Ask Question About Product
Note: HTML is not translated!
| Ethernet Switch Hardware Specifications | |
| Product Model | IND-G082GSM |
| Product Name | 10 Port Industrial Web Managed Switch |

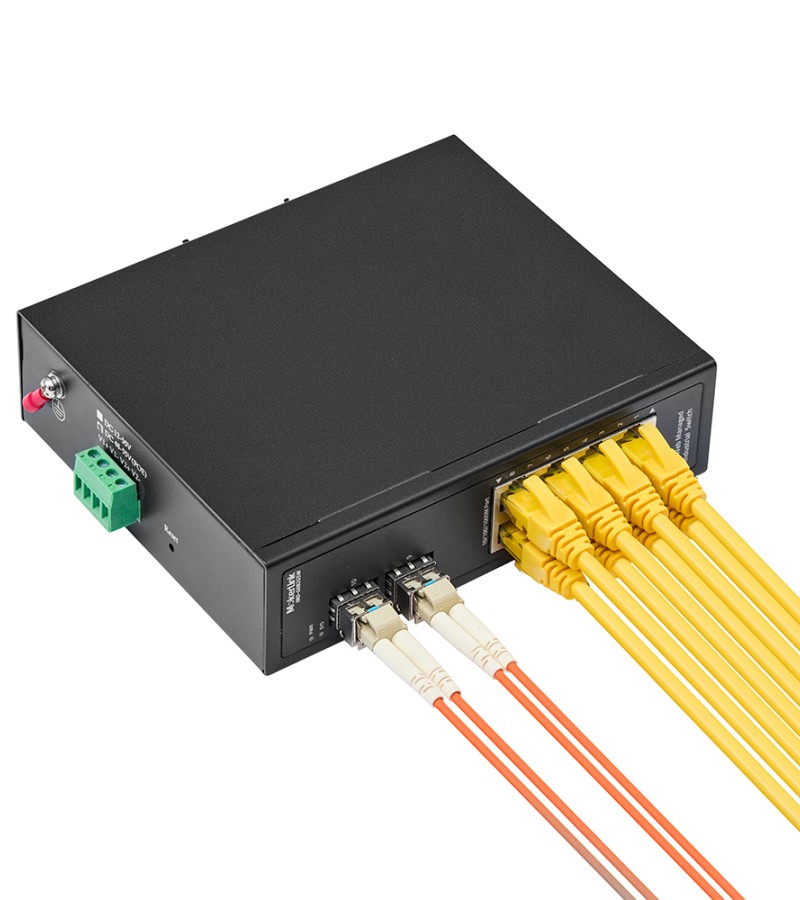

| Ethernet Port | 8* Gigabit Ethernet Port + 2* Gigabit SFP Port |
| Switching Capacity | 20Gbps |
| Throughput | 14.88Mpps |
| Flash Memory | 2M |
| MAC Address | 4K |
| Jumbo Frame | 9.6Kbytes |
| Transfer Mode | Store and forward |
| Mean Time Between Failure | 100000h |
| Network protocol | IEEE802.3 IEEE802.3i IEEE802.3u IEEE802.3ab IEEE802.3z |
| Network Medium | 10BASE-T: Cat5 or more UTP(≤100 m) 100BASE-TX: Cat5 or more UTP(≤100 m) 1000BASE-TX: Cat5 or more UTP(≤100 m) |
| Fiber Medium | Multi-mode：850nm，1310nm. transmission distance：550m/2Km Single-mode：1310nm，1550nm. transmission distance：20/40/60/80/100/120Km |
| Lighting Protection | Common mode 6KV, Differential mode 2KV; ESD 15KV, Contact 8KV |
| Security Certificate | CE ，FCC，ROHS |
| Working Environment | Working Temperature: -40～75℃ Storage Temperature: -40～85℃ Humidity: 5%~95 %, non-condensing |
| LED Indicator | PWR On: Powered on, Off: Powered off; 1-10 Port Green LED Light On: Link Connecting, Flashing: Data Transmitting, Off: Link Off |
| Structure Size | Product Dimensions: 160*135*44mm Package Dimensions: 242*207*86mm Product N.W: 0.74 KG Product G.W: 0.91 KG |

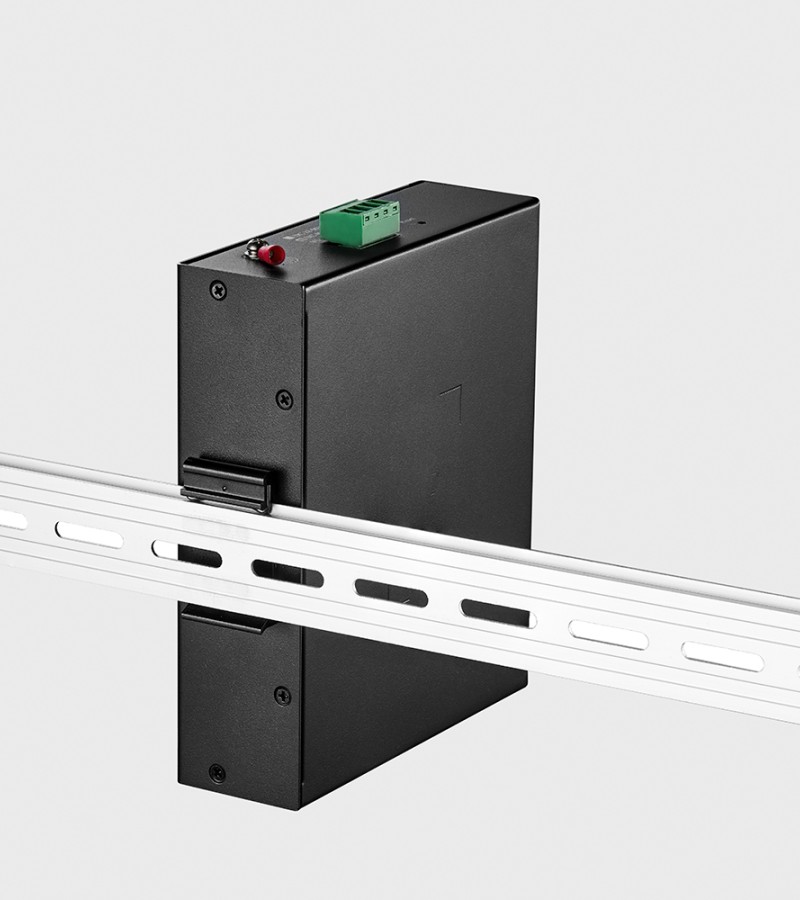

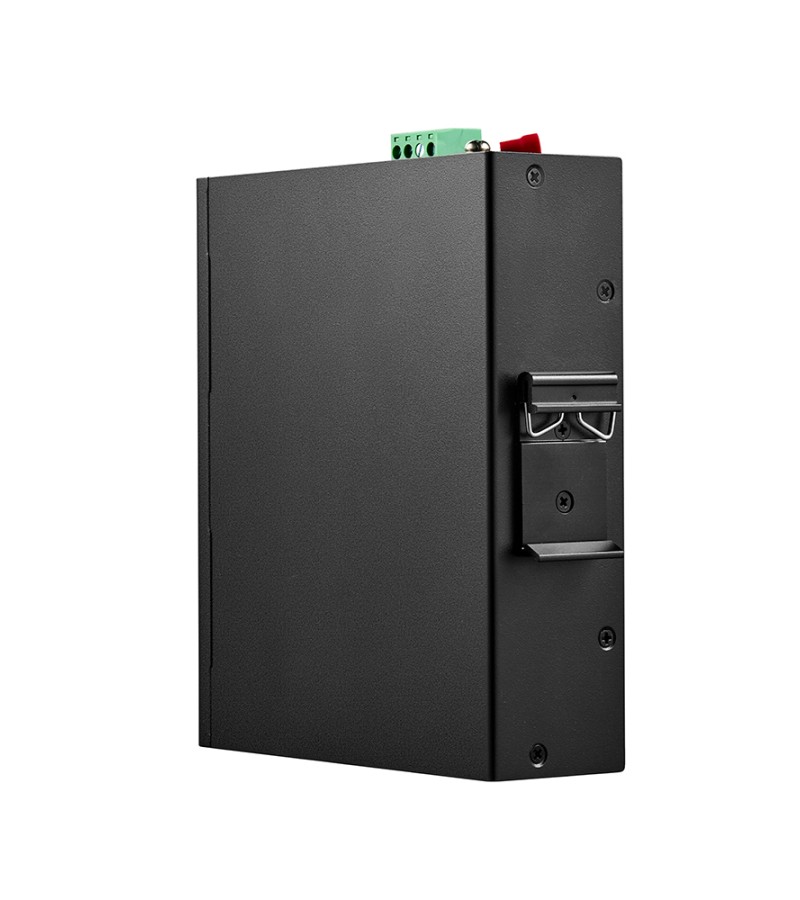

| Installation | DIN-Rail/Wall Mount |
| Shell | Black Color, Metal Shell, IP40 |
| Power Voltage | DC 12-55V, Power supply wiring: 4PIN Industrial Terminal (V1+V1-V2+V2-) |

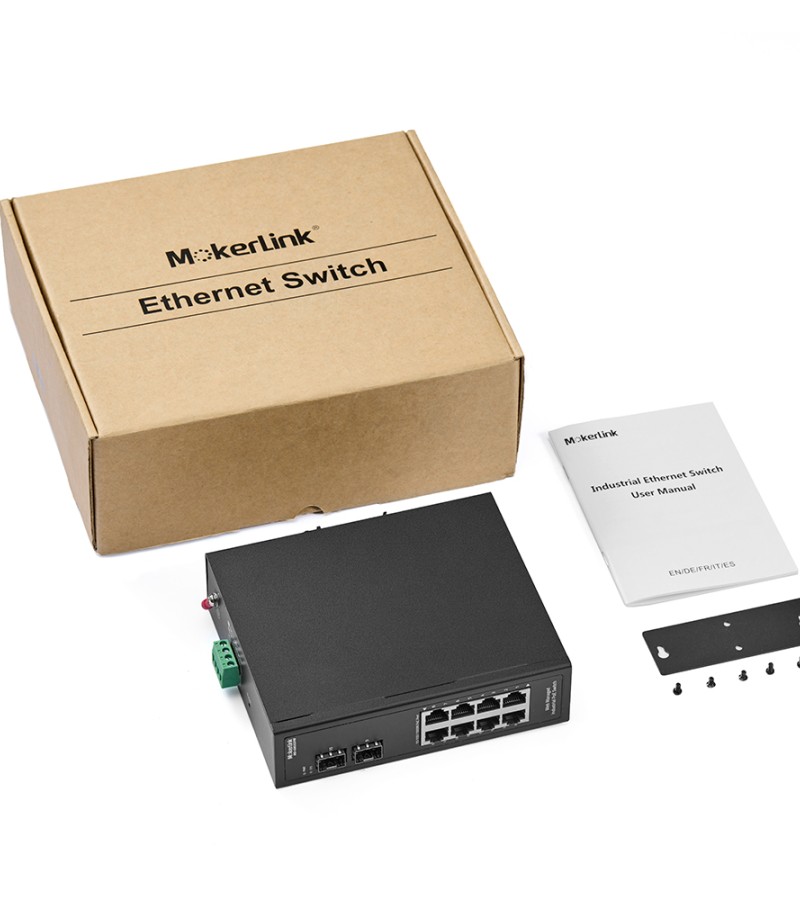

| Package List | 1.Industrial Switch: 1PCS 2.User Manual: 1PCS 3.Certificate: 1PCS Mounting Ear: 1 PCS |
